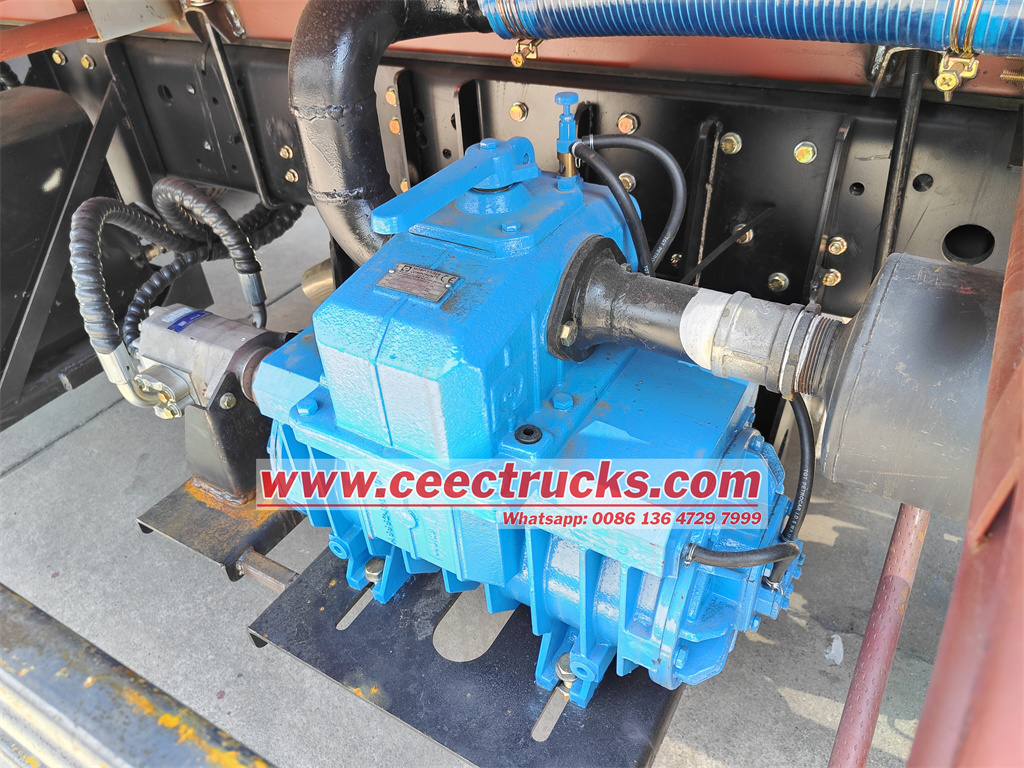

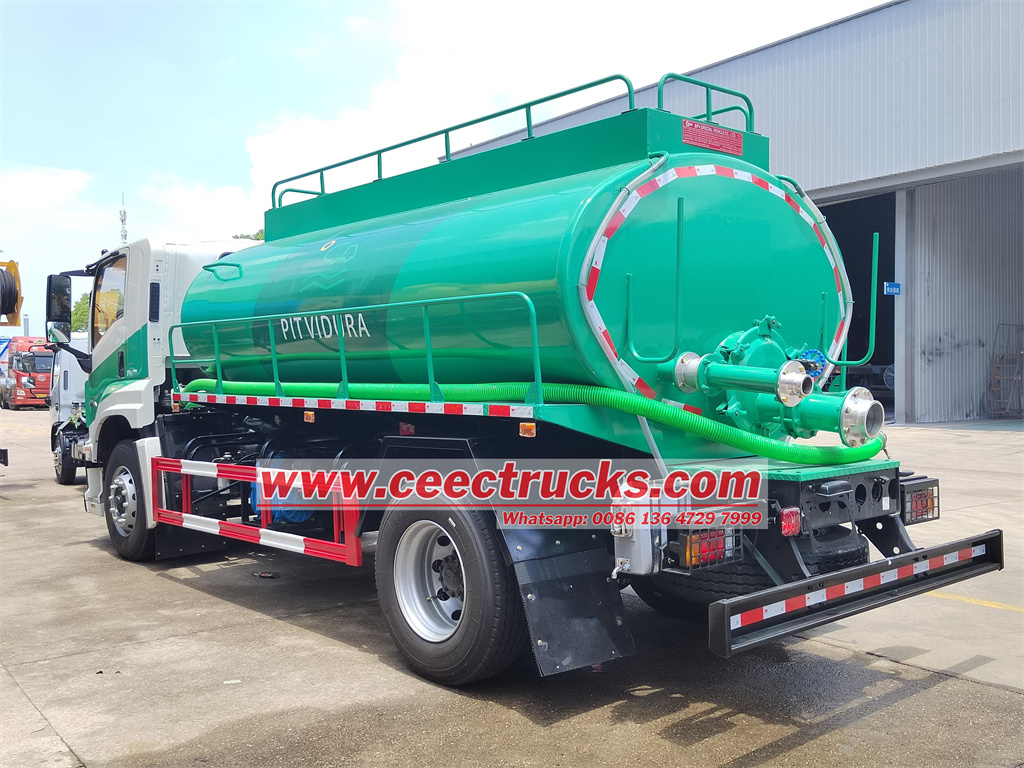

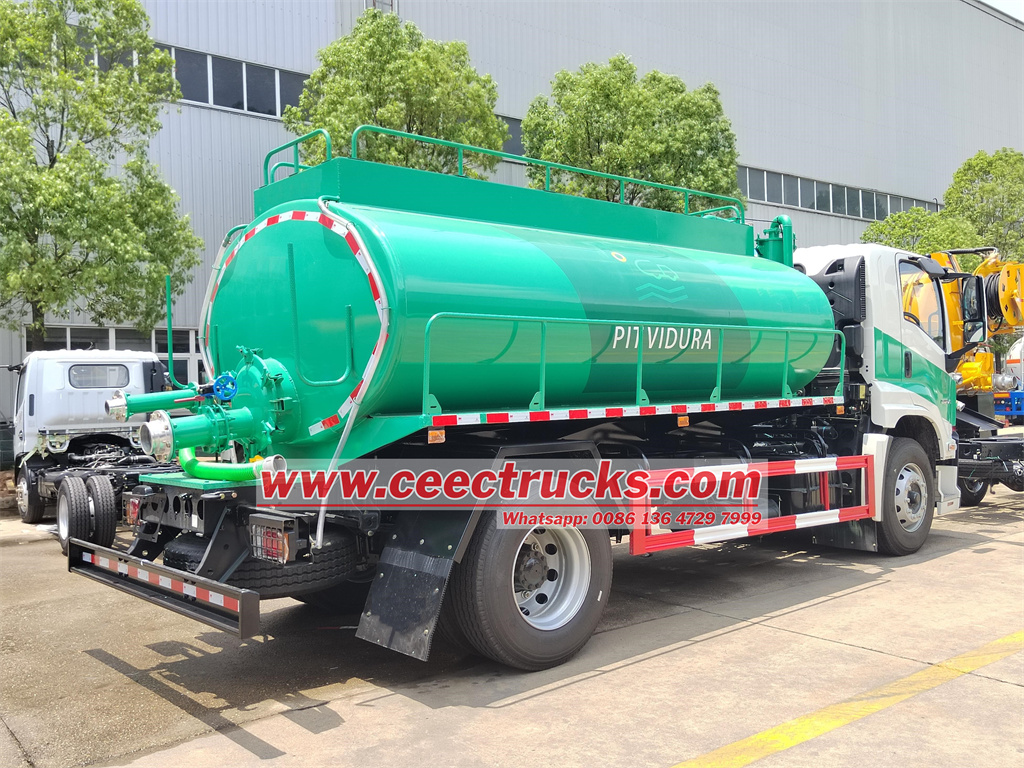

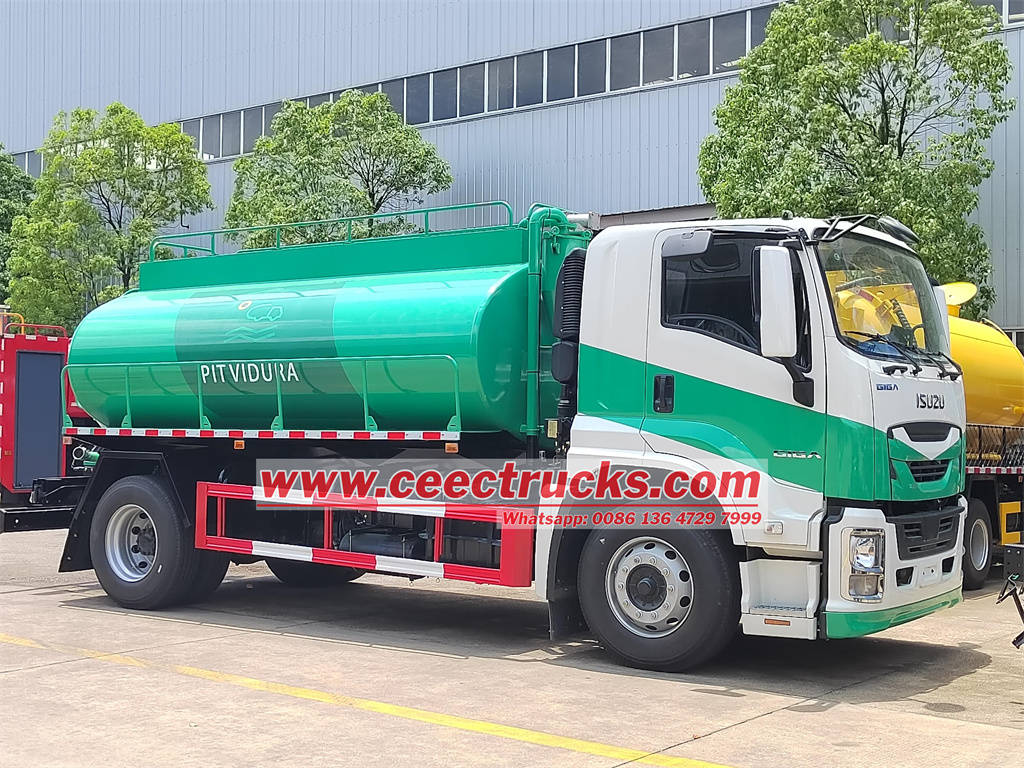

ISUZU GIGA 4X vacuum truck is a special vehicle built on the ISUZU GIGA 4X truck chassis. The Isuzu GIGA 4X sewer pumper truck chassis has excellent carrying capacity and stability, providing a solid foundation for vacuum trucks. As a well-known automobile manufacturer, Japanese brand and technology ISUZU products enjoy a good reputation for durability, reliability and fuel economy. To help customers enjoy better Isuzu septic pump truck service, we have our best selling model ISUZU GIGA 4X 10000L sewer truck mounted with Italy brand MORO PM80A vacuum truck.

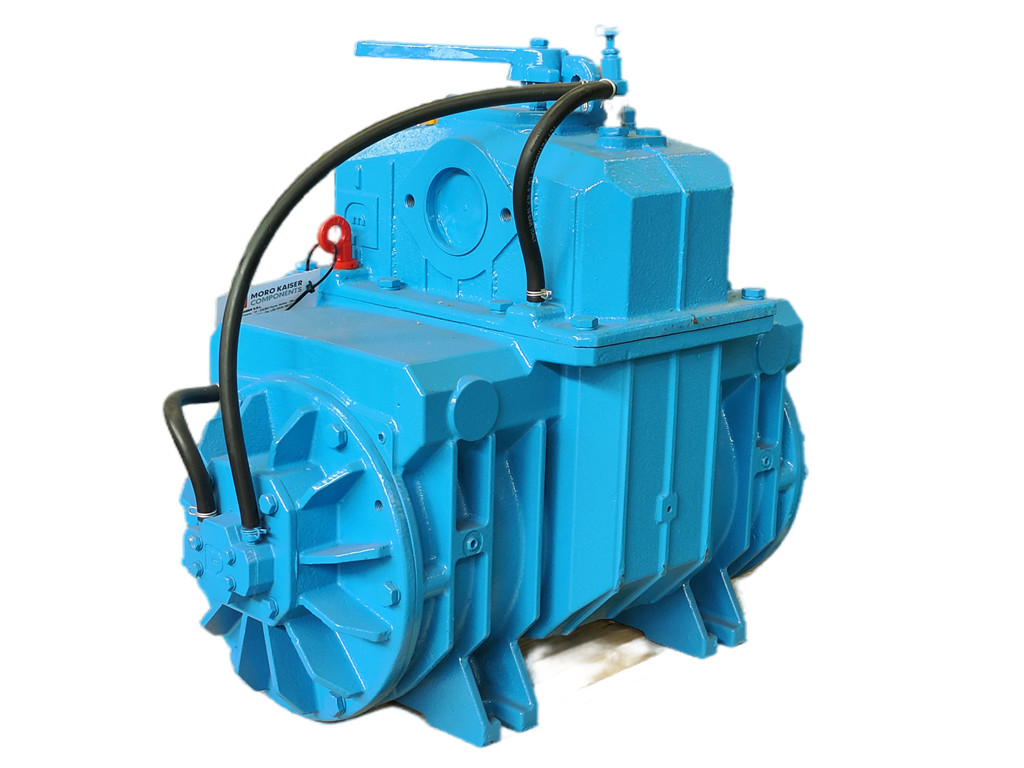

MORO is a long-established Italian vacuum pump manufacturer that has been producing high-quality vacuum pumps since 1965. Its products are widely used in various sewer trucks and equipment and are widely praised for their excellent performance and durability. PM80A is a classic model in the MORO vacuum pump series, with powerful suction capacity and stable performance. It adopts advanced rotary vane design to ensure efficient suction effect during long operation. The PM80A vacuum pump is also equipped with a variety of cooling methods (such as self-cooling, dual fan cooling, water cooling, etc.) to adapt to different working environments and needs. The Isuzu GIGA 4X 10cbm sewage removal truck mounted PM80A MORO pump with below advanced features:
The development of high-capacity rotary vane Italy MORO vacuum pumps has significantly advanced the efficiency and functionality of Isuzu pumper trucks, essential tools in environmental cleaning, septic maintenance, and industrial waste management. Featuring a heavy-duty cooling system with thermal overload protection, these MORO vacuum pumps are engineered to withstand the rigors of continuous operation under challenging conditions. The reinforced vacuum chamber, equipped with a pressure release valve, ensures safe and consistent performance, even under high load.
A key component to safeguarding the longevity and reliability of these Italy MORO pumps is the durable inlet filter. This filter is specifically designed to trap debris, preventing system damage and ensuring clean, unobstructed operation. Additionally, the integration of an oil catch muffler not only contributes to noise reduction, making operations less disruptive in noise-sensitive environments but also aids in oil mist recovery, reducing waste and environmental impact.
Monitoring and control are made precise and straightforward through the inclusion of vacuum and pressure gauges. These instruments allow operators to maintain optimal performance levels and diagnose potential issues before they lead to significant downtime or costly repairs. The high-flex vacuum hoses, featuring quick-connect fittings, provide versatility and ease of use, significantly reducing setup and tear-down times. All means Isuzu GIGA 4X sewer truck mounted PM80A vacuum pumps make working more convenient.
For enhanced operational efficiency, these Italy MORO PM80A vacuum pumps include a PTO (Power Take-Off) drive. This feature allows the pumps to be powered directly from the Isuzu GIGA heavy duty truck engine, eliminating the need for separate power sources and simplifying the vehicle’s overall design. In terms of safety, the system’s safety shutdown is vital. It triggers in high-temperature or over-pressure conditions, protecting both the equipment and the operator from harm.
Maintenance is streamlined and facilitated by a comprehensive kit that includes replacement vanes, filters, and seals. Regular maintenance is critical to ensuring the vacuum pump’s longevity and reliability, making these kits an invaluable addition to any operator’s arsenal.
After the ISUZU GIGA 4X vacuum sewage truck is equipped with a MORO PM80A vacuum pump, its suction capacity has been significantly improved. This allows the vehicle to complete the suction and transportation tasks of liquid waste such as sludge and sewage more quickly and efficiently. The MORO PM80A vacuum pump has excellent reliability and durability, reducing the frequency of repairs and replacements. This makes the operation of the ISUZU GIGA 4X septic pumper truck easier and reduces operating costs. Application scope: The combination of ISUZU GIGA 4X cesspit emptier truck and MORO PM80A vacuum pump is suitable for various complex cleaning environments, such as urban sewers, septic tanks, sewage treatment plants, etc. They can efficiently clean sludge and sewage in these places, providing strong support for urban environmental sanitation and sewage treatment work.
|
GENERAL |
|
|
Make/Model |
CEEC TRUCKS / QL1180JQFRCY |
|
Drive Type |
4×2 Left-Hand Drive |
|
Overall Dimension (L x W x H) |
8,300 x 2,500 x 3,450 (mm) |
|
Gross Vehicle Weight |
16,000kg |
|
Curb Weight |
10,500kg |
|
Wheelbase |
4,500mm |
|
Chassis Designed |
ISUZU GIGA 4X |
|
Cabin |
Hydraulic power steering type. 1 driver+2 passengers |
|
Drive wheel(Tires ) |
4+2 and one spares (total of 7 wheels) |
|
Tire Size |
295/80R22.5 |
|
ENGINE |
|
|
Make / Model |
ISUZU / 4HK1-TCG60 |
|
Type |
4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
|
Displacement |
5.193L |
|
Nominal Power |
205HP (151kw) @ 2600rpm |
|
Peak Torque |
650N.m@1,600rpm |
|
Emission Standard |
Euro 6 |
|
TRANSMISSION |
|
|
Make / Model |
ISUZU MLD |
|
Type |
Diesel |
|
Operation |
Manual |
|
Number of Speeds |
6F+1R |
|
CONSTRUCTION |
ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
|
CAPACITY |
10,000L |
|
Sludge Tank |
|
|
Thickness |
6 mm |
|
Division of Compartment |
The tank is single compartment with baffles inside for safety Sludge/sewage tank compartment: 10,000liters |
|
Level Indicators |
Material: Transparent acrylic tubing with thick wall Quantities: One |
|
Rear Door |
Fully sealed type rear door with openable cover It is reinforced for structural integrity. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
|
Vacuum Pump |
|
|
Make/Model |
MORO/ PM80A |
|
Pump Capacity |
12000Lt/min |
|
Cont. Duty Vacuum |
80% |
|
Maximum Vacuum |
95% |
|
Type |
Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
|
Max. Exhaust Power |
34kw |
|
Rotated Speed |
1,100rpm |
|
Hose |
|
|
Hose Reel |
On the rear end of the Combined tank is provided the hose’s reel, which is designed to store up to 120 meters of the supplied sewer jetting hose 1″. Delivery and recovery of the jetting hose is done via a low-speed, high torque hydraulic. |
|
Heavy Duty Spiral Suction Hoses |
Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
|
Safety Device |
Equipped with anti-flow devices |
The newly designed and produced ISUZU GIGA 4X vacuum sewage truck with Italian MORO PM80A vacuum pump is a cleaning equipment with excellent performance, easy operation and wide range of applications. It can meet the cleaning needs in various complex environments and provide strong guarantee for urban environmental sanitation and sewage treatment work. And the MORO PM80A matched with Isuzu GIGA 4X truck chassis better. Also Isuzu GIGA 4X vacuum pumper trucks can be equipped with MORO PM110W pump for super powerful working.
