How to maintenance and replace the rear loader truck nylon slider?

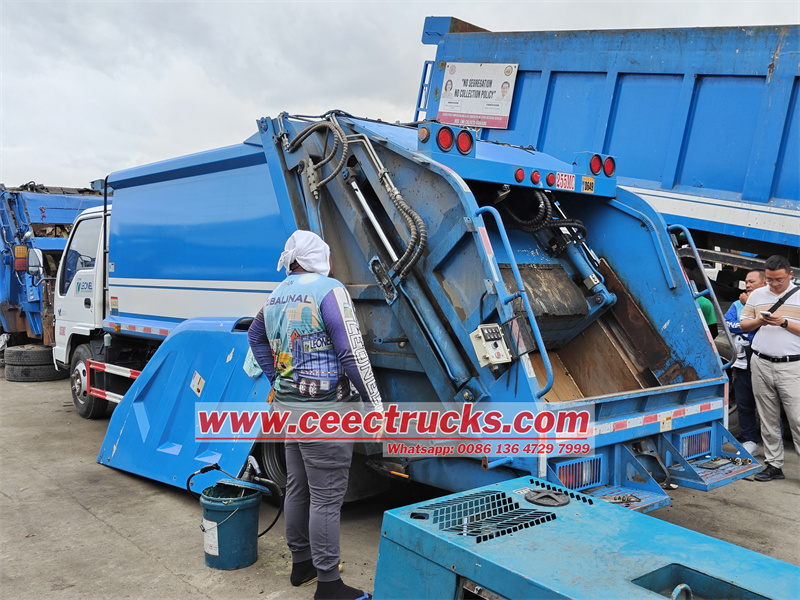

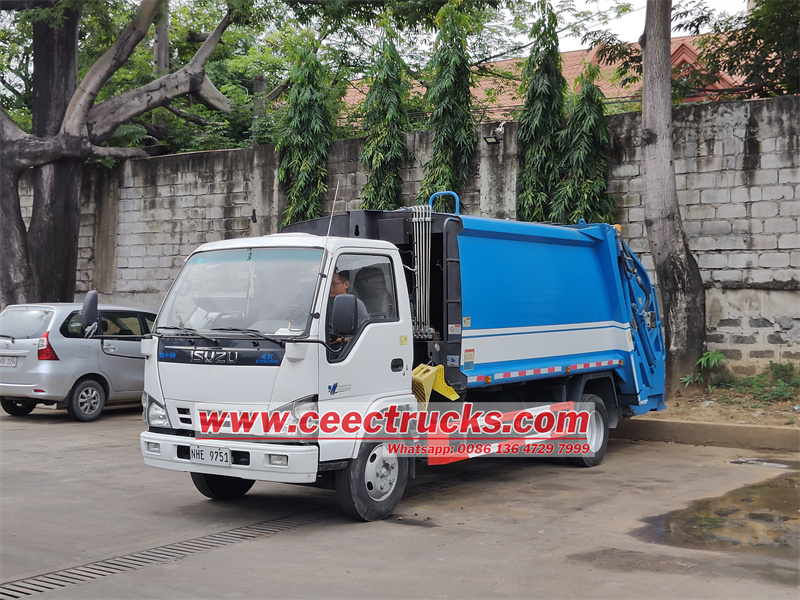

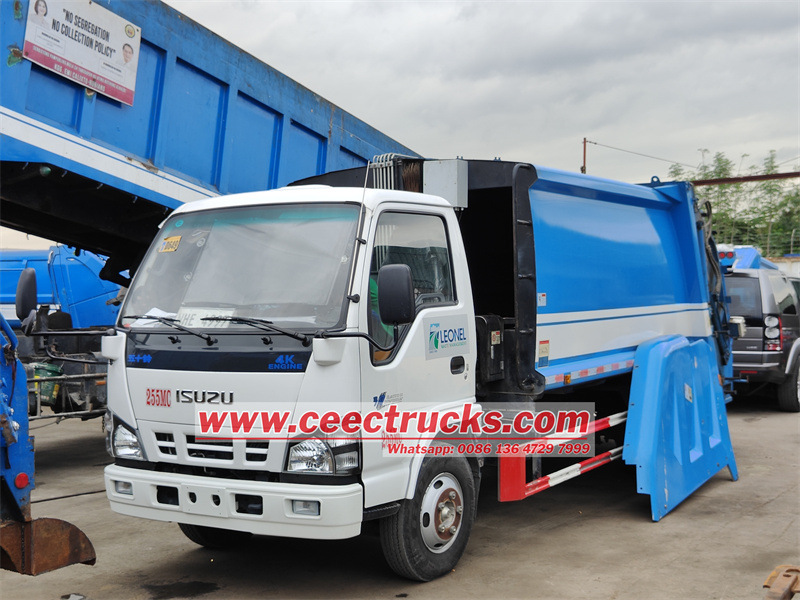

The Rear Loaders Garbage Truck is a high-performance garbage compression vehicle, featuring a substantial compression ratio, ample loading capacity, swift operational efficiency, and minimal noise levels. Waste tossed into its hopper undergoes initial crushing by a press plate, followed by compression and packing by an ejection plate within the vehicle's body. The ejection push plate facilitates the smooth discharge of collected waste. This refuse compactor effectively addresses typical issues like limited capacity, weak compression force, and slow operational efficiency in compression vehicles. Its sophisticated loading, compacting, and transportation capabilities are tailored to meet clients' requirements. CEEC TRUCKS boasts decades of expertise in truck manufacturing. And always offer reliable after sale service to customer locally for operation guidance and problem solving.

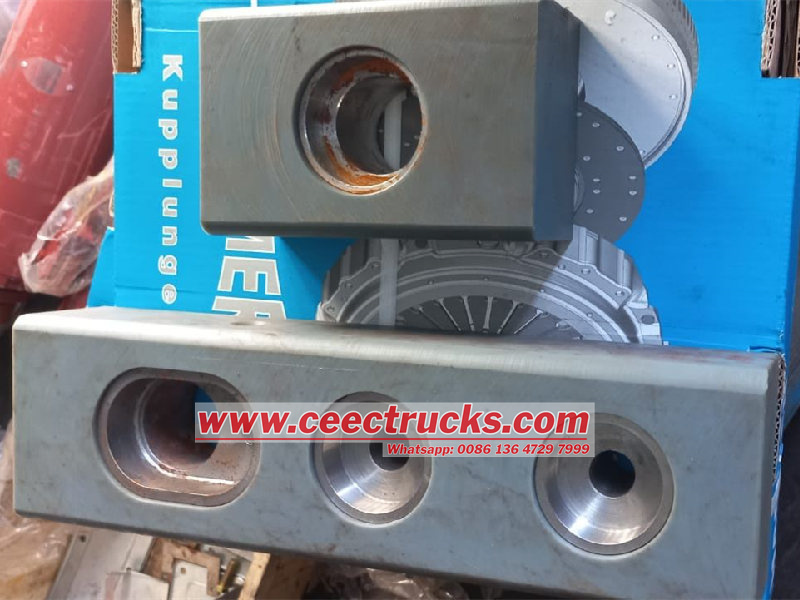

The nylon slider on the Isuzu rear loader garbage truck is an important mechanical part made of nylon material with excellent wear resistance, self-lubrication and mechanical strength.

The nylon slider mainly plays the following roles on the garbage compactor truck:

Reduce friction and wear: The nylon slider on garbage compactor trucks is firstly located between the push plate slide rail and the box track, and secondly locaded between push plate and rear hopper, which can significantly reduce the friction between the two, thereby reducing wear and extending the service life of the equipment.
Maintain equipment stability: The nylon slider can ensure that the push plate and slide plate remains stable during the sliding process, avoiding equipment shaking or instability caused by uneven friction or excessive gaps.
Improve work efficiency: Because the nylon slider has good self-lubrication, it can reduce resistance during sliding, thereby improving the operating efficiency of the equipment.

Features and advantages of nylon slider on ISUZU rear loader truck:

1. High wear resistance: Nylon material has excellent wear resistance and can maintain stable operation even in harsh working environments.
2. Self-lubrication: The nylon slider on Isuzu refuse compactor truck has good self-lubricating properties and can achieve smooth sliding without the addition of additional lubricants.
3. Lightweight and high strength: Nylon sliders are not only light in weight, but also have high mechanical strength and can withstand greater pressure and load.
4. Corrosion resistance: Nylon materials have good corrosion resistance to a variety of chemical substances and can maintain stable performance in a variety of complex environments.

Replacement and maintenance of Nylon Slider on Isuzu garbage compactor trucks:
As a consumable part, nylon sliders on POWERSTAR refuse compressed vehicles need to be inspected and replaced regularly. During use, attention should be paid to observing the wear of the slider. Once the wear reaches a certain degree, it should be replaced in time to avoid affecting the normal operation of the equipment. At the same time, the surface of the slider should be kept clean and lubricated to extend its service life. Detailed process should be as below:

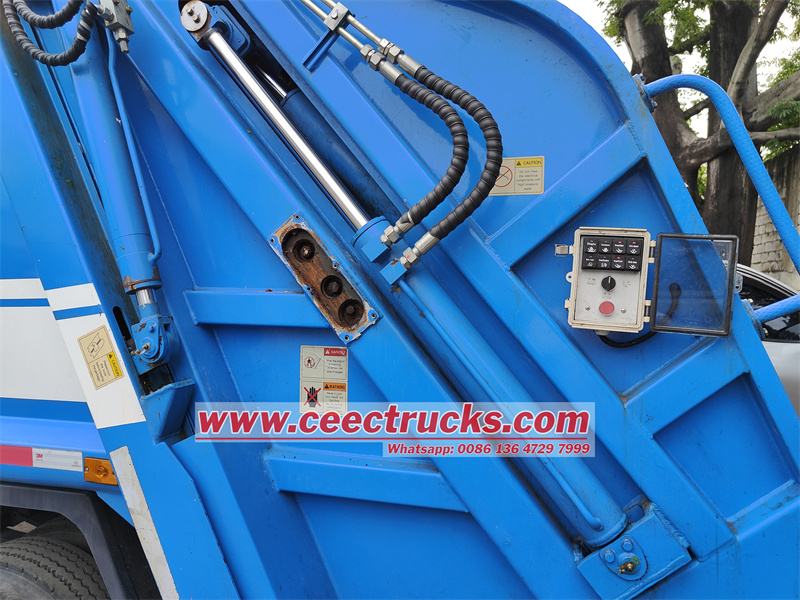

Where is the Nylon Slider



Prepare the common tools such as wrenches and spaners, take off the side protect fence, which usually connect with rear hopper, then can start checking and nylon slider between slide plate and rear hopper, there are two nylon sliders, upper nylon slider and loader nylon slider, mostly attention should be paid to the lower part. Also between push plate and compactor body also equipped with nylon slider, which make the push plate working more smoothly.

Remove the Nylon Slider



After take off the fiberglass side cover, please also take away the small cover on nylon slider, then can see the lower nylon slider, if need, Use a wrench to remove the screws and nuts on the slider connection part and remove the slider from the device. During the disassembly process, pay attention to protect the slider and surrounding parts to avoid damage. After removed, the position can be throughly clean.

Clean and fasten Nylon Slider



If no need to remove the nylon slider, just follow below steps to clean and fasten it.

Cleaning: Clean the removed nylon slider and remove dirt and dust on the surface. You can use detergent or washing liquid for cleaning, and wipe the surface of the slider with a brush or soft cloth.

Checking: Carefully check whether the surface of the nylon slider is worn, cracked or damaged. If the slider is severely damaged and cannot be repaired, you need to replace it with a new slider.

Lubrication and Fasten: After nylon slider clean, use wrench to fasten all bolts and then lubrication the slider.

Replace the Nylon Slider



If the nylon slider wear and need to be replaced, please follow the below information for change.

Choose the correct nylon slider: Choose the right nylon slider for replacement according to the specific situation of the equipment. Make sure that the size and model of the new slider match the original slider.

Install the new nylon slider: Place the new nylon slider in the correct position and fix it with screws and nuts. During the fixing process, pay attention to keep the slider stable and horizontal to avoid loosening or damage to the slider due to improper installation.

Check the installation: After the installation is completed, check the installation of the slider to ensure that the slider is tightly connected to the rest of the equipment and is stable. You can gently shake the slider by hand to check if there is any looseness or abnormal noise.

The nylon slider on the Isuzu rear loader compactor truck is a key mechanical part with multiple advantages and functions. The correct selection and use of nylon sliders is of great significance to improving the operating efficiency and service life of the compression garbage truck.

During the replacement of the nylon slider, pay attention to safe operation to avoid accidents. For example, wear protective gloves, goggles and other protective equipment to ensure safety during operation. Regular maintenance and maintenance of the nylon slider of the garbage truck can extend the service life of the slider and keep the equipment in good operating condition. And then can guarantee Powerstar Isuzu rear loader garbage truck working more smoothly.
