The operator's manual for Isuzu waste compactor trucks is a document that instructs operators on how to properly use and operate Isuzu waste compactor trucks. Isuzu waste compactor trucks are special trucks designed to collect and compress garbage. It usually has special compression devices that can compress garbage into a more compact and high-density form, thereby reducing the space occupied by garbage.
The operator's manual provides operators with detailed information about the Isuzu waste compactor vehicle, including the structure and components of the vehicle, how to properly operate each part and device, how to operate safely, and maintenance and repair guidelines. By following the instructions in the operator's manual, operators can effectively use the compactor garbage truck to ensure efficient garbage collection and disposal processes and ensure the safety of operators.
What are the benefits of operating Isuzu waste compactor trucks correctly?
1. More efficient garbage collection: By operating Isuzu trash compactor trucks correctly, space waste can be reduced, allowing each vehicle to load more garbage, reducing the number of work times and time costs of garbage collectors.
2. Reduce pollution and odor: By operating Isuzu trash compactor trucks correctly, garbage leakage and odor can be effectively reduced. By compacting the garbage tightly, the exposure and odor of the waste can be reduced, thereby reducing pollution to the environment and residents.
3. Improve the city appearance: The correct use of the Isuzu trash compactor truck can improve the overall sanitation and appearance of the city. By reducing the exposure and odor of garbage, the city can be made cleaner and more beautiful. At the same time, more efficient garbage collection can also reduce the accumulation of garbage on the streets and improve the quality of life of citizens.
Before describing how to operate it correctly, let's first understand the specific specifications of the Isuzu light-duty garbage compactor truck:
|

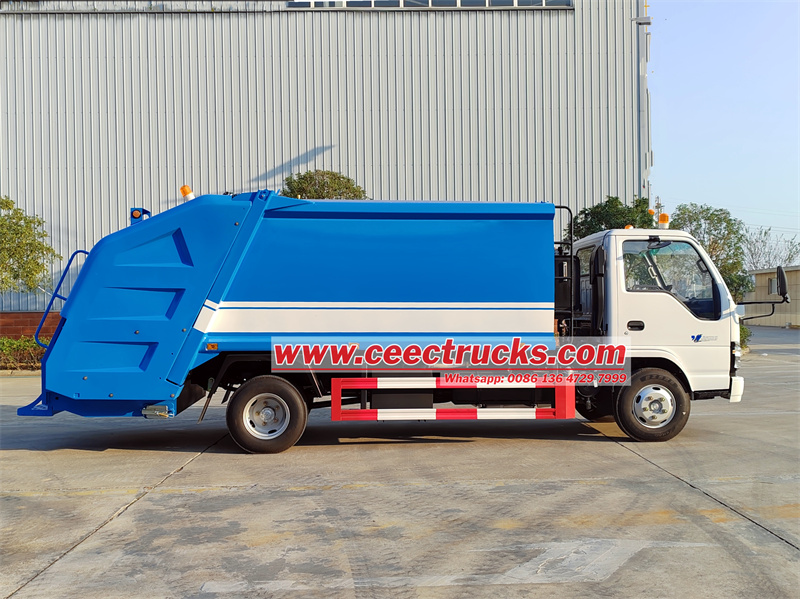

ISUZU NKR rear loader Truck |
|
|
Model |
PST5073YSLJC |
|
Driving Type |
4*2 |
|
Gross Weight |
7300kg |
|
Related Loading Mass |
4900kg |
|
Curb Weight |
5300kg |
|
Dimension |
7100*2250*2530mm |
|
Wheelbase |
3815(mm) |
|
Front Axle Loading Capacity |
4300kg |
|
Rear Axle Loading Capacity |
7500kg |
|
Approach angle |
20° |
|
Departure angle |
13° |
|
Tire |
700R16 |
|
Max Speed |
90 (Km/h) |
|
Fuel tank |
70L |
|
Engine parameters |
|
|
Model |
4HK1CN6LB |
|
Horse Power |
120 hp |
|
Displacement |
2.99L |
|
Emission Standard |
Euro 6 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
|
Gear Box |
|
|
Gear Box |
MSB 5 forward and 1 reverse |
|
Superstructure Parameter |
|
|
Tank Volume |
8 CBM |
|
Tank Shape |
Arc-shape |
|
Tank Material thickness |
Bottom:4mm Side:4mm |
|
Tank manufacturing process |
Whole board manufacturing |
|
Tank Material |
Q235 (Special Steel) |
|
Compression Ratio |
1 : 3.4 |
|
The effective volume of the bucket |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|
control method |
Automatic,Manual |
|
Maximum pressure of hydraulic system |
20MPa |
|
Control System |
PLC |
|
Control panel |
English or Your language |
|
Engine power control |
Fully automatic control |
|
standard accessories |
Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… |
|
Optional |
** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100L bins with bin lifter can be choose. |

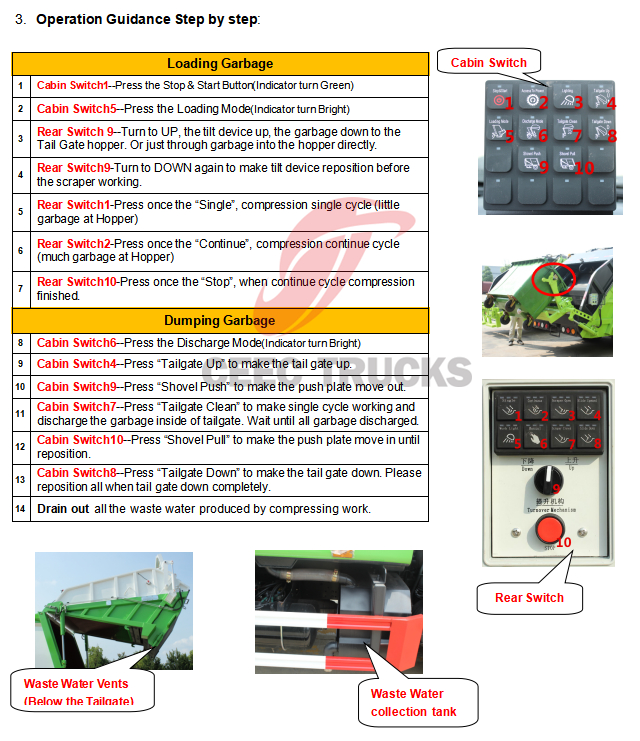

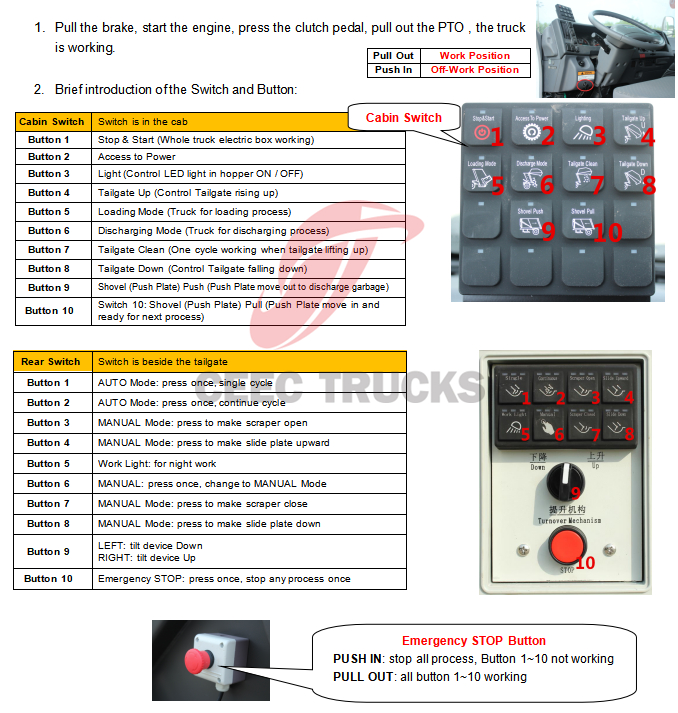

Below is our factory's operating instructions for Isuzu NKR trash compactor truck. The steps are simple and easy for customers to read. We will equip all Isuzu trucks purchased with CEEC brand. Please check:
