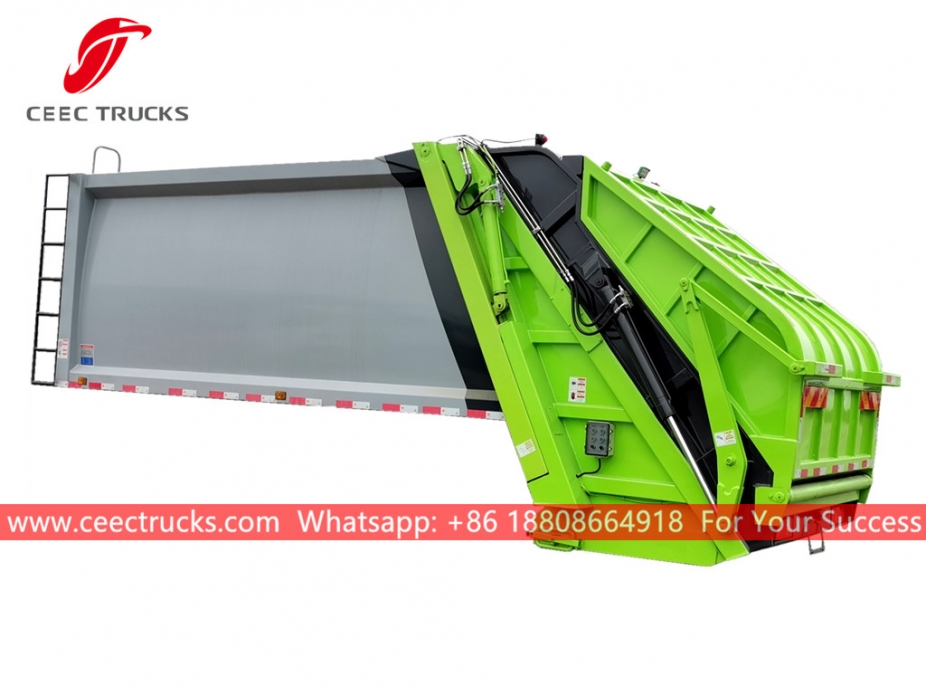

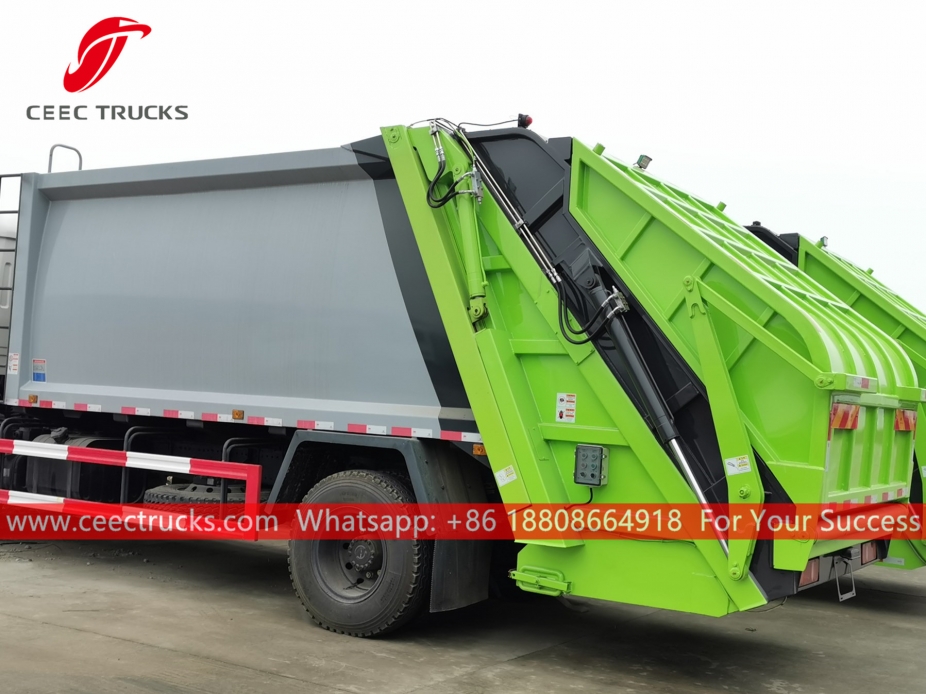

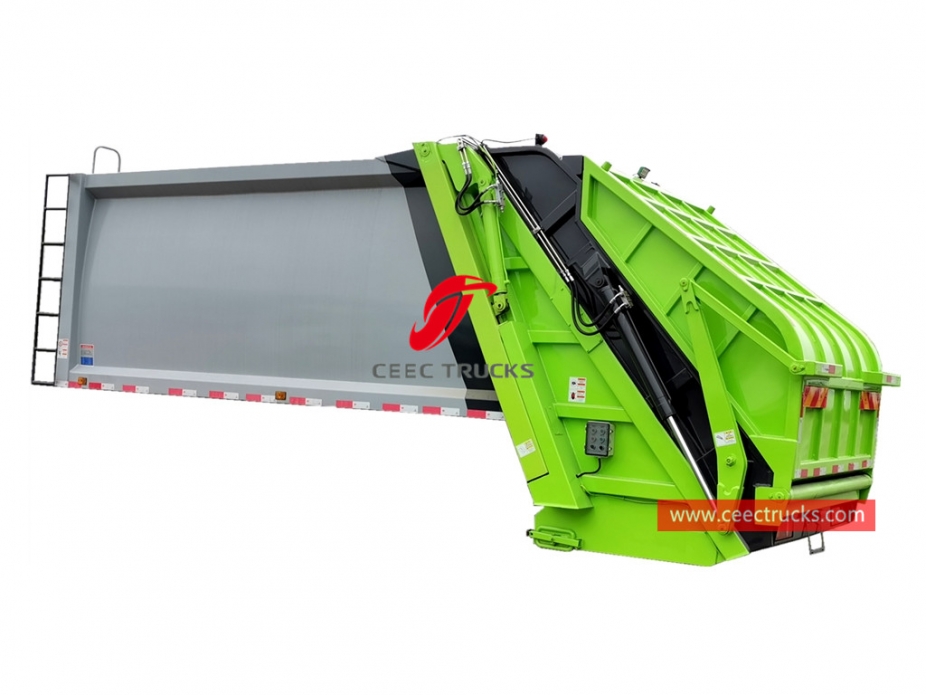

European standard 10,000 liters compressed refuse truck body

10CBM Rear loader body structure

European standard 10,000Liters waste compressor truck body structure, which use high strength steel material compactor body, imported control PLC model, hydraulic cylinder control device, English version control box for easy operation.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
10 Days
Payment:
T/T, West Union

contact now

High quality rubbish compressor truck body for sale

Applications:

Garbage compressor truck upper structure (also called Rear load refuse truck body, Compression garbage truck superstructure, Garbage compact truck upper body) is a type of machine for Compactor rubbish truck. Refuse compactor truck is characterized by compress trash through special compression device in addition to it's transportation and unloading functions as ordinary garbage truck.

Key Features:

	Short delivery time 5-7 days
	Any chassis brand available, 100% suitable
	Container global safety delivery
	Low tax & Low freight
	Body capacity from 3CBM to 20CBM
	More than 15 years of export experience

Comparisons:

CEEC TRUCKS

Other Supplier

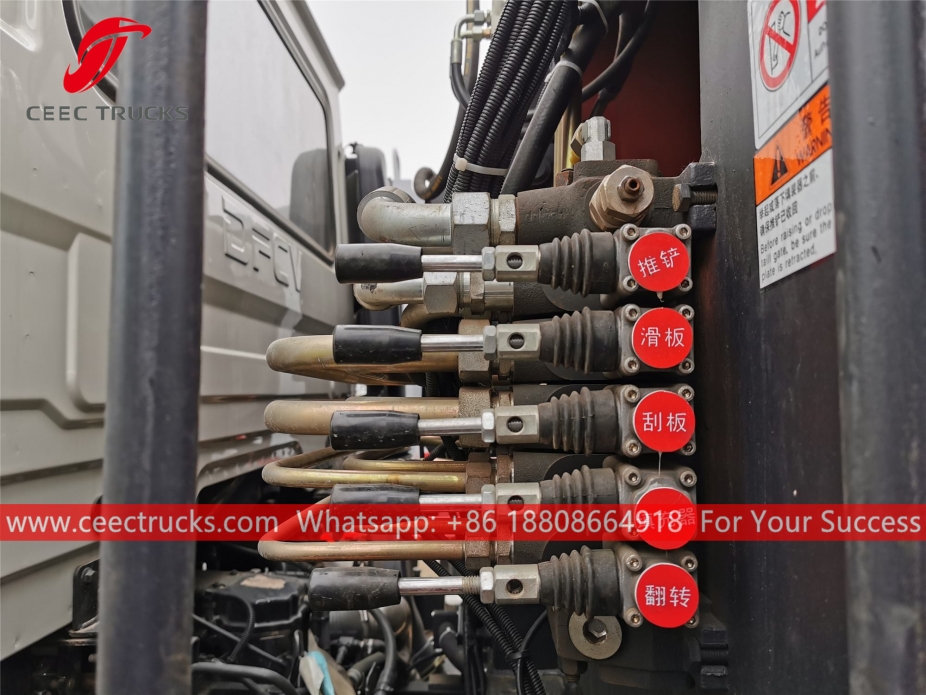

Hydraulic Control Valve

CEEC Hydraulic control valve

Italy brand, 5 years working time

poor quality hydraulic control system

unknown brand, 1 year working time

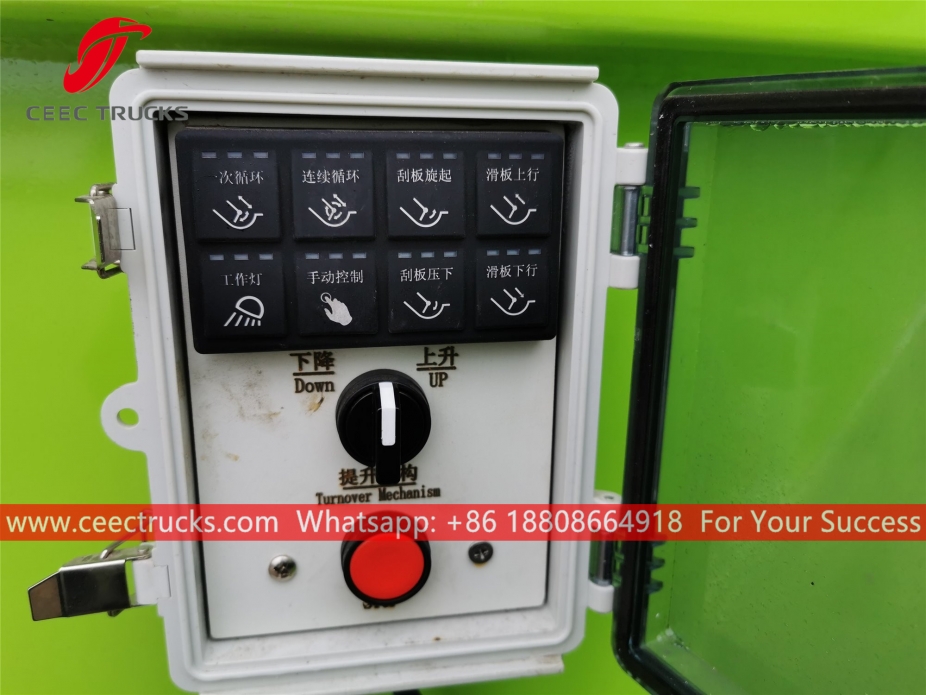

Electrical Control Box

CEEC New designed CAN control system

Germany Siemens, reliability arise 30%

Normal unknown brand electric control box

unknown brand, poor reliability

Steel Hydraulic Pipe

Safety balance valve for everyday working

Standard balance valve ,safety

Poor designed hydraulic cylinder system

No balance valve, dangerous

Control System

CEEC designed more efficiency CAN system

CAN intelligent system, work efficiency arise 20%,

double control box equipped,

Commen electric control system

Common system, work slow ,

Single control box

Hydraulic Pipe

CEEC Galvanized steel hydraulic pipe

Galvanized steel hydraulic pipe

Inexperience steel pipe

Inexperienced steel pipe

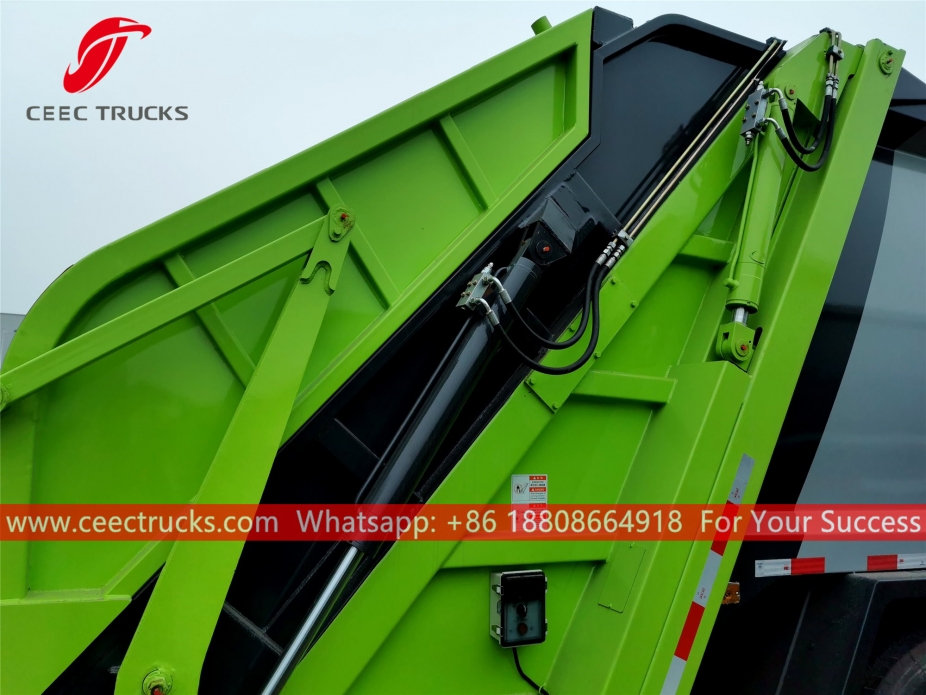

Hopper Cylinder

CEEC designed Reinforced cylinder system, long time service

Reinforced cylinder, good design

Blasting and anti-dust painting

Poor quality rusty hydraulic working system

Common cylinder, poor design

simple painting

Optional:


4 CBM	5 CBM	6 CBM	8 CBM

8 CBM	12 CBM	16 CBM	20 CBM

27 units ISUZU waste compactor trucks were exported to Myanmar

Client: Myanmar customer

Project: Myanmar Yangong city sanitation project

Year: 2018

Project Background: Myanmar customer purchased 27 units ISUZU refuse compressing trucks for their government. These ISUZU compressing rubbish vehicles will be used in Yangon city, Myanmar, for the civil sanitation transportation.

Myanmar customer prefer Japan brand waste compactors, after comparing CHINA ISUZU and other brand, he made decision to order 27 units ISUZU rear-load rubbish trucks from us.

As the most professional trash compressor truck manufacturer in China, we supply good quality ISUZU rear loaders with different capacity. More than 15 years great experience on designing and producing ISUZU compression garbage trucks, we can supply ISUZU 100P, 600P, 700P, FTR, FVR, CXA, waste trucks.

→ 8 CBM refuse compressor truck

→ ISUZU garbage compactor trucks

CKD & SKD parts:

Specifications:

NO.	Item	Name	Code	Quantity	Comments
1	Compactor tank	Tank Assembly	YS12-0100000	1
2		Tail Gate Assembly	YS12-0200000	1 set
3		Scraper Assembly	YS12-0300000	1 set
4		Slide Plate Assembly	YS12-0400000	1 set
5		Tilt Device Assembly	YS12-0500001	1 set
6	Spare Parts	Oil Pump		1 unit
7		PTO		1 unit
8		Five Function Multi-way Valve		1 set	Installed
9		Hydraulic Oil Tank	80L	1 unit	Installed
10		PLC Control Box		1 set	Installed
11		Electric System		1 set	Installed
12		Balance Valve	5060BF2	2 units	Installed
13		Hosepipe, oil pipe & Joint		1 set	Installed
14		Slide Plate Oil Cylinder	50/90-1300x830	2 units	Installed
15		Scraper Oil Cylinder	50/80-860x570	2 units	Installed
16		Lifting Oil Cylinder	50/80-840x560	2 units	Installed
17		Tilt Device Oil Cylinder	45/80-410x170	2 units	Installed
18		Push Pate Oil Cylinder	55/125-1220x2600	1 unit	Installed
19		Sliding Block	Nylon	1 set	Installed
20		Hose Protector		1 set	Installed
21		Ball Valve	1’ 1/4	1 unit	Installed
22		Stainless Steel Cover	DN50	1 unit	Installed
23		Side lamps		1 set	Installed

CEEC garbage compactor trucks advantages
