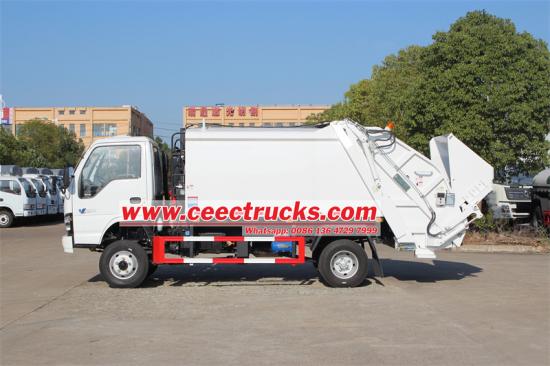

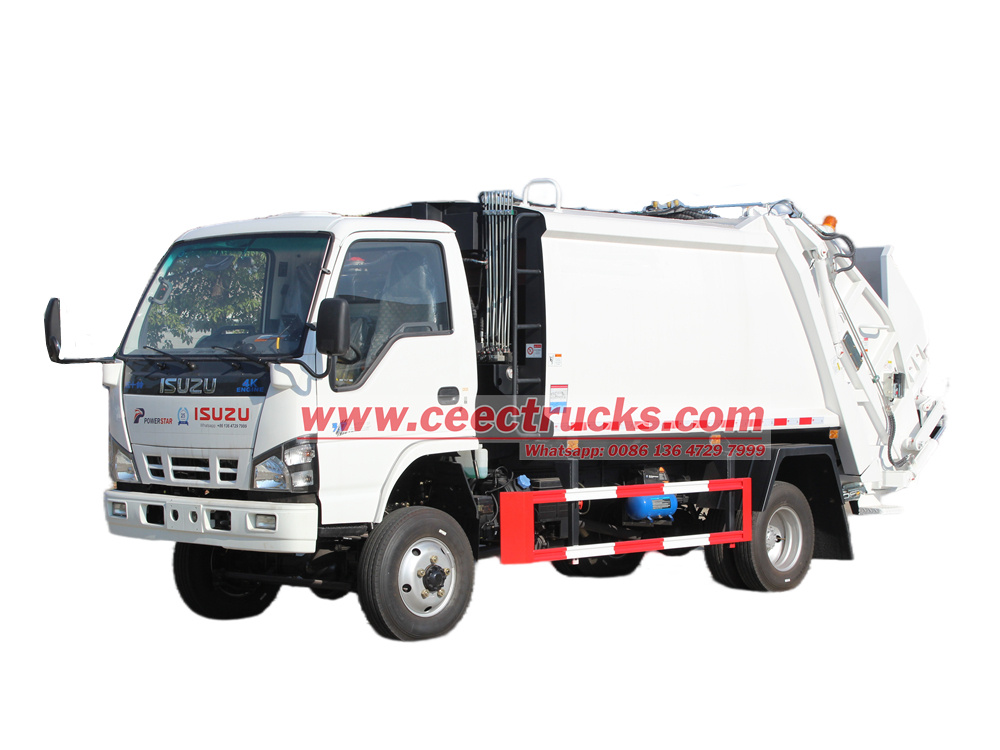

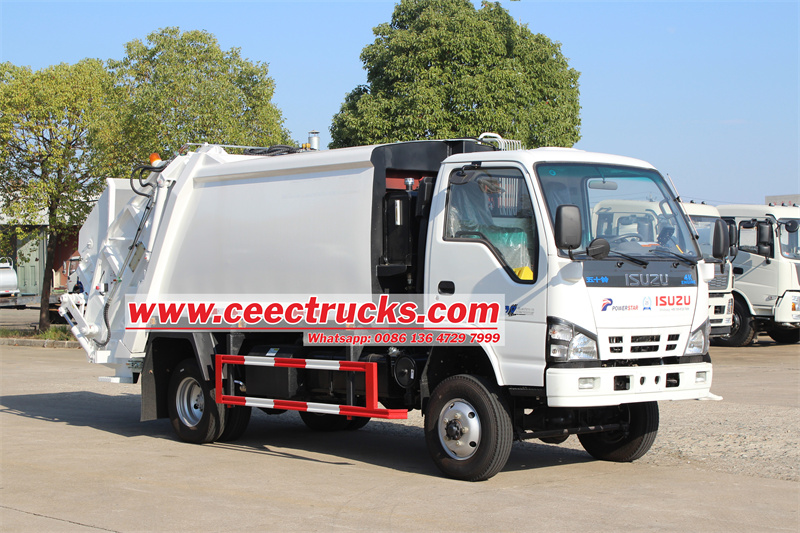

ISUZU 4x4 off-road refuse compactor truck

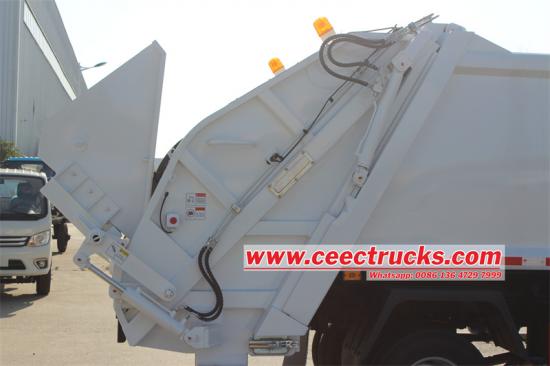

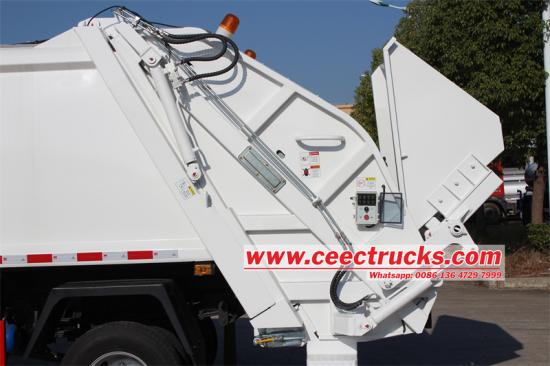

Isuzu 600P 4x4 rear loader compactor truck is a special vehicle for garbage collection and disposal. It is modified on the Isuzu 600P 4x4 light chassis,3815mm wheelbase,equipped with 4KH1CN6LB 120HP engine, Isuzu MSB 5-speed gearbox, 2999ml displacement,the max torque is 290N.m.The upper is a 8 cubic carbon steel garbage bin, a triangular bucket semi-sealed flip mechanism at the tail.The vehicle is controled by the PLC electronic control system, hydraulic valve control system.

Work capacity:
8CBM
Truck model:
CEEC5070GHR
Engine power:
120HP
Engine type:
Isuzu 4KH1CN6LB
Axle drive:
4X4,LHD
Gear box:
Isuzu MSB 5-speed,manual
Remarks:

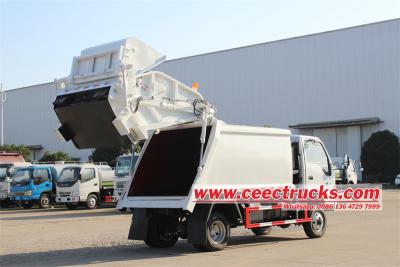

Semi-sealed bucket flip mechanism

Inquiry now

The ISUZU 4x4 off-road refuse compactor truck excels in performance, efficiency and environmental responsibility, making it an ideal solution for municipal waste management needs. From collection to final disposal, this vehicle demonstrates unmatched reliability and efficiency, making it an essential tool for municipalities, waste management companies and sanitation agencies in their pursuit of excellence in waste management practices.

● China best Isuzu rear loader truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome.

● 24 month quality guarantee term

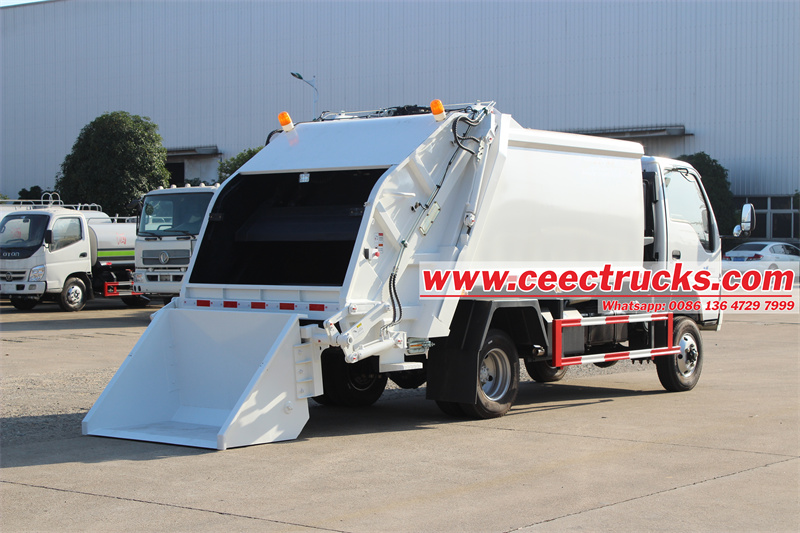

The Isuzu 8 cbm off road rear compactor truck manufactured by CEEC demonstrates excellent waste handling efficiency and reliability. The model adopts a 4x4 drive system, which can easily cope with various challenges in the urban environment and ensure smooth operation in congested areas. Equipped with a powerful Isuzu 4KH1CN6LB engine with an output power of 120HP and a maximum torque of 290N.m, it ensures excellent performance during waste transportation.

The Isuzu 4x4 off-road 8 cubic meter rear loading garbage truck meets the Euro 6 emission standards and has a displacement of 2999 ml. It not only handles garbage efficiently, but also pays attention to environmental sustainability. Its 8 cubic meter carbon steel garbage tank provides ample storage space, effectively reducing the number of transportation times and improving work efficiency.

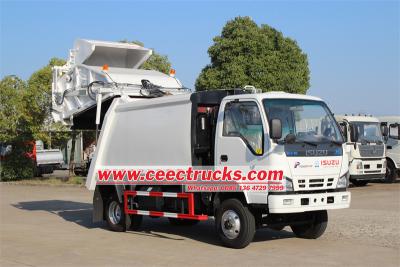

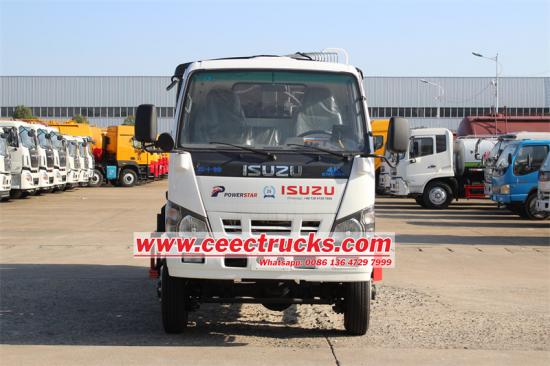

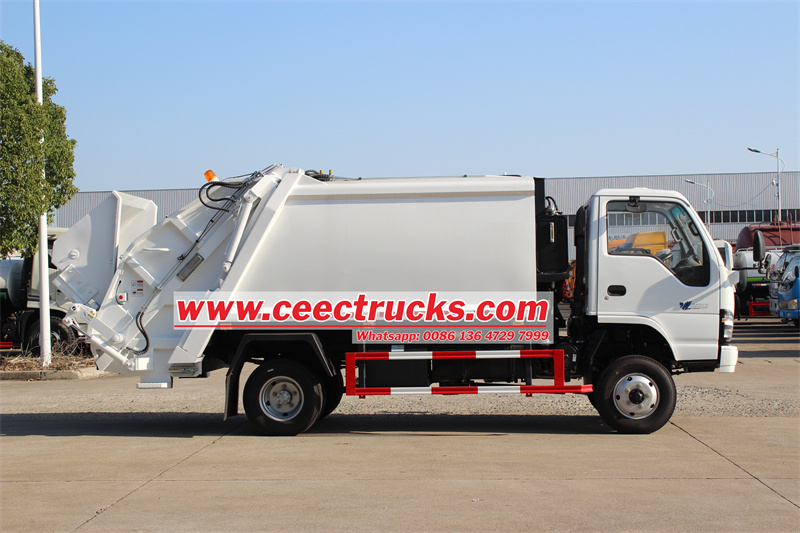

Isuzu NKR 600P 4x4 garbage compactor truck

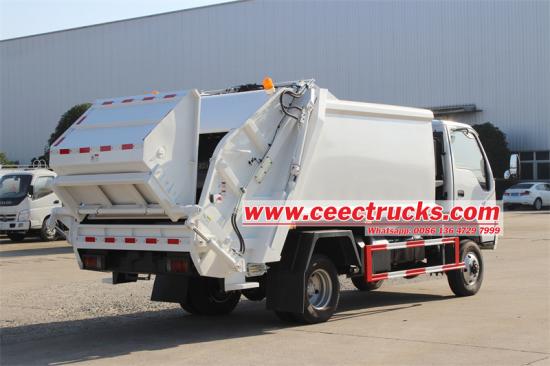

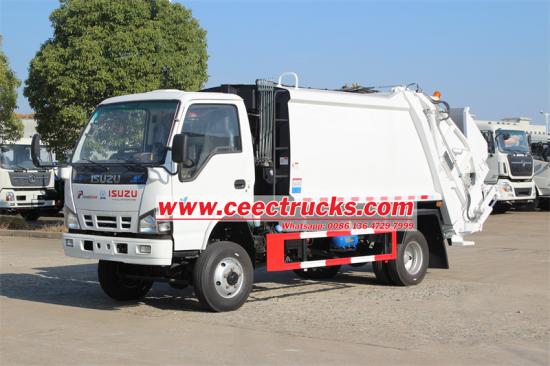

Isuzu 600P 4x4 rear loader compactor truck

The vehicle is equipped with Hefei Wanye's oil pump and Yangzhou Zhongmei multi-way valve, and has an advanced hydraulic system to ensure smooth and precise control of the loading and unloading process. Taiwan Yonghong's PLC electrical control system further improves operating efficiency and provides operators with an intuitive control and monitoring interface.

The Isuzu NKR 600P 4x4 garbage compactor truck is equipped with cutting-edge technologies, including Hefei Wanye oil pumps, Yangzhou Zhongmei multi-way valves and Taiwan Yonghong PLC electronic control systems, which enable precise and efficient control of garbage handling operations. These advanced systems facilitate seamless operations and help improve productivity and performance on site.

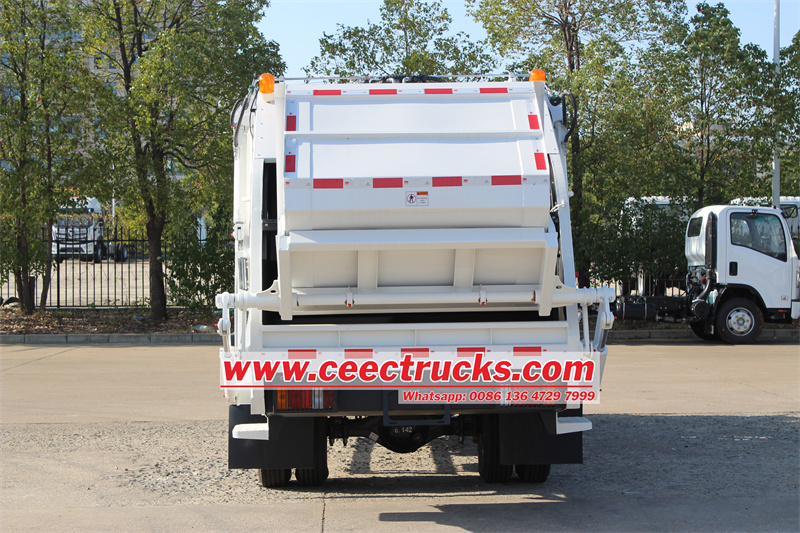

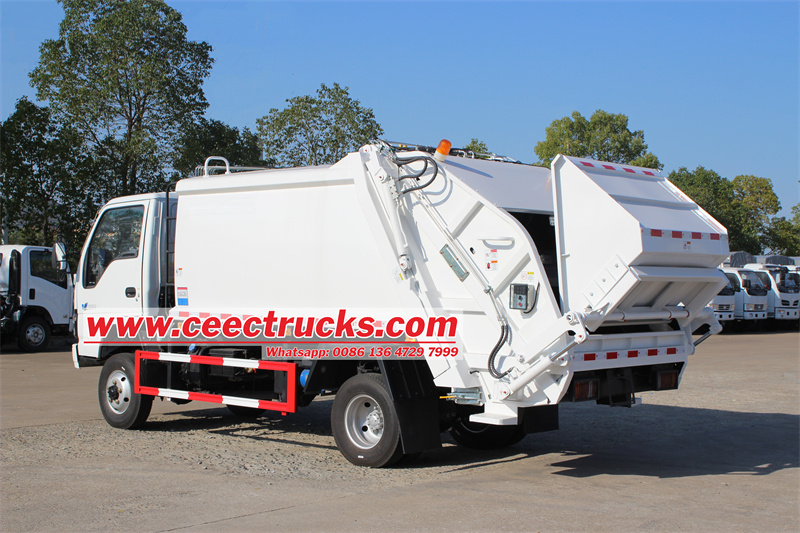

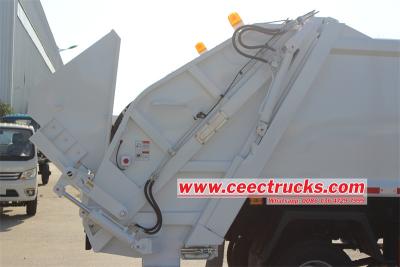

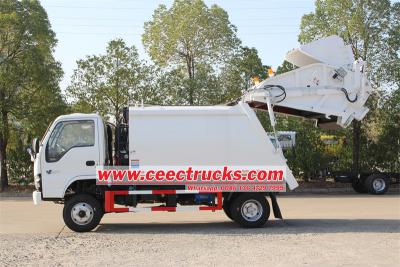

Isuzu 8cbm rear loader trash truck

Isuzu 600P 4x4 garbage compactor truck
Drive type	4x4, New condition, LHD
Vehicle Main Dimensions	Overall dimensions(L x W x H)	7300×2250×2300mm
	Wheel base	3815mm
	F/R track	1504/1525mm
	overhang	1110/2375mm
Weight in KGS	Curb Weight	4050kg
	GVW	7300kg
	F/R axle-load	2580/4720 kg
Max. driving speed(km/h)		110
Engine	Brand	Isuzu
	Model	4KH1CN6LB
	Type	4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling;diesel
	Horse Power(HP)	120HP/88Kw
	Max torque	290N.m
	Displacement	2999ml
	Emission standard	Euro VI
Gearbox	Isuzu MSB 5 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Brake system	Oil brake
Fuel tank	100L
Tire	700R16, 7 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Garbage Compactor
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	8cbm
Body material	Floor plate 5mm and side plate 4mm

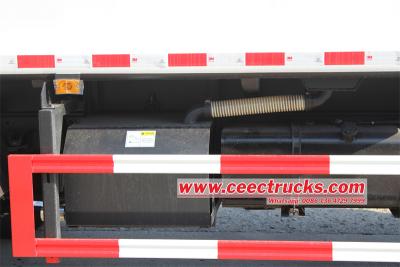

Waste water tank	200L
Filling container volume	500L
Loading cycle	25~30s
Unloading cycle time	20~40s

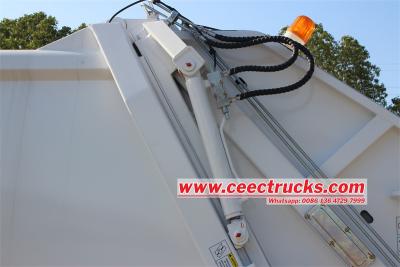

Hydraulic System	Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.
Control system	PLC electronic control system, hydraulic valve control system

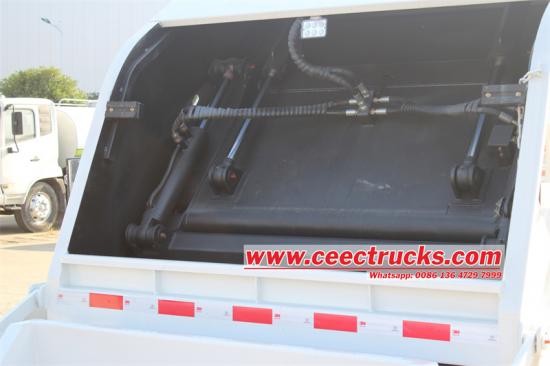

Push Panel	Used to push and squeeze garbage,works together with the skid way in the box

Three operation modes

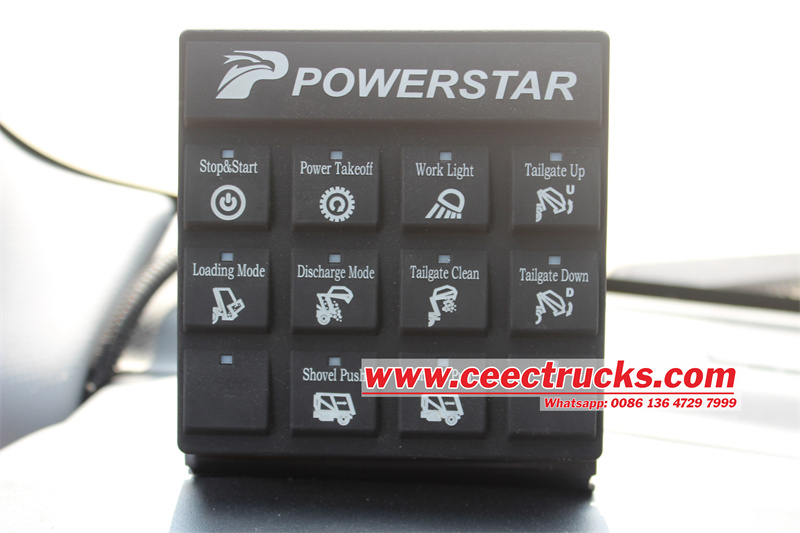

1. Electronic control box(in cab)

The cab electronic control box integrates a variety of function buttons, including Stop&Start, Power Takeoff, Work Light, Tailgate Up/Down, Loading Mode, Discharge Mode, Shovel Push/Pull, etc. The electronic control box can realize the automatic operation of the garbage truck, such as garbage compression, flipping, unloading, etc. The operation is simple and suitable for the driver to quickly control the vehicle operation in the cab.

________________________________________

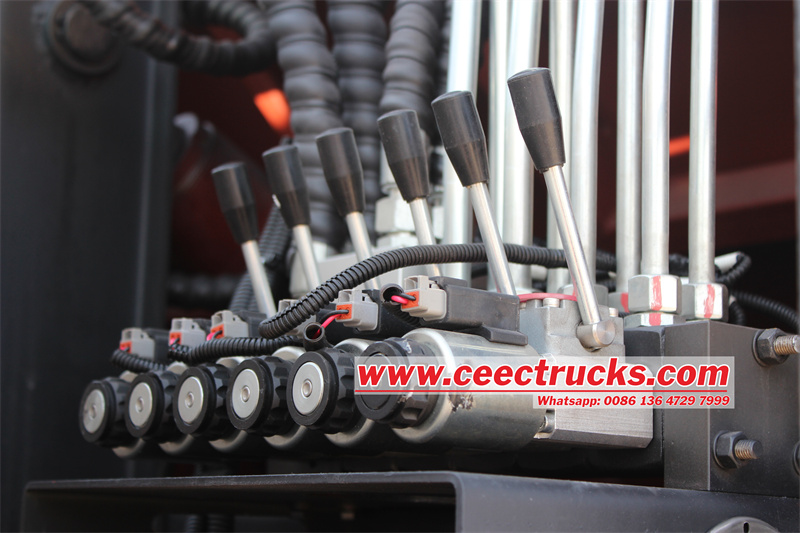

2. Hydraulic operating lever (on driver's side)

The driver's side is equipped with a hydraulic operating lever for manually controlling the core actions of the garbage truck, including Shovel, Sliding Plate, Scraper, Rolling Over, etc. The hydraulic operating lever provides precise control and is suitable for the operator to make manual adjustments on the ground to ensure the flexibility of garbage compression and loading and unloading.

________________________________________

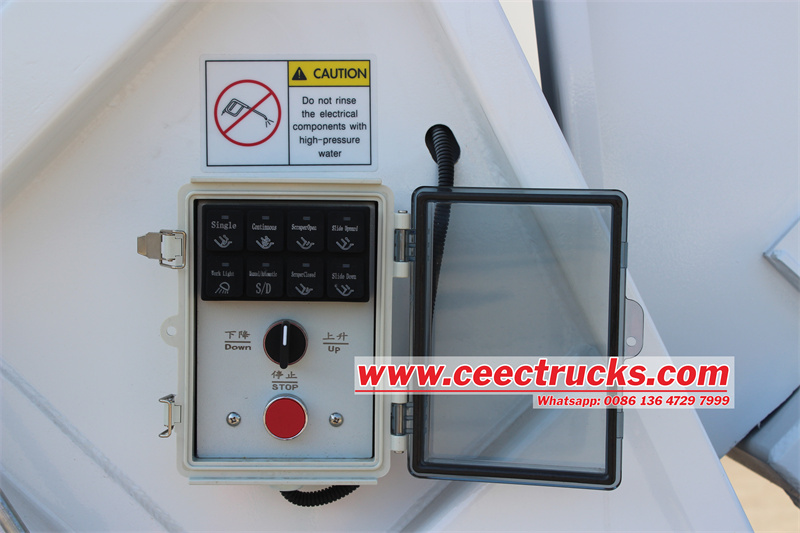

3. Electronic control box(at tailgate)

The tailgate control box supports multiple operation modes, including Single Cycle, Continuous Cycle, Scraper Open/Closed, Slide Upward/Downward, Manual/Automatic, Work Light, Tilt Device Up/Down, and Emergency Stop. The tailgate control box is mainly used for fine control of the tailgate and compression device, and is suitable for garbage loading and unloading and cleaning operations outside the vehicle.
