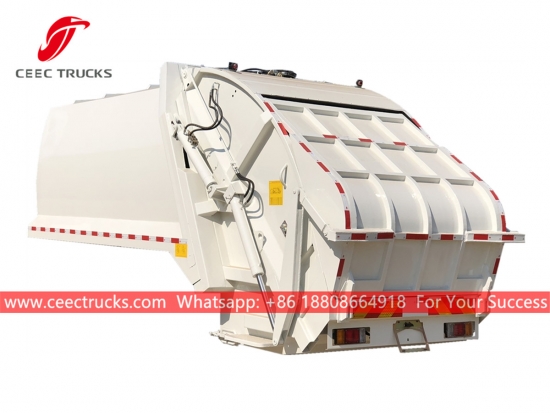

10 DaysHigh quality garbage truck compactor body for sale
Applications:
Garbage compactor superstructure (also called Rubbish truck compactor body, Refuse compactor body kit, rear loader truck upper structure) is
a type of machine for Compactor rubbish truck. Refuse compactor truck
is characterized by compress trash through special compression device in
addition to it's transportation and unloading functions as ordinary
garbage truck.
Key Features:
 |
Short delivery time 5-7 days
|
|
Any chassis brand available, 100% suitable
|
|
Container global safety delivery
|
|
Low tax & Low freight
|
|
Body capacity from 3CBM to 20CBM
|
|
More than 15 years of export experience
|
Comparisons:
| CEEC TRUCKS |
Other Supplier |
| Hydraulic Control Valve |
|
|
Italy brand, 5 years working time |
unknown brand, 1 year working time |
| Electrical Control Box |
|
|
Germany Siemens, reliability arise 30% |
unknown brand, poor reliability |
| Steel Hydraulic Pipe |
|
|
Standard balance valve ,safety |
No balance valve, dangerous |
| Control System |
|
|
CAN intelligent system, work efficiency arise 20%, double control box equipped, |
Common system, work slow , Single control box |
| Hydraulic Pipe |
|
|
Galvanized steel hydraulic pipe |
Inexperienced steel pipe |
| Hopper Cylinder |
|
|
Reinforced cylinder, good design Blasting and anti-dust painting |
Common cylinder, poor design simple painting |
Optional:
Client: Cape verde Customer Mr Haid
Project: city sanitation project
Year: 2019.02
Project Background: Cape verde customer Mr haid have local business of city garbage transportation , he find our company is very professional on compression garbage truck , after several discussion and quotation for rubbish compactor truck, he intend to order 1 unit sample waste compressor truck from us.
After get the order of garbage compactor vehicle, we take great notice of customer's requirement, make special design on the dimension of this rear loading truck, as it is supposed to be shipped by 40 ft container. As there is no bulk ship or roro vessel from china to cape verde.
We have great experience on producing and shipping 5 CBM, 7 CBM, 8 CBM refuse compressing truck by container. It takes only 10 minutes for us to put the whole 8 CBM trash compactor trucks into 40 HQ container. thanks for the great work from engineer department and production department, we are proud of them.
→ 8 CBM refuse compressor truck
→ ISUZU garbage compactor trucks
Specifications:
NO. |
Item |
Name |
Code |
Quantity |
Comments |
|
1 |
Compactor tank |
Tank Assembly |
YS12-0100000 |
1 |
|
|
2 |
Tail Gate Assembly |
YS12-0200000 |
1 set |
|
|
|
3 |
Scraper Assembly |
YS12-0300000 |
1 set |
|
|
|
4 |
Slide Plate Assembly |
YS12-0400000 |
1 set |
|
|
|
5 |
Tilt Device Assembly |
YS12-0500001 |
1 set |
|
|
|
6 |
Spare Parts |
Oil Pump |
|
1 unit |
|
|
7 |
PTO |
|
1 unit |
|
|
|
8 |

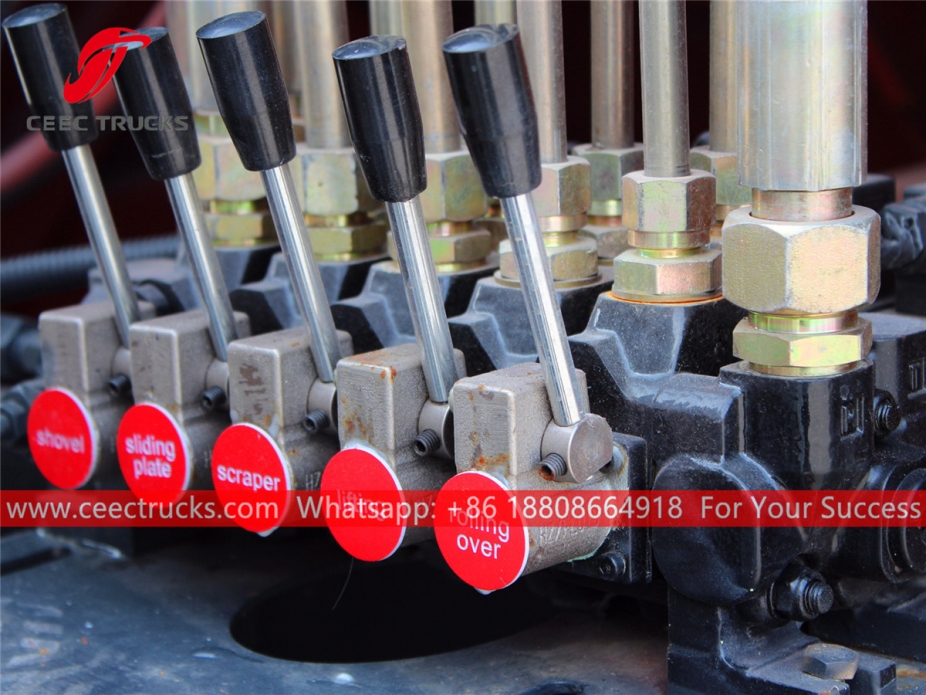

Five Function Multi-way Valve |
|
1 set |
Installed |
|
|
9 |
Hydraulic Oil Tank |
80L |
1 unit |
Installed |
|
|
10 |
PLC Control Box |
|
1 set |
Installed |
|
|
11 |
Electric System |
|
1 set |
Installed |
|
|
12 |
Balance Valve |
5060BF2 |
2 units |
Installed |
|
|
13 |
Hosepipe, oil pipe & Joint |
|
1 set |
Installed |
|
|
14 |
Slide Plate Oil Cylinder |
50/90-1300x830 |
2 units |
Installed |
|
|
15 |
Scraper Oil Cylinder |
50/80-860x570 |
2 units |
Installed |
|
|
16 |
Lifting Oil Cylinder |
50/80-840x560 |
2 units |
Installed |
|
|
17 |
Tilt Device Oil Cylinder |
45/80-410x170 |
2 units |
Installed |
|
|
18 |
Push Pate Oil Cylinder |
55/125-1220x2600 |
1 unit |
Installed |
|
|
19 |
Sliding Block |
Nylon |
1 set |
Installed |
|
|
20 |
Hose Protector |
|
1 set |
Installed |
|
|
21 |
Ball Valve |
1’ 1/4 |
1 unit |
Installed |
|
|
22 |
Stainless Steel Cover |
DN50 |
1 unit |
Installed |
|
|
23 |
Side lamps |
|
1 set |
Installed |
