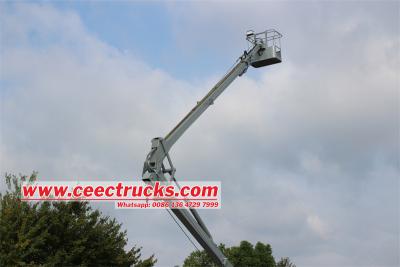

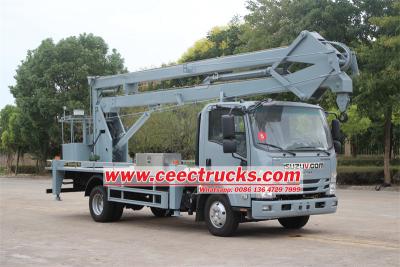

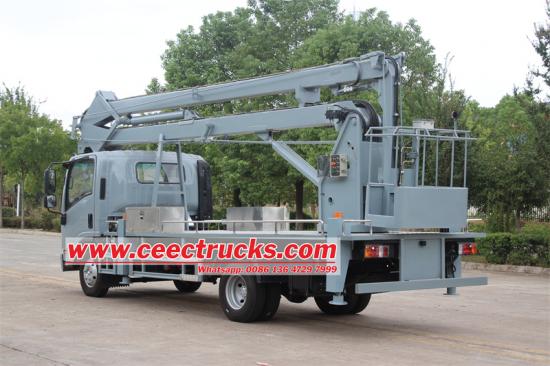

Isuzu 14m aerial platform with manlifter

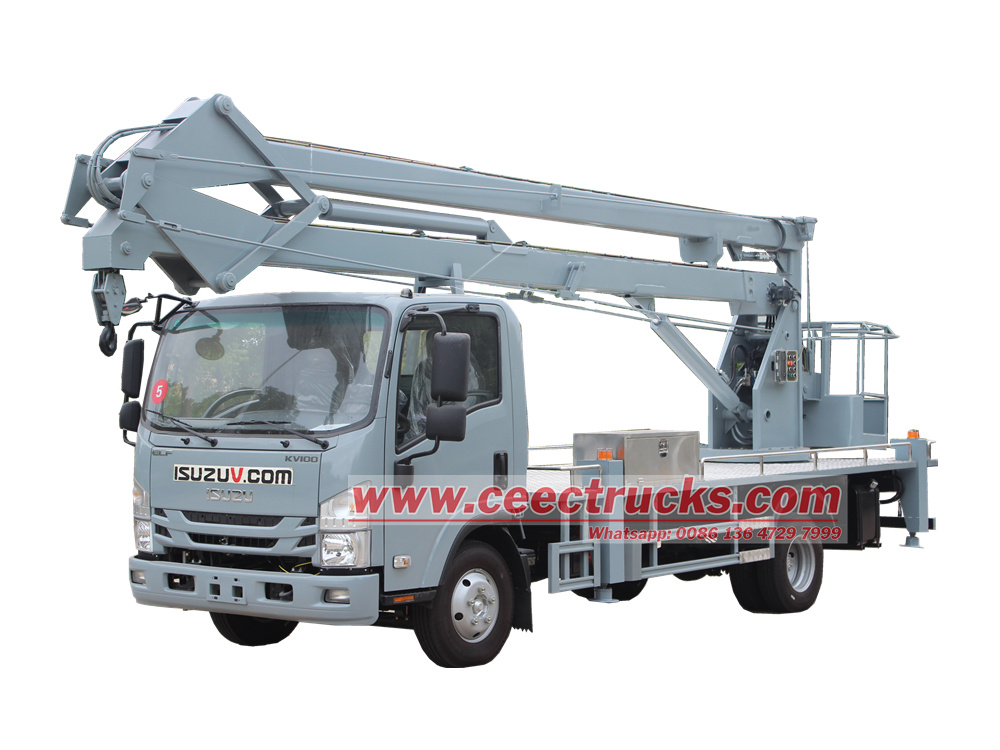

Isuzu KV100 14M Articulated Boom Aerial Work Truck

Isuzu 14m aerial work vehicle adopts Isuzu KV100 chassis, equipped with 132HP 4KH1CN6HB diesel engine, Isuzu 6-speed gearbox, maximum working height of 14m, 3-section folding arm, 360° rotating bucket, rated load of 200kg, front V and rear H-shaped outriggers, good working stability. Electro-hydraulic control system, hydraulic automatic leveling, multiple safety devices, can be controlled by electric operation control box and wireless remote control.

Work capacity:
14m
Truck model:
CEEC5080GXW
Engine power:
132HP
Engine type:
Isuzu 4KH1CN6HB
Axle drive:
4X2,LHD
Gear box:
Isuzu MLD 6-speed,manual
Remarks:
3 section folding arm with 14m working height

Inquiry now

Isuzu KV100 14M Articulated Boom Aerial Work Truck is a high-performance aerial work equipment designed for efficient, flexible, and safe operation requirements. Its core power comes from the Isuzu 4KH1CN6HB engine, with a maximum power of 132 horsepower, providing strong power to easily handle various complex working conditions. Matched with the Isuzu MLD 6-speed transmission, it offers smooth shifting, simple operation, and high reliability. The vehicle is equipped with a three-section articulated boom structure, with a maximum working height of 14 meters and a large working range, enabling it to flexibly cross obstacles and adapt to multiple aerial work scenarios.

● China best Isuzu aerial platform truck factory

● More than 500 workers, large and advanced production

● We have strong professional design team

● Promptly delivery. any order is welcome

● 24 months long guarantee time assurance

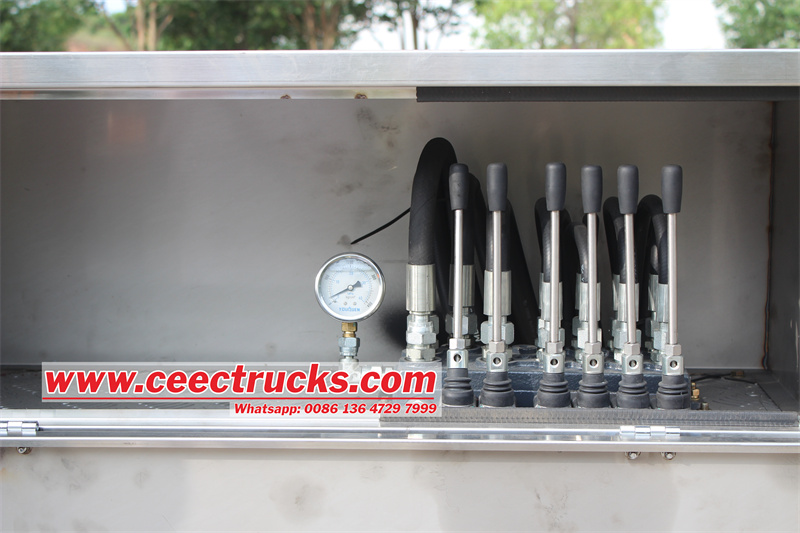

Isuzu KV100 14m aerial working truck
Vehicle Description
Vehicle model		Platform Truck		Overall dimensions	728022503350mm
GVW		8280kg		Operational height	14m
Curb weight		5580kg		Max. Speed	105 km/h
Chassis Description
Chassis brand			ISUZU
Cab			Isuzu KV100 single row cab,3 seats, with A/C,USB
Wheel base			3815mm
Number of axles			2
Axle	Front axle		3000kg
	Rear axle		5280kg
Front/rear wheel track			1690/1655mm
Front/rear overhang			1120/2345mm
Traction system			4x2
Operation control system			Power steering
Braking system			Oil brake
Transmission			Isuzu MLD 6-speed,manual
Tire specification			7.50R16LT 14PR
Tire quantity			6+1
Engine Description
Engine manufacture			ISUZU Engines
Engine model			4KH1CN6HB
Horse power			132HP/97kw
Type			Water-cooled four-stroke, 4 cylinder inline, supercharged inter-cooling,diesel
Displacement			2999ml
Emission standard			Euro 6
Up-parts Description
Working condition
Max. working height			14m
Working radius at Max. height			2.2m
Max. working radius			7.1m

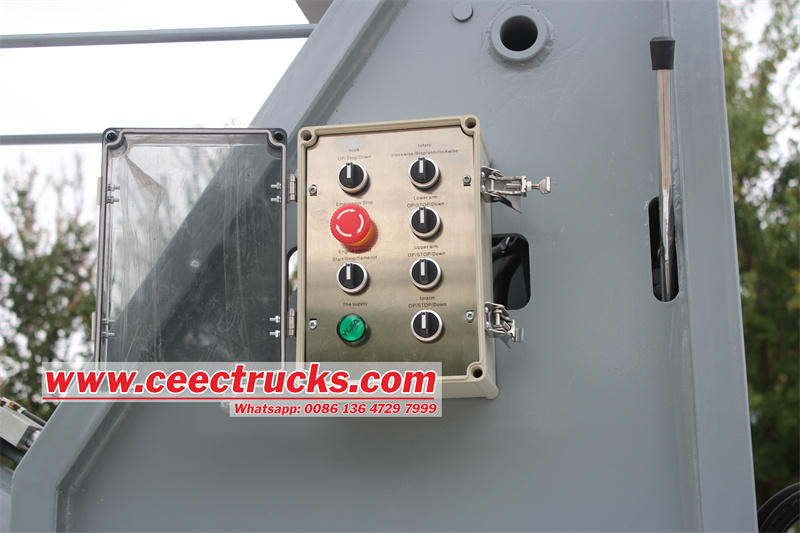

Control mode			Bucket control and Manual operation
Bucket
Rated loading			200kg,anti-slip floor
Size			10806101100 mm
Material			Stainless steel
Adjusting balance mode			Hydrostatic Leveling System
Safety belt			1 set

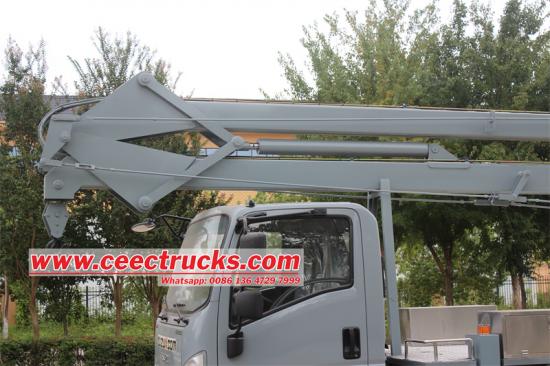

Boom
Type			Folding arm type
Section			3
Rotation Angle			360
Thickness of boom plate			4mm
Max. rising angle of boom			0º ~ +80°
Outrigger
Type			Front V type / Rear H type
Number			4
Adjustment			Adjusted separately
Supporting leg Control mode			Manual hydraulic operation
Hydraulic lock			Two-way hydraulic lock for four legs

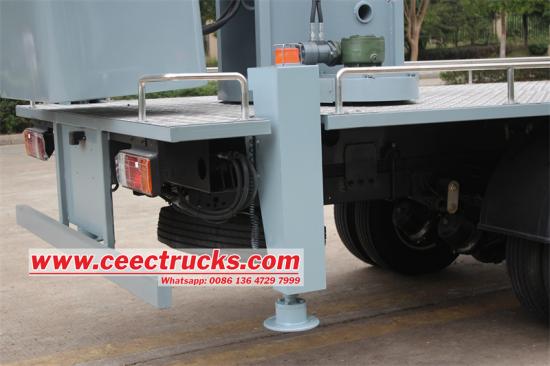

Strobe light on rear landing legs			Two yellow lights
Main body structure
Material			High quality carbon steel and profiles, with slip-proof decorative steel plates

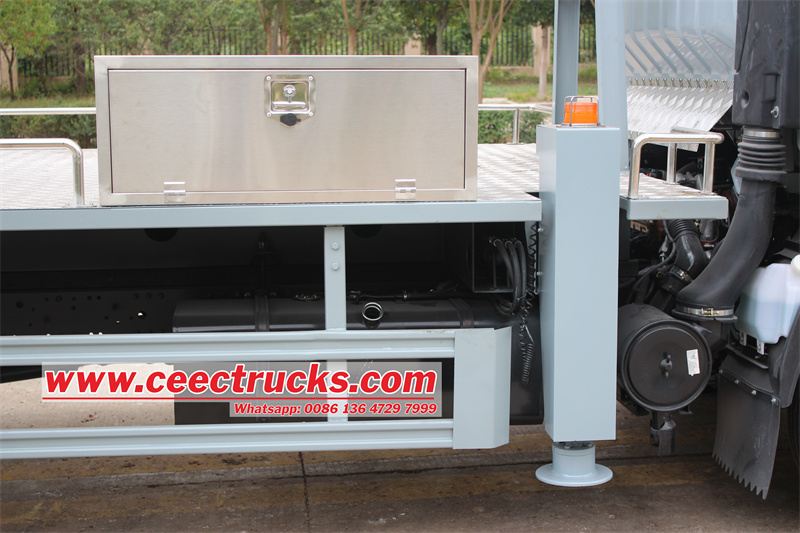

Tool box			Mould stamping door with stainless steel door lock
Fencing			Stainless steel tube
Guard railing			High quality cold bending carbon steel profile; High strength
Wheel casing			Injection mold molding, beautiful, high strength
Security configuration
Automatic interlock device for different operating position			Prevent the risk of misoperation
Hand-operated emergency pump			When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state
Emergency stop device for working platform			Used for emergency stop operation and restricted boom operation
Automatically limit work range			When the working range reaches the specified value, the dangerous direction is automatically restricted.
Leakage protection device			Equipped with leakage protector to ensure the safety of power supply and power tools

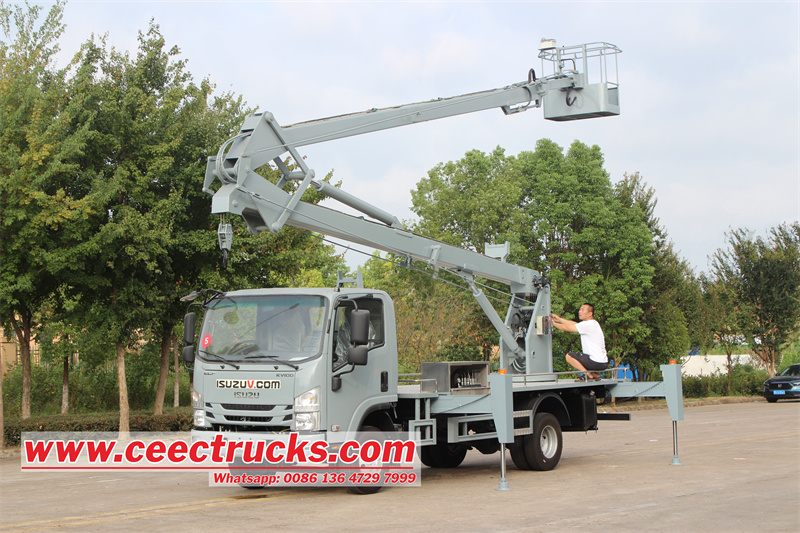

Isuzu aerial bucket truck with knuckle boom

Chassis Performance

1. Powerful Dynamics: Equipped with an original Isuzu engine, it provides abundant power and good fuel economy, meeting the needs of long-term continuous operation.

2. Flexible Control: The chassis is reasonably designed for flexible steering, facilitating maneuvering in narrow spaces.

3. Strong Load-bearing Capacity: The vehicle body structure is sturdy, with outstanding load-bearing capacity, ensuring stability and safety during aerial work.

Aerial Work Platform
Working Height: With a maximum working height of 14 meters, it can meet the needs of various aerial work scenarios, such as building maintenance, tree trimming, and billboard installation.

Articulated Boom Design: Adopting a three-section articulated boom structure, it can extend and retract freely, flexibly adjusting the working position in limited spaces to improve work efficiency.

Load Capacity: The platform has strong load-bearing capacity, ensuring safe operation for operators and carried tools. The specific load varies depending on the vehicle configuration.

Smooth Lifting and Lowering: Equipped with a high-precision hydraulic system, it provides smooth lifting and lowering without impact, ensuring operational safety.

Stability System: Equipped with an advanced stability control system, it monitors the operating status in real-time and automatically adjusts the vehicle balance to ensure absolute safety during the operation.

Safety Features
Emergency Stop Device: Multiple emergency stop buttons are installed to immediately stop all actions in case of an emergency, ensuring personnel safety.

Anti-tipping Protection: An intelligent anti-tipping system is integrated, which monitors the vehicle's tilt angle in real-time through sensors to prevent accidents.

Limit Protection: Both the articulated boom and the platform are equipped with mechanical and electrical limit devices to prevent exceeding the safe operating range.

Operational Convenience: The control panel is designed with humanization in mind, featuring simple and intuitive operation. It is equipped with remote control functionality to further enhance operational convenience and safety.

Control and Comfort

Intelligent Control: Adopting an advanced electronic control system, it offers simple operation and supports both remote and manual operation modes.

Comfortable Cab: The cab is spacious and bright, with a wide field of view. It is equipped with comfortable seats, air conditioning, and other facilities to enhance the driving experience.

Convenient Maintenance: The vehicle design facilitates easy maintenance, reducing repair costs and extending service life.

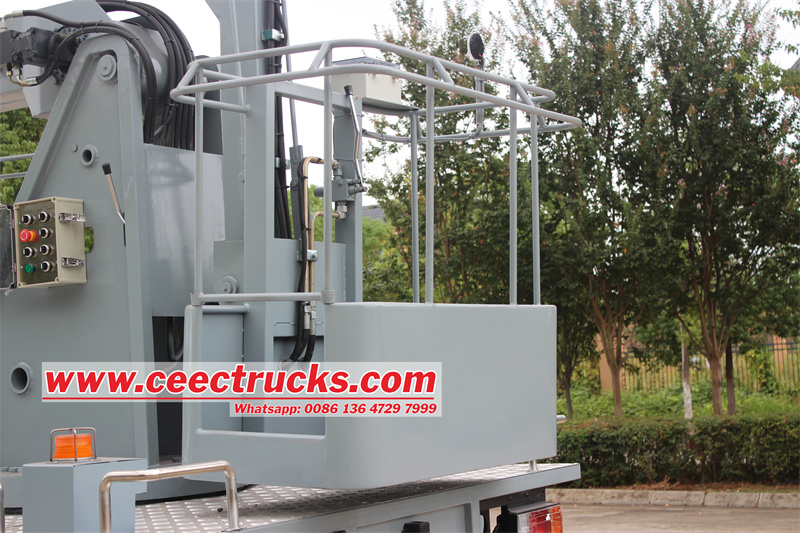

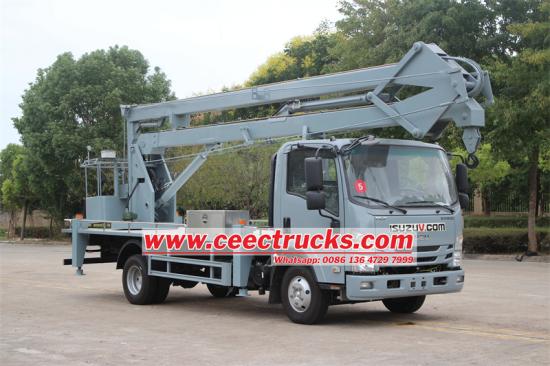

Isuzu KV100 aerial platform truck

Isuzu 14m aerial platform with manlifter

★ ISUZU 4KH1 diesel engine, super powerful

★ Expert for producing ISUZU Bucket Lift Truck over 10 years with good reputation

★ High quality carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for ISUZU aerial work platform trucks

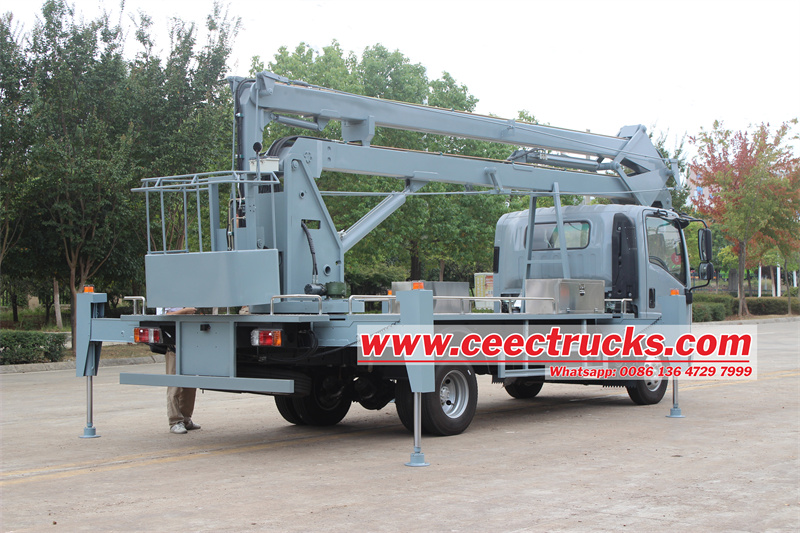

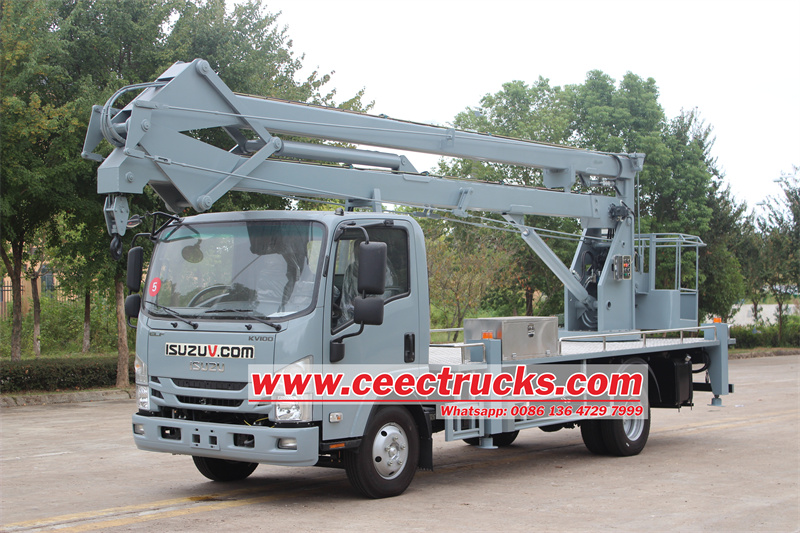

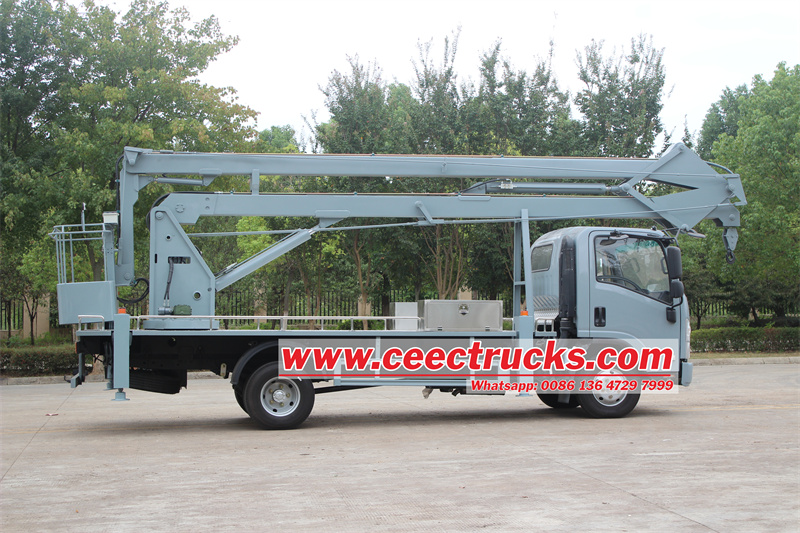

Isuzu folding arm aerial work vehicle

CEEC TRUCKS is a leading exporter of Aerial Platform trucks in China. We possess over 10-year export experience of high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
