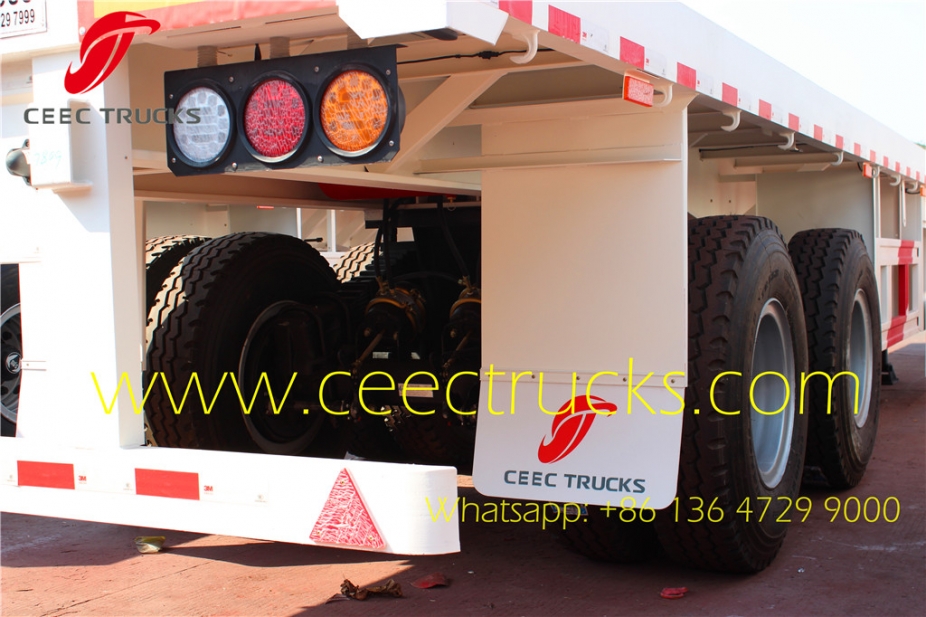

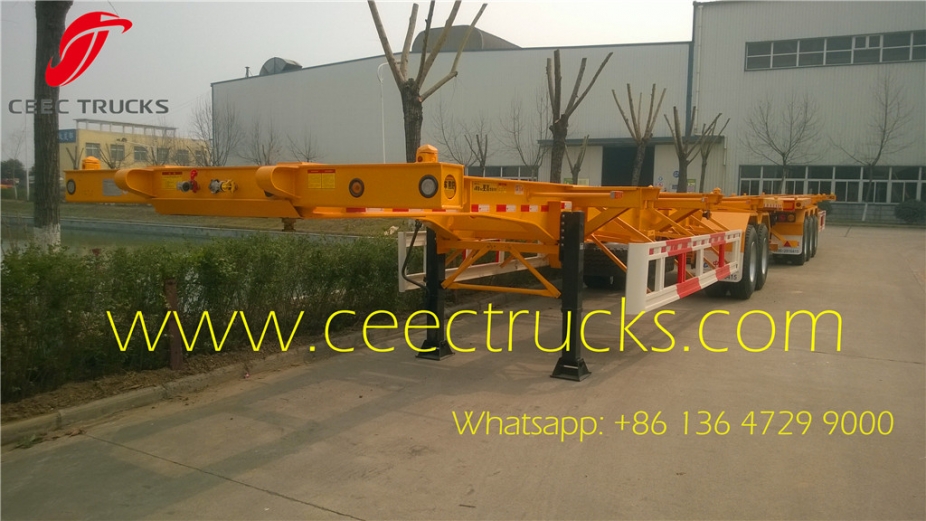

2 axle bogie suspension skeleton trailer 50T

40 FT skeleton bogie suspension semitrailers

2 axle 8 wheel bogie suspension trailer, skeleton model mainly for shipping contrainer transportation, BPW / FUWA axle device, JOST kingpin and JOST landing legs best performance. All CEEC bogie suspension trailers can use container CKD & SKD transportation

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
7 Days
Payment:
T/T, West Union
FOB Price:
USD $10,000-19,000
Market Price:
$14600

contact now

40 ft bogie suspension skeleton trailer serves the needs of customers transporting special equipment or material that create loads which are wide, over length, over-sized, overweight, or any combination thereof but can still legally move on the road. A bogie suspension trailer service is ideal for construction sites or shipping points that have no available dock or require quick loading and unloading for projects on the move with time sensitive schedules.

40 feet bogie suspension trailer skeleton model supplier

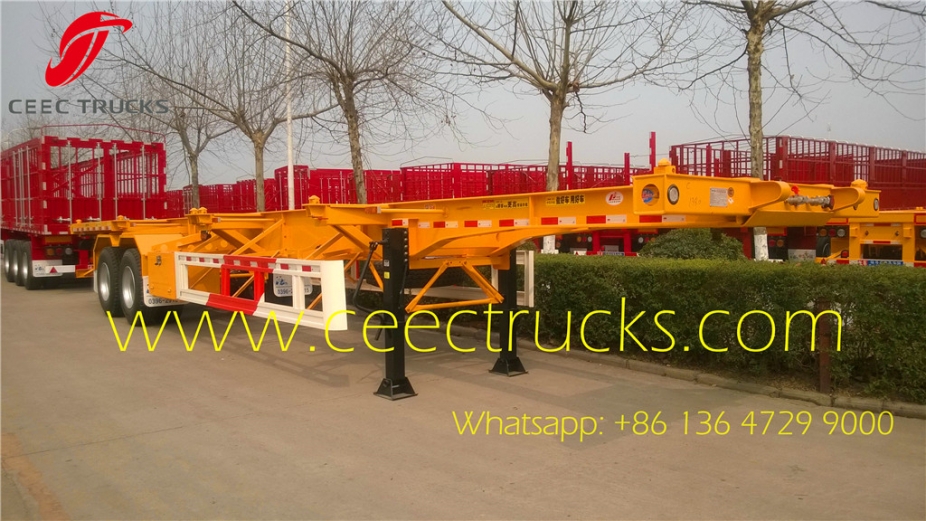

40 FT skeleton bogie suspension trailers

Key features for CEEC produced bogie suspension trailers:

1. Axle up and down automatically

2. Loading platform keep balance automatically

3. Commonly used in transportation for military, vessel, spaceflight and extremity area

4. The contents of core technology creates countless possibilities and each individual component of the trailer construction kit can be used more frequently and accordingly be amortised faster. Total investment in the vehicle fleet is thus considerably reduced.

5. The maximum technical axle load of the different types of bogies was defined on the basis of a minimum speed of 30 km/h. This leads to a considerable optimisation of the dead weight compared to known modular axle lines.

6. Despite the weight optimisation, an enormous bending moment across all bogie variants is achieved by the use of high-strength fine-grained steels and a new frame design.

7. Particular importance was attached during the development to the simple operability of the overall concept.

8. The intuitive operator guidance significantly increases safety and reduces the risk of incorrect handling.

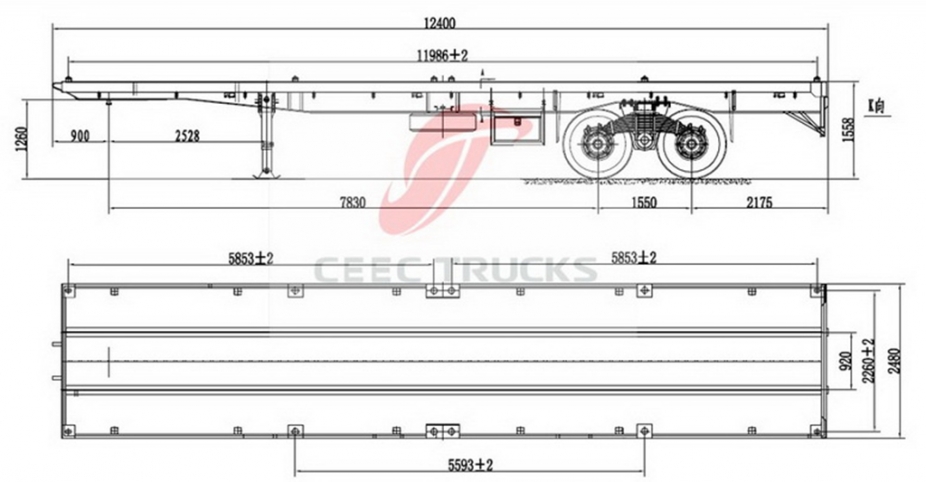

Bogie suspension semitrailer drawing

CONGO best semi remorque supplier for 40 T bogie suspension semi remorque, 60 T bogie suspension semi remorque, 70T bogie suspension semi remorque. We exported more than 100 unis bogie suspension semi remorque to CONGO, POINTE NOIRE.

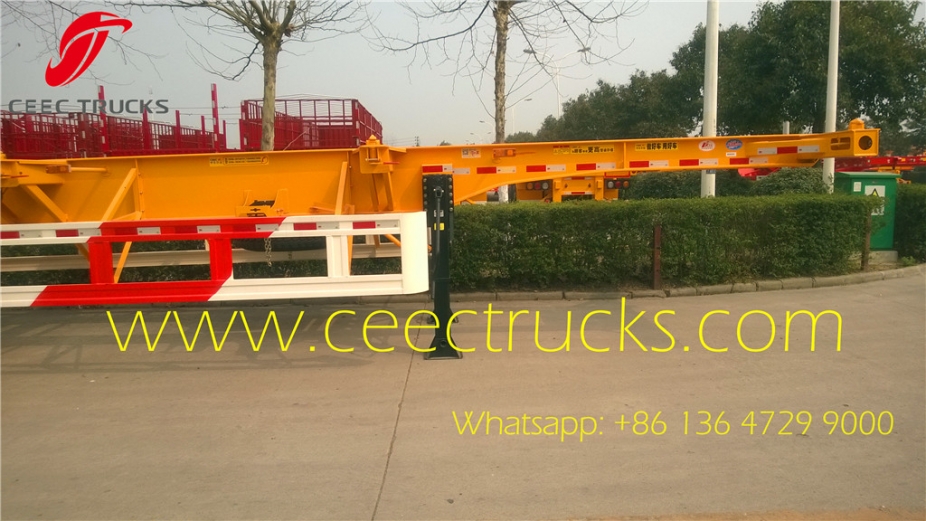

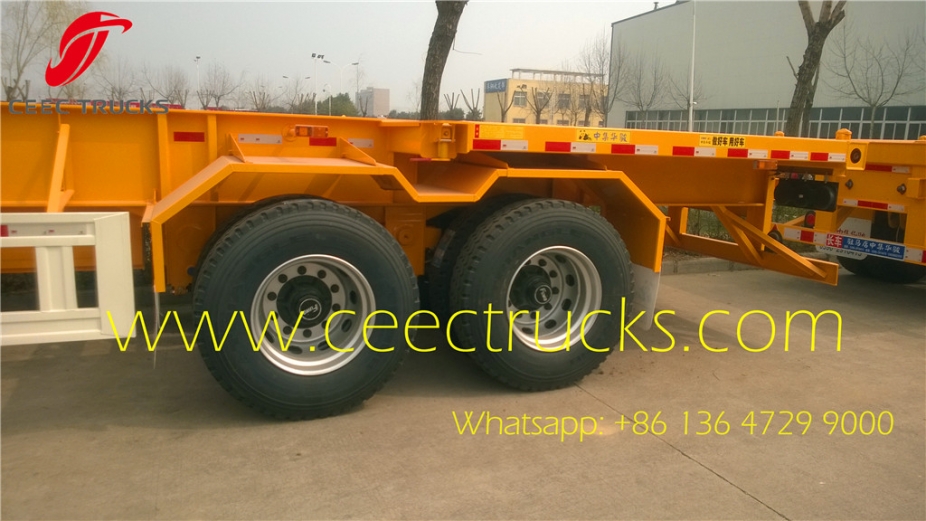

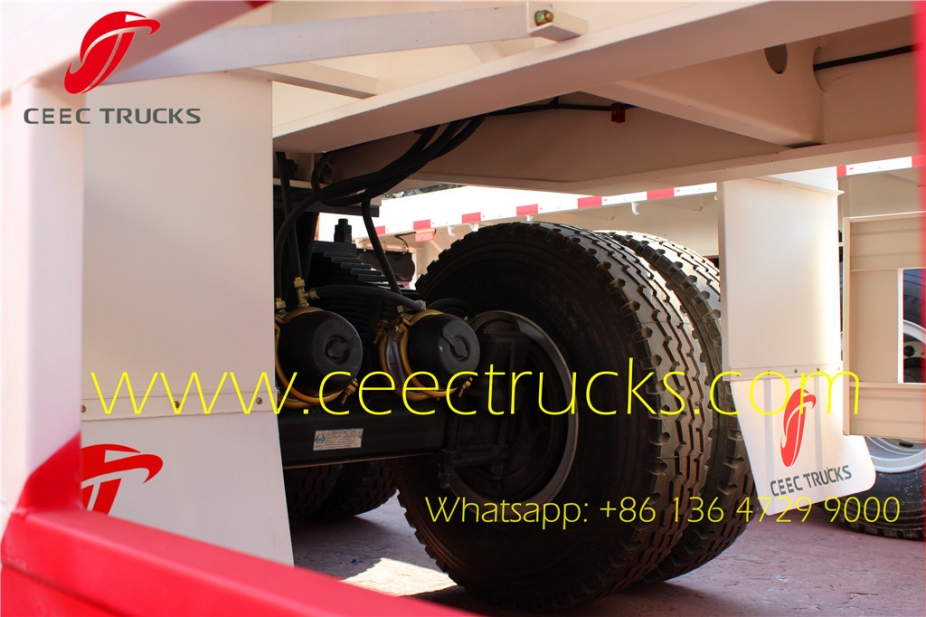

bogie suspension trailers details

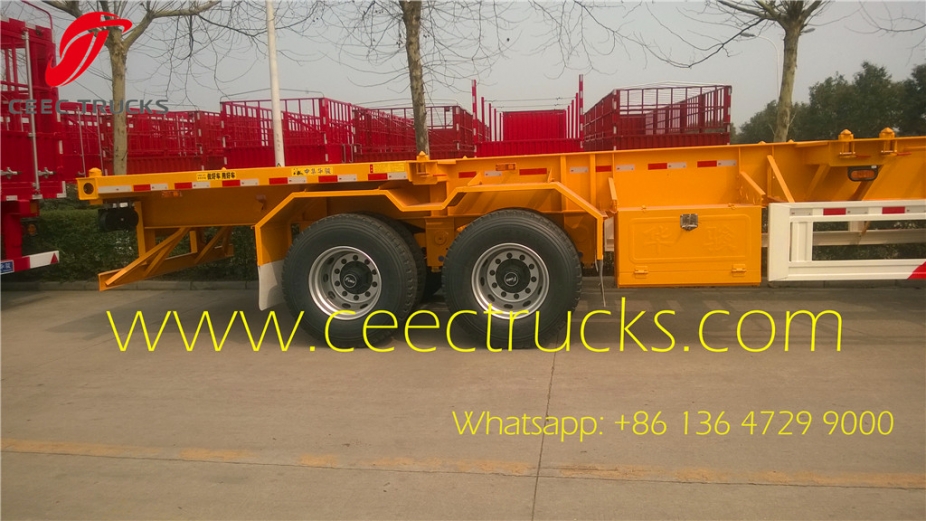

2 axle 40T bogie suspension trailers details

Similar Key words: bogie suspension trailer, 2 axle bogie suspension semitrailer, skeleton bogie suspension trailer, container bogie suspension trailer, 50T bogis suspension semi trailer, Congo bogie suspension trailer

Trailer Model	2 Axle skeleton bogie suspension Semi Trailer
Function	Carry 40ft or 2*20ft container or other stuff
Overall Dimension (Lx W x H)(mm)	1250025001650
Tare Weight(KG)	6350
Loading Weight( KG)	40000
Total Weight(KG)	50000
Axle	13 TON Axle
Axle Number	Two
Wheelbase(mm)	7450+1310
Suspension system	Common Mechanical Suspension

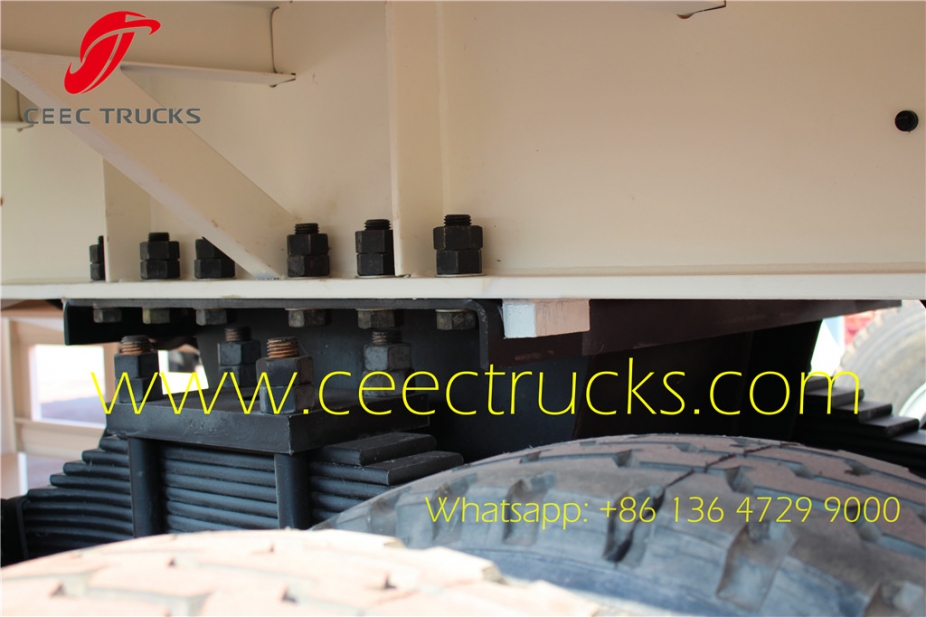

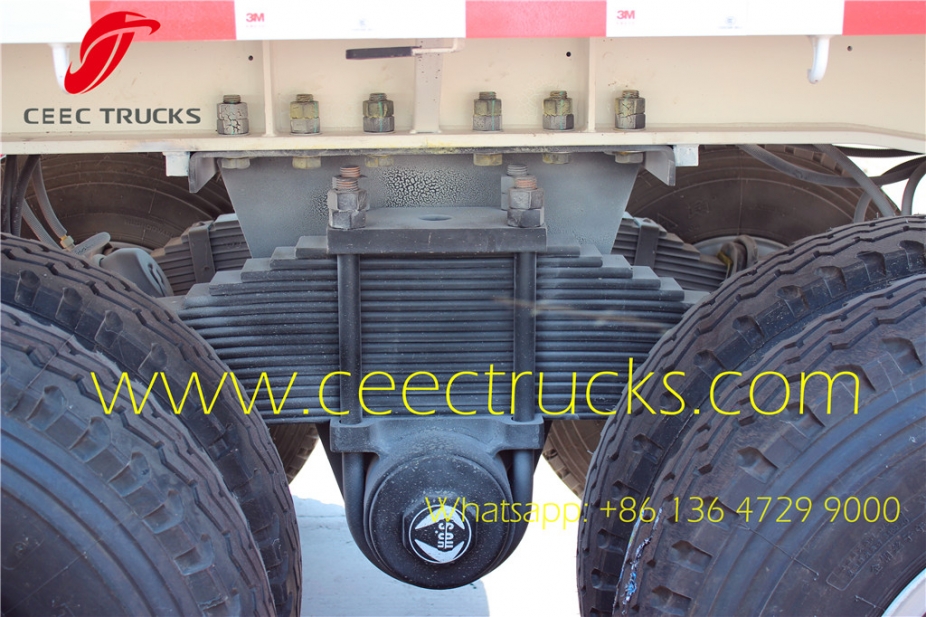

Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Platform plate	3mm Diamond plate
Container Twist Locker	12 pcs container lock
Tire Type and quantity	12R22.5 8 units
Traction Pin	50MM or 90MM
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard

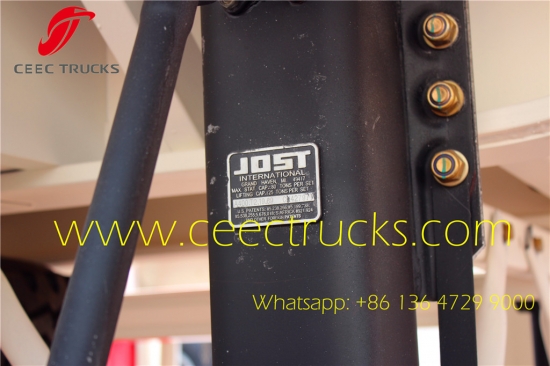

Landing Gear	28 ton

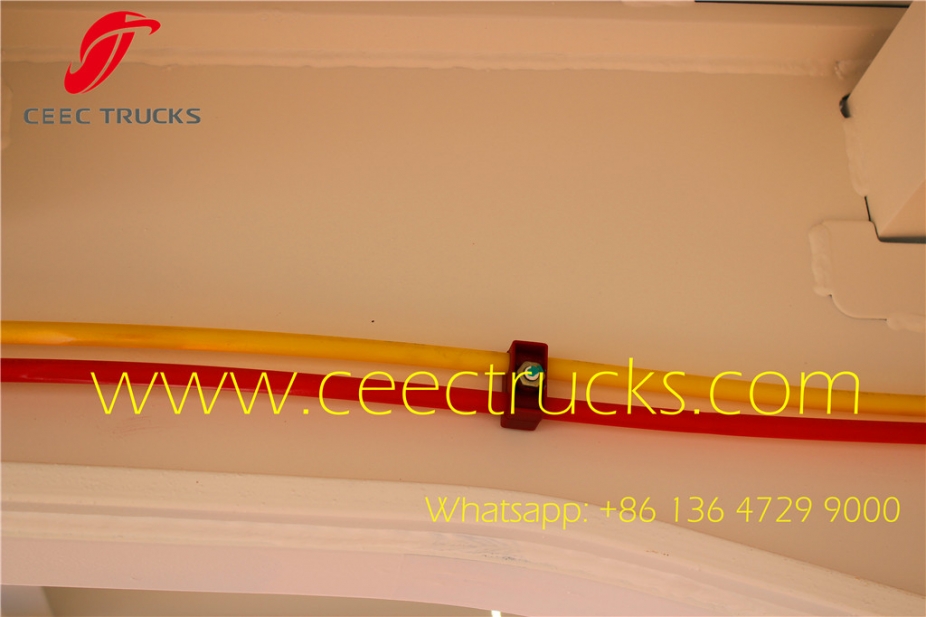

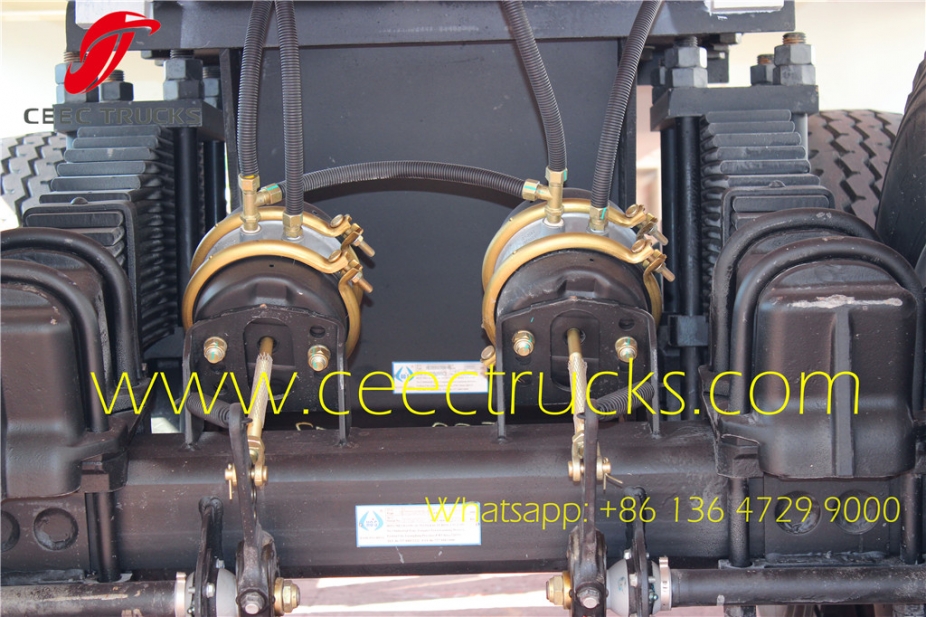

Brake system	Dual Line braking system, none ABS

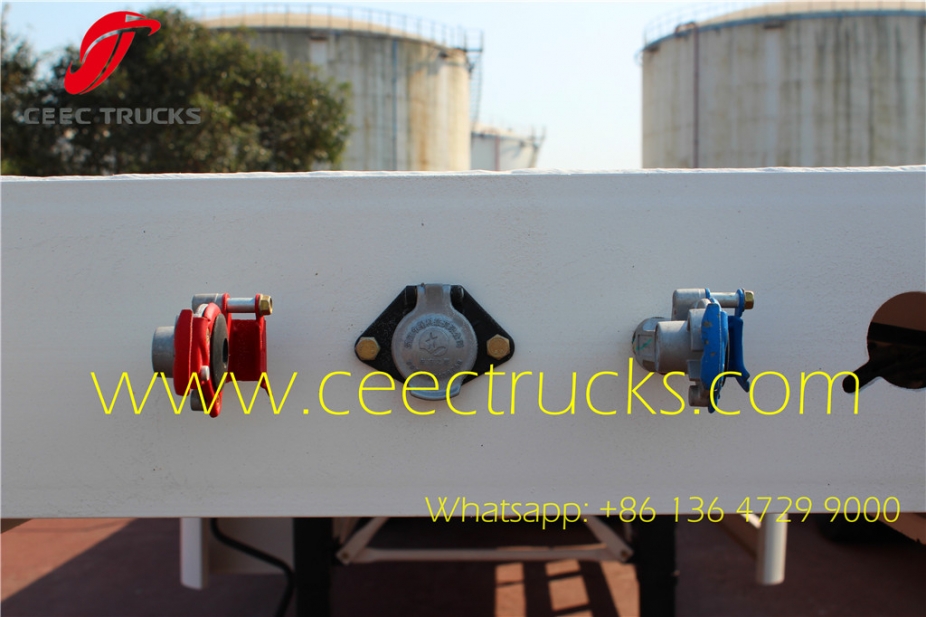

Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.

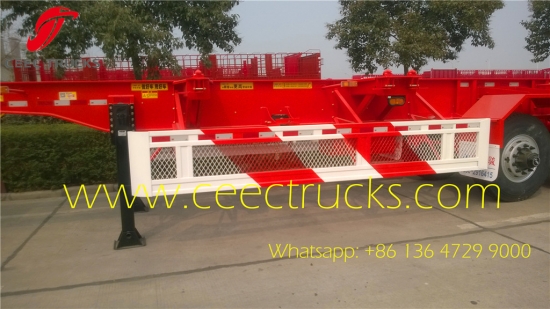

Side Guard	According to customer’s requirement
Painting	Color as customer’s requirement
Package	NUDE, Polish with wax before shipping
Delivery way	Transfer to Qingdao Port, and carry by ro-ro ship, the freight cost depends on the volume.

bogie suspension

40 FT skeleton bogie suspension semi trailer

China Best Semitrailer on sale

Axle	BPW	FUWA	FUWA	BPW	BPW
Landing Gear	JOST C200	JOST C200	HOLLAND	HOLLAND	China Brand
Tire	11.00R22.5	11.00R20	11.00R22.5	11.00R20	11.00R22.5
Payload	20 CBM ~ 60 CBM	20 CBM ~ 50 CBM	40 Feet Contrainer	50 T	40 Feet COntrainer
Drive Type	3 axles	3 axles	2 axles	2 axles	2 axles

Beiben 30T, 40T, 50T, 60T, 70T tractor truck manufacturer supply

★ International standard Carbon steel Q235 and Q345 material, special choose Q550 material

★ Axle style: BPW and FUWA brand 13T & 16T for optional

★ Landing Gear: JOST and HOLLAND brand, or standard

★ TOP chinese brand 11.00R20 model tire as standard equipment, tire quantity 12 units

★ 12 months free fast moving spare parts

★ Semitrailer export CKD and SKD expert

Bogie suspension trailer manufacturer supply

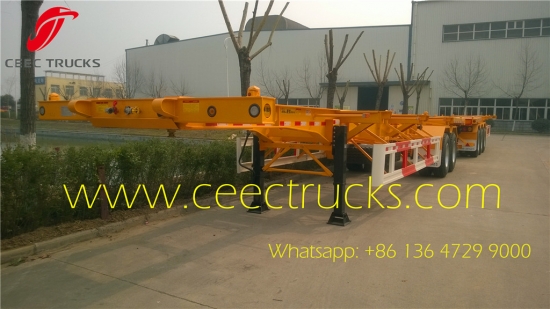

40 FT skeleton bogie suspension semitrailers

(Bogie suspension semi trailer Main beam with Q550 material and loading capacity can be up to 60T)

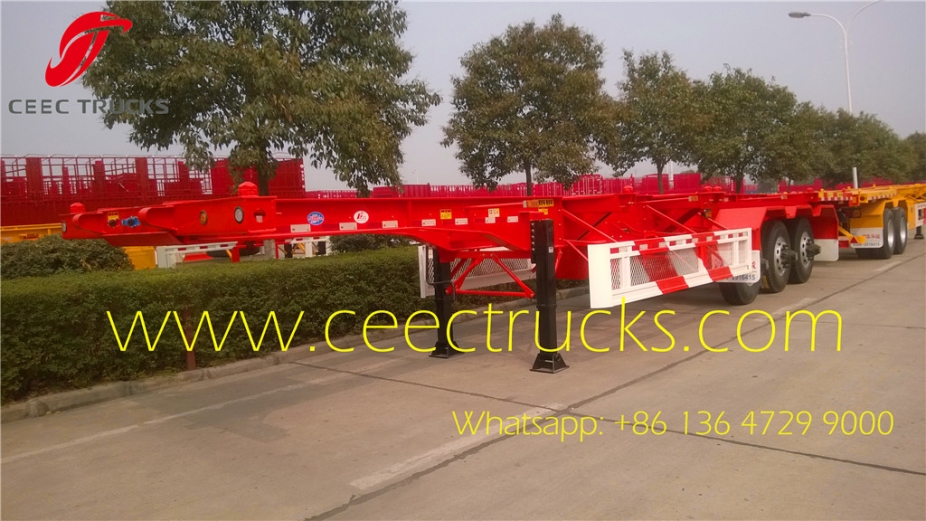

40 FT skeleton bogie suspension semitrailers

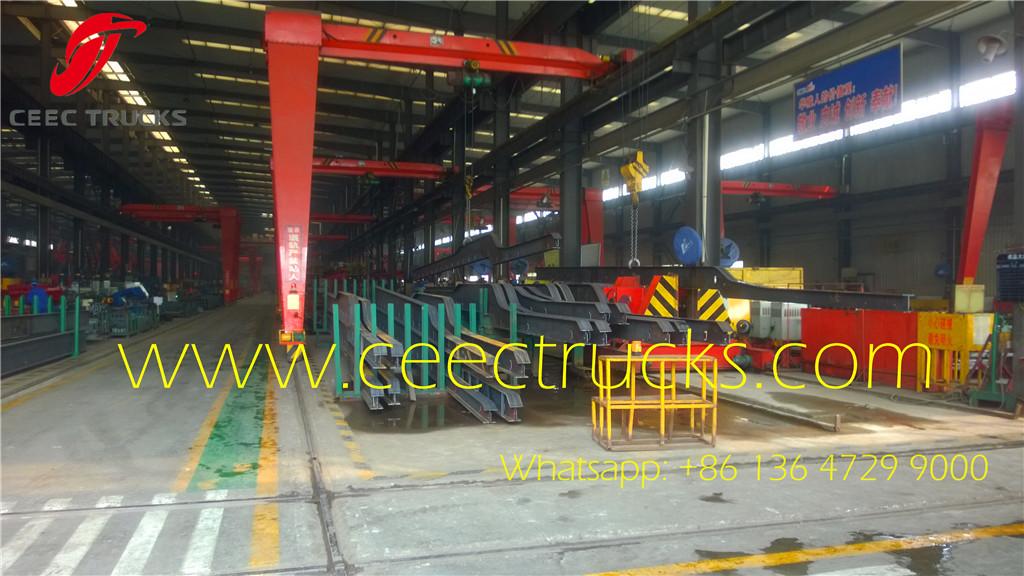

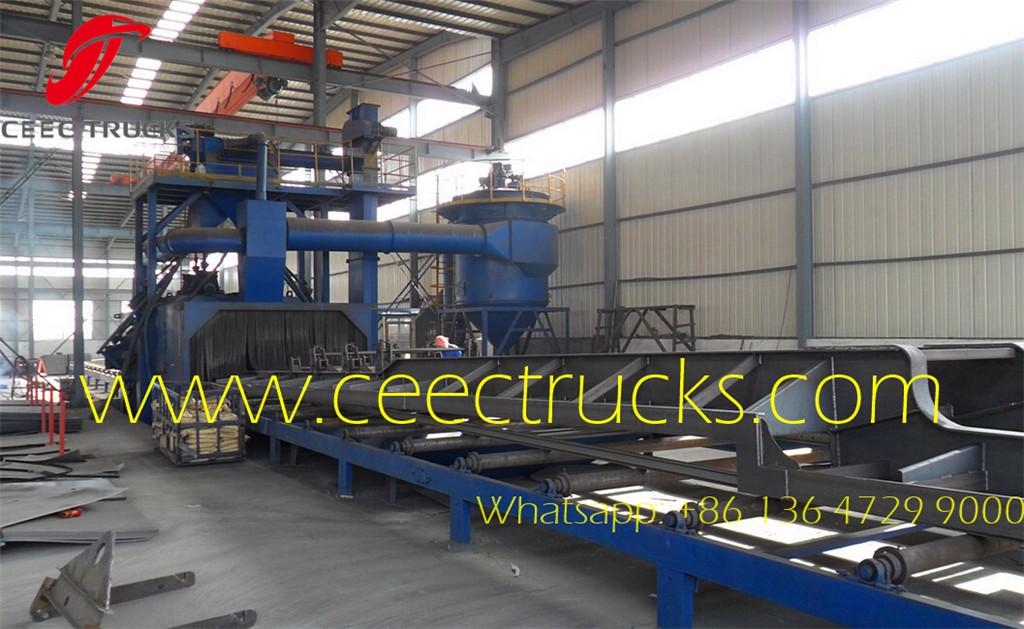

(Advanced machine for skeleton bogie suspension trailer manufacture, and CEEC bogie trailers widely export Congo, Kenya, Algeria)

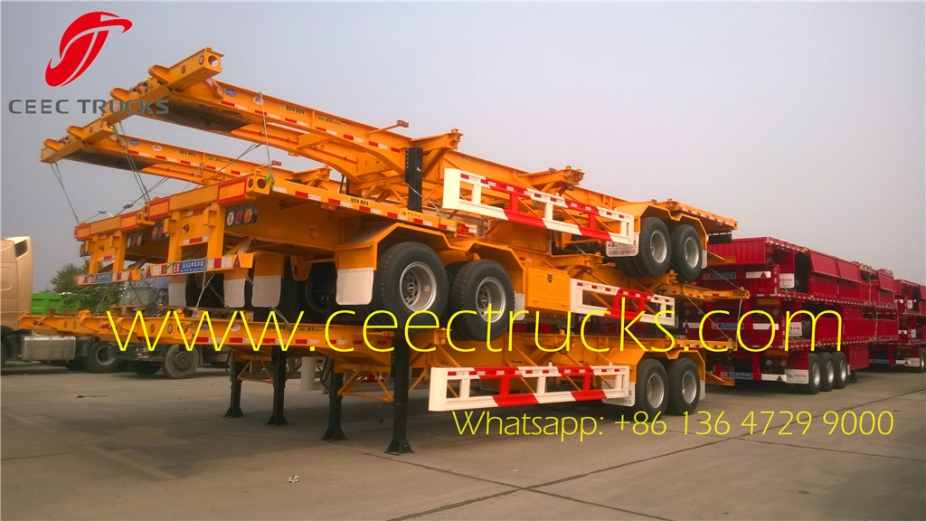

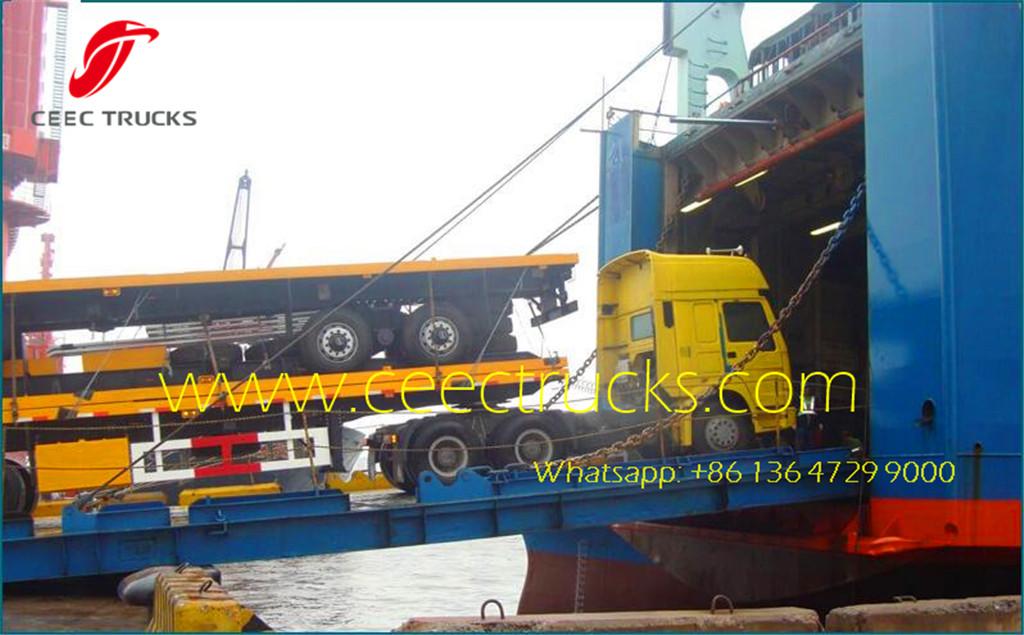

Bogie suspension trailer for shipment

(bogie suspension trailers for Ro-Ro shipment and ready delivery to Africa)
