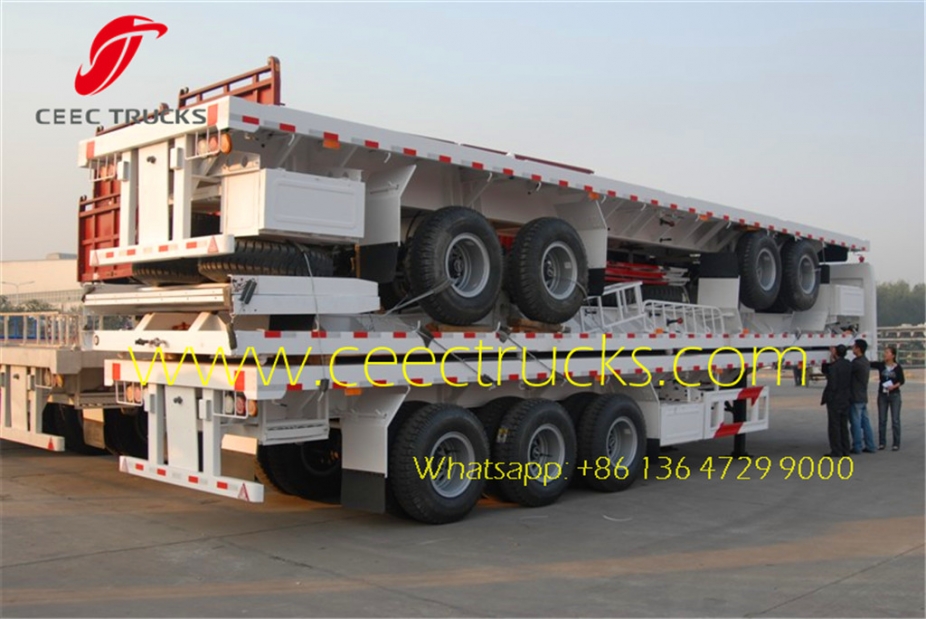

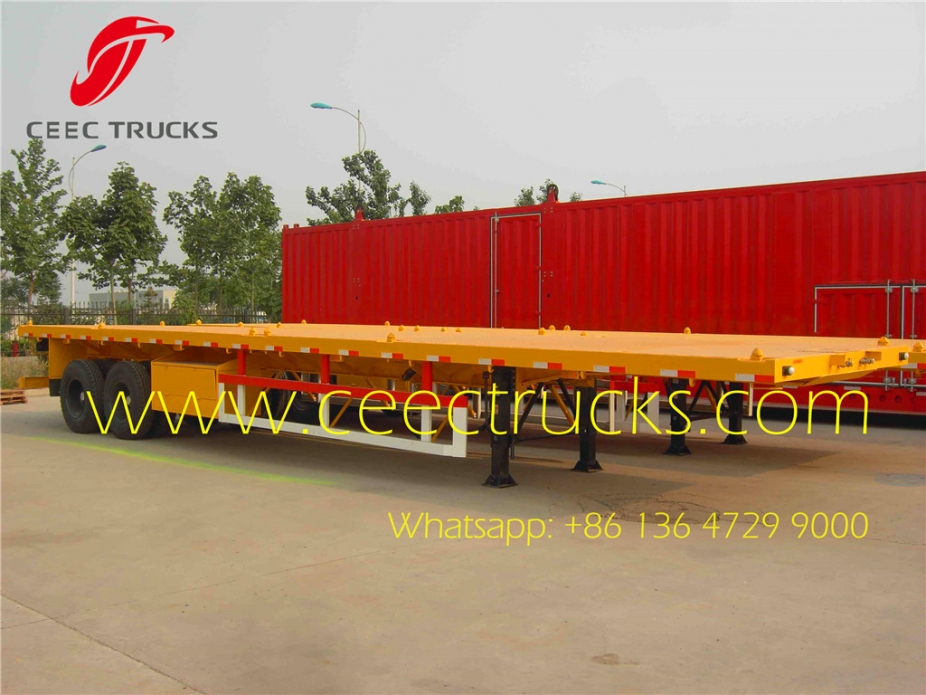

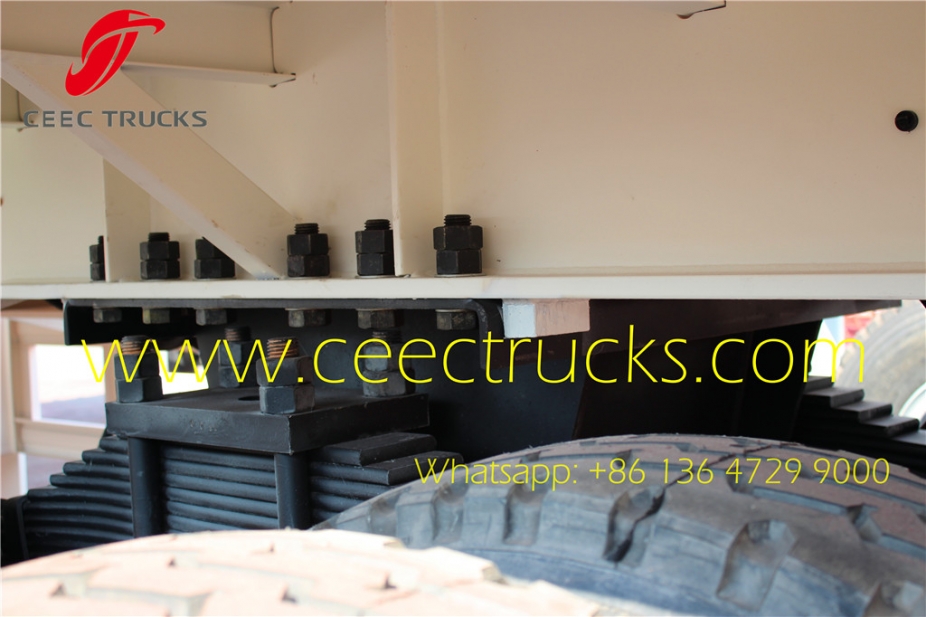

T700 steel Strong trailer frame 40foot bogie suspension Semi Trailer

2 axle 40T Bogie Suspension

2 axles 40ft flatbed trailer/ platform container transport semi trailer with bogie, heavy type bogie suspension trailer use BPW axle and JOST kingpin and landing legs, mainly export Kenya, Congo, Tanzania, etc

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
7 Days
Payment:
T/T, West Union
FOB Price:
USD $11,000-20,000
Market Price:
$15000

contact now

Bogie Suspension trailer was popular by logistics companies as its multipurpose application. It can be used to transport containers , bulk cargo and other goods. Which is popular for heavy loading and widely export Africa Kenya, Algeria, Zambia, Togo, Congo, etc.

40 feet Bogie Suspension semitrailer supplier

2 axle 40T bogie suspension trailers details

Congo Customer Choose 2 axle 40T bogie suspension container semi-trailer supplier:

★ High tensile strength steel Q345B for I-beam

★ Axle: German BPW or American style from 12 tons to 20 tons

★ Suspension: bogie suspension for heavy duty capacity.

★ Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)

★ King pin: JOST brand Optional for 2" or 3.5" Kingpin

★ Side wall height: Optional for 600mm, 800mm or 1000mm

★ Twist locks: Optional (4 PCs, 8 PCs, 12Pcs)

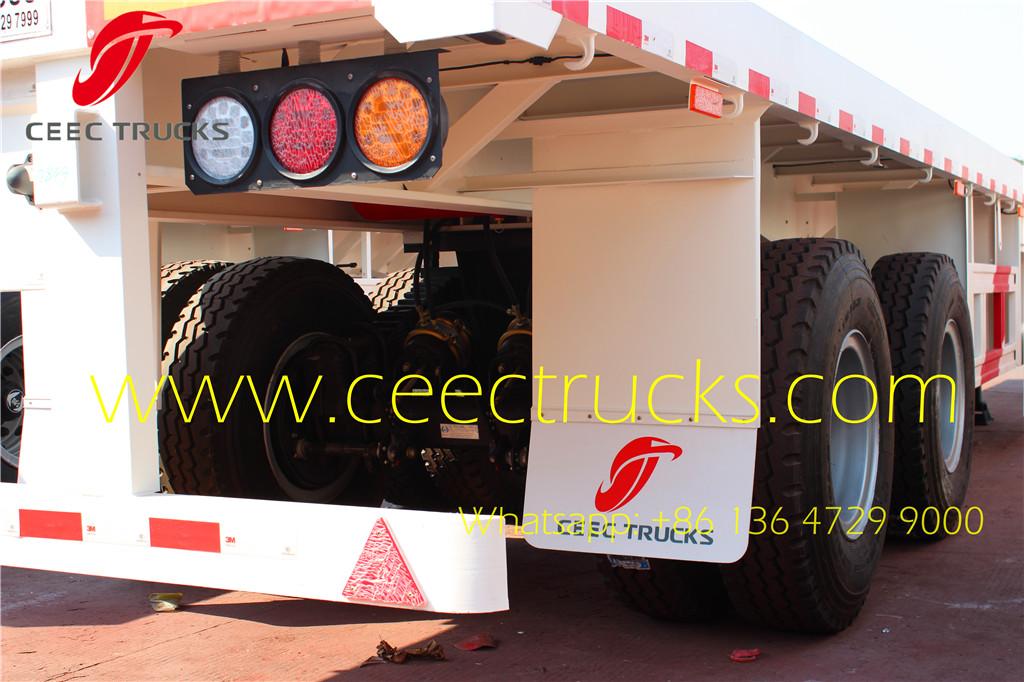

2 axle 40T bogie suspension trailer

CONGO best semi remorque supplier for 40 T bogie suspension semi remorque, 60 T bogie suspension semi remorque, 70T bogie suspension semi remorque. We exported more than 100 unis bogie suspension semi remorque to CONGO, POINTE NOIRE.

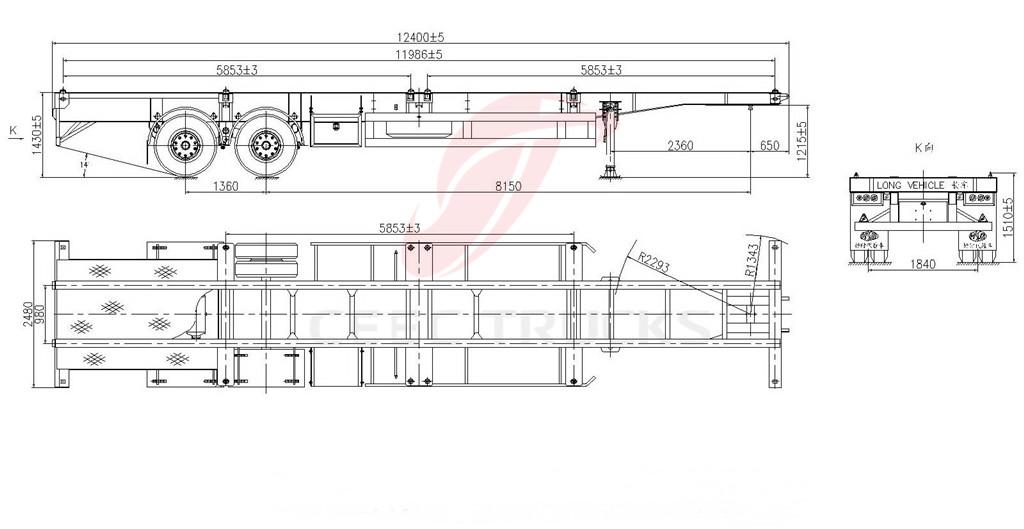

optional model for 40T bogie suspension trailers

Similar Key Works: bogie suspension semitrailer, 2 axle flatble semitrailer, 40 feet 2 axle bogie suspension contrainer trailer, 40 T bogie suspension trailers, 40feet flat bed container semitrailer, container bogie suspension trailer

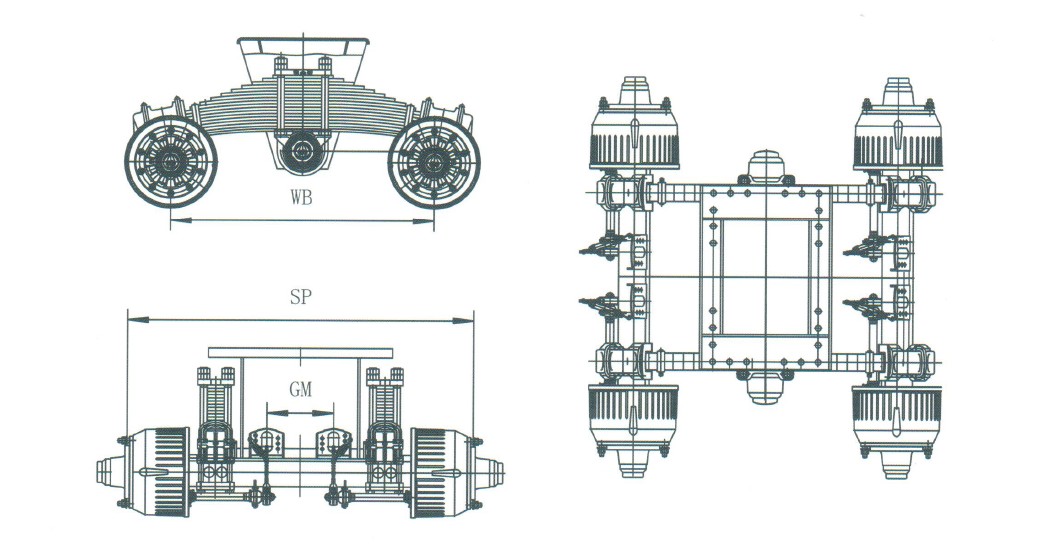

bogie suspension trailer detail

40Feet 2Axles Bogie suspension Container Semi-trailer (12 pieces Twist Lock)
DIMENSIONS
Tare Weight	5000kg
Payload	35000kg
Total Weight	40000kg
Overall Length	12400mm
Overall Width	2480mm
Overall Height	1480mm
Wheel track	1840mm
Wheel base	8350mm+1300mm
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm;Bottom Flange 16mm,width 140mm
Main Frame
Axle	Two Units of Germany BPW(brand) 13Ton axle,15T axle, 16Taxle

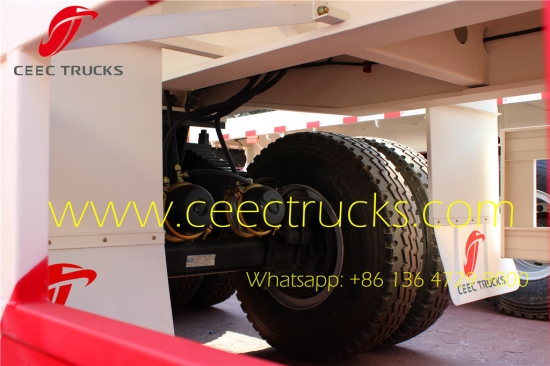

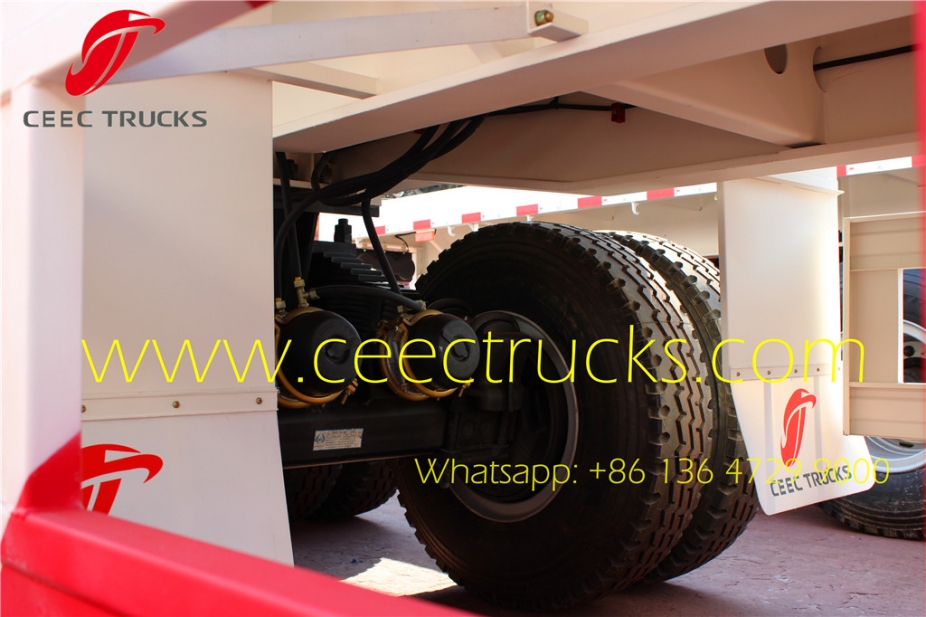

Suspension	Germany BPW (brand) mechanical 2-axle suspension

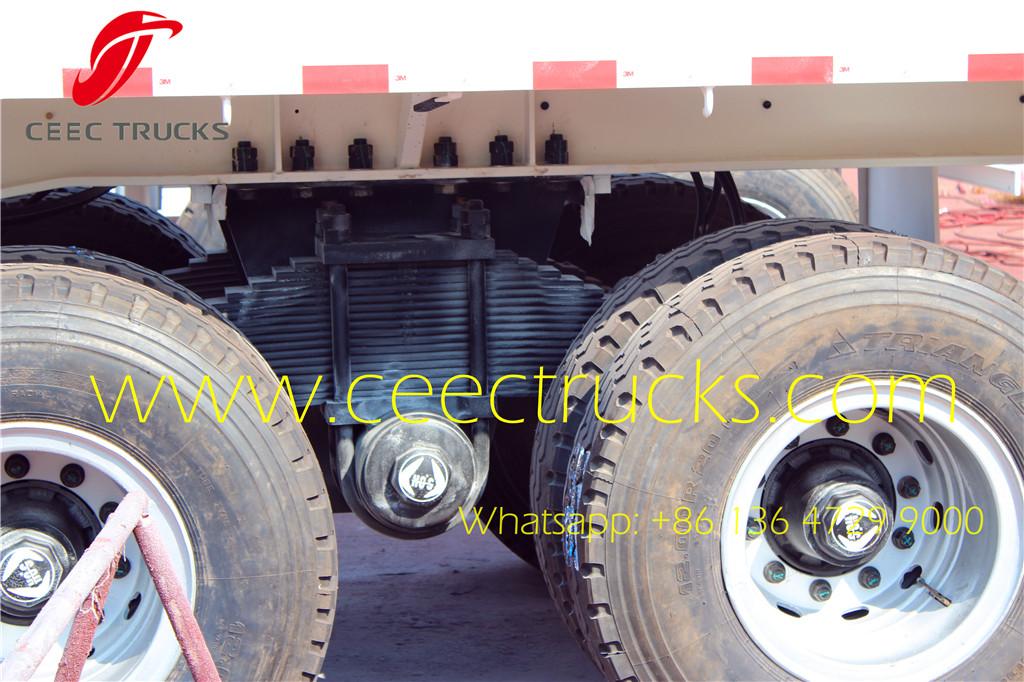

Leaf Spring	Four sets of reliable local brand, 7-piece leaf spring,16x90mm
King Pin	One unit of 2`` SAE standard bolted-in kingpin

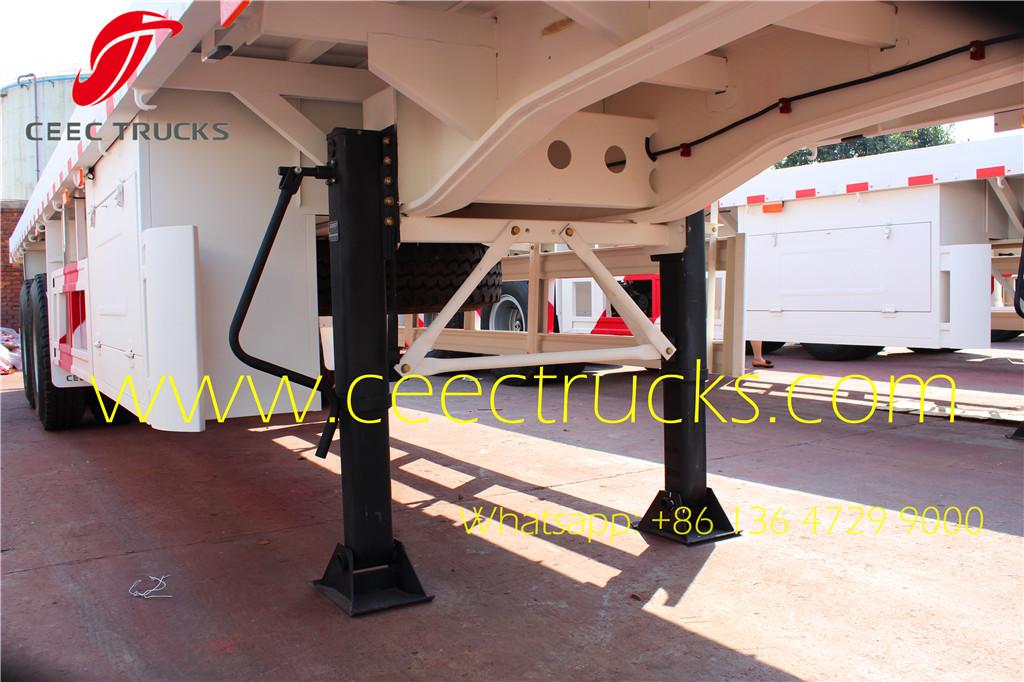

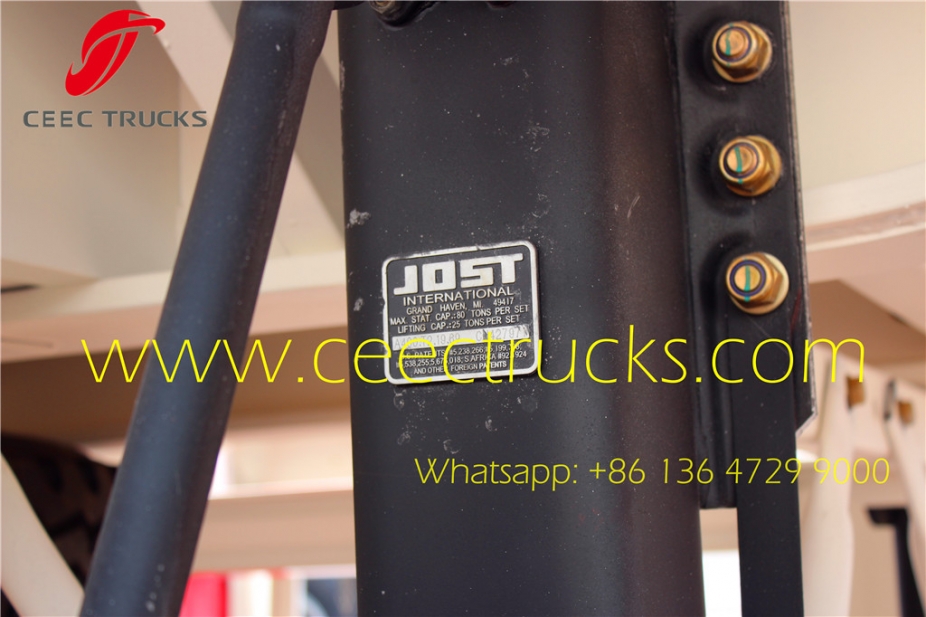

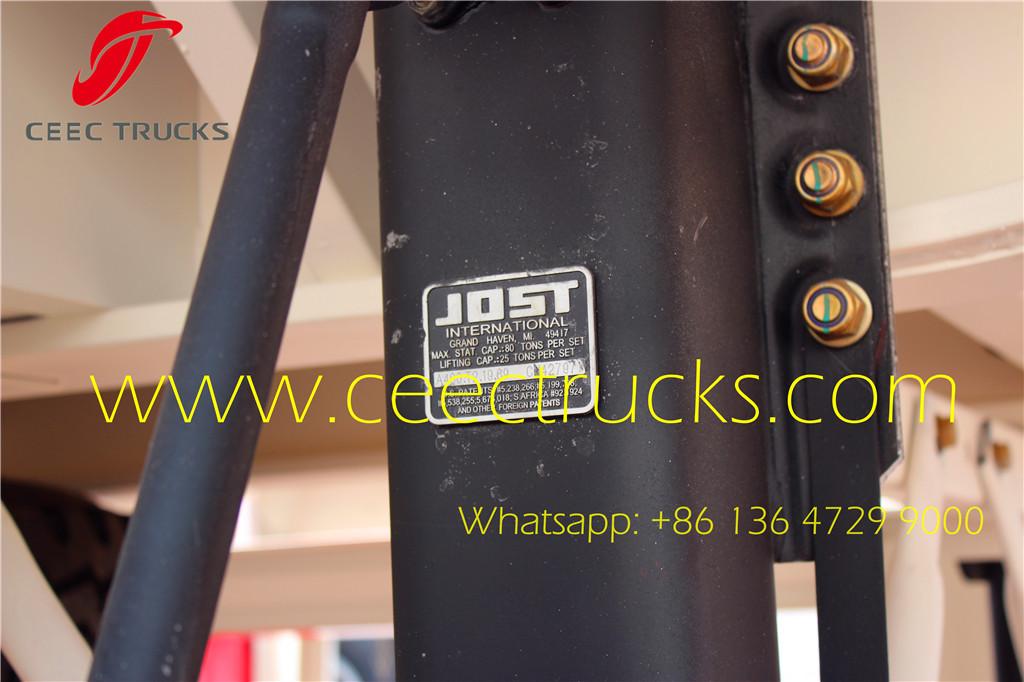

Landing Gear	JOST-D200,Two-speed manual operation, heavy duty landing gear
Wheel Rim	Eight units of 8.0-20 rim
Tyre	Eight units of 12.00R20 nylon tyre
Twist Lock	12 pieces---four pieces are fasten mode, eight pieces are up-down mode, of ISO twist lock for 2x20ft;1x40ft container, central locks can be laid down.

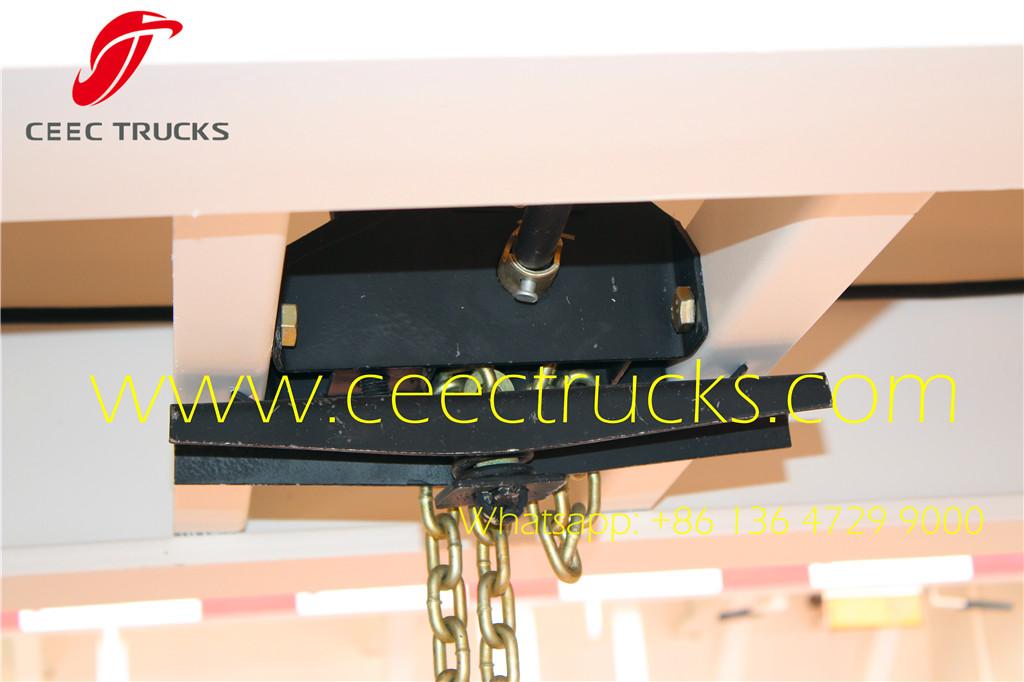

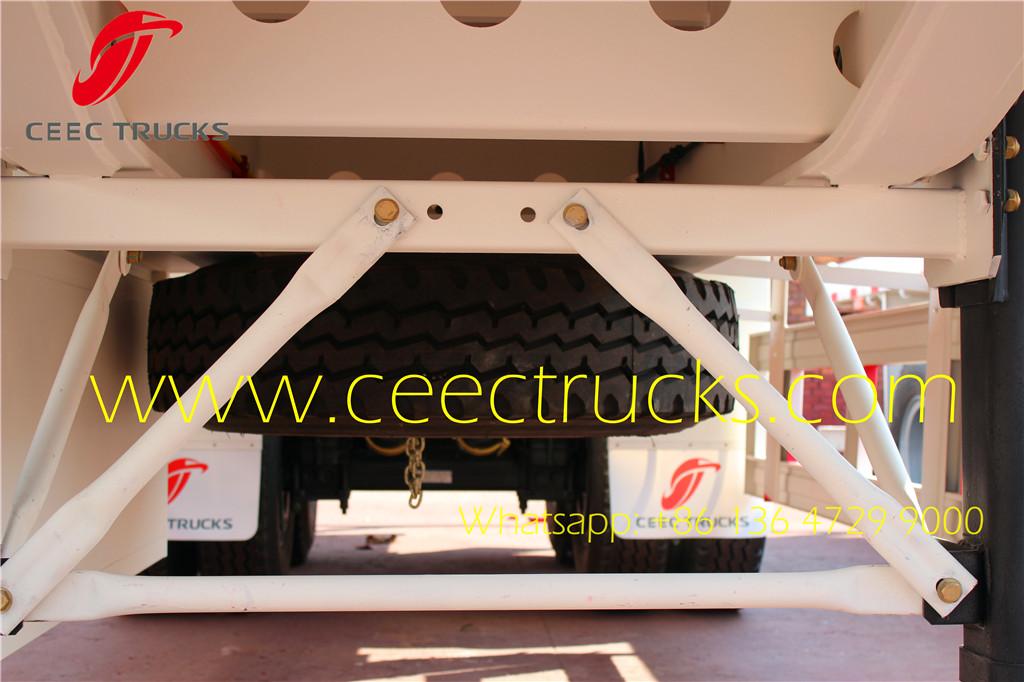

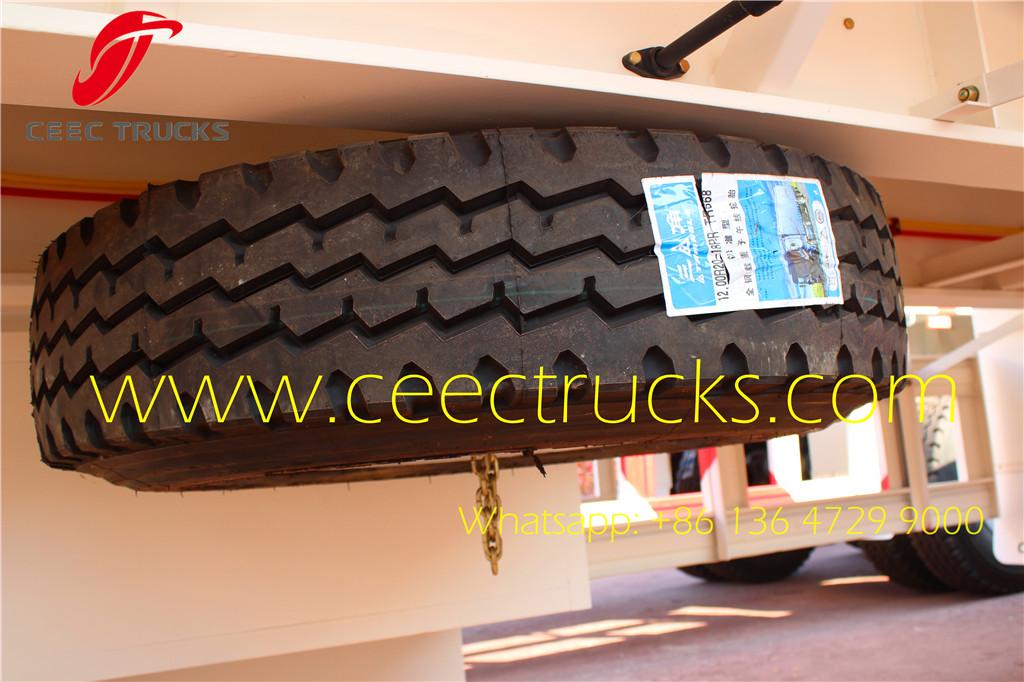

Spare Wheel Carrier	One set of spare wheel carrier including a riser.

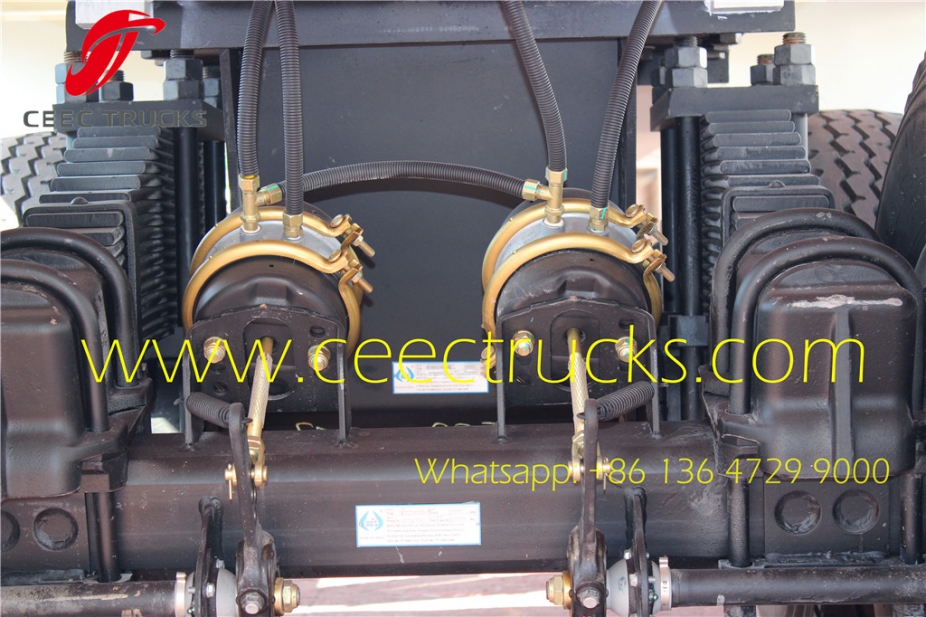

Pneumatic Braking System	One unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.

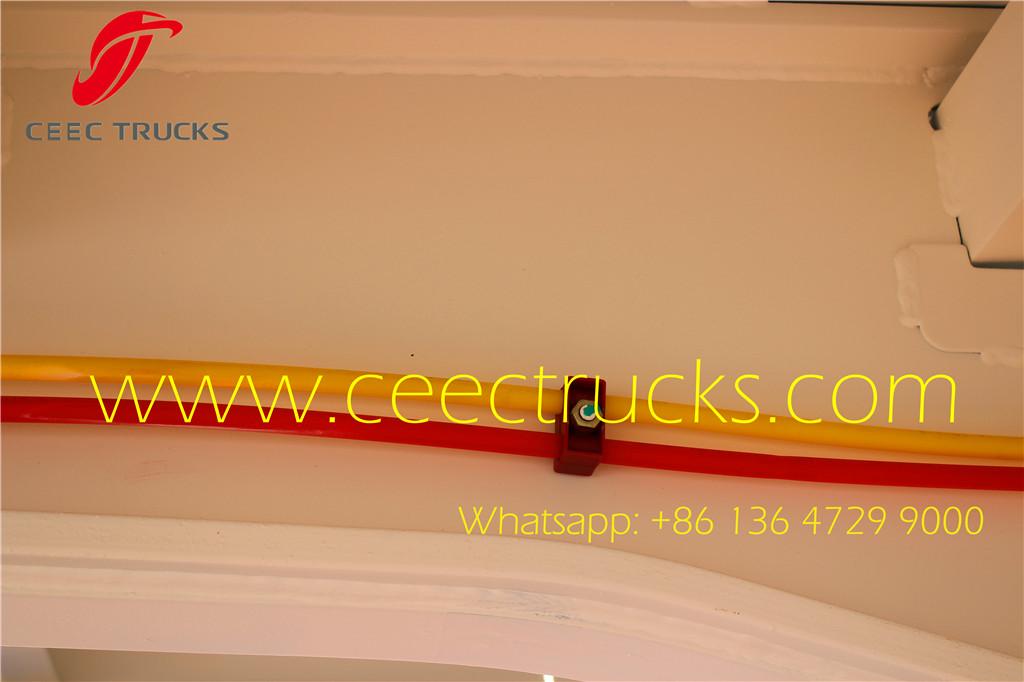

Electrical System	One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of DAFA(brand ) 6-core standard Cable.
Electrical System

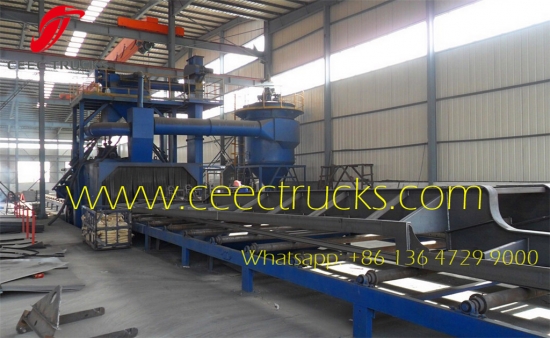

Painting	Sand blasting before painting;
	two coats of primer, anti corrosion;
	one coat of finish painting;
	Color advised by client.
Accessory	One box with a set of standard trailer tool
For the specification above, we reserve the right to make any changes without notice.

2 axle 40T bogie suspension trailers

China Best Semitrailer on sale

Axle	BPW	FUWA	FUWA	BPW	BPW
Landing Gear	JOST C200	JOST C200	HOLLAND	HOLLAND	China Brand
Tire	11.00R22.5	11.00R20	11.00R22.5	11.00R20	11.00R22.5
Payload	20 CBM ~ 60 CBM	20 CBM ~ 50 CBM	40 Feet Contrainer	50 T	40 Feet COntrainer
Drive Type	3 axles	3 axles	2 axles	2 axles	2 axles

Other beiben trucks display

1. The 40 Feet bogie suspension trailer dimensions can be tailored to meet your exact needs.

2. We can design and manufature flatbed bogie suspension container trailer, skeleton bogie suspension container trailer, Lowbed bogie suspension trailer, all to meet customer different requirement.

3. Q235B is a Chinese standardized carbon structural steel with relatively lower price.

4. Q345B is a Chinese standardized high strength low alloy steel with better quality.

5. This is the specification table for the standard type bogie suspension trailer, multiple custom options are available in case you have specific requirements.

40 feet bogie suspension trailer export Congo Pointe Noire

2 axle 40T bogie suspension trailers

(Bogie suspension well packed and ready delivery at shanghai seaport for shipping to Africa)

2 axle 40T bogie suspension trailers

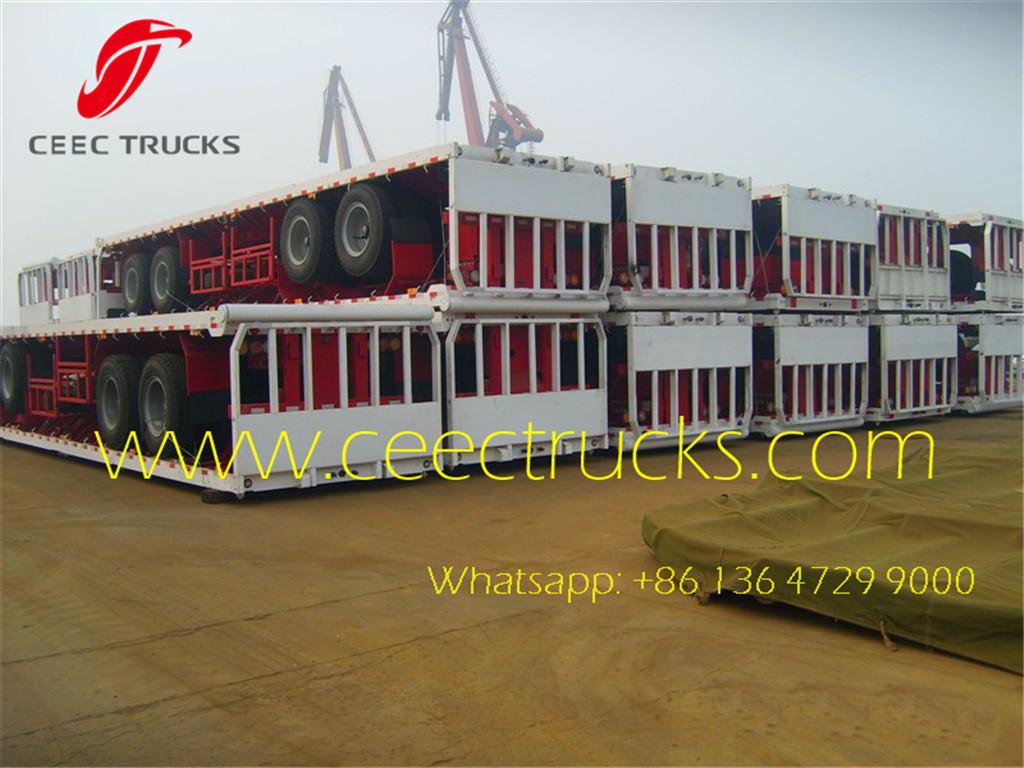

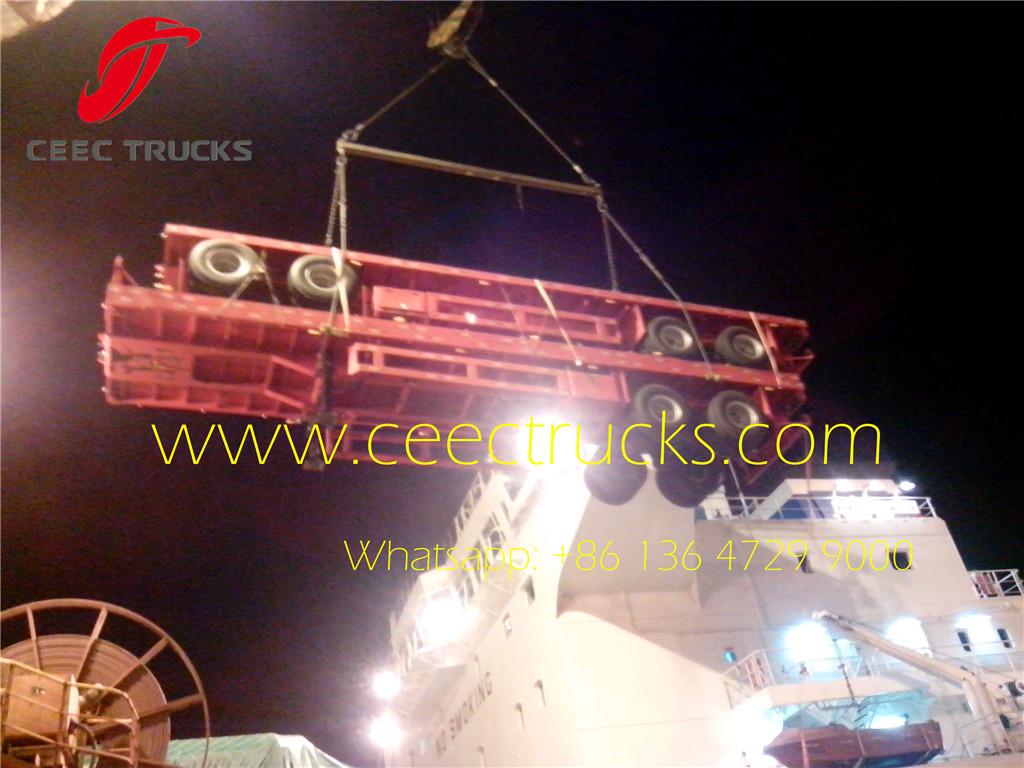

(40 feet bogie suspension semitrailer loading on bulk shipment and ready delivery to Congo Pointe Noire)
