Payment:
T/T, West UnionMarket Price:
$19000Price:
$15,000/25,000Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
10 Days

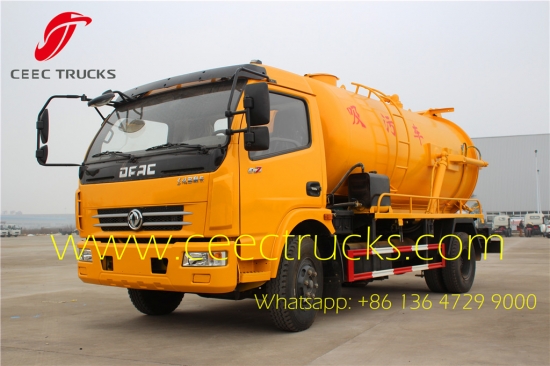

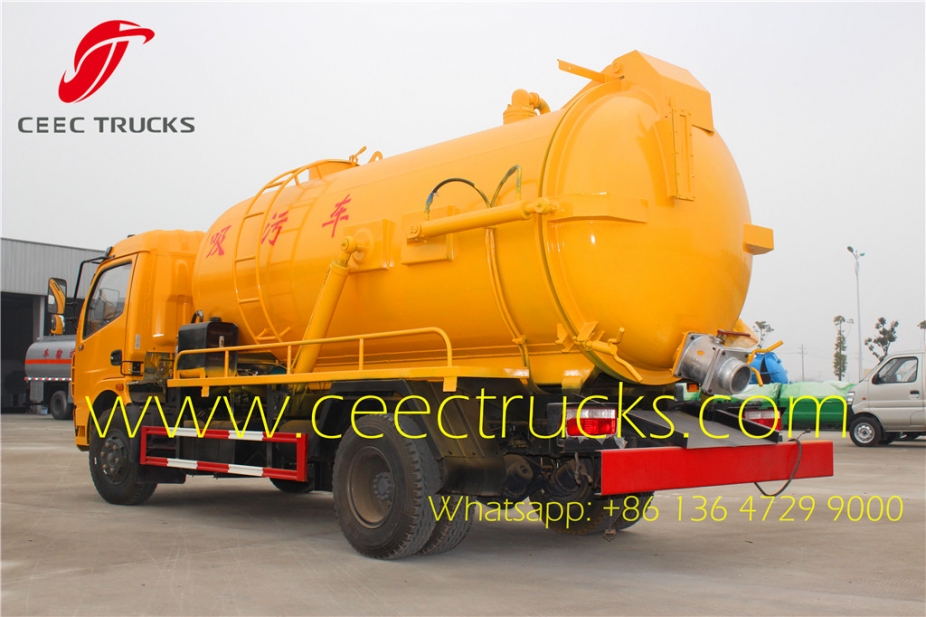

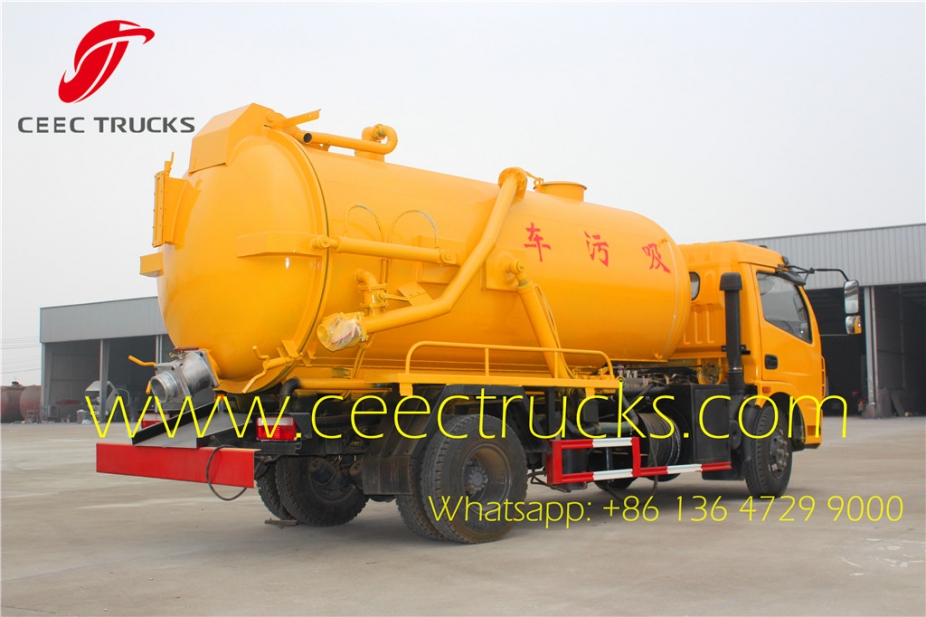

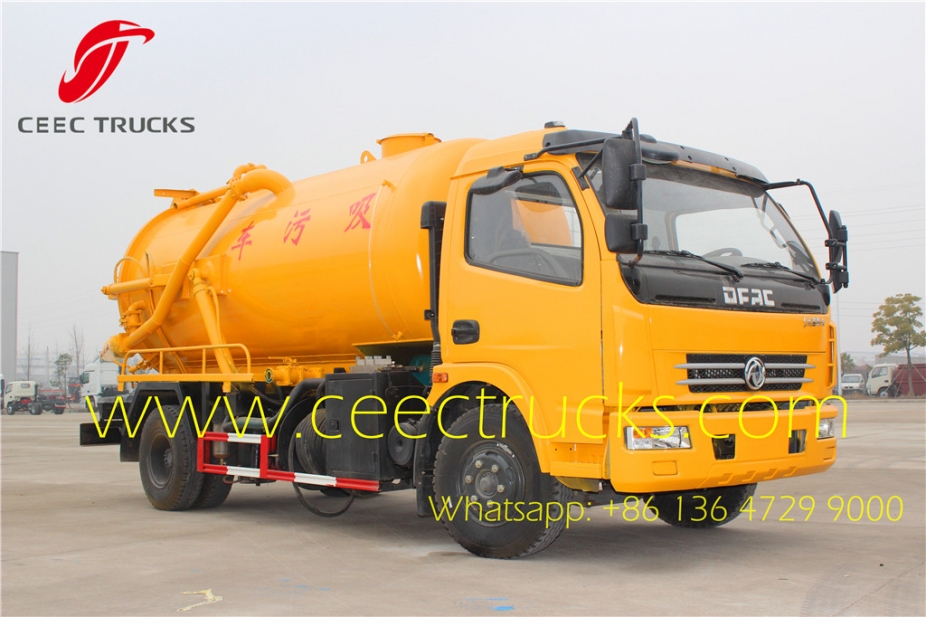

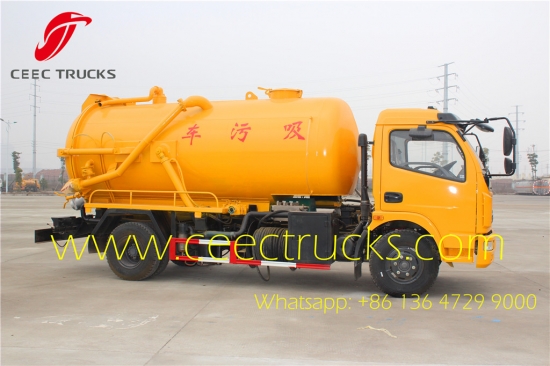

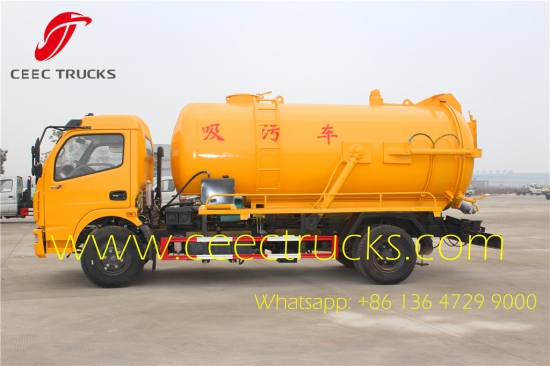

The vacuum sewage suction tanker truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Advanced features for CEEC TRUCKS produced vacuum sewage suction tanker trucks:
1. Model: we have sewage suction truck and sewage suction cleaning truck;
2. Drive model: 4*2, 4*4, 6*2, 6*4, 8*4;

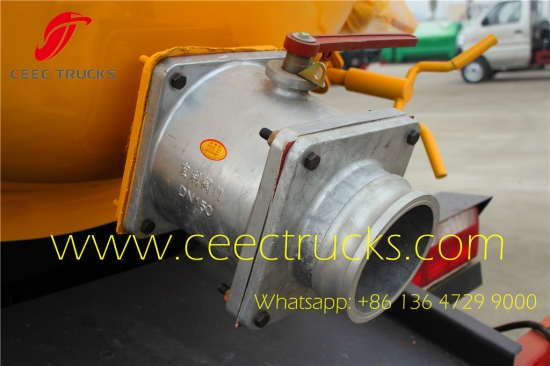

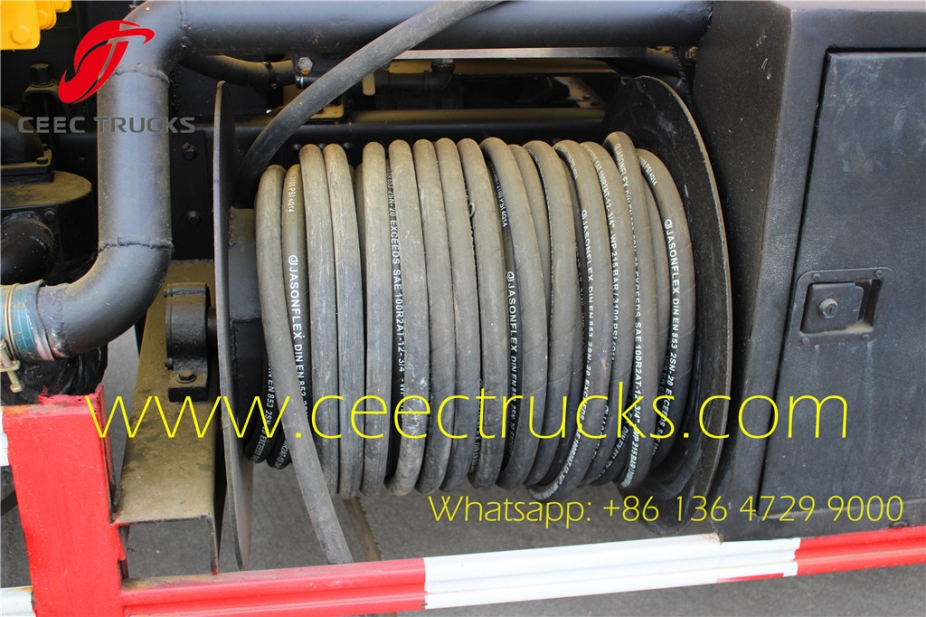

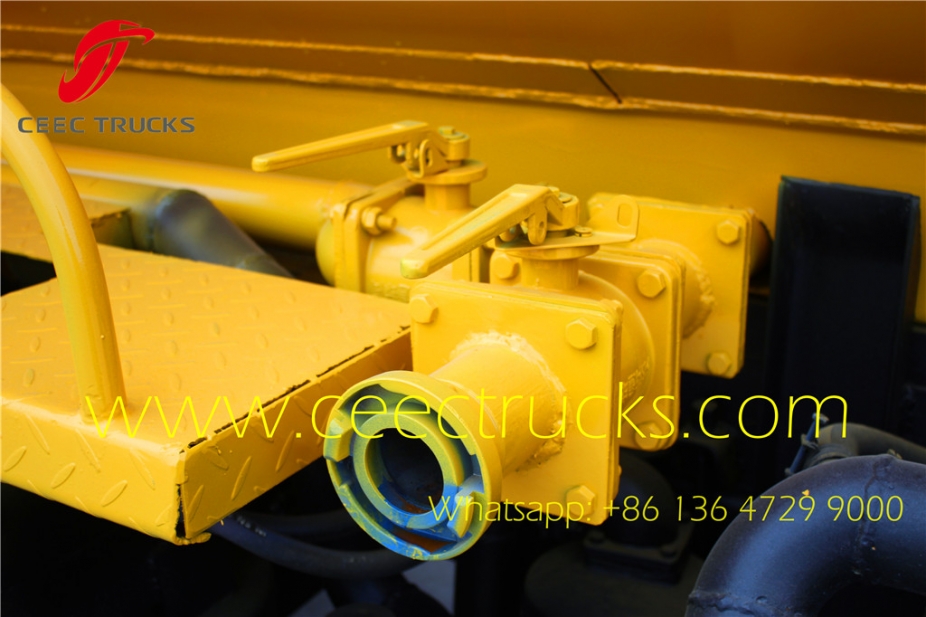

3.Equipments: round tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 5-8 meter, equipped with special sewage suction pipe;
4. Tank capacity: we have tanks for 3-20CBM;
5. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
Similar Keywords: Dongfeng mini cesspit emptier, 6CBM vacuum suction truck, septic suction truck, sludge tipper, sewer scavenger, vacuum tank, truck vacuum, sucker machine, sewage disposal truck, gully emptier, 6000 liters cesspool emptier, sewer suction truck…
| Chassis |
EQ1090 |
|
| Volume |
6000Liters |
|
| Vehicle |
Overall dimension (length/width/height)mm |
6500*2200X2900 |
| G V W(kg) |
6015 |
|
| Payload (kg) |
14000 |
|
| Curb Weight(kg) |
4505 |
|
| Fuel Type |
Diesel |
|
| Engine |
Model |
CY4102-E3C |
| Exhaust/Power(kw) |
3856/88kw(120HP) |
|
| 120HP |
||
| Manufacturer |
DongFeng ChaoChai Engine |
|
| Type |
4-in-line water cool Turbo Charge engine |
|
| Chassis |
Drive type |
4×2 |
| Wheelbase (mm) |
3800 |
|
| Air condition |
Installed |
|

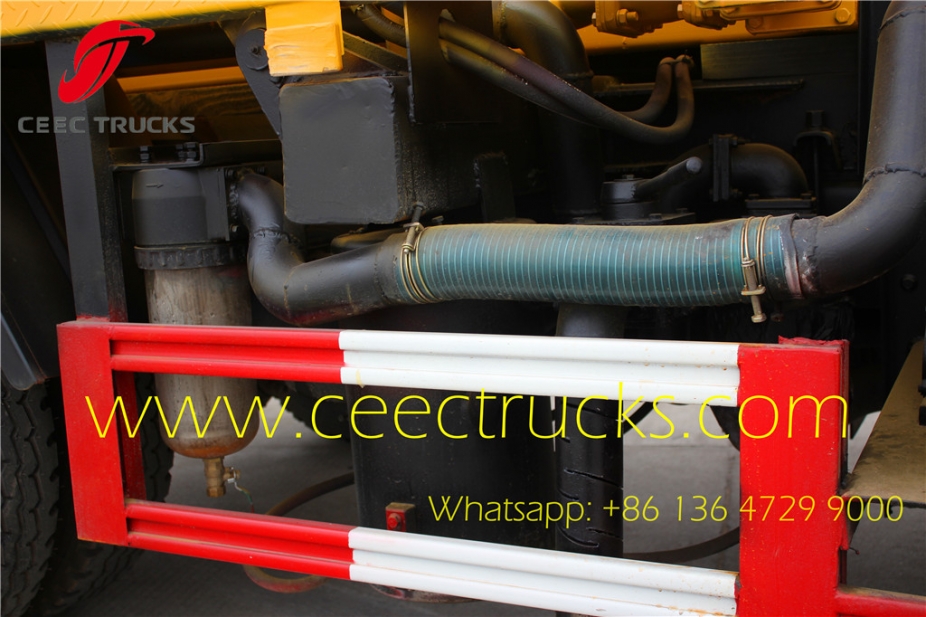

| suction system |
suction pump |
Single Stage Rotary Oil Seal Vacuum Pump |
| special parameter |
Vertical suction heihgt |
≥8 |
| working pressure |
8500Pa |
|
| rotation speed |
500 |
|
| suction speed |
98L/S |
|
| power |
5.5kw |
|
| inlet diatmeter |
50mm |
|
| filling time |
less than 5s |
|
| discharge time |
Less than 4s |
|
CEEC Recommend environmental protection truck series ISUZU, Beiben Truck

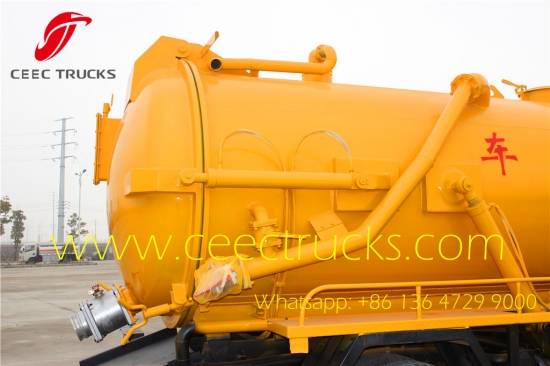

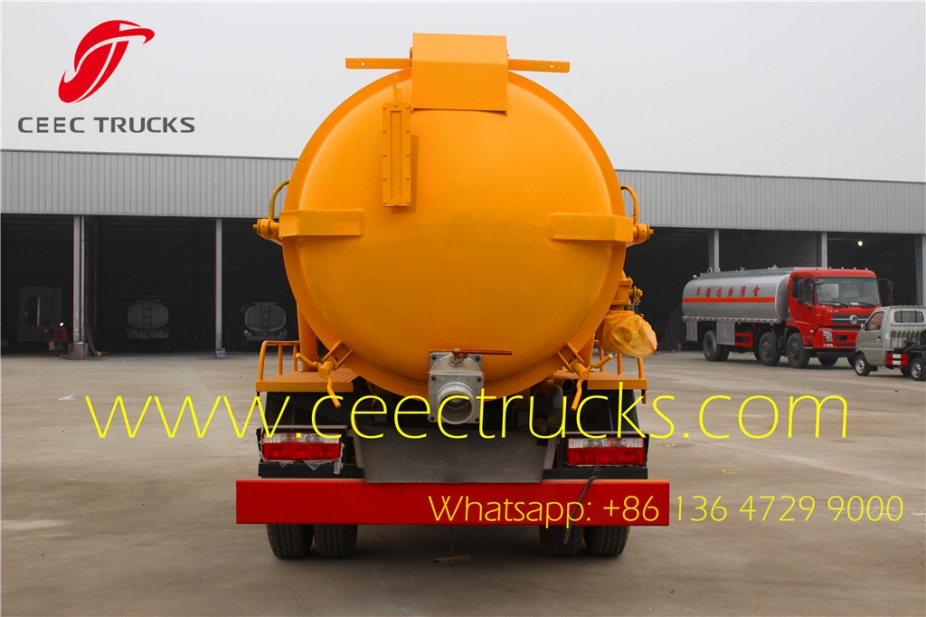

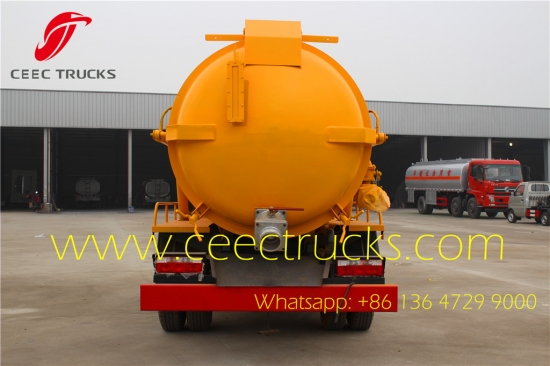

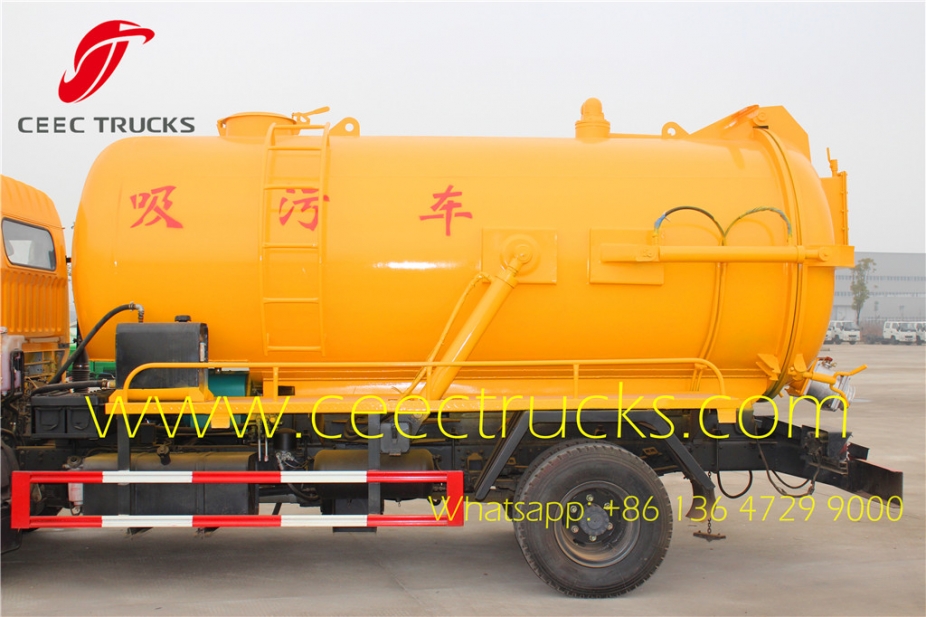

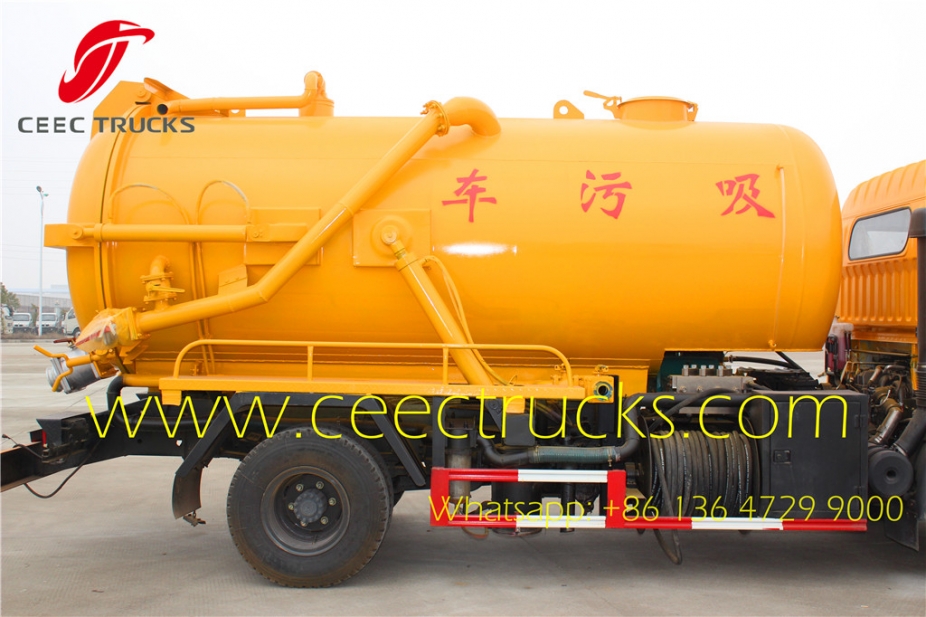

☆ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
☆ Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.

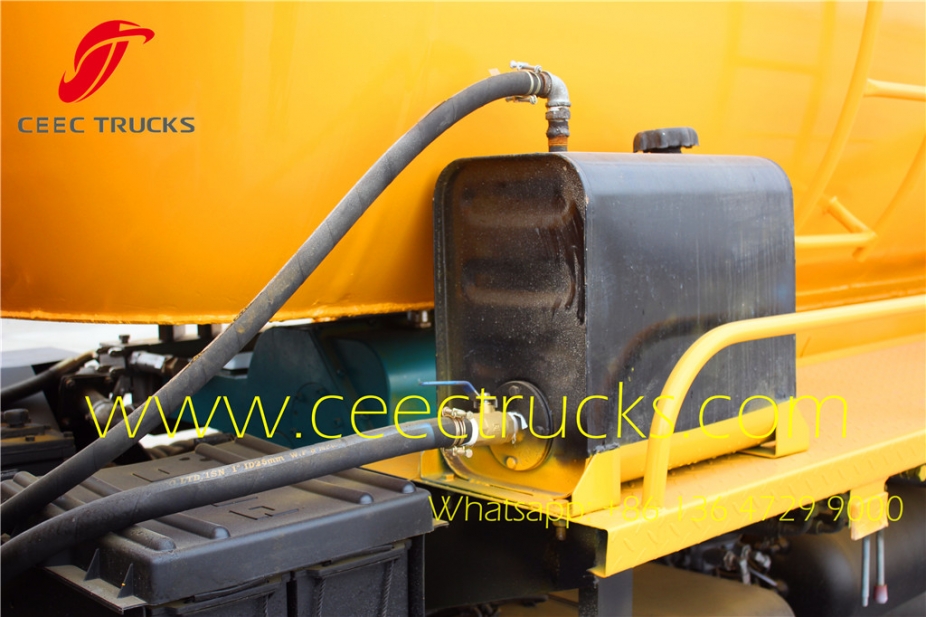

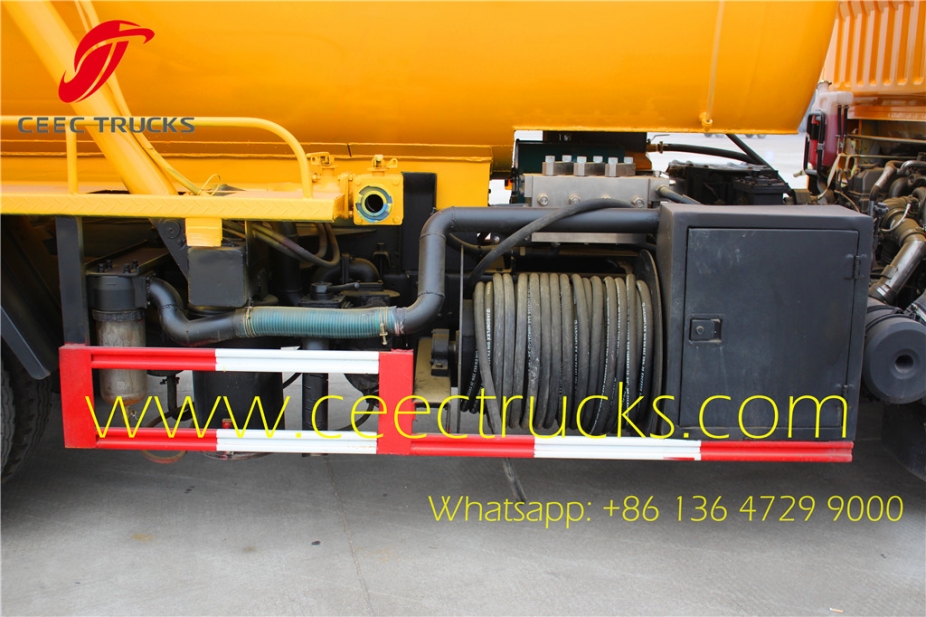

☆ Pump can be operated by a hydraulic motor or by an auxiliary engine.
☆ Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
☆ Nice shape, rational structure, durable and long service life.
