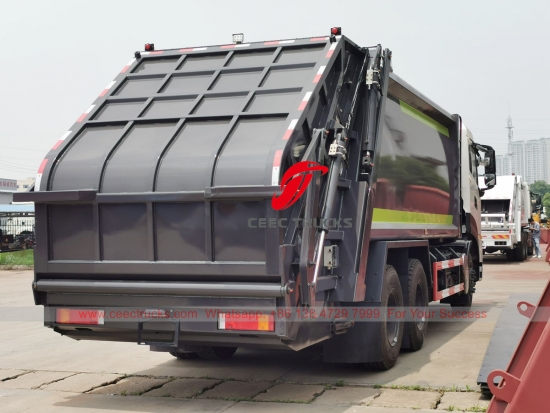

Dongfeng 20CBM Rear load compactor truck

Dongfeng 20cbm rear loading bin truck, the truck chassis use CUMMINS 290HP diesel engine, FAST 9-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

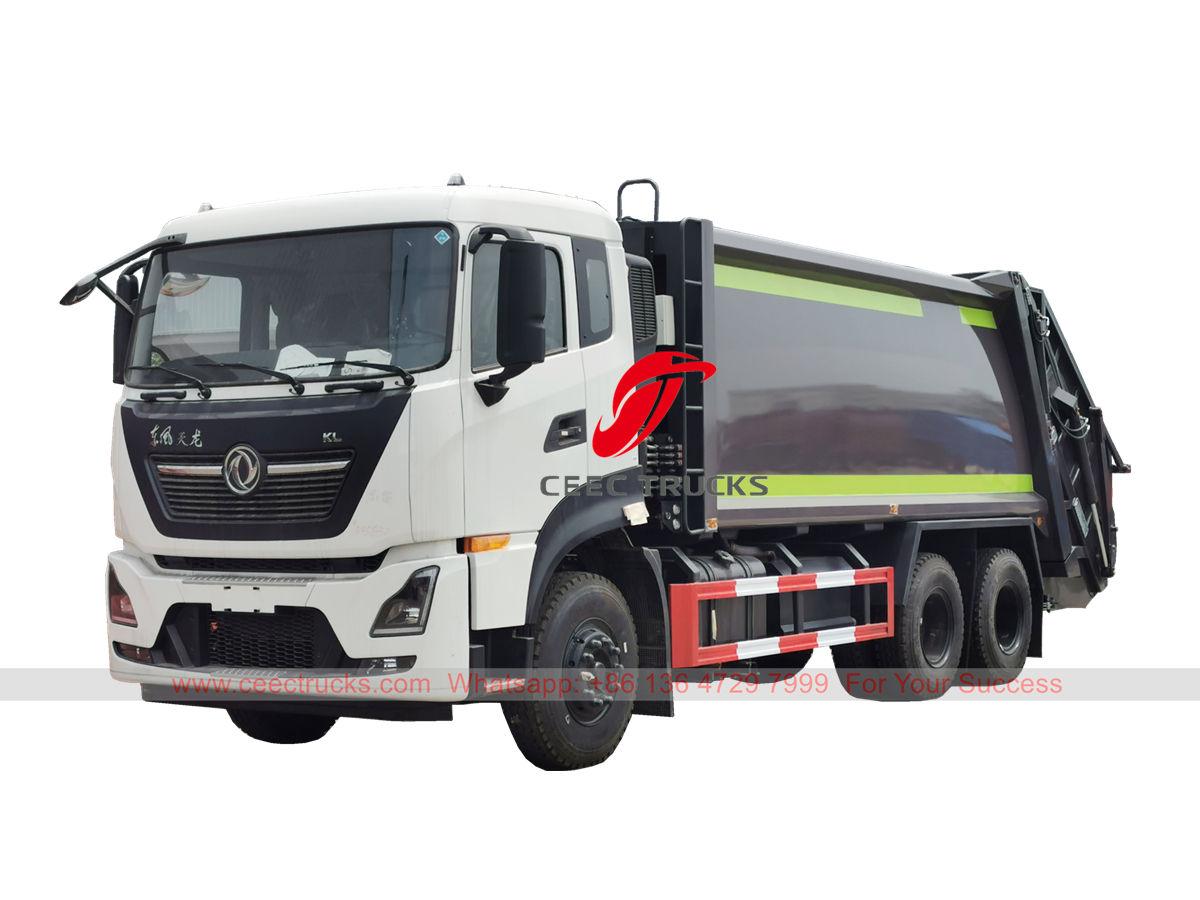

Dongfeng 20CBM rear loader

Applications:

Dongfeng Rear loader garbage truck (also called garbage compactor truck, Dongfeng refuse compactor, rear loader manufacturer, Dongfeng 10 wheel rubbish compactor, Dongfeng rear loading compactor truck, garbage truck supplier) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

CEEC TRUCKS compressed refuse truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.

The waste compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

Key Features:

---- Dongfeng chassis, perfect performance

---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compactor body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of garbage container lifter are available.

Specifications:

Dongfeng waste garbage truck (20 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	10800 * 2500 * 3150 mm
	GVW / Kerb Weight	25,000kg / 11,800kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	YUCHAI
	Power	290 HP (217 KW)
	Displacement	6700 ml
	Emission Standard	Euro 3
Chassis	Drive Type	6X4 (left hand drive)
	Transmission	FAST 9 speed levers with 1 reverse
	Wheelbase/No. of axle	1350+4350 mm / 3
	Tire Specification	12R22.5
	Tire Number	10 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	20 cbm
	Fill Hopper capacity	1.2 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection
	Control system	Electrically Hydraulic control Manual hydraulic control
	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

Rear load garbage truck manufacturer in China

(Dongfeng rear loaders for export, professional garbage compactor manufacturer)

Garbage Compactor Trucks

Model	Engine Model	Rated Power	Capacity	Driving Model
CEEC5040QL	4KH1CN5LS	98 HP	4 CBM	4×2
CEEC5060QL	4KH1CN5HS	130 HP	6 CBM	4×2
CEEC5080ZZ	WP4.180	180 HP	8 CBM	4×2
CEEC5120QL	4HK1-TC50	205 HP	12 CBM	4×2
CEEC5140EQ	B190 33	190 HP	14 CBM	4×2
CEEC5180ZZ	WD615.71	260 HP	18 CBM	6×4
CEEC5200QL	6HK1-TCH	300 HP	20 CBM	6×4
CEEC5200BJ	ISLe340 30	340 HP	20 CBM	6×4
CEEC5250QL	6UZ1-TCG50	380 HP	25 CBM	6×4

CEEC TRUCKS is a professional rear load garbage truck manufacturer. We can provide Dongfeng refuse compressor truck, ISUZU garbage compactor, HOWO rear loader bin truck, FOTON waste compactor truck. Our garbage compactors are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price. In addition, CEEC also manufacture fuel tanker trucks, water tanker trucks, vacuum sewage trucks, street sweeper trucks, etc.

★ CUMMINS engine, super powerful

★ Expert for producing rear loader garbage trucks over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for garbage compactor trucks

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...
