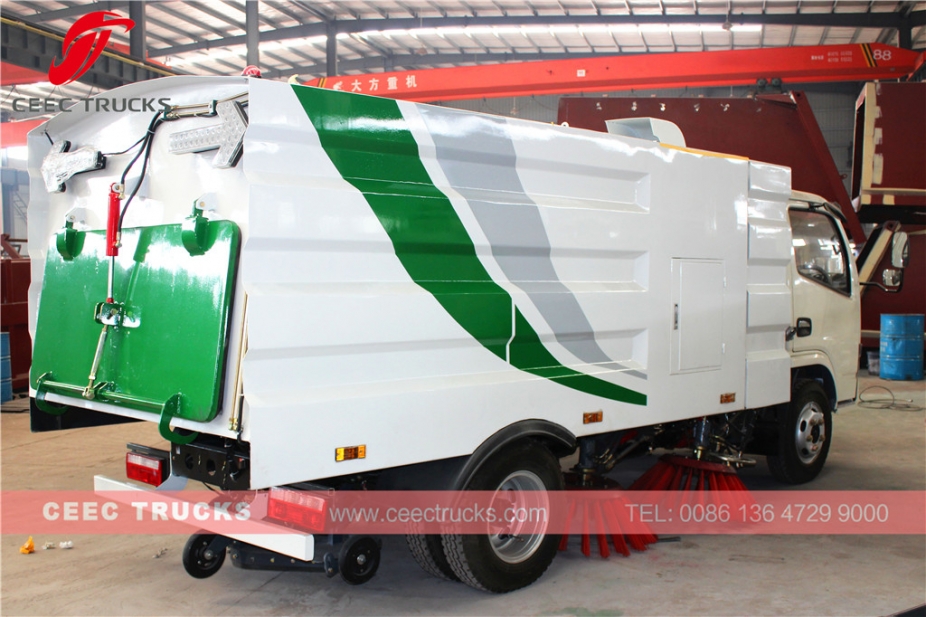

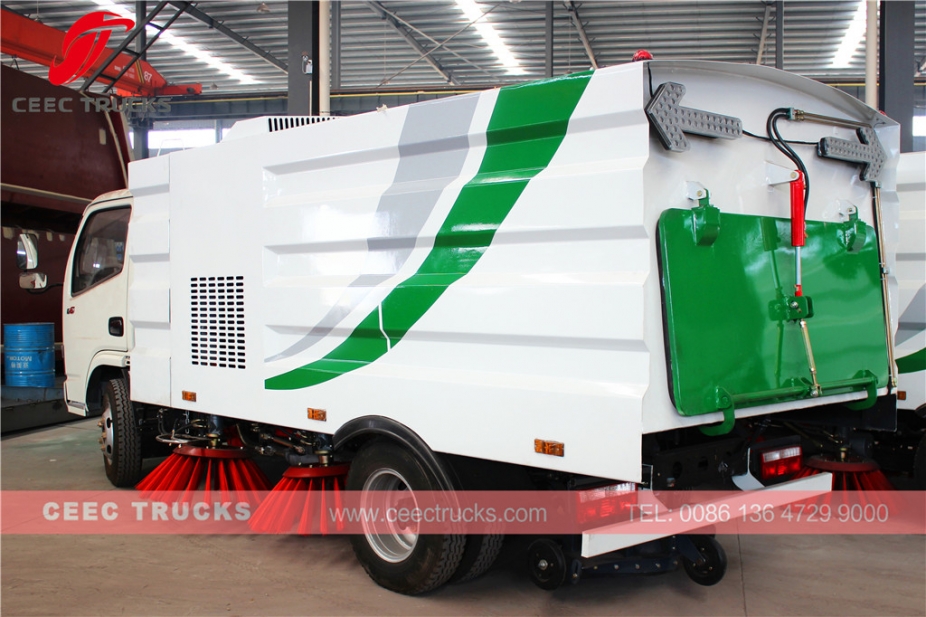

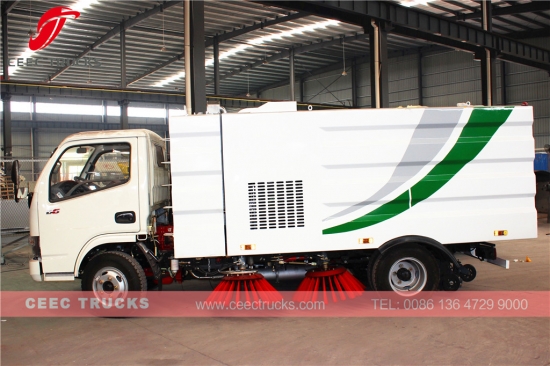

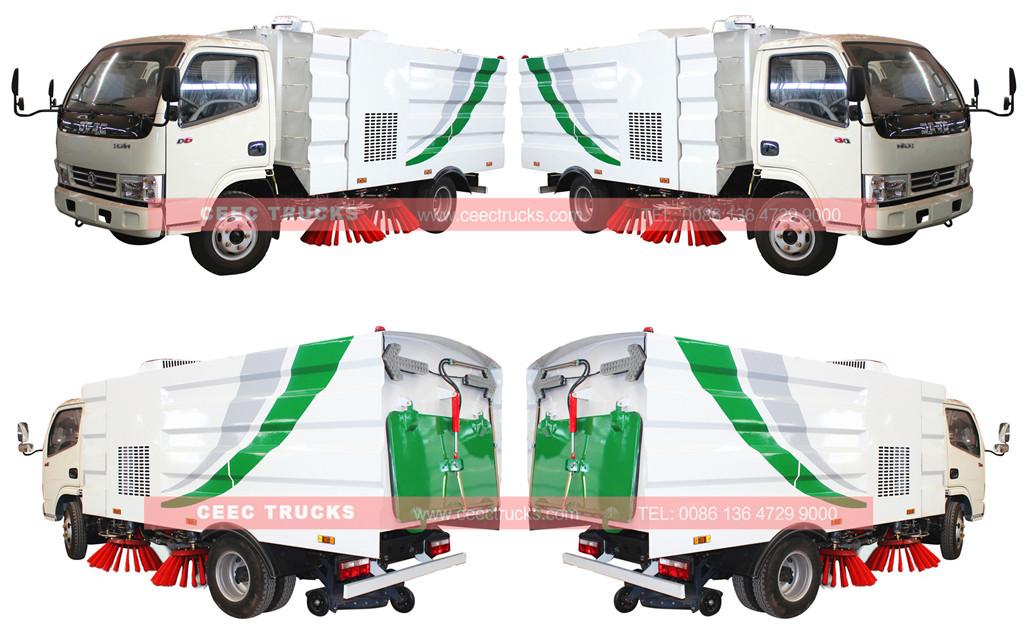

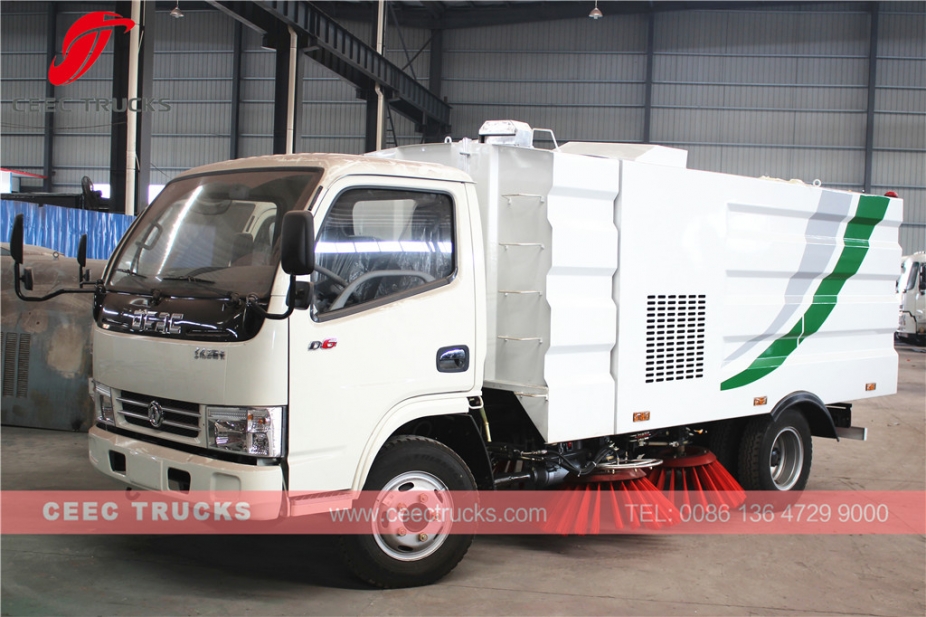

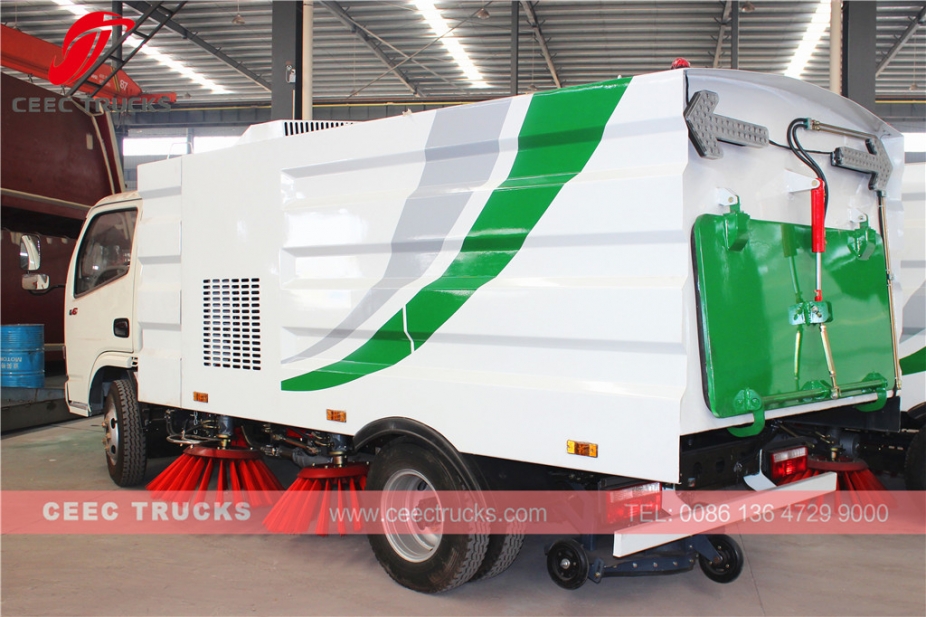

Dongfeng 2017 model road sweeper, DFAC 3300mm chassis, LHD & RHD optional, CHAOCHAI 95HP diesel engine, 5-shift manual gearbox, equipped with 4cbm stainless steel material tanker with 3.5cbm dust tank & 0.5cbm water tank. All kinds of painting & logos depend on request
Payment:
T/T, West UnionMarket Price:
$23000Price:
$18,000/26,000Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
15 Days
Applications:
Road Sweeper truck 4cbm Dongfeng (also called vacuum road sweeping truck, trash collection truck, road cleaning vehicle, vacuum road sweeper, DFAC road sweeper) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.
CEEC TRUCKS 4000L road sweeper is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- DONGFENG chassis, perfect performance
---- CHAOCHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
| DONGFENG Road sweeper truck (4,000L) |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
DONGFENG |
|
| Overall Dimension |

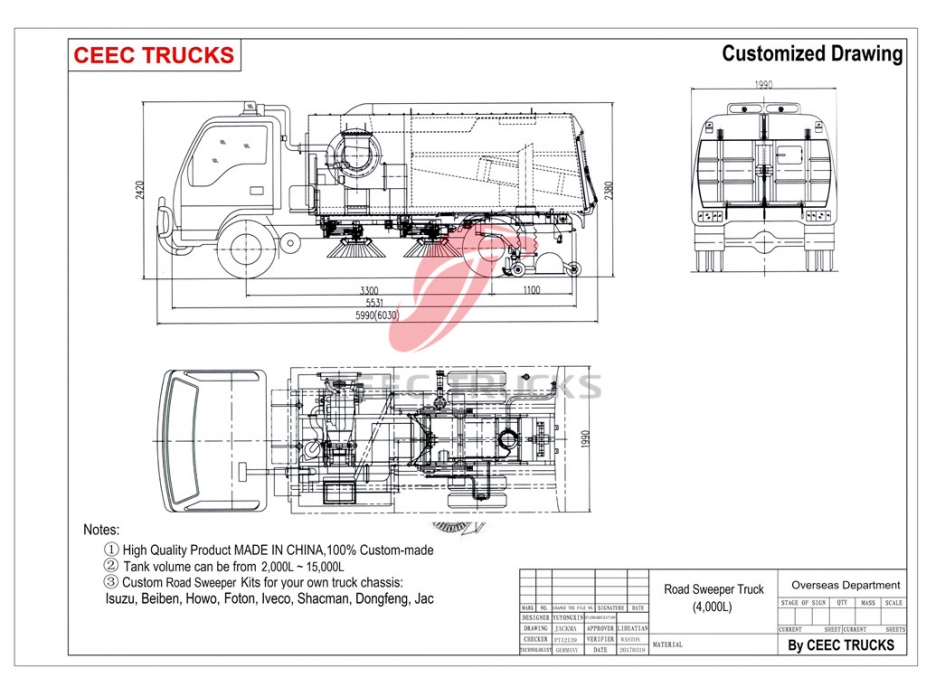

5990*1990*2600 mm |
|
| GVW / Kerb Weight |
7,300kg / 4,900 kg |
|

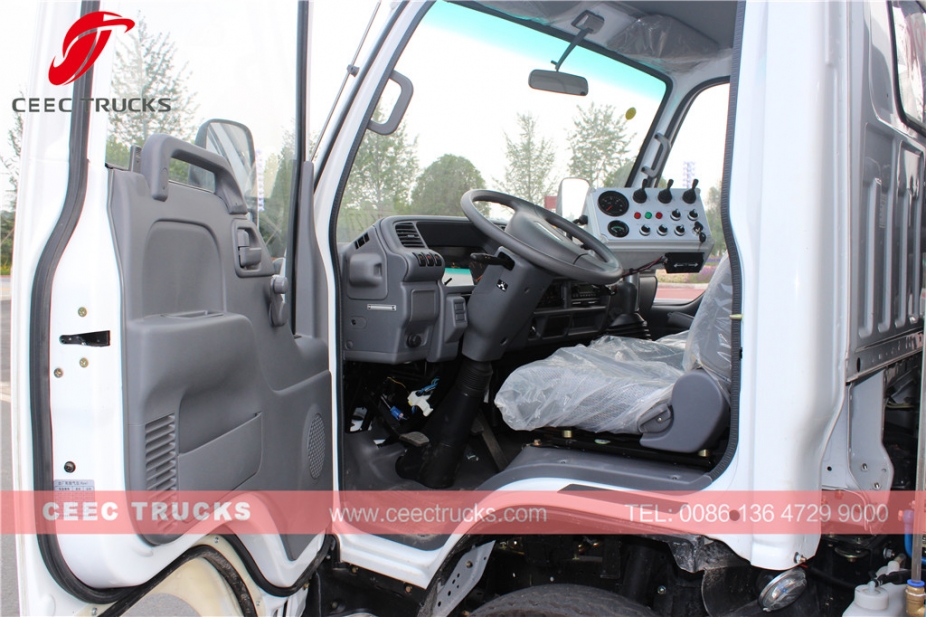

| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
CHAOCHAI |
|
| Power |
95 HP (70 KW) |
|
| Displacement |
3856 ml |
|
| Emission Standard |
Euro 2 or 3 |
|
| Chassis |
Drive Type |
4X2, (left hand drive) |
| Transmission |
5 speed levers with 1 reverse |
|
| Wheelbase/No. of axle |
3300 mm / 2 |
|
| Tire Specification |
7.00-16 |
|
| Tire Number |
6 tires and 1 spare tire |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Body capacity |
3.5 cbm dust tank & 0.5 cbm water tank |
| Tanker material |
Stainless steel |
|
| Sweeping capacity |
42,000 cbm/h |
|
| Sweeping speed |
3-15 km/h |
|
| Max. sweeping width |
3200 mm |
|

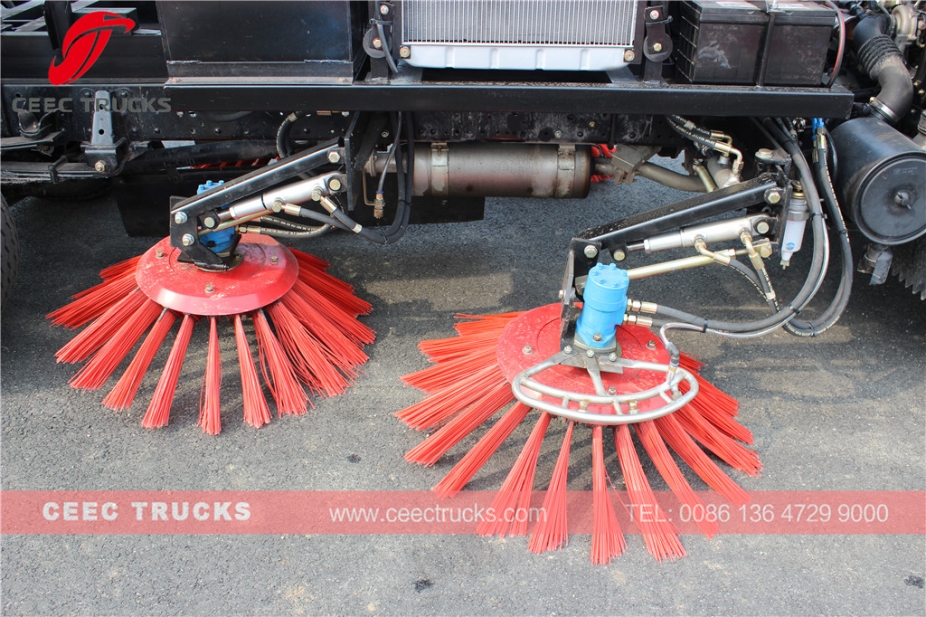

| Brooms |

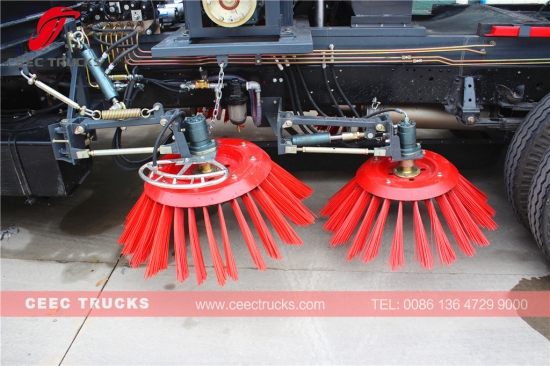

2 set at each side, at diameter 800 mm |
|

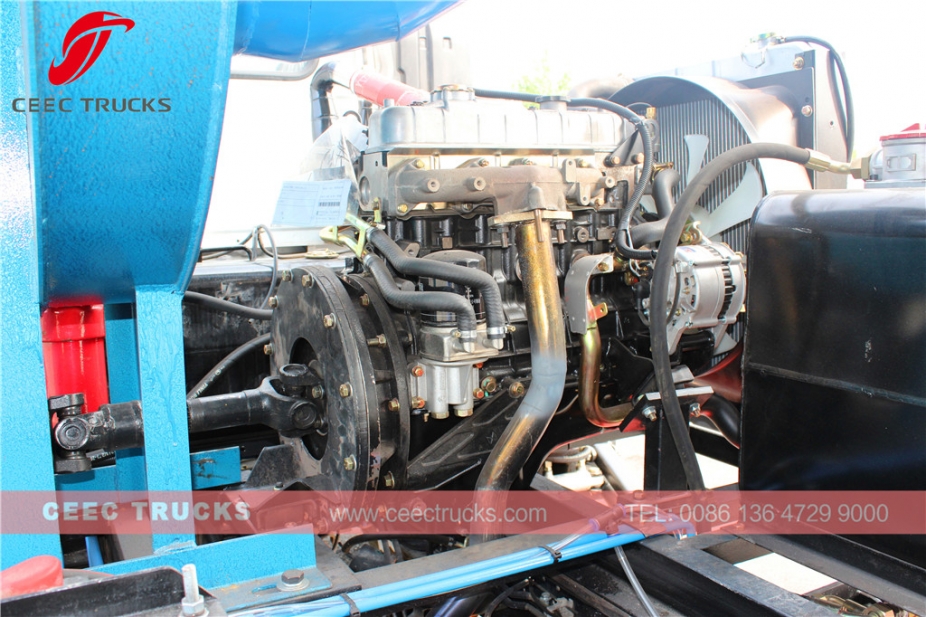

| Auxiliary engine |
ISUZU engine, 77HP (57kw), super powerful JMC engine, 77HP (57kw), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual... |
||
| Optional |
** Back alarm and Camera can be equipped. ** Italy Brevini motor can be optional. ** Air blower can be of stainless steel |
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Shanghai seaport shipping within 7 days.
---- 100% quality guarantee.
5CBM road sweeper superstructure under production: https://www.youtube.com/watch?v=wEaK1FccCmE
https://www.youtube.com/watch?v=ZGEjfcVdK58
https://www.youtube.com/watch?v=8TC9THA4vLU
https://www.youtube.com/watch?v=qncsHzbs3d4
https://www.youtube.com/watch?v=p90fjv6S1cU
https://www.youtube.com/watch?v=uLIEHF7TDI0
https://www.youtube.com/watch?v=twPzL71FeAo
https://www.youtube.com/watch?v=2UMUyPXQNSM
https://www.youtube.com/watch?v=1CgCwCLLgqQ
5000 liters road sweeper up-body Container delivery: https://www.youtube.com/watch?v=aocnpVlPK90
https://www.youtube.com/watch?v=YvVihFauMEk
https://www.youtube.com/watch?v=2GYv4TNNexA
https://www.youtube.com/watch?v=ajfddlXd4Bw
https://www.youtube.com/watch?v=XHG_yhklLG8
https://www.youtube.com/watch?v=wiHe1xsFiYY
How to build a good quality and choose best Road Sweeper Kit?
http://www.ceectrucks.com/ceec-guidance-5cbm-road-sweeper-superstructure-installation-manual_n138
Dubai 5 CBM Road Sweeper Up-Body specification:
http://www.ceectrucks.com/road-sweeper-kits_c92
