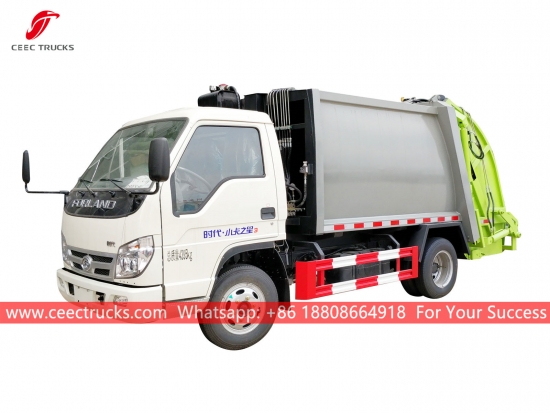

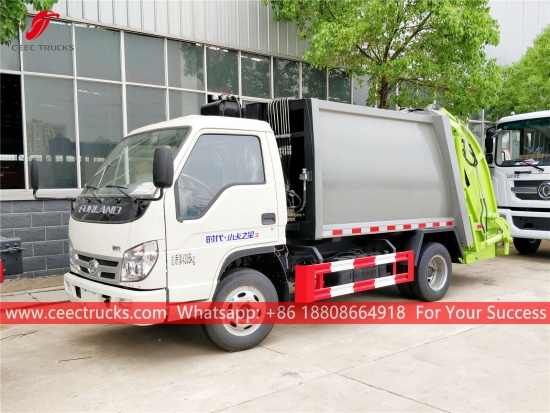

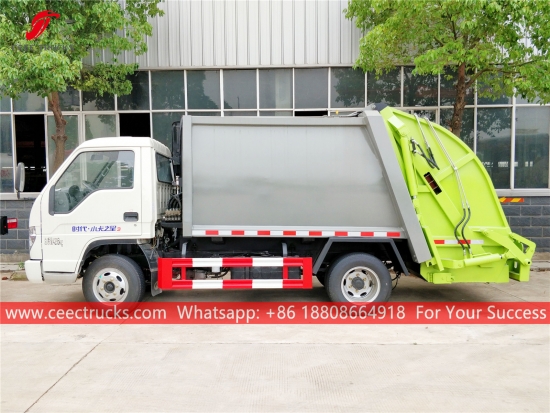

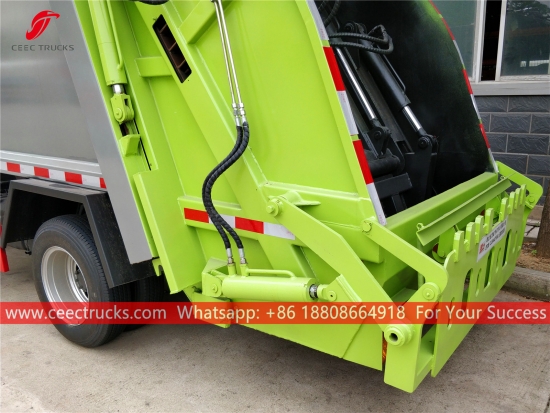

FOTON 4 CBM Garbage Compactor

FOTON 4,000 liters garbage compactor truck, FOTON 4*2 chassis, QUANCHAI 88HP diesel engine, 5-shift manual gearbox for easy driving, PLC control box.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

Applications:

Compressed Garbage Truck FOTON (also called FOTON mini compactor garbage truck, new rear loader garbage truck, hot sale rear loading rubbish collection truck, back loading garbage compression truck, waste collector truck FOTON, 6-wheeler trash compactor truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.

The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

Key Features:

---- FOTON chassis, perfect performance

---- QUANCHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specifications:

FOTON Garbage Compactor Truck (4 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	DONGFENG
	Overall Dimension	5995 * 2100 * 2500 mm
	GVW / Kerb Weight	4,390kg / 4,050kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	CHAOCHAI
	Power	88 HP (65 KW)
	Displacement	2270 ml
	Emission Standard	Euro 4 or 5
Chassis	Drive Type	4X2 (left hand drive)
	Transmission	Manual 5 speed levers with 1 reverse
	Wheelbase/No. of axle	2850 mm / 2
	Tire Specification	6.50-16
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	4 cbm
	Fill Hopper capacity	0.8 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection
	Control system	Electrically Hydraulic control Manual hydraulic control
	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

★ QUANCHAI engine, super powerful

★ Expert for producing FOTON refuse compactor trucks over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for FOTON compressed garbage trucks

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...
