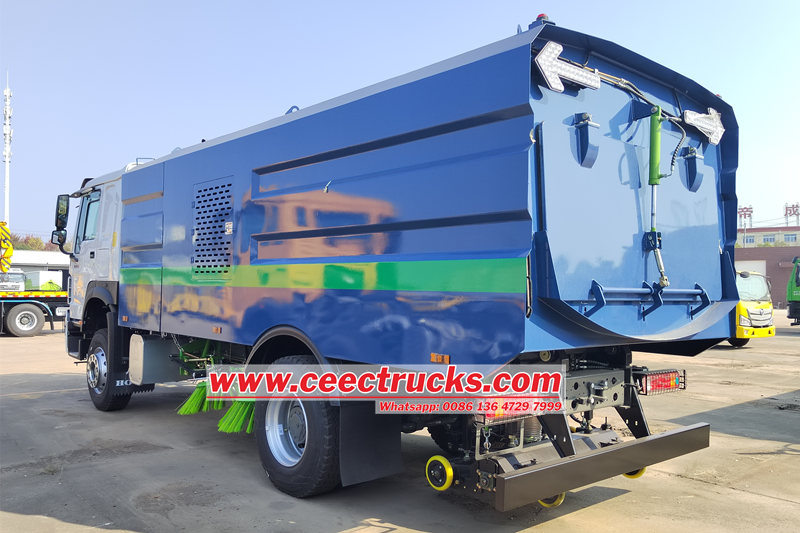

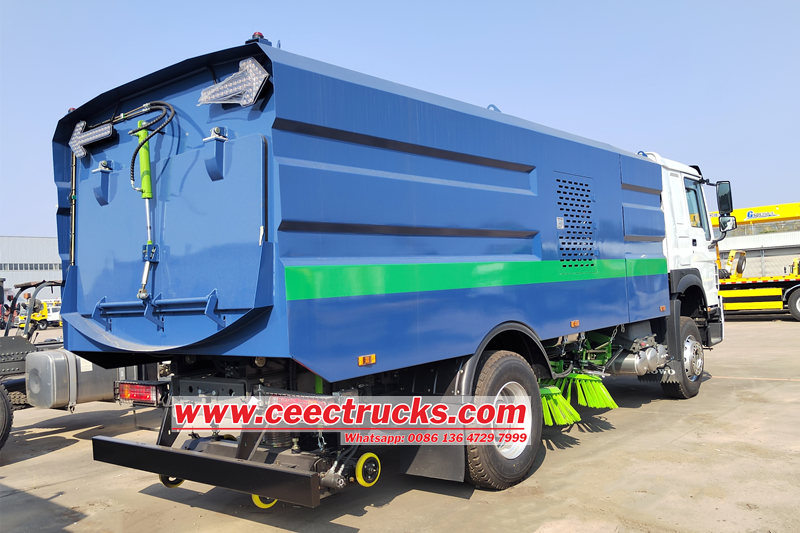

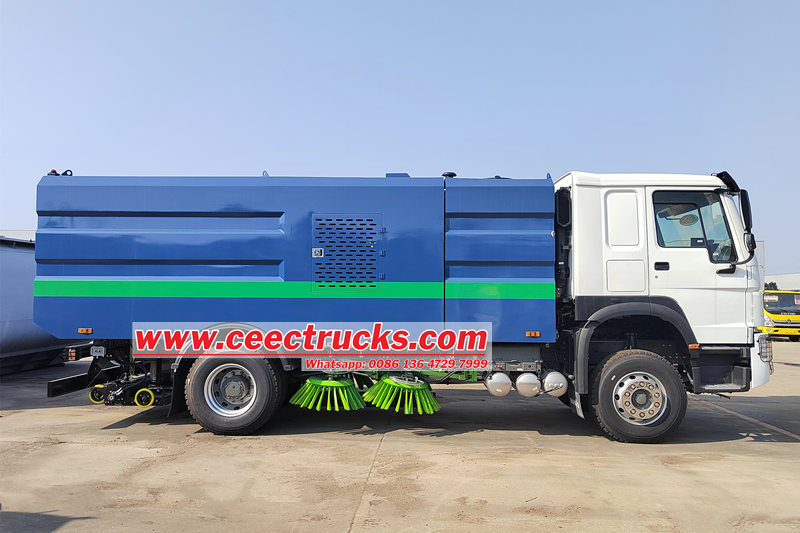

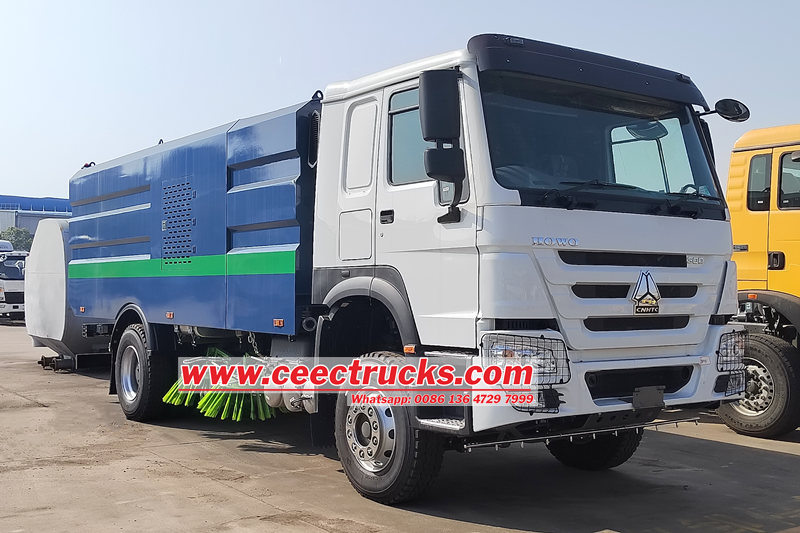

HOWO right-hand drive 300hp street cleaning vehice

Dec 16, 2024

HOWO street cleaning vehicle is a tool specially used for cleaning the road surface. Its main purpose is to remove garbage, sand, leaves and other debris on the road, keep the road clean and tidy, and improve the comfort and safety of road use.

The characteristics of HOWO street cleaning vehicle include high efficiency and time saving, which can quickly clean a large area of road; simple and convenient operation, which can be completed by one person; good cleaning effect, which can effectively remove various dirt on the road surface, and the cleaning intensity can be adjusted without damaging the road surface.

HOWO street cleaning vehice also called street sweeper truck, sweeping vehicle, street cleaner, sweeper cleaning truck, street cleaning vehice.The composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .

4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression.

HOWO street cleaning vehice technical specification sheet
Vehicle parameters
Overall dimensions	8250X2550X3120mm	Curb weight	8200kg
Dust tank volume	7000L	Water tank volume	3000L
HOWO chassis parameters
Chassis brand	HOWO	Drive modle	4X2 right-hand drive
Wheel base	4500mm	Overall dimensions	7800X2550X2920mm
Front/rear wheel track	1504/1425mm	Front/rear suspension	1015/1815mm
Cab	Configuration	single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Cab	Color	Blue,other color is optional
Engine	Model	WEICHAI
	Emission	Euro 3/4/5
	Rated power	300HP
	Displacement	9.726L
street cleaning vehice structure parameters
Dust tank volume	7000L	Water tank volume	3000L
Sweep width	3000m	Cleaning speed	3-20km/h
Cleaning ability	9000-60000 m2/h	Cleaning efficiency	0.98
Maximum suction particle	120mm	Min. clearance of suction nozzle	200mm
Unloading angle	45°	Unloading height	970mm
Standard configuration	Sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration	surveillance system,rolling brush.

Structure and functional parts of HOWO street sweeping vehicle

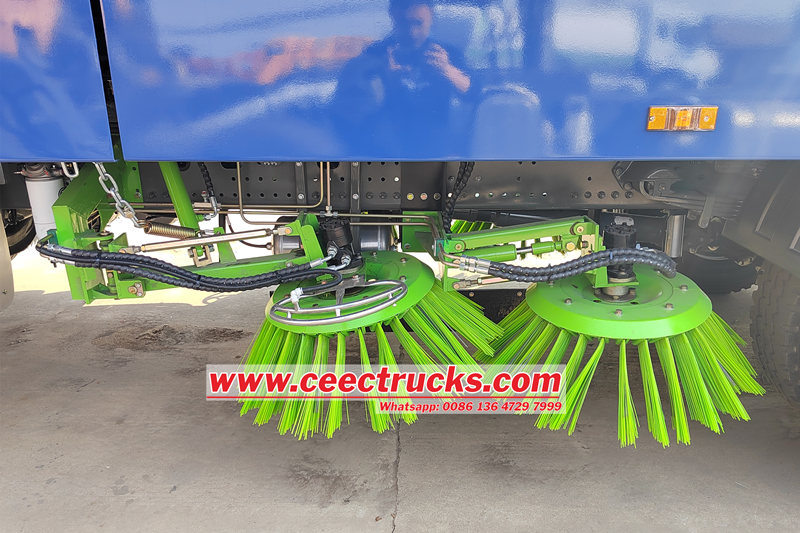

1. Cleaning brush: HOWO road sweeper truck is equipped with a rotating cleaning brush, which sweeps the garbage and dust on the ground into the cleaning device of the vehicle through high-speed rotation.

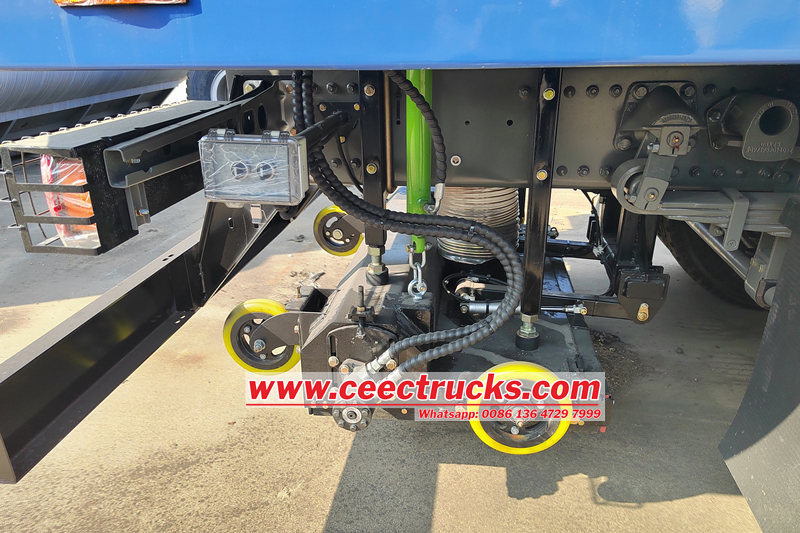

2. Dust suction device: HOWO road sweeper truck is also equipped with a dust suction device, which can suck the swept garbage and dust into the garbage bin for subsequent treatment.

3. Water washing cleaning device: HOWO road cleaning truck is also equipped with a water washing cleaning function, which can wash and clean the ground through a water spray pipe or a sprinkler.

4. Trash bin: The trash bin has a certain capacity, and the swept garbage and dust can be temporarily stored in it for treatment after the cleaning is completed.

5. Driving control system: The operator can operate the driving and cleaning functions of the HOWO road cleaning truck through the driving control system, adjust the working speed and direction of the cleaning brush, control the opening and closing of the dust suction device, etc.

The main uses of HOWO street cleaning vehicle include

1.Urban road cleaning: HOWO street sweeping vehicle can quickly and efficiently clean urban roads, sidewalks and crosswalks, prevent water accumulation and debris from causing inconvenience to traffic, and improve the cleanliness and traffic safety of roads.

2.Parking lot cleaning: HOWO street sweeping vehicle can regularly clean parking lots, remove garbage and dust generated when vehicles are parked, improve the parking environment, and improve the overall sanitation level of parking lots.

3.Public square and garden cleaning: HOWO street sweeping vehicle can clean leaves, paper scraps and other garbage in parks, squares, scenic spots and gardens, keep public places clean and tidy, and enhance people's leisure experience.

4.Industrial area cleaning: HOWO street sweeping vehicle can clean factory roads and workshop sites in industrial areas, remove industrial waste and debris, maintain environmental sanitation in industrial areas, and improve work efficiency and production quality.
