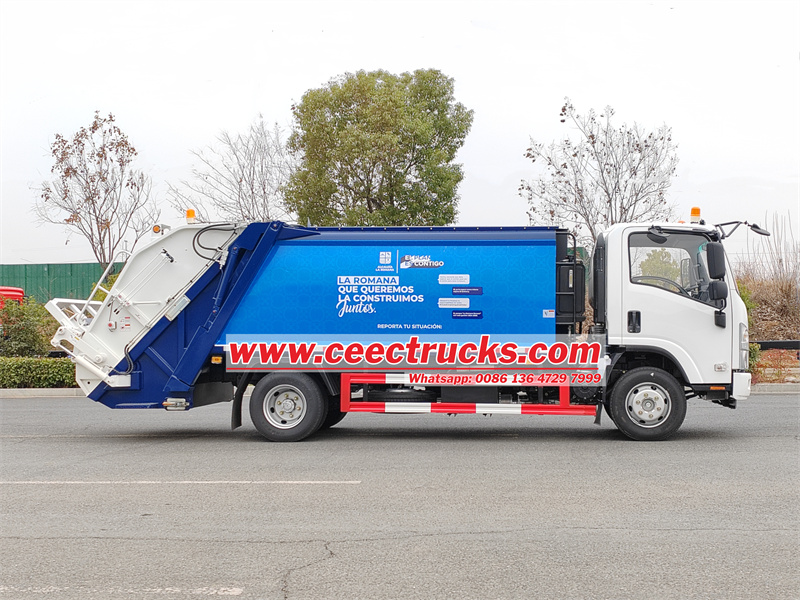

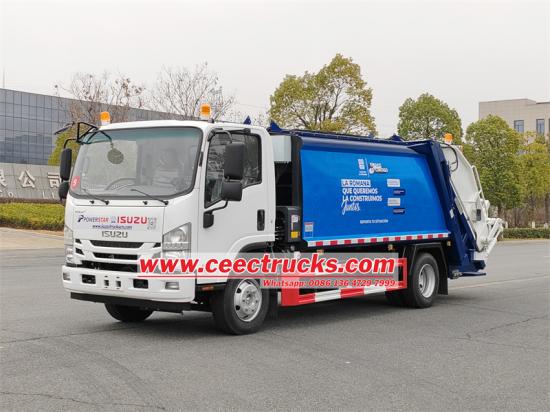

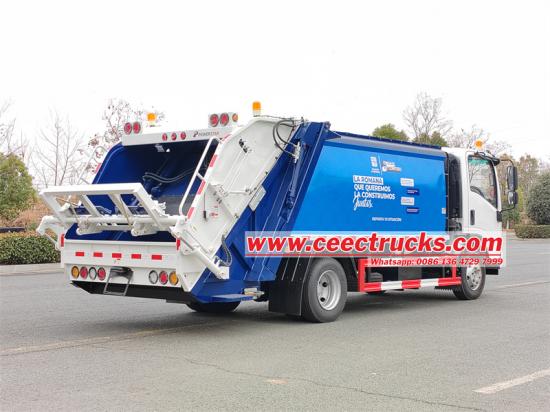

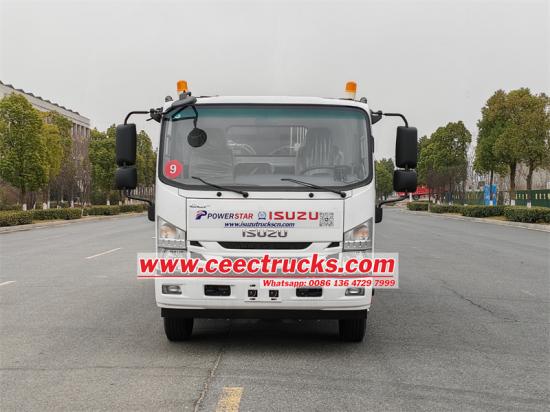

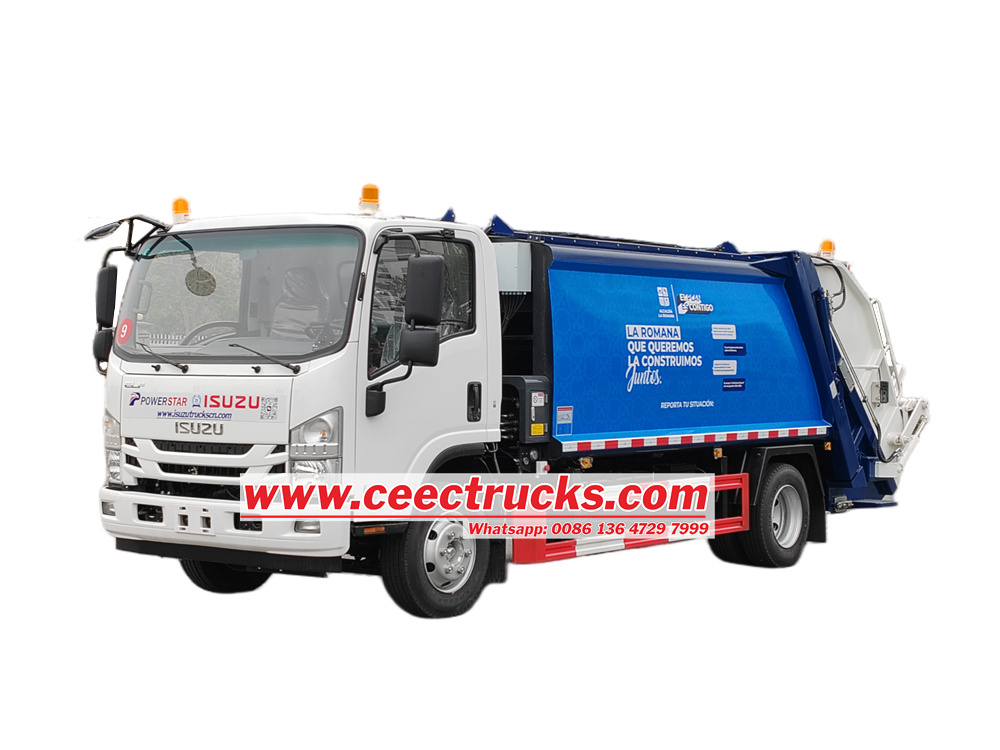

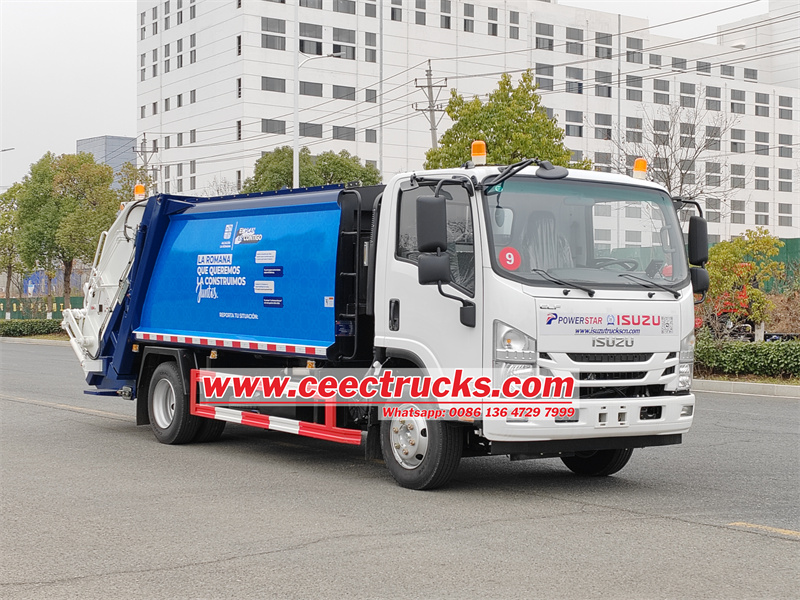

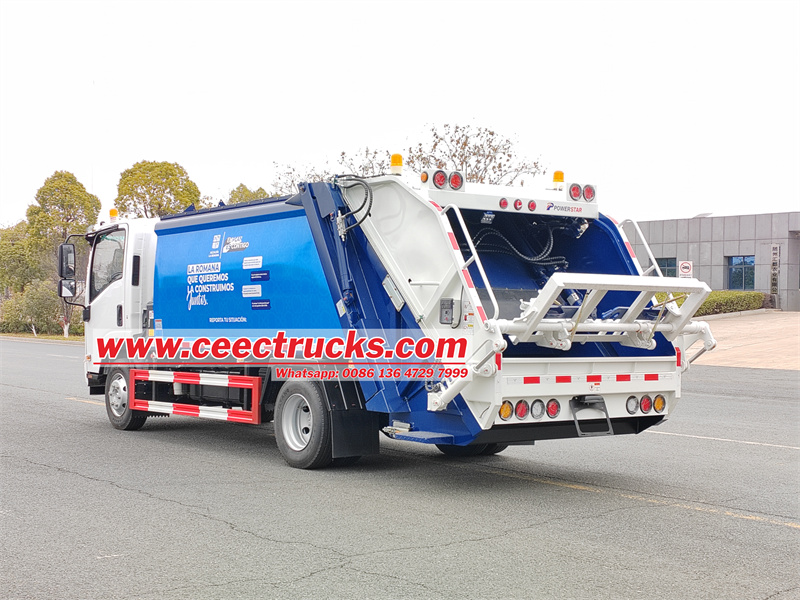

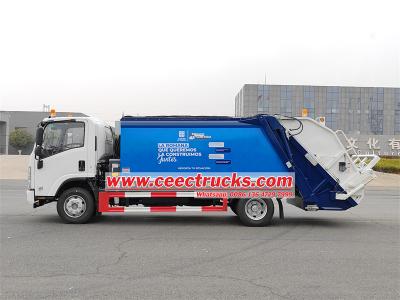

Isuzu NPR ELF automatic refuse service rear loader

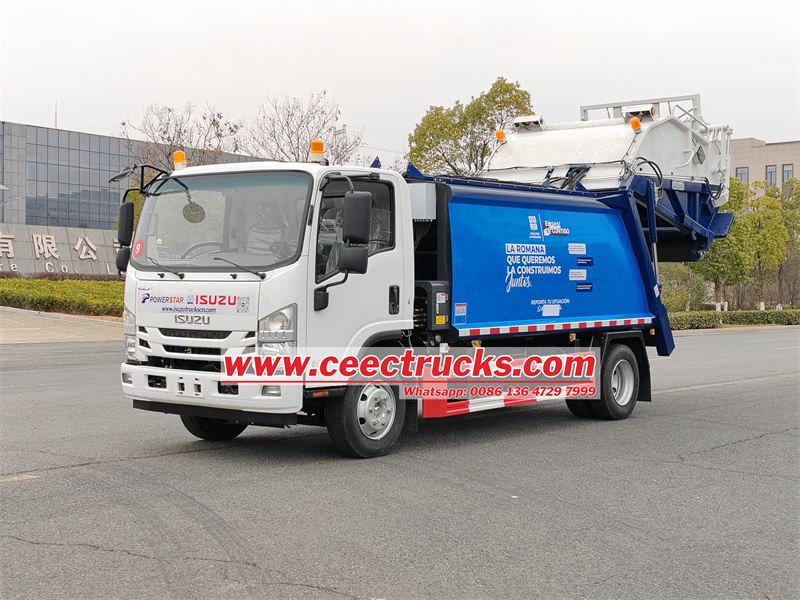

Isuzu 700P 10 cbm garbage compactor truck is a sanitation vehicle that integrates high efficiency, environmental protection and multi-function. It is equipped with a powerful 4HK1 190 horsepower engine and is equipped with Euro 6 emission standards, ensuring strong power while taking environmental protection into consideration. The vehicle is designed with a 10 cubic meter compression garbage bin. Through a variety of operating methods such as the cab electronic control box, the manual operating lever on the driver's side, the electronic control boxes on the left and right sides of the tailgate and the manual operating lever, it realizes flexible and diverse garbage loading and unloading functions.

The Isuzu NPR ELF automatic refuse service rear loader is richly equipped, including air conditioning, USB interface, etc., to provide a comfortable driving environment. With its excellent performance, flexible operability and efficient garbage disposal capabilities, the vehicle has become a powerful assistant in urban sanitation work, effectively improving the efficiency and quality of urban garbage disposal.

Key Features:

★ Various size body from 3cbm to 25cbm,with beautiful appearance

★ ISUZU 4HK1 engine,super powerful;reliable performance. no overhaul,within 1000000km

★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage

★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes

★ Diffient rear flip systerm are optional

★ Can be put into 20",40"container and ship to worldwide

The Isuzu 700P 10 cbm rear loader garbage truck is an efficient and versatile sanitation vehicle with the following main features:

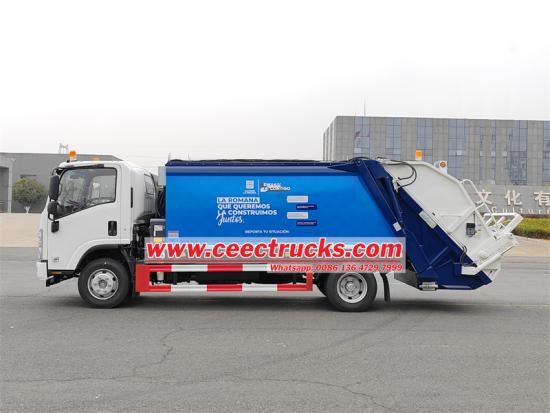

The vehicle has a wheelbase of 4175 mm, ensuring good stability and maneuverability. In terms of power, it is equipped with a 4HK1 engine with an output power of 190 horsepower, meeting strong power requirements. The engine uses Euro 6 standard diesel fuel with a displacement of 5193 ml, ensuring environmentally friendly and efficient operation.

In terms of transmission system, the Isuzu 700P 10 cbm garbage compression truck is equipped with an Isuzu MLD 6-speed manual transmission, which has smooth shifting and improves driving comfort and fuel economy. The vehicle is richly equipped, including air conditioning system, USB interface and power steering system, providing the driver with a convenient and comfortable driving environment. In addition, there are 3 seats in the vehicle to meet the needs of multi-person collaborative work.

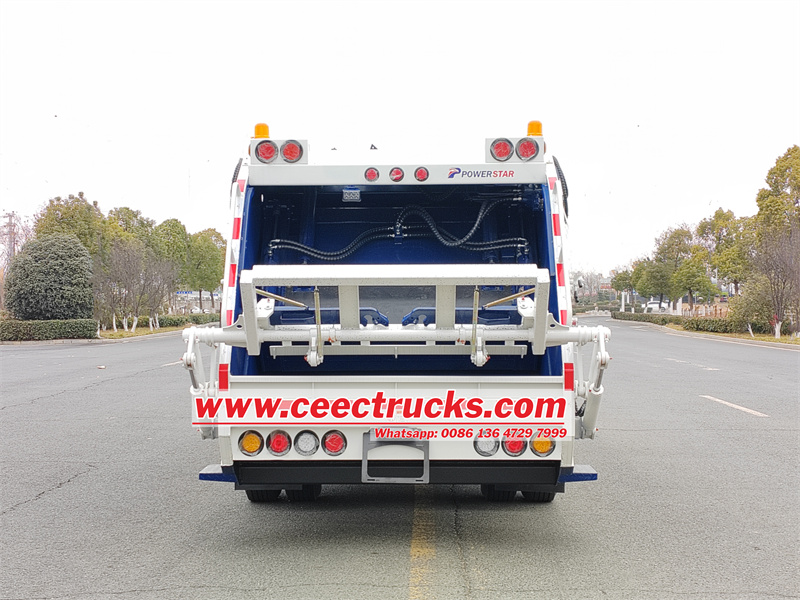

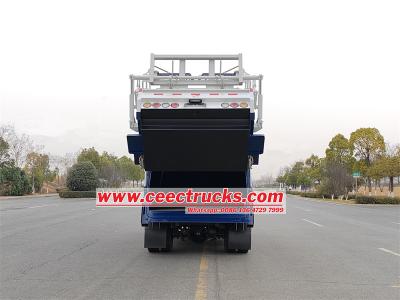

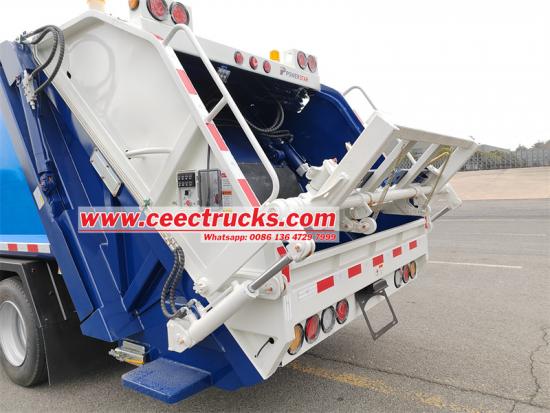

In terms of body design, the vehicle uses a 10cbm garbage bin, and the large-capacity design improves garbage collection efficiency. The rear of the trash can is equipped with a bucket-turning mechanism, which facilitates the automatic lifting of the trash can into the car body, realizing the mechanized loading of the garbage. In terms of operation, the vehicle provides 4 operation methods, which can flexibly cope with various operation scenarios and improve work efficiency.

The loading and unloading operation mode of the Isuzu 700P 10 cbm rear loader garbage truck is designed to be both advanced and flexible, ensuring an efficient and safe operation process. The following is a detailed introduction to the four operation modes provided by the vehicle:

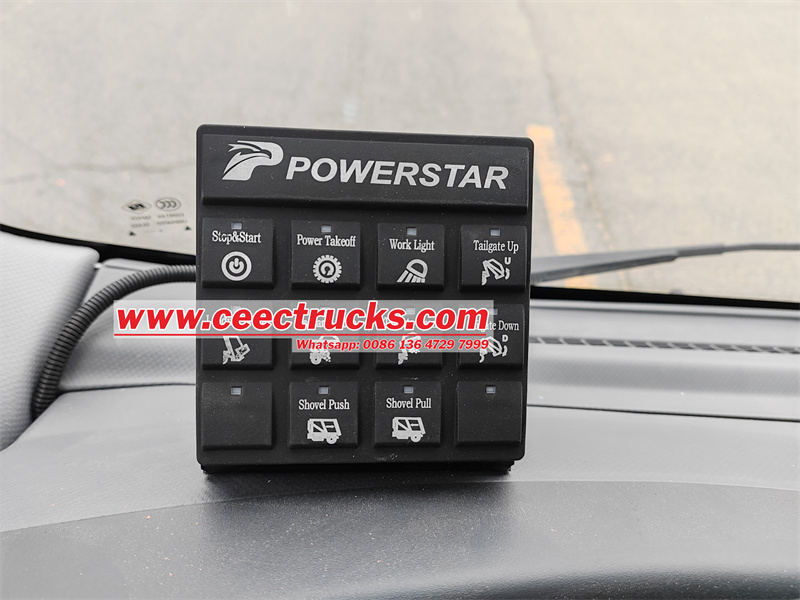

1. Cab electronic control box:

● Power on and off: Control the opening and closing of the power of the whole vehicle.

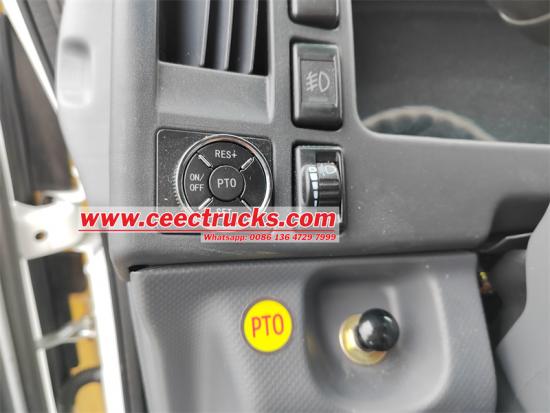

● PTO (power output device): Start or stop the power of the garbage compression mechanism.

● Working light: Turn on or off the lighting in the working area to ensure the safety of operation at night or in low light.

● Tailgate lifting/lowering: Control the lifting and lowering of the tailgate of the garbage bin through the button to facilitate loading and unloading of garbage.

● Loading mode/unloading mode: Select the corresponding mode to adjust the working state of the garbage compression mechanism.

● Push shovel push out/retract: Control the entry and exit of the push shovel, which is used to compress garbage or push it out of the garbage bin.

● Tailgate cleaning: activates the cleaning light in the tailgate area to help the driver keep a clear view when cleaning the trash bin.

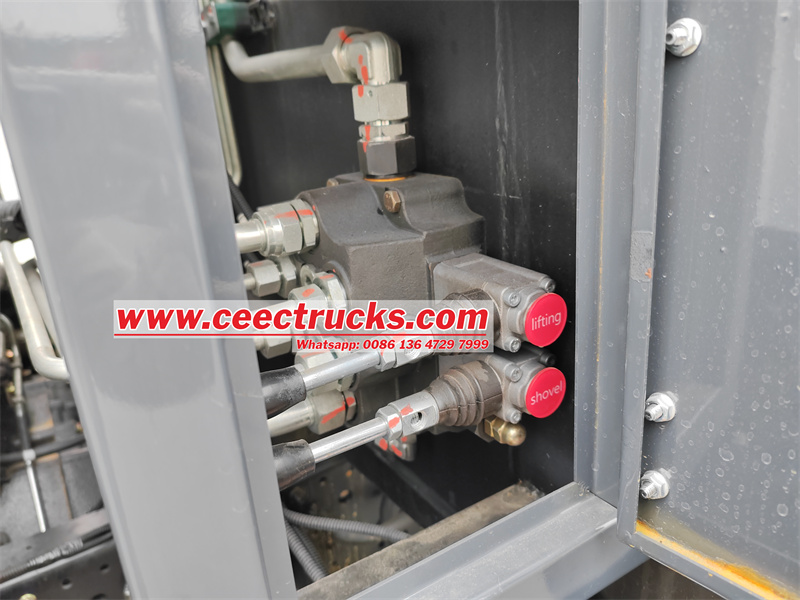

2. Manual operating lever on the driver's side:

● Lifting lever: manually controls the lifting and lowering of the tailgate of the trash bin as a backup method for the operation of the electric control box.

● Shovel lever: manually controls the in and out of the shovel, suitable for operation in emergency situations or when the electric control system fails.

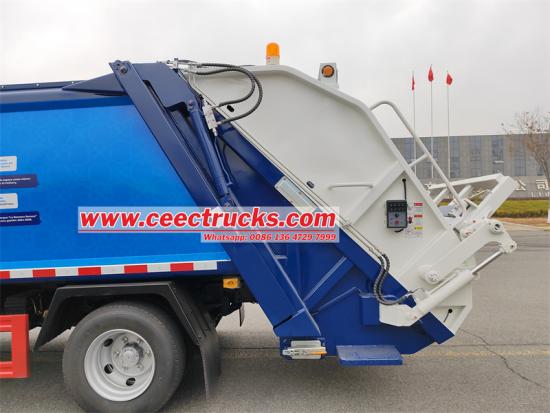

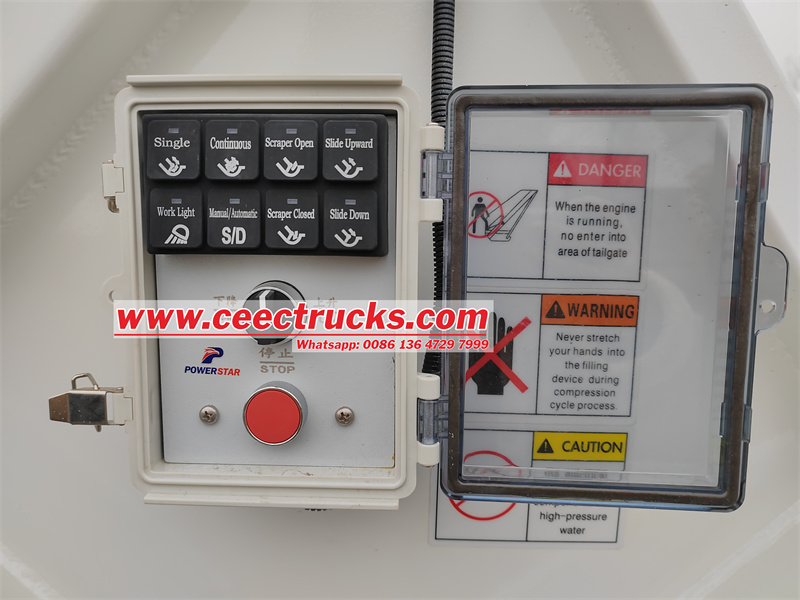

3. Electric control box operation on the left side of the tailgate:

● Single cycle/continuous cycle: select single or continuous cycle operation for garbage loading and compression.

● Scraper open/closed: Control the opening and closing of the scraper to scrape the garbage into the garbage box.

● Slide up/down: assists in loading and unloading garbage by moving the slide up and down.

● Automatic/manual: select automatic mode, the system automatically performs operations according to the preset program; select manual mode, you can precisely control it through the button on the electric control box.

● Lighting: turn on or off the additional lighting in the tailgate area.

● Emergency stop: in an emergency, press this button to immediately stop the operation of all garbage compression mechanisms.

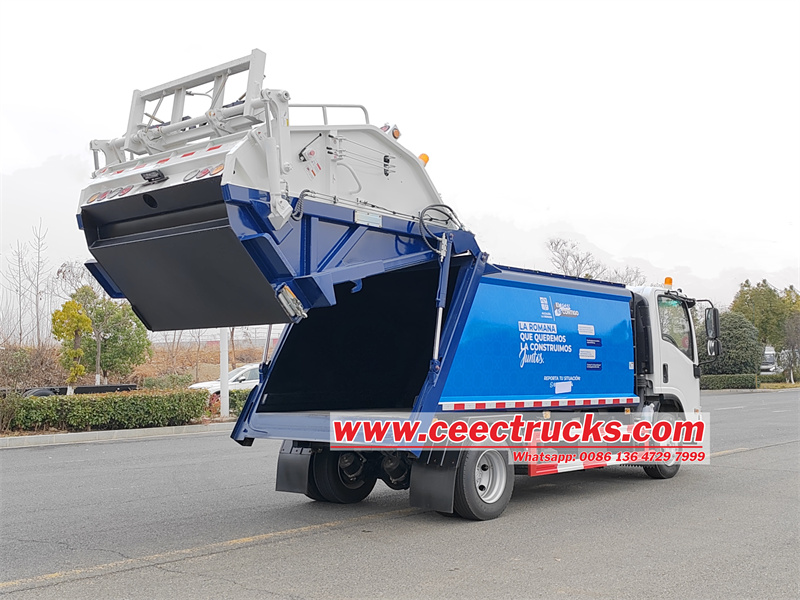

● Flipping mechanism lifting: Controls the flipping of the entire or part of the trash bin for easy cleaning or maintenance.

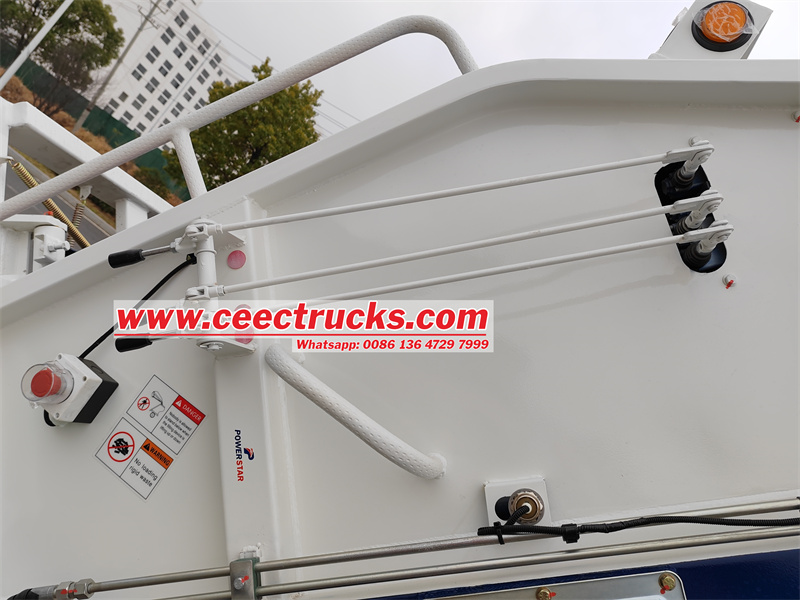

4. Manual operating lever on the right side of the tailgate:

● Rolling over: The tail tipping mechanism is manually controlled to tip over, which is suitable for the operation of buckets to dump garbage.

● Sliding plate: The sliding plate is controlled by the manual operating lever to slide up and down to assist the loading and unloading process of the garbage.

● Scraper: Manually control the opening and closing of the scraper and the movement of the scraper in the tail filling mechanism to operate the scraping of garbage into the garbage box.

These four operating modes complement each other, providing the driver with a variety of options, ensuring efficient and safe loading and unloading of garbage under various operating conditions.
