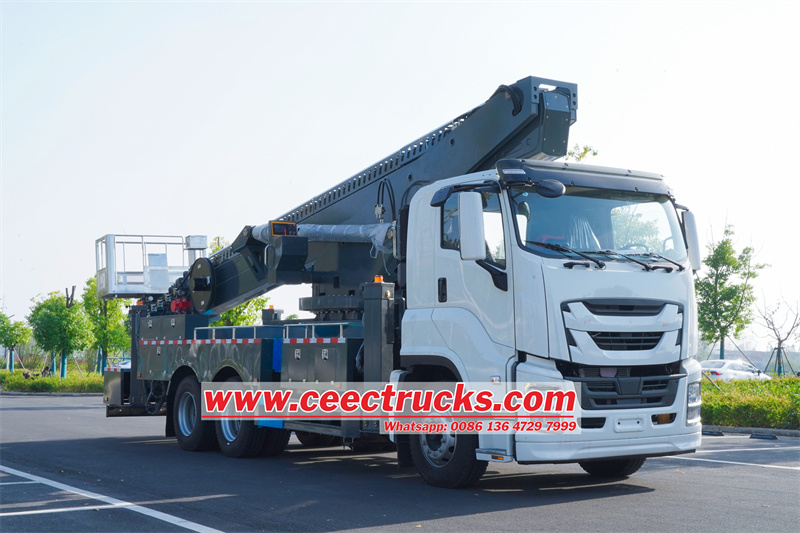

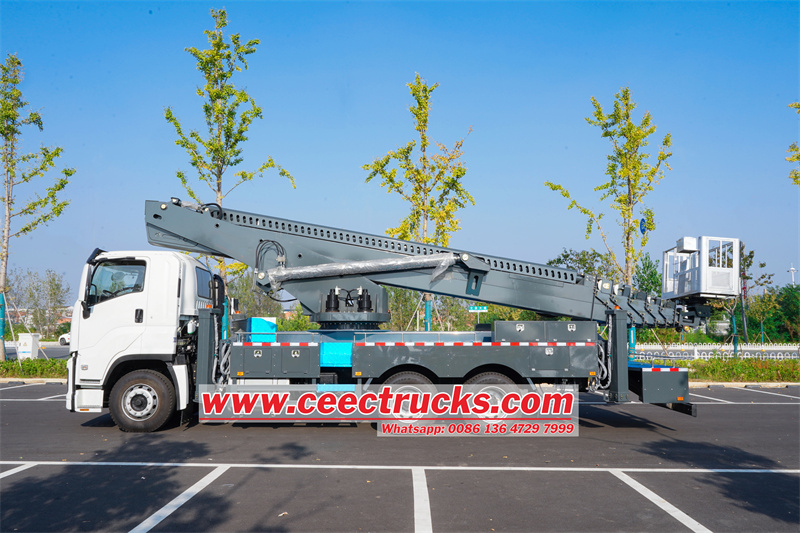

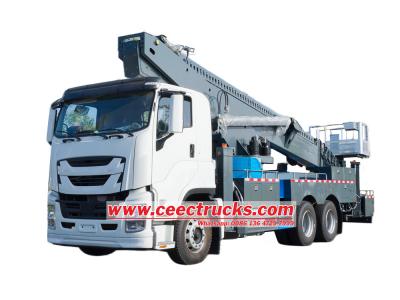

Isuzu 56 m aerial lift bucket truck

Isuzu 56 m aerial lift bucket truck is a professional aerial work equipment that integrates efficiency, safety and reliability. The vehicle is equipped with Isuzu's powerful engine and FAST 9-speed gearbox, equipped with a nine-section fourteen-sided synchronous telescopic arm, 56m working height, 29m working range, spacious hanging basket and strong load-bearing capacity. It provides a variety of operation modes to meet the needs of different scenarios, and is equipped with multiple safety protection devices to ensure the safety of the operation.

The design is reasonable and the structure is stable, which can maintain balance during aerial work. It adopts advanced emission control technology, which is environmentally friendly and energy-saving. Overall, Isuzu FVZ 56m aerial work vehicle is the preferred model in the field of aerial work, providing efficient solutions for urban construction, power repair, etc.

Features:

★ Adopts world-class lSUZU FVZ GIGA 5X VC61 chassis, which is powerful, fuel-efficient, reliable and has long uptime;

★ Adopts nine-section fourteen-sided synchronous telescopic arm;

★ All structures are made of high-strength steel;

★ Easy to install, requiring minimal space for installation;

★ Optional chassis 4x2, 6x4, 8x4 and engine power;

★ Provides wireless remote control system;

★ Provides safety devices such as pressure relief valve, balance valve, two-way hydraulic lock, motor emergency system, etc.

Isuzu FVZ 56m aerial work vehicle, with its outstanding design and powerful performance, has performed well in the field of aerial work. The wheelbase of the vehicle is 4350+1370mm, providing good stability and passability. In terms of power, it is equipped with Isuzu 6HK1-TCG60 engine, which is powerful and runs smoothly, ensuring the efficient operation of aerial work. The transmission system adopts FAST 9-speed gearbox, which has smooth shifting and quick response, further improving the work efficiency.

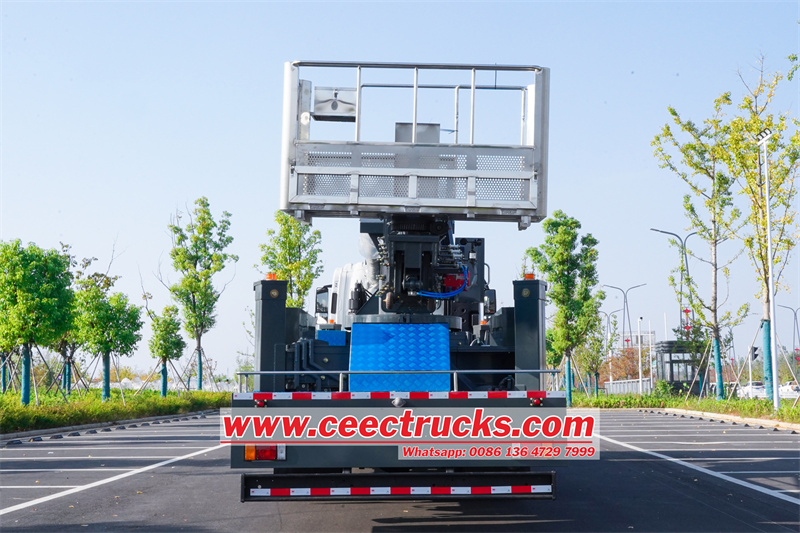

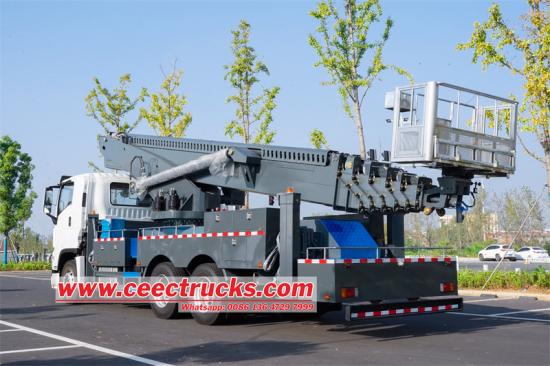

Its working arm is a nine-section fourteen-sided synchronous telescopic arm with unique design, stable telescopic, accurate positioning and wide working range. The maximum working height is 56 meters and the maximum working range is 29 meters. The size of the hanging basket is 2000×700×1000mm, and the load-bearing capacity is 400kg, which is enough to meet most aerial work needs. At the same time, both the working arm and the hanging basket can achieve 360° continuous rotation, providing all-round and multi-angle operation possibilities.

In terms of operation, Isuzu FVZ 56m aerial platform vehicle provides a variety of operation methods to meet the needs of different scenarios. The fixed operation of the turntable allows the driver to directly control the movement of the working arm and the hanging basket on the vehicle; the operation of the wireless remote control box provides greater flexibility, and the operator can perform remote control at a distance from the vehicle; the operation of the hydraulic handle for getting off the vehicle facilitates the driver to accurately control the vehicle on the ground. In addition, the vehicle is also equipped with an electric emergency pump, and the whole vehicle can achieve full hydraulic electric emergency operation to ensure smooth operation in emergency situations.

In terms of safety devices, the Isuzu FVZ 56-meter aerial work vehicle also performs well. The automatic interlocking device for getting on and off the vehicle ensures that the various parts of the vehicle can work together during the process of getting on and off the vehicle to avoid accidents caused by misoperation. The emergency electric hydraulic pump and emergency stop device provide safety protection in emergency situations. The automatic limiter system can monitor and limit the range of motion of the working arm and the hanging basket in real time to prevent it from exceeding the safety limit. The vehicle level state tester monitors the level state of the vehicle in real time to ensure balance and stability during high-altitude operations. In addition, the vehicle is also equipped with multiple safety protection measures such as engine ignition and shutdown function, compound action function, chain breaking protection device and emergency operation function to ensure safety and reliability during the operation process.

As a high-performance and multi-functional aerial work equipment, the Isuzu 56m aerial platform lift truck has a wide range of uses mainly in the following aspects:

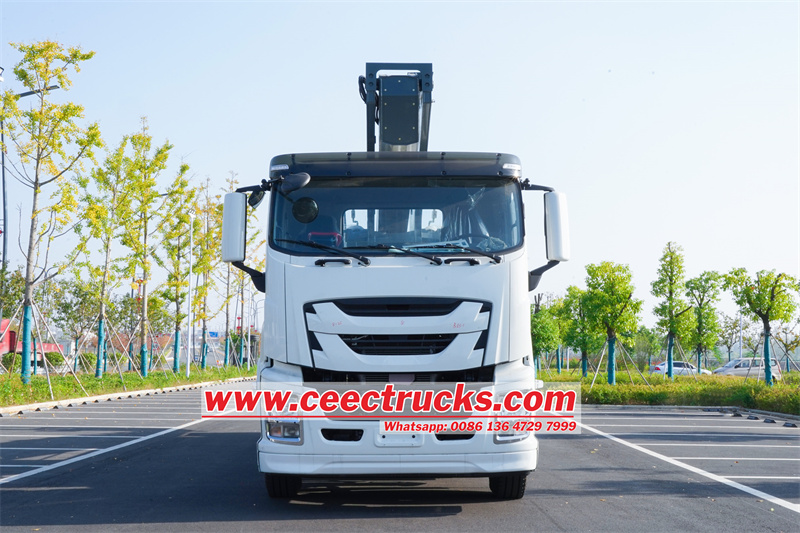

1. Urban construction: In the maintenance of the exterior walls of high-rise buildings, glass curtain wall installation, billboard installation, exterior wall cleaning, paint spraying and other operations, the Isuzu GIGA bucket truck manlifter can provide a stable working platform to ensure the safety of operators and improve work efficiency.

2. Power line maintenance: In the installation, maintenance, replacement and troubleshooting of power lines, the high-altitude operation capability of this model enables operators to easily reach the required height and perform precise operations to ensure the stability and safety of power supply.

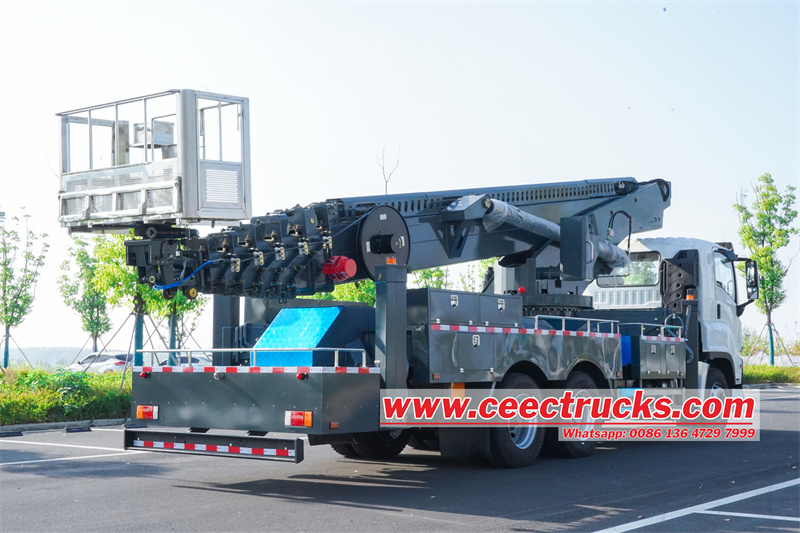

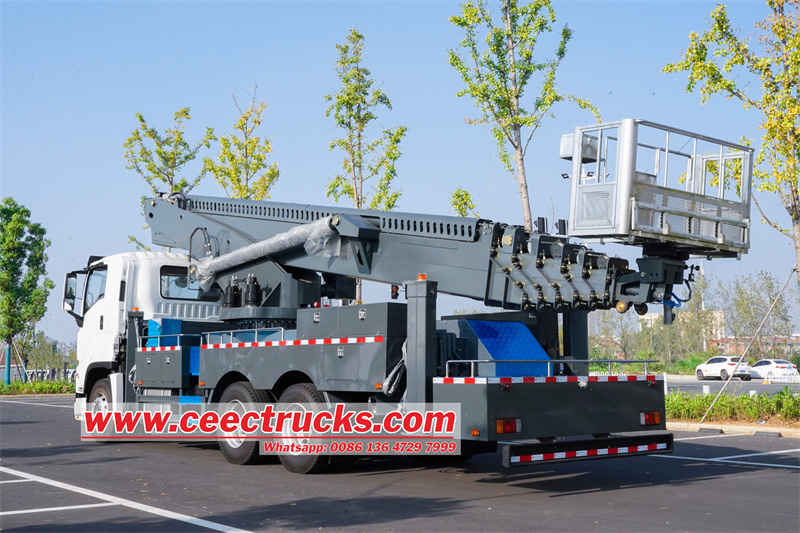

3. Communication facility installation: In the installation and maintenance of communication base stations, antennas, signal towers and other facilities, the Isuzu GIGA 56m man lifter truck can provide a stable and flexible working platform to meet the needs of complex aerial work.

4. Landscaping operations: In the operations of tree pruning, landscape lighting installation, green belt maintenance and other operations in large gardens, the aerial work arm of this model can easily cross obstacles and reach the working position, improving work efficiency and work quality.

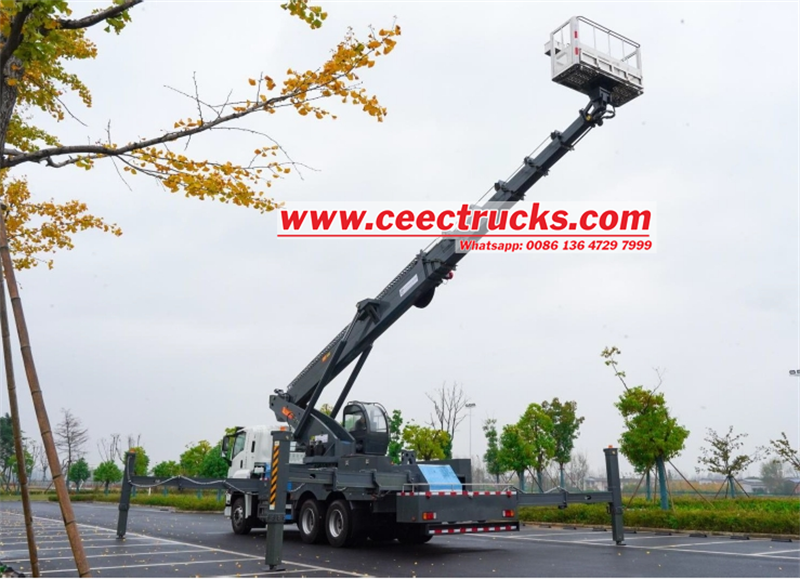

5. Public facility maintenance: In the maintenance of public facilities such as bridges, tunnels, and highways, the Isuzu FVZ GIGA 56m aerial working truck can provide a stable working platform to ensure the safety of operators and meet the needs of complex aerial operations.

6. Film and television shooting and event layout: In the filming sites of movies and TV series, as well as the stage layout and lighting debugging of large-scale events, the aerial work arm of this model can easily reach the required height, providing convenience for shooting and layout.

7. Emergency rescue: In emergency situations such as natural disasters and traffic accidents, the Isuzu FVZ 56m aerial work vehicle can be used as emergency rescue equipment to provide support such as high-altitude lighting, personnel search and rescue, and material transportation.
