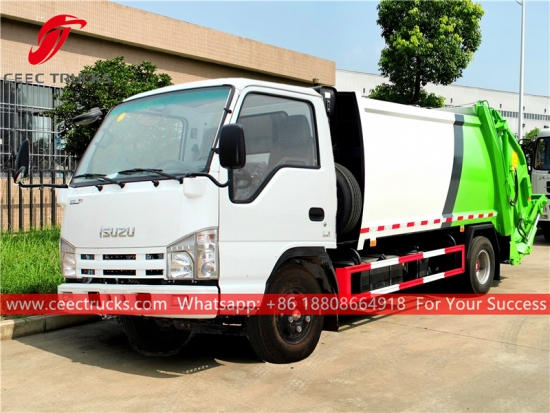

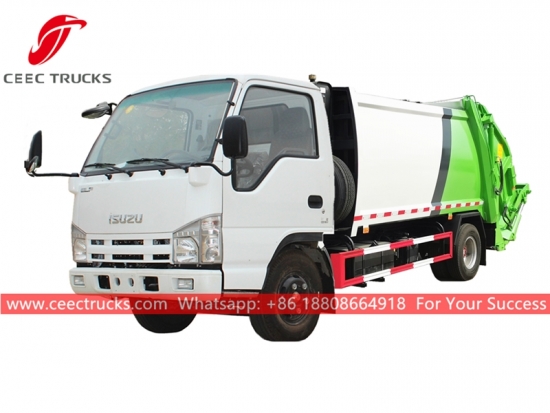

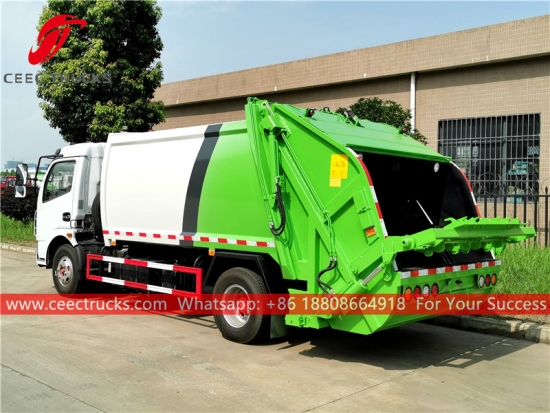

ISUZU 5CBM Back-loading compression compactors

ISUZU 5CBM Back-loading compression waste truck

ISUZU 5cbm compressed trash truck, the truck chassis use ISUZU 98HP diesel engine, MSB 5-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

ISUZU 5CBM Waste compactor truck

Applications:

ISUZU Refuse Compactor Vehicle (also called garbage collection truck, ISUZU rear load waste truck, brand new trash compactor truck, back-loading compression refuse vehicle, waste management truck, compressed garbage truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

CEEC TRUCKS garbage compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.

The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Specifications:

ISUZU Waste compactor truck (5 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	6650 * 2190 * 2350 mm
	GVW / Kerb Weight	7,300kg / 3,920kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98 HP (72 KW)
	Displacement	2770 ml
	Emission Standard	Euro 5
Chassis	Drive Type	4X2, (left hand drive)
	Transmission	ISUZU MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	3360mm / 2
	Tire Specification	7.00R16
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	5 cbm
	Fill Hopper capacity	1.2 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection

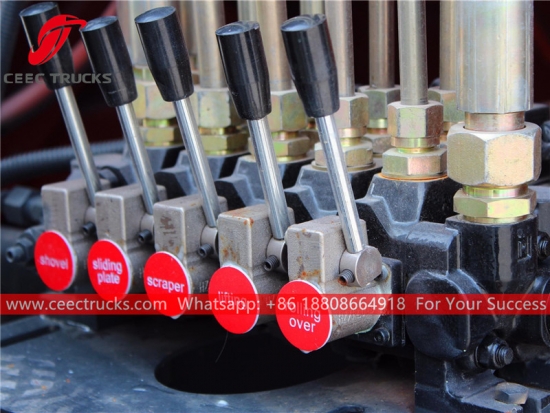

	Control system	Electrically Hydraulic control Manual hydraulic control
	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

Garbage compactor trucks manufacturer

(High technology rear loader vehicles, best quality compression rubbish trucks manufacturer)

Key words: Back-loading compression dustcart, waste compactor vehicle, trash collector truck

China famous back loading compactor supplier, provide good quality 5 CBM to 25 CBM back loader compactor truck. CEEC TRUCKS factory is china top rear loader compactor truck , have more than 15 years experience on designing and supplying rear loader trucks. Our truck brand can be ISUZU back end loader, DONGFENG back end loader, and howo back end loader.

★ ISUZU engine, super powerful

★ Expert for producing garbage compression trucks over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for compressed refuse trucks

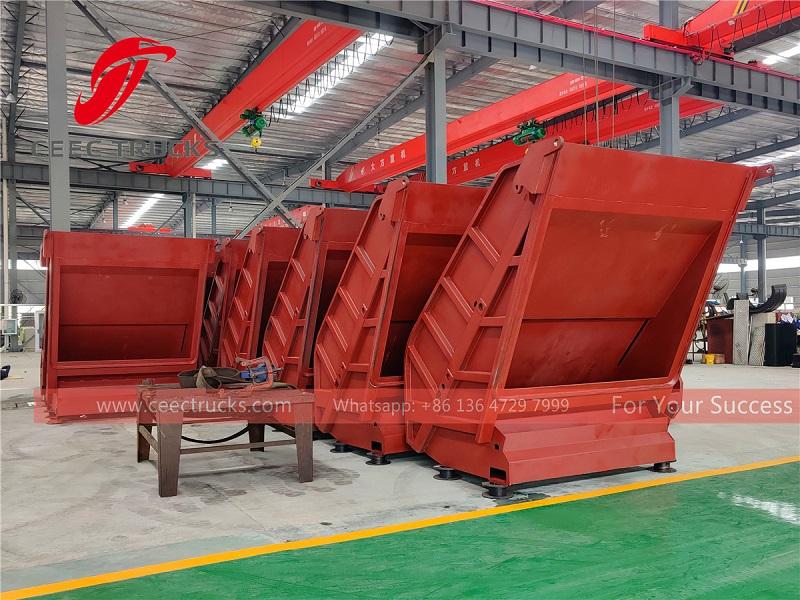

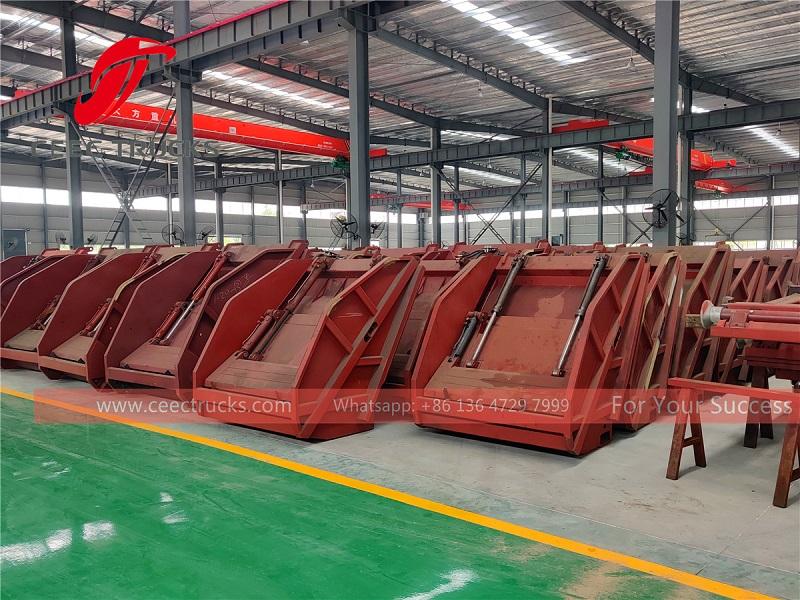

CEEC trucks 5000 square meters workshop for garbage compactor trucks.

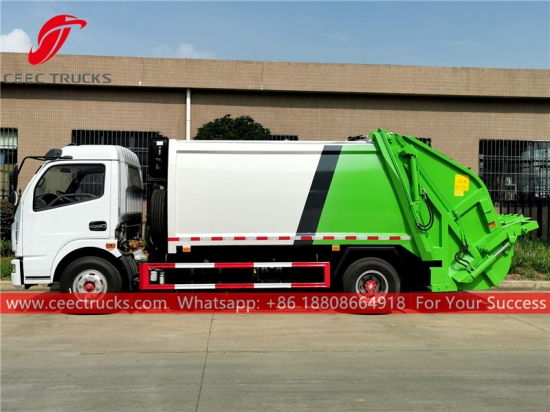

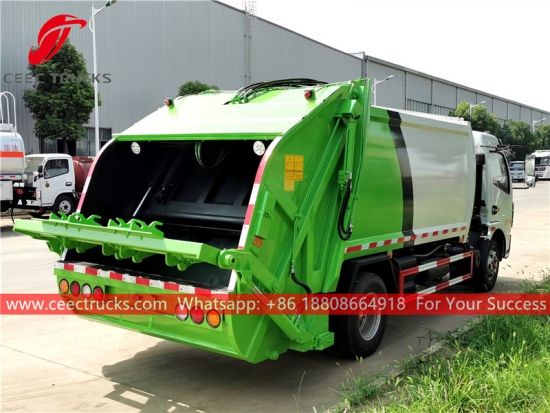

garbage compactor truck
