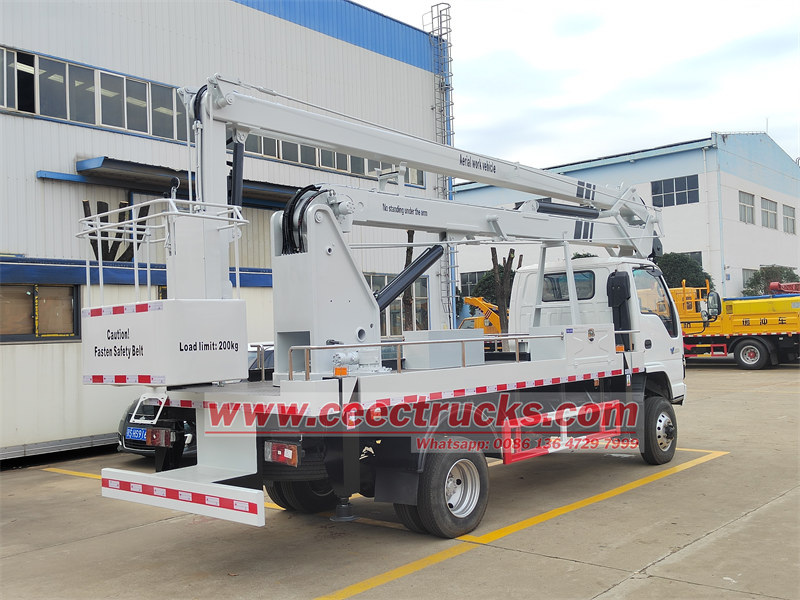

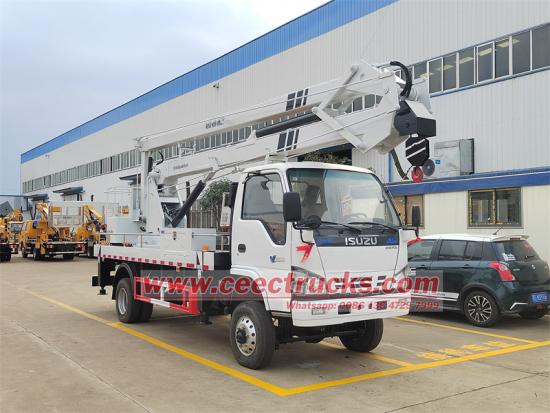

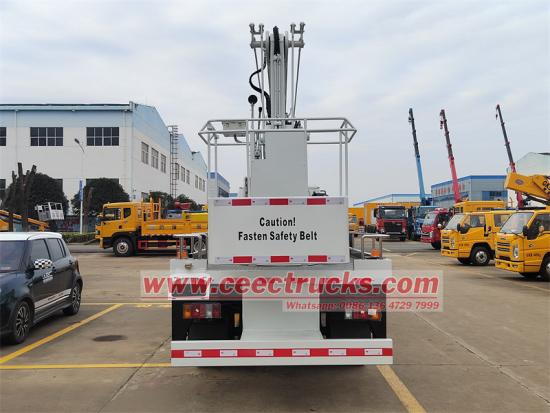

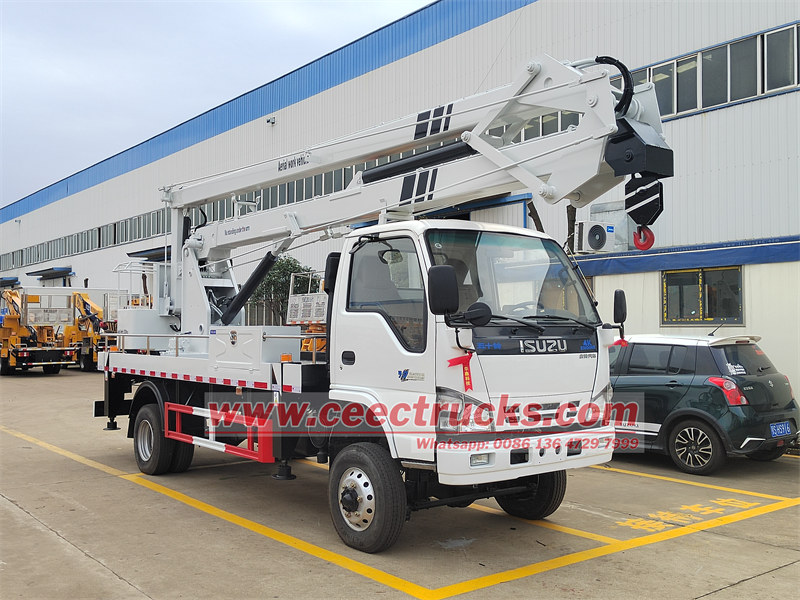

Isuzu AWD 14m folding arm manlifter truck

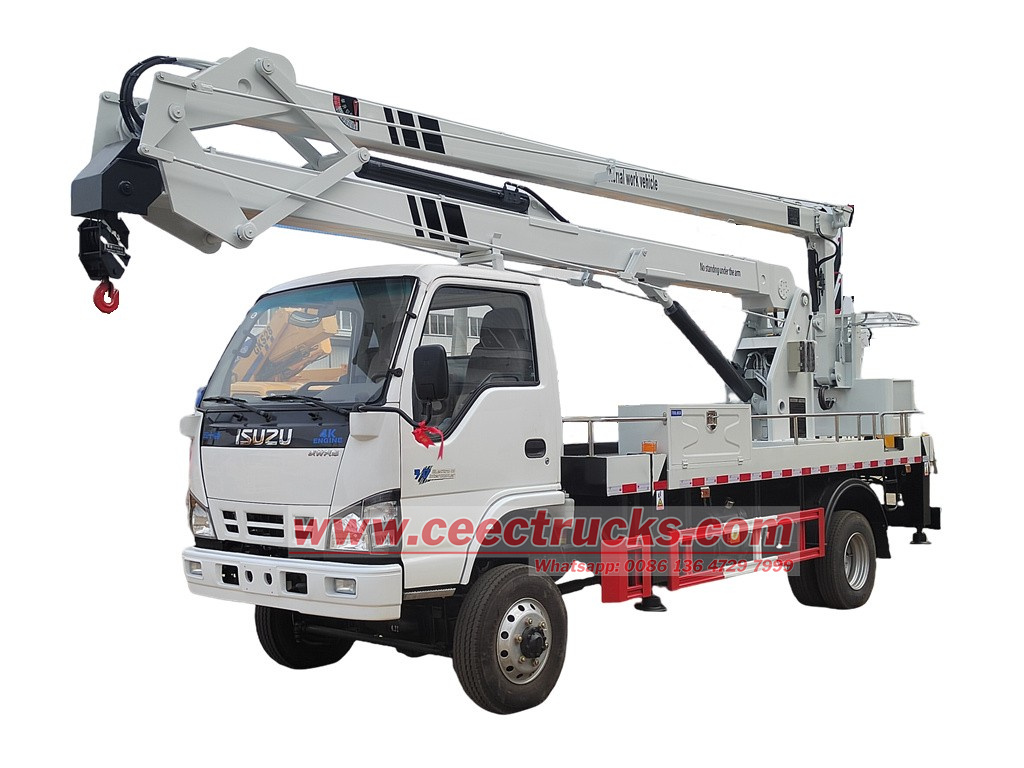

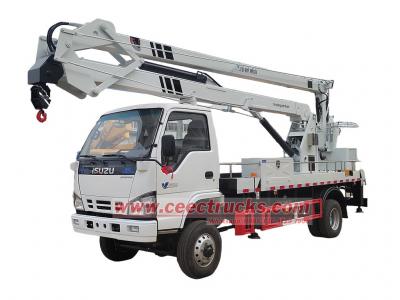

ISUZU NKR 14m folding arm manlifter truck also called Bucket crane, boom lift, high platform truck, mobile man lift vehicle, man lift trucks, which is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works. Isuzu aerial lift truck can supply aerial work platform platform on ISUZU NKR truck from 6m-8m, 8m-12m, 14m-16m as folding arm type, also available 10-14m, 14m-16m, 18m-20m, 20-24m, 28m-32m as straight arm type, Insulated basket is optional for normal insulativity working 220V. Also can be customized with fiberglass material booms and basket, which can be used for working as maximum 46KV.

ISUZU 14m straight aerial platform truck mounted on NKR truck chassis. Equipped with an efficient diesel engine 4KH1CN6LB model with 88KW / 120HP, emission can be 2999cc EURO 6 standard, also we can customized to remove DPF and ADBlue device, which can make truck working as EURO3 & 4 to meet all requirement over the world, it has low fuel consumption, high reliability, and adapts to complex road conditions. Original Japanese ISUZU technology MSB 5 shift manual gearbox with 5 forward and 1reverse for convenient driving. Strong carrying capacity and high chassis stability, with front axle capacity 2.5tons and rear axle capacity 4.8tons. suitable for the installation of heavy-duty work equipment. Working height for the ISUZU straight arm working platform can be maximum about 14m, covering most medium and high-rise work needs, such as street lamp maintenance and wall construction. Boom type is customized straight arm, with a large vertical extension range, suitable for unobstructed straight-line aerial work, slightly less flexible than the folding arm type but with a longer working radius.

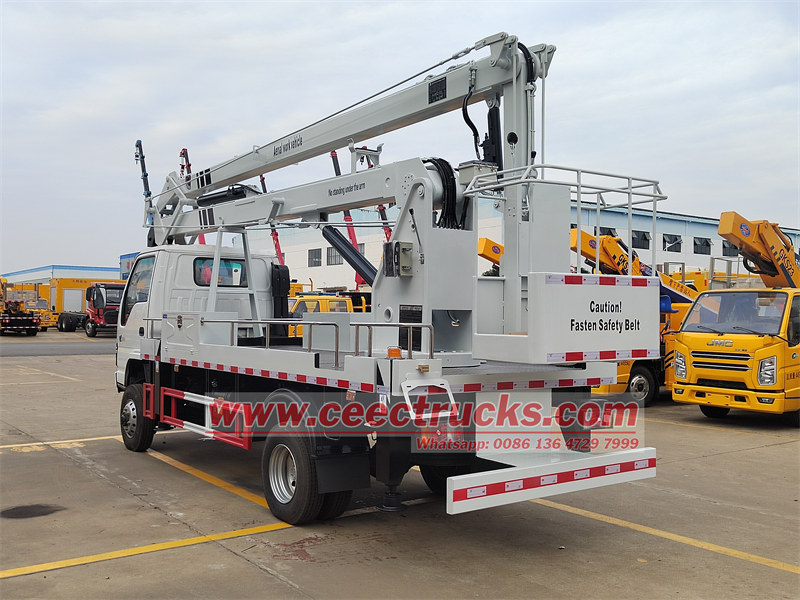

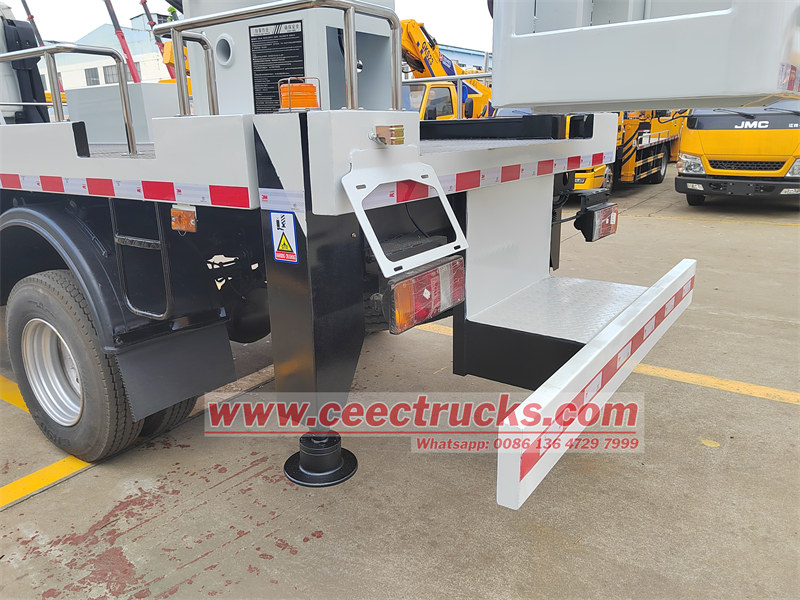

CEEC TRUCKS 4x4 offroad aerial lift truck is produced based on original Japanese ISUZU NKR 4x4 offroad truck chassis, the overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

Isuzu Manlifter Truck with Off-road functions mainly used in bad road conditions, with recommend speed not too high.
1.    Off-road truck not allowed driving with speed over 50km/h. If speed at 50km/h, truck should stop for one hour after 3~4 hours continue driving, which can dissipate heat from the gearbox. Carefully checking gearbox air hole after long time driving, if have oil overflow, which means the gearbox temperature too high.
2.    Strictly avoid misoperation, Four Drive 4x4 model can be only used at Low Speed. High Speed & Low Speed change, Two Drive 4x2 & Four Drive 4x4 can be only operated when truck stopped. Because misoperation during driving will damage the axle.

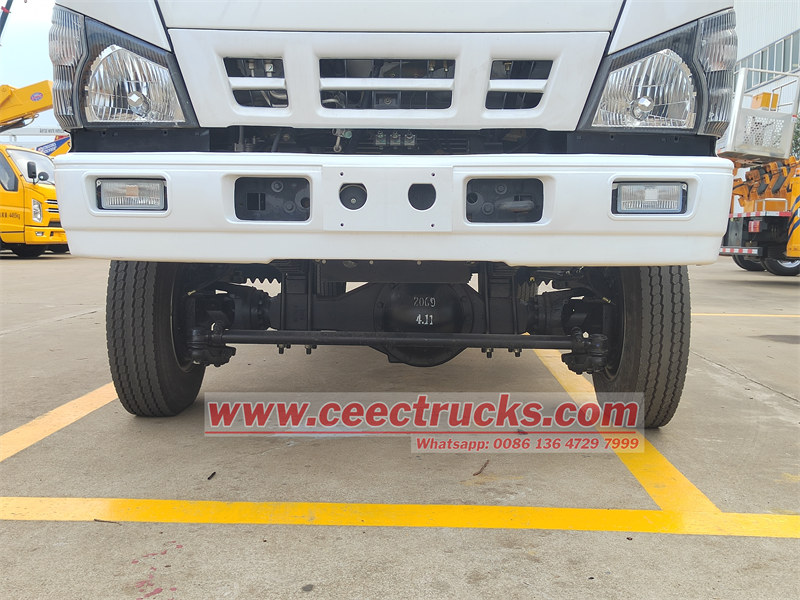

3.    Front Axle Maintenance: Add grease every week; Change new axle oil every 1500km / 3 months; Change new gearbox oil every 2000km (Oil volume approx. 4500ml)
4.    No Overloading Operation: Strictly forbidden overloading.

● Hydraulic system: Electro-hydraulic proportional control

● Electrical system: CAN bus protocol

● Turntable seat and wireless remote control

● Boom and outriggers interlocked, outriggers can be operated separately with safetyinspection.

● Automatic hydraulic leveling system to make sure bucket stable

● Equipped emergency pump

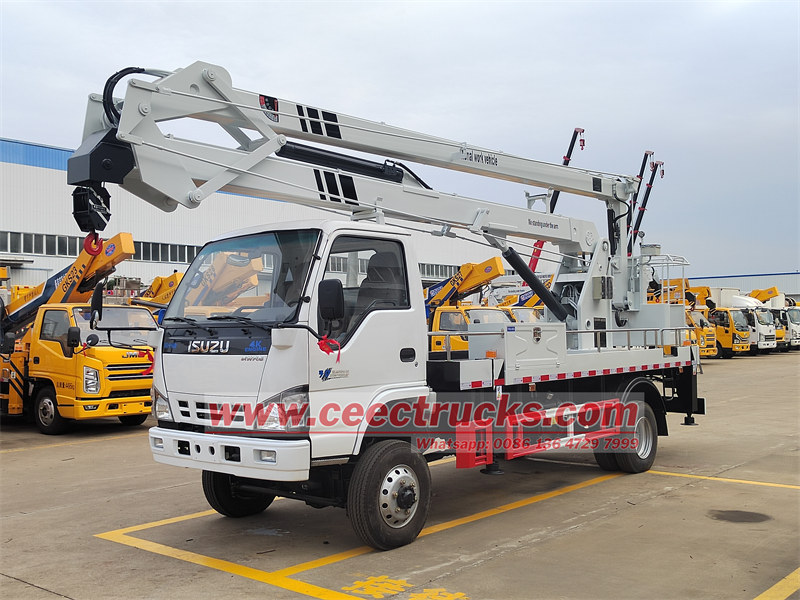

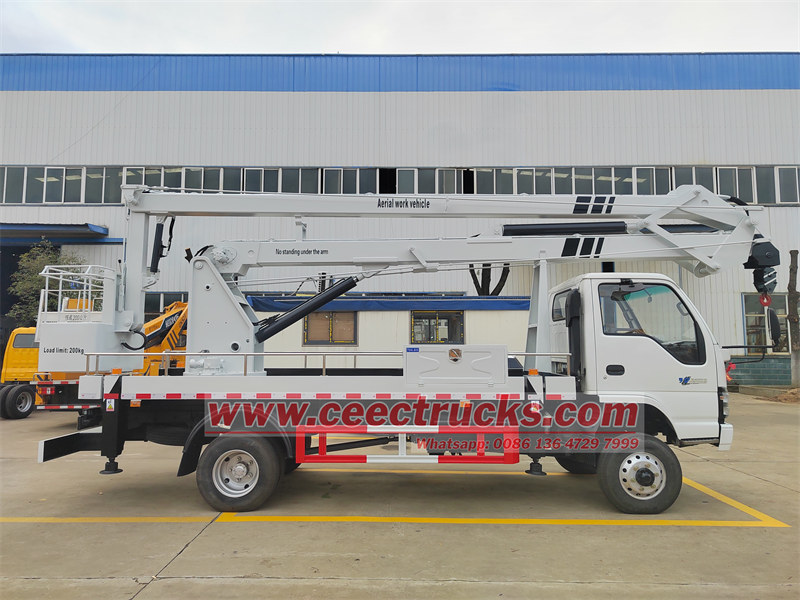

ISUZU newly designed 14m folding arm aerial working platform truck have many advanced features, which made the ISUZU manlifter truck an ideal vehicle for all kinds of high altitude working. And mainly have below advanced features:

High security

ISUZU Manlifter truck is equipped with comprehensive safety devices, such as safety locks to prevent platform falls. In the event of an accident during work, such as hydraulic system failure or rope breakage, the safety lock will immediately activate to secure the work platform and ensure personnel safety.

High homework efficiency

Operators can flexibly adjust their position and height on the platform to quickly reach the designated work site. For example, in the maintenance of urban street lights, compared to the traditional method of building scaffolding, aerial work vehicles can quickly transport maintenance personnel to work next to the street lights, saving a lot of time in building and dismantling scaffolding.

Strong flexibility

There are various types of aerial work vehicles, such as straight arm, curved arm, scissor type, etc., which are suitable for various complex working environments. The straight arm type can achieve a longer working distance; Curved arm type is suitable for working in environments with obstacles, such as working between buildings or near trees; Scissor type has good stability and is suitable for indoor or low altitude outdoor operations with relatively open spaces.

Reduce labor intensity

The operator can easily adjust the position of the work platform through the control device, avoiding manual climbing and handling of tools and equipment, and reducing the physical exertion of the operator. For example, when cleaning the exterior walls of high-rise buildings, workers can stand on the platform and operate the machine, without the need to use ropes to hang themselves and carry cleaning tools as in the past.

PLC electric control system

The ISUZU aerial working platform truck equipped with Siemens PLC control system, with standard English language, also can be customized with French language, Arabic Language, Russia Language, etc. Also matched with level and hydraulic for convenent working. Below showing the control box on the ISUZU aerial lift truck.

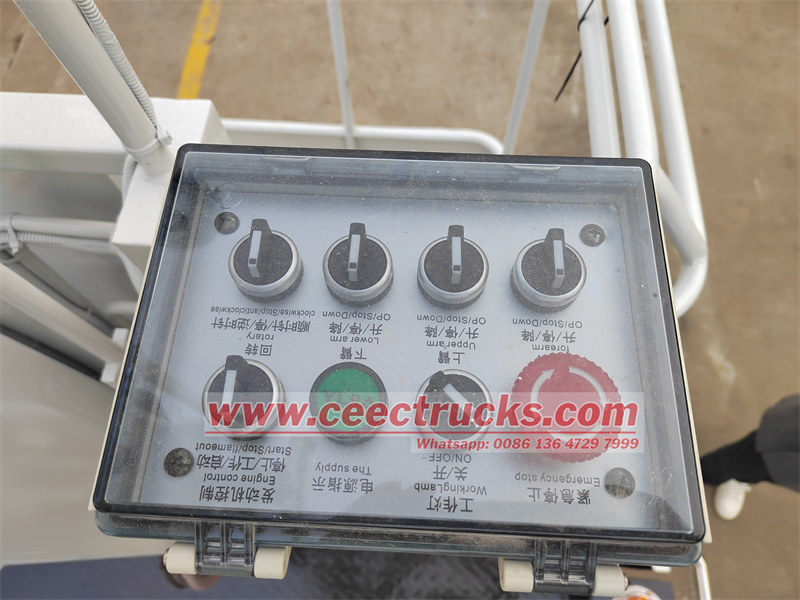

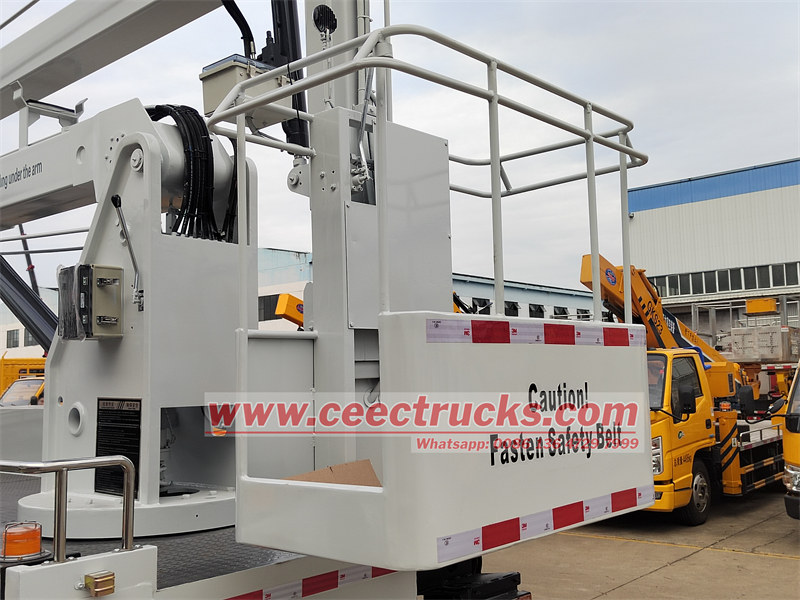

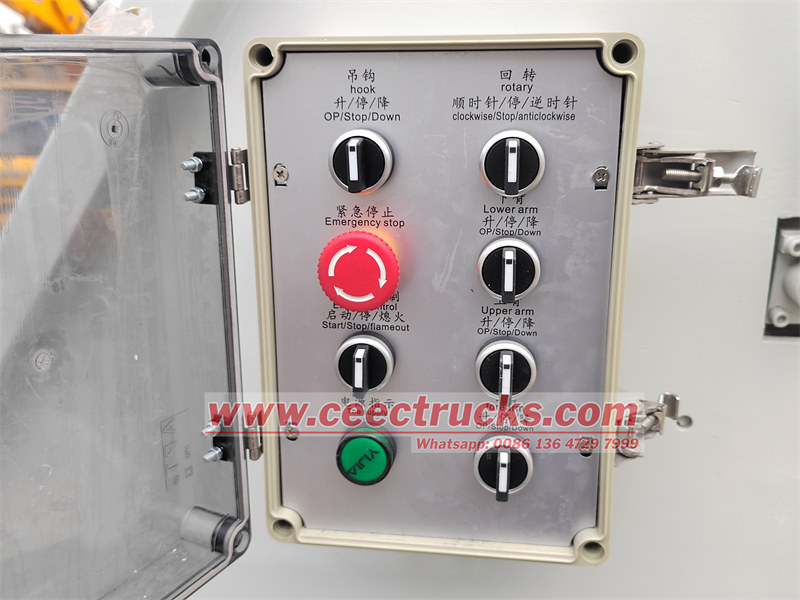

Isuzu 120HP manlifter truck mainly working control box	Isuzu 4x4 offroad manlifter truck control box inside bucket
