Philippines--ISUZU 16m Man Lifter Truck Manual

2019-11-14

Download

Philippine customer buy 1 unit ISUZU 16-18M man lifter truck (also called ISUZU man lifter, aerial platform truck, telescopic boom lifting truck, aerial lift truck), which is an ideal equipment for high altitude working, including maintenance traffic light, street light, landscape trees, cleaning advertise board, etc. The truck mounted hydraulic lifting platform with optional lifting height 6-8m, 10-14m, 16m, 18m, 20-24m, 28-32m. and this PDF manual detailed introduced this manlifter truck and teach end user right way to operate the aerial platform truck.


https://www.ceectrucks.com/uploadfile/news/Philippines--ISUZU%2016m%20Man%20Lifter%20Truck%20Manual.pdf



           Contents

Chapter 1. General Description-----------------------------------------4
Chapter 2, Safety Warnings----------------------------------------------5
Chapter 3, Main Technical Data-----------------------------------------9
             ⅰ, Normal Operation Conditions-----------------------------9
             ⅱ, Performance Parameters---------------------------------9
             ⅲ, Vehicle Specifications--------------------------------------9
Chapter 4, Man Lifter Structure Components-----------------------11
             ⅰ, PTO System-------------------------------------------------11
             ⅱ, Slewing Rotation System---------------------------------11
             ⅲ, Centre Slewing Joints--------------------------------------11
             ⅳ, Hydraulic System-------------------------------------------11
Chapter 5, Man Lifter Working Principles----------------------------13
             ⅰ,Driving of the Man Lifter Truck with Crane-------------13
             ⅱ,Pre-operational Checks------------------------------------13
             ⅲ, Man Lifter Truck operations (Very Important)---------13
             ⅳ, Notes & Attentions------------------------------------------21
Chapter 6, Hoist Hooker Operation------------------------------------22
Chapter 7, Maintenance & Repair--------------------------------------23
            ⅰ, Chassis Truck Maintenance-------------------------------23
            ⅱ, Routine Checking & Maintenance------------------------23
            ⅲ, Hydraulic System Checking-------------------------------23
            ⅳ, Rob’s Adjustment--------------------------------------------25
            ⅴ, Malfunction Analysis-----------------------------------------26
Chapter 8, Lubrication-----------------------------------------------------28
Chapter 9, Transport & Storage-----------------------------------------30

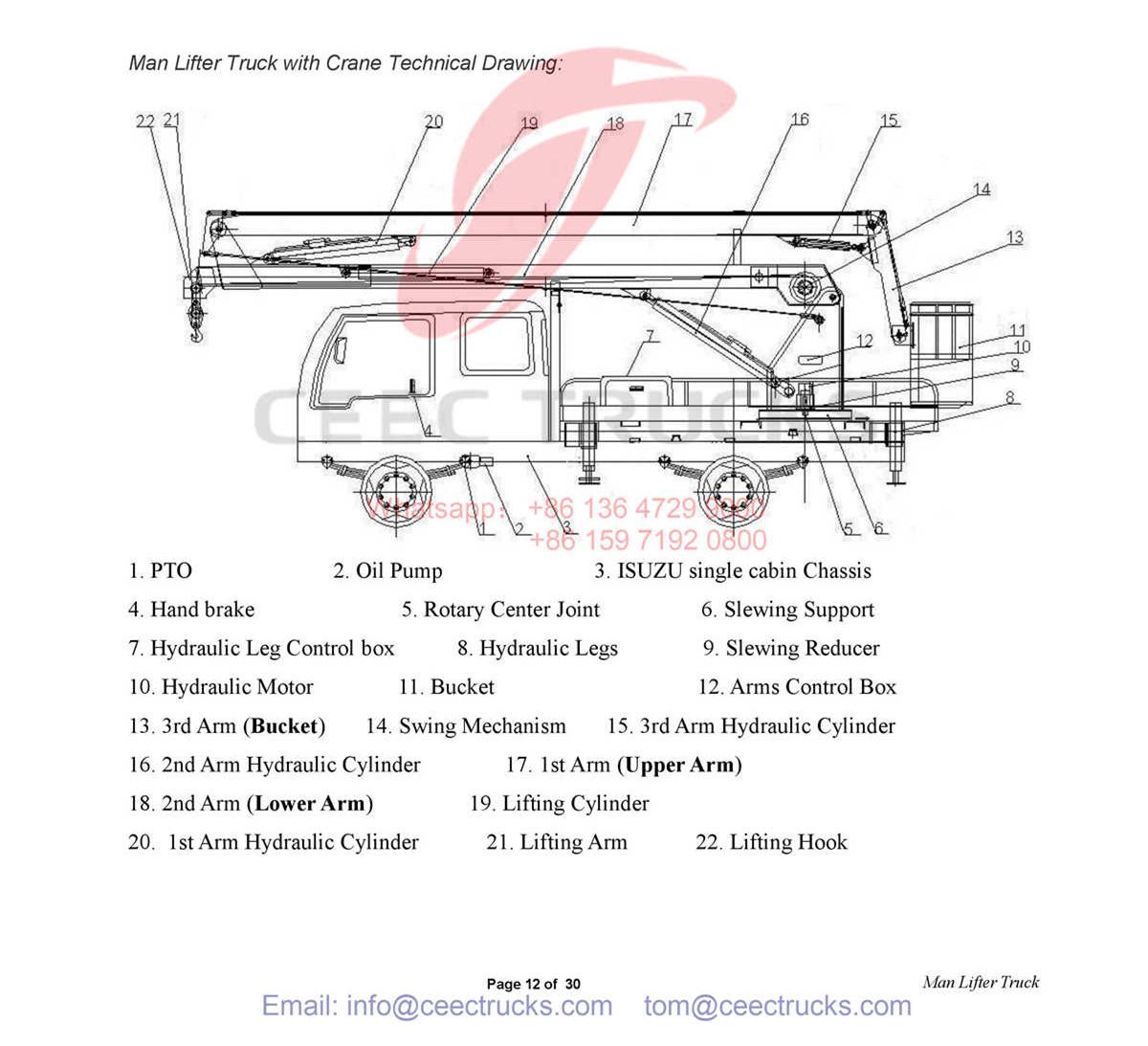

Detailed component of ISUZU manlifter truck
