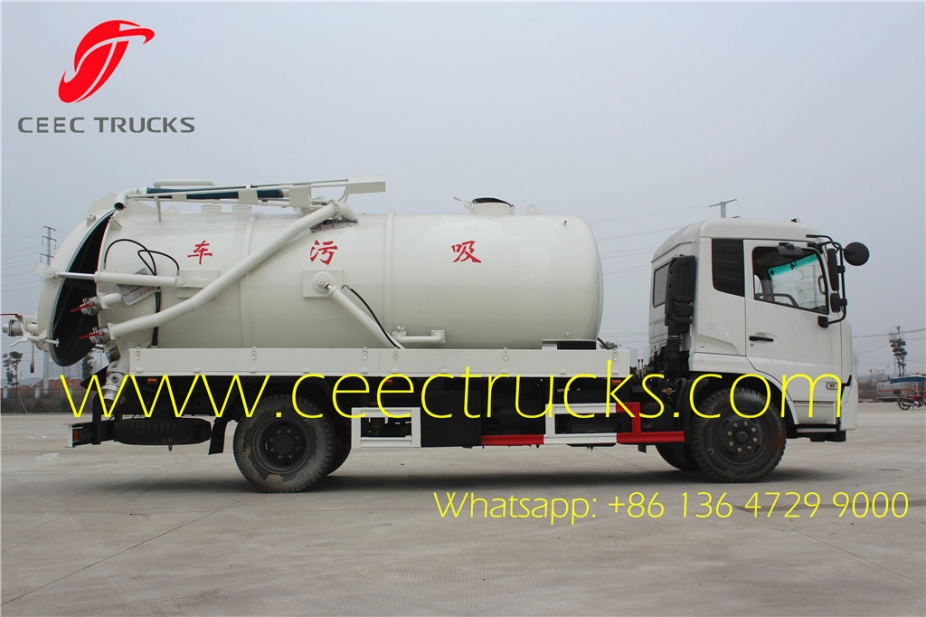

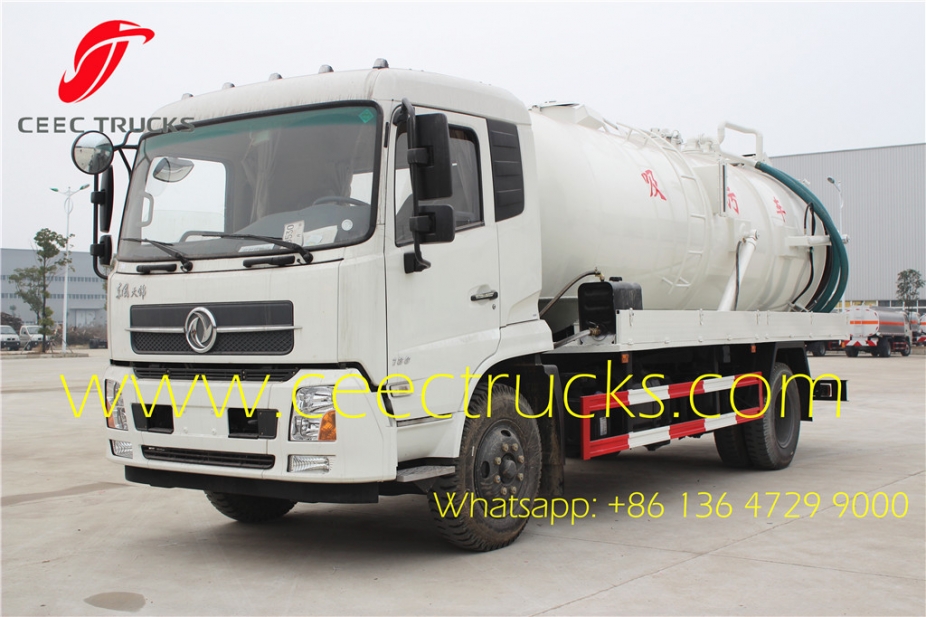

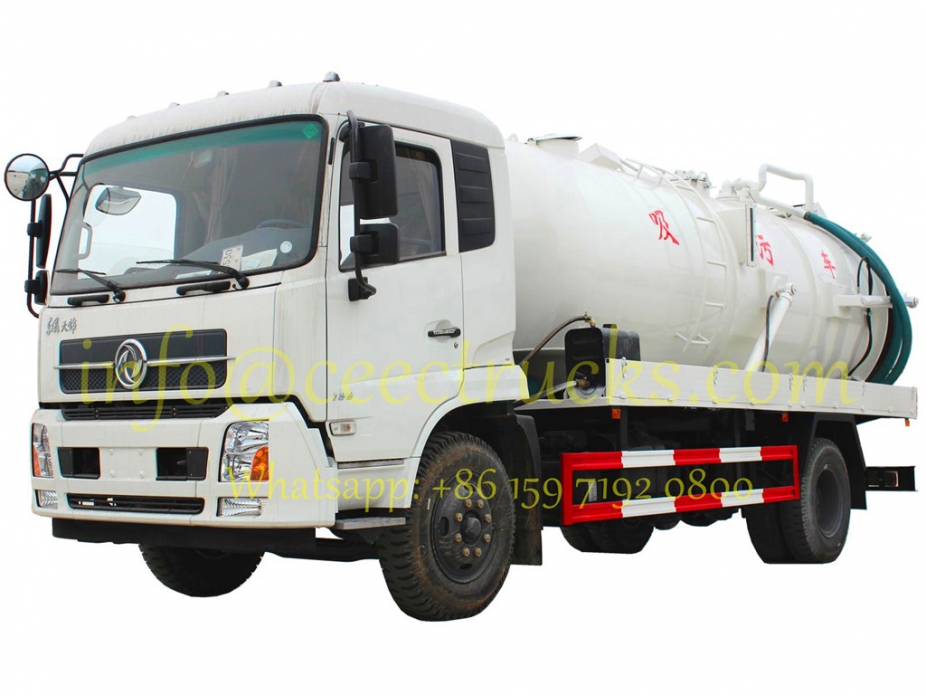

Dongfeng / ISUZU vacuum sewage suction truck 12cbm withe colour for UN

12000L Septic Pump Tanker Truck Dongfeng

Dongfeng brand cesspit emptier, equipped famous CUMMINS 170hp engine, 6-shift manual gearbox, 12000 liters suction tanker with material carbon steel Q345, thickness over 5mm, internal and external with antirust painting. export Africa countries

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
15 Days
Payment:
T/T, West Union
FOB Price:
USD $25,000-36,000
Market Price:
$30000

contact now

Cesspit Emptier manufacturer supply, we CEEC TRUCKS can supply ISUZU 10CBM cesspool emptier truck, dongfeng 10 CBM vacuum sewage suction truck, beiben 1927 cesspit emptier, isuzu 4*2 vacuum suction tanker trucks, Faw 18 CBM heavy duty vacuum tanker trucks, all our cesspit emptier widely export Asia Mongolia, Myanmar, Phillippine, Vietnam, and Africa congo, tanzania, zambia, south africa, algeria, etc.

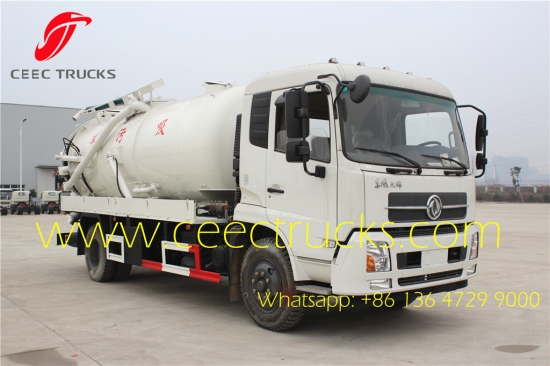

12000 m³ Septic Vacuum Pump Tanker Truck Dongfeng

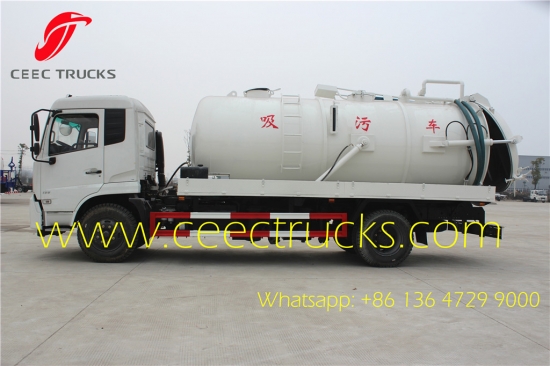

10000 liters dongfeng cesspit emptier tanker truck Dongfeng sale

Advanced features for CEEC vacuum sewage tanker trucks:

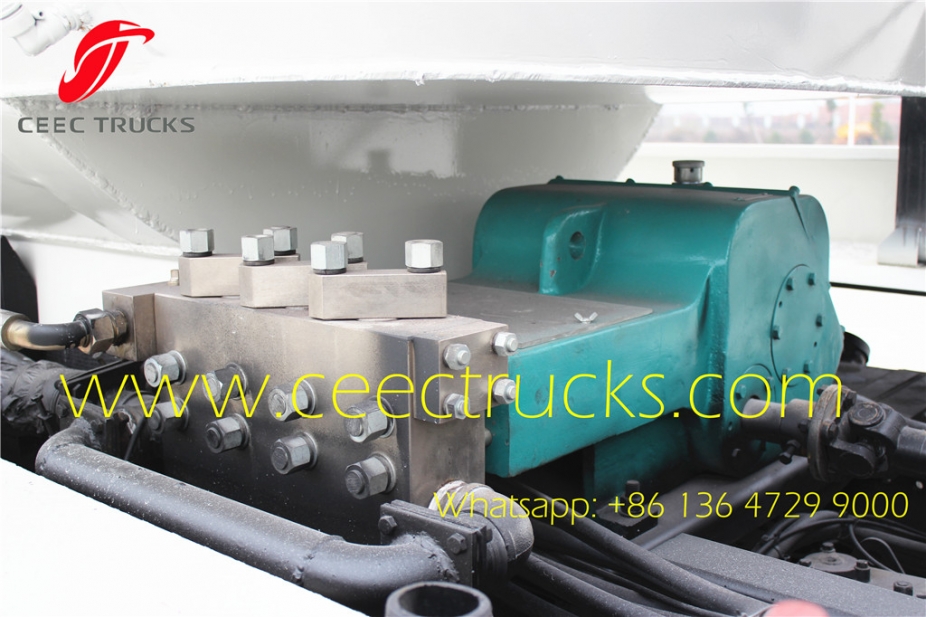

1. The vacuum pump adopts the truck-mounted pump provided by the professional manufacturer, which is characterized by compact enclosure, low rotation speed (energy saving), high vacuum degree (its vacuum degree is up 99.6%), wide operating pressure range ( its absolute limit working pressure is ranging from 200 to 8500Pa), low noise, low power consumption and high efficiency, etc. High pumping and suction speed.

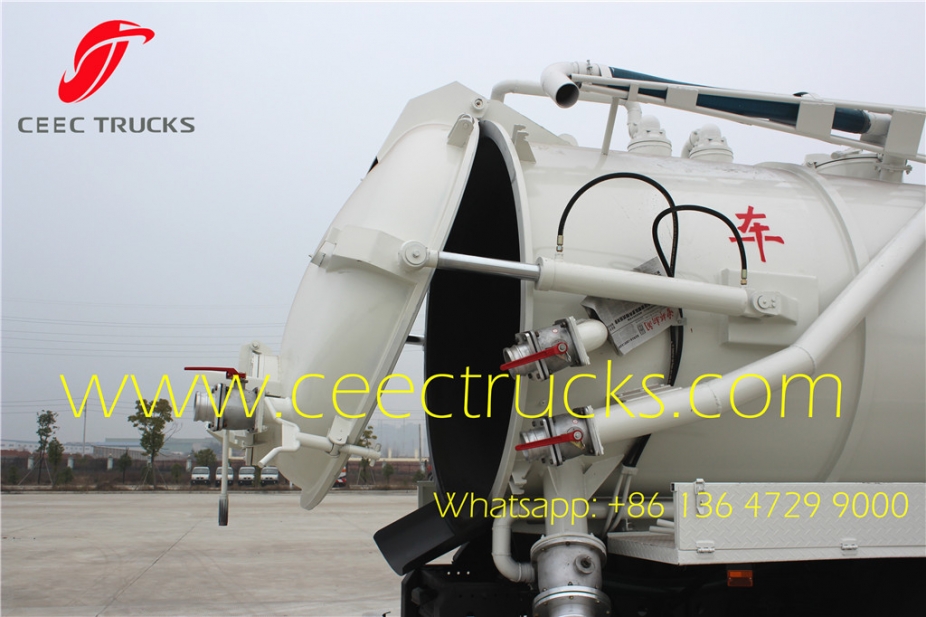

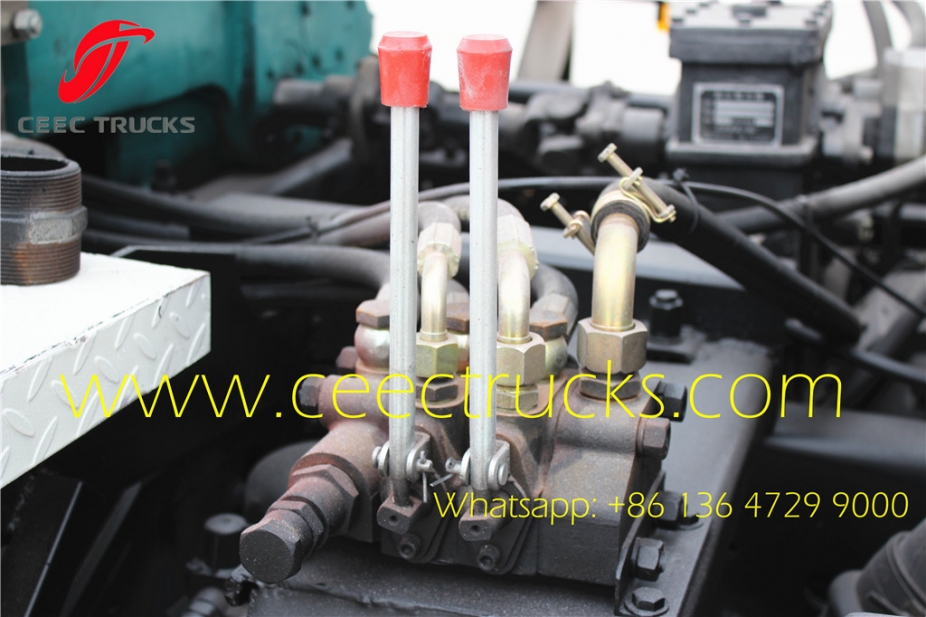

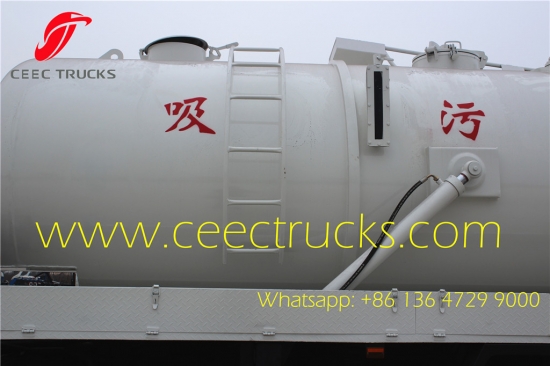

2. The hydraulic lift system adopts the double-acting lift cylinder, while the control valves adopt the domestic well-known brand products.

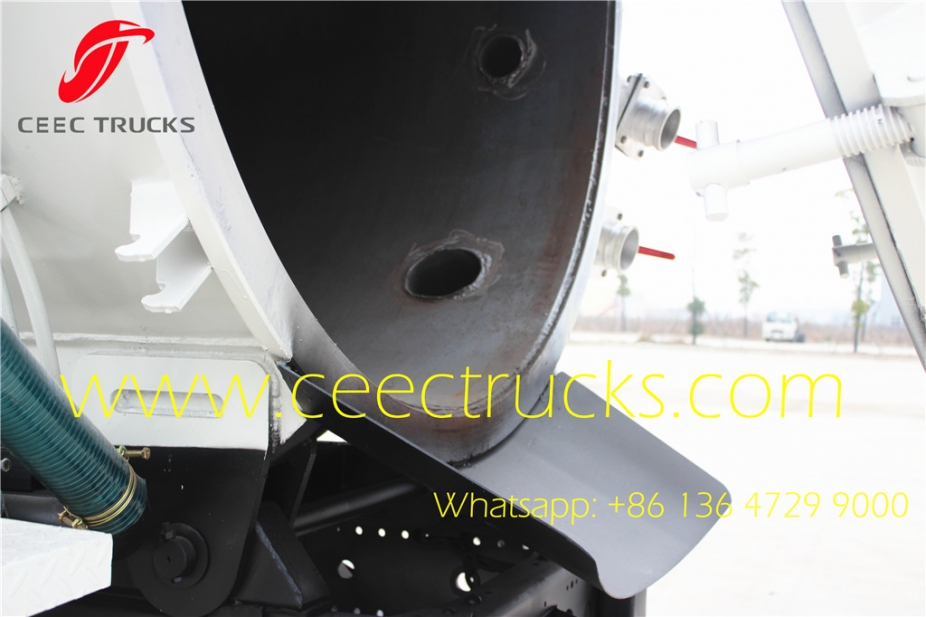

3. The tank body is cylindrical and the end socket is oval, so that the tank body is subject to uniform stress.

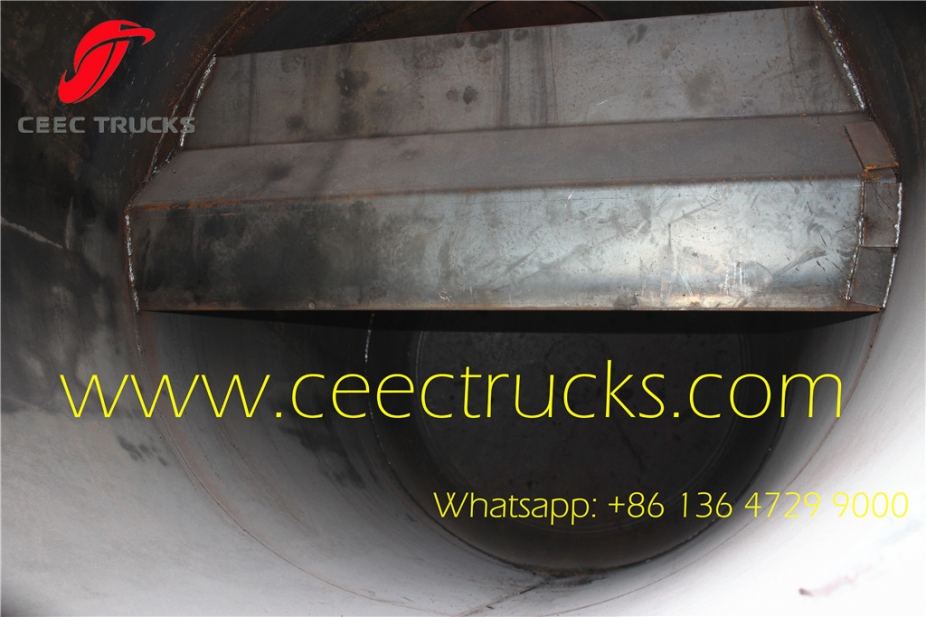

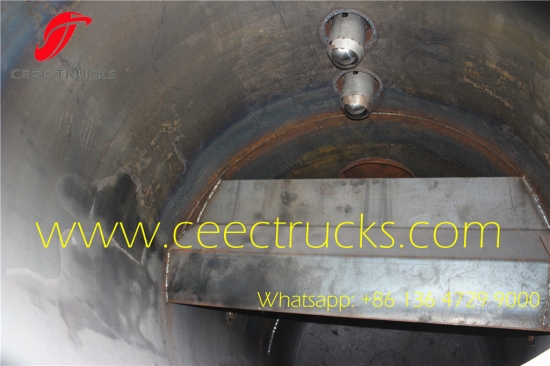

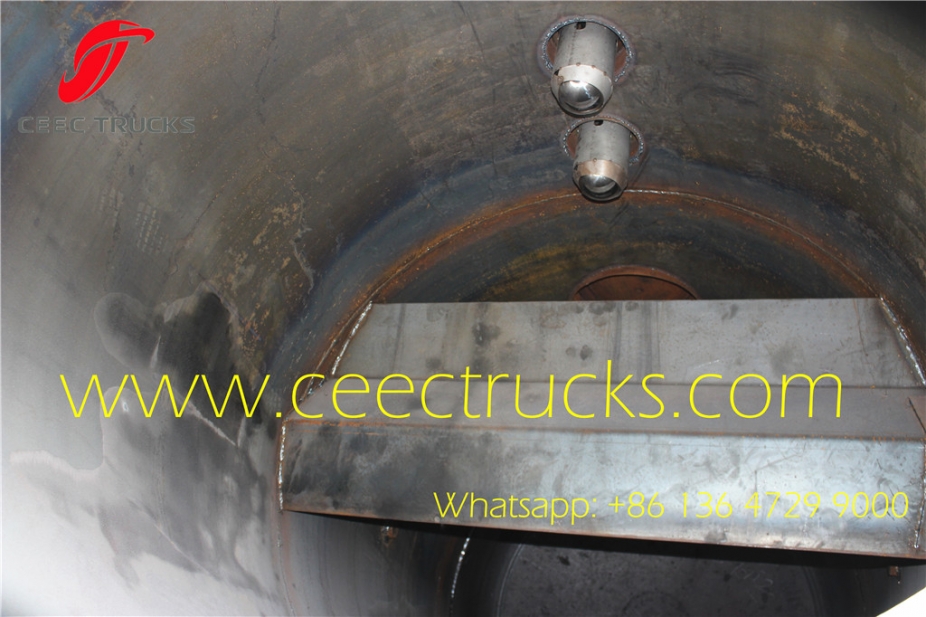

4. As the tank is mounted with the transverse swash plates to reduce the impact on the tank during the driving process of the vehicle, thereby ensuring the smooth running of the vehicle; additionally, the inner surface of the tank is provided with stiffening rings to ensure that there is no deformation and deflation on the tank body under negative pressure pumping state.

5. The air exhaust piping at the top of the tank is mounted with the anti-spill valve, which can effectively prevent dirt into the vacuum pump of the pneumatic circuit and spills.

dongfeng 10 CBM cesspit emptier drawing

Technical specifications for CEEC Sewer suction pump trucks:

Similar Keywords: septic suction truck, sludge tipper, sewer scavenger, vacuum tank, truck vacuum, sucker machine, sewage disposal truck, gully emptier, cesspool emptier, sewer suction truck…

Company name	CEEC TRUCKS INDUSTRY CO., LIMITED	Truck brand	CEEC TRUCKS
Truck name	Sewage suction truck	Chassis model
Tanker volum	10-12CBM	Total mass(kg)	16000
Engine HP	160-240PS	Rated mass(Kg)	10-12 tons
Engine type	Yuchai	Engine standard	Euro 3/4
Vechicle size(MM)	810025003100	Fuel type	Diesel
Tyre quantity	6	Tyre size	10.00-20
Wheelbase (MM)	4500	Max speed(km/h)	90
Front track	1810	Rear track	1620
Performance	1. Sewage suction truck using domestic technology leader dedicated sewage pump suction, suction, suction far, particularly suitable for sewage sludge within the pumping, shipping and unloading rows, especially to absorb sewage mud, silt, gravel, brick blocks and other large objects, less moisture and other substances. 2. Pumping full of dirt (feces) tank time: ≤ 5min 3. Suction: ≥ 10m 4. Self-absorption self-discharge, long life, work fast, and easy transportation. 5. Sewage suction truck emissions are emissions and artesian pressure emissions in two ways, self-priming sewage suction truck from the row, the back cover to open the dump tank and impurities, pumping, high efficiency, self-absorption, self-scheduling and direct irrigation, etc. 6. Characteristics, operation fast and simple. Suitable for large, medium and small town’s sanitation, municipal departments.
Special equipment	☆ Sewage suction truck tank can be used: carbon steel, stainless steel. ☆ Sewage suction truck dedicated in part by the PTO drive shaft. ☆ Special vacuum suction sewage pump, high pressure forming manure tank, water and gas separator, oil and gas separation, multi-valve, boom, smoke pollution guns, pipe network system components, and equipped with a vacuum gauge, depending on the pollution window (control), hand-washing device.

10000 liters dongfeng cesspit emptier tanker truck Dongfeng

CEEC Recommend environmental protection truck series ISUZU, Beiben Truck

★ Best selling model high quality DONGFENG 10-12 CBM vacuum sewage suction tanker truck

★ Famous Chinese brand 160-240 HP engine, EURO 3 emission, 15% saved fuel consumption

★ 6-shift manual gearbox, 6 forward & 1 reverse, provide all easy operation

★ Profession vacuum sewage suction trucks manufacturer experience over 10 years

★ High strength carbon steel Q235 material, thickness over 6mm

★ Chinese brand WEILONG vacuum suction pump, Import Darley vacuum pump for optional

★ 12 months free fast moving spare parts

★ Training service for dongfeng 10-12CBM vacuum sewage suction trucks 2~3 days in CEEC working plant

How to build & maintenance Septic Pumper Truck?

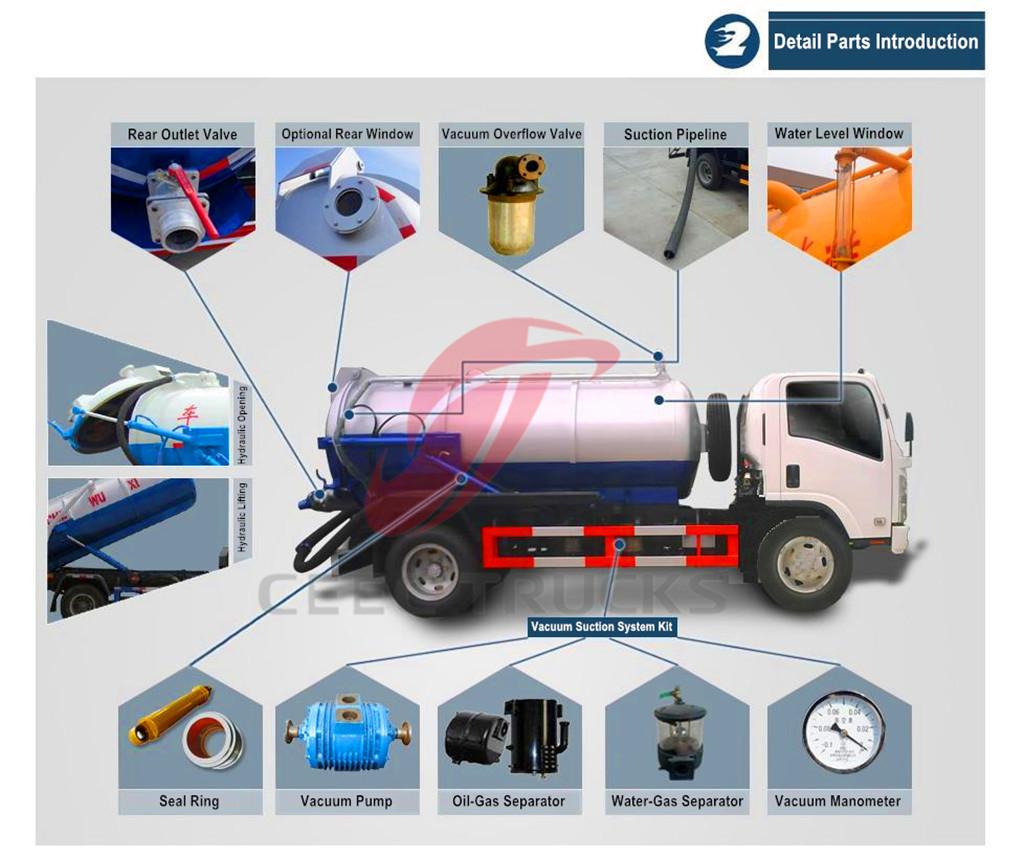

CEEC produce 4000 L cesspit emptier trucks specification

(Above show construction of CEEC TRUCKS produced vacuum suction tanker truck)
