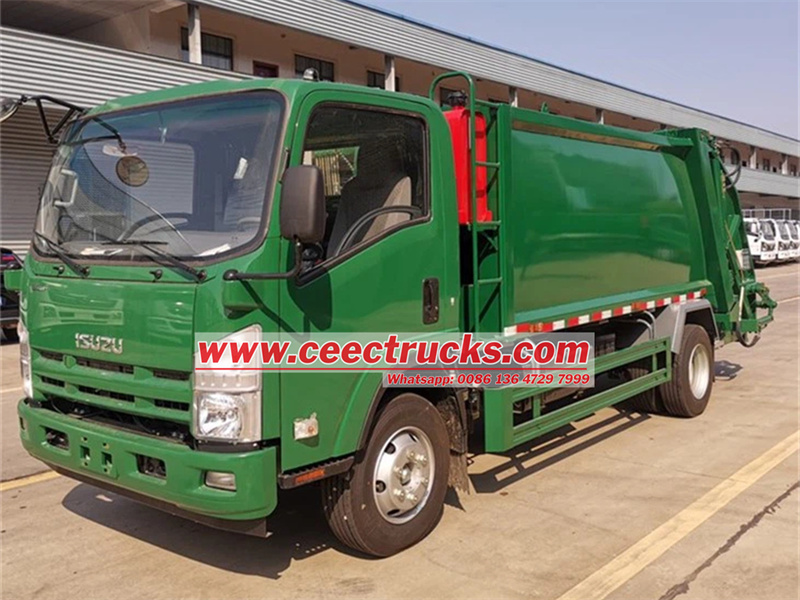

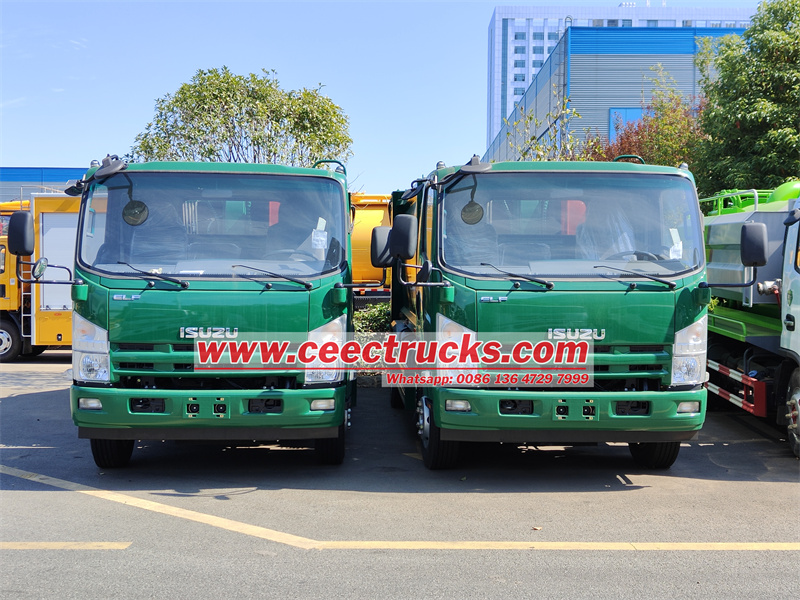

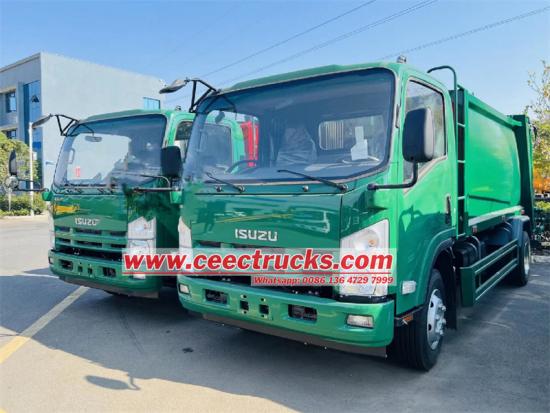

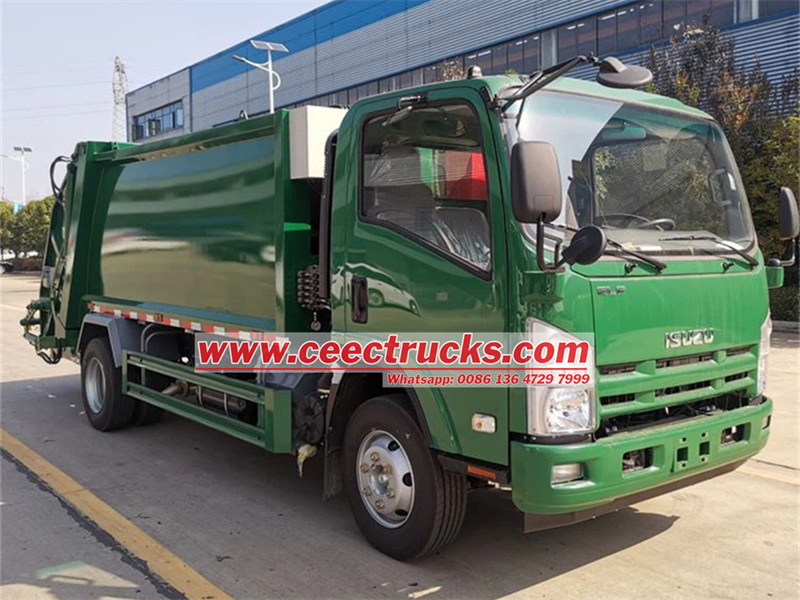

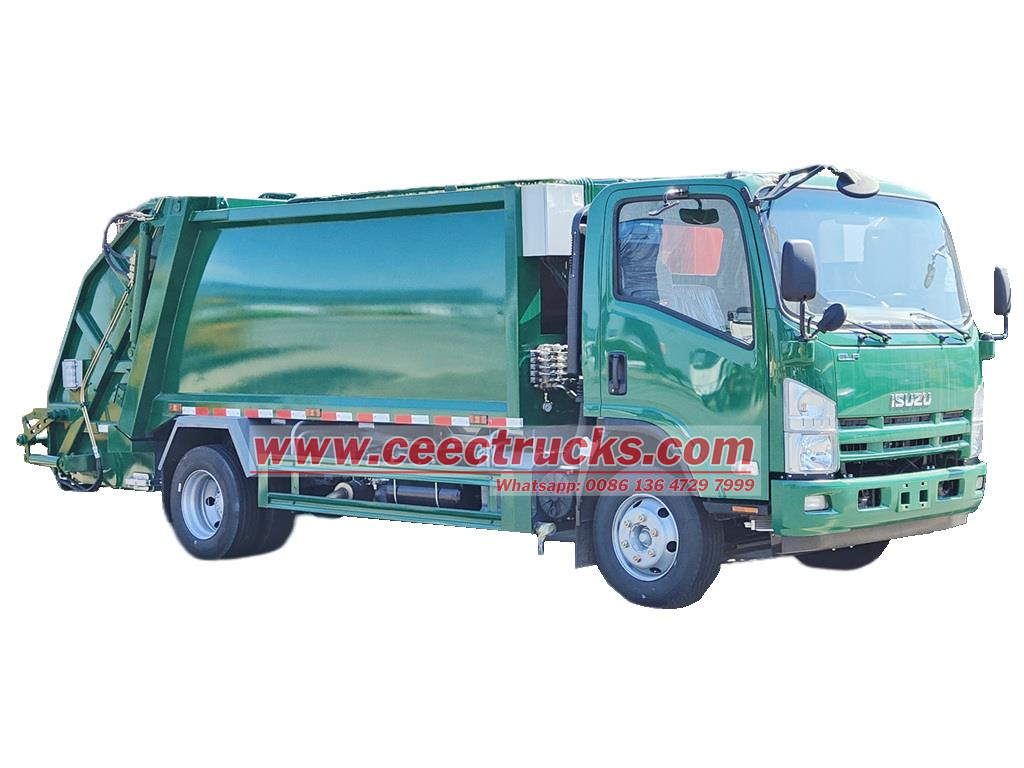

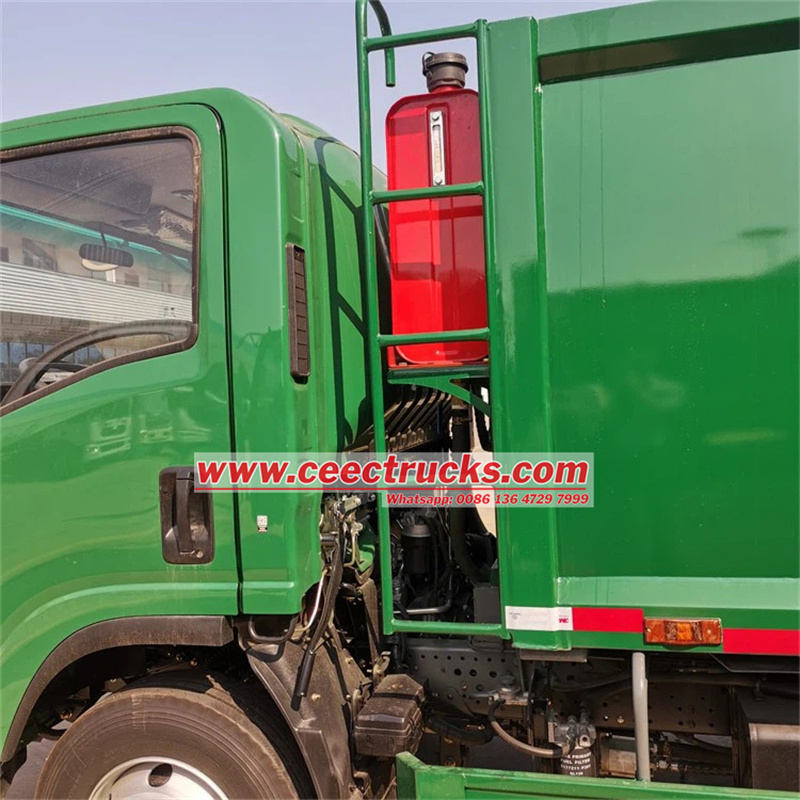

ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck
ISUZU NPR 8CBM refuse compactor truck

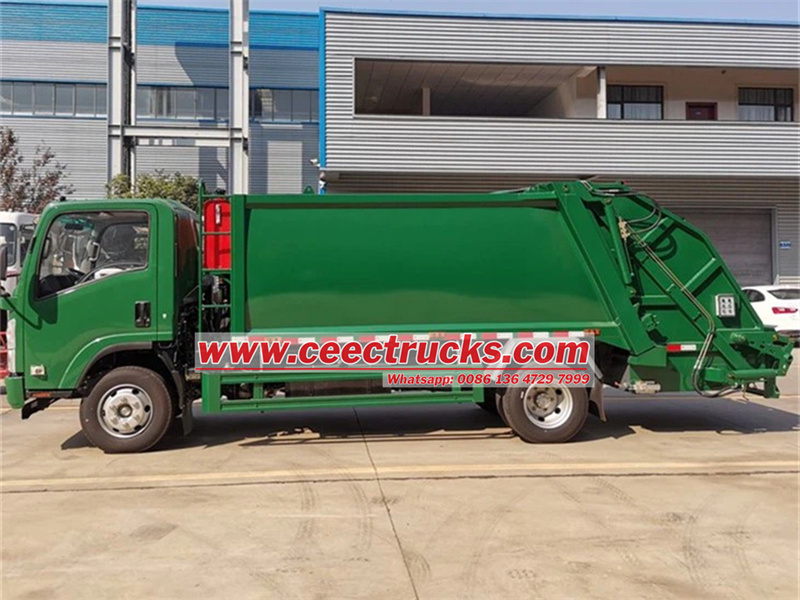

Isuzu truck mounted garbage compactor

Isuzu new NPR Garbage Compactor Truck is a reliable and efficient solution for waste management operations. Its powerful engine, large capacity, hydraulic and compression system, automatic loading and unloading system, solid construction, easy maneuverability, eco-friendliness, and operator safety features make it an ideal option for handling garbage transportation and disposal, original Isuzu 4HK1-TCG61 diesel engine with 140KW / 190HP, MLD 6-shift manual gearbox, 8.25R20 tires for wildland working.

  • Payment:

    T/T, West Union
  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    40 Days
  • Work capacity:

    8CBM
  • Truck model:

    CEEC5100ZYS
  • Engine power:

    190HP
  • Engine type:

    Isuzu 4HK1-TCG61
  • Axle drive:

    4X2/4x4, LHD/RHD
  • Gear box:

    MLD 6F & 1R
  • Remarks:

    100% customized painting and logos

Isuzu new NPR 4×2 Garbage Compactor Truck is a reliable and efficient solution for waste management operations. Its powerful engine, large capacity, hydraulic and compression system, automatic loading and unloading system, solid construction, easy maneuverability, eco-friendliness, and operator safety features make it an ideal option for handling garbage transportation and disposal site.

Series Isuzu Solid Waste Compactor Truck is a new generation of products independently developed and designed by CEEC TRUCKS on the basis of absorbing the advantages of many similar products at home and abroad. This series trucks are equipped with chassis of type II vehicles manufactured by Japanese ISUZU, which is beautiful in appearance, excellent in performance and advanced in operation and control. The collection and transportation of urban domestic waste can be achieved by using the back-loaded compaction and bi-axial compression technology. Its comprehensive performance reaches the advanced level of domestic similar products.





Advanced Features for 2025 year ISUZU NPR solid waste compactor truck:

1. Using Japanese technology ISUZU 700P ELF NPR truck Chassis for light duty, super power, larger displacement, with Stronger Engine performance.
2. Remove the urea system and cancel DPF and ADBlue.
3. Quality test from the production to the finish of the whole truck.
4. Professional and experienced technical team support to provide customized trucks with high quality & reasionalble price.
5. Genuine spare parts supply.
6. Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.



● China best ISUZU NPR NQR rear loader garbage truck factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements

● Promptly delivery. any order is welcome.

24 month quality guarantee term



ISUZU NPR rear loader garbage compactor truck also known as Refuse Compactor, Refuse Collection Vehicle/RCV, which is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling  along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor. It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, and can also transport ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.

Mian Technology Parameter
Model Name Isuzu 700p garbage compactor truck
Driving Type 4×2,left hand drive
Color White,yellow,box can choose
Weights
Rated payload weight(kg) 5000
Curb weight(kg) approx. 4800
Dimensions
Wheelbase(mm) 3815 (also can choose 4175mm wheelbase)
Overall Dimension(mm) 7200×2250×2500
Box dimension 8 m3
Max speed(km/h) 100
Engine
Engine model 4HK1-TCG61 (190HP) OR EURO 6 engine
Engine type 4 stroke water-cooled,inter-cooling
No. of cylinders straight-4 cylinders
Displacement(L) 5.193 L
Max. output (kw) 140 kw
Emissions standard Euro 6
Drive Line
Transmission MLD 6 speeds, 6 forwards,1 reverse gear,manual operation
Steering Power steering
Brake Air brake with vacuum pump
Cab
Air container Have
Standard configuration Sound,,parking sensors
Axle
Front axle 4 tons
Rear axle 7 tons
Tire specification
Tire specification 8.25R20 standard tire,6 tires+1 spare tire
8m3 garbage compactor truck
Box valume 8m3
Box material Side 4mm,bottom 4mm
Sewage tanker 200L
Fill volume 1.2cbm
Loading time 8-10S
The cycle time of the loading 50-60S/per turn
Unloading model Dump
Unloading time 30-40S

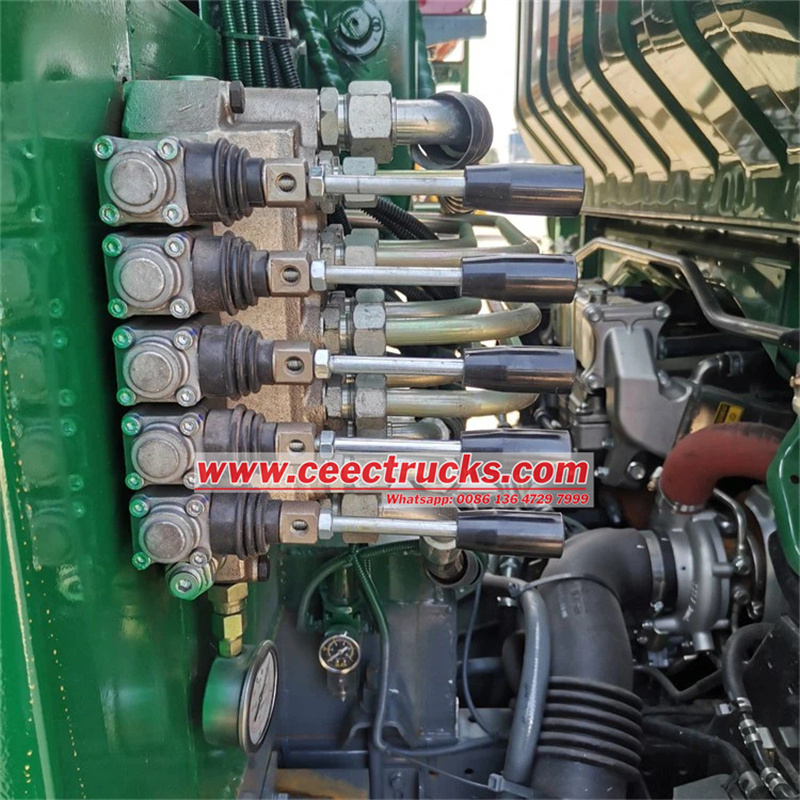

Hydraulic system pressure 16Mpa







Isuzu new NPR Waste compactor trucks, also known as ISUZU rear load garbage trucks, are new sanitation vehicles that collect, transfer and transport garbage to avoid secondary pollution. The rear tailgate of the garbage compactor is used to connect with the trash can or garbage bucket, and together they are combined into a mobile garbage transfer station to realize pollution-free recycling and transportation of multiple buckets of garbage in one vehicle. It effectively prevents secondary pollution caused by scattering and flying during collection and transportation.

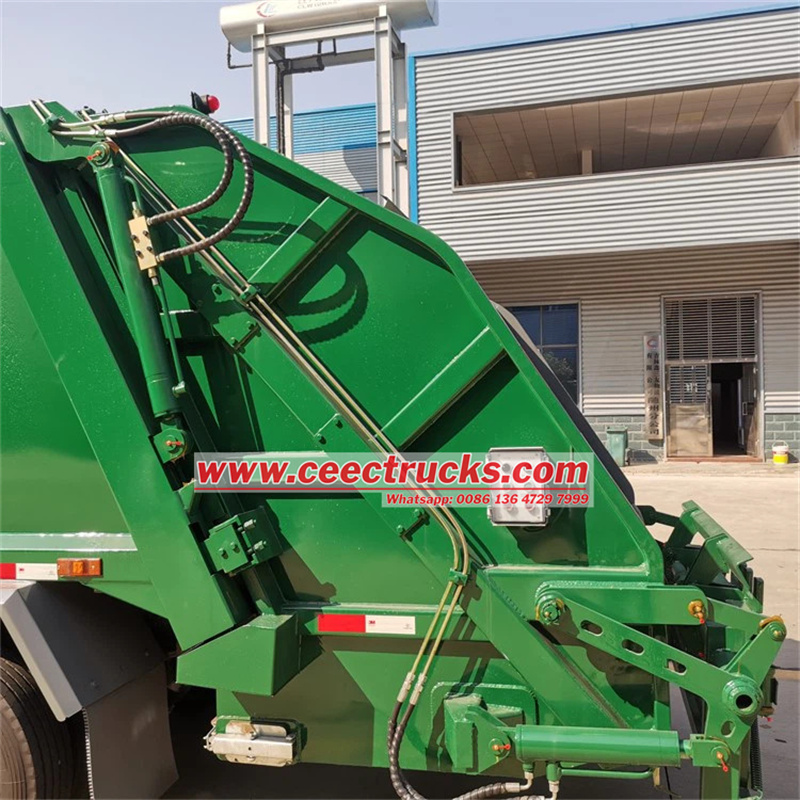

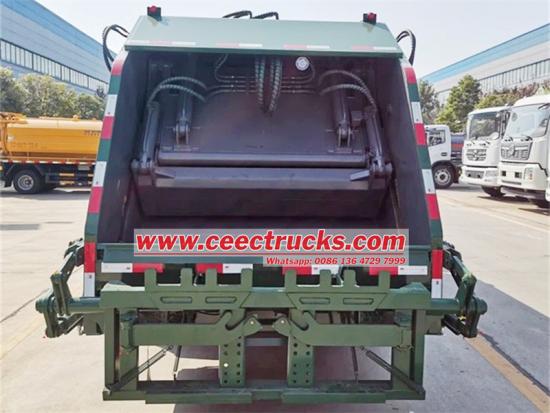

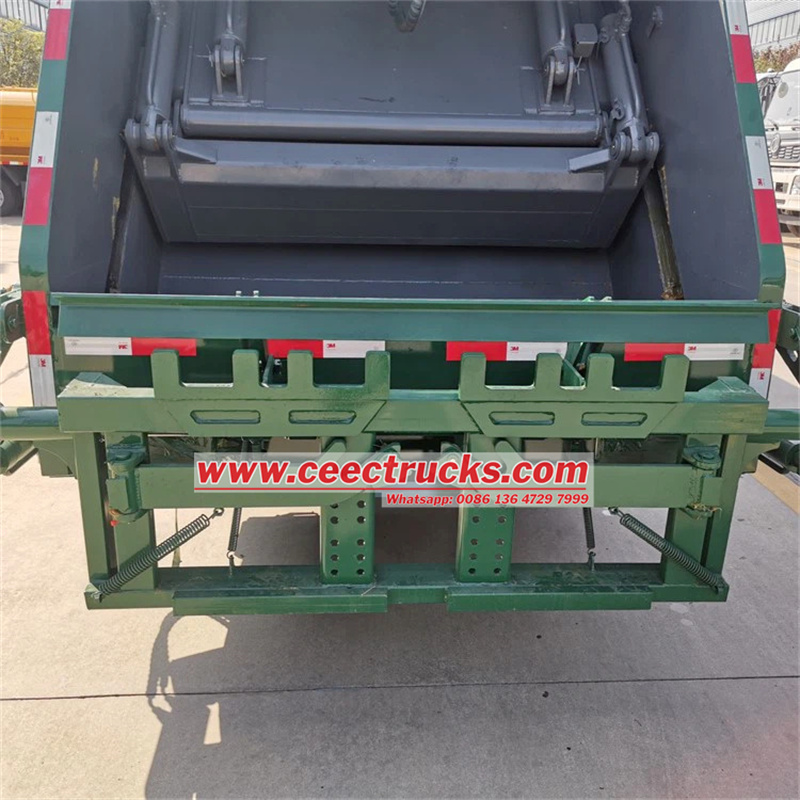

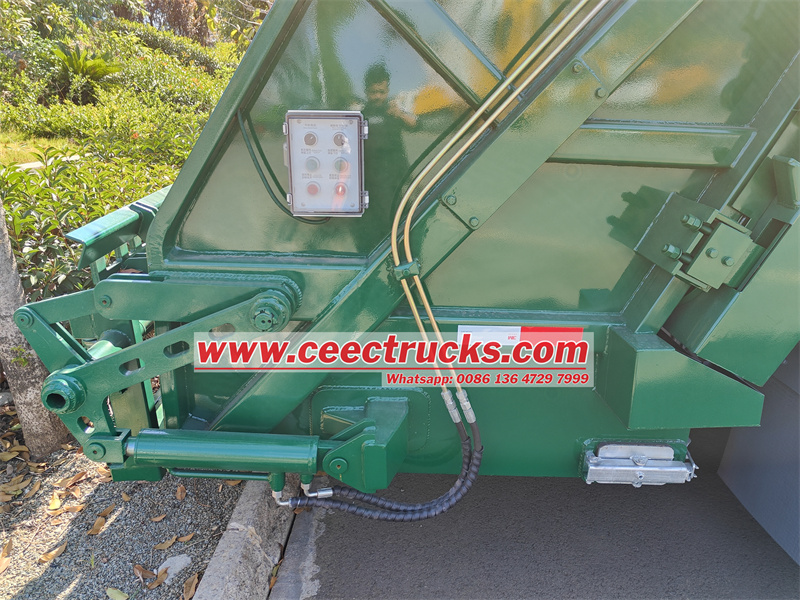

The compactor body of our ISUZU rear loader trash truck is a new type of ribless structure with a beautiful arc shape and an effective compression volume of 10 cubic meters. The tailgate is equipped with a flip mechanism, with both electronic and manual operation modes. The control box is installed in the cab and the rear of the tailgate. There is a 3 mm thick rubber sealing strip at the rear and a large-capacity sewage tank. The vehicle can be printed with patterns and text according to customer needs.




CEEC TRUCKS is a leader in the waste industry with an excellent reputation for customer service and reliable rebuilt refuse trucks and packer bodies. We specialize in reconditioning used roll-off trucks, rear loaders, front loaders and other types of trash, garbage and recycling trucks. If you are in the market for new, used or refurbished refuse equipment give us a chance to earn your business. The rear loader garbage truck is a common sight in urban and suburban areas, where it plays a crucial role in keeping the streets clean and free from waste. These trucks are typically operated by municipal waste management departments or private waste collection companies.









Japanese ISUZU diesel engine, super powerful

Expert for producing garbage compactor truck over 10 years with good reputation

Carbon steel material T420

12 months free fast moving spare parts

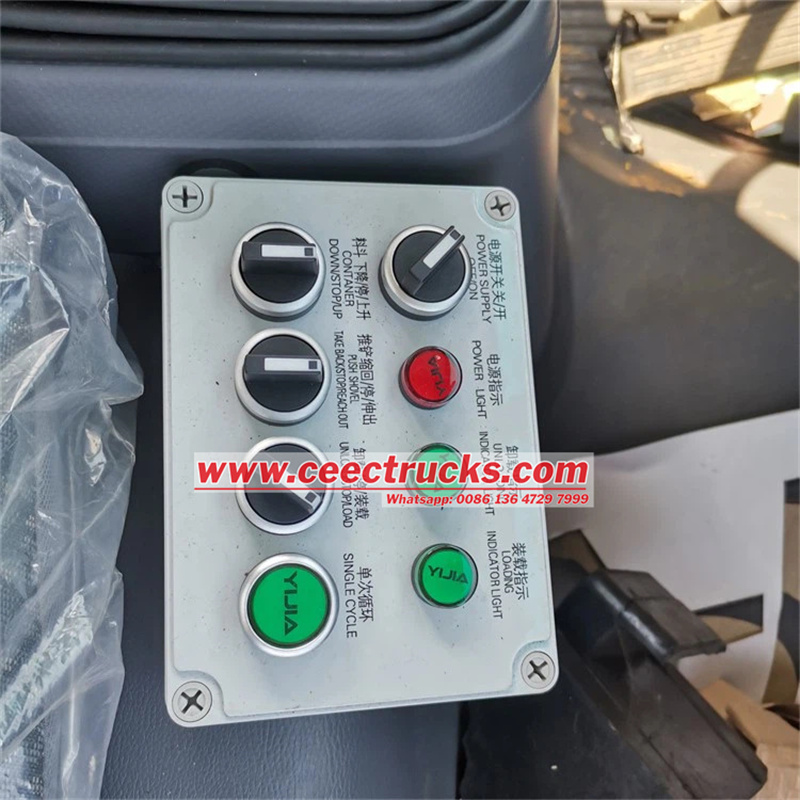

All English version control box, panel, and owner's manual, for easy understanding

Training service for compression garbage trucks

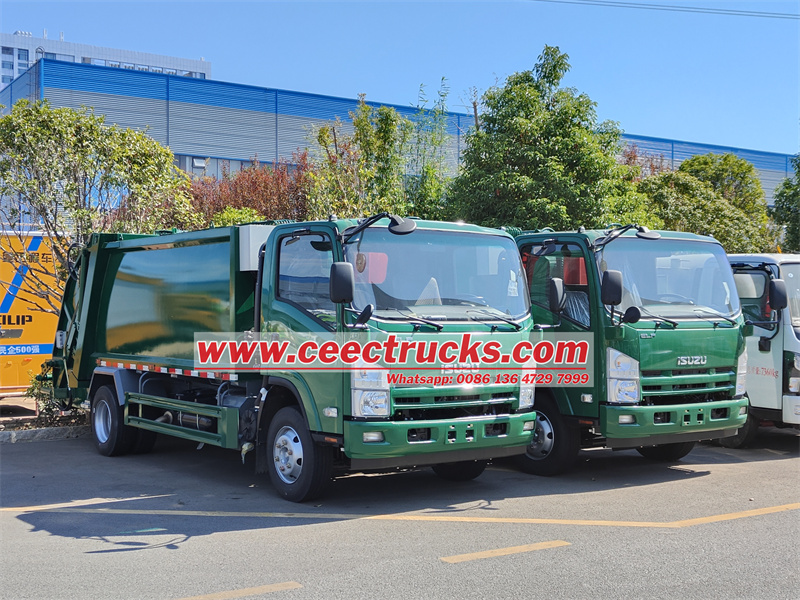

ISUZU 10cbm refuse compactor truck

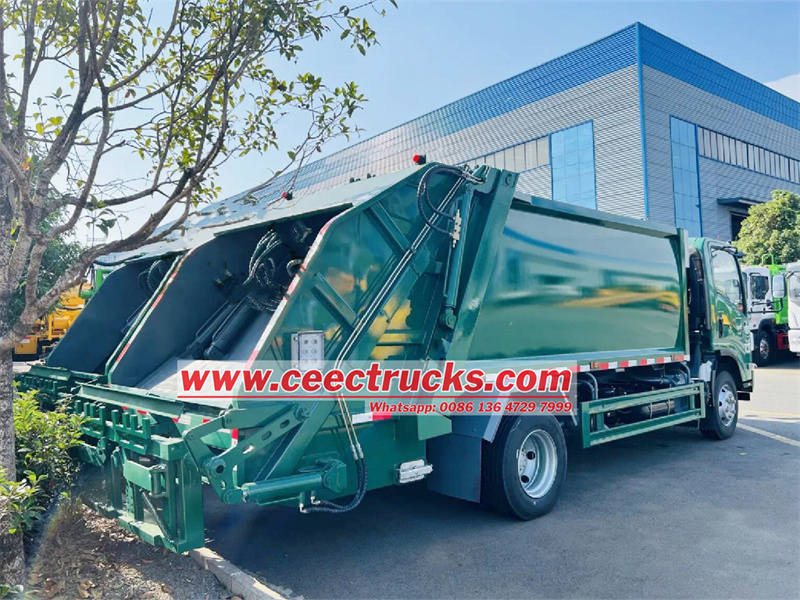

ISUZU garbage compactor truck

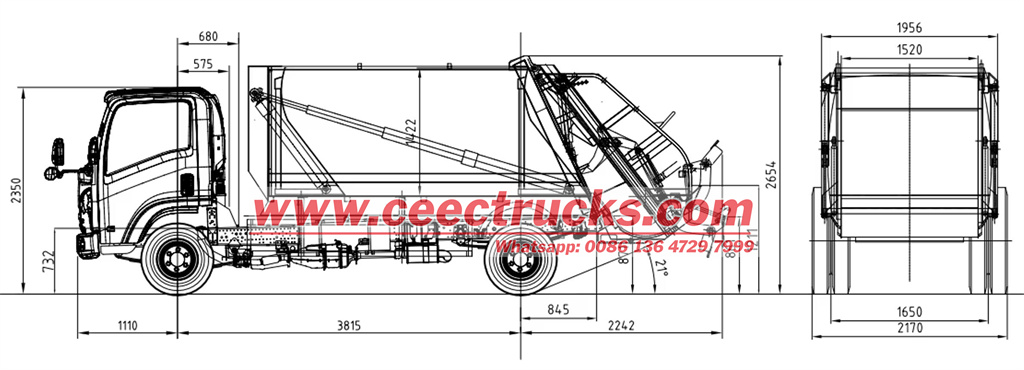

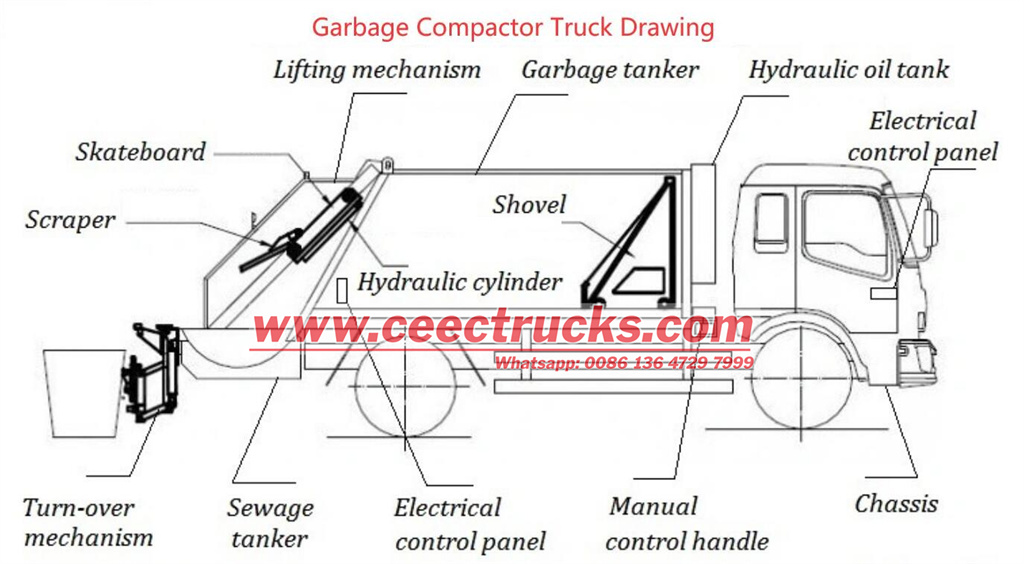

CEEC trucks 5000 square meters workshop for garbage compactor trucks, skilled engineers for CAD drawing, 100% meet customer requirement.



garbage compactor truck
