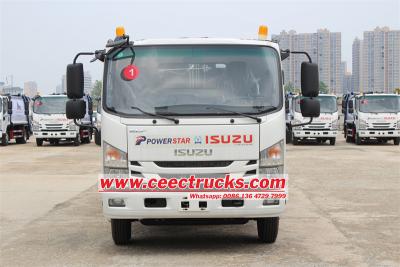

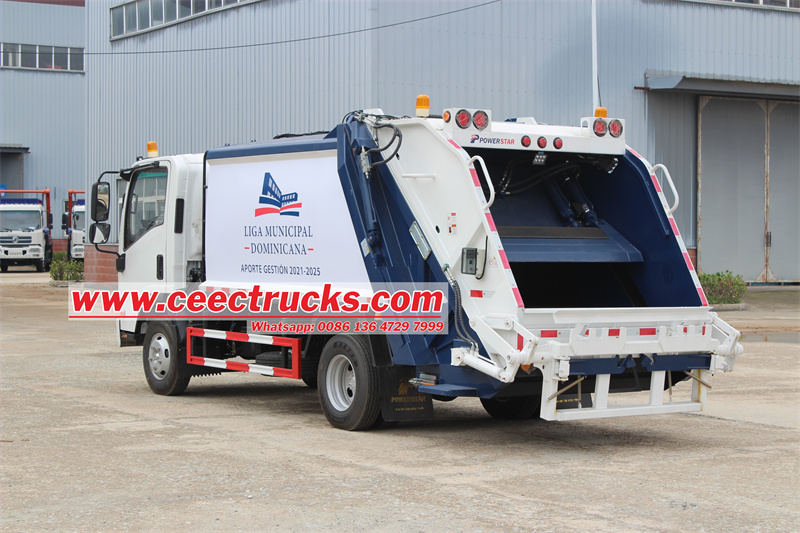

2025 year Isuzu 10 cbm mobile compactor truck

Philippine Isuzu 13 yard rear loader near me

Isuzu 10 cbm rear loader compactor truck is modified based on Isuzu ELF 700P cab, with USB, A/C, power steering, electric windows, 4175mm wheelbase, GVW 11000kg, the vehicle is equipped with a 4HK1-TCG61 190HP Euro6 diesel engine,an Isuzu MLD 6-speed gearbox. The upper part is a 10 cbm trash can, arc design, sides 4mm and bottom 5mm thickness, anti-rust treatment, loading cycle time 25-30 seconds, hydraulic system pressure 16MPa, support automatic and manual control, adapt to 240L trash can, efficient and environmentally friendly.

Work capacity:
10cbm
Truck model:
CEEC5110GXP
Engine power:
190HP
Engine type:
Isuzu 4HK1-TCG61
Axle drive:
4X2,LHD
Gear box:
Isuzu MLD 6-speed,manual
Remarks:
Large loading capacity and efficient compression

Inquiry now

This Philippine Isuzu 13 yard rear loader near me is built on the Isuzu ELF 700P chassis, equipped with a 190 horsepower engine and a 6-speed gearbox, with strong power and flexible control. Its garbage bin has a large capacity, reasonable design, and uses high-strength rust-proof materials to ensure durability. The vehicle integrates advanced CAN-BUS electronic control and hydraulic valve systems to achieve efficient and automated operation. In the Philippine market, this vehicle is widely used in urban garbage collection and treatment. With its efficient and reliable performance, it has become an important tool for urban environmental protection and cleaning work, helping to improve the quality of the urban environment and promote sustainable development.

● China best Isuzu rear loader compactor truck factory

● Be designed according to your requirements

● Build strict QC team to guarantee the quality

● Promptly delivery. any order is welcome

● 24 month quality guarantee term

Key Features:

★ Various size body from 3cbm to 25cbm,with beautiful appearance

★ ISUZU 4HK1 engine,super powerful;reliable performance. no overhaul,within 1000000km

★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage

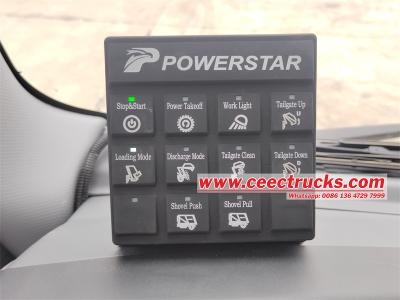

★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes

★ Diffient rear flip systerm are optional

★ Can be put into 20",40"container and ship to worldwide

This Philippine Isuzu 13 yard rear-loading garbage truck has many significant advantages in the Philippine market, mainly reflected in the following aspects:

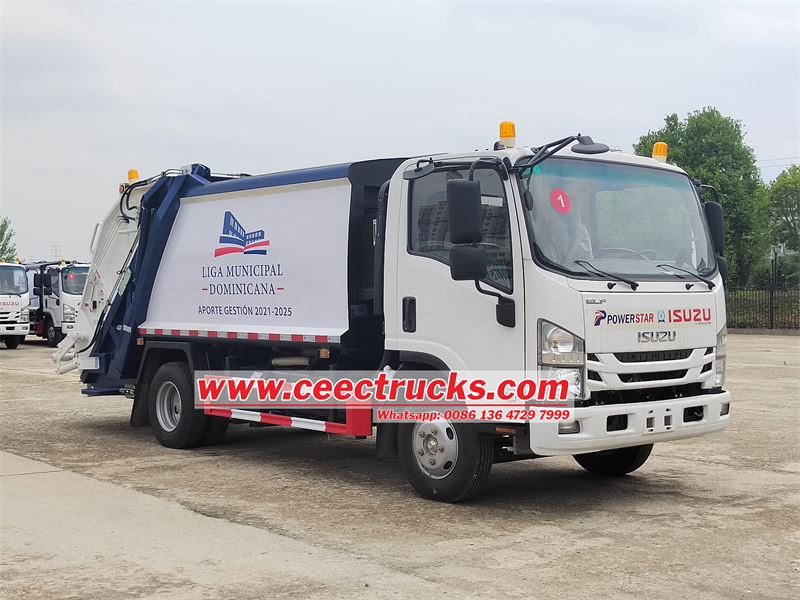

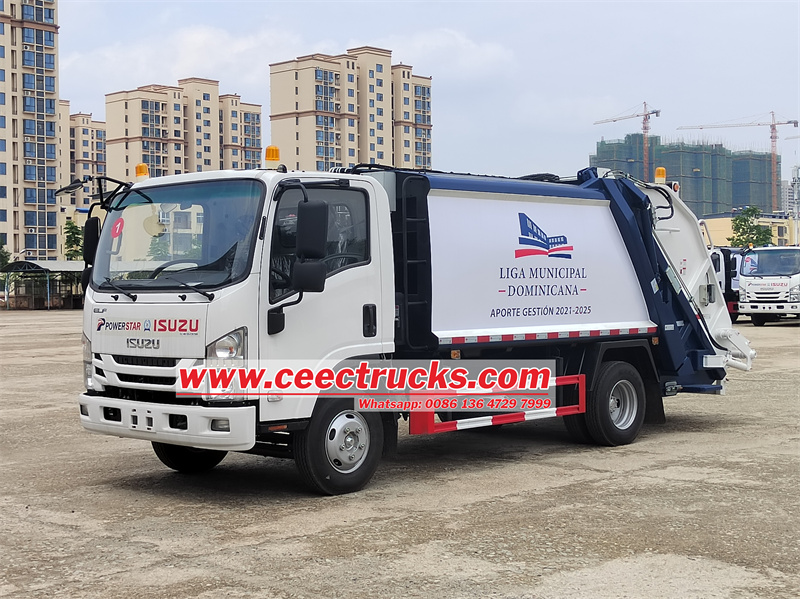

Philippine Isuzu 13 yard rear loader near me

Brand trust and quality assurance:

As an internationally renowned commercial vehicle manufacturer, CEEC's Isuzu brand rear loader compactor trucks enjoy a high reputation worldwide. In the Philippine market, Isuzu brand vehicles have won the trust of a wide range of users for their durable and reliable performance.

The Isuzu ELF 700P chassis and 4HK1-TCG61 190HP engine are known for their reliability and durability, and can adapt to the diverse road conditions and hot and humid climate in the Philippines.

The Isuzu MLD 6-speed transmission further improves the vehicle's handling and fuel efficiency, allowing drivers to easily cope with different road conditions and improve operating efficiency.

Large-capacity garbage bin design:

Compared with smaller garbage trucks, the 10 cbm capacity reduces the number of collections and improves efficiency, especially suitable for areas with large amounts of garbage.

The garbage bin adopts an arc-shaped design, which is not only beautiful, but also optimizes the garbage loading and compression process, reducing garbage residue and space waste.

The thickness of 4 mm on the side and 5 mm on the bottom ensures the durability of the garbage bin, and the anti-rust treatment prolongs the service life and reduces maintenance costs.

Advanced control system:

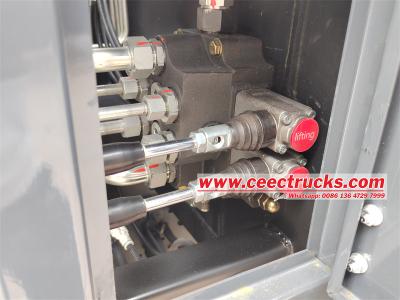

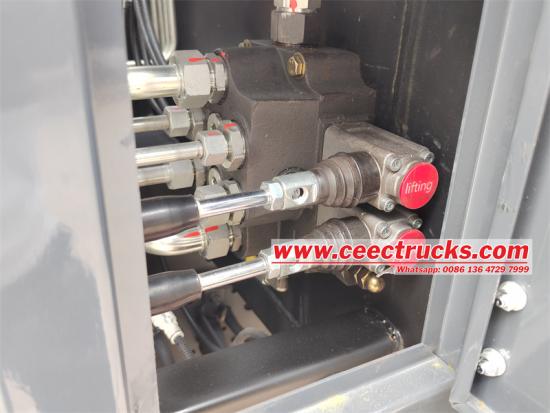

The application of CAN-BUS electronic control system and hydraulic valve control system makes the operation of the entire compression garbage truck more intelligent and automated.

These systems not only improve the operation accuracy and response speed, but also reduce the failure rate and improve the overall reliability and safety.

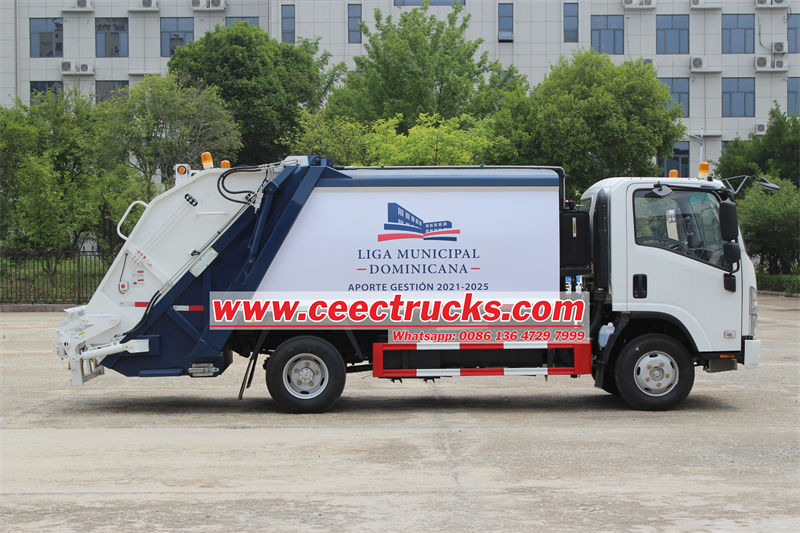

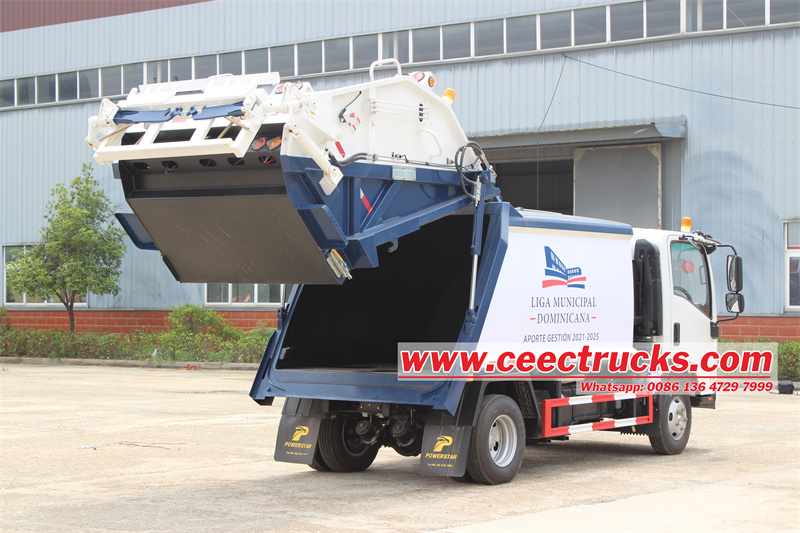

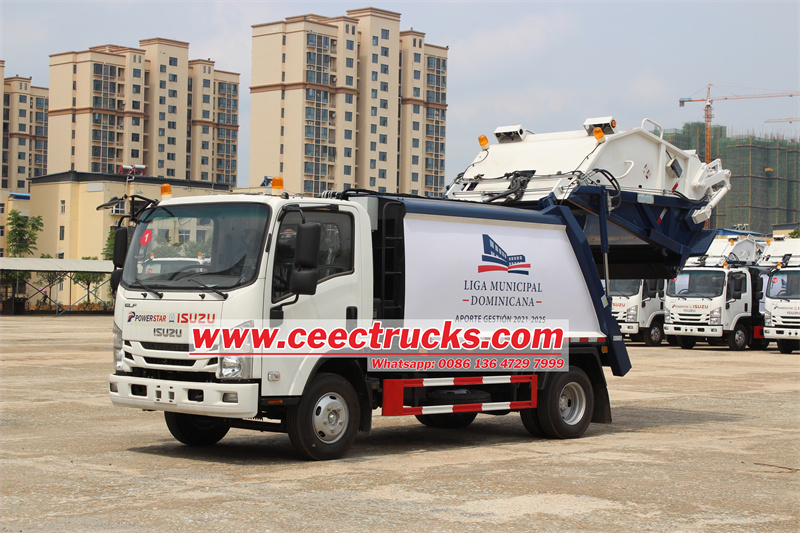

Isuzu 700P 4x2 rear loading garbage truck

Adapt to the Philippine market:

The Philippine cities are developing rapidly and the demand for garbage disposal is large. This rear-loading compression garbage truck perfectly adapts to the garbage disposal needs of the Philippine market with its efficient and reliable performance.

At the same time, its reasonable price positioning and perfect after-sales service system make this model extremely cost-effective and competitive in the Philippine market.

Product Parameters

ISUZU 700P 10cbm rear loader compactor
Vehicle Model	CEEC5110GXP	Vehicle Brand	CEEC
Overall dimensions(LxWxH)	765022502500	GVW/Curb weight	11000/ 4250kg
Loading capacity	10CBM	Max speed	110km/h
Chassis Parameters
Chassis brand	Isuzu	Wheelbase	4175mm
Front/rear wheel track	1680/1650mm	Front/rear suspension	1110/2365mm
Axles loading	4000/7000kg	Gearbox	Isuzu MLD 6-speed,manual
Cab	Configuration	Isuzu ELF 700P single row,allow 2 passengers, with air conditioner, central locking, electric windows, USB audio, a cab can be flipped.
	Color	White and other colors are optional.
Engine	Model	Isuzu 4HK1-TCG61
	Emission Standard	Euro 6
	Type	4 cylinder, in-line, 4 stroke, turbocharged, intercooled, water cooled, diesel engine.
	Rated power	190HP/139Kw
	Displacement	5193ml
	Rated speed	2600rpm
	Max torque	507N.m
	Max torque speed	1600-2600rpm
Tire	Size	7.00R16
	Number	6+1 nos
Drive Type	4X2
Suspension	Multi-leaf springs
Rated voltage	24V, DC
Steering device	Power-assisted steering.
Steering wheel	Left-hand drive.
Selective configuration	Tire: 235/75R17.5
Rear Loader Compactor Structure Parameters
Equipment
Structure	Body, sub-frame, lifting rear part, the loading device, the pushing-out plate, and hydraulic and electric systems.
Loading capacity	10M3
System of loading	Mechanized, rear-loading.
Modes of the pressing	Manual, semi-automatic, automatic, lifting rear part operation manual, loading, pushing, pressing, pushing out automatic.

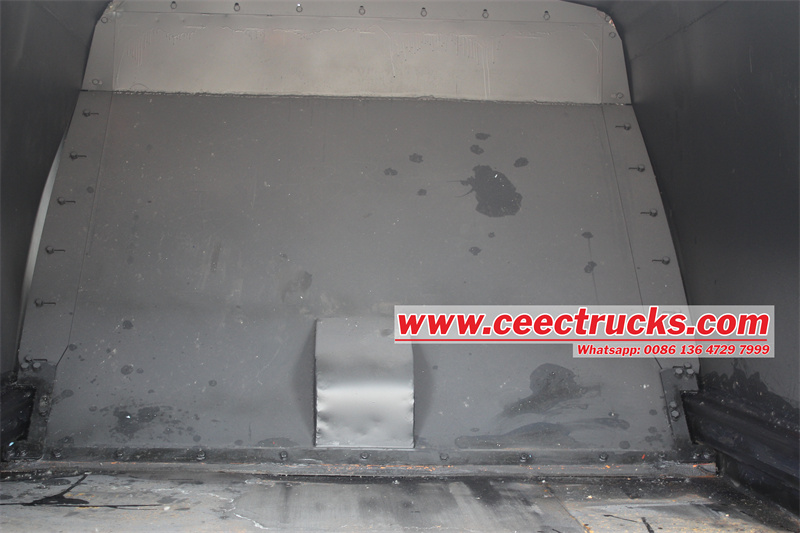

Body
Version	All-metal
Shape	Arc-shaped
Sidewalls	Sheet carbon steel (thickness: 4 mm)
Bottom	Sheet carbon steel (thickness: 5 mm)
Roof	Sheet carbon steel (thickness: 4 mm)
Front frame	Sheet carbonaceous steel (thickness: 5 mm)
Rear frame	shaped profile from sheet carbon steel (thickness:5 mm)

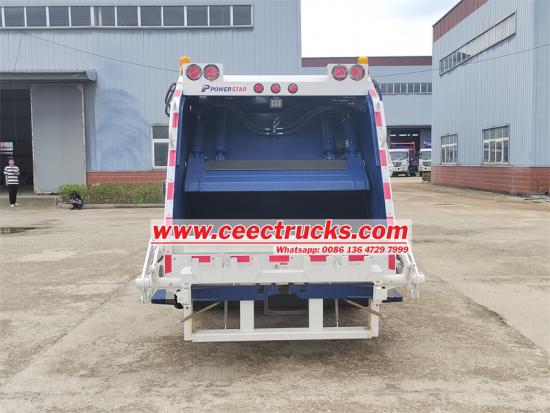

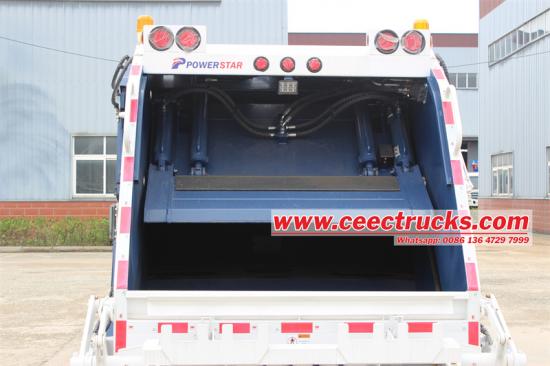

Loading Bunker
Loading bunker	All metal with sidewalls and a loading ladle.
Volume	1.2M3
Sidewalls	Sheet carbon steel (thickness: 4 mm)
Ladle floor material	Sheet carbon steel (thickness: 4 mm)
Liquid drain	Drainage channel, sewage tank.
Working zone Lighting	2 lamps
Mechanism of raising	2 hydraulic cylinders.
Ensuring tightness	Between the body and lifting back part in the lower part profile acid-proof rubber is used.

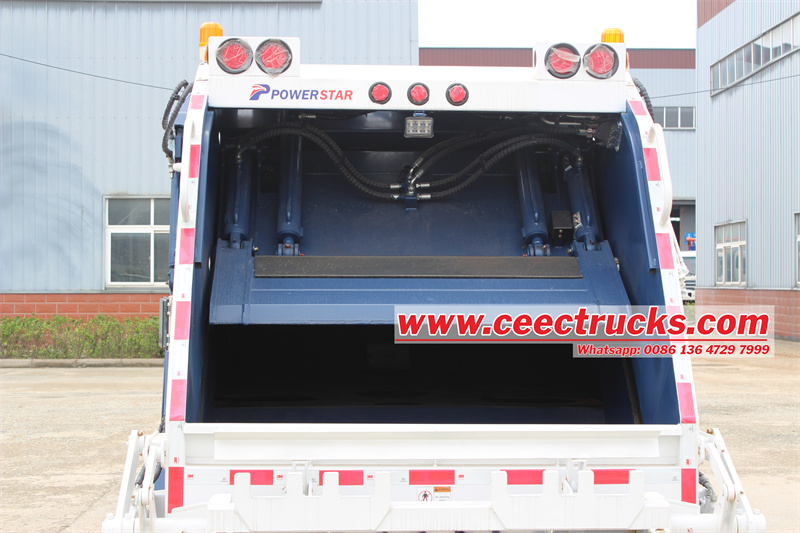

Pressing System
Features	Control mode diversification, bidirectional compression.
Pressure	16Mpa
Compaction ratio	3.0:1
Loading cycle	25-30 seconds
Unloading cycle	15-20 seconds
pressing mechanism	The giving plate and hinge-related pressing plate moving on 2 directing bars.
Pressing mode	Automatic pressing.
	(1 full cycle and continuous pressing) and controlling each cycle of pressing separately.

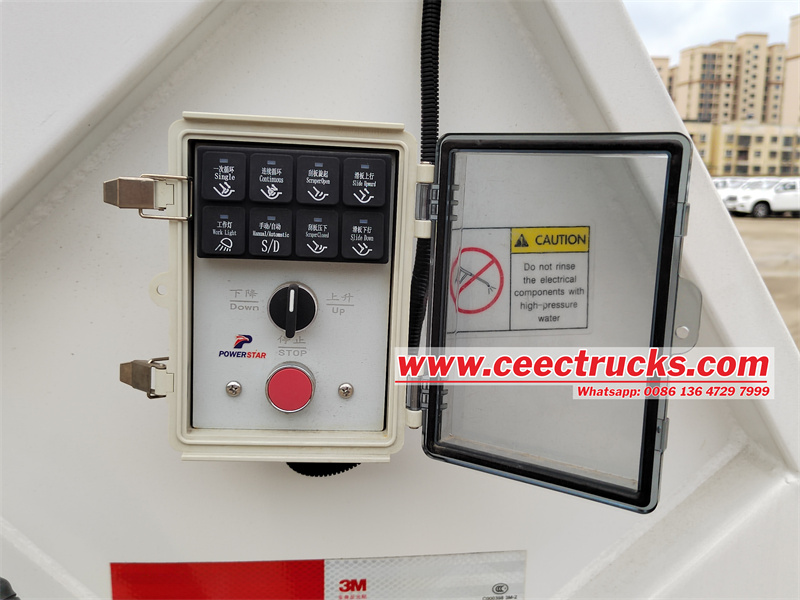

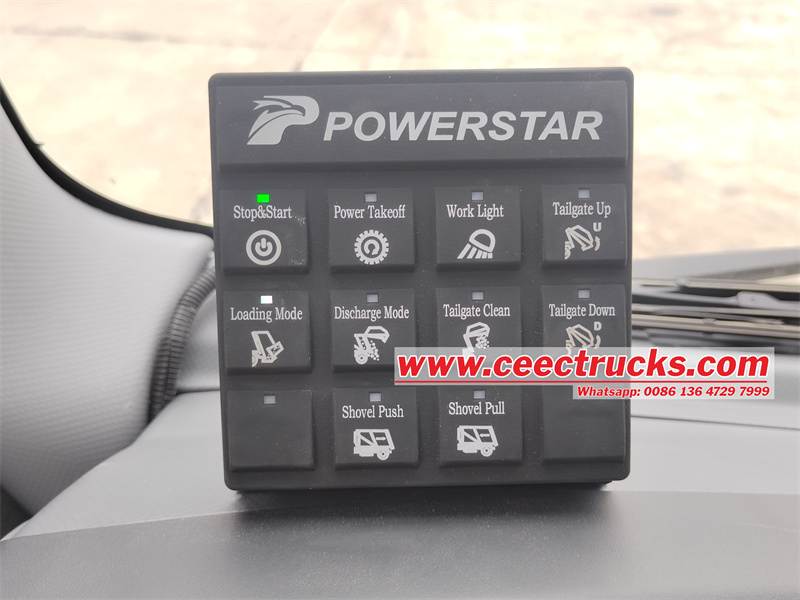

Control of pressing	Control from the external panel on the bunker.

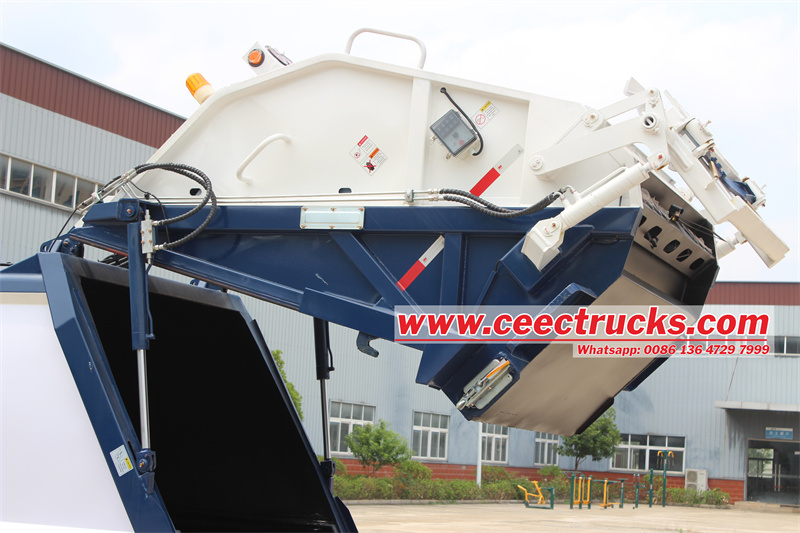

Lifting Rear Part
Mechanism of lifting	2 hydraulic cylinders.
Function description	Suitable for various rubbish bins.
Others
Color and Logo	Optional
Standard configuration	Chassis,arc-shaped body, subframe, rear lifting part, loading bunker,pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control.
Selective configuration	PLC electric automatic control, multifunctional rear lifting part, rear handrail and footplate, other shapes of body, rear swing arm, etc.

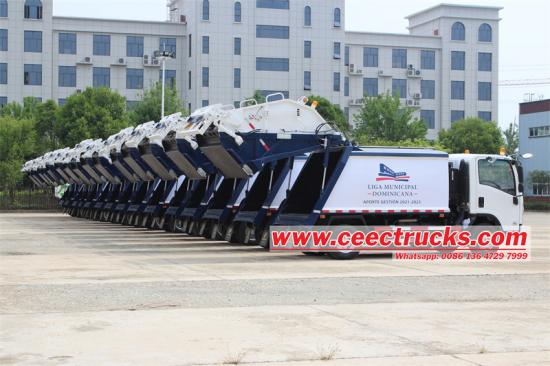

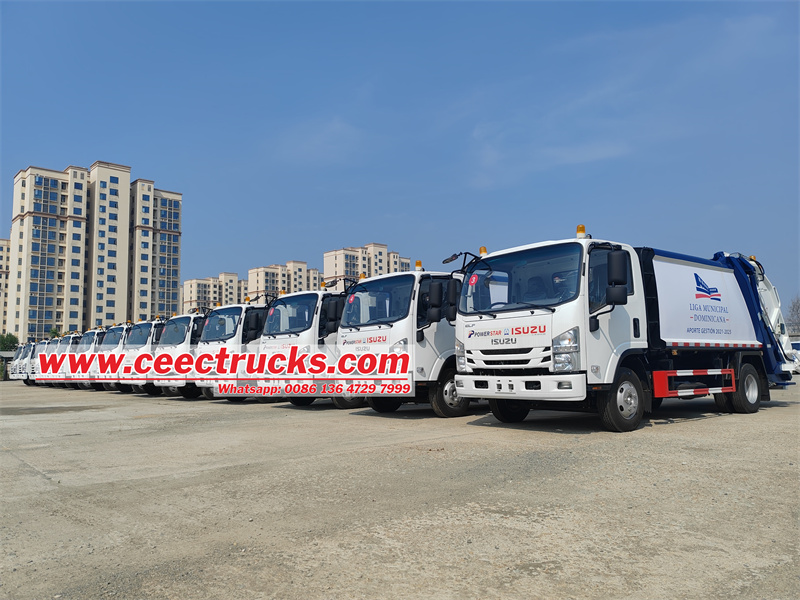

15 units Isuzu ELF 700P garbage compactor exported to Philippine

In the Philippine market, this Philippine Isuzu 10cbm waste compactor truck has demonstrated a wide range of application value. It efficiently serves the garbage collection and treatment in urban streets, residential areas, commercial areas and public places. With its large-capacity garbage bin and efficient compression technology, it significantly improves the efficiency of garbage collection and keeps the urban environment clean. At the same time, this model plays a key role in urban garbage transfer stations, facilitating the efficient transfer and treatment of garbage. In addition, it also actively participates in environmental protection projects and activities to promote the improvement of public environmental awareness. In emergency situations such as natural disasters, the garbage truck can also respond quickly and provide strong support for rescue work, demonstrating its dual value in the fields of environmental protection and emergency response, and making positive contributions to the sustainable development and environmental protection of the Philippines.

Isuzu ELF 700P 10cbm trash collection truck
