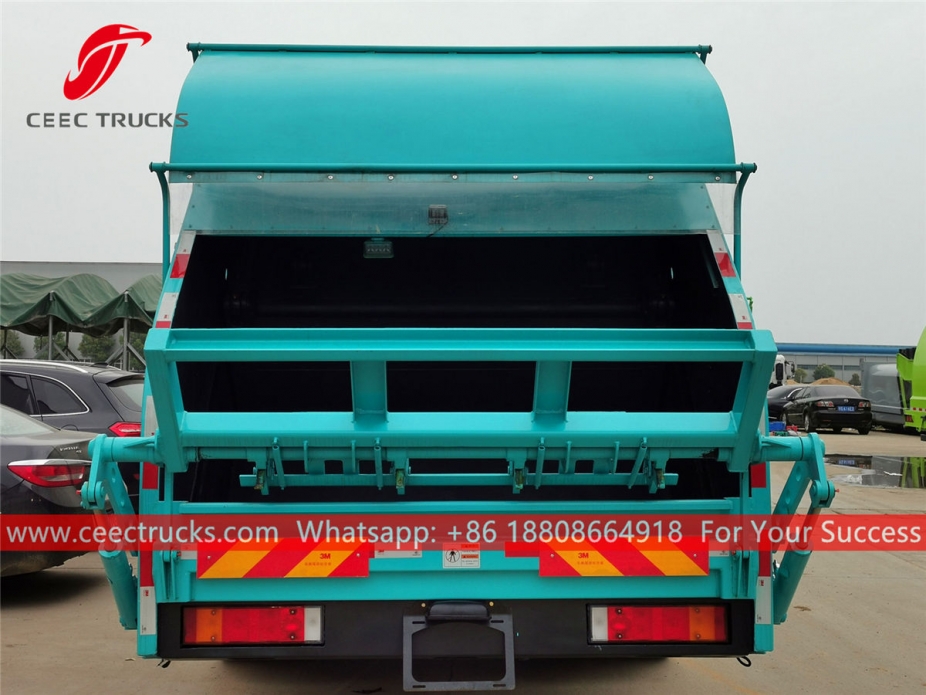

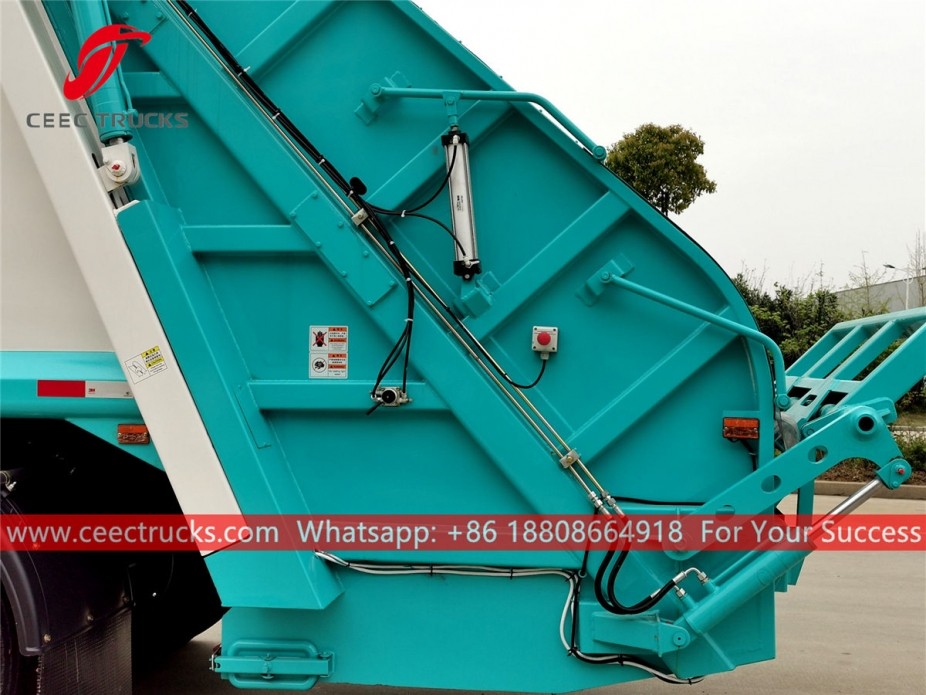

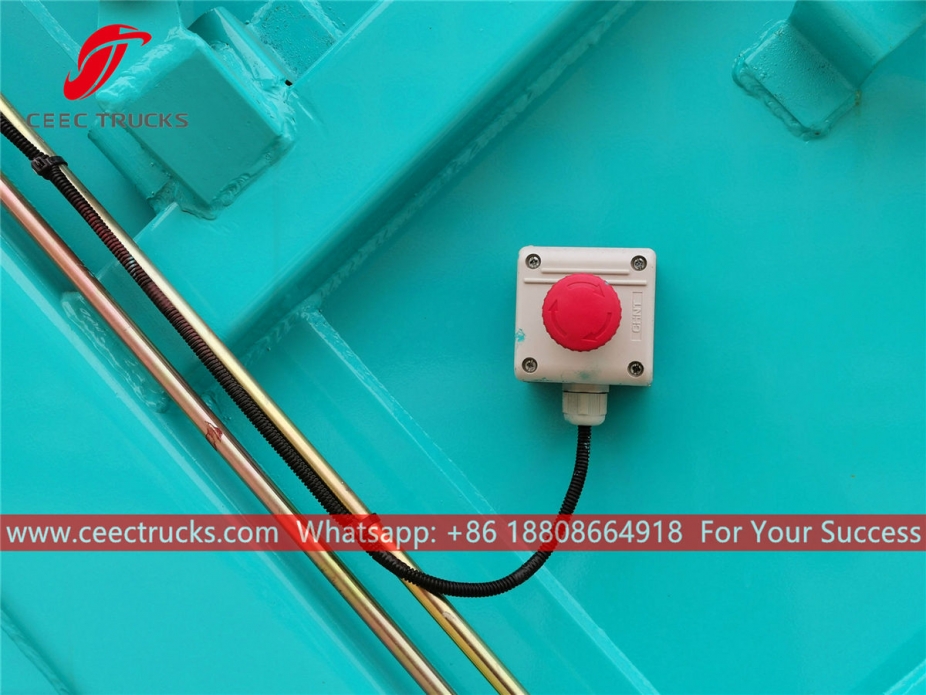

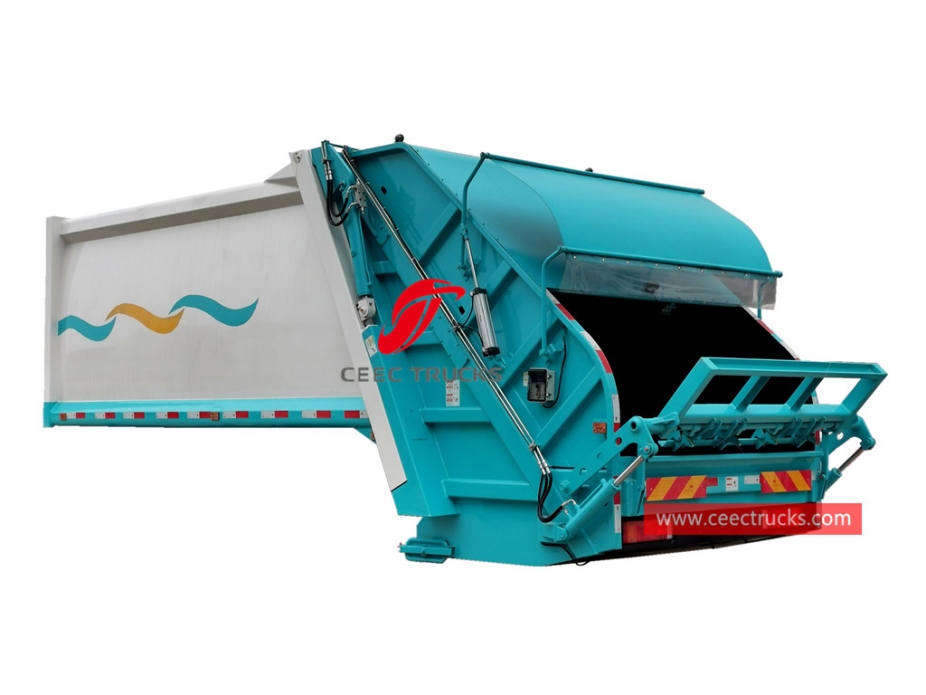

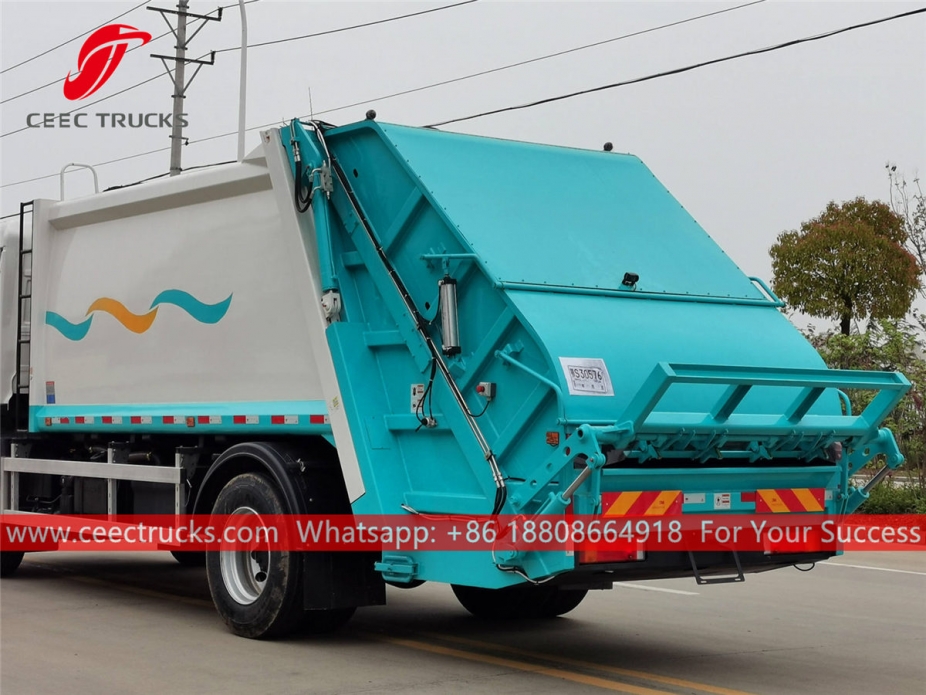

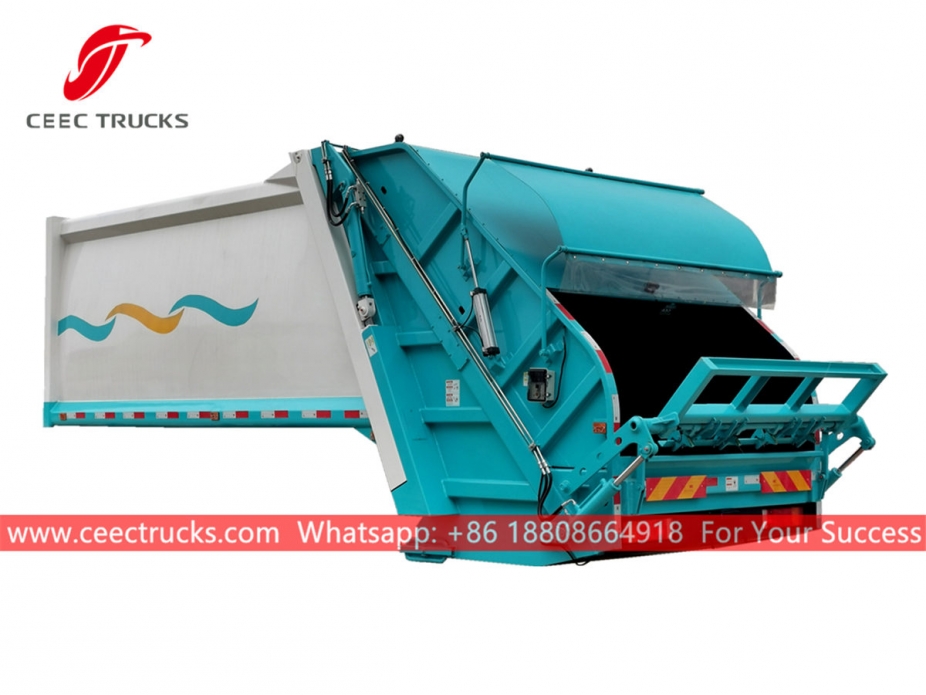

European standard 12,000 liters waste compressor truck upper structure

12m³ Rear loader garbage truck body

High quality 12,000Liters compressed garbage truck body structure, which use high strength steel material compactor body, imported control PLC model, hydraulic cylinder control device, English version control box for easy operation.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    10 Days
  • Payment:

    T/T, West Union
contact now

Good quality garbage compressing truck bodies for sale

 Applications:

Garbage truck compactor body (also called Compressed refuse truck body, rear loader waste truck upper structure,  back-loading trash truck kit is a type of machine for garbage compactor truck. Compressed garbage truck is characterized by compress trash through special compression device in addition to it's transportation and unloading functions as ordinary garbage truck.



 Key Features:



  Short delivery time  5-7 days
  Any chassis brand available, 100% suitable
  Container global safety delivery
  Low tax & Low freight
  Body capacity from 3CBM to 20CBM
  More than 15 years of export experience



 Comparisons:



CEEC TRUCKS

Other Supplier

Hydraulic Control Valve

CEEC Hydraulic control valve

Italy brand, 5 years working time

poor quality hydraulic control system

unknown brand, 1 year working time

Electrical Control Box

CEEC New designed CAN control system

Germany Siemens, reliability arise 30%

Normal unknown brand electric control box

unknown brand, poor reliability

Steel Hydraulic Pipe

Safety balance valve for everyday working

Standard balance valve ,safety

Poor designed hydraulic cylinder system

No balance valve, dangerous

Control System

CEEC designed more efficiency CAN system

CAN intelligent system, work efficiency arise 20%,

double control box equipped,

Commen electric control system

Common system, work slow ,

Single control box

Hydraulic Pipe

CEEC Galvanized steel hydraulic pipe

Galvanized steel hydraulic pipe

Inexperience steel pipe

Inexperienced steel pipe

Hopper Cylinder

CEEC designed Reinforced cylinder system, long time service

Reinforced cylinder, good design

Blasting and anti-dust painting

Poor quality rusty hydraulic working system

Common cylinder, poor design

simple painting



 Optional:



4 CBM

5 CBM

6 CBM

8 CBM

4 CBM

5 CBM

6 CBM

8 CBM

8 CBM

12 CBM

16 CBM

20 CBM

8 CBM

12 CBM

16 CBM

20 CBM


Environmental Protection in Dubai Country Jebel Ali



Client: Dubai customer Mr. Mohammad

Project: Dubai country firefighting project

Year: 2017.11

Project Background: Our customer Mr. Mohammad come from Dubai country, who purchased 2 units ISUZU brand 5cbm water tanker fire fighting trucks for their normal fire fighting project. Also they purchased 4 units ISUZU 5cbm compression waste trucks for their regular environmental protection job. All isuzu garbage compression trucks use ISUZU 120HP diesel engine chassis, metal painting as customer required. Which start delivery, and now on the way to Dubai Jebel Ali seaport.



      → Garbage compactor truck

      → ISUZU 5CBM Compactor truck

      → ISUZU Firefighting Trucks

      → One Year warranty with genuine spare parts



  CKD & SKD parts:


Hydraulic Oil Tanker

Hydraulic Oil Pipeline

Side Plate Assembly

Auxiliary Frame

hydraulic oil tanker supplier 80L, 140L, 180L, 220L

Hydraulic Oil Pipeline

garbage compactor body side plate assembly

garbage compactor truck Auxiliary Frame

Push Plate Assembly

Hopper / Tailgate Assembly

Waste Water Tank Assembly

Hydraulic Oil Cylinder

Refuse compactor truck Push Plate Assembly

Trash compactor truck hopper assembly

rubbish compressor waste water collection tank

Hydraulic Oil Cylinder

Pipe Clamps

Hydraulic Pump Bracket

Hydraulic Oil Pipeline

Side Light Unit

Hydraulic Oil Pipeline clamps

Hydraulic oil pump bracket

Hydraulic Oil pipeline

SIde Light



  Specifications:



NO.

Item

Name

Code

Quantity

Comments

1

Compactor tank

Tank Assembly

YS12-0100000

1



2

Tail Gate Assembly

YS12-0200000

1 set



3

Scraper Assembly

YS12-0300000

1 set



4

Slide Plate Assembly

YS12-0400000

1 set



5

Tilt Device Assembly

YS12-0500001

1 set



6

Spare Parts

Oil Pump



1 unit



7

PTO



1 unit



8

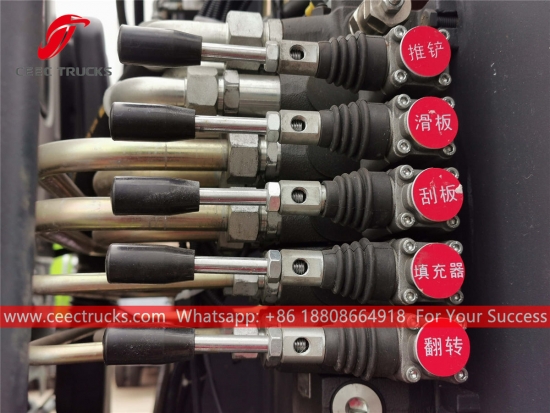

Five Function Multi-way Valve



1 set

Installed

9

Hydraulic Oil Tank

80L

1 unit

Installed

10

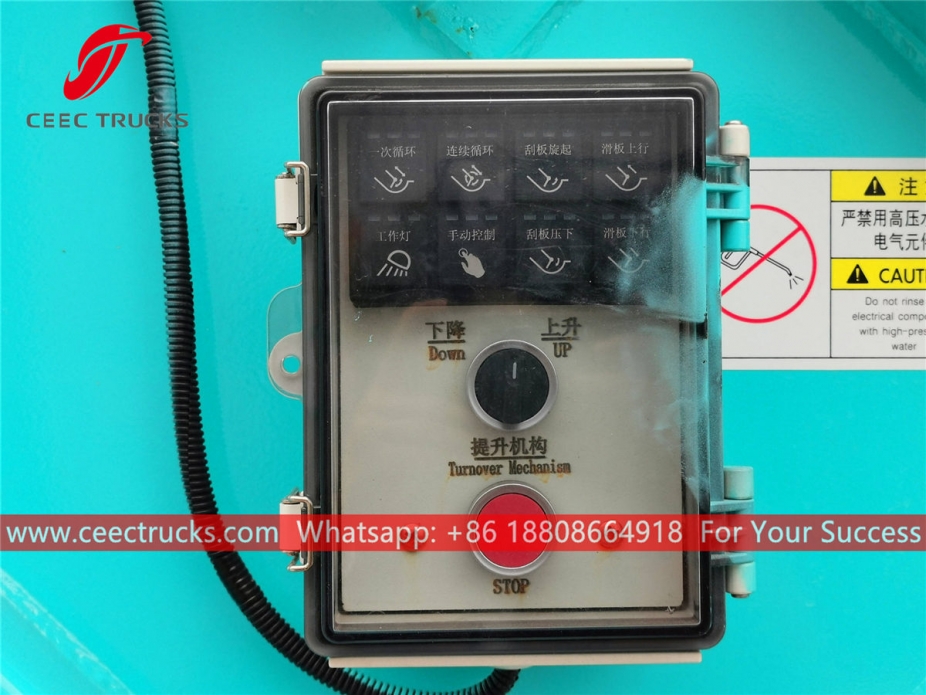

PLC Control Box



1 set

Installed

11

Electric System



1 set

Installed

12

Balance Valve

5060BF2

2 units

Installed

13

Hosepipe, oil pipe & Joint



1 set

Installed

14

Slide Plate Oil Cylinder

50/90-1300x830

2 units

Installed

15

Scraper Oil Cylinder

50/80-860x570

2 units

Installed

16

Lifting Oil Cylinder

50/80-840x560

2 units

Installed

17

Tilt Device Oil Cylinder

45/80-410x170

2 units

Installed

18

Push Pate Oil Cylinder

55/125-1220x2600

1 unit

Installed

19

Sliding Block

Nylon

1 set

Installed

20

Hose Protector



1 set

Installed

21

Ball Valve

1’ 1/4

1 unit

Installed

22

Stainless Steel Cover

DN50

1 unit

Installed

23

Side lamps



1 set

Installed



CEEC garbage compactor trucks advantages
