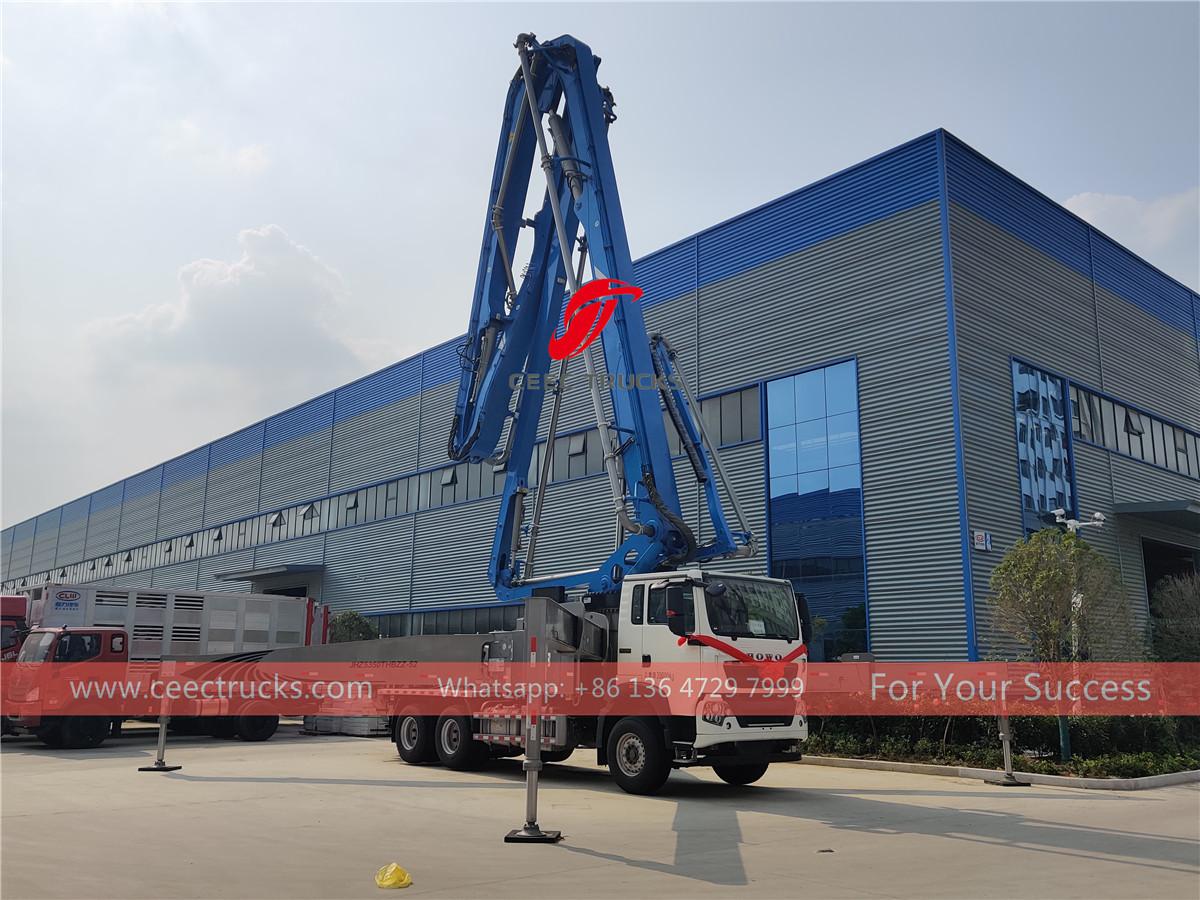

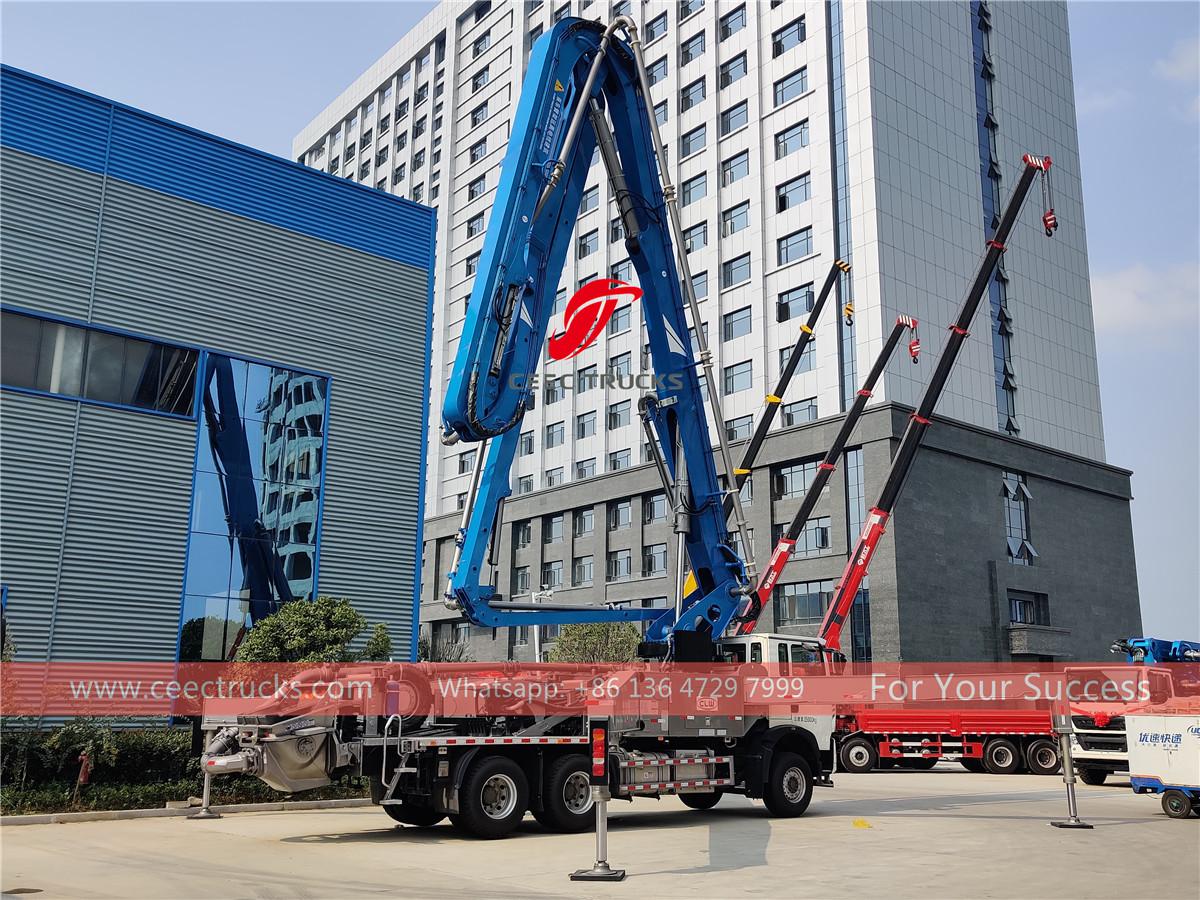

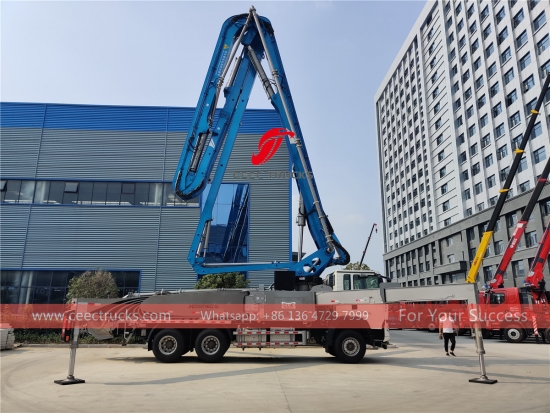

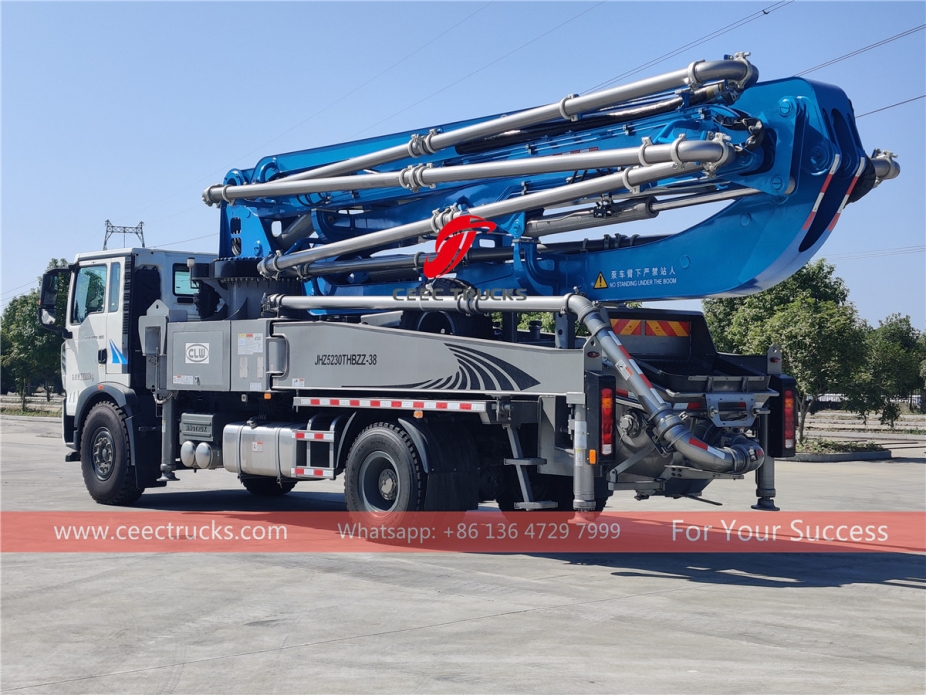

HOWO 38m concrete transit pump truck export to Africa, HOWO classical 6x4 LHD / RHD chassis, WEICHAI 380HP diesel engine euro 3 emission, FAST 12-shift manual gearbox, famous cement pump with working height 38m, painting and logos depend on request.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 Days
Applications:
HOWO 6x4 concrete pump truck (also called HOWO transit mixer pump truck, ISUZU concrete transport truck, pump truck, cement pump truck, concrete pump vehicle, cement mixer pump truck, volumetric pump truck, agitator truck, Cement pump truck, Transit pump mixer truck, ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
CEEC TRUCKS concrete pump truck is manufactured and widely used for urban construction, residential areas, stadiums, overpasses, airports and other construction of concrete conveying.
Key Features:
---- HOWO heavy duty chassis, perfect performance
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Transit lifting height can be 30m, 33m, 35m, 37m, 44m, 50m, 58m.
---- Easy operation and easy maintenance.
---- Various types of Hydraulic main parts are available.
Specifications:

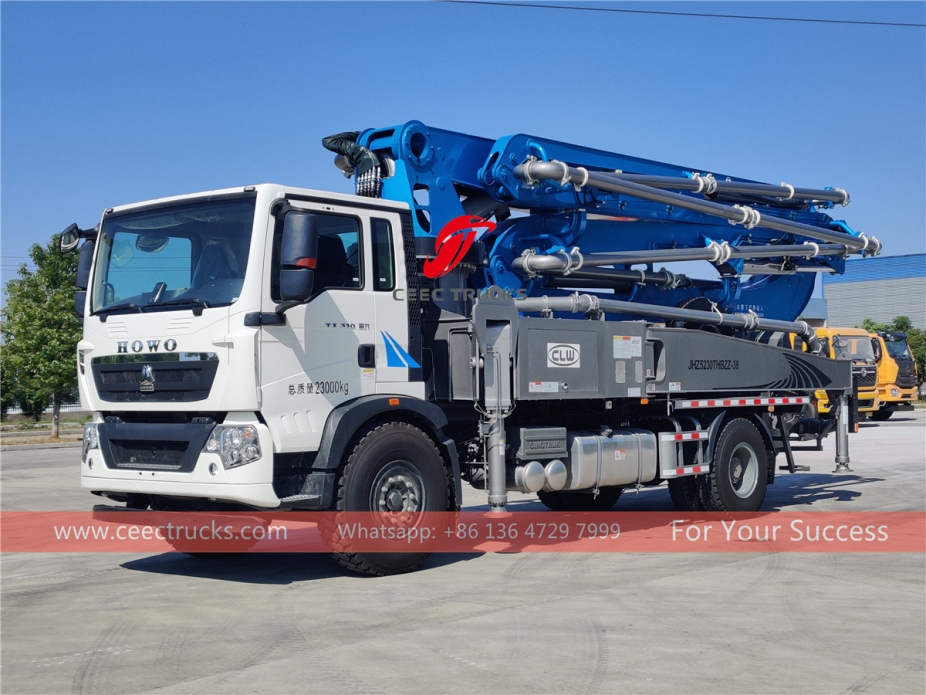

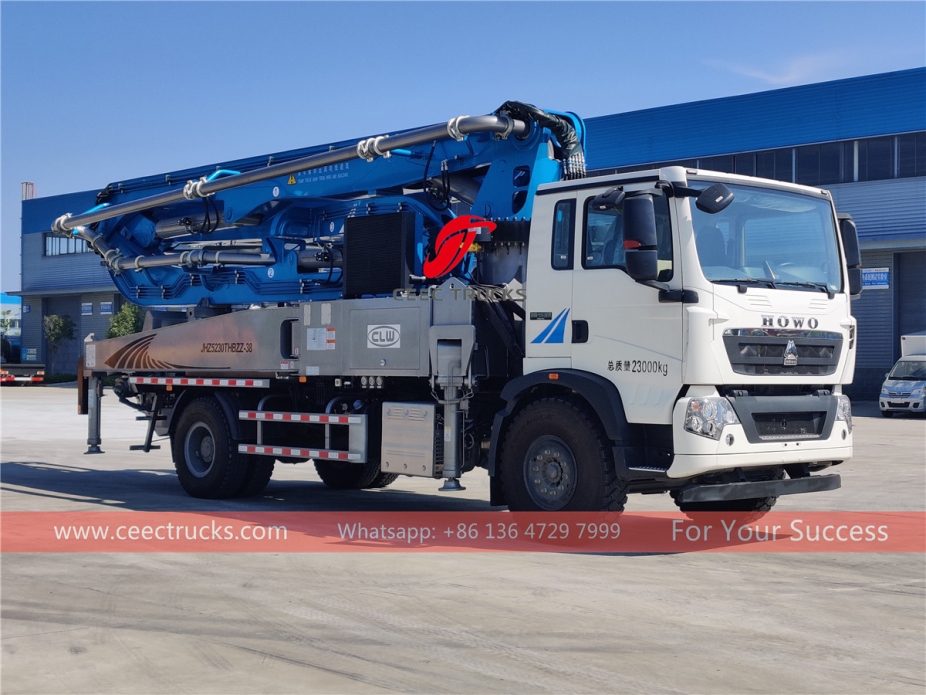

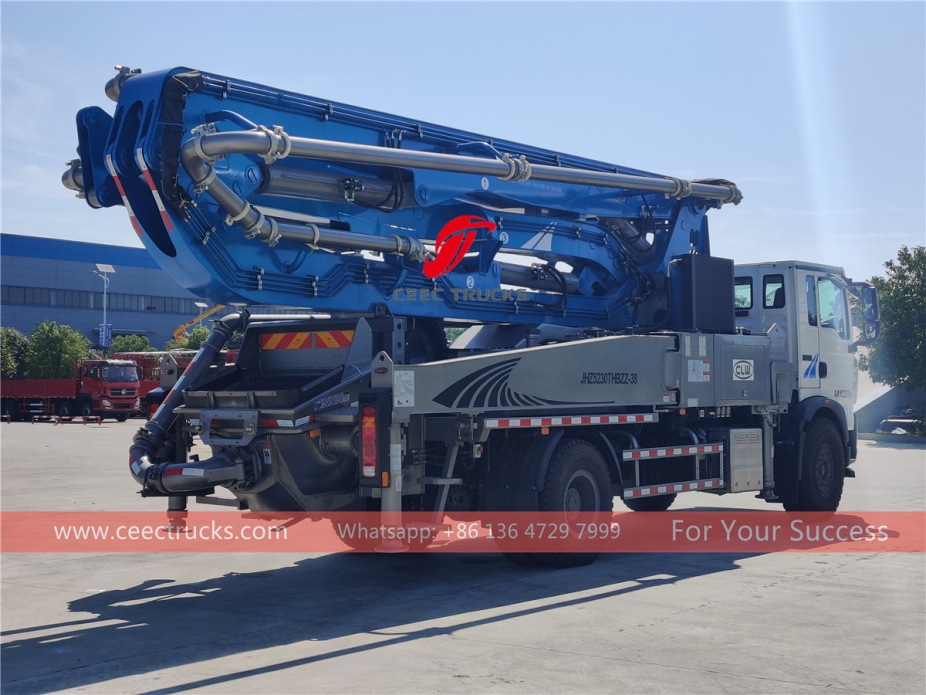

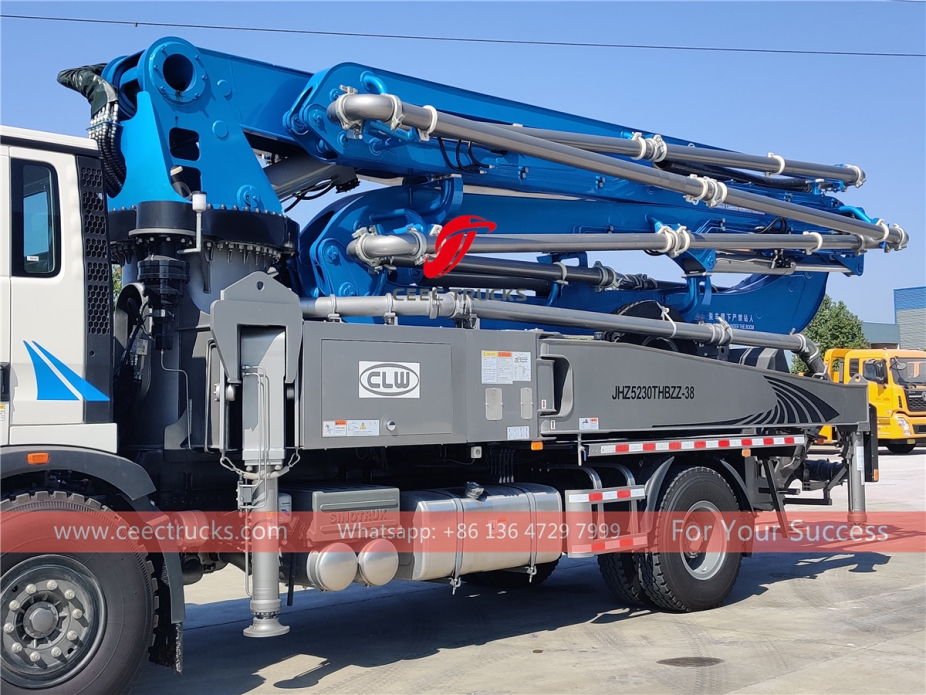

HOWO Cement Pump truck for export (38m) |
||
General |
Vehicle Brand |
CEEC TRUCKS |
Chassis Brand |
HOWO |
|
Overall Dimension |
10000 * 2500 * 3980 mm |
|
GVW / Kerb Weight |
25,000kg / 13,160kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
WEICHAI |
|
Power |
380 HP (280 KW) |
|
Displacement |
9726 ml |
|
Emission Standard |
Euro 3 |
|
Chassis |
Drive Type |
6X4, (left hand drive) |
Transmission |
FAST 12 speed levers with 2 reverse |
|
Wheelbase/No. of axle |
4500+1300 mm / 3 |
|
Tire Specification |
12.00R20 |
|
Tire Number |
10 tires and 1 spare tire |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Lifting Height |
38 m |
Maximum Output (High / Low Pressure) |
108 / 183 m³/h |
|
| Maximum Output Pressure (High / Low Pressure) | 10 / 6 Mpa | |
Pump Frequency (High / Low Pressure) |
16 / 28 per minute
|
|
Concrete Cylinder Diameter x Stroke |
φ260x2100 mm |
|

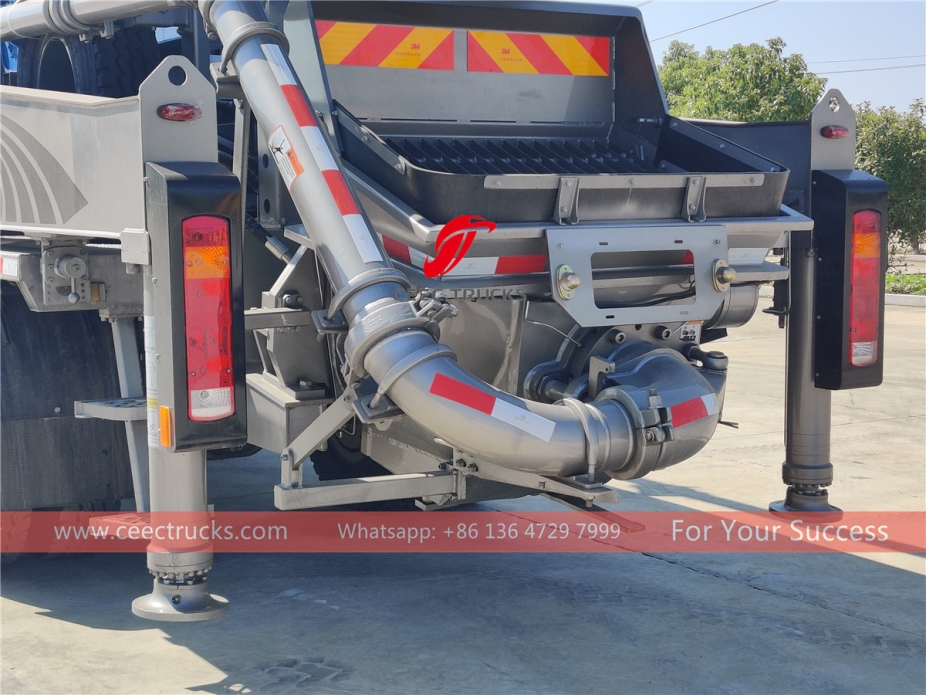

Feeding Height |
1400 mm |
|
Structure Type |
6RZ |
|

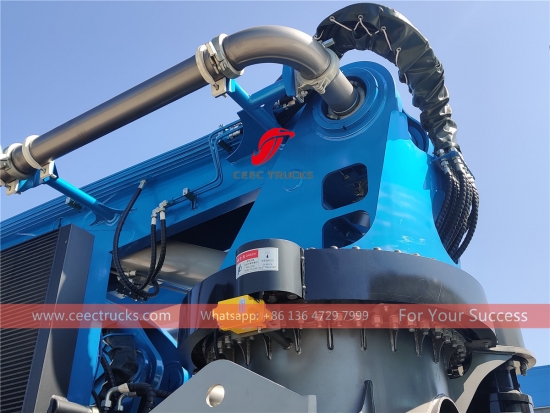

| Slewing Angle | ±270° |
|
| High and Pressure Switch-Over | Electric Control |
|
| Lubrication Method | Hydraulic and Manual | |
Color & LOGO |
According to wish |
|
All standard accessories: All tools. . Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… |
||
Optional |
** Back alarm and Camera can be equipped.
** Other body capacity can be choose. ** Other material and plate thickness can be choose.
|
|
★ HOWO chassis, perfect performance
★ Euro 3 type, WEICHAI engine, 380HP, fuel consumption save 20%
★ FAST 12-shift manual mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE★ Authorized HOWO transit mixer pump trucks exporter
★ Training service for HOWO cement mixer trucks
China best mixer truck supplier and exporter, we supply the best quality cement mixer trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our mixer trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
