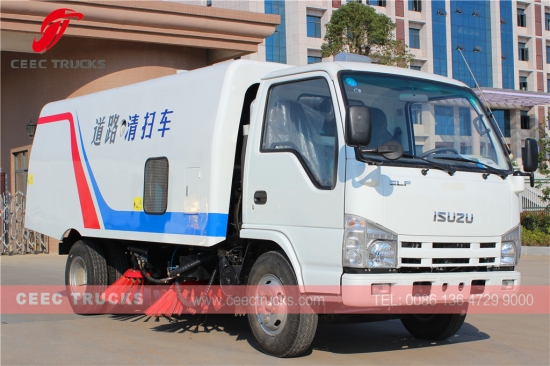

4 CBM ISUZU sweeper truck

TOP ISUZU brand road sweeper, which use small ISUZU chassis, equipped with 4cbm stainless steel material tanker, ISUZU 98HP diesel engine, MSB 5-shift manual gearbox, JMC or ISUZU original import Italy Brevini motor, all color painting & logos as required

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
15 Days
Payment:
T/T, West Union
FOB Price:
USD $25,000-33,000
Market Price:
$29000

contact now

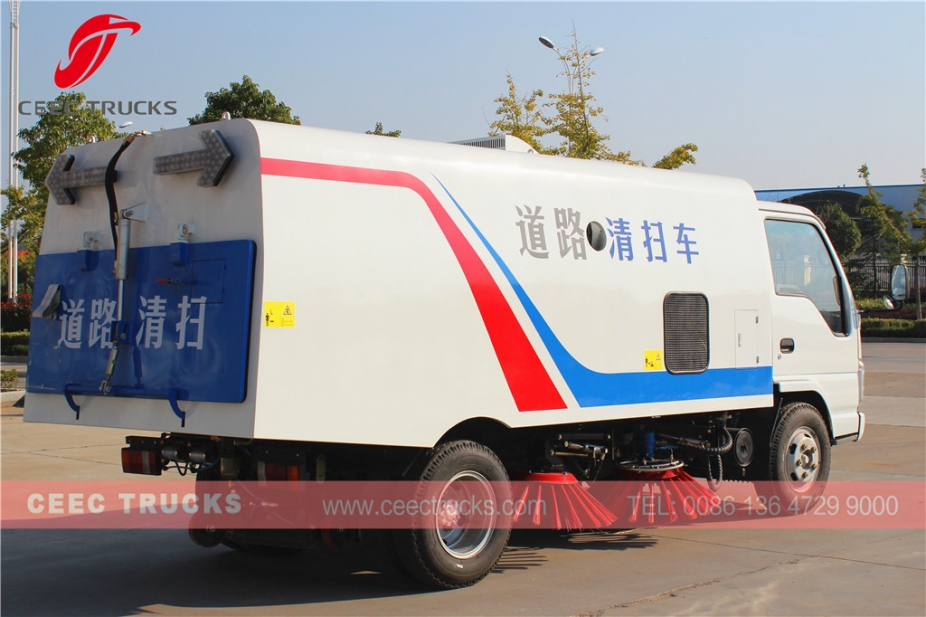

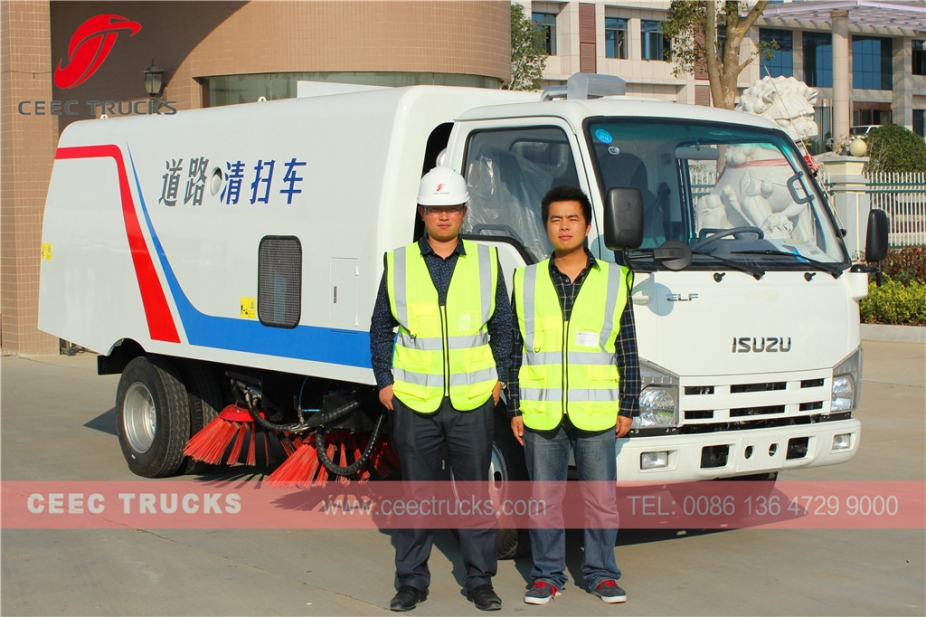

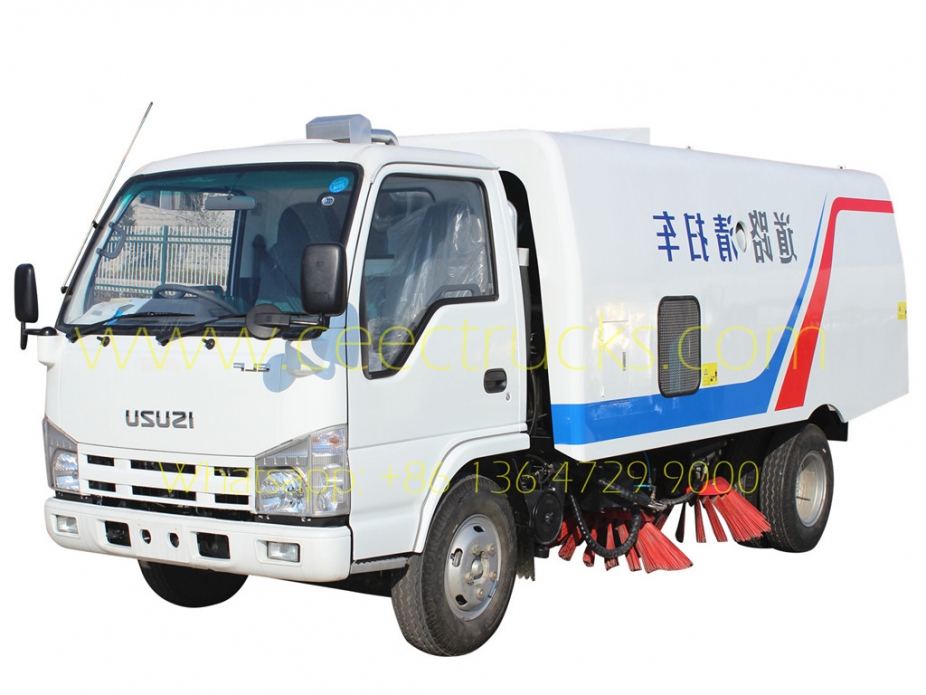

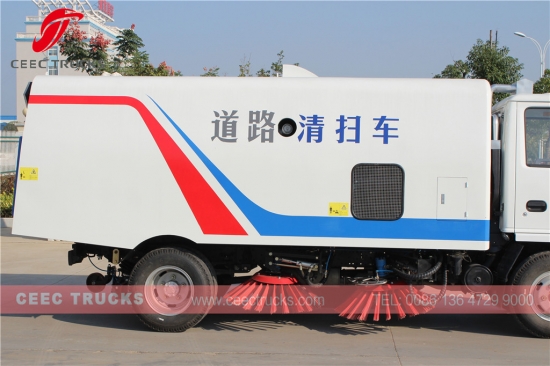

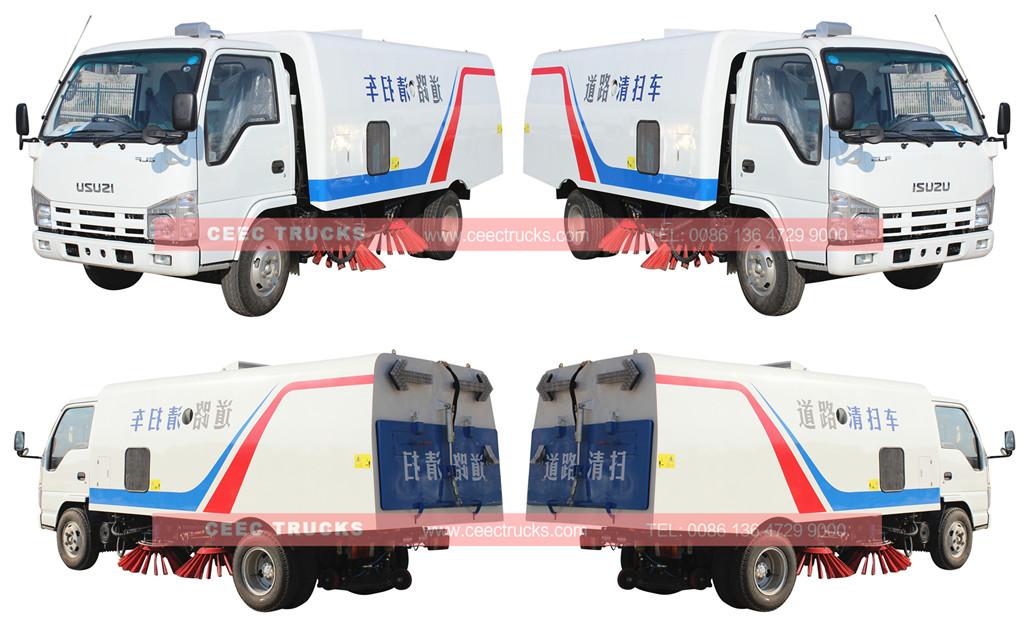

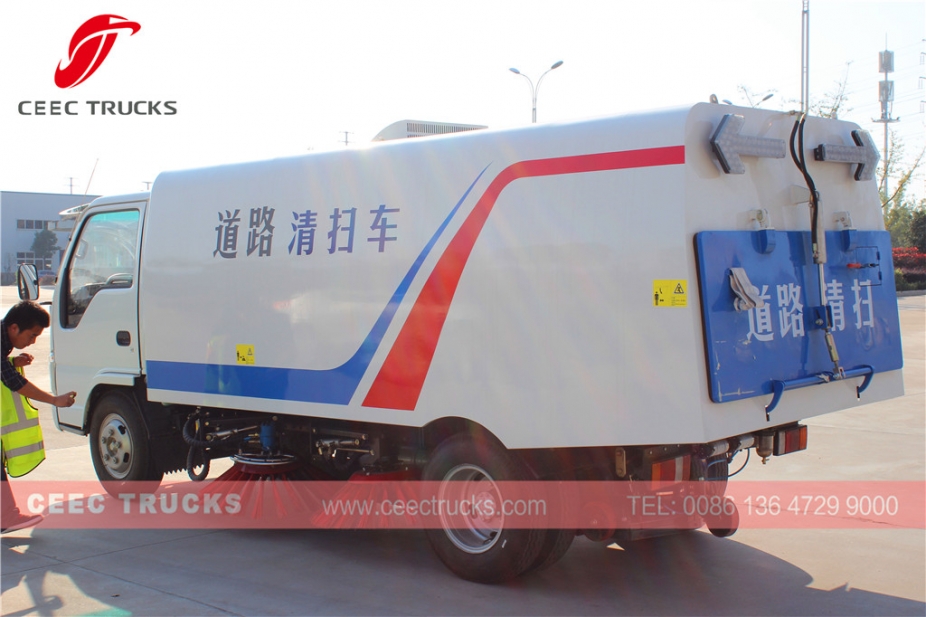

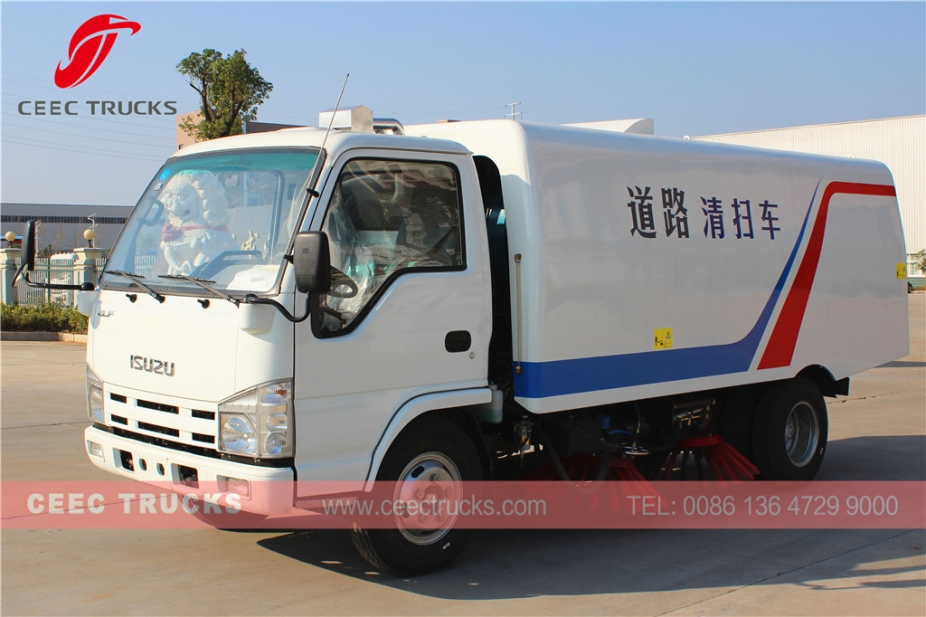

ISUZU 4cbm road sweeper truck wholeview

Applications:

Road Sweeper ISUZU (also called road sweeper truck, hydraulic street sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.

CEEC TRUCKS road sweeper truck use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC auxiliary engine, efficiently avoiding secondary pollution.

The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specifications:

ISUZU road sweeper truck (4 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	6000 * 2000 * 2600 mm
	GVW / Kerb Weight	7,300kg / 5,500kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98 HP (72 KW)
	Displacement	2771 ml
	Emission Standard	Euro 4 or 5
Chassis	Drive Type	4X2, (left hand drive)
	Transmission	MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tire Specification	7.00-16
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Body capacity	3.5 cbm dust tank & 0.5 cbm water tank
	Tanker material	Stainless steel
	Sweeping capacity	42,000 cbm/h
	Sweeping speed	3-15 km/h
	Max. sweeping width	3200 mm

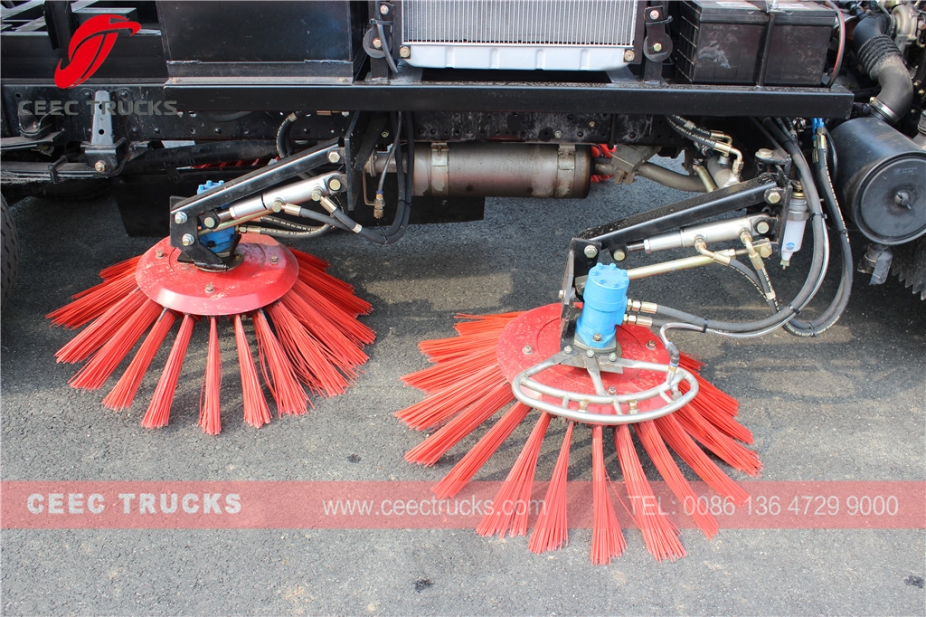

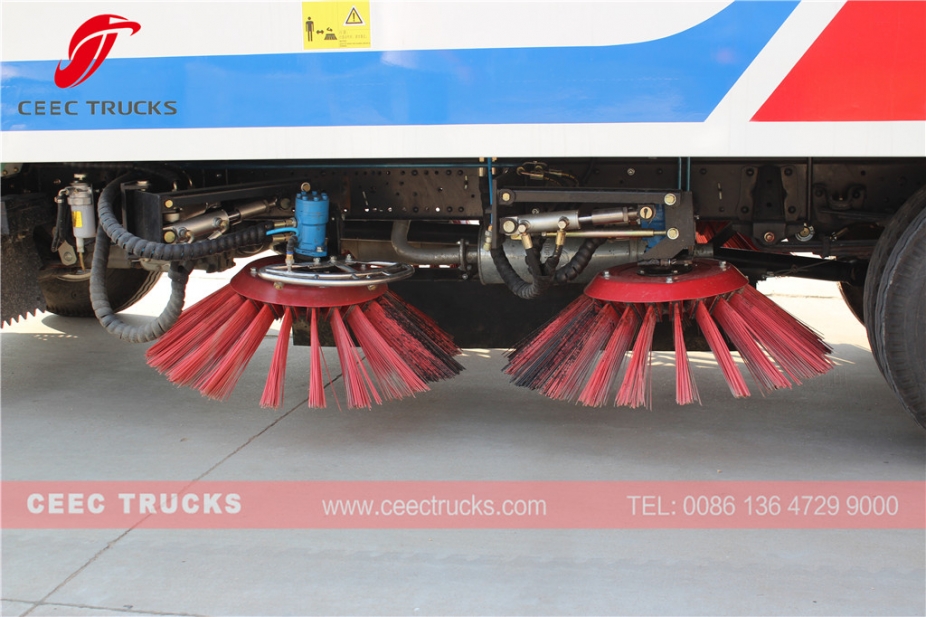

	Brooms	2 set at each side, at diameter 800 mm
	Auxiliary engine	ISUZU engine, 77HP (57kw), super powerful JMC engine, 77HP (57kw), super powerful
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
Optional	Back alarm and Camera can be equipped. Italy Brevini motor can be optional. ** Air blower can be of stainless steel

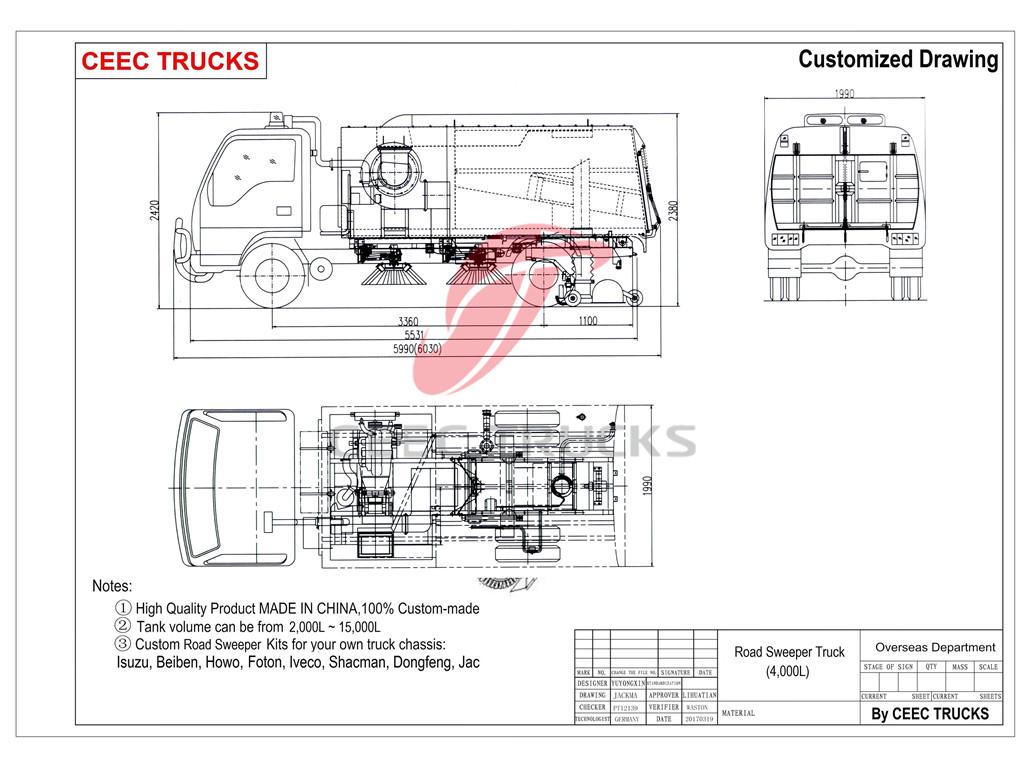

ISUZU 4cbm road sweeper truck drawing

---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

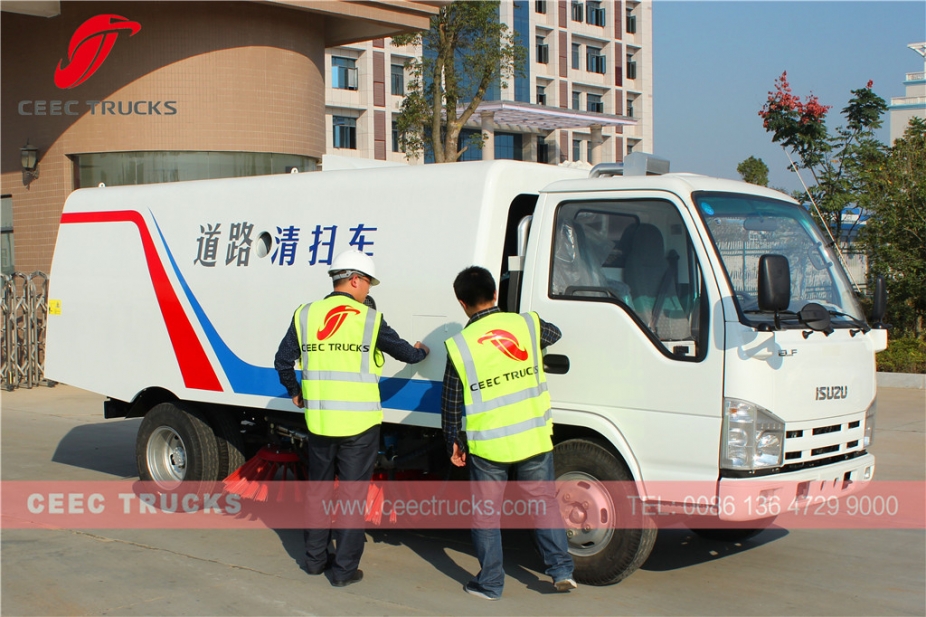

ISUZU road sweeper truck inspection

---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

ISUZU road sweeper truck spare parts

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...

CEEC road sweeper truck export documents

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

ISUZU road sweeper truck factory advantage

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

ISUZU road sweeper truck export review

---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.

ISUZU road sweeper truck stock

Watch Road Sweeper Kit on YOUTUBE

5CBM road sweeper superstructure under production: https://www.youtube.com/watch?v=wEaK1FccCmE

https://www.youtube.com/watch?v=ZGEjfcVdK58

https://www.youtube.com/watch?v=8TC9THA4vLU

https://www.youtube.com/watch?v=qncsHzbs3d4

https://www.youtube.com/watch?v=p90fjv6S1cU

https://www.youtube.com/watch?v=uLIEHF7TDI0

https://www.youtube.com/watch?v=twPzL71FeAo

https://www.youtube.com/watch?v=2UMUyPXQNSM

https://www.youtube.com/watch?v=1CgCwCLLgqQ

5000 liters road sweeper up-body Container delivery: https://www.youtube.com/watch?v=aocnpVlPK90

https://www.youtube.com/watch?v=YvVihFauMEk

https://www.youtube.com/watch?v=2GYv4TNNexA

https://www.youtube.com/watch?v=ajfddlXd4Bw

https://www.youtube.com/watch?v=XHG_yhklLG8

https://www.youtube.com/watch?v=wiHe1xsFiYY

linkdin

How to build a good quality and choose best Road Sweeper Kit?

http://www.ceectrucks.com/ceec-guidance-5cbm-road-sweeper-superstructure-installation-manual_n138

Dubai 5 CBM Road Sweeper Up-Body specification:

http://www.ceectrucks.com/road-sweeper-kits_c92
