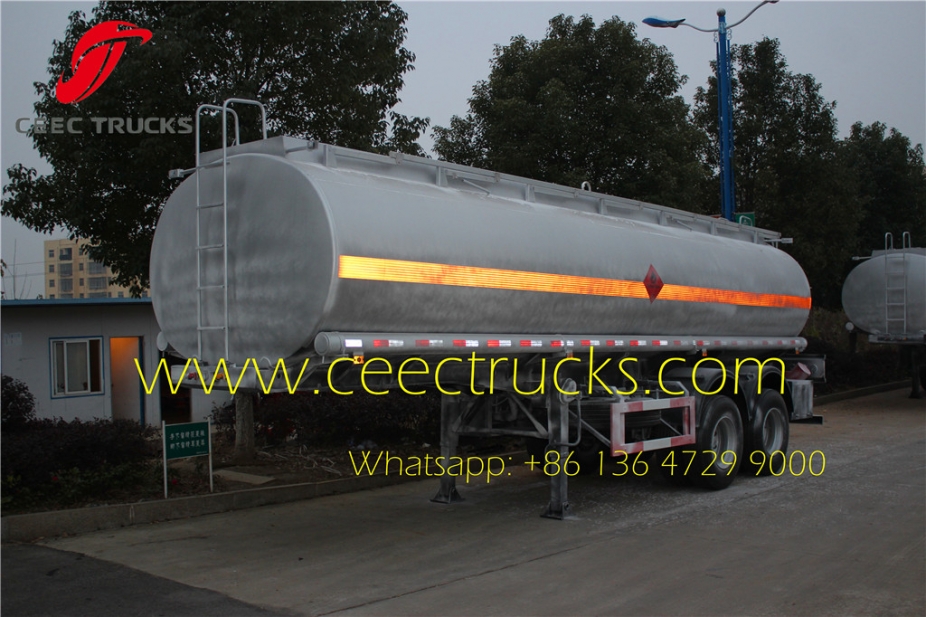

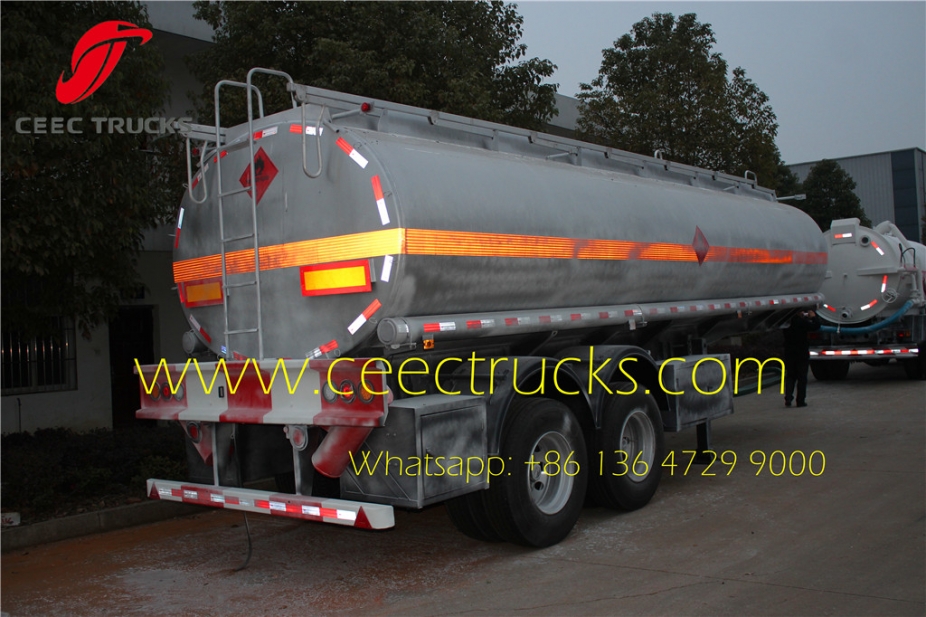

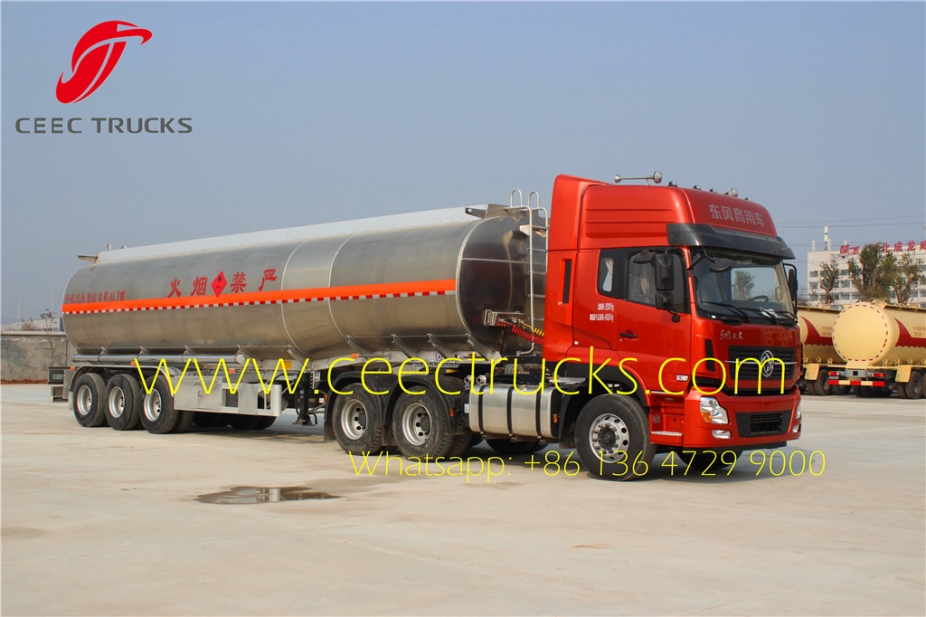

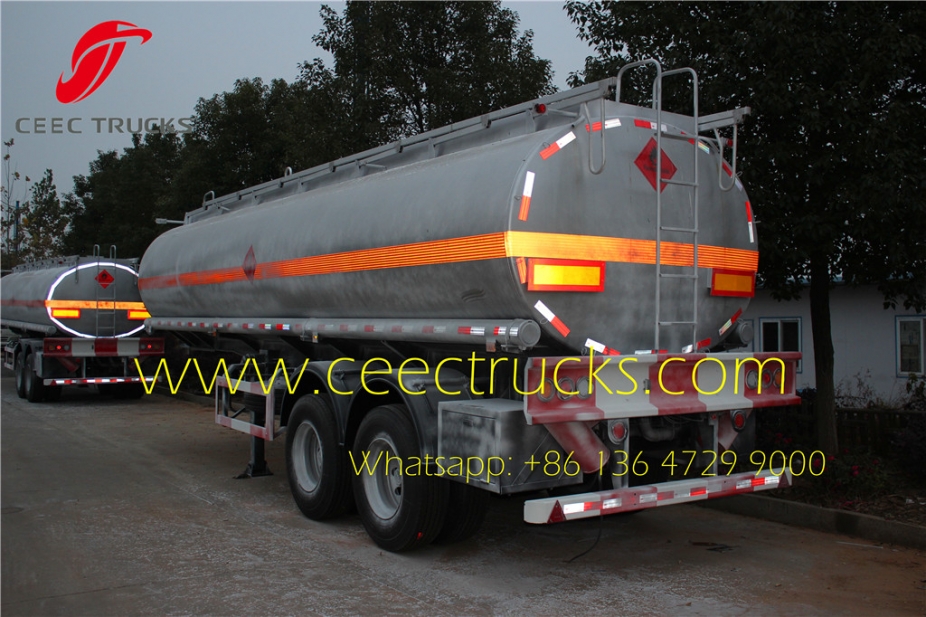

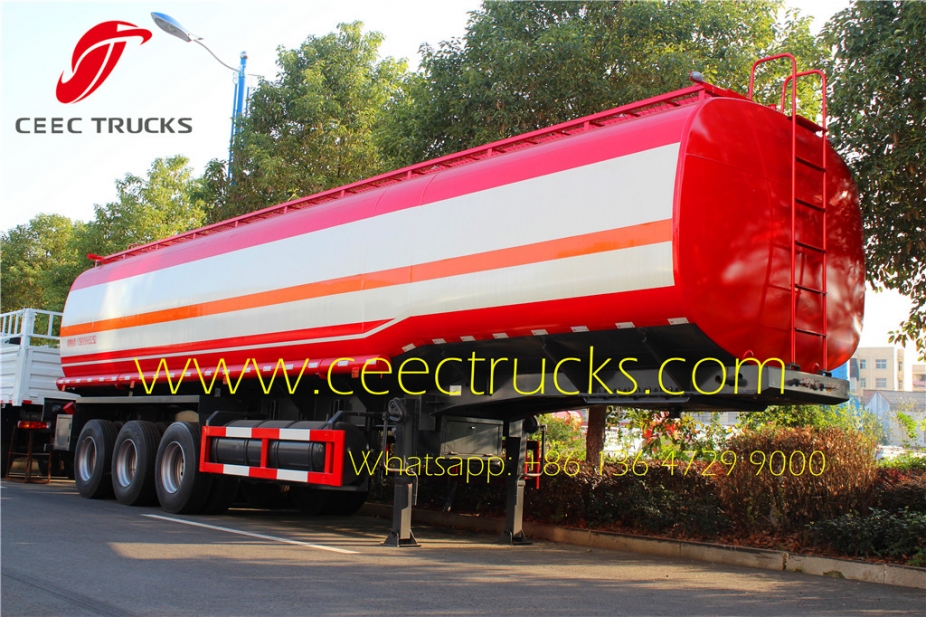

China best 3 axle oil tanker semitrailer export

40 CBM Fuel Tanker Trailer

Dubai aluminum fuel tanker semitrailer mainly use BPW/FUWA 13 Ton axle, mechanical suspension, 11.00R22.5 tubeless tires, JOST landing gear, with air brake sustem. 4 Pcs ISO teist lock

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $19,800-28,500
contact now

Best Stainless Steel 40CBM Fuel Tanker Semitrailer

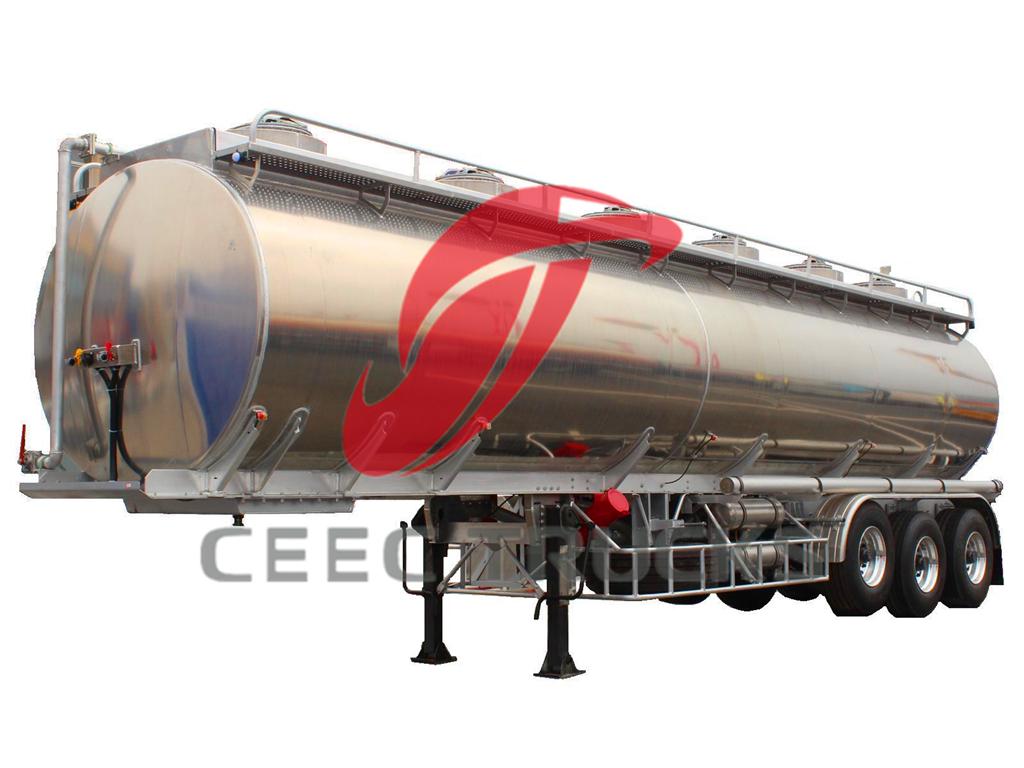

40CBM fuel tanker semitrailer



China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 40 CBM stainless steel fuel tanker trailer export to United Arab Emirates, and will be used for crude oil transportation in Oil Field.

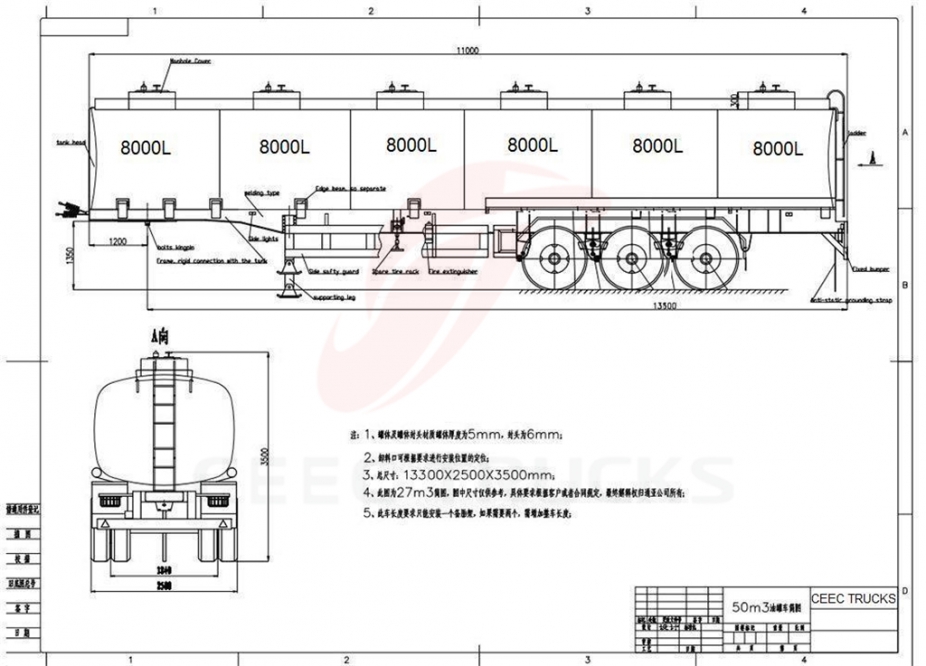

3 axle stailess steel fuel tanker semitrailer drawing



Advanced features for CEEC TRUCKS produced oil tanker trailers:

International standard stainless steel material, with one compartment and multiple compartment for optional

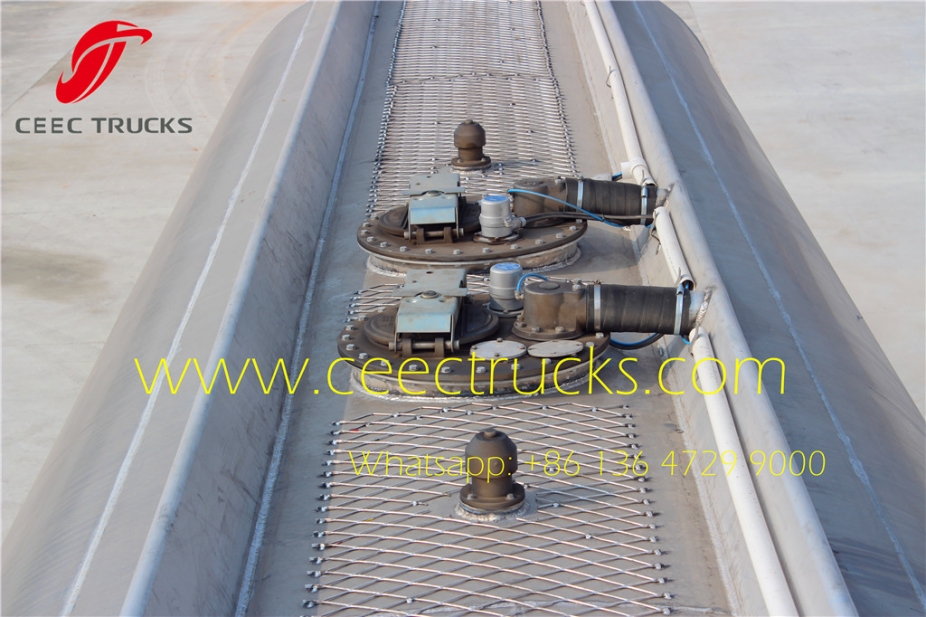

Installed Euro standard Manhole, Submarrine Emergency Valves, and Emergency Stop Button for safety

Axle style: BPW and FUWA brand 13T & 16T for optional

Landing Gear: JOST and HOLLAND brand, or standard

12 units 11.00R20 model tire as standard equipment; 6 units 11.00R22.5 with Aluminum rim for light weight

12 months free fast moving spare parts

Semitrailer export CKD and SKD expert

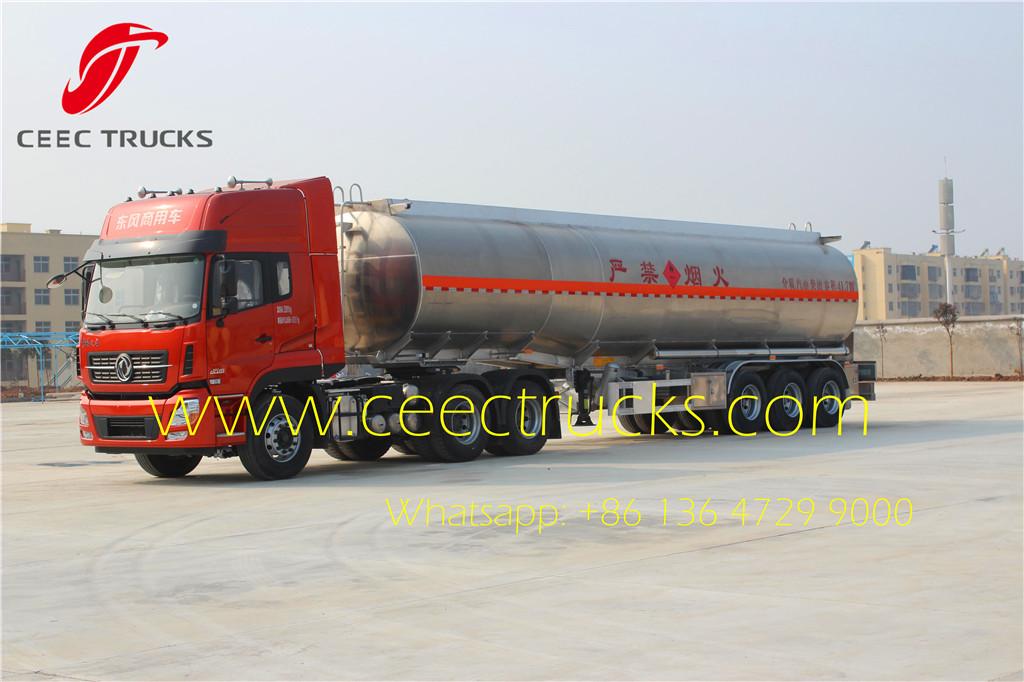

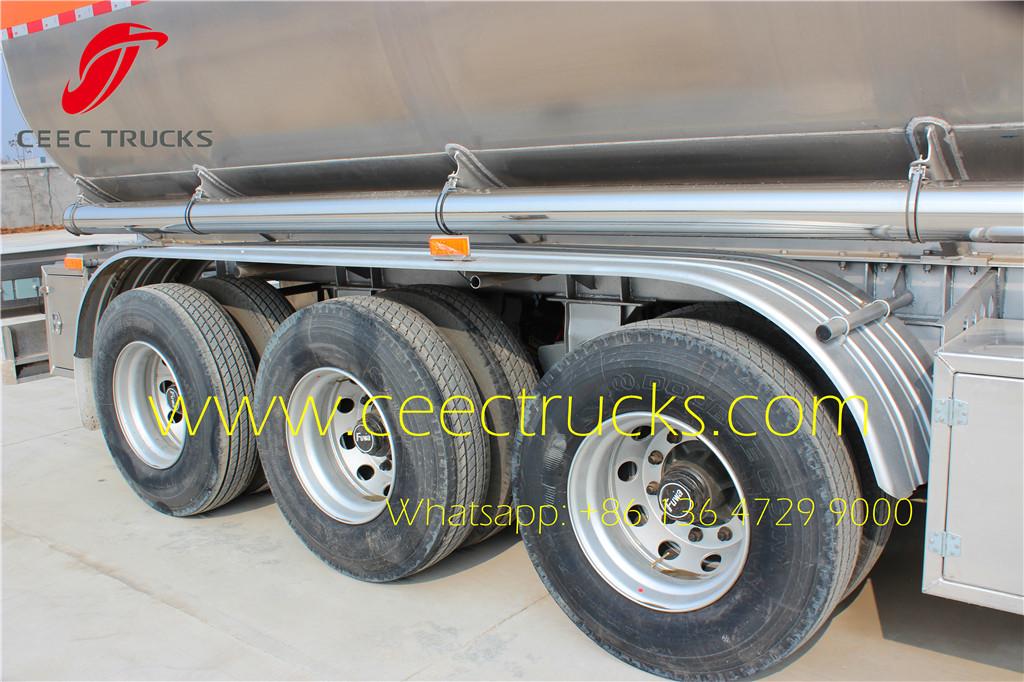

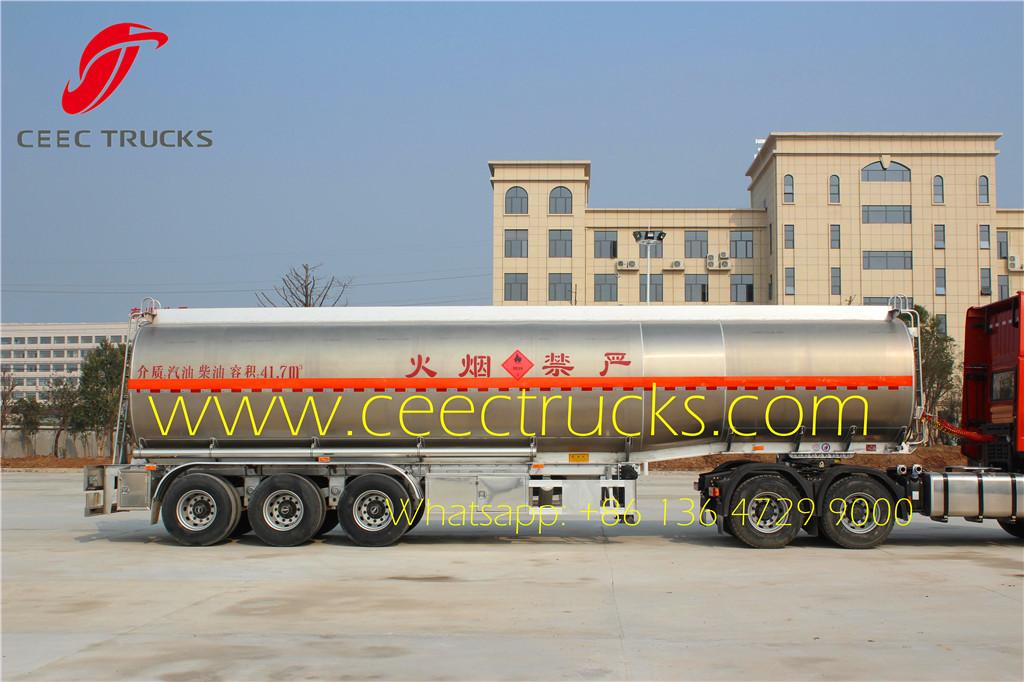

ceec produced fuel tanker semitrail



ceec produced fuel tanker semitrail



ceec produced fuel tanker semitrail    ceec produced fuel tanker semitrail

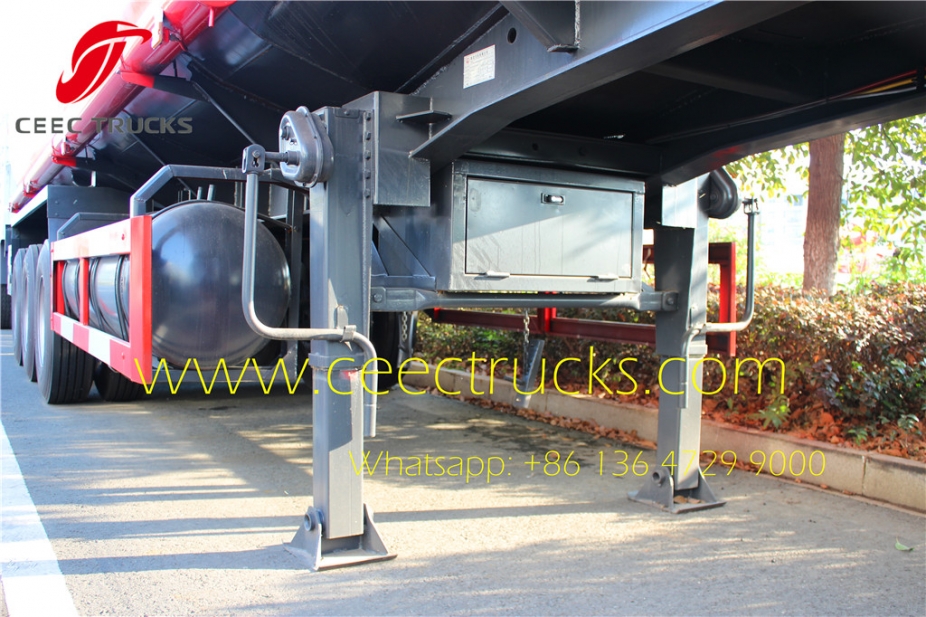

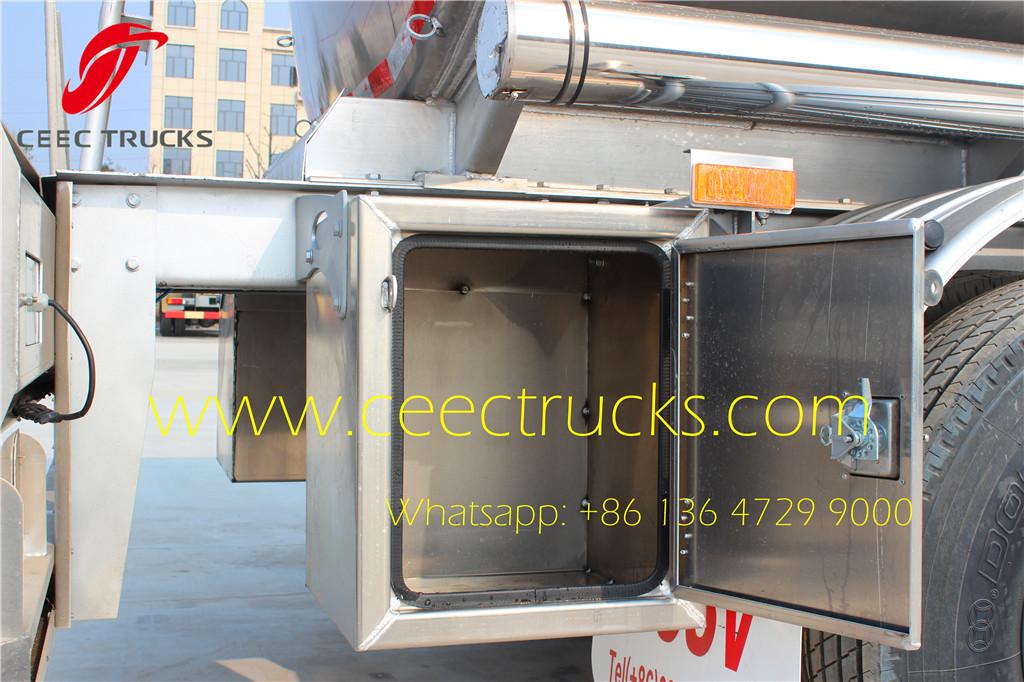

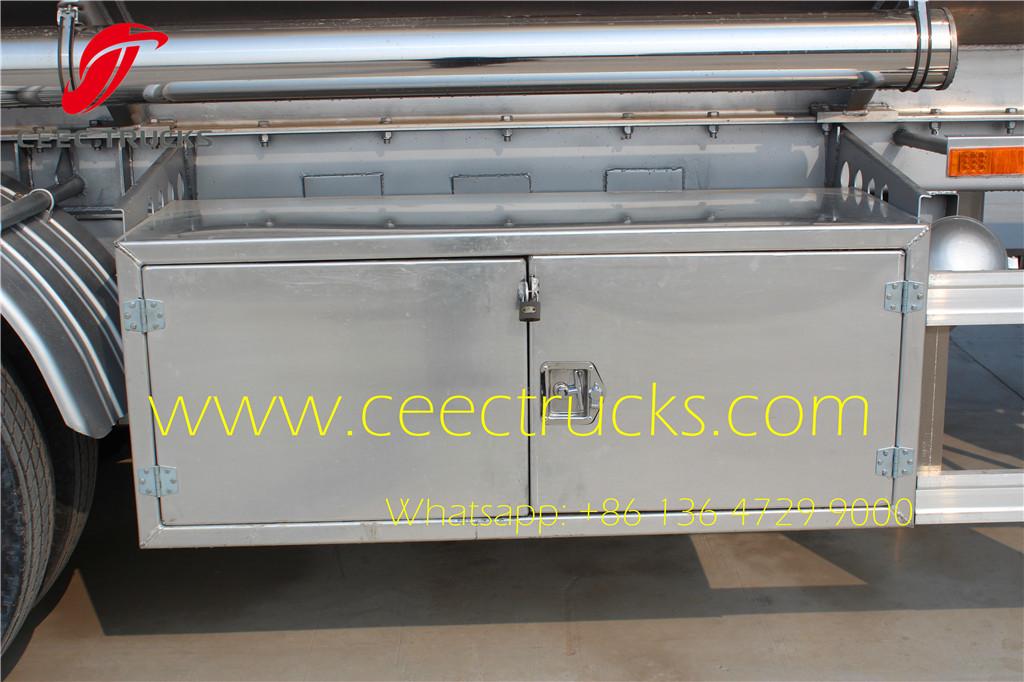

ceec produced fuel tanker semitrail storage box    ceec produced fuel tanker semitrail storage box



40CBM Fuel Tanker Semitrailer

Tank Body

Shape

Optional ( Round or Square)

Dimension

12000mm*2490mm*3990mm( Exact size depends on the final design)

Tare weight

About 8000KGS-12800KGS

Total Volumem3

25m3-60 m3

Tanker Body Material

5mm or6mm/ Q235 carbon steel

End Plate

5mm or6mm/Q235 carbon steel

Manhole Cover

Carbon steel or Aluminum alloy API manhole cover, 500mm

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs, 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

 Welding design or Special design I beam, connected by bolts and nuts

 Q345 carbon steel material

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (C200Tor CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamberTKL brand; 2 pieces of45Lair tanks.

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20  Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo ,RORO or 40HQ Containers

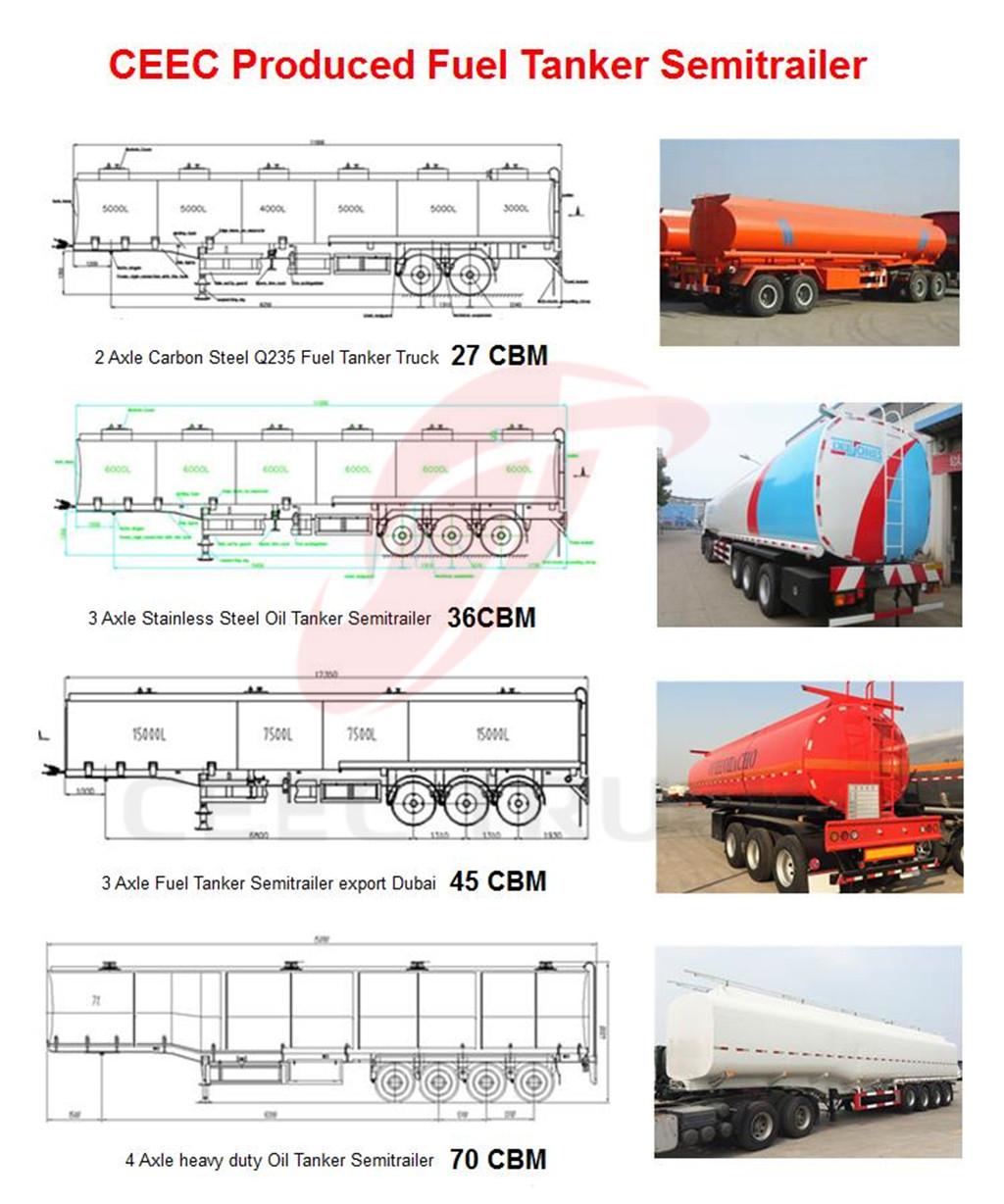

optional ceec produced fuel tanker semitrail

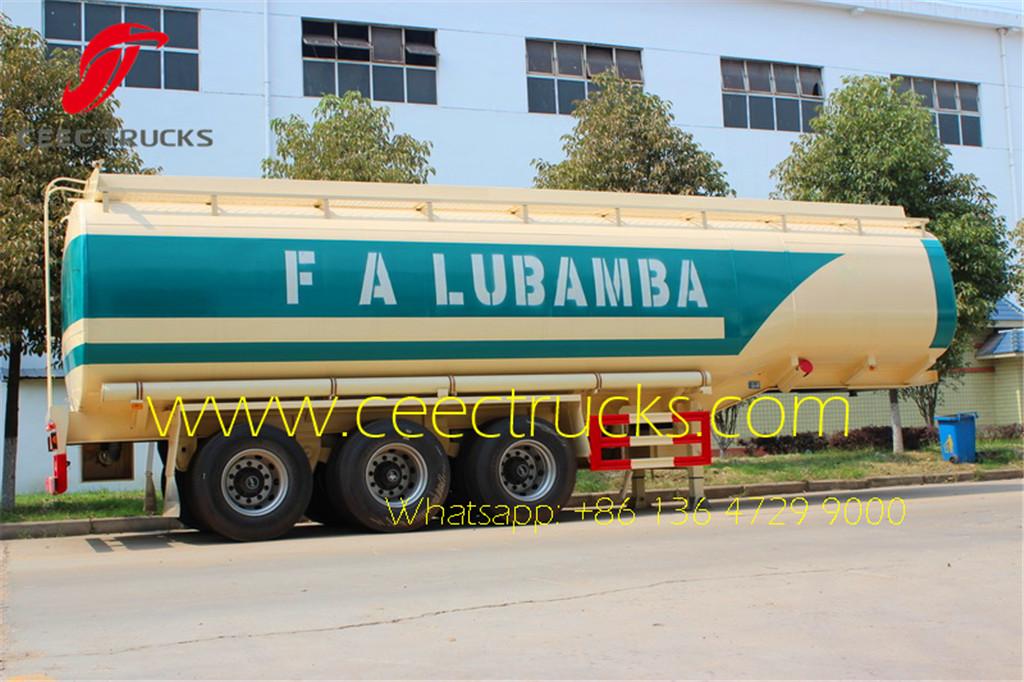

fuel tanker semitrail export to Africa



China Best Semitrailer on sale





Other beiben trucks display






SaveSaveSaveSaveSaveSaveSaveSaveSave SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave

Why customer choose CEEC TRUCKS produced 40 CBM fuel tanker semitrailer?

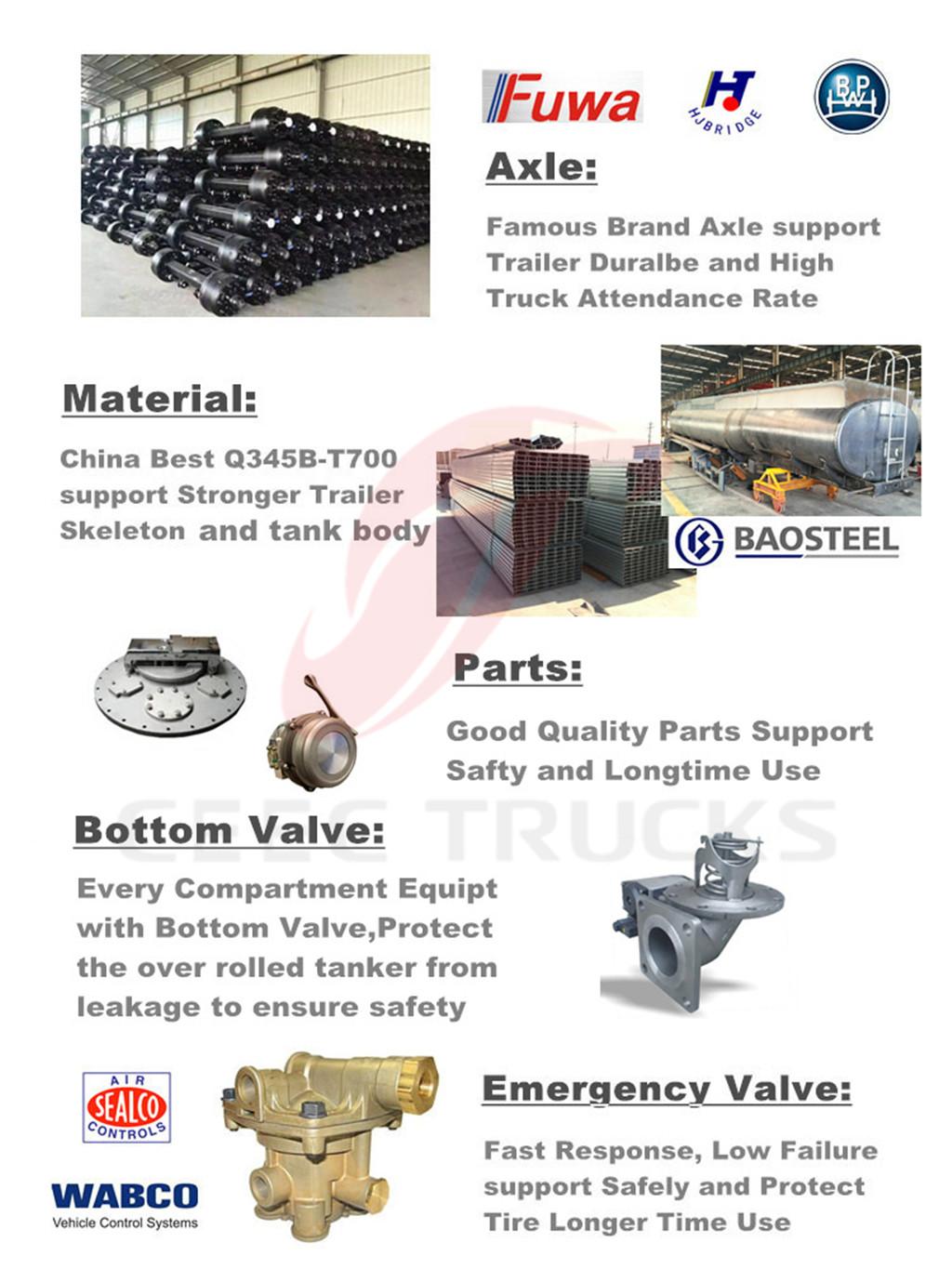

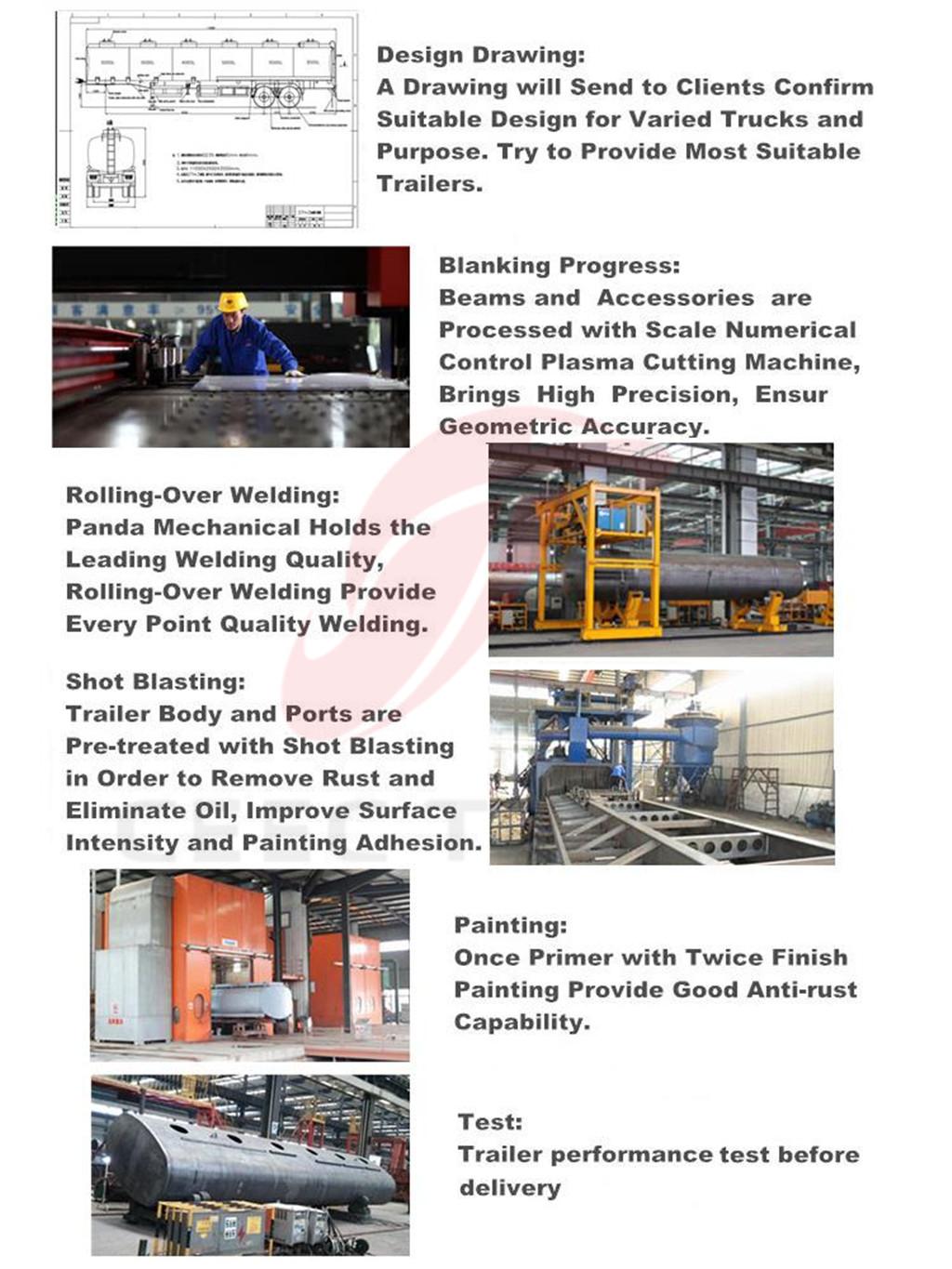

CEEC manufacture FUEL TANKER semitrailer advantages  CEEC manufacture FUEL TANKER semitrailer advantages




SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
