5,000 liters vacuum suction tanker body

Sewage suction truck, as a special sanitation vehicle, is mainly used for cleaning and transporting dirt, sludge and liquid in urban sewers, septic tanks, sewage wells, sewage treatment plants and factories. This vehicle integrates advanced mechanical technology and environmental protection concepts, effectively improving the level of urban sanitation management and reducing environmental pollution.

5,000 liters vacuum suction tanker body also called 5,000 liters vacuum pump tanker body,5cbm vacuum truck tanker bodies kit,Isuzu 5cbm sewage tank body components.The tank body of the 5-cubic-meter vacuum sewage suction truck is the upper part of the sewage suction truck. It is assembled on the special chassis of the sewage suction truck and together constitutes the sewage suction truck. This vehicle is the first choice for municipal sanitation and other departments that need sewage treatment. The 5,000 liters vacuum suction tanker body is the core component of the sewage suction truck. It consists of a tank body, a vacuum pump system, a transmission system, a hydraulic cylinder, a hydraulic oil tank, a gear pump, a high-pressure cleaning machine, an oil-water separator, a water vapor separator, a side guard, a bumper, an operating box and other spare parts. You can purchase the upper part of the size you need, and then choose your local matching chassis for assembly. Flexible and optional.

The vacuum pump tanker body is a rugged, purpose-built component designed for heavy-duty applications in waste management and sanitation services. Designed to enhance the functionality of vacuum suction trucks, this specialized equipment is the embodiment of precision engineering and innovative design.

● Vacuum suction system

MORO PM70A pump: This is a rugged component, known for its efficient and reliable characteristics, capable of creating and maintaining the necessary vacuum force for the suction system. This powerful pump is the backbone of the tanker's functionality, ensuring seamless operation and consistent performance.

Suction pipeline: Connects the suction tank to the job site, with a one-way valve and filter device in the pipeline to prevent the backflow of dirt and impurities from entering the vacuum pump.

Control system: Includes solenoid valves, pressure sensors, control panels, etc., to control the start and stop of the vacuum pump and the automation of the suction and discharge process.

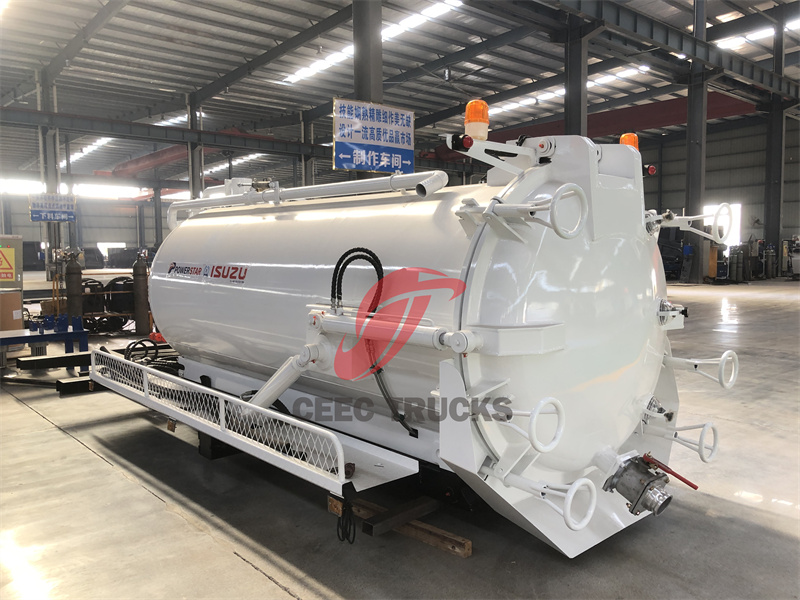

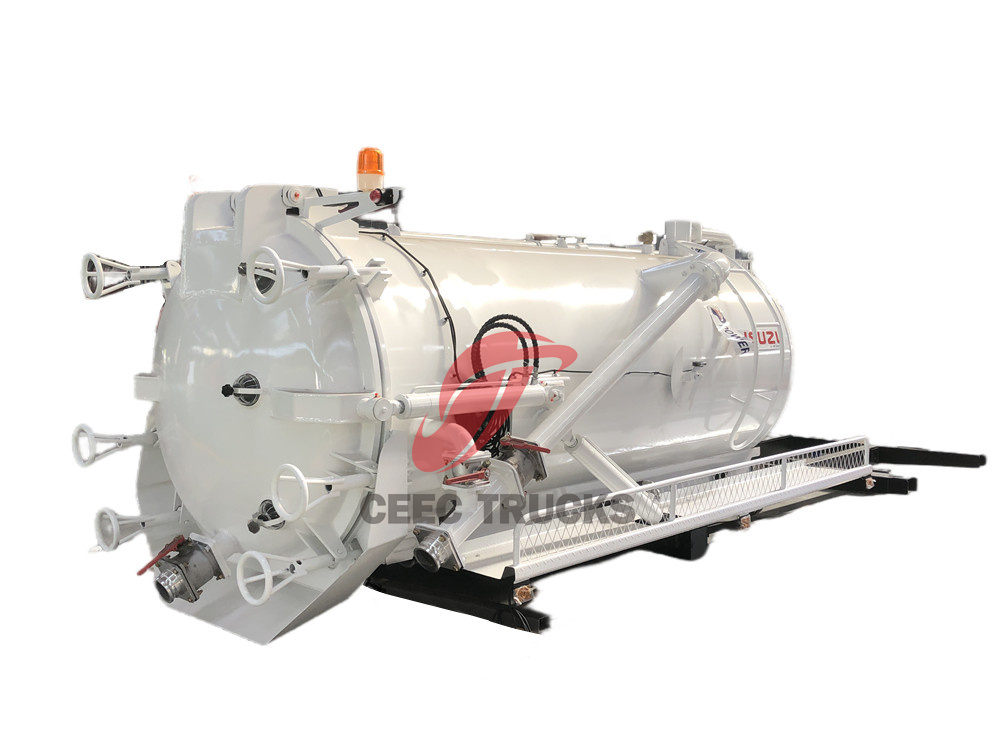

5,000 liters vacuum pump tanker body

● Complementing the pump is the suction tank, a huge storage reservoir that can hold up to 5,000 liters of sewage. Its huge capacity makes it a valuable asset for extended operations, without the need for frequent emptying, thereby maximizing productivity and efficiency. The suction tank body is usually made of high-strength, corrosion-resistant steel plates, and the interior is treated with anti-rust and anti-corrosion to adapt to the environment of long-term contact with corrosive dirt.

● To power the various hydraulic components of this complex system, the tanker is equipped with a dedicated hydraulic oil tank, which is carefully designed to ensure the optimal performance and service life of the hydraulic system. The hydraulic cylinder forms a symbiotic network with the hydraulic valve, gear pump and drive shaft to help control the movement of the tanker parts and accessories, such as suction, discharge, lifting, etc., so as to achieve precise and efficient operation.

● In addition to the core components, the vacuum pump tanker body is also equipped with a high-pressure cleaner, which is an important auxiliary equipment that enhances the versatility and practicality of the system. This component helps to maintain the cleanliness and functionality of the tanker, ensuring optimal performance and service life. High-pressure water gun connected to the high-pressure cleaner, it can be retracted and rotated to facilitate the operator to accurately clean the working area. The high-pressure water pipe connects the high-pressure water pump and the water gun, and the nozzle design is diverse to meet different cleaning needs.

● The addition of a secondary filter emphasizes the commitment to maintaining operational efficiency and environmental awareness. This important component prevents the ingress of contaminants and foreign matter, thereby protecting the integrity of the entire system and extending the service life of key components.

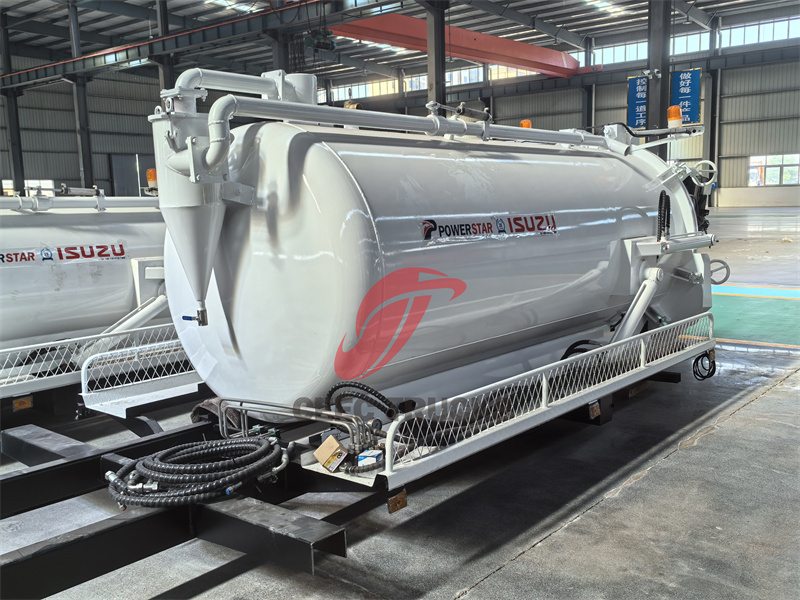

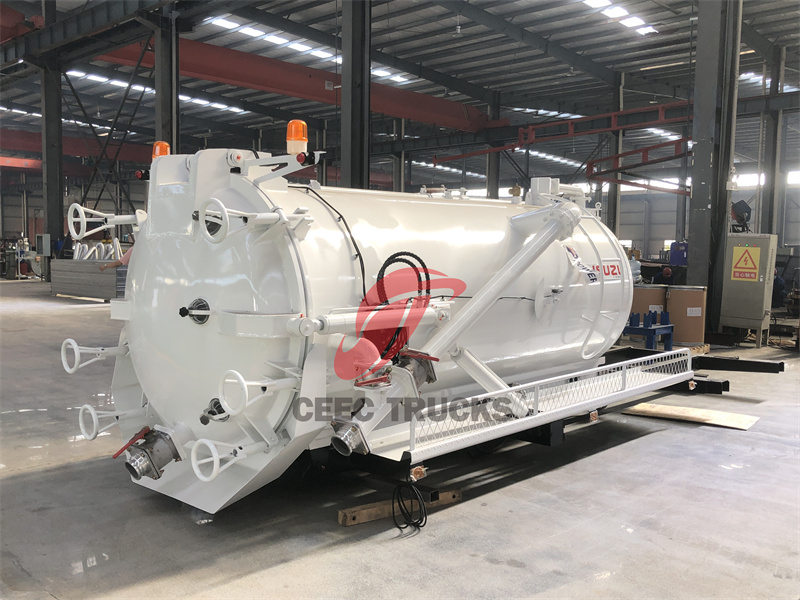

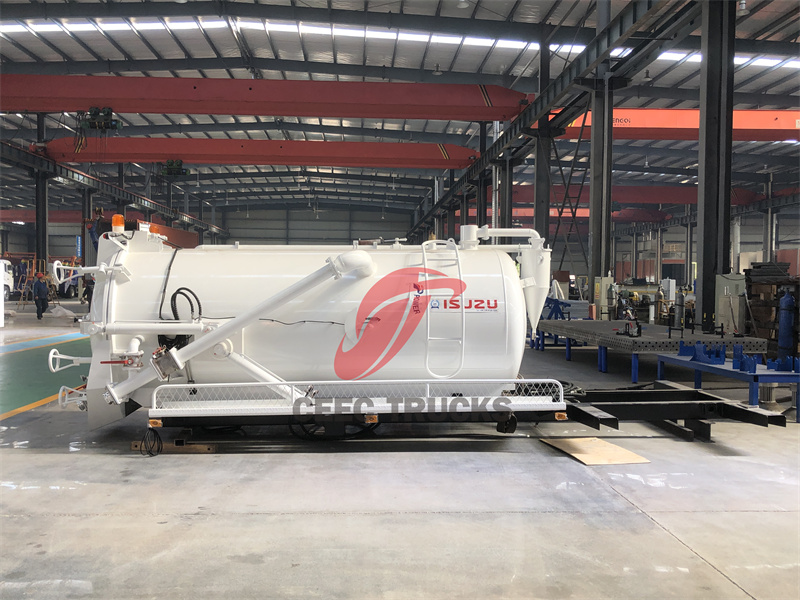

5cbm sewage suction tank body

● Oil-water separator and water-gas separator

Oil-water separator: used to separate the grease contained in the sucked sewage to prevent the grease from entering the vacuum pump and piping system and causing blockage or damage.

Water-gas separator: used to separate the gas (such as air, biogas, etc.) contained in the sucked sewage to ensure that the vacuum pump can work stably and avoid gas damage to the vacuum pump.

5cbm vacuum truck tanker bodies kit

● The tailgate assembly is carefully designed for durability and easy operation to ensure that the waste is safely sealed in the vacuum tank. Its rugged design ensures reliable operation even under harsh conditions, thereby improving operational safety and efficiency.

● The inclusion of side guards and bumpers emphasizes the commitment to safety and operational integrity, providing additional protection against accidental impacts and ensuring a long service life of the tanker body in harsh environments.

● Completing this comprehensive system is the operation box, a centralized control unit that enables the operator to accurately and easily manage and monitor the various functions of the vacuum suction truck. The interface acts as a command center, facilitating seamless communication between the operator and the tanker body, ensuring optimal performance and operational efficiency.

The Vacuum Pump Tanker Body represents the pinnacle of engineering excellence and innovation in waste management technology. Featuring an array of carefully crafted components and a rugged design, this specialized equipment is a testament to the relentless pursuit of excellence in providing solutions to modern sanitation and waste management challenges.

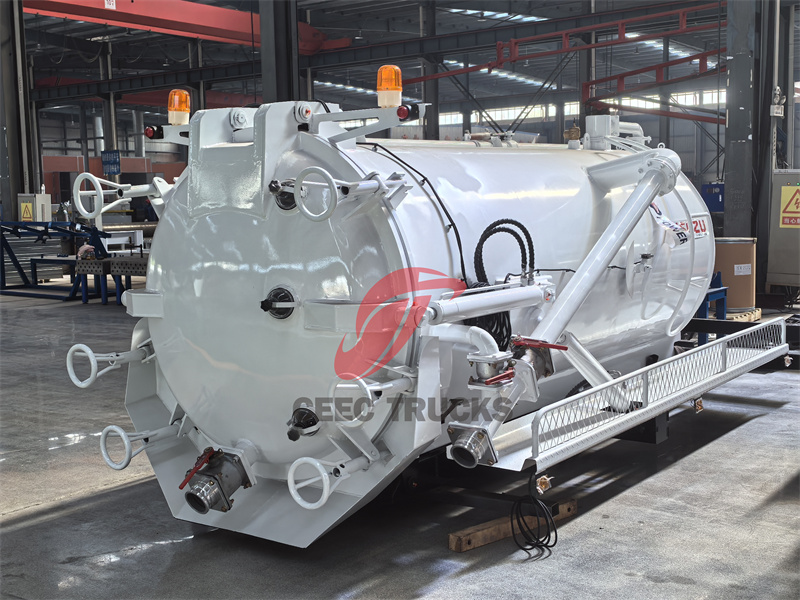

5,000 liters vacuum suction tanker body

The upper part of this 5-cubic-meter sewage suction truck integrates a number of advanced technologies and design concepts, and has the following significant features:

1. Efficient sewage suction capacity

Powerful suction system: Equipped with a high-performance vacuum pump, combined with an optimized sewage suction pipe design, it can quickly form a strong negative pressure, effectively suck and store a large amount of sewage, and ensure operational efficiency.

Large-capacity sewage storage tank: The sewage storage capacity of 5 cubic meters is suitable for handling large-scale or continuous sewage suction tasks, reducing the need for frequent dumping and improving operational continuity.

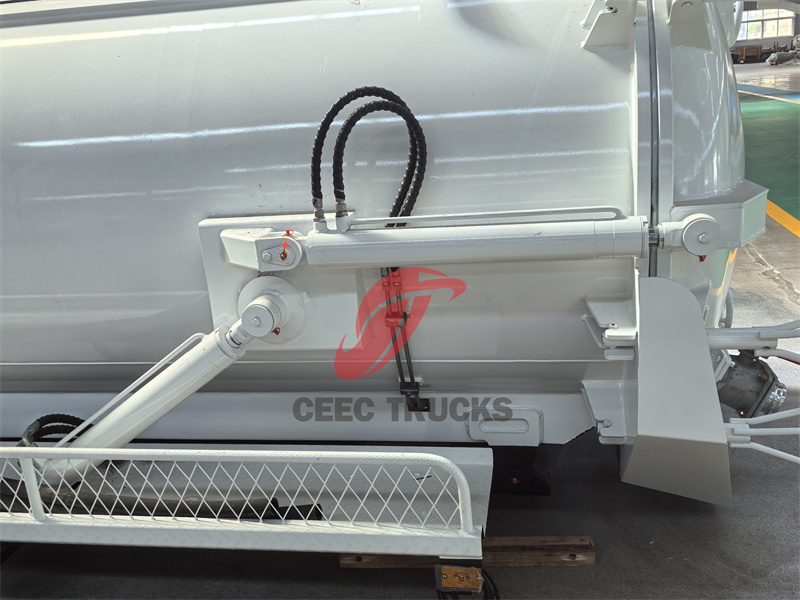

Hydraulic cylinder

2. Durable and anti-corrosion design

High-strength material: The tank body and key components are made of high-strength, corrosion-resistant alloy materials, which can withstand the test of harsh operating environments and extend service life.

Anti-corrosion treatment: The inside of the tank body is professionally anti-corrosion treated to effectively resist corrosive substances in the sewage and protect the tank structure from damage.

3. Convenient maintenance and care

Modular design: The upper part adopts a modular design, which is easy to disassemble and replace parts, reducing maintenance difficulty and cost.

Quick sewage discharge system: The optimized sewage discharge valve design and quick sewage discharge channel make the sewage discharge process faster and smoother, reducing maintenance time.

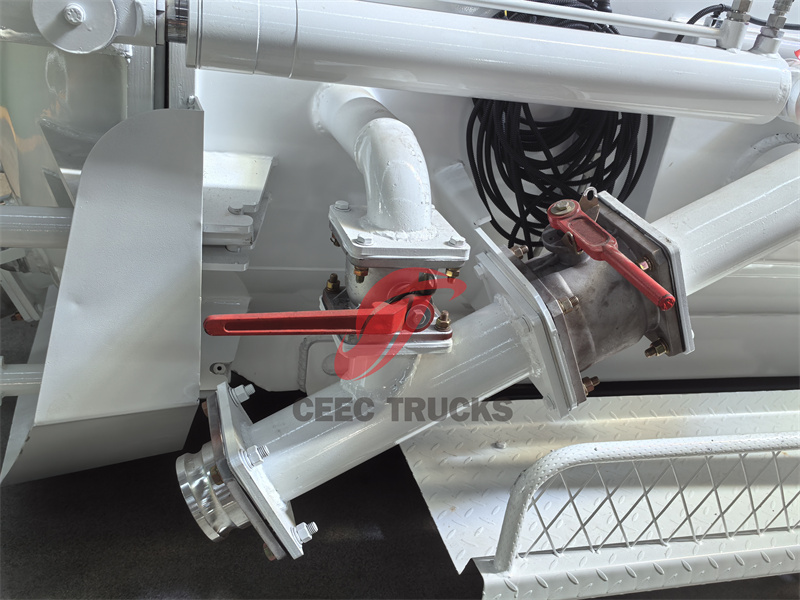

Suction pipeline

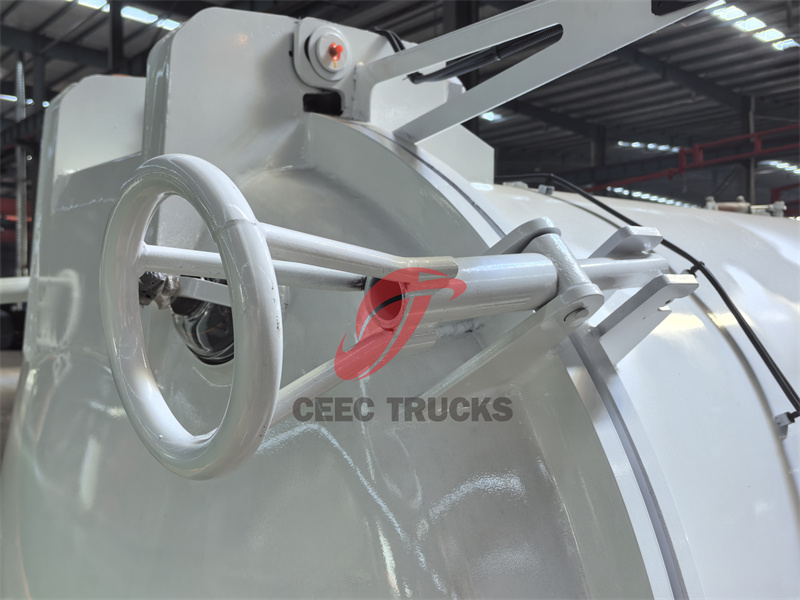

Locking device

4. Flexible adaptation and multi-functional expansion

Customized configuration: Customized configuration can be provided according to customer needs, such as adding a high-pressure cleaning system, changing the shape of the tank, etc., to meet specific operation requirements.

Wide applicability: It is suitable for a variety of scenarios such as urban sewer cleaning, septic tank cleaning, construction site sewage and mud treatment, with strong adaptability and flexibility.

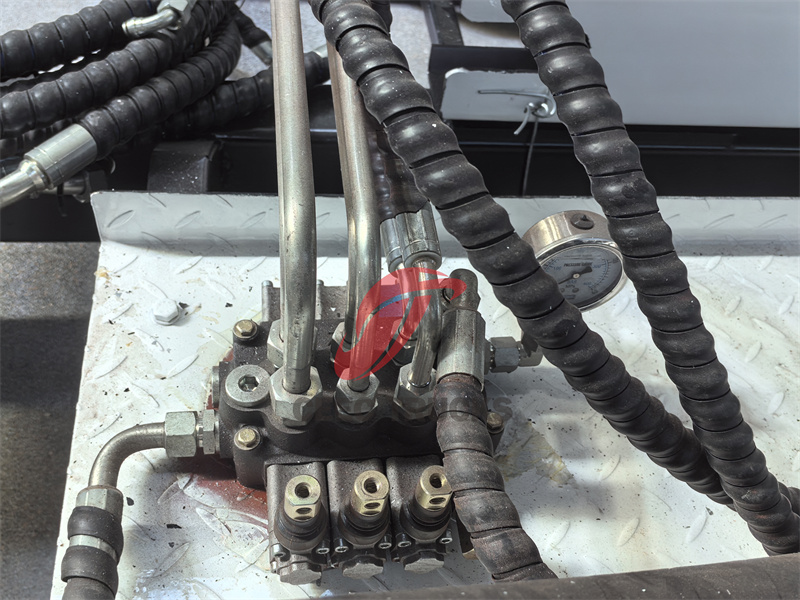

Hydraulic valve

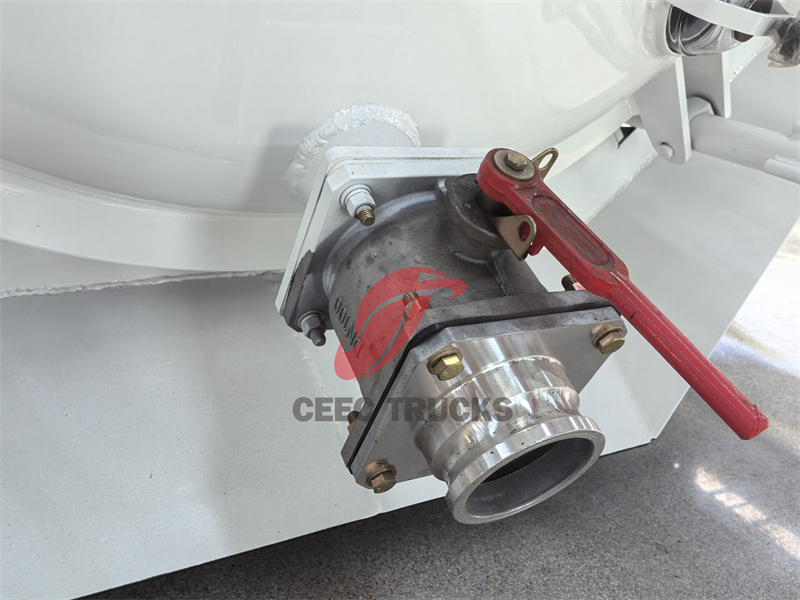

Drain valve

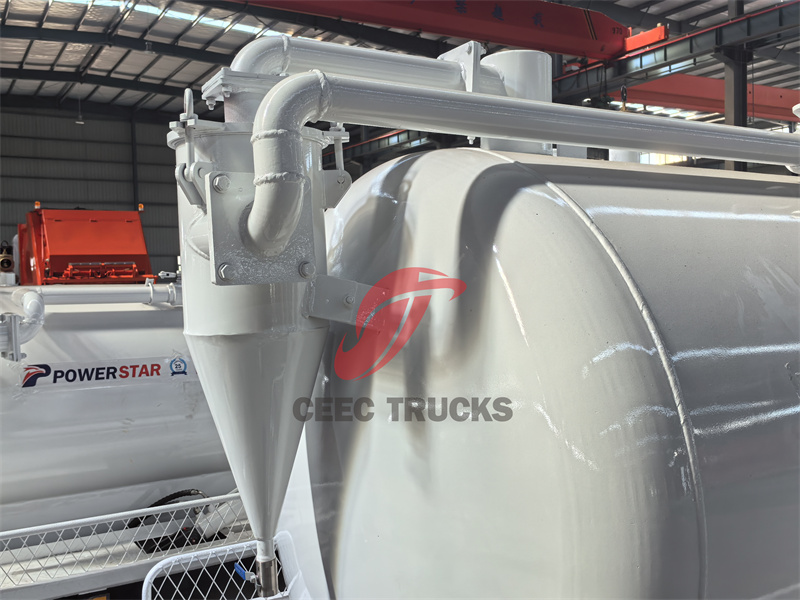

Secondary filter
