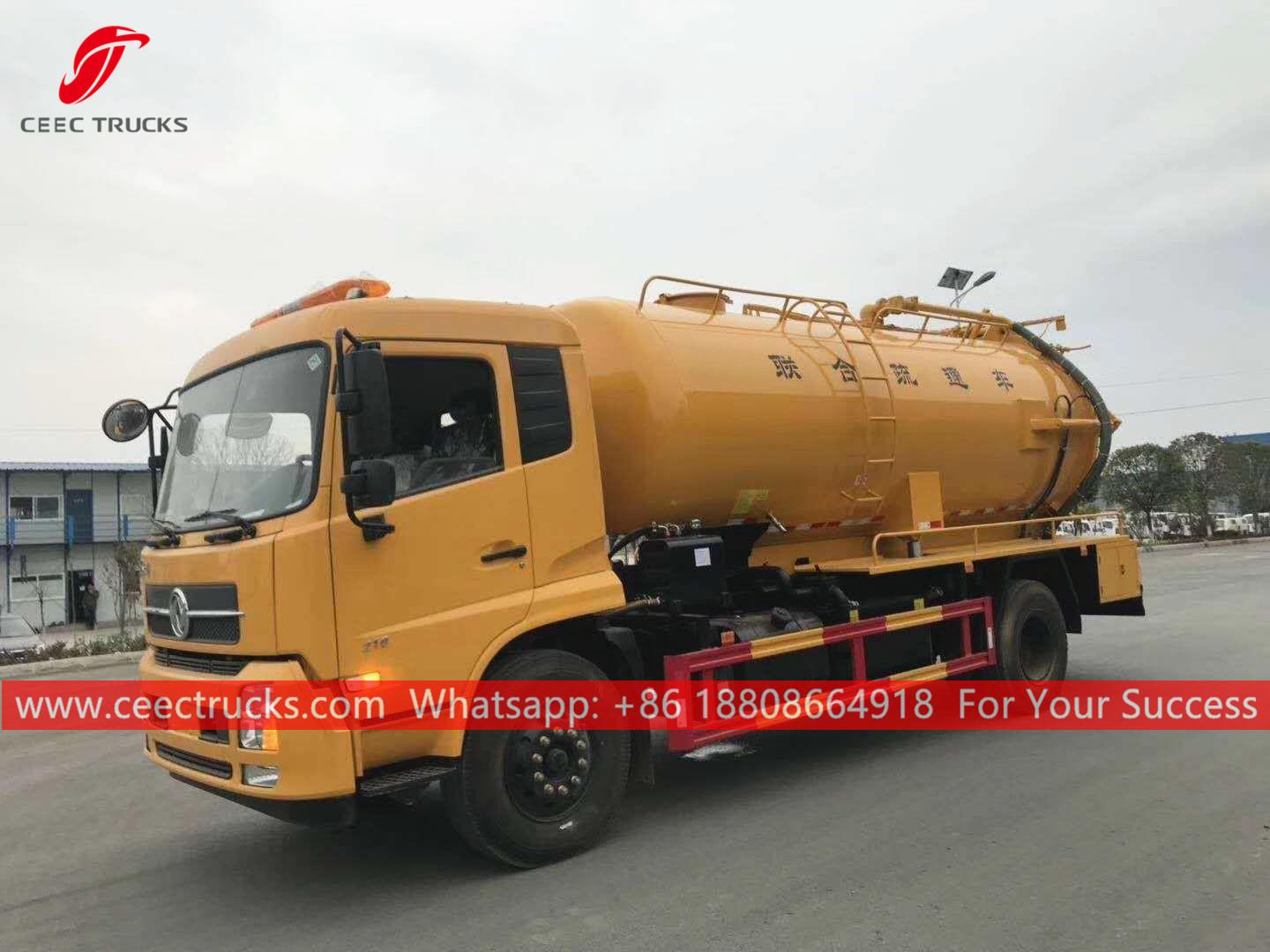

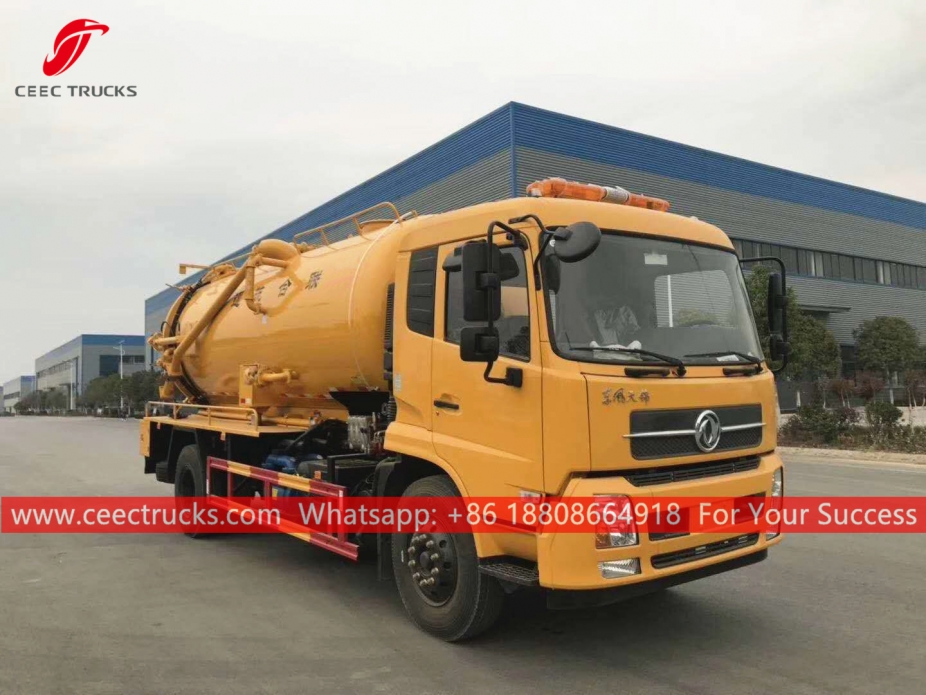

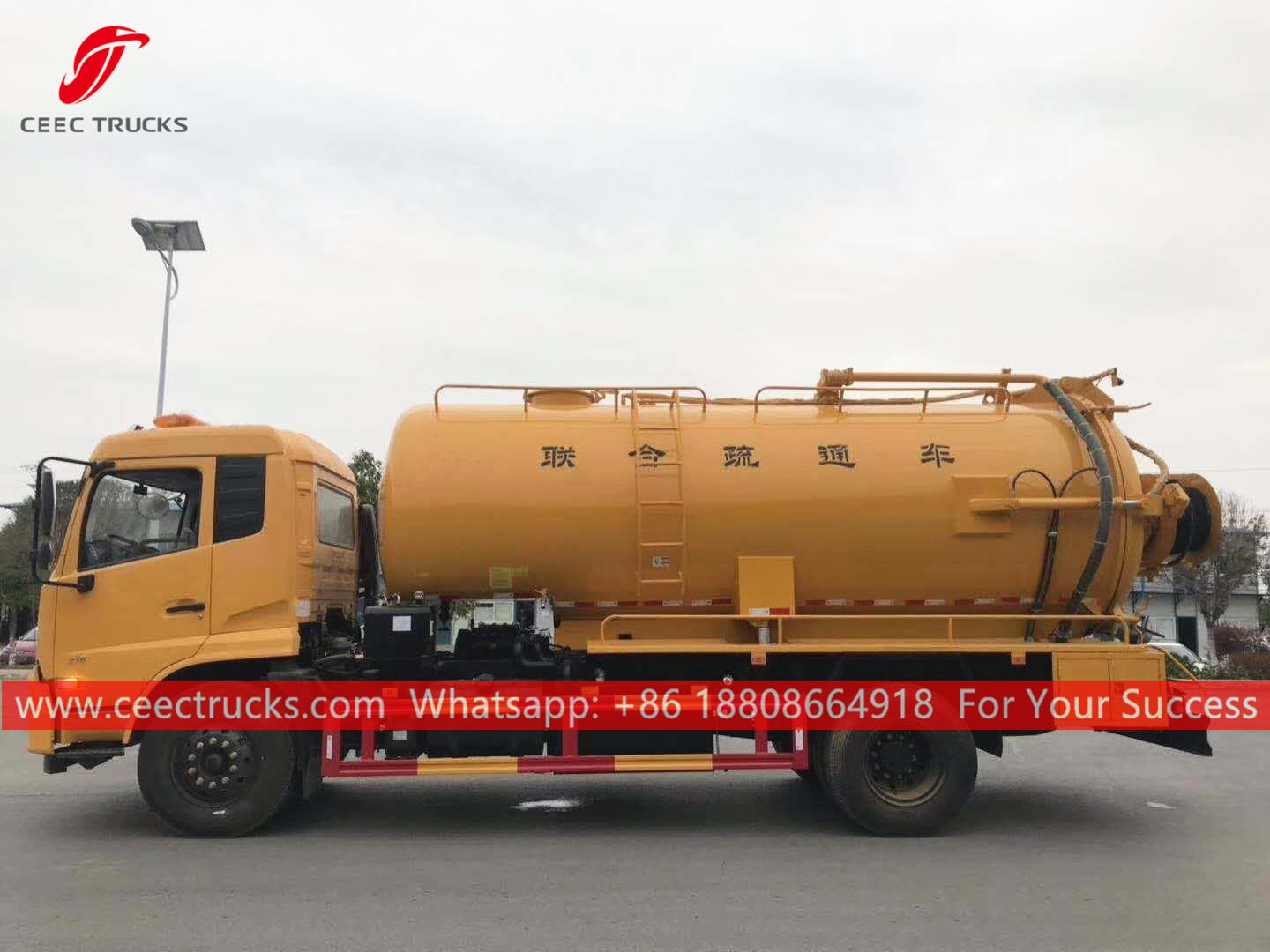

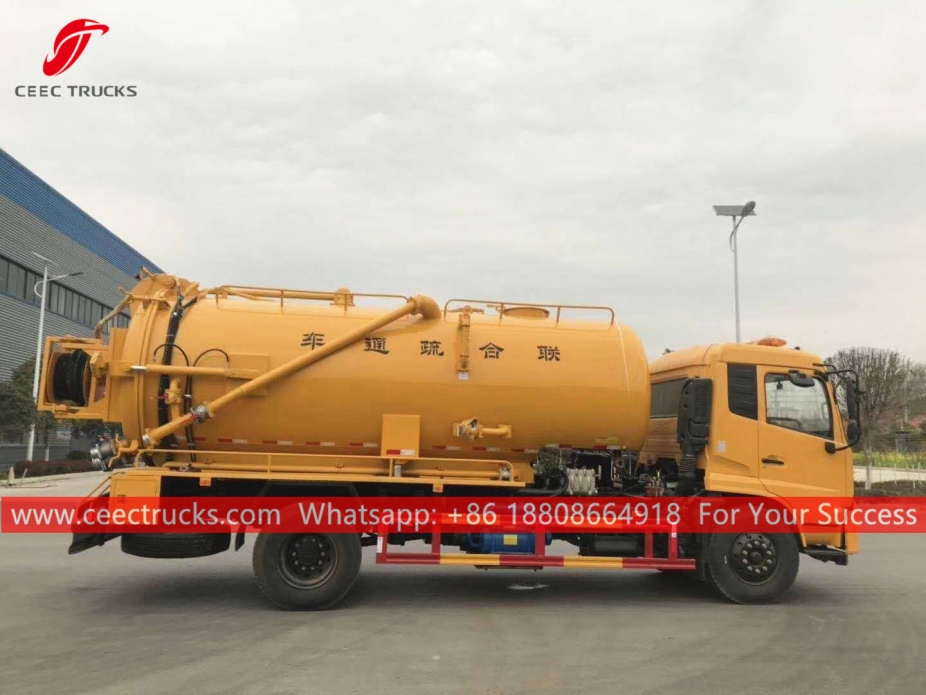

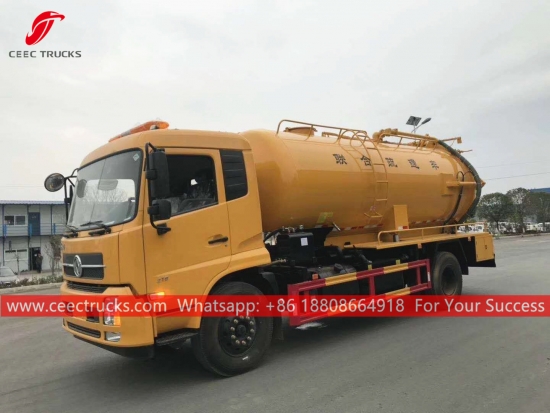

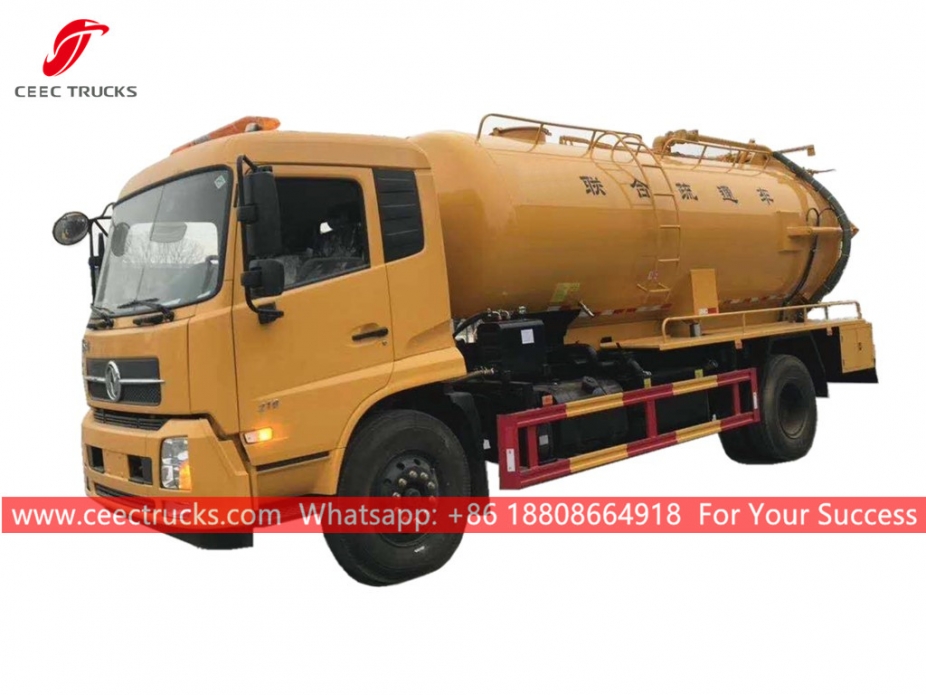

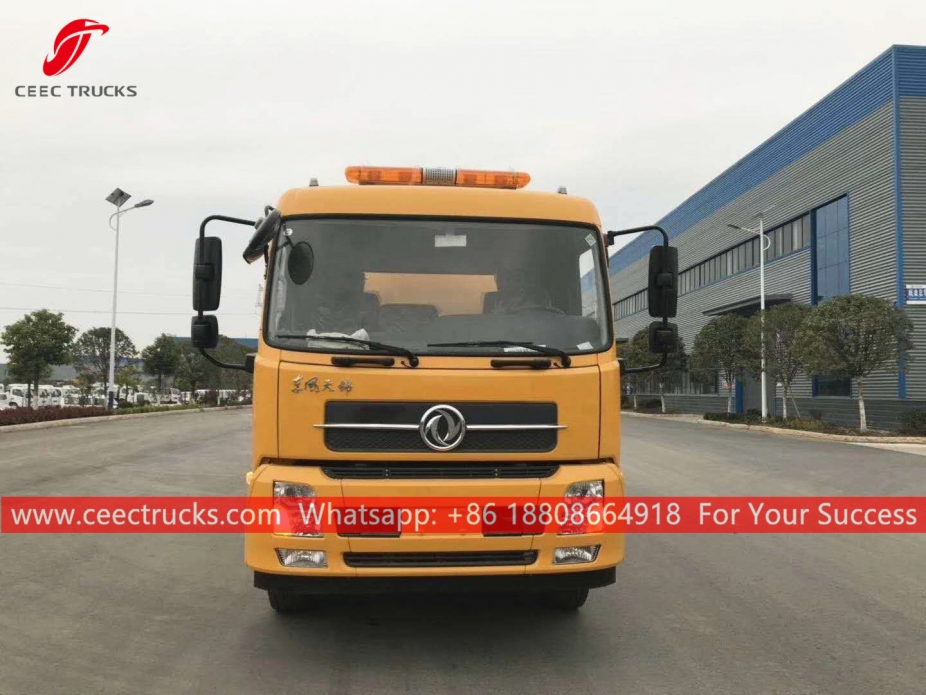

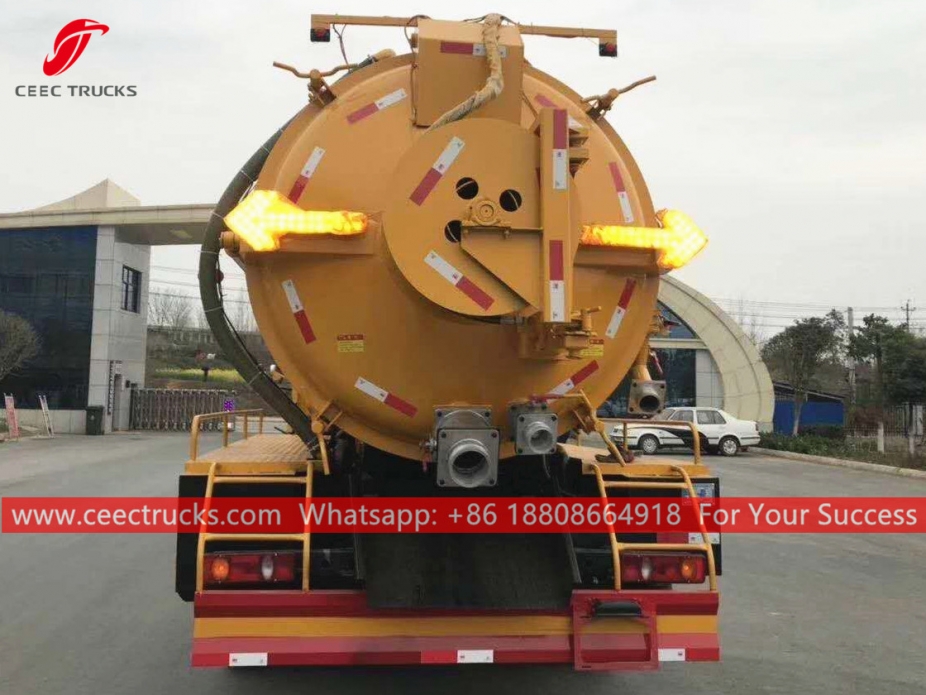

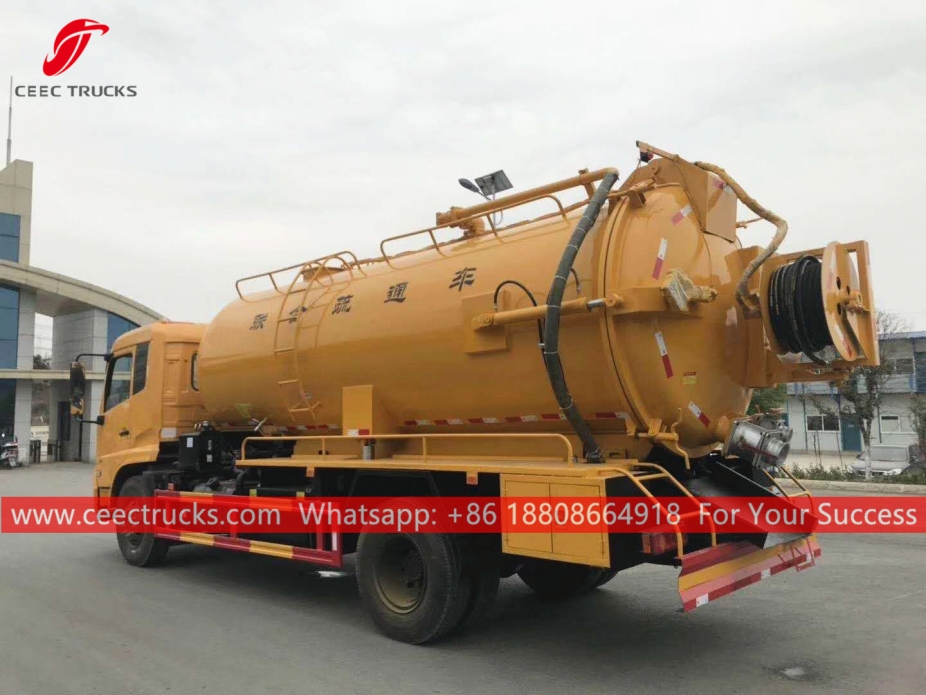

5+5 CBM Jetting Vacuum Truck DONGFENG

Best quality 10CBM combined sewage jetting truck, Dongfeng 4x2 LHD chassis, Manual 6-shift manual gearbox, CUMMINS 180HP diesel engine, famous brand high pressure jetting pump and vacuum pump, with front, middle and rear spraying nozzle optional, All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:



Combined Vacuum Jetting Truck Dongfeng (also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck ) is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipeline under high pressure, and clear sewer drain lines by means of a powerful vacuum suction to suck all water plus mud from sewer hole. This truck is widely used for environmental protection.


CEEC TRUCKS combined vacuum jetting truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc


 Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure

---- Optional Italy imported high pressure pump, super powerful, efficient pump in and out

---- Famous Chinese brand vacuum pump, effictive and dur

---- High pressure cleaning hose with automatic reel

---- Strong, durable, perfect performance


 Specifications:



Jetting Vacuum Truck DONGFENG (5,000 Litres + 5,000 Litres)

General

Vehicle Brand

CEEC

Chassis Brand

DONGFENG

Overall Dimension

8100 * 2500 * 3100 mm

GVW / Kerb Weight

16,000kg / 8,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

190 HP (140 KW)

Displacement

5900 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 8 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Water Tanker System

Tank capacity

5,000 Liters

Tank material

Carbon steel

High pressure pump

Optional 1: China brand pump 24Mpa

Optional 2: Italy import pump 16Mpa

Flow speed

120L/min

High pressure hose

High pressure hose 60m long

Auto reel

Auto hose reel

Suction head

6m

Nozzles

A cluster of nozzles included

Sewer Tanker System

Tank capacity

5,000 Liters

Tank material

Carbon steel

Vacuum pump

High efficient, vacuum rate over 93%, quick suction and discharge, suction lift 6m

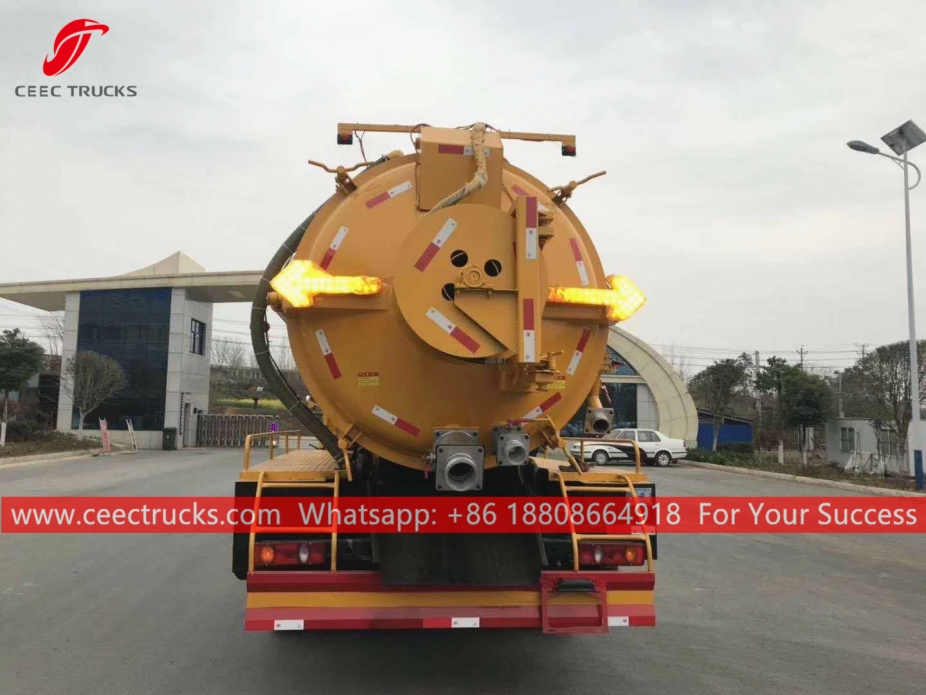

Rear door can be hydraulic open / close for complete discharge of solid stuff

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Tank material could be stainless steel.
** High pressure hose length could be customized.

Euro 3 or 4, CUMMINS engine, super powerful

Vacuum pump super powerful, efficient pump in and out

12 months fast moving spare parts for FREE

Authorized Dongfeng sewage suction trucks exporter

Training service for Dongfeng combined vacuum jetting trucks




CEEC TRUCKS is a leading exporter of suction jetting trucks in China. We possess over 10-year export experience of combination sewer cleaner. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our jetting and vacuum trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
