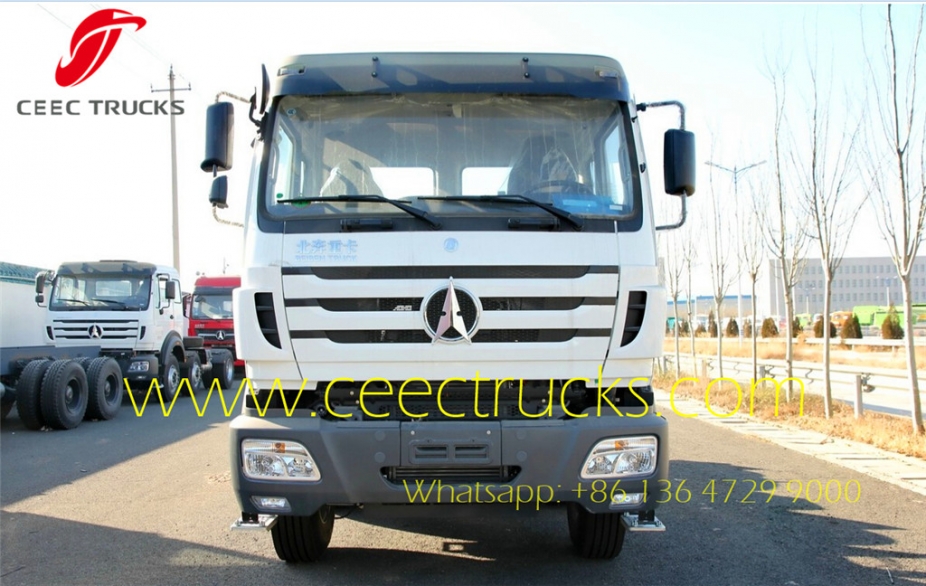

Beiben 340hp prime mover

Beiben 6*2 tractor head manufacturer supply LHD / RHD

Wheel base   (mm)

1450+3450

Curb weight (kg)

9200

Max Speed:(Km/h)

≥90

Engine

Model

WD615.38, water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Fuel type

diesel

Min rate of consuming fuel(g/(kW.h))

225g/Kw.h

Rated Power / rotating

(KW/(r/min)

250Kw/2200rpm

Emission

EUROⅡ

Maximum Torque / rotating speed(N.m/(r/min))

1750Nm/1200-1600rpm

Displacement(ml)

11596

Fuel tanker capacity (L)

400

Clutch

Model

#430,   Single dry frictional disc,Hydraulic boosting

Gearbox

Model

RT11509C, mechanical type,9 Forward speed gear.

Gear ratio of speed

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00   R1:14.86   R2:3.33

Brake system

Service brake

Brake gap can be adjusted automatically, double   circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098, whole   circulation in ball type, hydraulic boosting

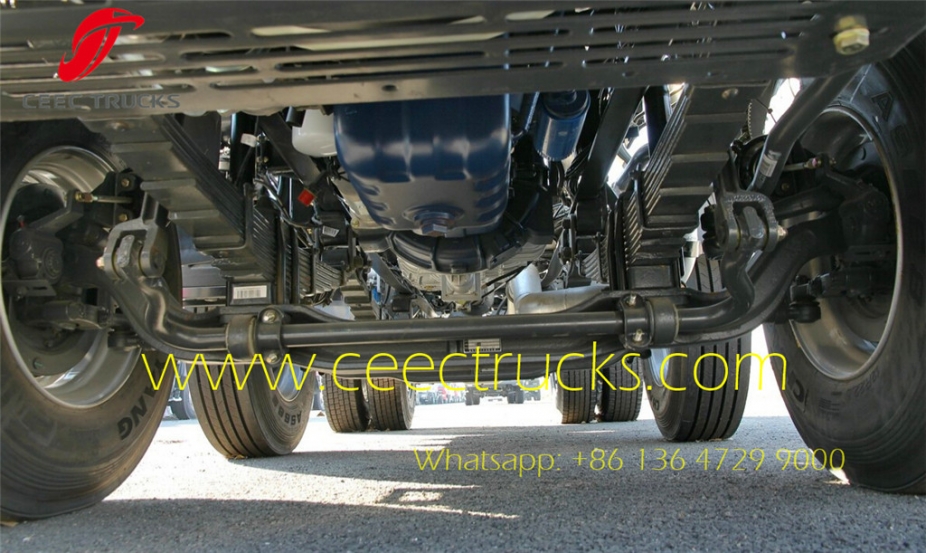

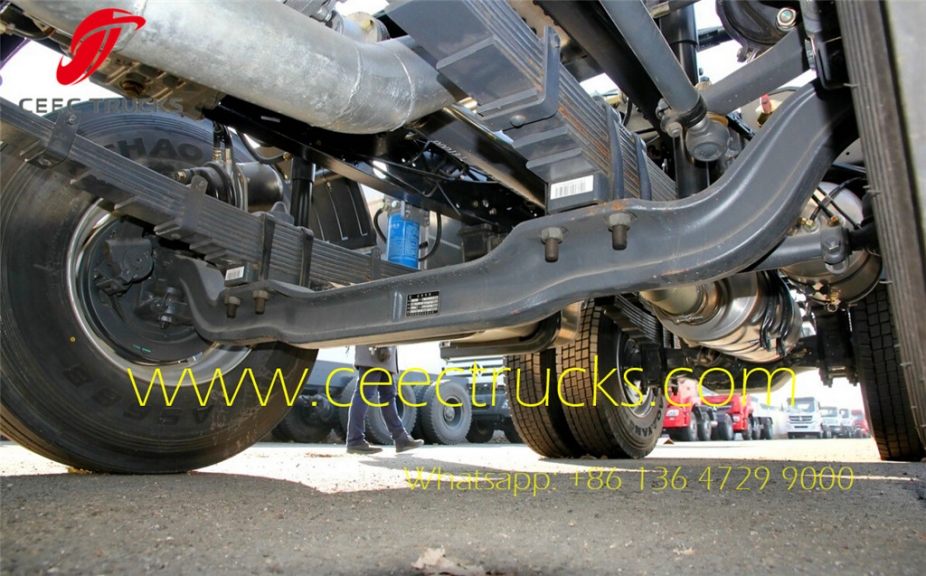

Suspension   system

Front Suspension

Non-free   standing leaf spring,telescopic shock absorber with stabilizer   bar suspension,

Rear Suspension

Non-free   standing stabilization spring, stabilization suspension,

Frame

Fish belly   shape, variable width, variable sections

Cross section   dimension of frame(mm)

317×70×8

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering   axle AL7/1DS-7/5.263

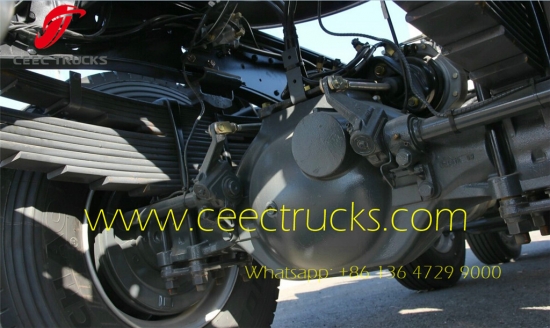

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Middle axle: HD7/016DGS-13/5.263

Rear axle: HL7/015DS-13/5.263

Tire

12.00R20 radial

Qty of tire

11

Electrical   system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab with   sleeper,

Full steel   skeleton structure, covered with double layer steel plate;

Can be tipped   forwardly;

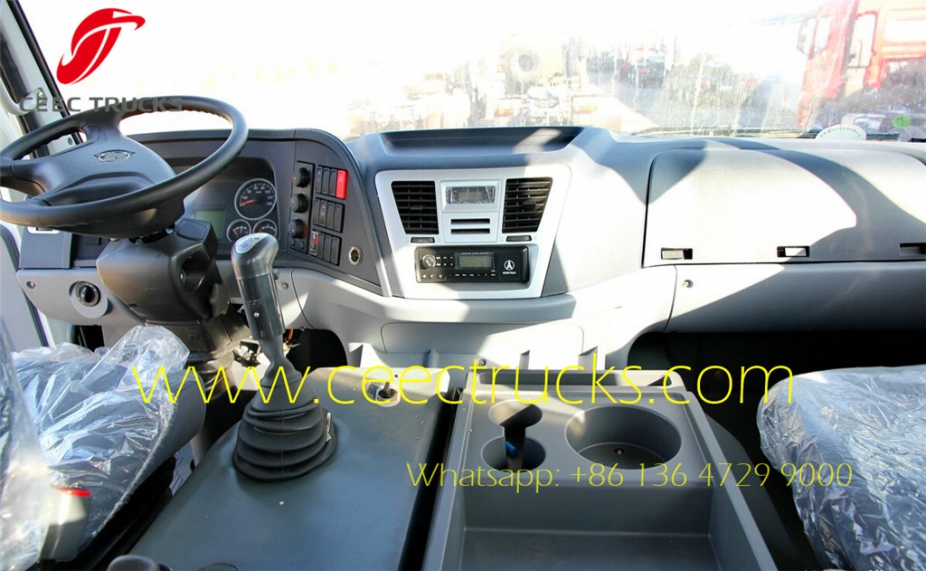

Interior   trimming:

Integral   interior trimming, Integral instrument, digital instrument, inner A/C, radio   (with USB interface), high back/shock absorption seat for driver, high back seat   for co-driver. Steering wheel can be adjusted.

Exterior   trimming:

Single layer   road bumper, three steps, with new mirror. with outer sun visor

Fifth wheel

#50 single   direction JOST
