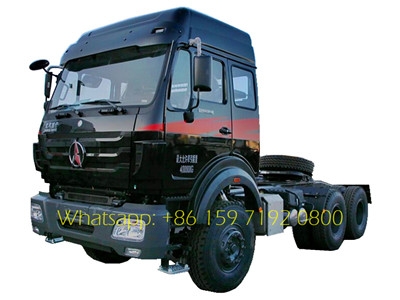

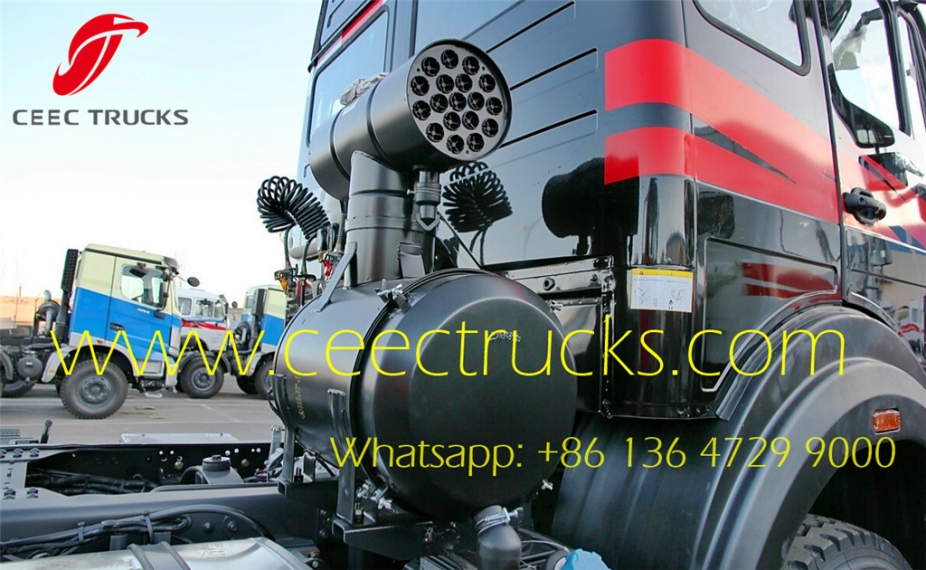

RHD Beiben truck head for Kenya

Beiben NG80 dump truck 6x4 30ton

Tanzania beiben 2542 tractor trucks, WP10.420 engine, super powerful, FAST 12-shift manual gearbox, 12.00-20 with 10+1 units spare tire. Our north benz 420 RHD prime mover widely export Kenya, Zambia, Tanzania, etc

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $44,800-57,000
  • Market Price:

    $49000
contact now

Beiben head truck 2542 for Tanzania, the north benz 420HP 6*4 towing truck are best selling series beiben tractors, customers from Congo, Ghana, Zimbabwe, Kenya, Togo countries prefer to choose beiben 2542 tractor head from CEEC TRUCKS, for we are authorized beiben truck supplier, and the price for beiben 2534, 2538 prime movers are relatively lower than other beiben truck supplier in European and Asia countries. All to meet all customer requirement



Beiben 2542, 2642 towing trucks export Tanzania



north benz 2542 tractor head factory low price sale



Beiben 420Hp powerful tractor head advanced features:

CEEC TRUCKS are authorized Beiben 2542 tractor trucks, north benz 6*4 prime movers supplier in China

All Beiben trucks share same features with Mercedes Benz tractors, like HL7, HD7 and VL4 axles used in the Actros and Atego models.

Same features and quality with Benz truck, but beiben 2542 towing trucks are 30% cheaper than it.

Beiben truck use WP10.420E32 EURO 3 model engine, which has emission 10 liters and HP can be up to 420PS.

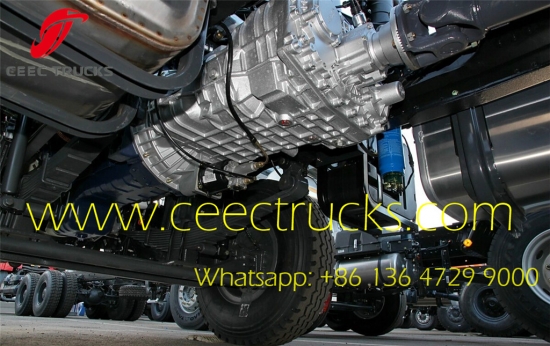

FAST 12JS200T manual machanism transmission gearbox, 12 forward and 2 reverse manual

High quality guarantee, massive, durable, perfect performance and prolonged service life.



beiben 6x4 tractor trucks drawing

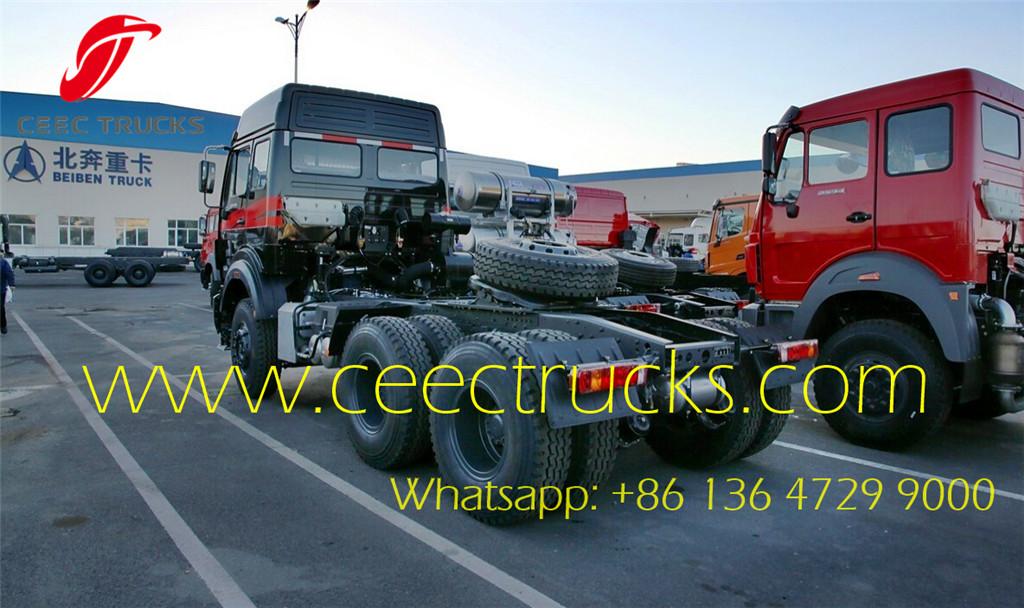

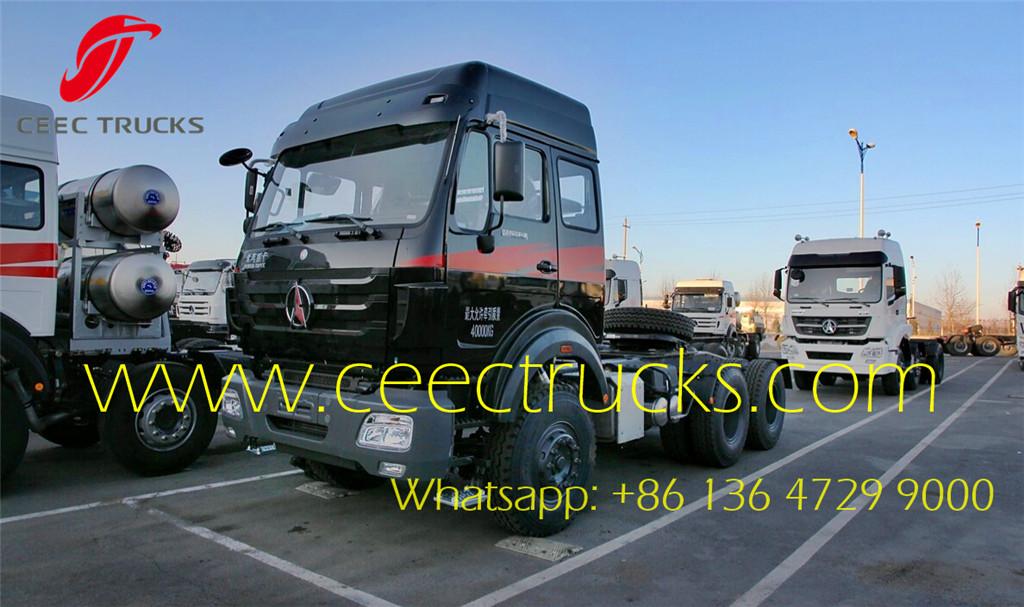

beiben 6x4 tractor trucks



beiben 6x4 tractor trucks



Similar Key Works: Beiben 2542 tractor truck, beiben 6*4 prime mover, north benz 2542 tractors camions, beiben 2642 towing truck, Benz 2542, 2546 tractor head, beiben 6*4 tractors



Wheel base (mm)

3450+1450

Curb weight (kg)

9200

Max Speed:(Km/h)

≥90

Engine

Model

WD615.38, water-cooled, four strokes, 6 cylinders straight in line, turbocharged



Fuel type

diesel



Min rate of consuming fuel(g/(kW.h))

≤198



Rated Power / rotating

(KW/(r/min)

280Kw/2400rpm



Emission

EURO



Maximum Torque

rotating speed(N.m/(r/min))

1460Nm/1400-1600rpm



Displacement(ml)

9726

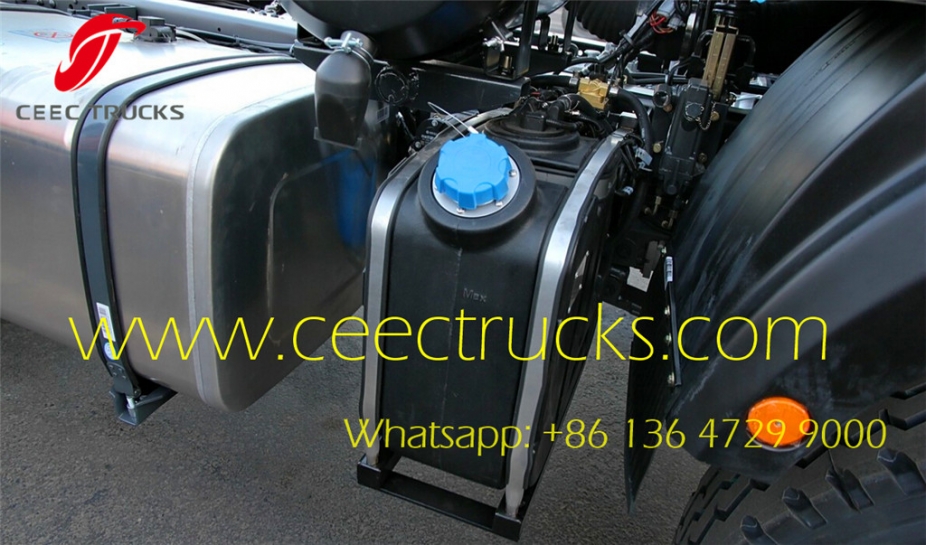

Fuel tanker capacity (L)

400

Clutch

Model

#430, Single dry frictional disc, Hydraulic boosting

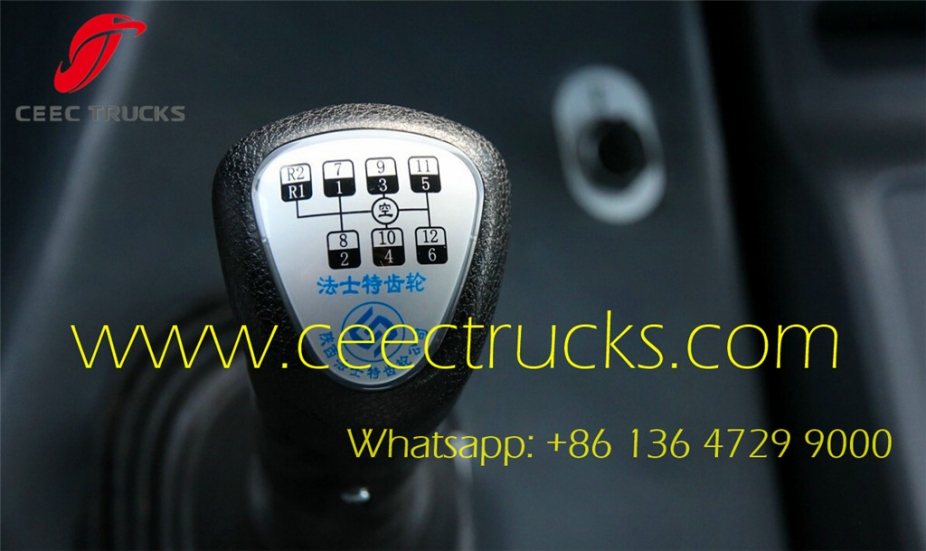

Gearbox

Model

12JS200T, mechanical type,12 Forward speed gear,

2 reverse gear



Gear ratio

12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/1.28/1.00/0.78

R1: 11.56   R2: 2.59

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system



Assistant brake

Engine exhaust brake



Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,  whole circulation in ball type, hydraulic boosting

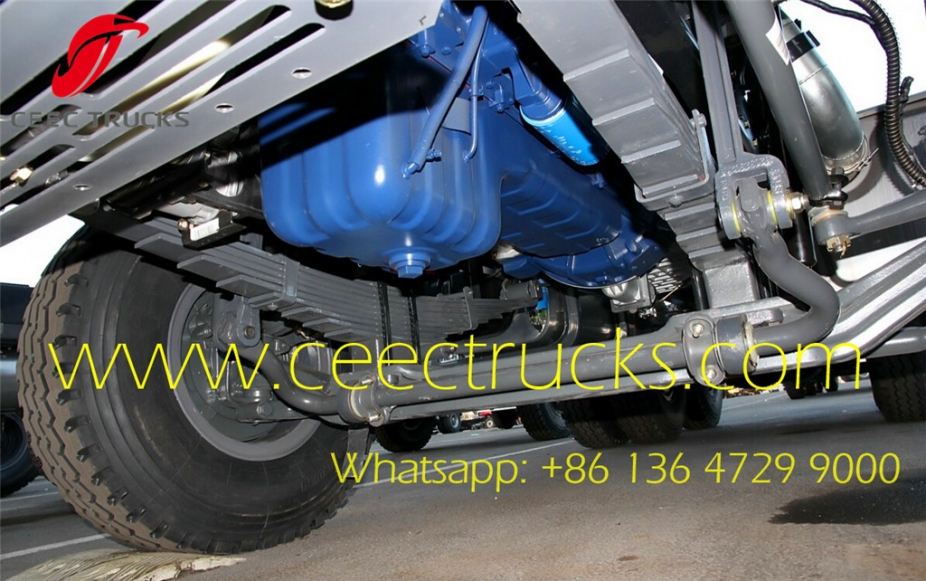

Suspension system

Front Suspension

Non-free standing leaf spring,telescopic shock absorber with stabilizer

bar suspension



Rear Suspension

Non-free standing stabilization spring, stabilization suspension

Frame

Fish belly shape, variable width, variable sections

Cross section dimension of frame(mm)

317×70×8.5+7+8

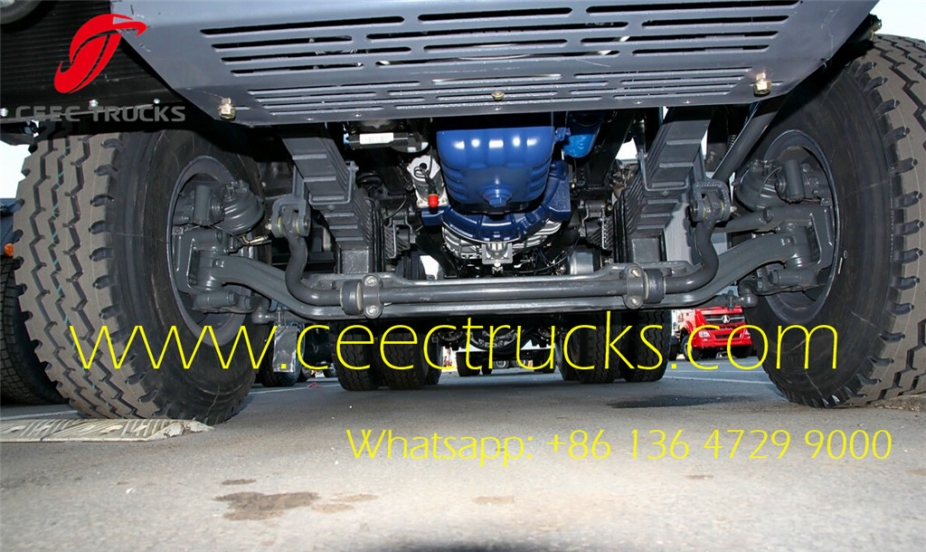

Front axle

Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263

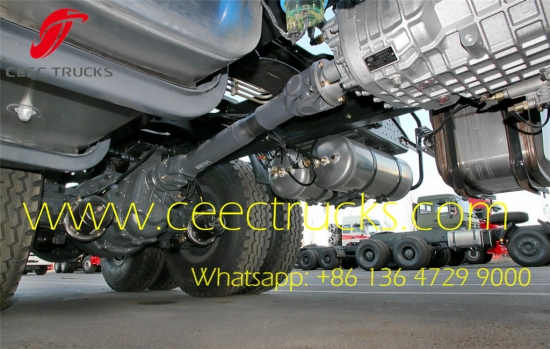

Middle and Rear axle

Double-shoe pneumatic brake, ductile casting casing,

with hub redactor, double reduction driving axle

Middle axle: HD7/016DGS-13/5.263

Rear axle: HL7/015DS-13/5.263

Tire

12.00-24 (one spare tire)

Electrical system

Battery

2X12V/135Ah



Generator

28V-35A



Starter

5.4Kw/24V

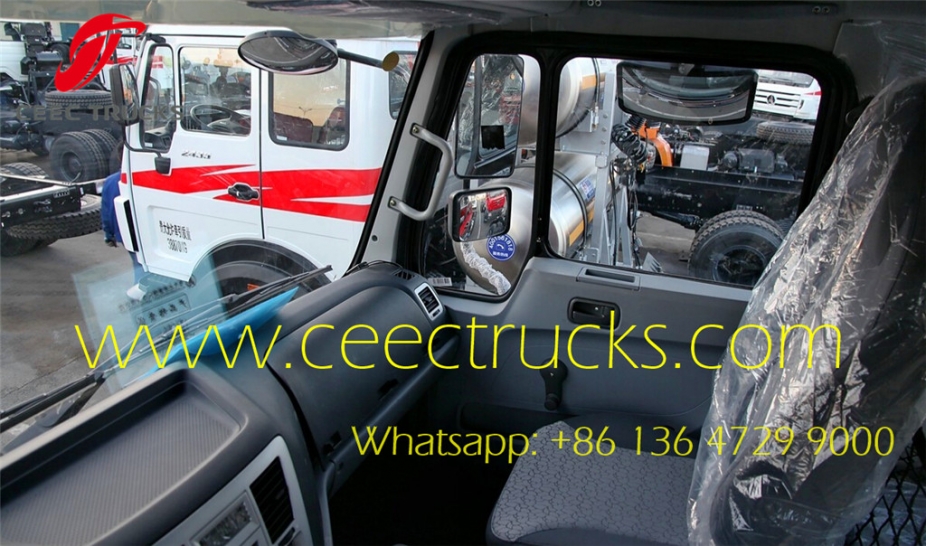

Cab

Short cab,

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

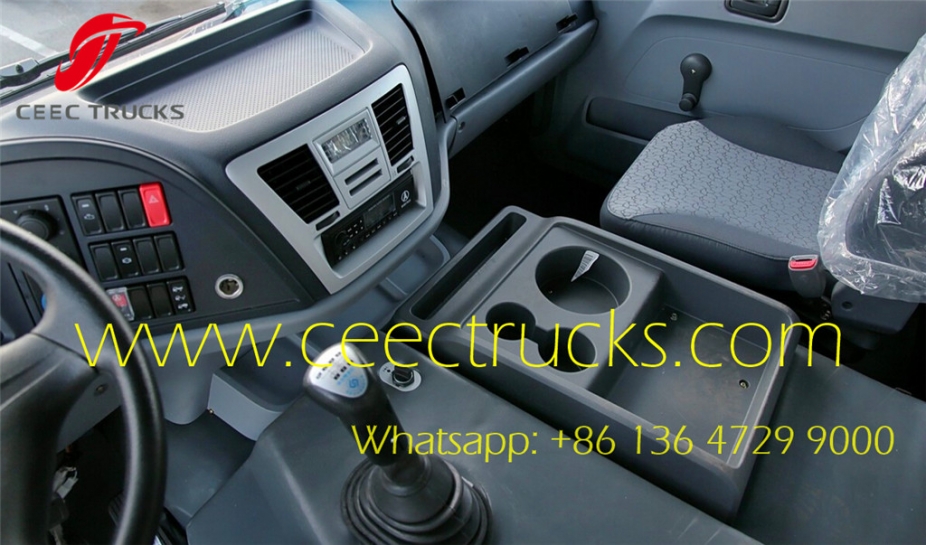

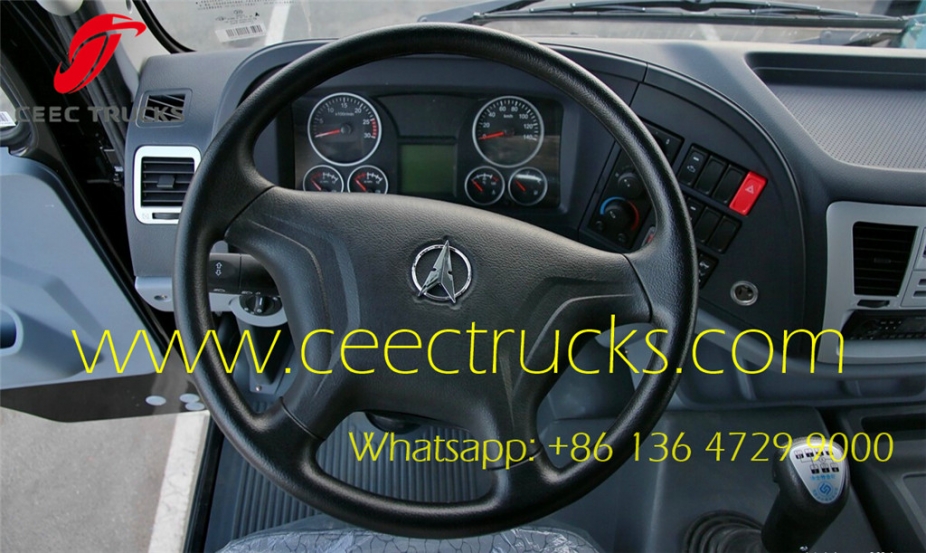

Interior trimming:

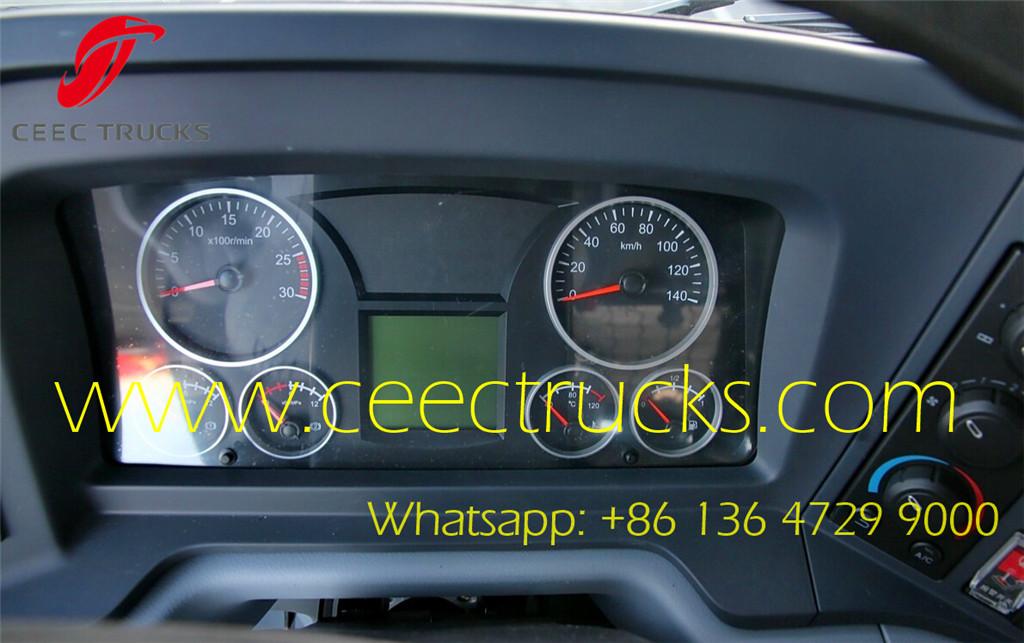

Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio

(with USB interface),

high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.



Exterior trimming:

Single layer road bumper, three steps, with new mirror. with outer sun visor

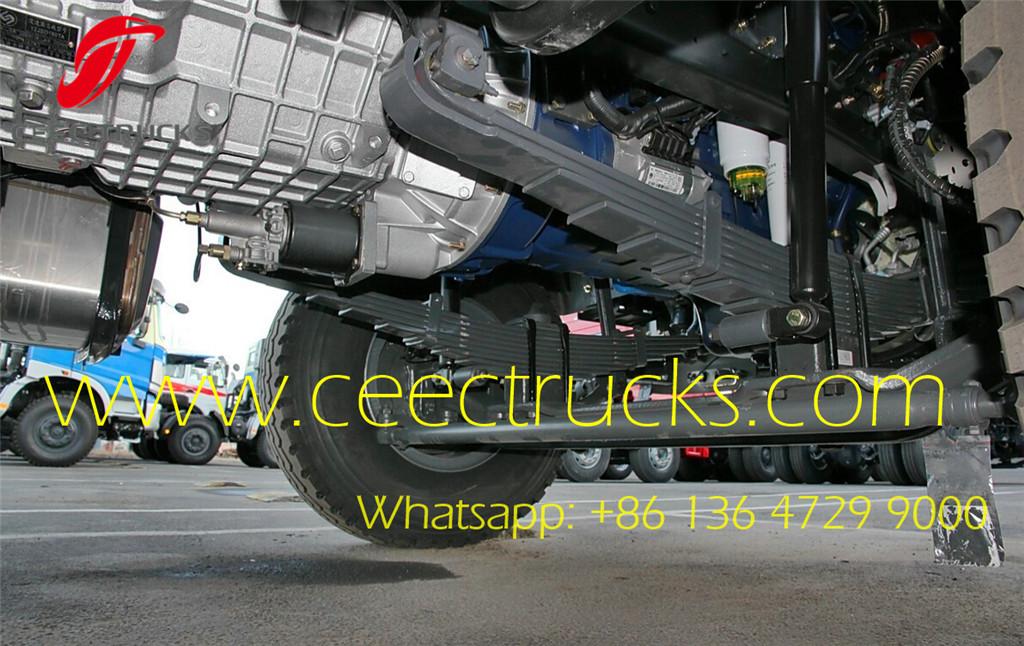

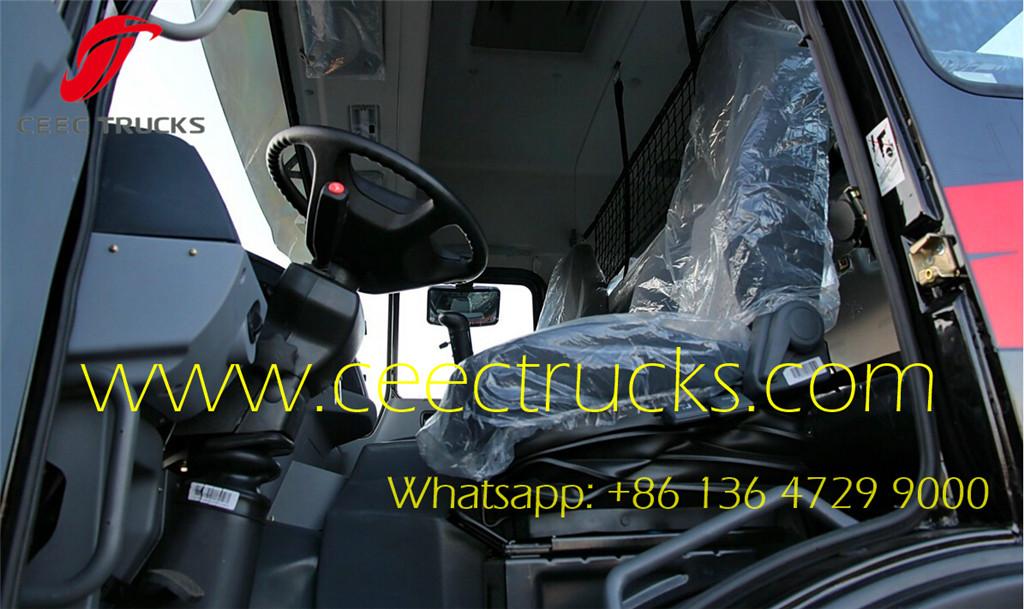

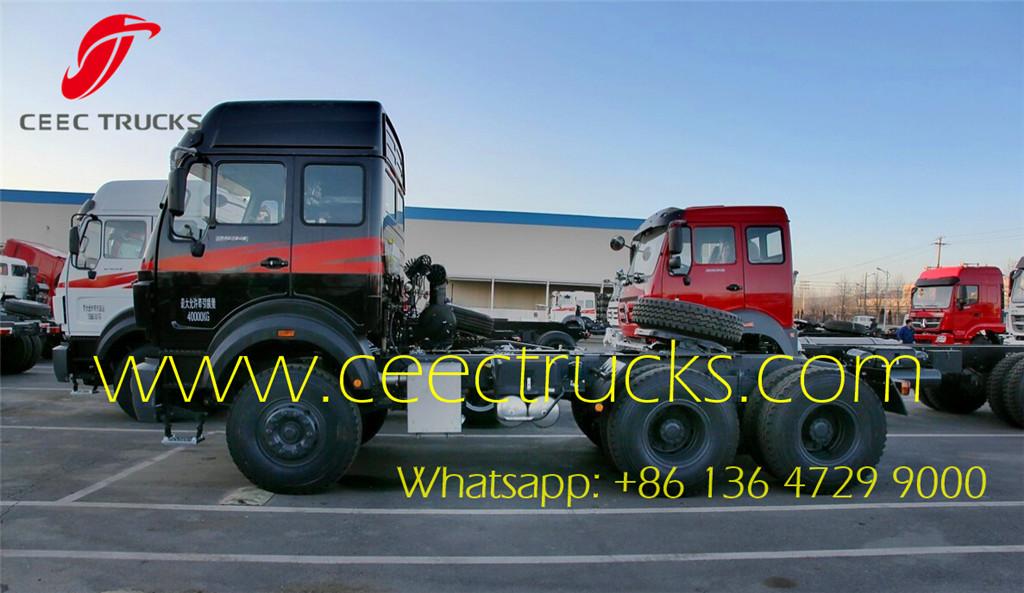

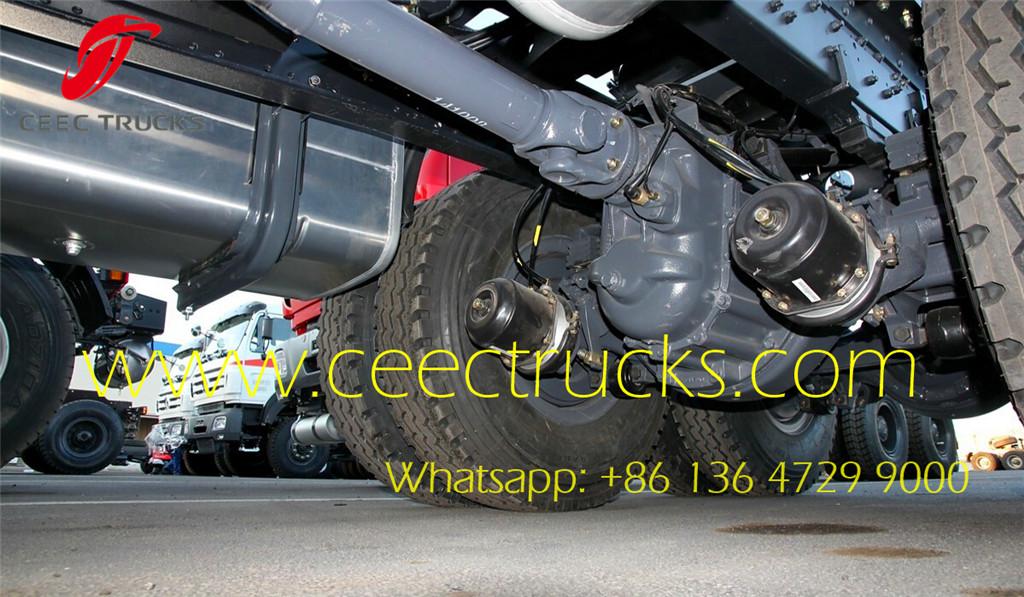

beiben 2542 prime mover widely sale low price



beiben 2542 prime mover widely sale low price



beiben 2542 prime mover widely sale low price    beiben 2542 prime mover widely sale low price



beiben 2542 prime mover widely sale low price



beiben 2542 prime mover widely sale low price    beiben 2542 prime mover widely sale low price



Other beiben trucks display





SaveSaveSaveSaveSave

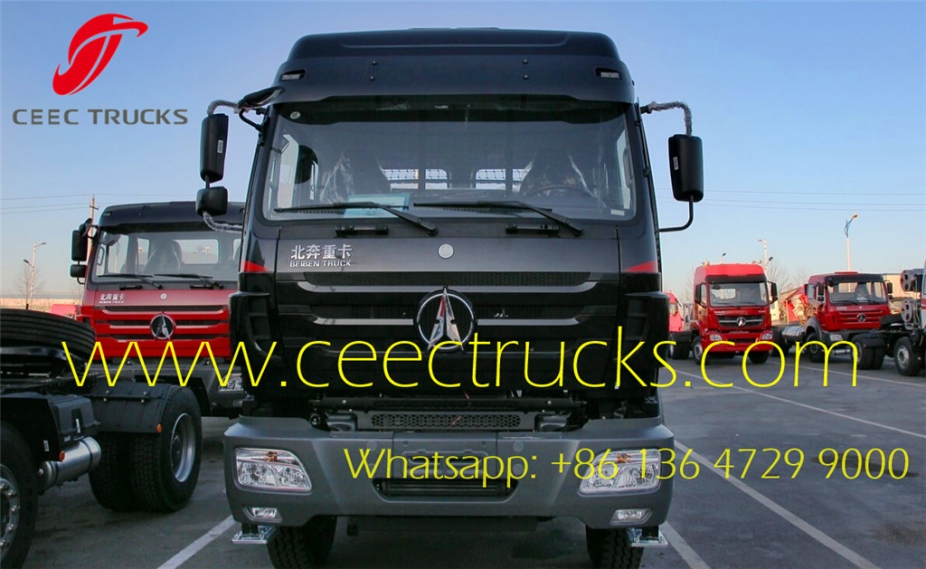

Beiben 2542 tractor trucks equipped with new NG80B cabin, which has attractive appearance

WEICHAI engine WP10.420E32, strongly 380ps, and FAST 12JS200T mechinical gearbox

Curb weight approx 9200kg and towing weight can be up to 70T, very strong performance

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

Beiben 2542 Tractor truck use European ECER29 safety and regulatory requirements, stamping molding of frame only once ensures girder strength



TOP quality Beiben 2542 NG80B Cabin Tractor Truck

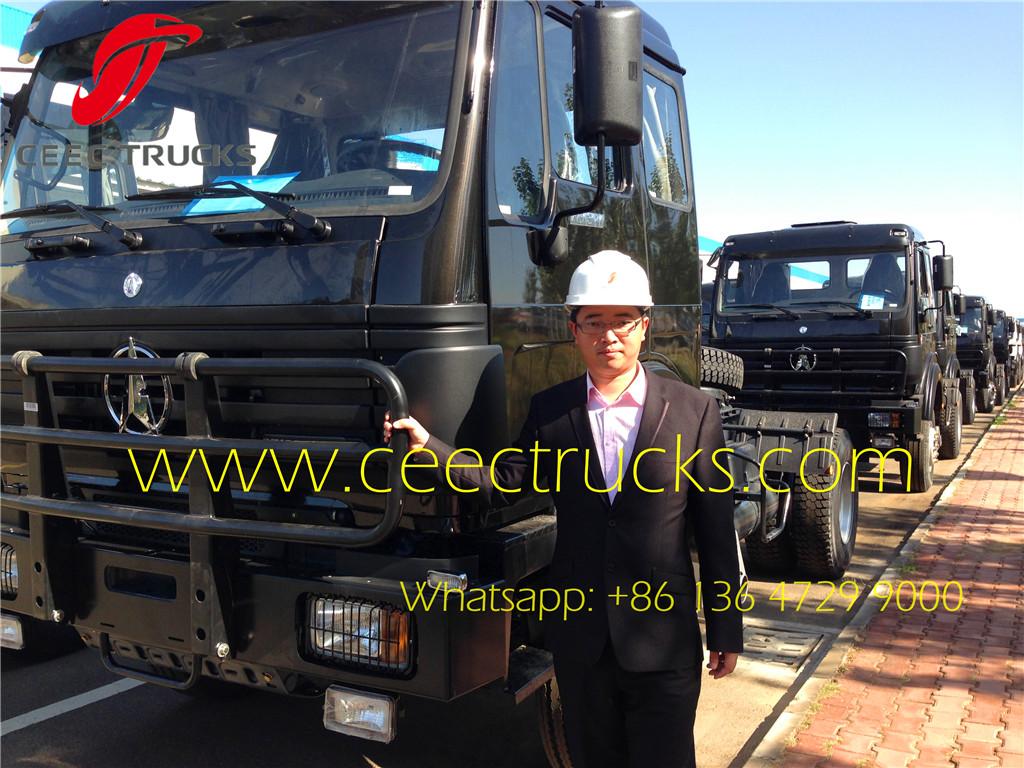

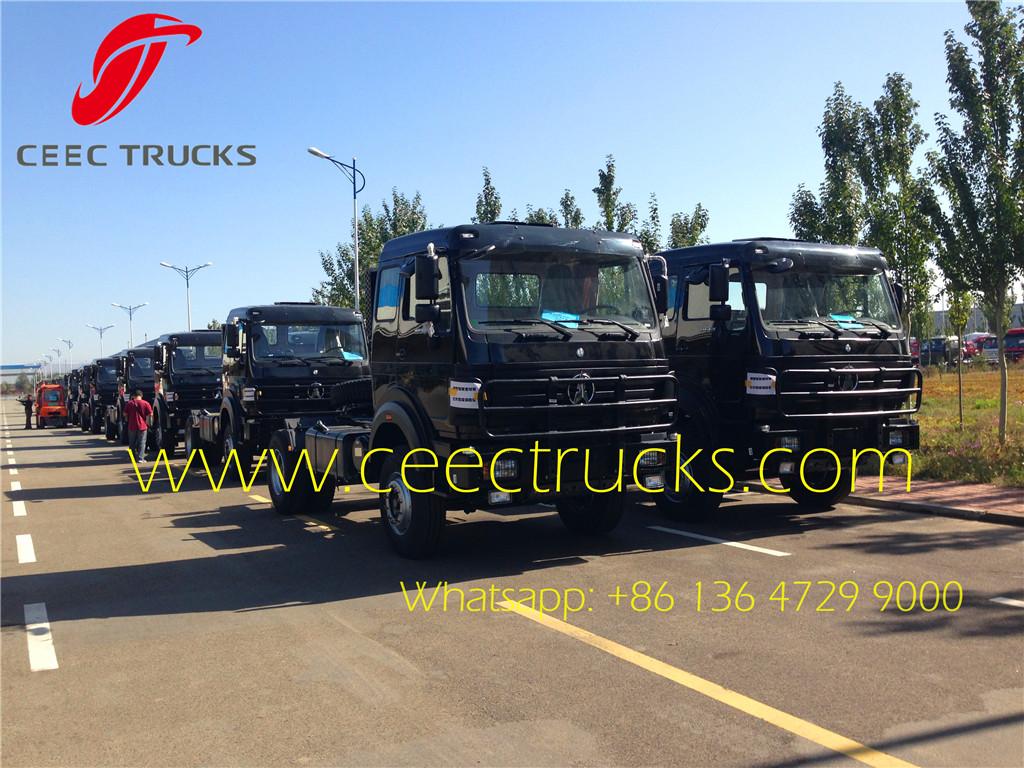

beiben 420HP prime mover

(Beiben 420HP tractor head ready for shipment to Africa Tanzania)



beiben 420HP prime mover

(Our engineers are testing the beiben 420HP tractor truck and ready shipping to Shanghai seaport)
