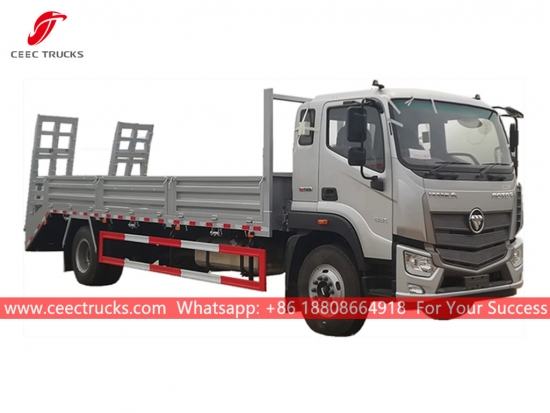

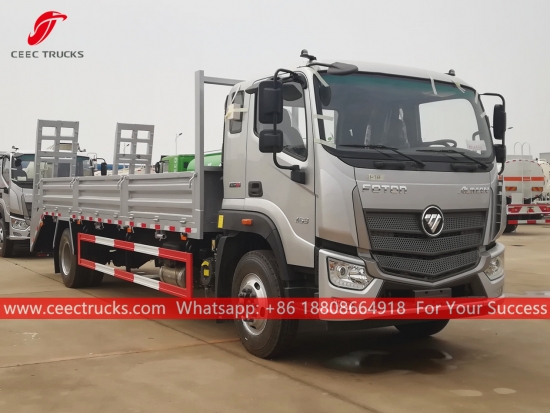

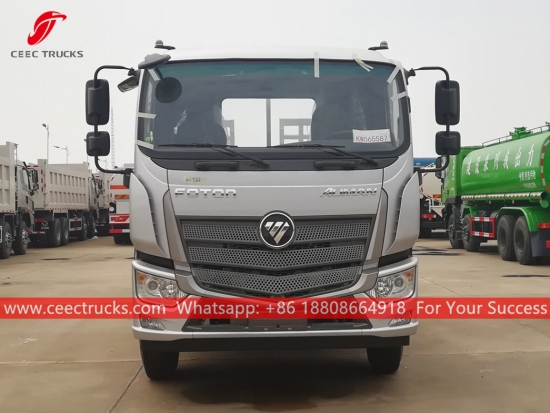

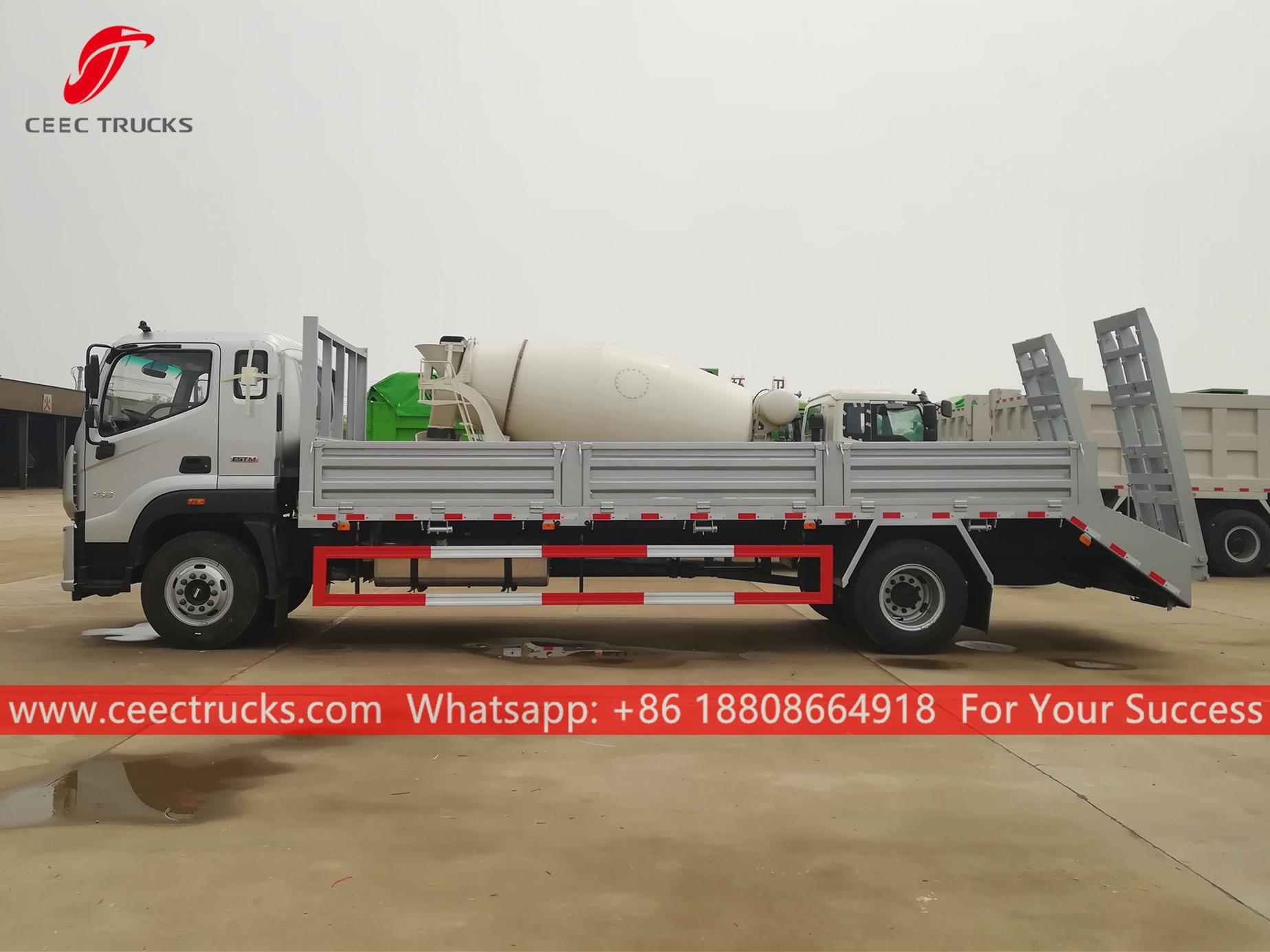

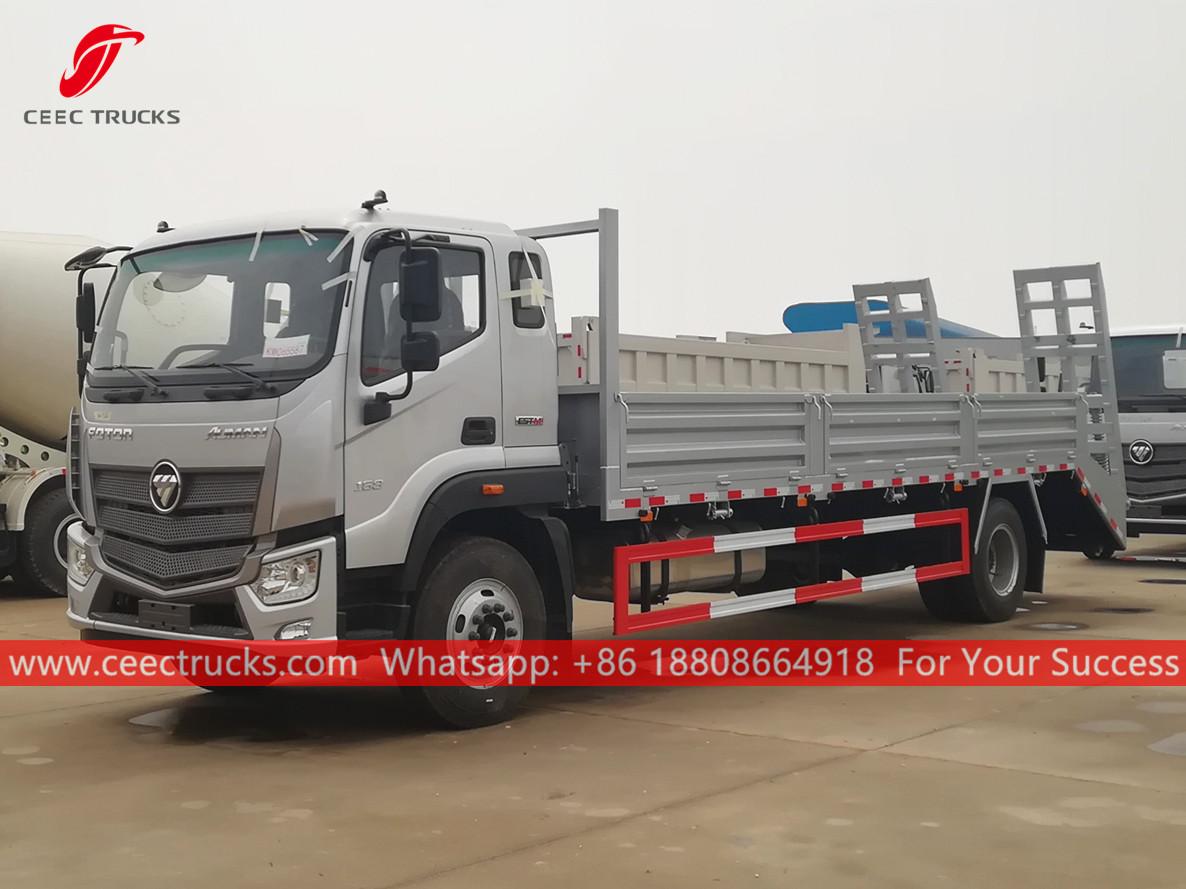

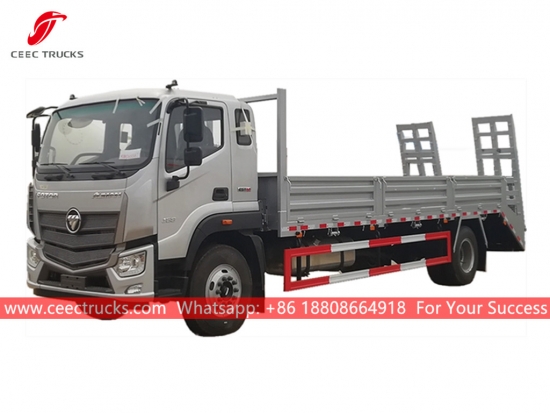

FOTON Multi-functional Flat Bed Transport Truck

Flat bed truck for sale, FOTON brand 4x2 left-hand-drive truck chassis, FOTON brand 168HP diesel engine, Manual 6-shift gearbox, long flat bed with rear hydraulic ladder. all painting and logos depend on request.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:



FOTON Flat Bed Transport Truck (also called Low flat bed Truck FOTON, Platform Vehicle for Transportation FOTON, FOTON machinery transportation truck, FOTON excavator transport truck, small flatbed machinery transport truck, etc) is used for transporting machine that is non-removable or machinery that can't be driven on road, such as excavator, loader, harvester, machine equipment, etc. It's widely used in the construction, agriculture field.

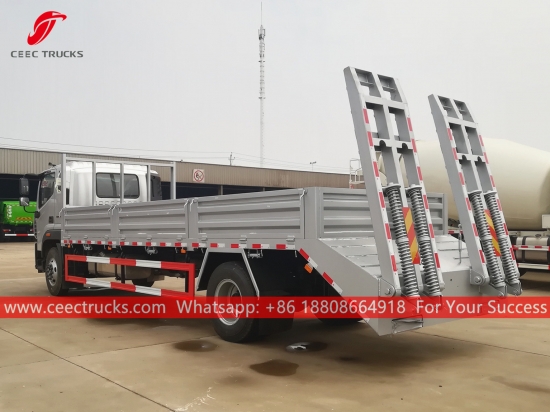

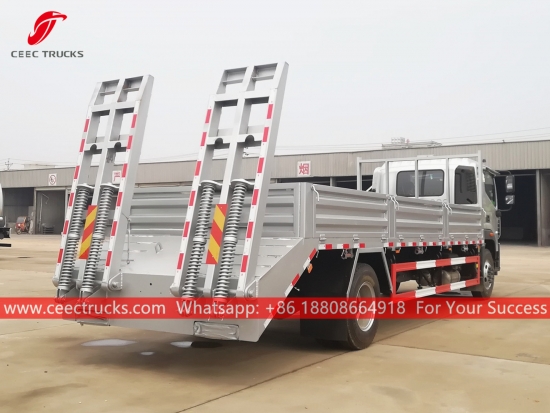

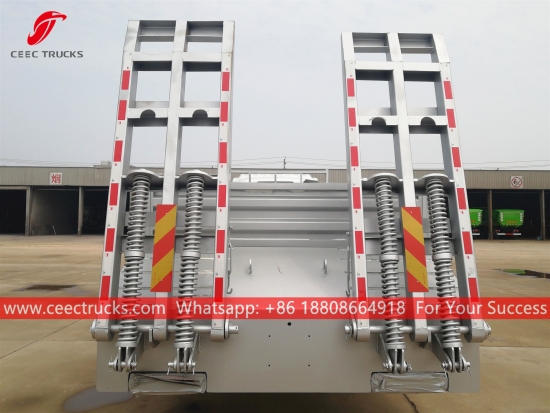

CEEC TRUCKS produced excavator carrier trucks are easy to load machinery, there is a hydraulic ladder at rear of the platform. When loading machinery on, turnover the ladder to ground to build a slope between platform and ground. When finished loading, the ladder should be fold up and fastened by manual.


As for the flat bed carrier trucks, driving type could be 4x2. 4x4, 6x4, 6x6, 8x4, etc.



 Key Features:

---- FOTON truck chassis, perfect performance

---- FOTON series engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Famous screen for optional

---- Roof fire extinguisher system to guard safety.

---- Massive, durable, long service life.

 Specifications:



FOTON 4x2 flatbed transport truck

General

Vehicle Brand

CEEC

Chassis Brand

FOTON

Overall Dimension

8320 * 2500 * 2890 mm

GVW / Kerb Weight

18,000kg / 7,875kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

168 HP (125 KW)

Displacement

3760 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4800 mm / 2

Tire Specification

9.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Flatbed Loading Capacity

10Tons

Flatbed Material

Strengthen checked plate, anti slip

Flatbed Thickness

5 mm

All standard accessories: Basic tool kit, English manual……

Optional

** Hydraulic ladders at rear of the platform.

** Width extensible manual or hydraulic.

** Front hydraulic lifting system.

Manual 6-shift manual gearbox, 6 forward & 1 reverse

Expert for producing FOTON Flatbed truck over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for FOTON Flatbed transport trucks



China best flatbed truck supplier and exporter, we supply the best quality FOTON low flat bed trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our FOTON Low flat bed vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
