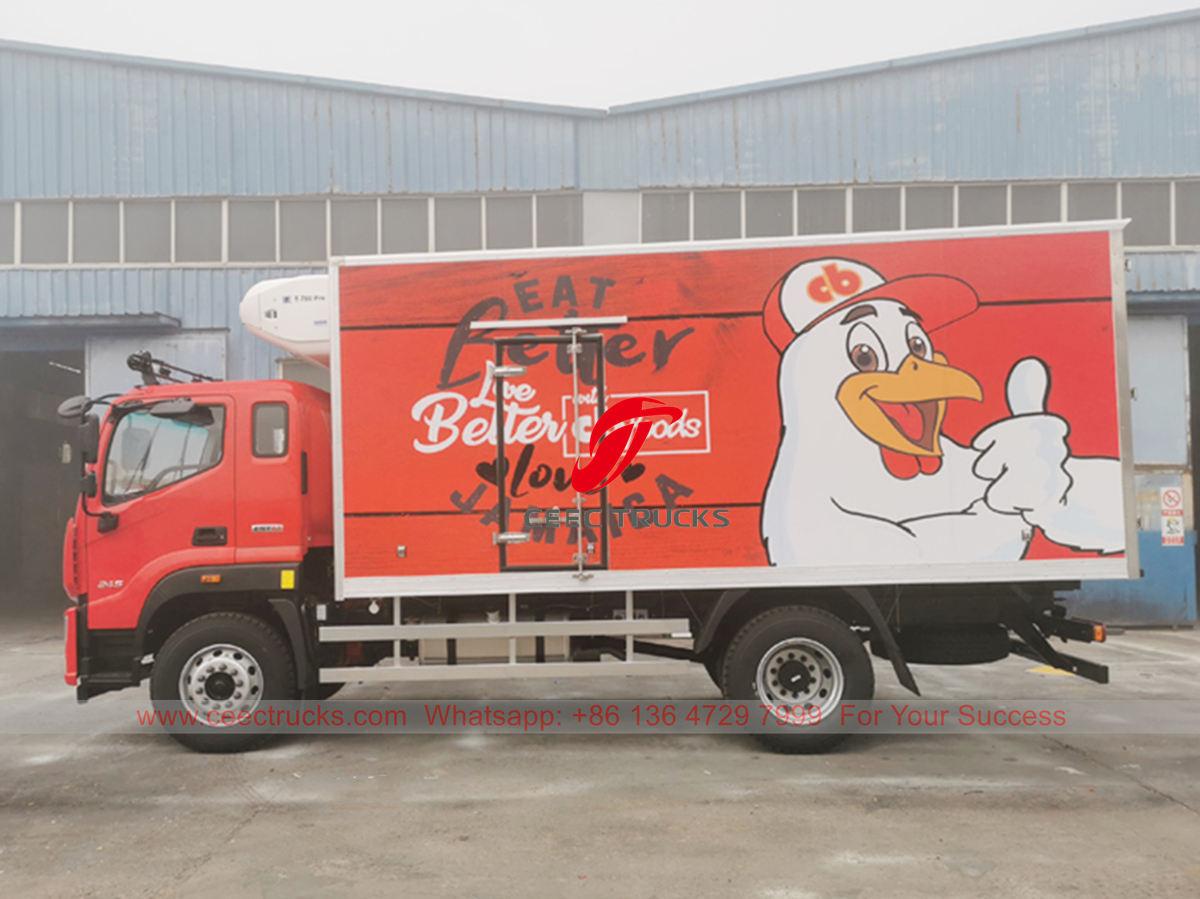

FOTON RHD Freezer Box Truck

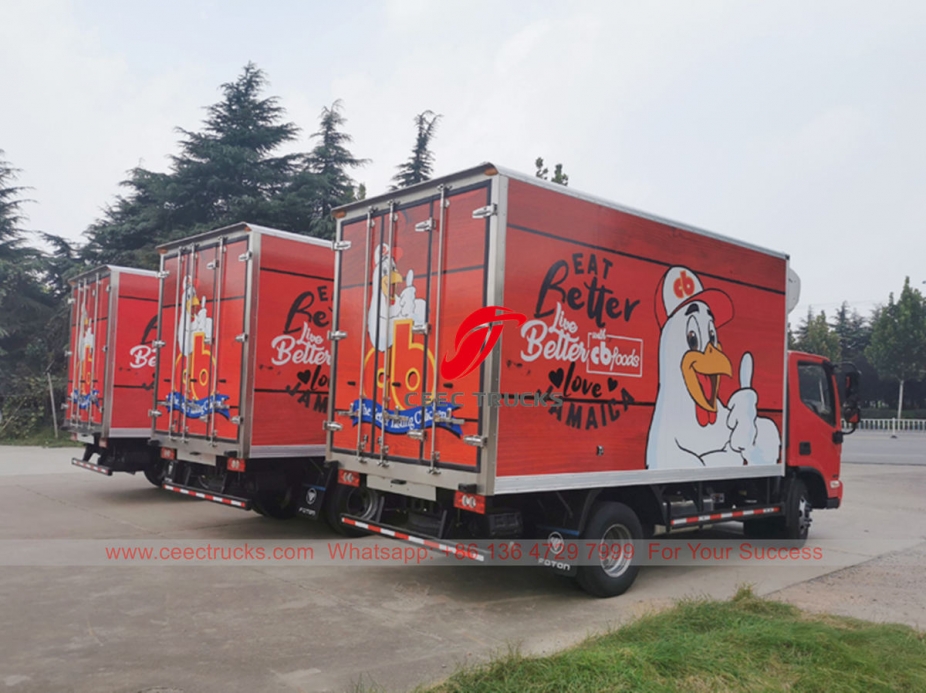

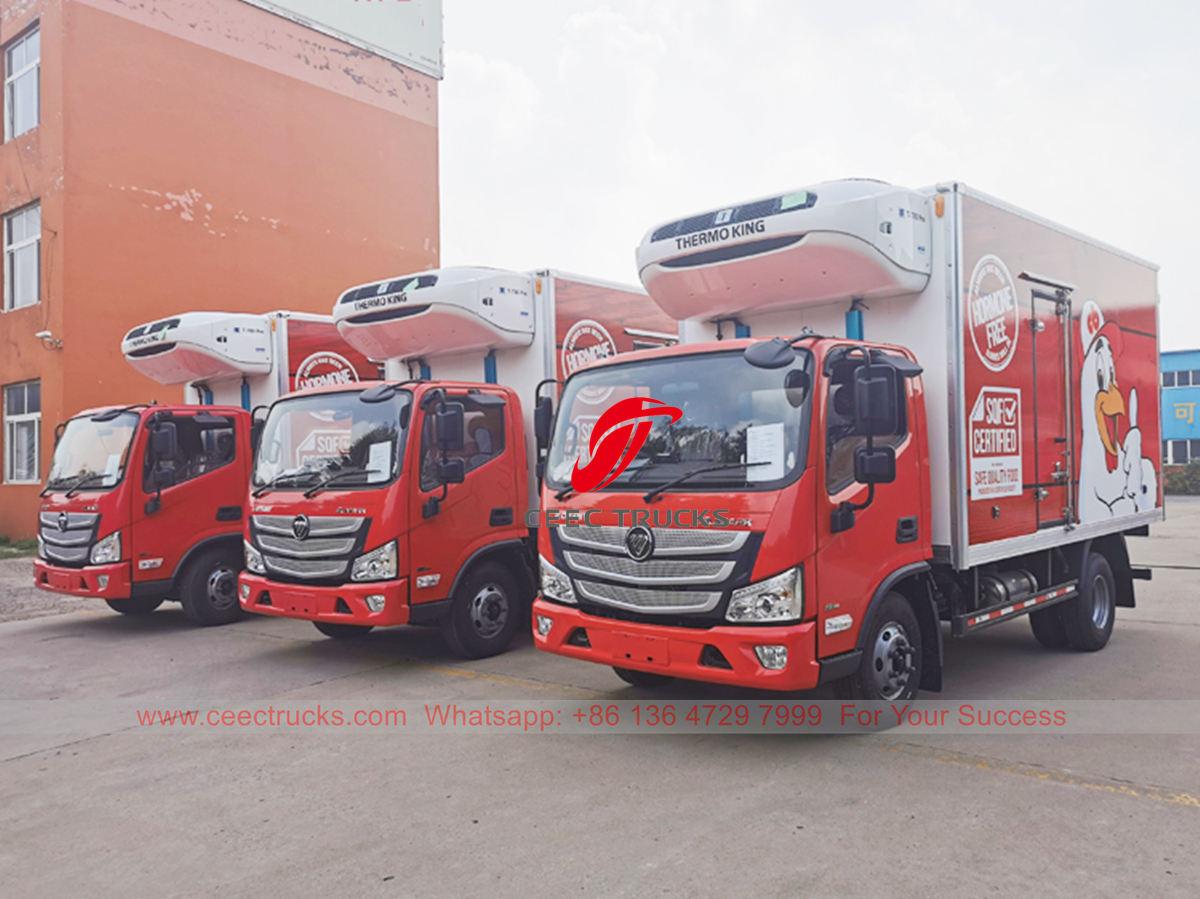

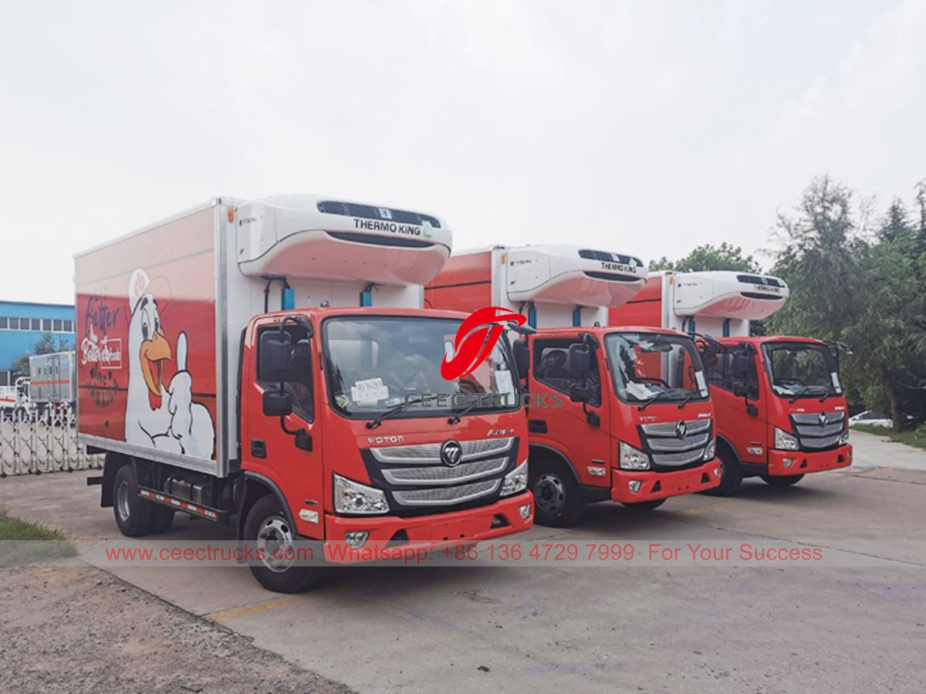

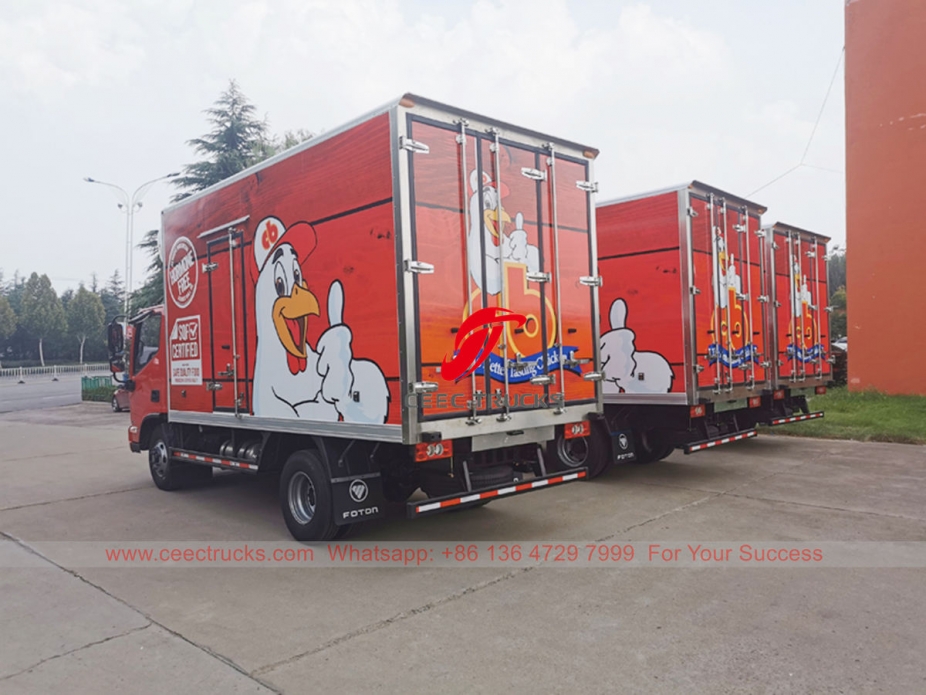

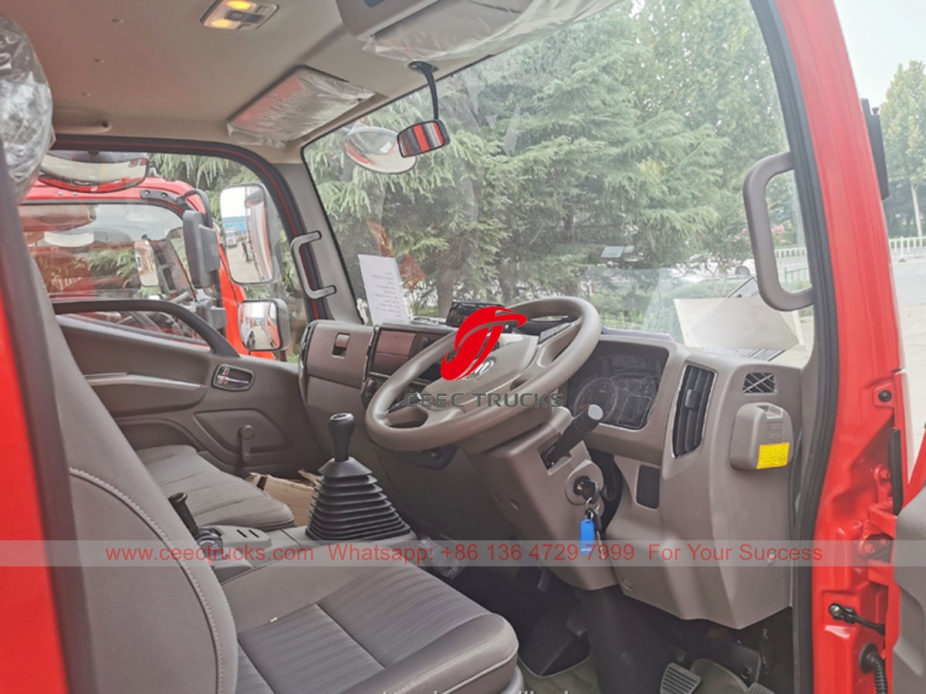

FOTON 4 ton freezer box truck, FOTON right hand drive model 4×2 chassis, 6-shift manual gearbox, CUMMINS 141HP engine. Equipped with America THERMO KING cooling units for high performance, as for van capacity can be 3-25T optional.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

Applications:

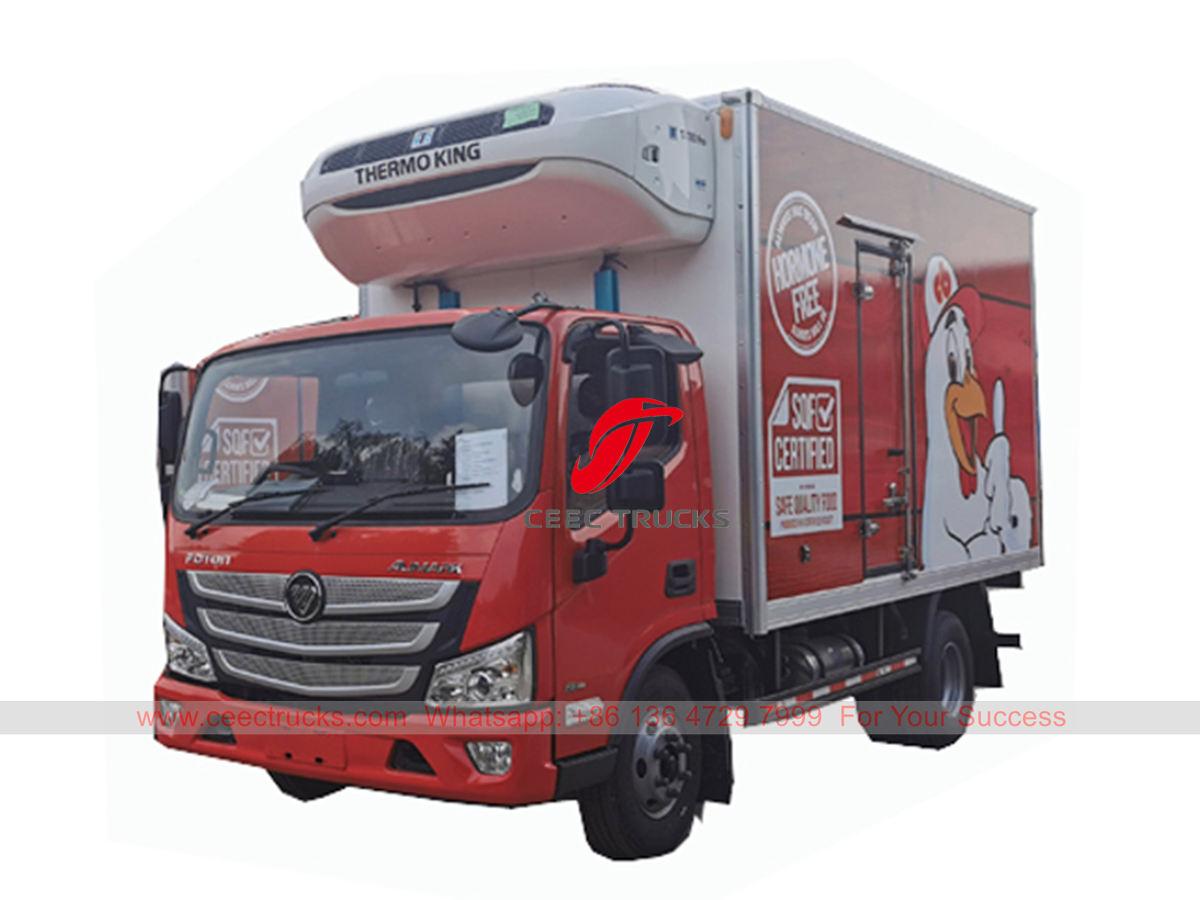

FOTON Refrigerated van truck (also called Refrigerated lorry FOTON, FOTON refrigerator truck, FOTON ice cream transportation reefer truck, FOTON 4 ton chiller lorry, FOTON 6 wheeler freezer box truck) is a van or truck designed to carry perishable freight as specific temperatures.

Refrigerated box trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize carbon dioxide as a cooling agent.

CEEC TRUCKS can supply reefer box trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Key Features:

---- FOTON chassis, perfect performance

---- CUMMINS technology engine option, super powerful, no overhaul within 100,000 km.

---- Refrigeration system brand can be optional.

---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.

Specifications:

FOTON RHD RefrigBox Truck (5 Ton)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	HOWO
	Overall Dimension	5995* 2350 * 3350 mm
	GVW / Kerb Weight	4,495kg / 2,500kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	CUMMINS
	Power	141 HP (105 KW)
	Displacement	3760 ml
	Emission Standard	Euro 2, 3, 4, 5
Chassis	Drive Type	4X2 (left/right hand drive)
	Transmission	6-shift speed levers with 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tire Specification	7.00R16
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Body size	4100×2150×2150(mm)
	Load Capacity	4 Tons
	Panel Structure	Fiber glass sandwich polyurethane
	Front/Side/Rear panel	Panel Thickness: 85mm
	Roof/Floor panel	Panel Thickness: 105mm
	Lights & Switch	Led, Water-proof, 12V/24V convertible
	Lowest temperature	-5°C or -20

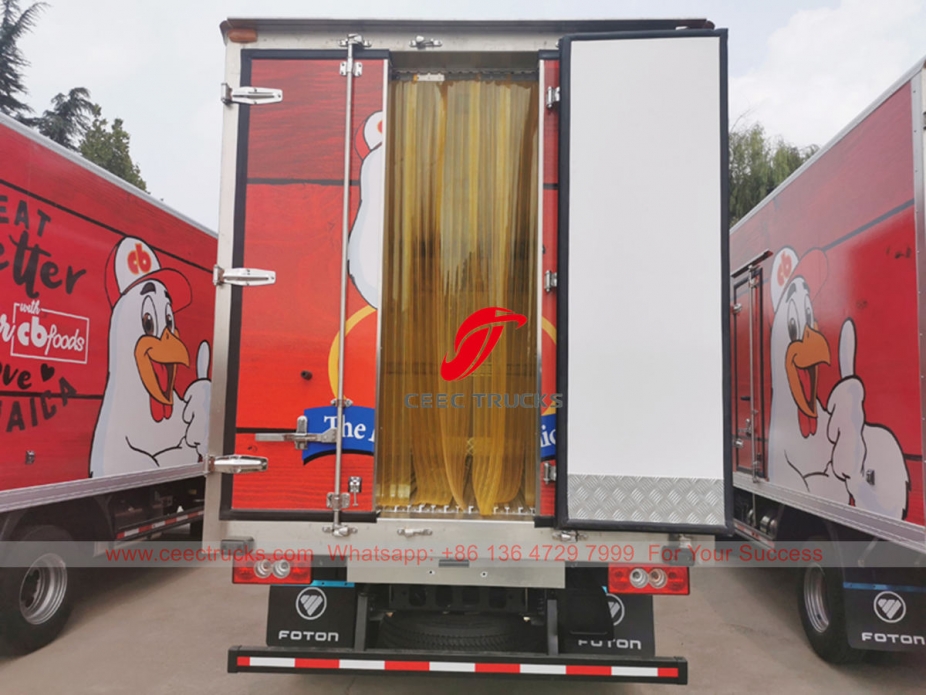

Equipment	Standard: Aluminum alloy flooring, rear doors. Optional: 1. Hydraulic Tailift and Cargo Control System. 2. Side doors, side steps and ladders. 3. Different temperature area control. 4. Customized floor roller design for convenient working.

CEEC TRUCKS is a premium freezer box trucks manufacturer. We can provide ISUZU refrigerated truck, HOWO chiller lorry, FOTON freezer truck, Dongfeng reefer truck, etc. The capacity of van can be 3-25 tons. Our freezer box trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

▶ Equipped with famous domestic chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, and Sinotruk

▶ Equipped with famous refrigeration units, Thermo King & Carrier, & Guchen Super Snow refrigeration units.

▶ Refrigerated truck body structure is sandwich structure: Fiberglass + PU + fiberglass. All the double surface sandwich polyurethane panel and door are 100mm thickness, the Fiberglass plate thickness is 2.5mm for the outer and inner skins; the polyurethane foam density is 45-50kg/m3. (All is the best material in China and have excellent insulation performance).

▶ The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.

▶ Sandwich panel thickness can be changed according to customers’ requirements: 60mm, 80mm, and 100mm.

CEEC TRUCKS is a leading exporter of refrigerated van trucks in China. We possess over 10-year export experience of refrigerator trucks. We can ensure the fast delivery time and 12 months guarantee for our chiller lorries. Our freezer box trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
