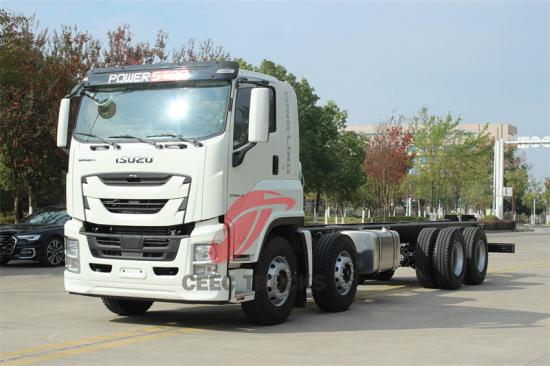

Giga Isuzu 8*4 380HP 6X cabin truck Chassis

This Giga Isuzu 8*4 380HP 6X cabin truck Chassis is a high-performance work platform carefully built for long-distance transportation, heavy-load operations and complex working conditions. It integrates advanced power systems, stable chassis structures and humanized design elements, providing all-round protection for drivers and cargo.

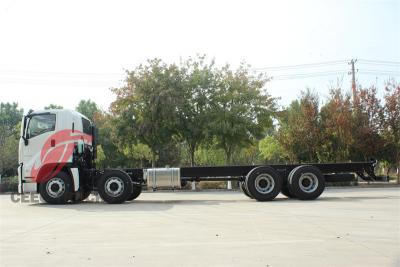

The 12 wheeler Isuzu GIGA VC66 chassis truck cabin has simple design , lightweight and fuel-efficient as quality.  Control the width of the front of the cabin, optimize the wind resistance flow direction of the front corners of the vehicle, and adopt a streamlined shape to reduce the wind resistance to the side of the rear body, obtain the best aerodynamic perfromance, and help improve fuel consumption.

The Isuzu VC66 chassis uses a 6UZ1 engine model with a maximum of 380 horsepower, 8x4 drive type, and 12 wheels. The use of a high-quality FAST gearbox, a high-torque engine with a 12 speed transmission and a medium-speed ratio rear axle make the engine always in the most economical speed range. That reduces vehicle fuel consumption.

Pursue the fuel consumption performance of the practical speed with high frequency of use, from supercharging to cooling, fuel injection, and the pursuit of maximizing the reduction of fuel costs. In order to adapt to different regions and different loads, a variety of speed ratios are provided for customers to choose.

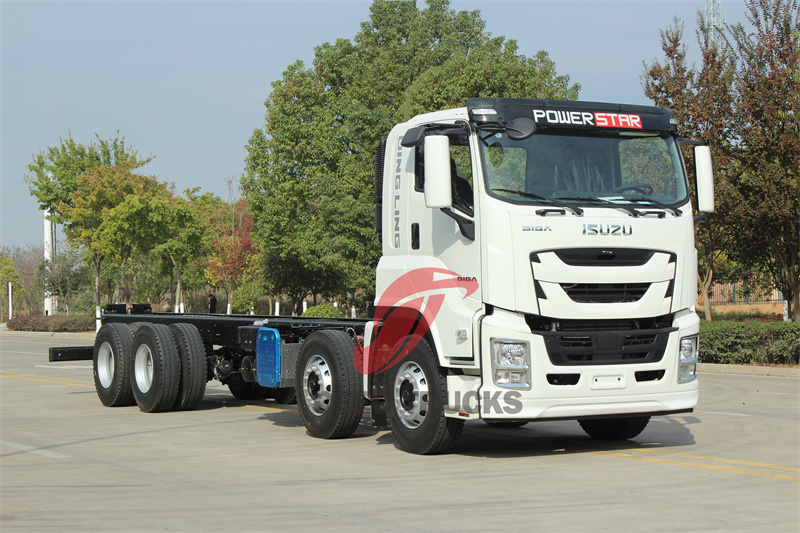

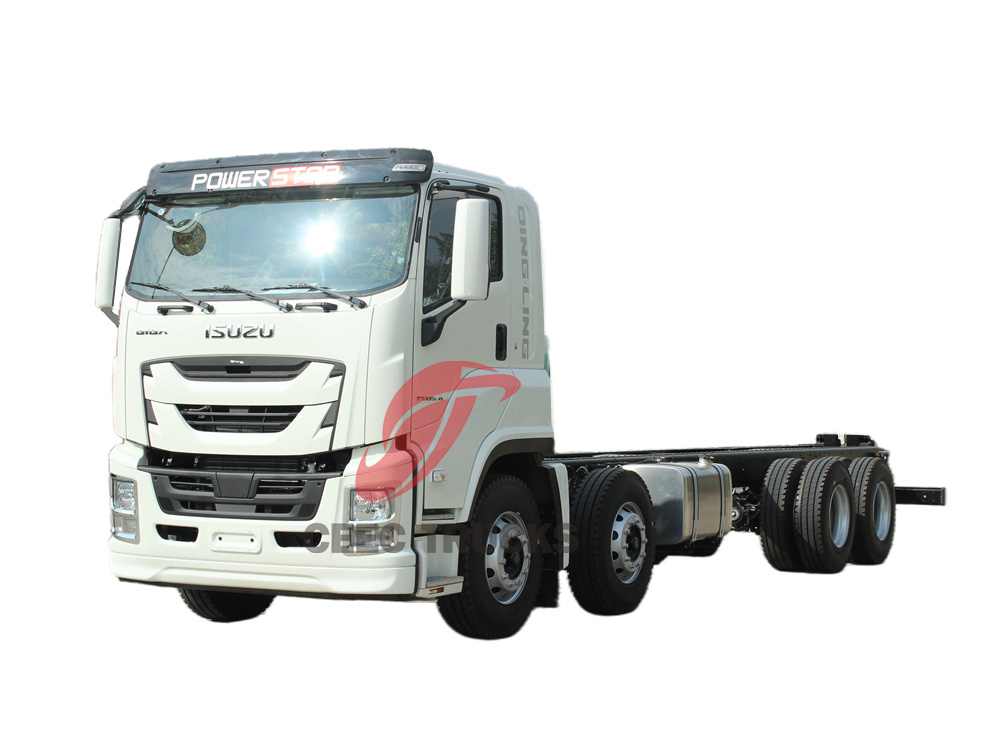

Giga Isuzu 8*4 380HP 6X cabin truck Chassis

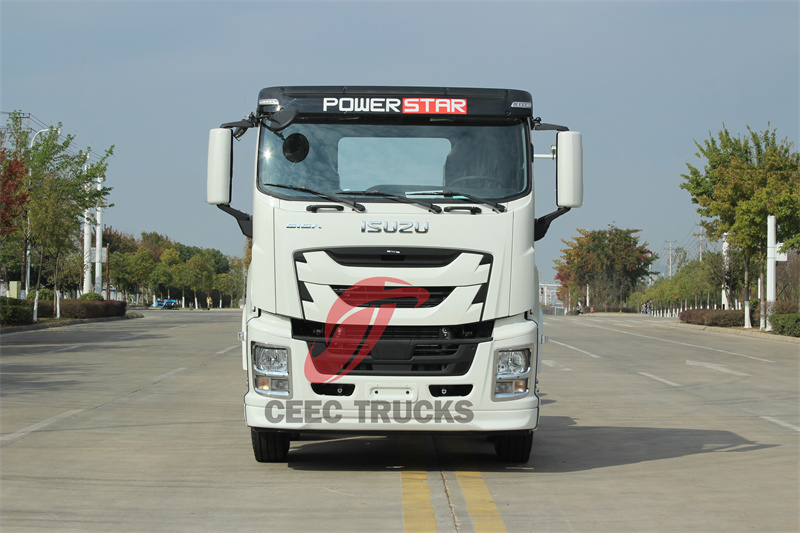

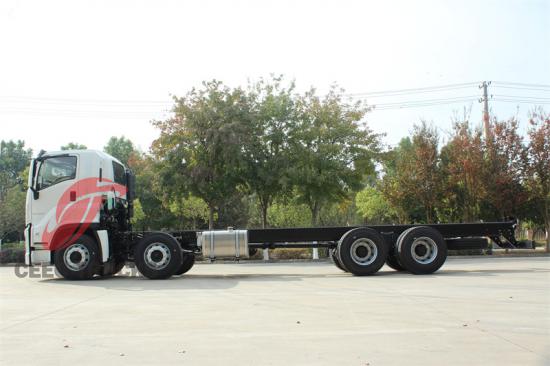

Isuzu GIGA 8X4 heavy truck chassis

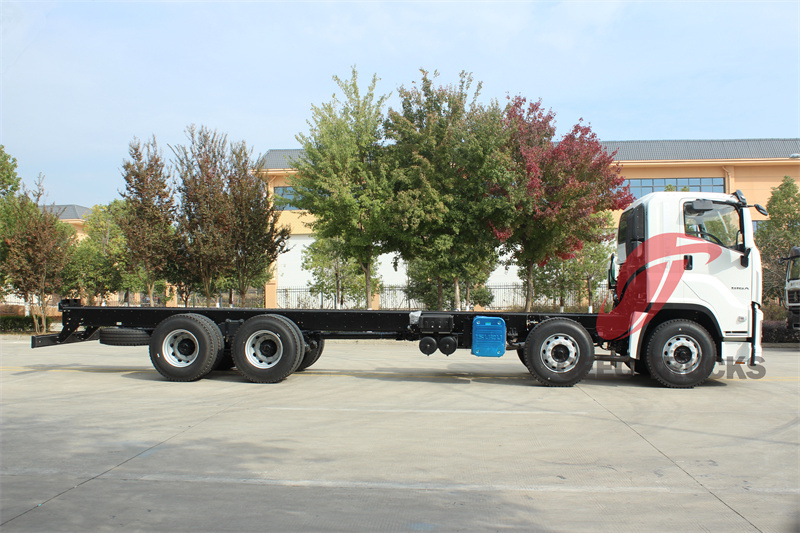

Isuzu GIGA 8X4 chassis

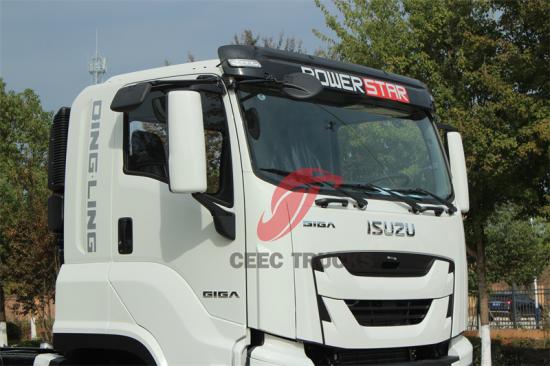

Isuzu VC66 6X cabin

The 12-wheel Isuzu GIGA VC66 chassis truck cab is a marvel of modern engineering, designed for power, efficiency and durability. At the heart of this behemoth, the 520HP engine roars to life, commanding the road with authority and power.

Stepping into the cab, you are greeted by a spacious and ergonomic environment designed for long journeys. The driver's seat features premium upholstery, providing comfort and support, ensuring fatigue-free long journeys. The vehicle is equipped with a sleeping area that provides ample space for rest and relaxation, which ensures that the driver can get a good night's sleep, which is essential to maintaining a high level of performance and safety on the road.

The dashboard and center console are well laid out, with all controls and switches within the driver's reach. The use of high-quality materials and finishes adds to the premium feel of the cab. The instrument panel is a symphony of digital displays and analog instruments, providing a wealth of information at a glance. From engine diagnostics to navigation assistance, every detail has been carefully integrated to enhance the driving experience and ensure optimal performance.

The panoramic windshield gives you a glimpse of the road ahead, allowing the driver to navigate with confidence and precision. Side mirrors with advanced camera systems eliminate blind spots and improve visibility, ensuring safety on every mile.

The cab is equipped with state-of-the-art amenities to meet the needs of the driver. From the climate control system to the multimedia entertainment options, every feature is designed to enhance comfort and convenience on the road.

Safety features are seamlessly integrated into the design, with advanced systems such as lane departure warning, adaptive cruise control and emergency brake assist working together to protect the driver and cargo.

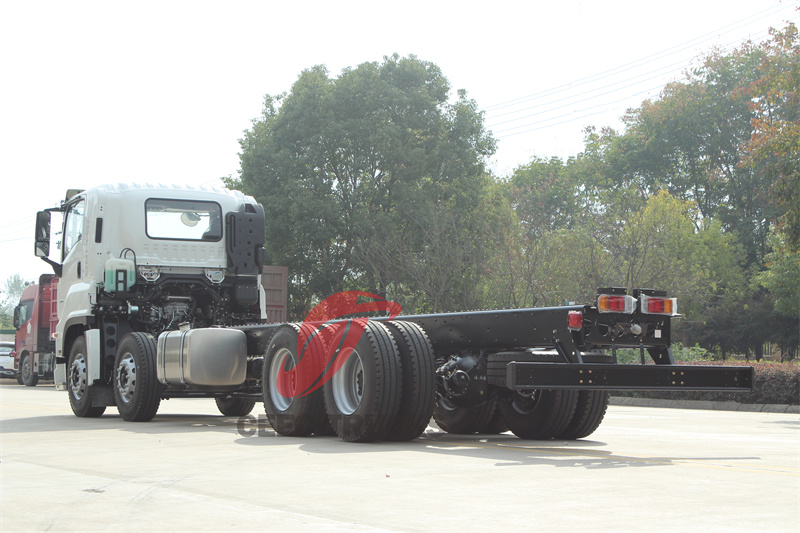

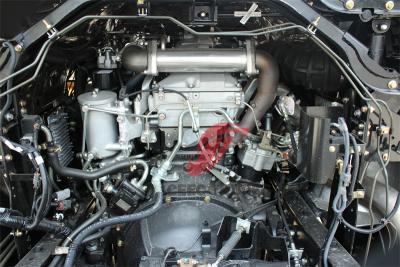

Isuzu VC66 8X4 6UZ1 engine chassis

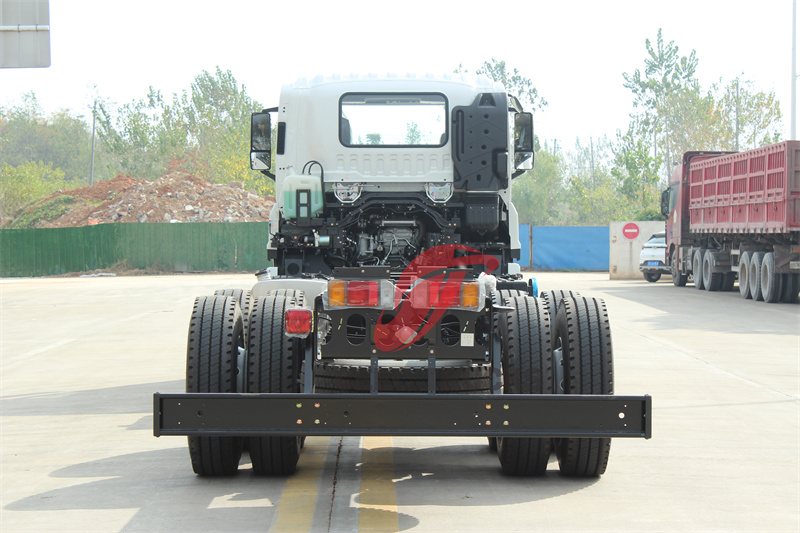

Isuzu VC66 6X cabin truck chassis

Chassis exterior

The Isuzu GIGA VC66 chassis truck has a striking exterior, with a rugged and powerful stance that reflects its heavy-duty capabilities. The entire front end, including the bumper, is adorned with large areas of chrome trim, giving it a unique and upscale look. This Japanese design philosophy, known for its attention to detail and beauty, is fully reflected in the sleek lines and bold styling of the cab. The headlights are prominently positioned and feature modern LED technology, providing excellent lighting and enhancing the truck's overall visibility.

The chassis' exterior is a paragon of rugged elegance, with the imposing appearance of its 12 wheels exuding power and capability, while the aerodynamic design improves fuel efficiency and performance.

The chassis itself is an engineering masterpiece, carefully designed to withstand the rigors of heavy-duty use. It is made of high-strength materials, laying the foundation for the truck's impressive payload capacity and towing capabilities. The chassis's exterior dimensions are 11285*2540*2985mm, and its 4-axle design further highlights its stability and load-bearing capacity, making it a giant in the world of transportation.

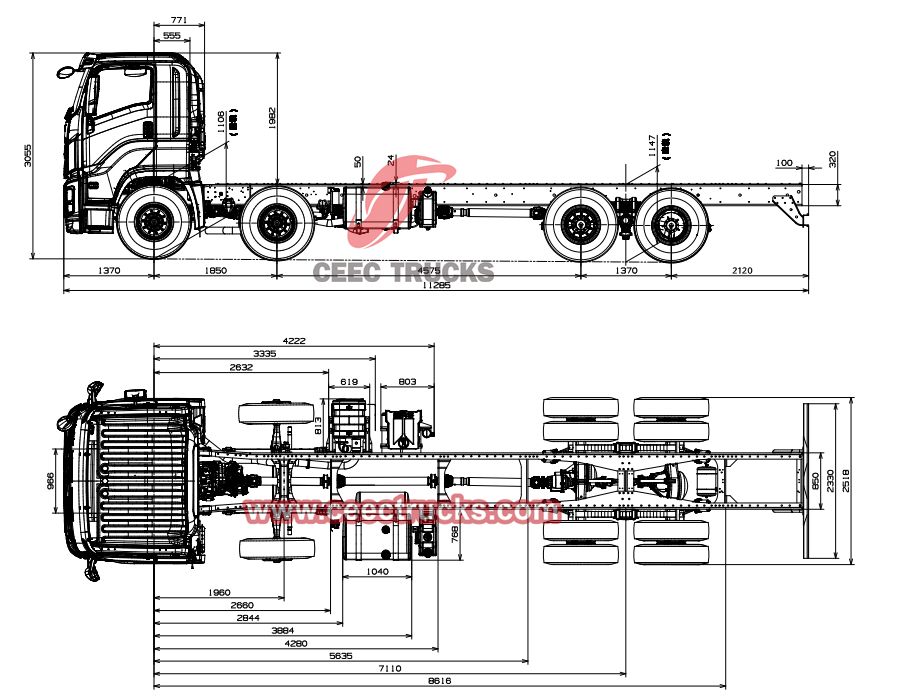

Technical drawing of Isuzu GIGA 8x4 chassis

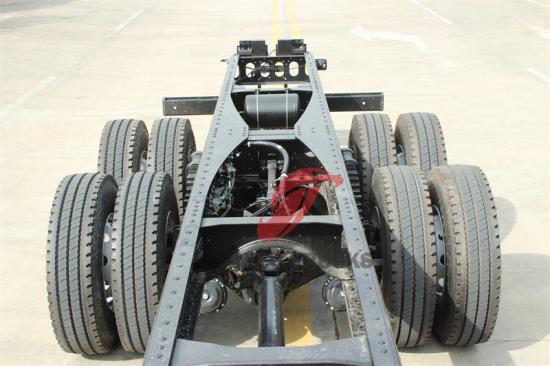

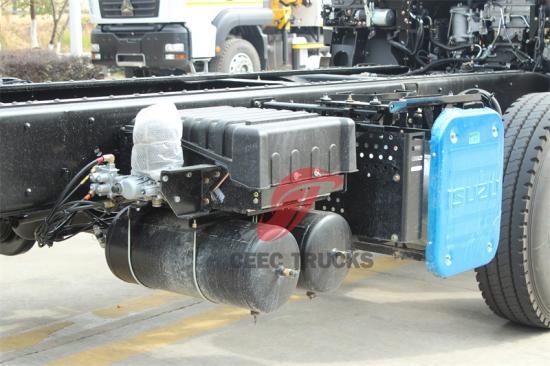

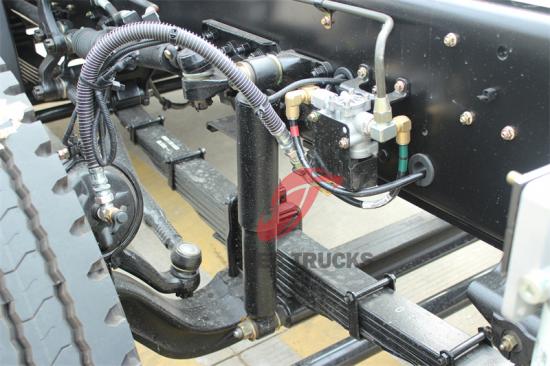

Chassis frame

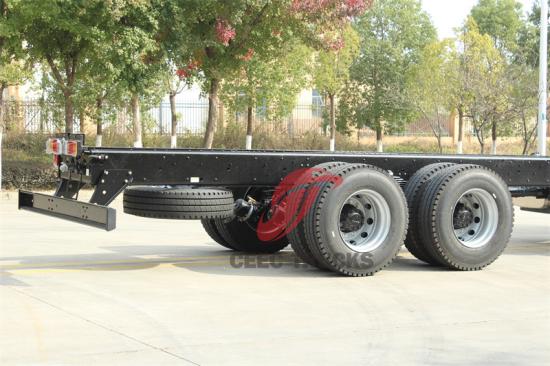

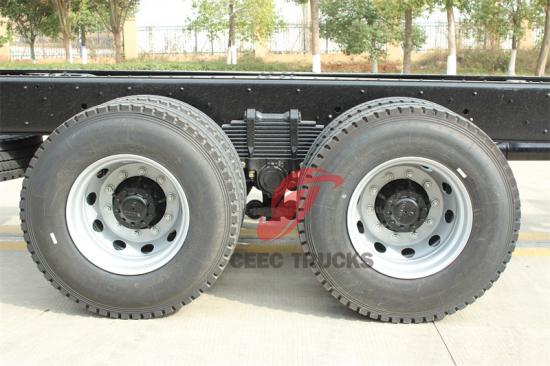

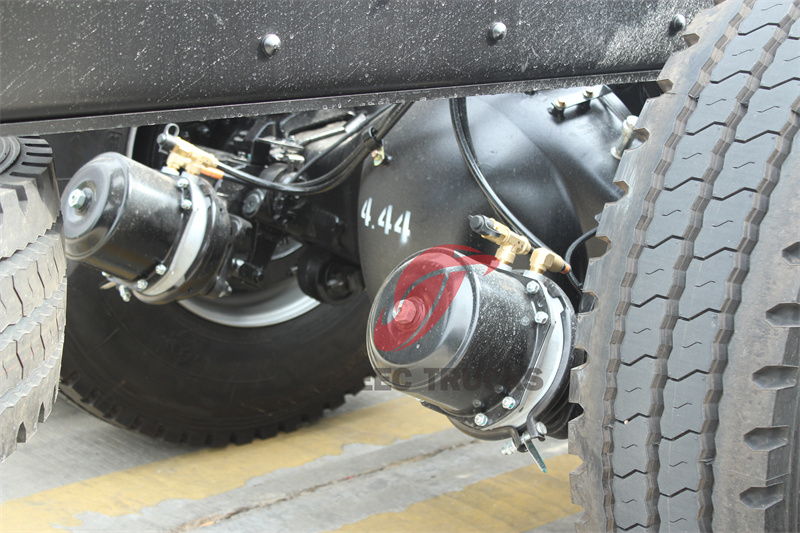

Rear axle

Engine and performance

The Isuzu GIGA 8x4 chassis truck is equipped with a 380 horsepower engine, which cannot be underestimated when driving on the road. It combines power, precision and reliability, reflecting Isuzu's commitment to quality and innovation in the commercial vehicle field.

It integrates an advanced six-cylinder in-line design with a displacement of up to 9.839 liters, ensuring a strong power reserve. With a maximum output power of 382 kilowatts, which is equivalent to a shocking 380 horsepower, the vehicle provides unparalleled acceleration performance and the ability to run at high speeds continuously.

In terms of torque, the engine can burst out a maximum torque of up to1800 N.m. Such a power configuration allows the vehicle to easily cope with complex road conditions such as heavy loads and climbing. At the same time, the engine complies with the National VI emission standards, reflecting the manufacturer's responsibility for environmental protection and forward-looking adaptation to future regulations.

In addition, the rated speed of the 6UZ1-TCG61engine is set at 2000 rpm, which not only ensures the efficient use of power, but also ensures the smooth and durable operation of the engine. Its overall design not only optimizes fuel economy and reduces operating costs, but also improves the reliability and durability of the engine through advanced manufacturing processes and material selection, providing solid power guarantee for application scenarios such as long-distance transportation and heavy-load operations.

This chassis truck is equipped with FAST gear, which shifts smoothly and quickly, and can accurately match the engine speed and torque output, thereby further improving the vehicle's fuel economy and power performance.

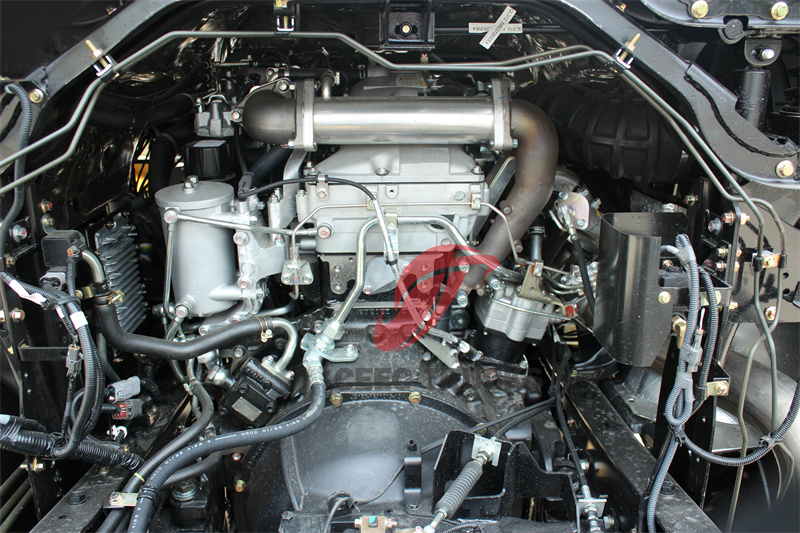

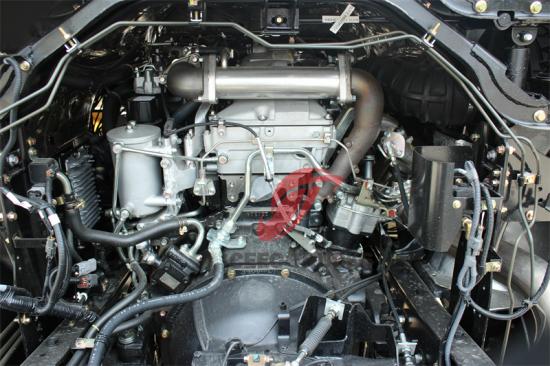

Chassis 6UZ1 engine

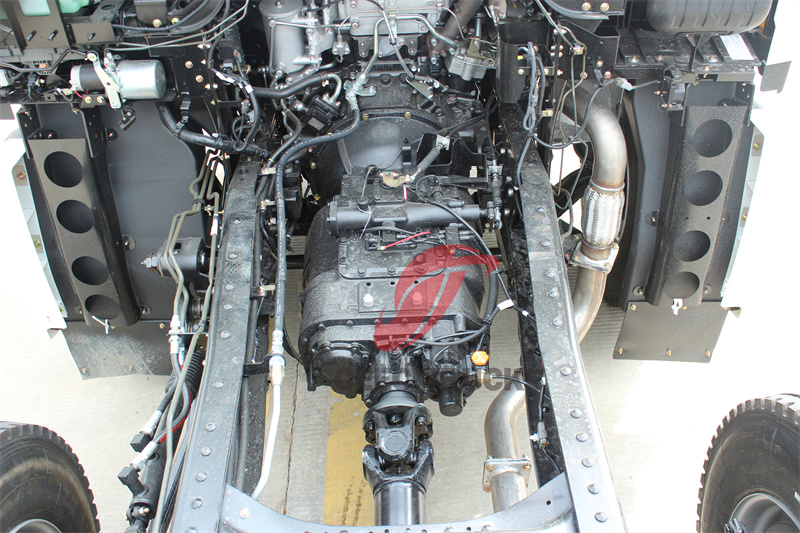

Transmission assembly

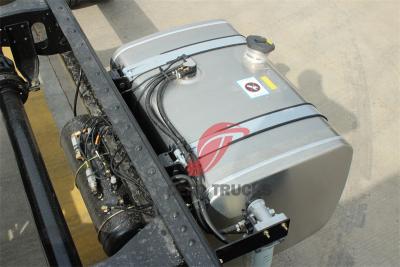

The 400L fuel tank of this chassis is one of the important guarantees for its long-distance transportation capability. The large-capacity fuel tank design not only improves the vehicle's endurance, but also reduces the need for frequent refueling, thereby improving transportation efficiency and safety.

This chassis also has excellent expandability and customization capabilities. Users can choose different sizes and types of upper equipment according to actual needs, such as fire trucks, water trucks, dump trucks, oil trucks, pump trucks, mixer trucks, truck cranes, etc., to meet the needs of different application scenarios.
