The Isuzu ELF Double Cab Panel Van is a reliable and versatile vehicle tailor-made for commercial use. With its rugged design, powerful performance and a host of features that enhance comfort and safety, it continues to be the first choice for businesses across a wide range of industries. It is able to meet the needs of modern businesses seeking reliable transport solutions.
Product Origin:
China CEECShipping Port:
China main portLead Time:
30 DaysIsuzu ELF double cabin cargo truck also called Isuzu 100P double row van truck,Isuzu NPR double cabin pickup truck,Isuzu 4x2 2+3 seats cargo van truck,Isuzu 100P light cargo lorry van truck,Isuzu 100P aluminum alloy van truck.
As a leader in the field of logistics and transportation, the Isuzu ELF double cabin cargo truck has won wide recognition in the market for its excellent performance and practical configuration. The vehicle is equipped with an efficient diesel engine with strong power, which can easily cope with both city streets and country roads to ensure that the goods are delivered on time. The double-row van design not only improves the loading capacity, but also enhances the safety and protection of the goods, which is suitable for short-distance or long-distance transportation of various types of goods. The cab is spacious and comfortable, equipped with advanced control systems and safety configurations, providing drivers with a good working environment and driving protection. Overall, the Isuzu 100P double-row van has become an ideal choice in the logistics and transportation industry with its excellent performance, reliable quality and practical configuration.
Main Specification |
|
Model Name |
Isuzu 100P double cabin van truck |
Driving Type |
4×2,left hand drive |
Weights |
|
Maximum total weight(kg) |
4495 |
Rated payload weight(kg) |
1365 |
Curb weight(kg) |
2805 |
Dimensions |
|
Wheelbase(mm) |
3360 |
Overall Dimension(mm) |
5995*1950*2800 |
Box dimension (mm) |
3245*1850*1830 |
Approach/departure angle |
24/16 |
Front/rear overhang |
1015/1620 |
Front/rear track(mm) |
1377/1425 |
Max speed(km/h) |
105 |
Engine |
|
Engine model |
4KH1CN6LB |
Engine type |
4 stroke water-cooled, electric control system |
No. of cylinders |
straight-4 cylinders |
Horse power(hp) |
120HP |
Displacement(L) |
2.999L |
Max. output (kw) |
88kw |
Maximum Torque(N·m) |
290 |
Emissions standard |
Euro 6 |
Drive Line |
|
Transmission |
MSB 5 speed,5 forwards,1 reverse gear,manual operation |
Brake |
Oil brake |
Cab |
|
cabin |
Isuzu 100P double row |
Standard configuration |
Air conditioner ,USB ,sound,electric windows,and so on |
Axle |
|
Front axle |
1730kg |
Rear axle |
2765kg |
Tire specification |
|
Tire specification |
7.00R16 standard tire,6 tires+1 spare tire |
Special function of van truck |
|
Box material |
Aluminum box.steel corrugated box, steel flat box are also available |
Cargo box size |
3245*1850*1830 |
Since its launch, the Isuzu 100P double-row van truck has won wide acclaim and favor from users in the market with its excellent performance, reliable quality and stylish appearance.
The Isuzu 100P double-row van truck adopts the Isuzu family design style, with smooth overall lines and a sense of power. The double V-shaped air intake grille not only enhances the layering of the front of the car, but also increases the visual impact of the whole vehicle, making it look grand and stylish. The design of the headlight group is highly recognizable, and the combination of the lens and LED running lights not only enhances the lighting effect, but also enhances the safety of driving at night. The side lines of the body are tough, showing a strong sporty atmosphere, while the shape of the wheel rims adds a touch of dynamism to the whole vehicle. The design of the rear part is simple and generous, with clear layers, highlighting the driver's unconventional inner quality.
The Isuzu ELF 100P double cabin has a solid chassis and a well-designed appearance, exuding a professional and rugged charm. The double cabin configuration provides ample seating capacity for passengers and cargo. Its smooth lines and aerodynamic shape improve fuel efficiency while maintaining a beautiful appearance.
Isuzu NPR double cabin Pickup Truck
Interior and configuration
Entering the cab, you can feel the rich Isuzu style. The overall interior design is simple and practical, and the steering wheel, center console, gear lever and seat layout are full of the exquisiteness of Japanese cars. The two-spoke steering wheel is simple and atmospheric, comfortable to hold, and has moderate steering force, providing the driver with a good control experience. The instrument panel adopts a new pointer-type and LCD display combination design, which is clear and easy to read, and integrates a variety of functions, including driving information, maintenance reminders, speeding alarms and fault information, etc., so that the driver can grasp the vehicle status at any time.
The central control area is reasonably laid out, and common configurations such as radio, air conditioning, electric windows, central control locks, etc. are all available, meeting the various needs of daily driving. The seat adopts a cold foam double density + fabric fabric design, which is moderately soft and hard, has good breathability, and is comfortable to ride. Even if you drive for a long time, you can maintain a good ride experience. In addition, the rear interior space is spacious and can accommodate three people. For users who need to work in the car for a long time, this is undoubtedly an important plus.
Power and performance
The Isuzu 100P double cabin cargo truck is equipped with Isuzu's 4KH1 series diesel engine, which is known for its high efficiency and reliability. Depending on the configuration, the engine can reach a maximum horsepower of 120 horsepower and a maximum torque of 290N·m. It is powerful and can meet the needs of various working conditions. The engine is matched with the Isuzu MSB series 5-speed gearbox. This gearbox has smooth shifting, active upshifting, and rapid downshifting, forming a perfect match with the engine, providing the vehicle with excellent power output and handling performance.
In terms of chassis, the Isuzu 100P uses a 2.5-ton steering front axle and a 4.8-ton drive rear axle, with excellent load-bearing capacity. The rear axle main reduction ratio is 5.571, which ensures the stability and passability of the vehicle under different road conditions. The design of the number of leaf springs of 6 in the front and 5 in the rear not only improves the load-bearing capacity, but also ensures the stability of driving.

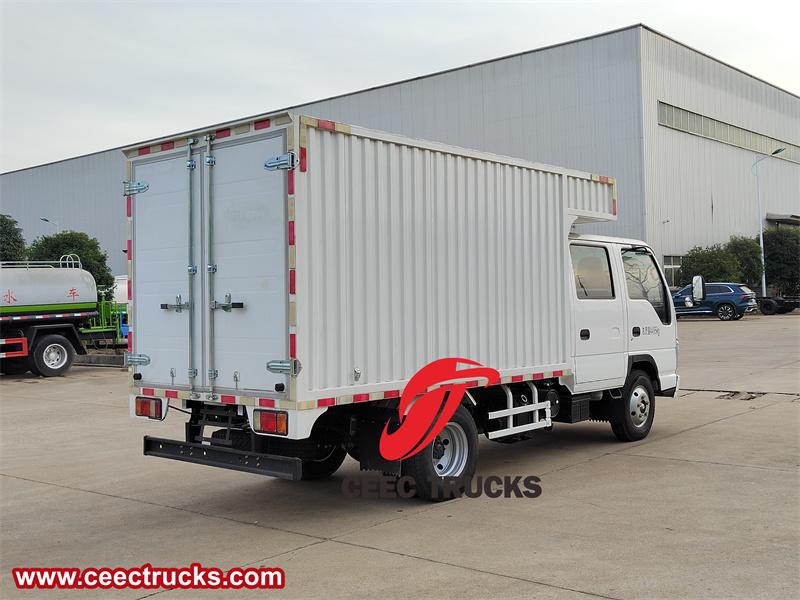

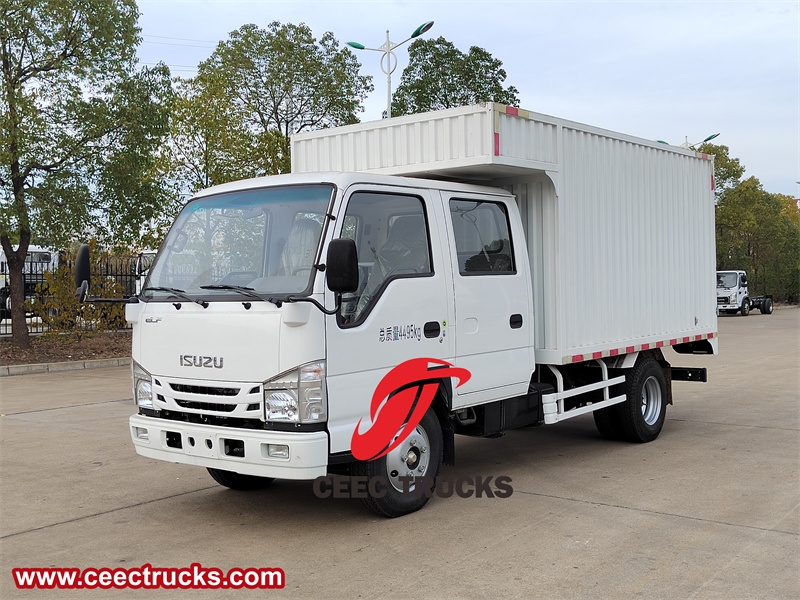

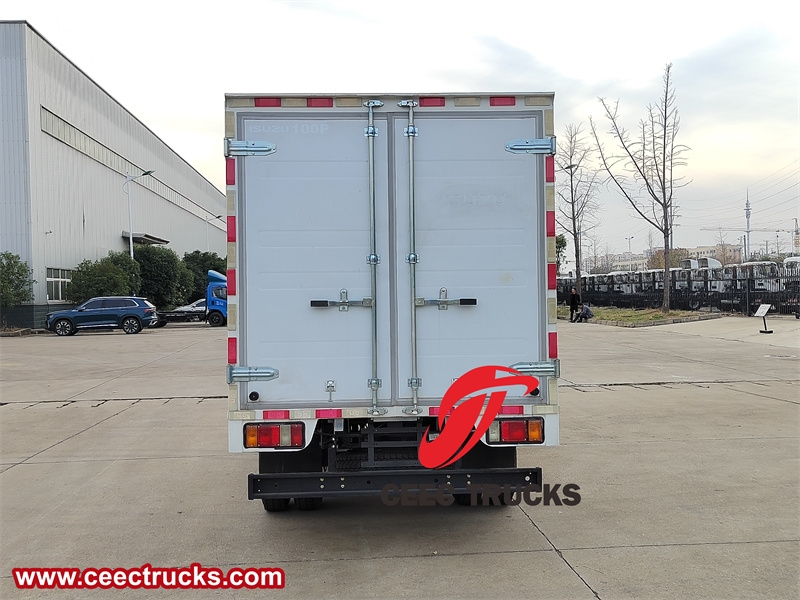

Isuzu 100P double row van truck
Safety and comfort
In terms of safety, the Isuzu 100P double-row van is equipped with ABS anti-lock braking system and EBD electronic brake force distribution system, which effectively improves braking performance, reduces skidding during braking, and ensures driving safety. In addition, the vehicle is also equipped with front fog lights, deflectors and other configurations, which further improve driving safety and comfort.
In terms of comfort, the vehicle adopts an aerodynamic body design, combined with tilted A-pillars, which effectively reduces driving wind resistance and achieves lower fuel consumption. At the same time, the interior space is spacious, the seat wrapping and softness are excellent, and when driving on irregular roads, the powerful suspension system can filter out most of the bumps, allowing drivers and passengers to enjoy a comfortable ride.
Cargo and Storage Solutions
One of the outstanding features of the Isuzu NPR Double Cab is its versatility in cargo management. With a cargo box length of 3.245 meters and a large and sturdy cargo compartment, it provides ample space for transporting goods, equipment or materials. On the other hand, the van model is equipped with customizable storage solutions to meet different business needs.

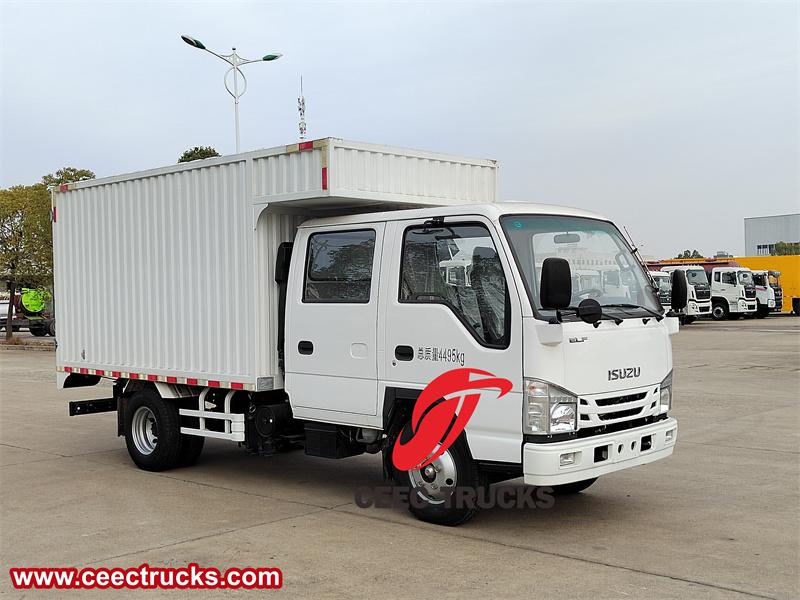

Isuzu ELF double cabin cargo truck
Usage scenarios
Urban logistics: Suitable for short-distance delivery and logistics transportation within the city, such as express delivery, fresh food, daily necessities, etc. Its double-row design increases cargo space and improves transportation efficiency.
Trade transportation: Suitable for commercial enterprises to transport goods, samples or exhibits, etc. The vehicle has a stylish appearance and spacious interior space, which can meet the transportation needs of different goods.
Municipal construction: In municipal construction projects, the Isuzu 100P double-row van can be used to transport construction materials, tools and equipment, etc. Its strong carrying capacity and stable performance can cope with complex construction environments.
Agricultural transportation: In the agricultural field, this truck can be used to transport agricultural products, fertilizers, pesticides and other materials. Its durability and reliability ensure the smooth progress of agricultural production.

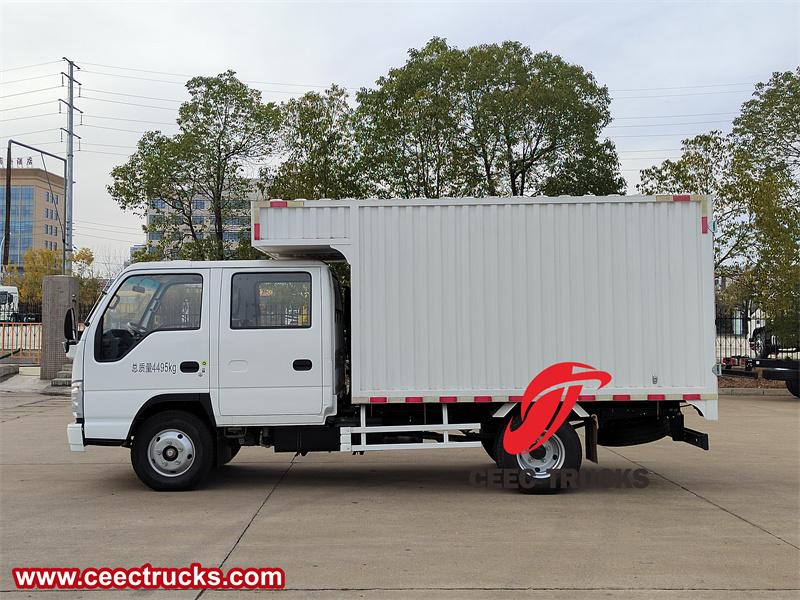

Isuzu 4x2 2+3 seats cargo van truck
Isuzu 100P light cargo lorry van truck

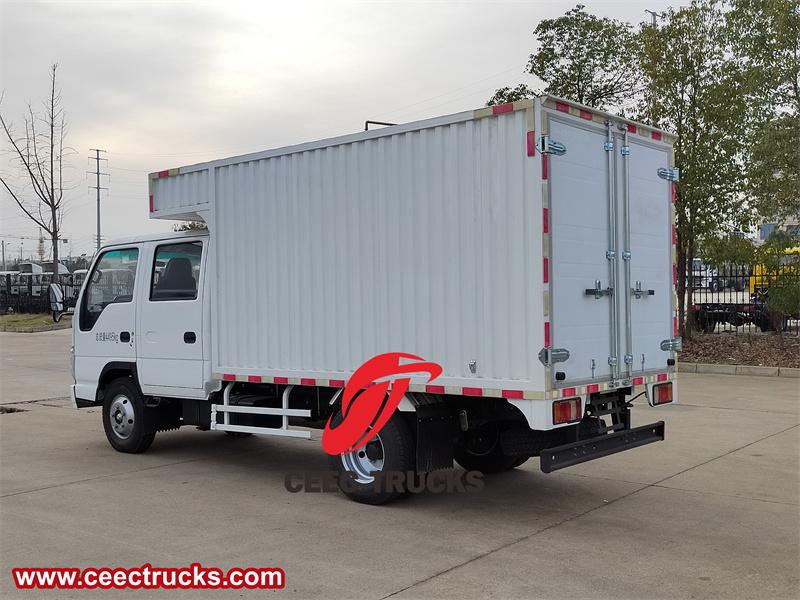

Isuzu 100P aluminum alloy van truck

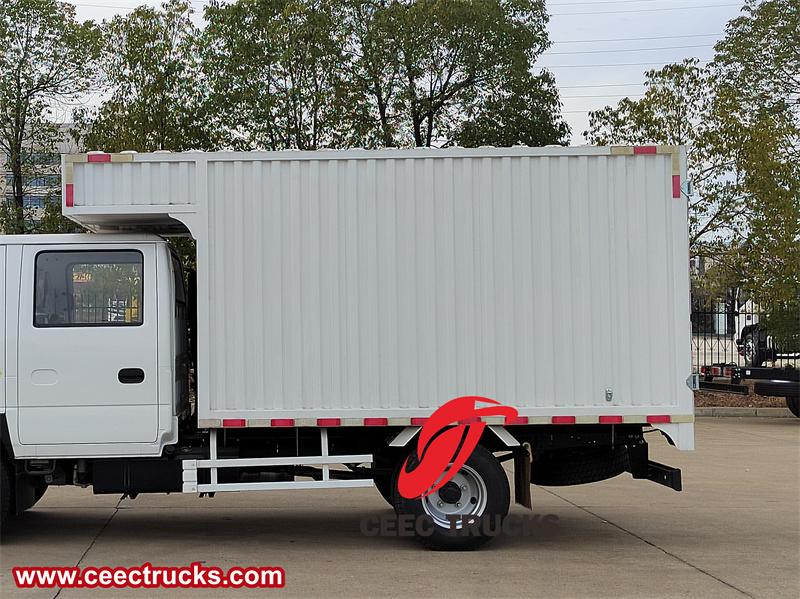

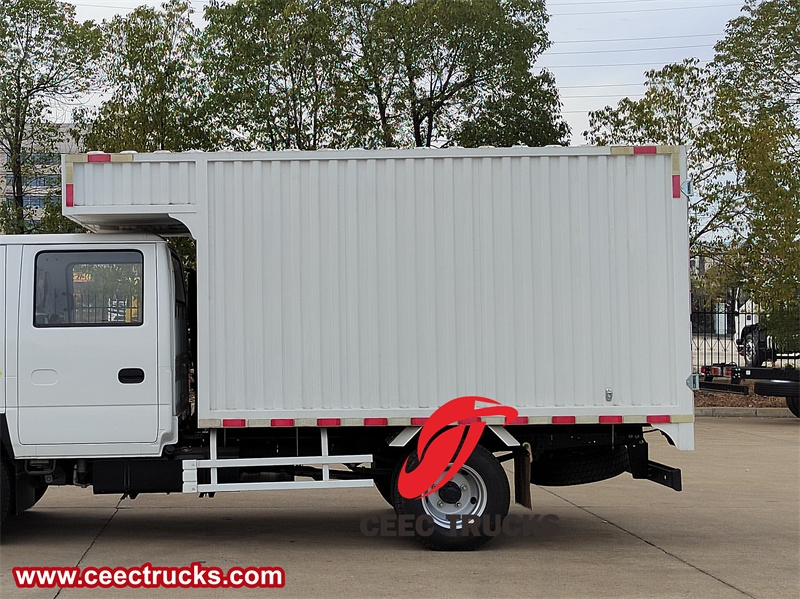

Cargo van box

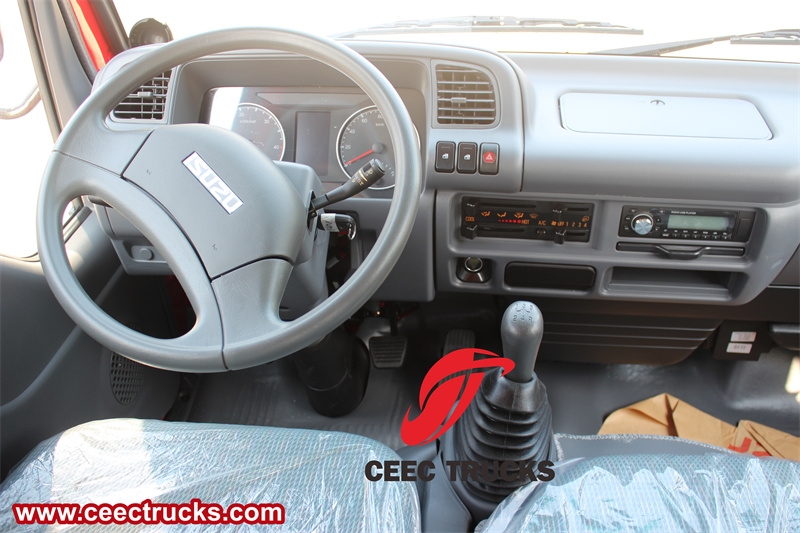

Steering wheel
