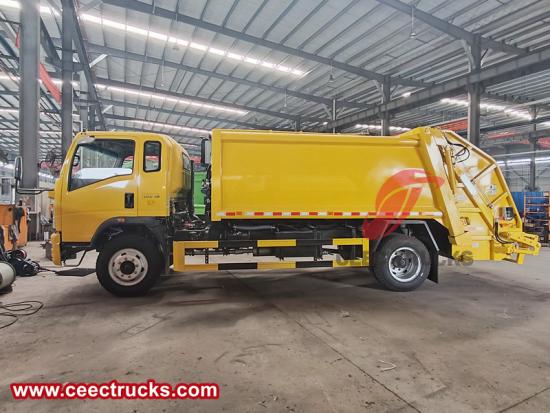

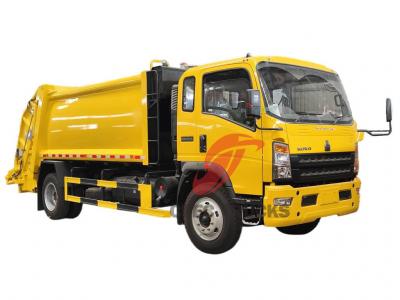

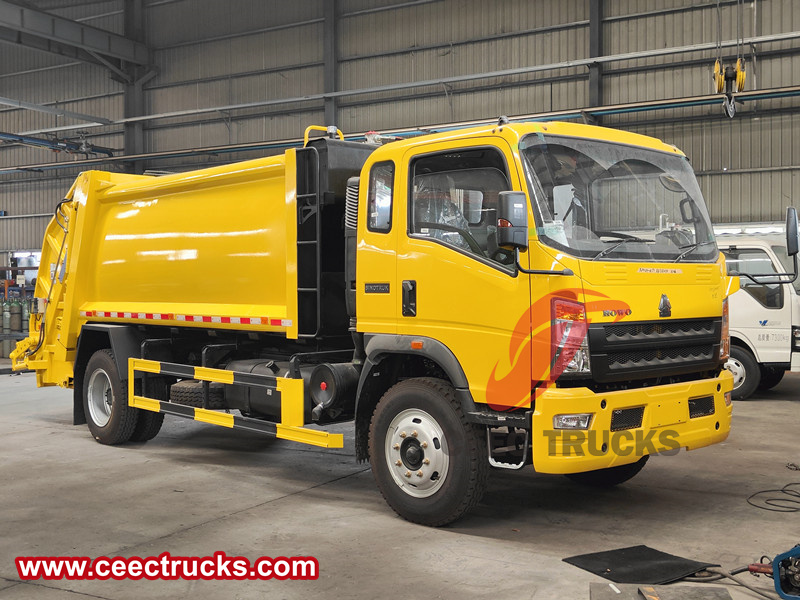

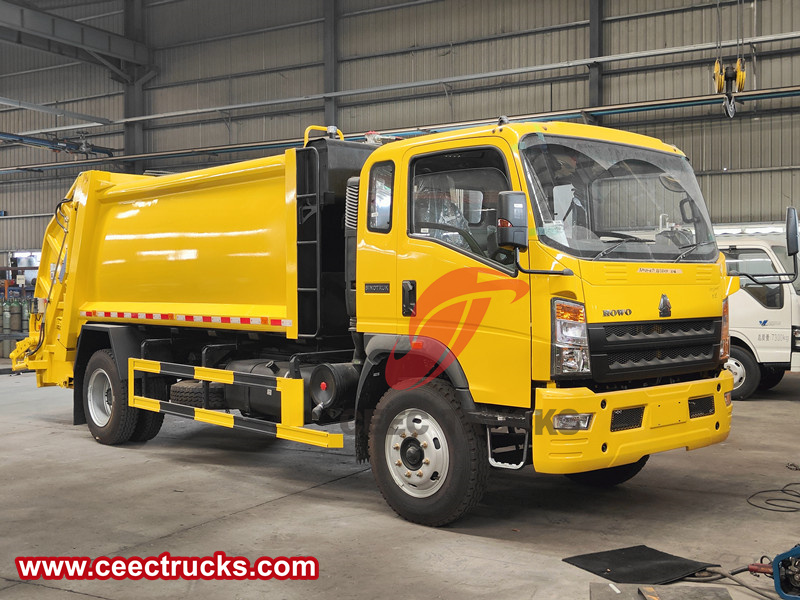

HOWO 8CBM rear loader refuse compactor truck

I. PRODUCT Overview

The SINOTRUK HOWO 8CBM garbage compactor truck is a refuse compactor truck that produced based on Sinotruk light truck chassis. HOWO 8cbm rear loader garbage truck is a vehicle specially designed for garbage collection and transportation. The Sinotruk trash compactor truck is a garbage collection and transportation vehicle with superior performance, easy operation, safety, reliability and strong adaptability, which is worthy of the trust and choice of users.

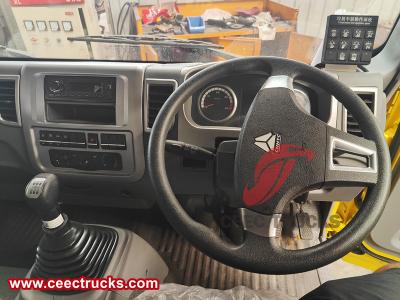

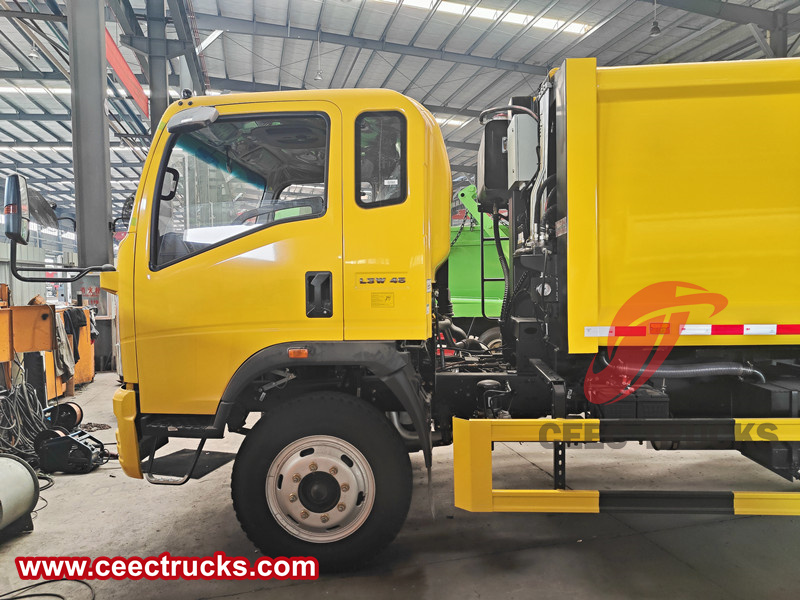

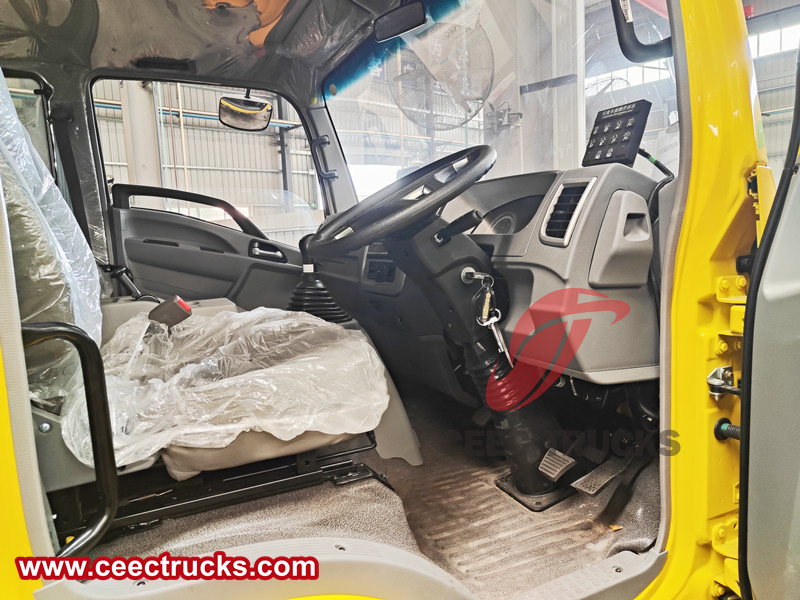

The original chassis of Sinotruk HOWO ensures the stability and durability of the vehicle. The customized yellow cab of Sinotruk HOWO light truck is comfortable and has a wide field of vision. Also the right hand driving steering make truck very suitable for customer local market. The YUCHAI YC4E140-31 model diesel engine with 140HP and 4260cc emission, which are powerful and meet the needs of various road conditions. Equipped with a manual 6-speed gearbox, the vehicle shifts smoothly and the driving experience is better. Electric windows, original air conditioning, RHD power steering, air brake and other configurations improve the convenience and safety of driving. The tire specifications are diverse, such as 8.25R20 steel wire tire with spare tire, or 7.50R16 tire, to ensure grip and durability under various road conditions.

(1) SINOTRUK HOWO 8CBM trash compactor truck Advanced Features:

Efficient compression: HOWO compactor truck adopts two-way compression function, high compression ratio, large loading capacity, can load 120~140 barrels of production garbage, greatly improving the efficiency of garbage collection and transportation.

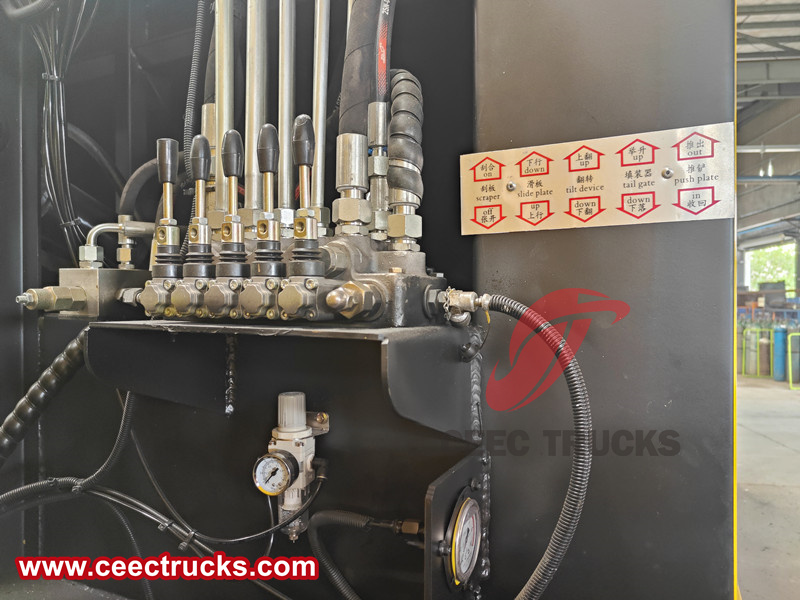

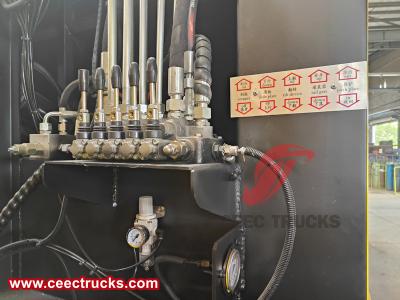

Simple operation: HOWO garbage disposal compactor truck dopts electric control + manual dual control system, and is equipped with CAN BUS one-button control, which is easy and flexible to operate, also very easy for daily checking and maintenance.

Safe and reliable: The HOWO rear loader compactor truck is equipped with a variety of safety devices, such as tail lifting belt hydraulic lock, sewage sealing tail full diversion groove and rubber hydraulic lock, etc., to ensure the safety and reliability of the operation process.

Strong adaptability: moderate wheelbase, comfortable cab, strong engine power, able to adapt to various complex roads and working environments.

(2) Specifications for Isuzu GIGA Rescue Foam Water Fire Truck

Sinotruk HOWO light truck 8 cubic compression garbage truck is widely used in garbage collection and transportation in various places such as urban streets, communities, factories, schools, etc. Rear loading HOWO garbage trucks with efficient compression capacity and flexible operability can greatly improve the efficiency of garbage collection and transportation, and reduce labor costs and transportation costs.

II. Product Detailed Description

The famous Chinese brand Sintruk HOWO compressed garbage truck is one of the urban sanitation equipment, which is responsible for collecting garbage from various regions, initially compressing it, and transporting it to the compression station.Garbage compactor truck(also called waste compactor truck, garbage compactor, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor truck is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

Working principle for HOWO garbage compactor truck.

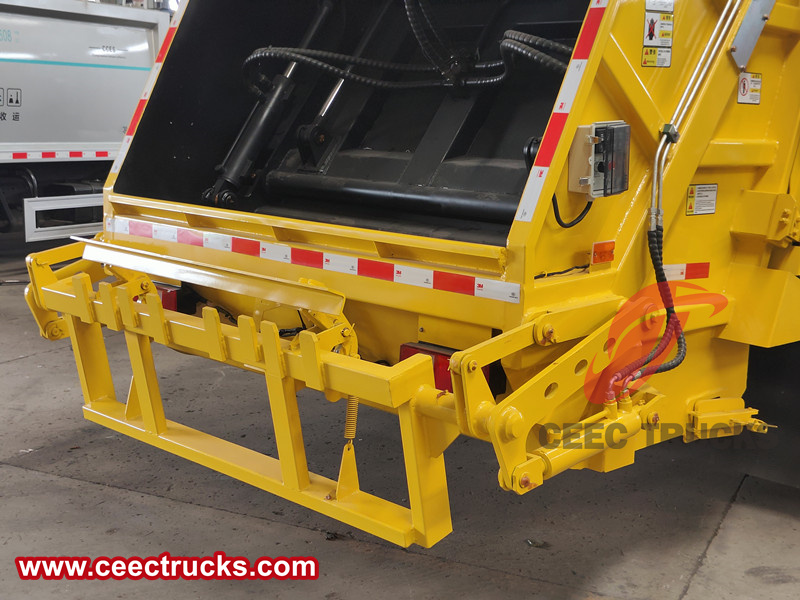

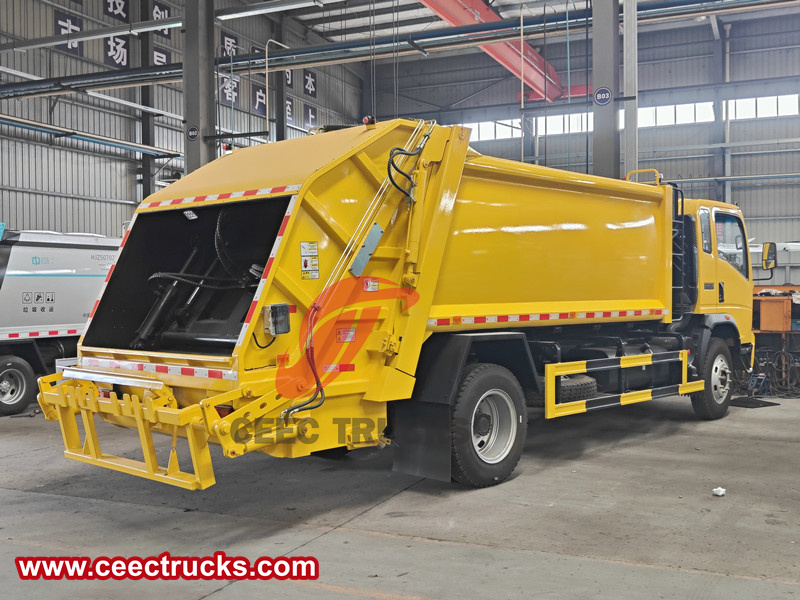

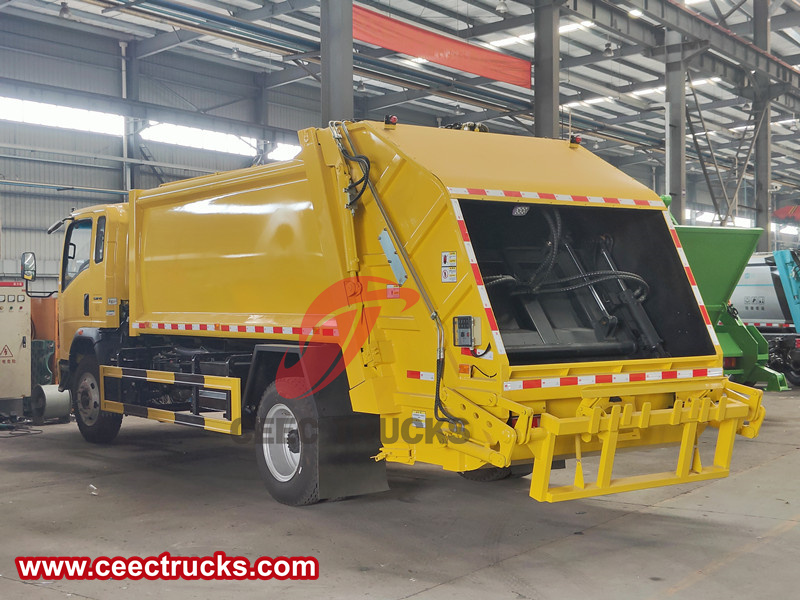

The Sinotruk HOWO compactor truck equipped with compression mechanism (such as scrapers, skateboards, etc.) in the loading compartment compresses the garbage. When the filling bucket is full of garbage, the scraper opens, and the skateboard drives the scraper to move downward together, inserting into the garbage for crushing and initial compression. The scraper rotates forward to further compact the garbage. After the scraper is in place, it moves upward with the skateboard to compact the garbage and fill it into the garbage bin. The whole process of HOWO refuse compactor truck is automatically controlled. During the continuous compression and filling process of garbage, the push shovel overcomes the back pressure and gradually retreats under the action of the extrusion force, realizing the two-way compression of garbage and filling the entire garbage bin evenly.

HOWO rear loader truck advantages

Modern compression trucks HOWO usually use PLC control systems to achieve intelligent control. The control system can monitor the working status, fault information, etc. of the vehicle, and provide operation prompts and alarm functions. The garbage bin of the compression garbage truck usually adopts a frame structure welded by reinforcing beams and steel plates, with a concave bottom surface and arc-shaped sides and top surfaces to reduce weight and improve force performance. The joint surface between the garbage bin and the filler is sealed with a special rubber sealing strip to prevent secondary pollution caused by garbage during compression, filling and transportation. According to user requirements, the compression garbage truck can also be equipped with different bucket (bucket) mechanisms, imported oil pumps, imported multi-way reversing valve groups and other configurations.
