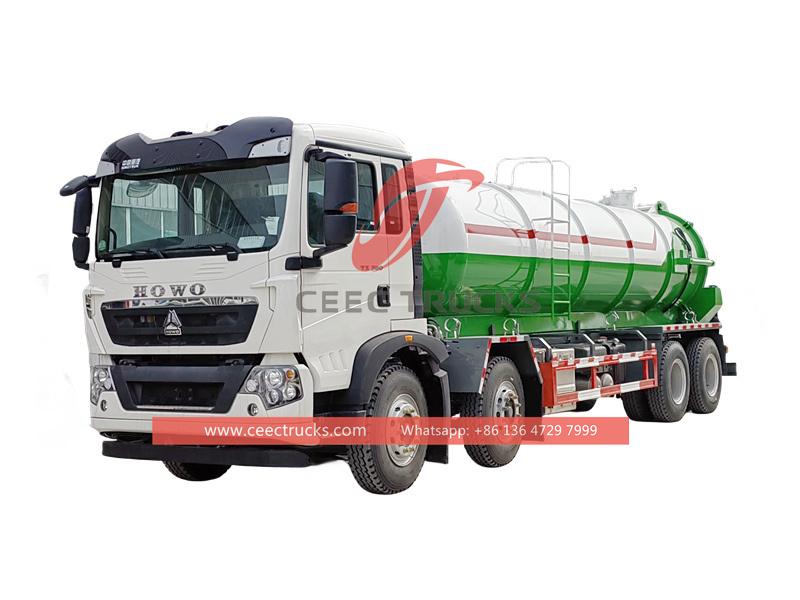

Howo 8×4 20000L vacuum sewage truck export to Africa, 350HP diesel engine,Faust 12-shift manual gearbox, high strength carbon steel material tanker, the capacity can be 16000 to 20000 liters. China famous WEILONG vacuum pump and imported JUROP / BP / MORO vacuum pump for option, hydraulic lifting device for waste discharge, painting and logos depend on request.
Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
20 Days
Applications:
Howo 8×4 Vacuum Tank Truck (also called Howo right hand drive sewer cleaning truck, Howo vacuum septic truck,Howo septic cleaner truck,Howo high pressure sewer cleaning truck,Howo sewage suction truck,Howo vacuum truck,Howo vacuum tanker,Howo sucker truck,sewer sucker,Howo exhauster truck,Howo sewer vacuum truck,Howo sewage vacuum truck,Howo sewer cleaning truck,Howo sewage tanker,Howo waste vacuum truck) is
used to collect, transport and discharge liquid such as dirty water,
sludge, septic, crude oil, and solid stuff such as small stones, bricks
as well. It is suitable for cleaning the sewer, cesspit, cesspool,
gully, etc. It is widely used in environment and sanitation field.
CEEC TRUCKS Howo right hand drive vacuum tank truck is equipped with WEILONG or Italy MORO / BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.
The sewage tanker truck can be equipped with cabin Pneumatic Control for easy operation.
Right Hand Drive:
The technical difficulties in the production of right hand drive trucks in China mainly include the following aspects:
1.Steering system design: The steering system of the traditional left hand drive truck needs to be redesigned and transformed into a configuration that adapts to the right rudder driving. This involves changes and adjustments to multiple components such as steering column, steering mechanism, steering gear, and steering transmission device to ensure that the steering system of the right rudder truck can operate normally.
2.The deployment of the cabin: Right hand drive trucks need to redesign the layout and internal control device of the cab to adapt to the operating habits of the right rudder driver. This includes the rediprete and adjustment of the dashboard, driver's seat, console, operating rod, foot pedal, etc.
3.Driver's vision guarantee: Since the driving level of the right hand drive truck is on the right, it is necessary to ensure that the driver's vision is good to ensure driving safety. This requires considering the blind spots on the right during the design and takes corresponding measures, such as increasing side windows and using auxiliary visual systems to enhance the driver's field of vision.
4. Process and production line adjustment: The production of right rudder trucks needs to adjust the traditional production line and process process. This involves changes in production equipment, process regulations, and test methods. It is necessary to properly transform the production line to meet the production requirements of right rudder trucks.
Key Features:
---- Shcaman heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 1 to 25 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
Vehicle Description |
|||||
Overall dimensions |
11000*2496*3550mm |
||||
GVW |
31000kg |
||||
Mass in working order |
14980kg |
||||
Chassis brand |
HOWO |
||||
Traction type |
8*4 |
||||
Chassis Description |
|||||
Cab |
Extended cab,single berth,up/down and front/back adjustable steering wheel ,VDO instrument and control module,safety belt with double locking mechanism,exterior sun visor.with air condition. |
||||
Traction type |
LHD/RHD |
||||
Drive type |
8x4 |
||||
Wheelbase |
1800+3800+1350 |
||||
Tire specification |
12.00R20 |
||||
Tire quantity |
12+1 units |
||||
Engine |
Engine model |
MC07H.35-60 |
|||
Emission level |
Euro 6 |
||||
Displacement/output |
7360ml/257kw |
||||
Horse power |
350hp |
||||
Gear box |
Model |
SINOTRUK HW series 10 speed transmission,main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with planetary reducer. |
|||
Number of gears |
10 forward gears& 2 reverse |
||||
Brake system |
Service brake:dual-circuit pneumatic brake; |
||||
Axle |
Front |
HF9,.loading 9T |
|||
Rear |
HC16*2 loading 16T ,double reduction,speed ratio 4.8/5.73 |
||||
Suspension |
Front and rear leaf spring suspension.front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer. |
||||
Fuel tanker |
Capacity |
400L |
|||
Tanker Description |
|||||
Tanker |
Capacity |
20cbm |
|||
Material |
6mm thickness, high quality carbon steel |
||||
Structure |
Welding, vacuum tank, Cylindrical |
||||

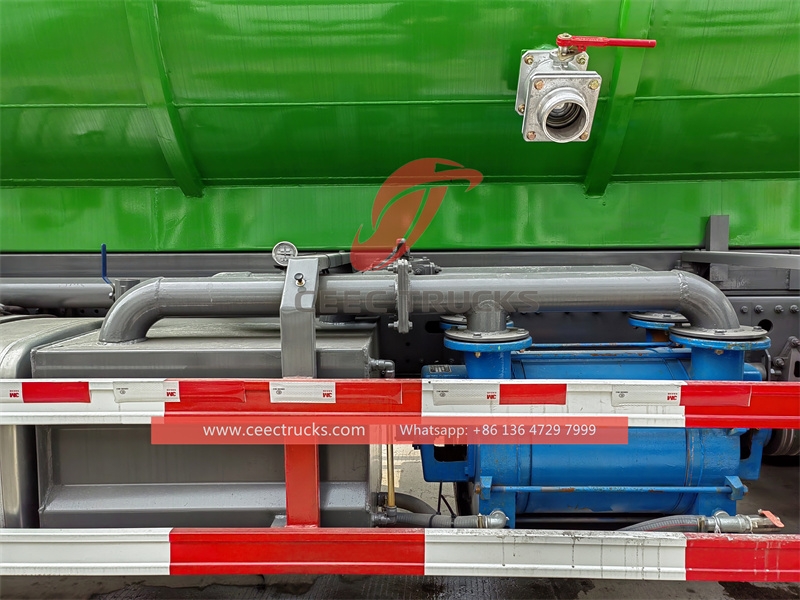

Pump |
Type |
Water Circulation Pump |
|||
Flux |
68(L/S) |
||||
Rating speed |
800~1000(r/min) |
||||
Shaft power |
5(kw) |
||||
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
||||
Manufacture |
CS Trucks Group |
||||
Pipe |
Suction and discharge pipe |
||||
Special function |
Suction time ≤ 5min, |
||||
Standard configuration |
1.Equipped with Inspect window,dischargevalve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. |
||||
Optional configuration |
1.Tanker material: stainless steel. |

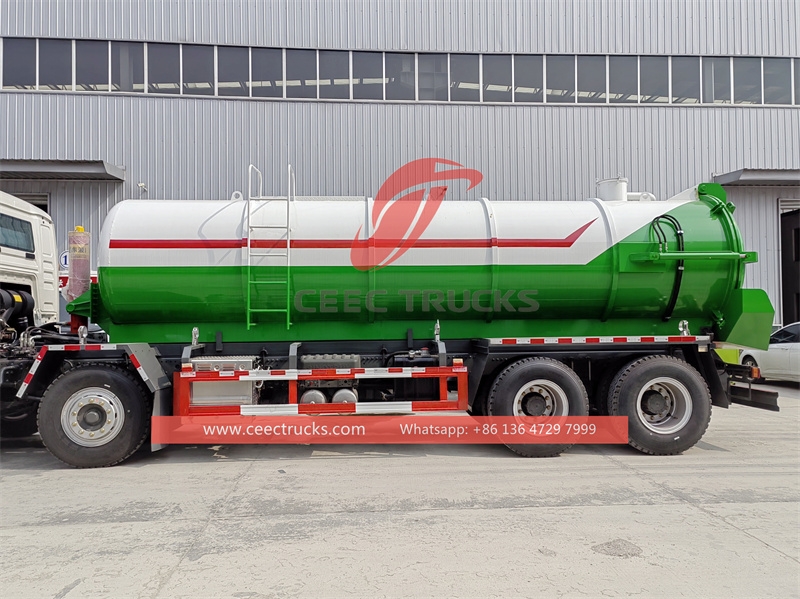

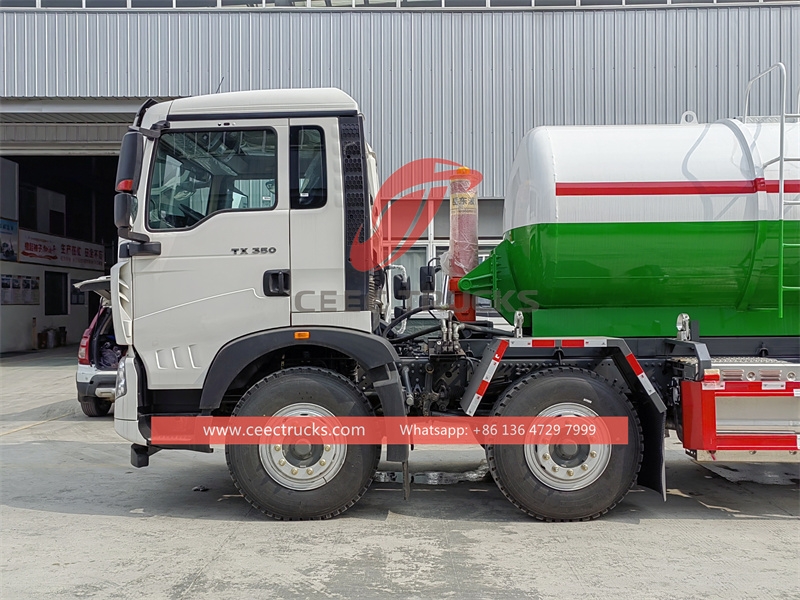

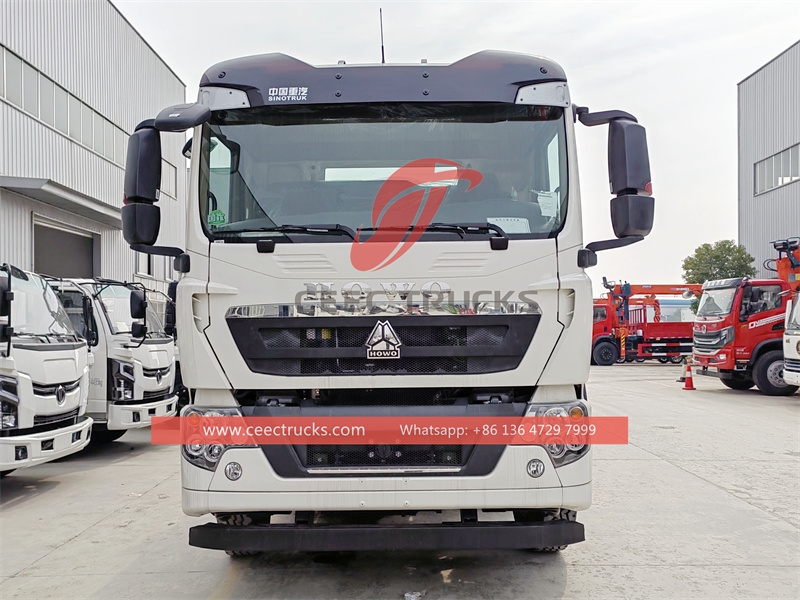

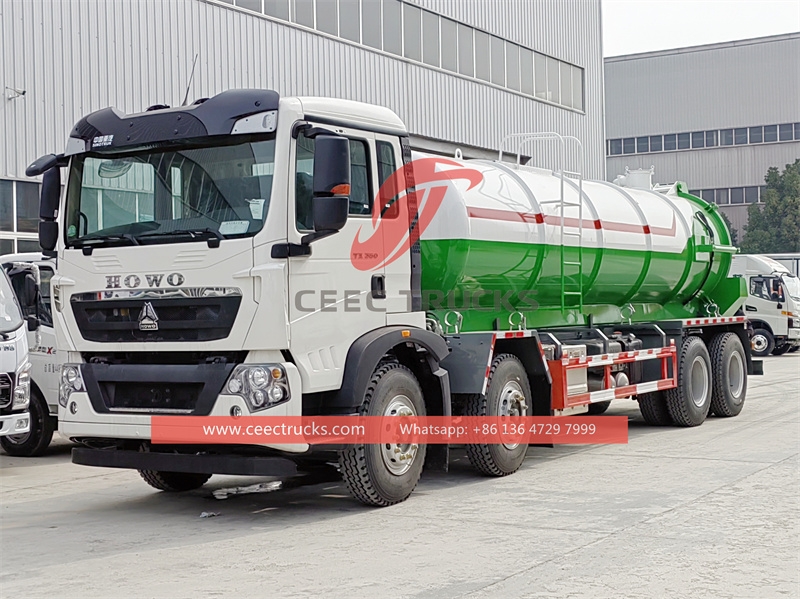

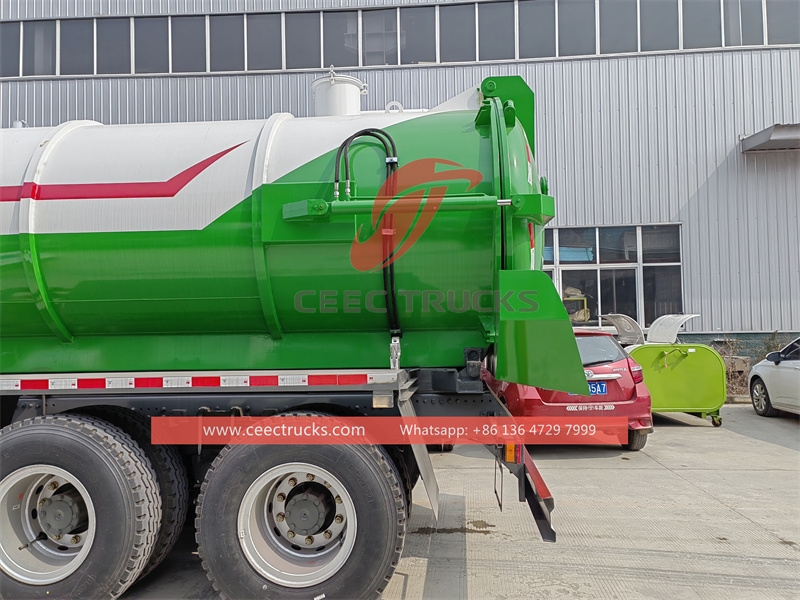

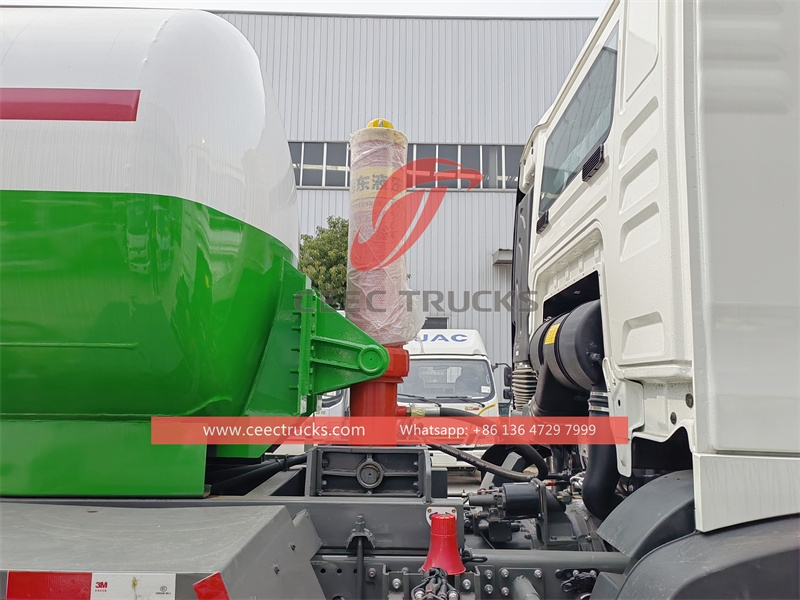

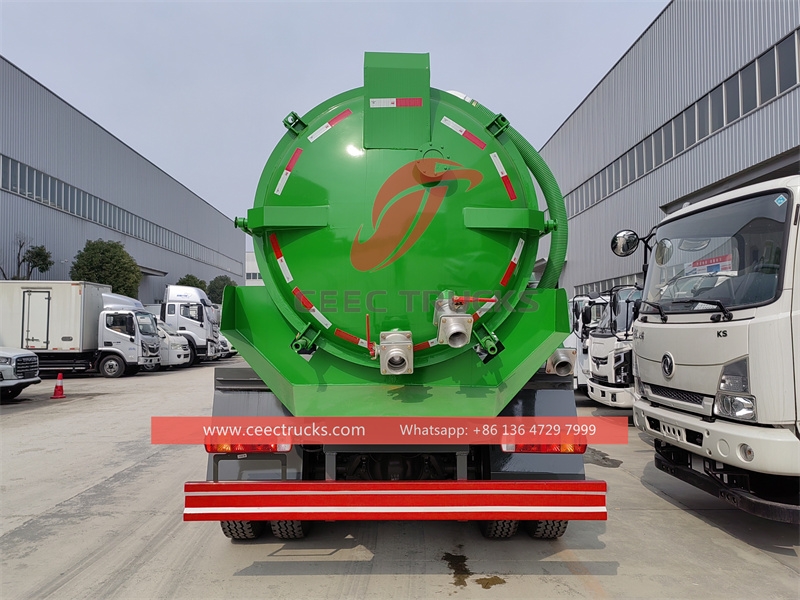

(Factory outlet Howo 8×4 RHD 20000 liters vacuum pump truck ready for delivery)
CEEC
TRUCKS is a leading vacuum tank trucks manufacturer in China. We supply HOWO sewer sucker truck, ISUZU vacuum pump truck, Dongfeng septic pump truck, FOTON gully emptier, FAW vacuum suction truck, etc.
We also customize vacuum tank trailers and vacuum tanker bodies to fit on customers truck chassis. The capacity of vacuum
tankers can be 3,000-30,000 liters. Our vacuum sewage trucks are very popular
in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.
Key Words: HOWO 8×4 sewage truck, HOWO 8*4 RHD vacuum tank truck, HOWO vacuum suction truck,HOWO gully emptier, HOWO septic tank truck, HOWO sewer sucker, HOWO vacuum tank bodes,HOWO vacuum truck price
Technical advantages: Source sewage suction truck production factories usually have advanced production equipment and technical teams, and are able to independently develop and manufacture high-quality source sewage suction trucks. We are able to customize production according to market demand and customer requirements to ensure product quality and performance.
Rich experience: Source sewage suction truck production factories usually have many years of production experience. We are able to improve and optimize products based on market demand and customer feedback, and continuously improve product performance and reliability.
Cost control: As a professional production factory, the source sewage suction truck production factory has a mature supply chain management system, which can effectively control raw material procurement costs and production costs, improve production efficiency and reduce product prices, and provide customers with more competitive products.
After-sales service: Source sewage suction truck production factories usually have a complete after-sales service system and can respond to customer needs and problems in a timely manner. We provide product maintenance services and spare parts supply to ensure that customers can receive effective support and assistance during use.
CEEC TRUCKS is a professional suipplier of vacuum sewage trucks in China. We possess over 10-year export experience of sewage trucks. We can ensure the fast delivery time and 12 months guarantee for our sewer trucks. Our septic tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
