Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysApplications:

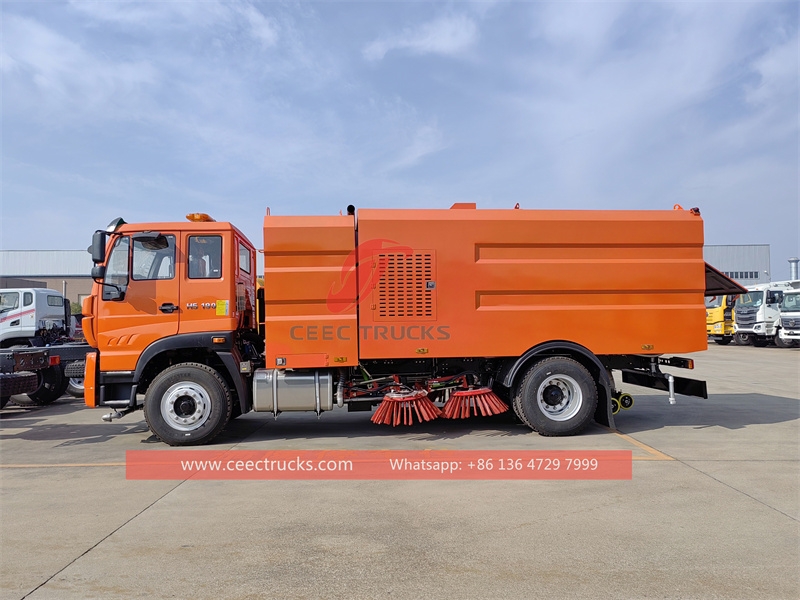

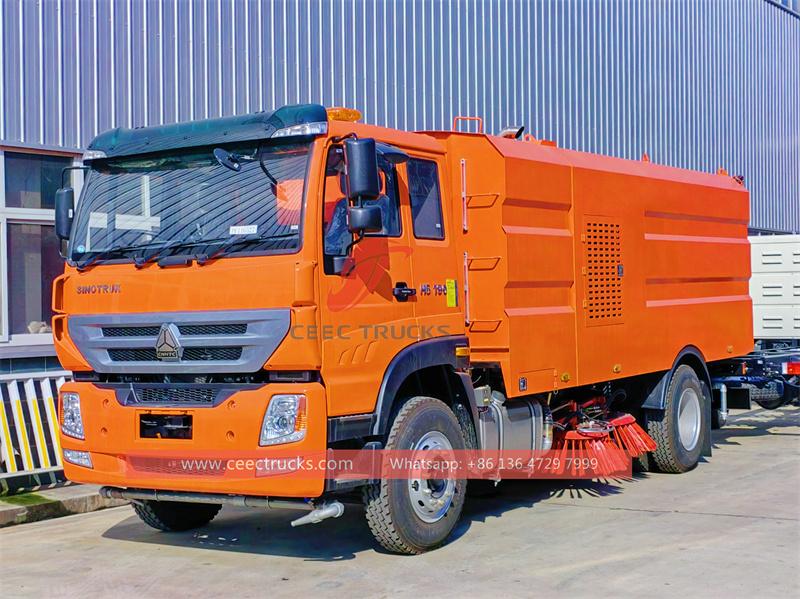

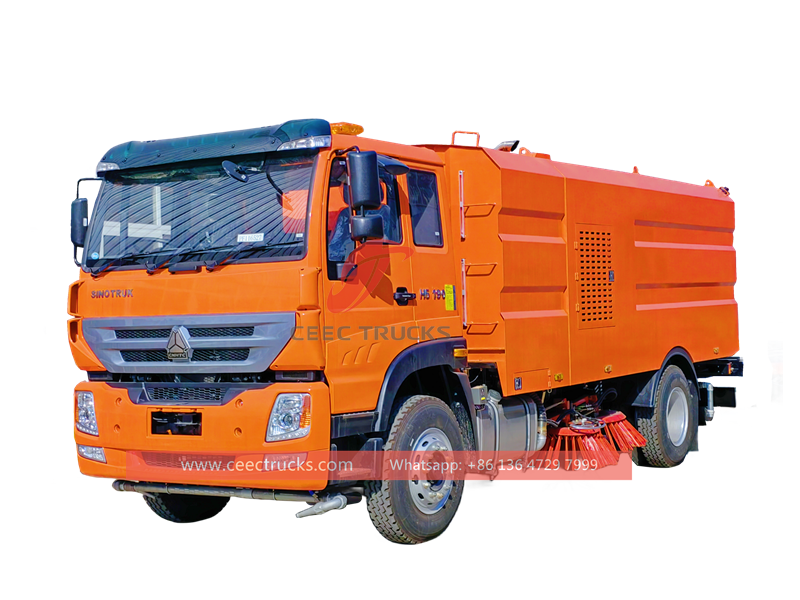

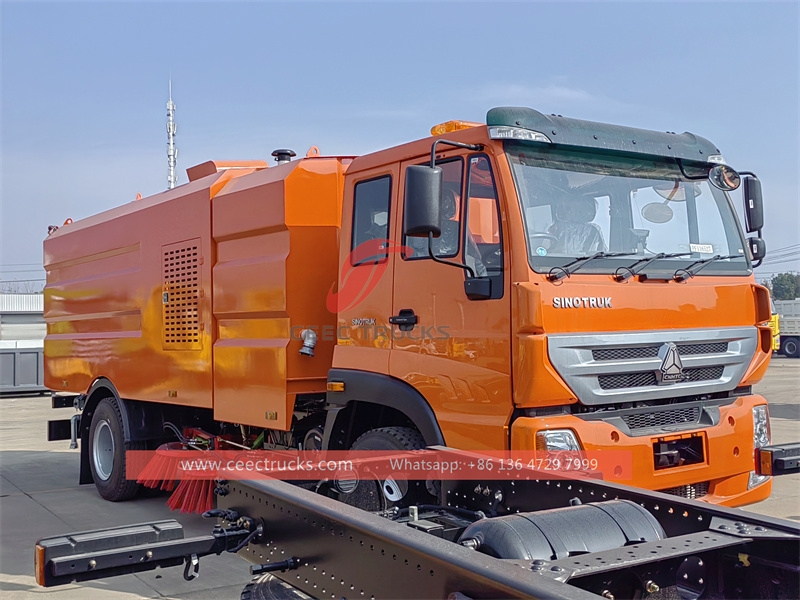

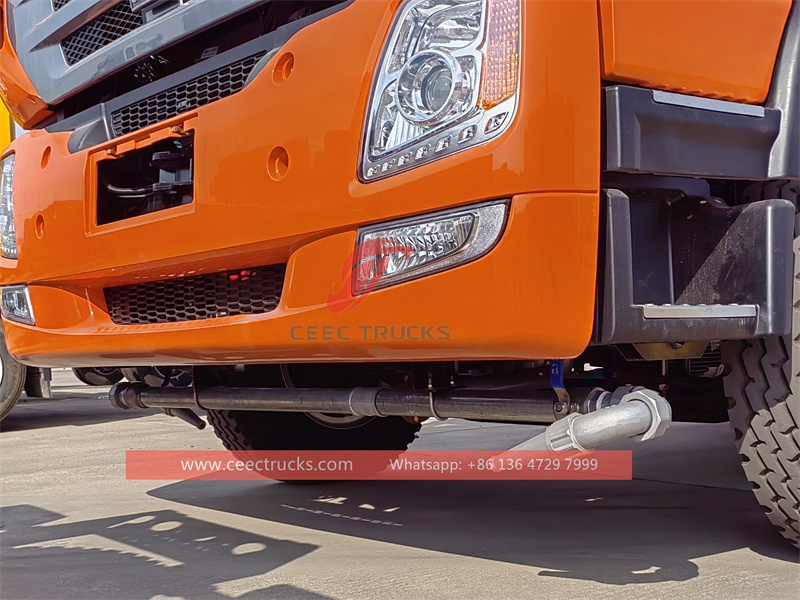

HOWO Mechnucal sweeper turck (also called HOWO street cleaning truck, Brand new road sweeper truck, Truck Mounted Sweeper, high quality sweeper truck, howhighway sweeper truck HOWO, Road sweeper manufacturer) is a vehicle that specializes in removing debris, dust, and other small particles from roads, parking lots, and other hardened surfaces. The steps to operate a mechanical sweeper include: conducting a safety check, pre-inspecting the vehicle, starting the vehicle, familiarizing yourself with the controls, performing a wet sweeping operation, adjusting the brush height, using a vacuum system to absorb the collected debris, emptying the collected debris, and performing cleaning and maintenance. Always follow the manufacturer's instructions and local regulations when operating a mechanical sweeper.
CEEC TRUCKS road sweeper truck use whole stainless steel material tanker, Original
Italy or America motor for easy operation, ISUZU and JAC auxiliary
engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- HOWO chassis, perfect performance
---- SINOTRUK diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 3 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
Vehicle parameters |
|||
Vehicle Model |
CEEC8725 |
Chassis Brand |
HOWO |
Overall dimensions |
7850*2280*2770 mm |
Curb weight |
8600kg |
Dust tank volume |
9000L |
Water tank volume |
6000L |
Chassis parameters |
|||
Chassis brand |
HOWO |
Wheelbase |
3800 mm |
Cab |
Configuration |
HOWO 2080, single row allowable for 2 passengers |
|
Color |
Color is optional |
||
Engine |
Model |
WP4.1NQ190E61 |
|
Rated power |
190hp |
||
Emission |
Euro 3 |
||
Type |
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine |
||
Tire |
Size |
8.25R20 |
|
Number |
6+1 nos |
||
Drive type |
Right/Left hand drive 4X2 |
||
Suspension |
Multi leaf springs |
||
Rated voltage |
24V,DC |
||
Steering device |
Power assisted steering |
||
Steering wheel |
Left hand drive or Right Hand Drive |
||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||
Road sweeper structure parameters |
|||
Dust tank volume |
9000L |
Water tank volume |
6000L |
Sweep width |
3000m |
Cleaning speed |
3-20km/h |
Cleaning ability |
9000-60000 m2/h |
Cleaning efficiency |
0.98 |

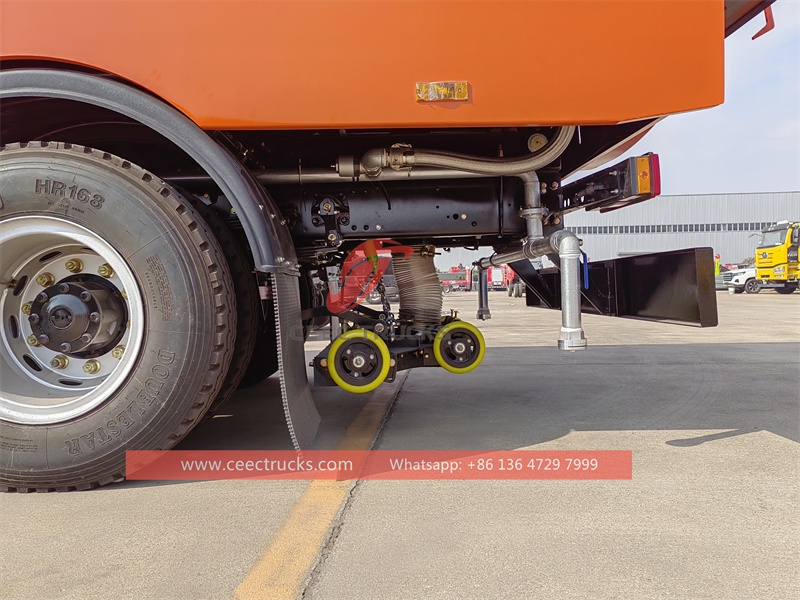

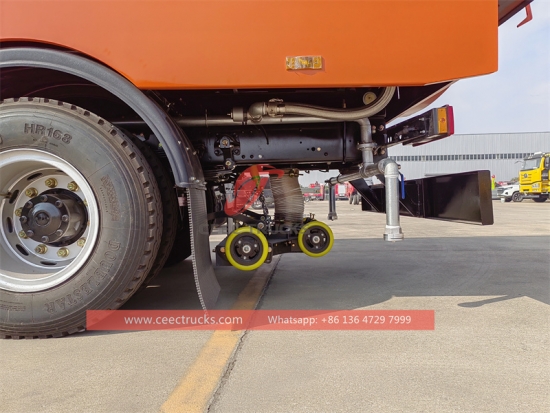

Maximum suction particle |
120mm |
Min. clearance of suction nozzle |
200mm |
Unloading angle |
45° |
Unloading height |
970mm |
Standard configuration |

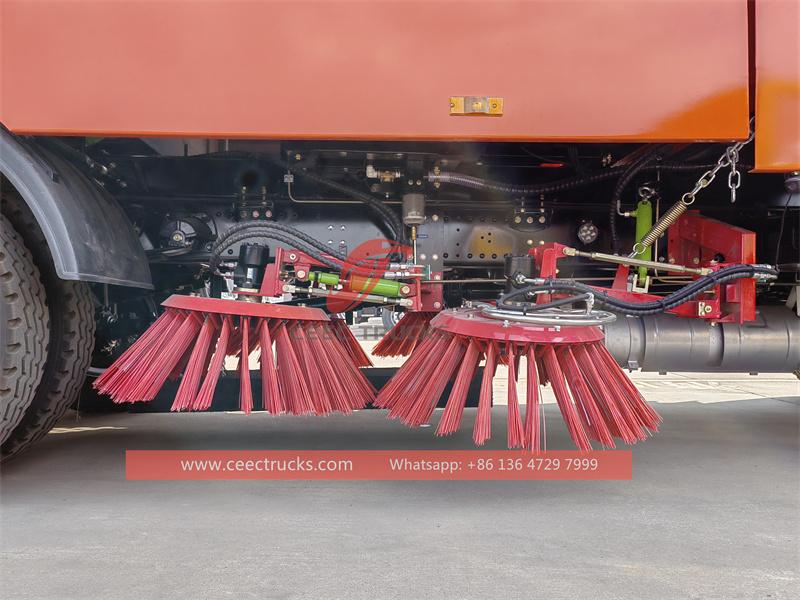

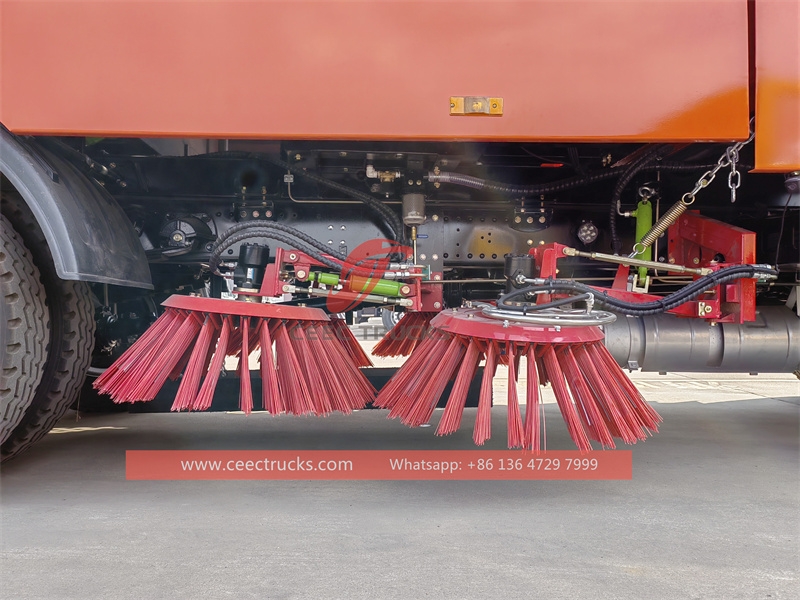

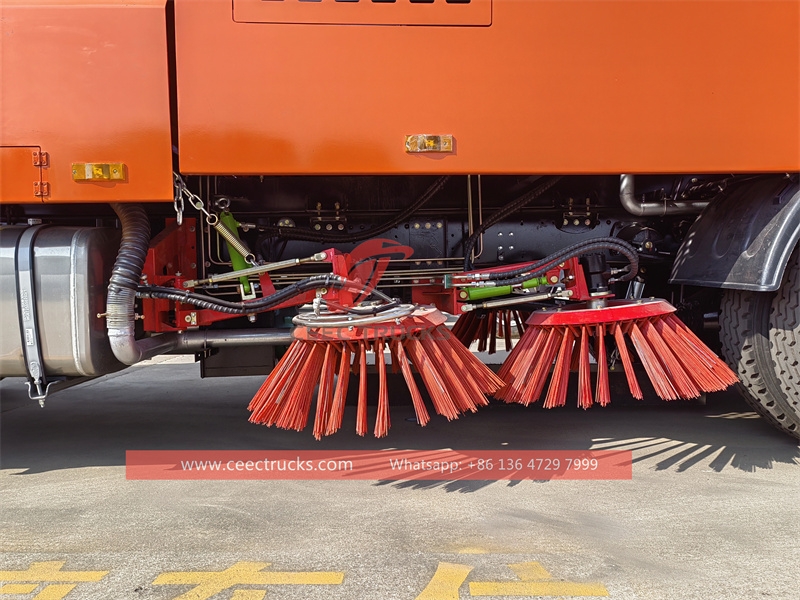

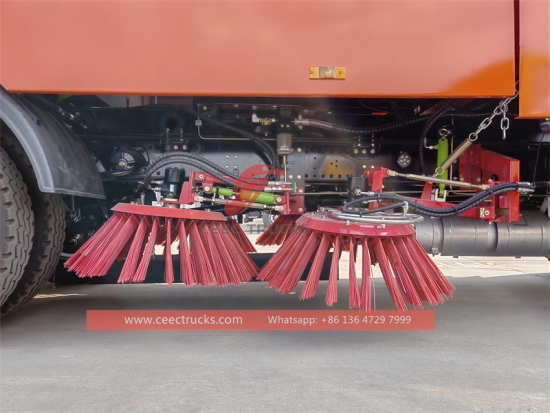

Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. |
||
Selective configuration |
surveillance system,rolling brush. |
(Howo city street sweeper trucks with factory direct sale)
Key words: Road sweeper, Street Sweeper Truck, Truck mounted sweeper
★ Euro 3 type, SINOTRUK engine, super powerful
★ 6-shift manual mechanical transmission gearbox
★ Easy operation and easy maintenance
★ 12 months fast moving spare parts for FREE
★ Authorized road cleaner trucks exporter
CEEC TRUCKS is a leading exporter of road sweepers in China. We possess over 10-year export experience of street cleaner trucks. We can ensure the fast delivery time and 12 months guarantee for our street sweepers. Our road sweeping vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Professional guidance on your importing documents.
---- Maximize save your sea freight.
---- Safty, Quickly, Timely.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection....
