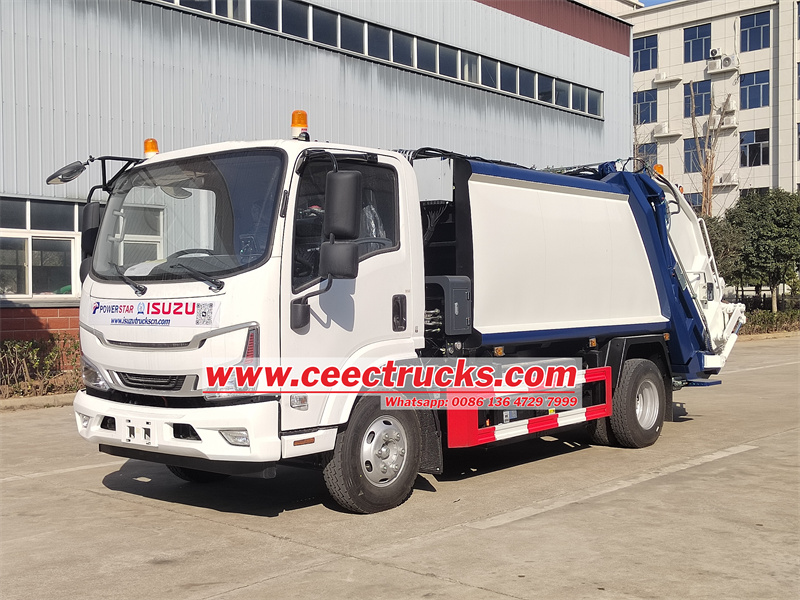

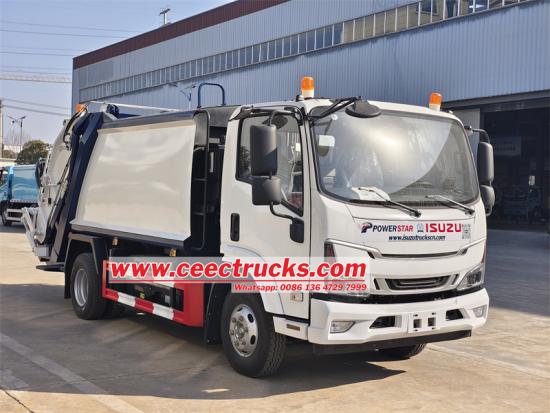

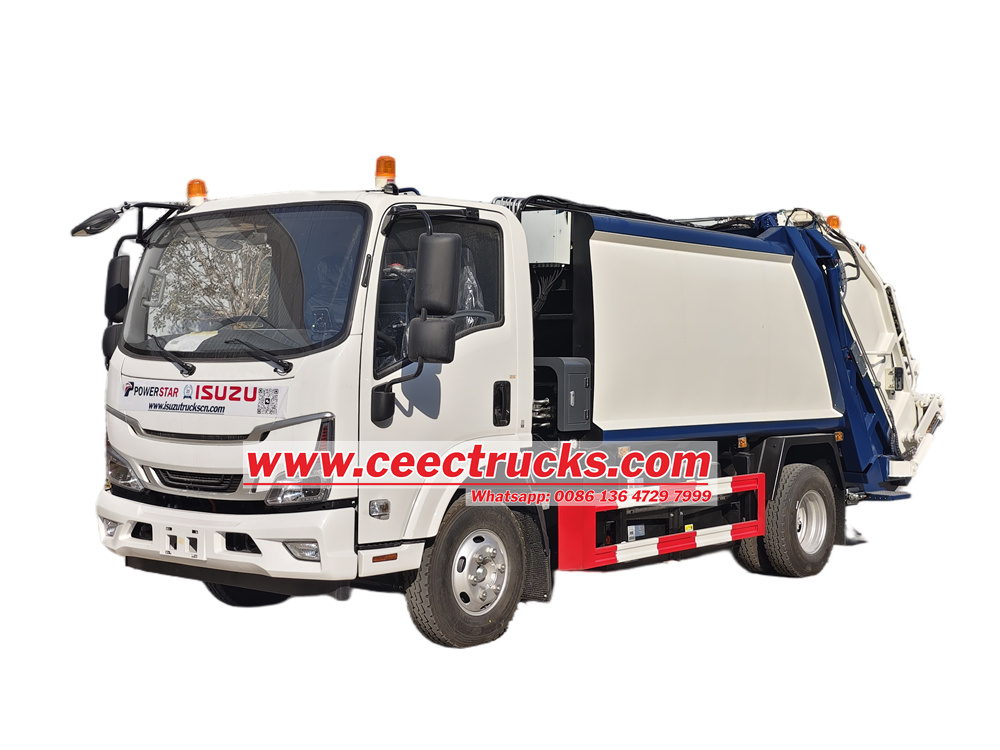

Isuzu EVM600 electric rear load compactor truck

Isuzu EVM600 electric rear load compactor truck is a pure electric drive, zero-emission urban waste disposal tool. It is equipped with an advanced electric drive system and compression mechanism, which can achieve efficient and environmentally friendly garbage collection and transportation. The vehicle is intelligently designed and equipped with a real-time monitoring and fault diagnosis system to facilitate fleet management and maintenance.

Compared with traditional fuel garbage compression trucks, Isuzu EVM600 has lower energy consumption and operating costs, and meets the requirements of modern cities for environmental protection and sustainable development. It is suitable for multiple application scenarios such as urban residential areas, commercial areas, industrial parks, etc., and is one of the important tools for modern urban waste disposal.

Key Features

★ lsuzu 4x2 High technology EV truck chassis

★ World famous TZ370X$-LKM1201 Driving Motor

★ 100,000 Km long distance Guarantee

★ Zero emission electric technology, high-performance battery

★ Efficient compression，multiple control modes

★ Comfortable and safe，easy to maintain

Truck Parameters

Product Applications

The Isuzu EVM600 Electric Rear Load Compactor Truck combines the reliability of Isuzu's electric chassis with advanced powertrain, battery technology, and versatile operational controls. Its design prioritizes efficiency, sustainability, and operator convenience, making it an ideal solution for municipal and commercial waste management operations. Below is a detailed description of its key features and operational controls:

Chassis and Powertrain:

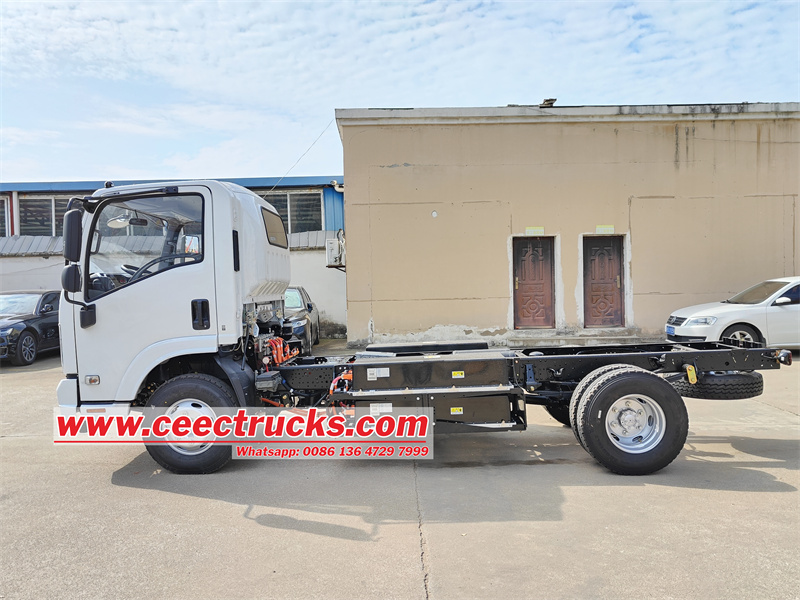

Basic Chassis: Based on the sturdy Isuzu EVM600 electric chassis with a 3365mm wheelbase, it provides a stable and reliable platform for compaction trucks.

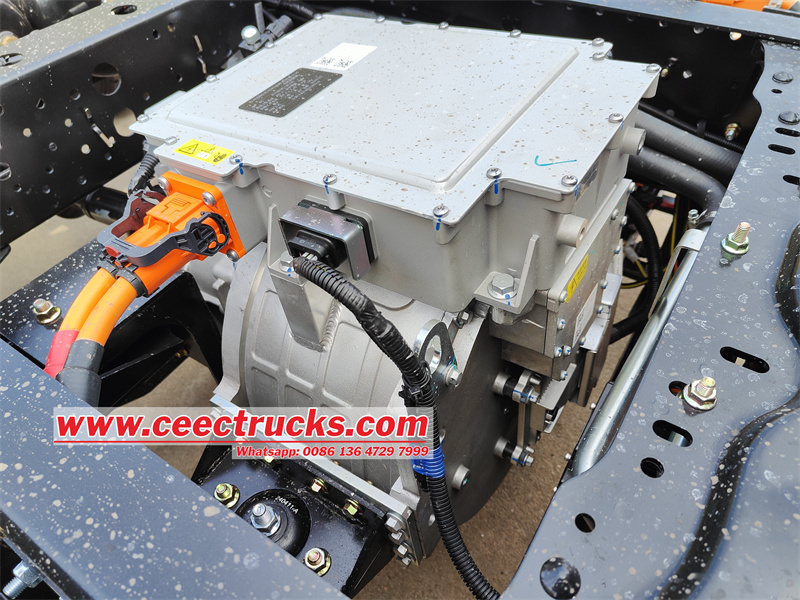

Drive Motor: Equipped with TZ370XS-LKM1201 drive motor, it ensures efficient and powerful propulsion.



Power Output: The truck is rated at 100kW and has a peak power of 185kW, providing ample torque for demanding tasks.

Energy Storage:

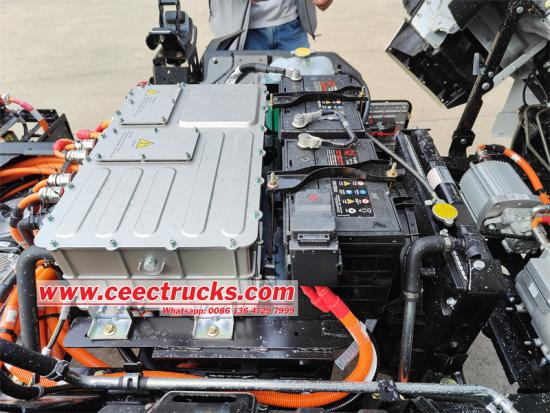

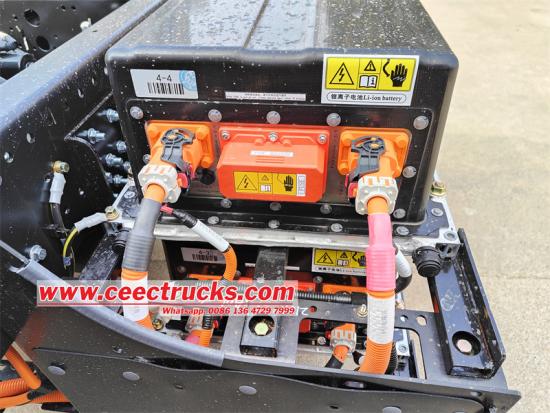

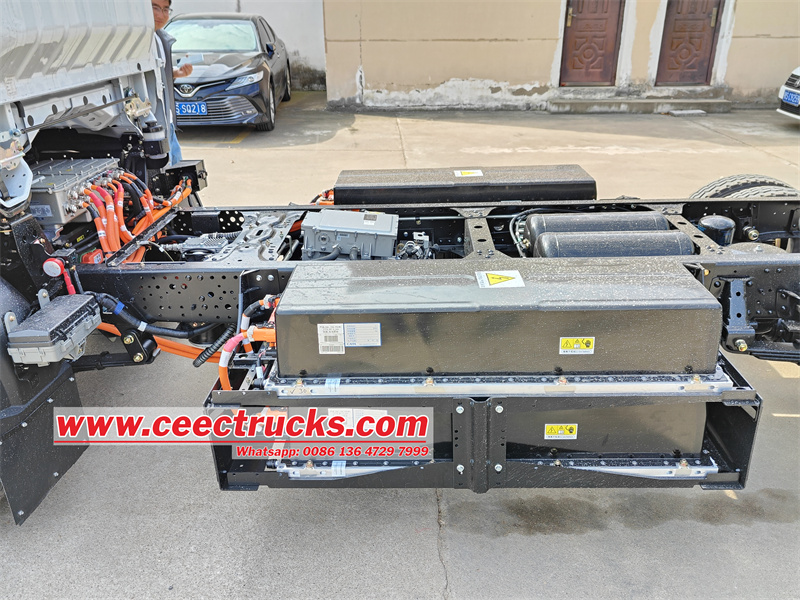

Battery System: CATL/CB220 LFP (lithium iron phosphate) batteries provide clean and sustainable energy.





Capacity: With a battery capacity of 106.95kWh, this battery has high energy density, long life and excellent safety performance, providing long-lasting power support for the vehicle.

Superstructure and Garbage Compactor:

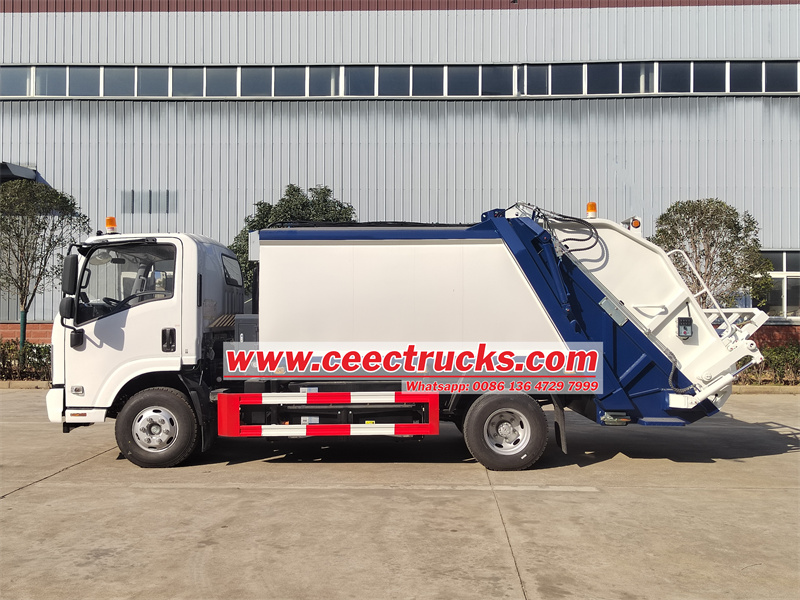

Compactor Body: The vehicle is equipped with an 8-cubic-meter compression trash box designed to maximize garbage capacity while reducing the frequency of emptying. Made of high-strength materials, it has excellent compression resistance and corrosion resistance.

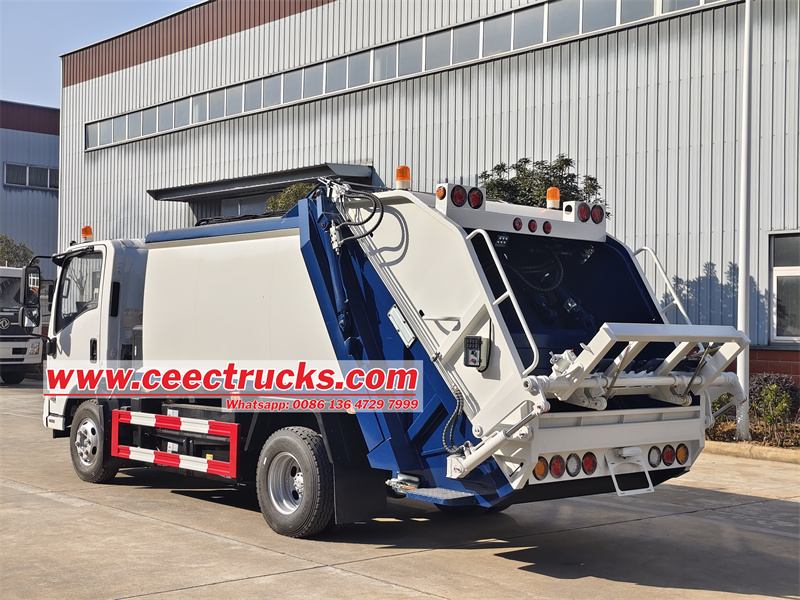

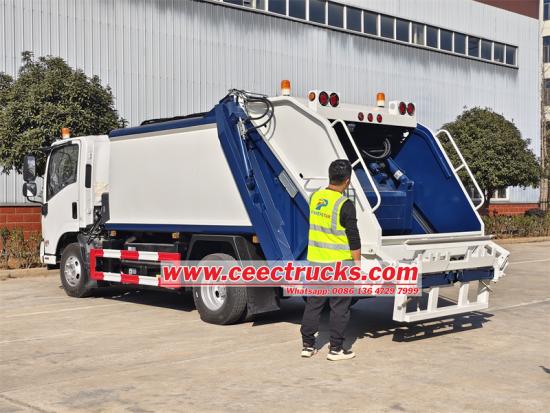

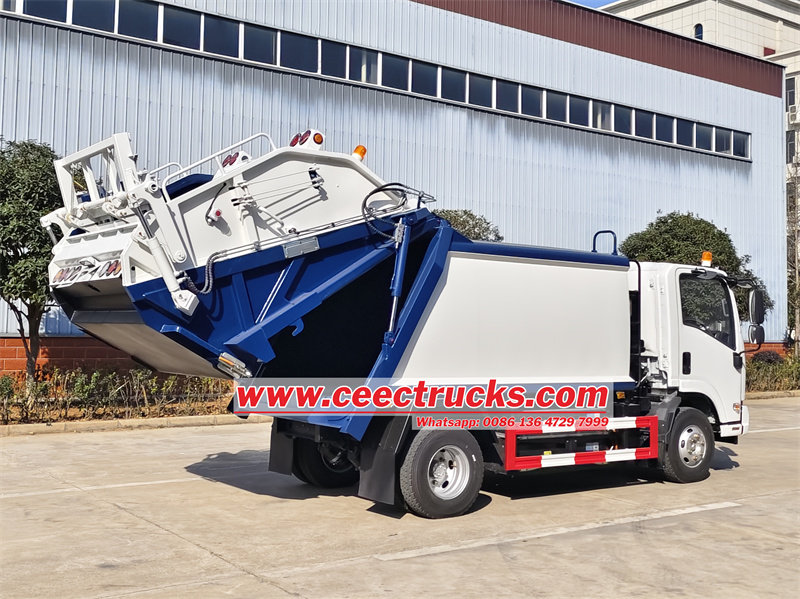

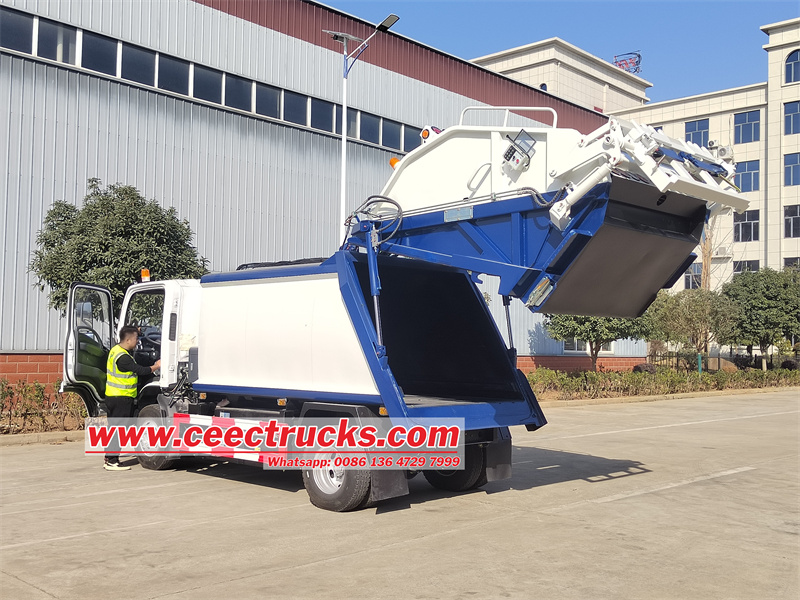

Rear loading mechanism: It has a rear-mounted flip-type garbage lifting mechanism, which allows the vehicle to easily hook up and flip over a standard garbage bin to achieve automatic loading of garbage. This design helps to load garbage easily and efficiently.

Operation control:

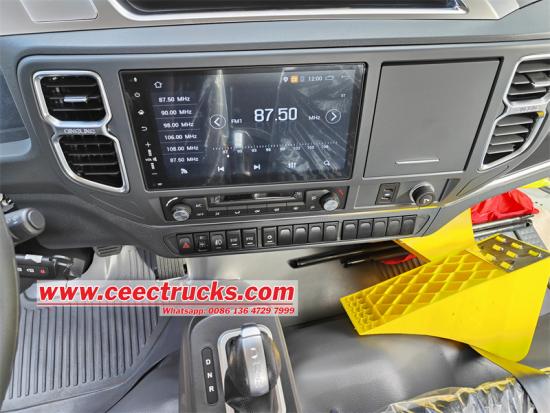

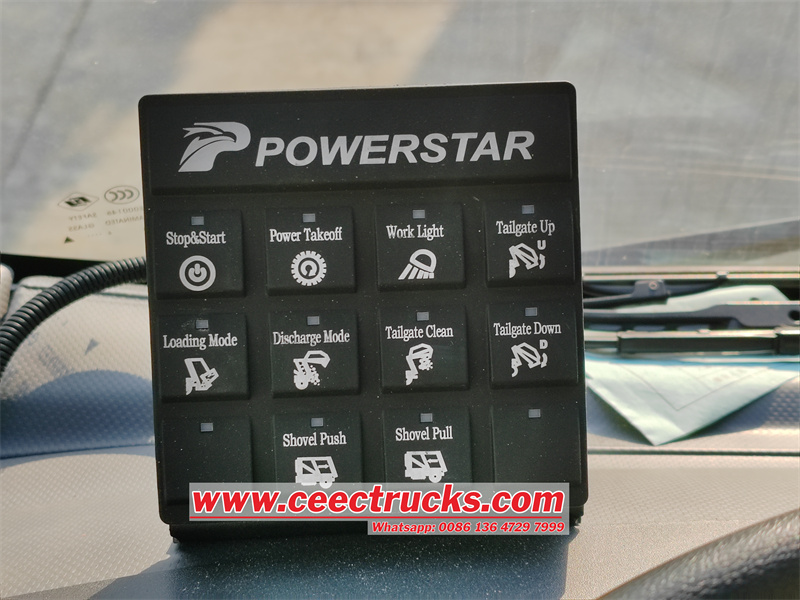

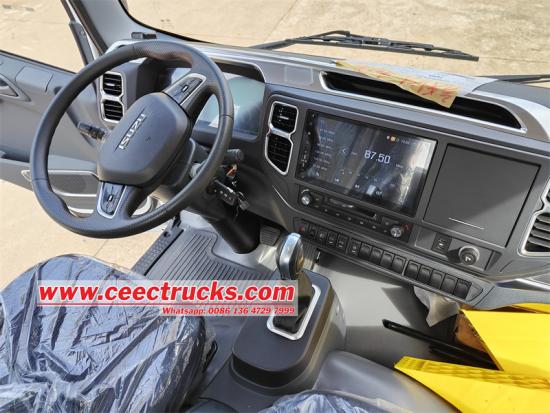

Electric control box in the cab: Located in the cab, it is convenient for the driver to control the loading and unloading operations of the compacted garbage bin through buttons.

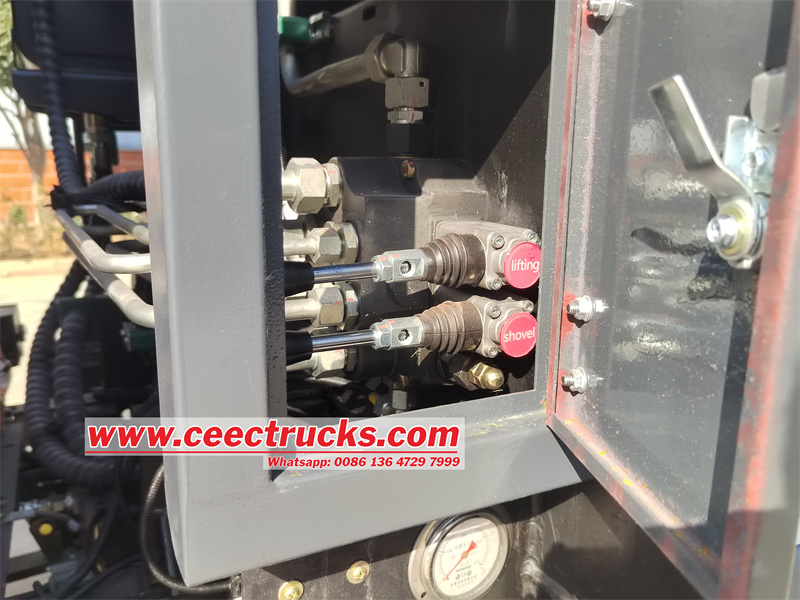

Manual hydraulic lever (driver's side): The manual hydraulic lever on the driver's side can perform the lifting and lowering of the tailgate and the pushing and retracting of the dozer.

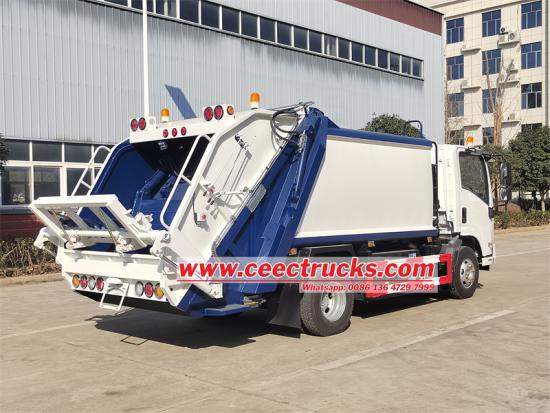

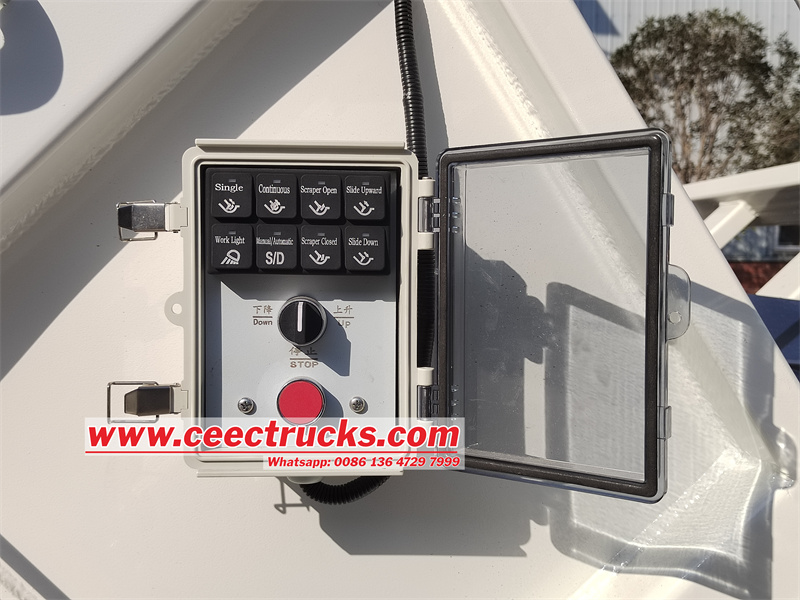

Rear electric control box: This control box is located on the left side of the tailgate and can perform single cycle, multiple cycles, scraper opening and closing, skateboard lowering and retracting, tailgate lifting and lowering, emergency stop and other operations.

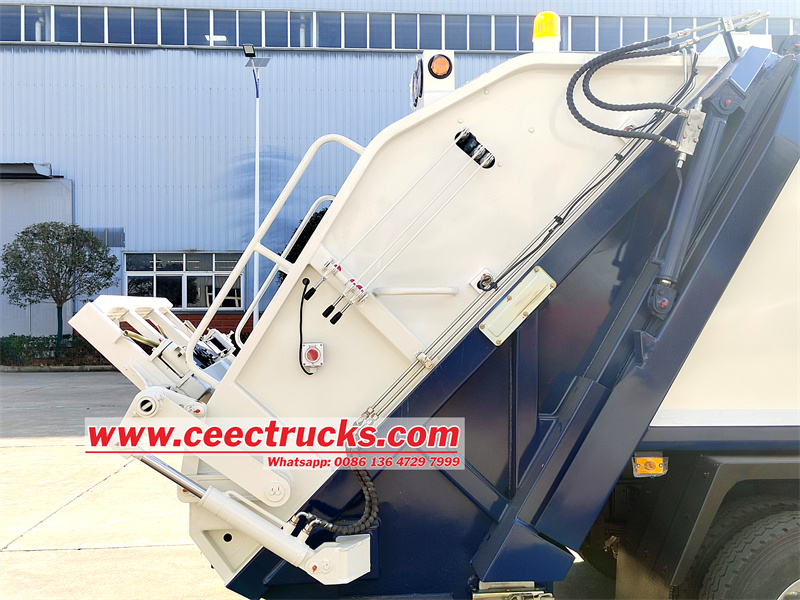

Rear manual operating lever: The additional manual lever located on the right side of the tailgate provides another layer of control,by controlling the operation of the scraper and skateboard, ensuring that compaction and loading operations can be managed even if there is a problem with the power supply or control system.

Environmental protection and energy saving

The EVM600 electric compacted garbage truck adopts a pure electric drive system to achieve zero emissions. Compared with traditional fuel garbage trucks, it is more environmentally friendly and helps reduce urban air pollution and noise pollution.



The vehicle's battery pack has the characteristics of high energy density and long life, providing the vehicle with long-lasting power support while also reducing energy consumption.





Thanks to the advanced electric drive system and low wind resistance design, the EVM600 electric compression garbage truck has low energy consumption during operation, which helps reduce energy consumption and operating costs.



Strong adaptability

Multiple application scenarios: The EVM600 electric compression garbage truck is suitable for multiple application scenarios such as urban residential areas, commercial areas, industrial parks, urban streets and special environmental areas, and has a wide range of applicability.





Flexible scheduling: The vehicle can be flexibly scheduled according to different garbage collection needs to meet the diverse needs of urban garbage disposal.



Real-time monitoring: The EVM600 electric compression garbage truck is equipped with an intelligent management system that can monitor the vehicle's operating status, battery power, mileage and other key information in real time, which is convenient for fleet managers to make reasonable scheduling.
