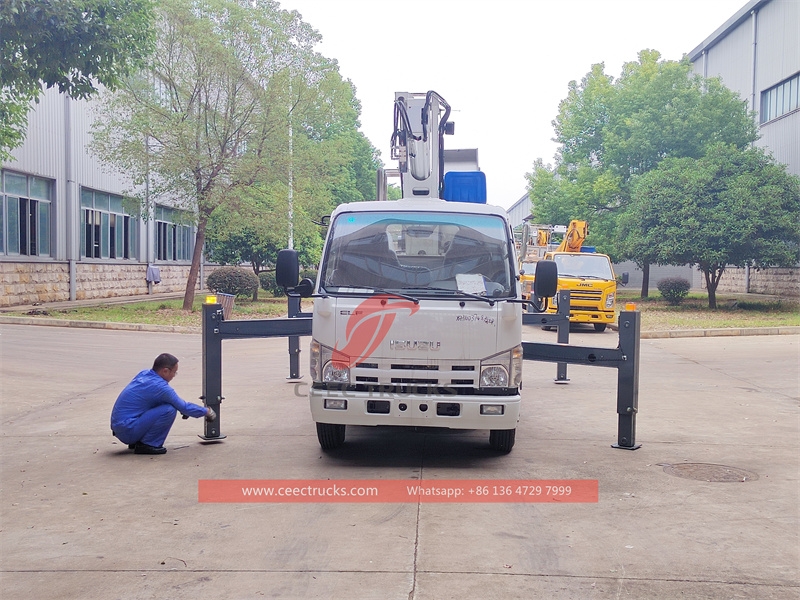

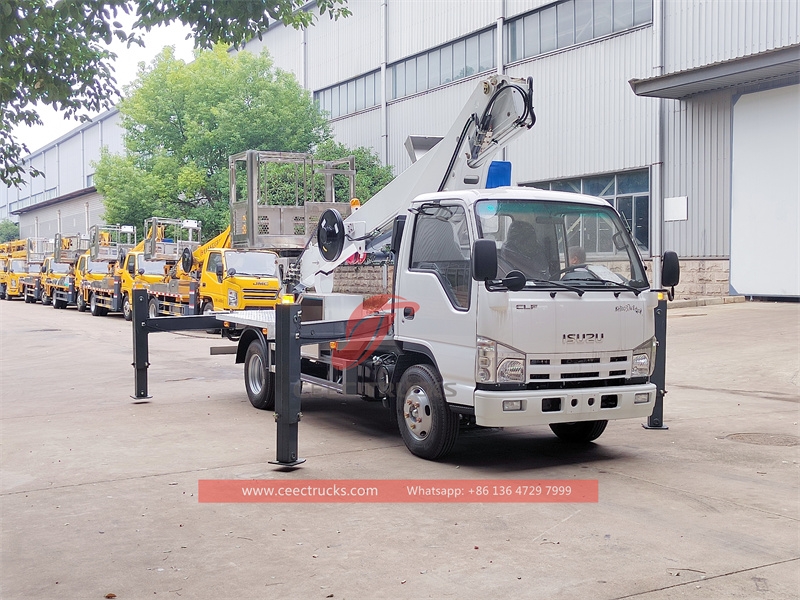

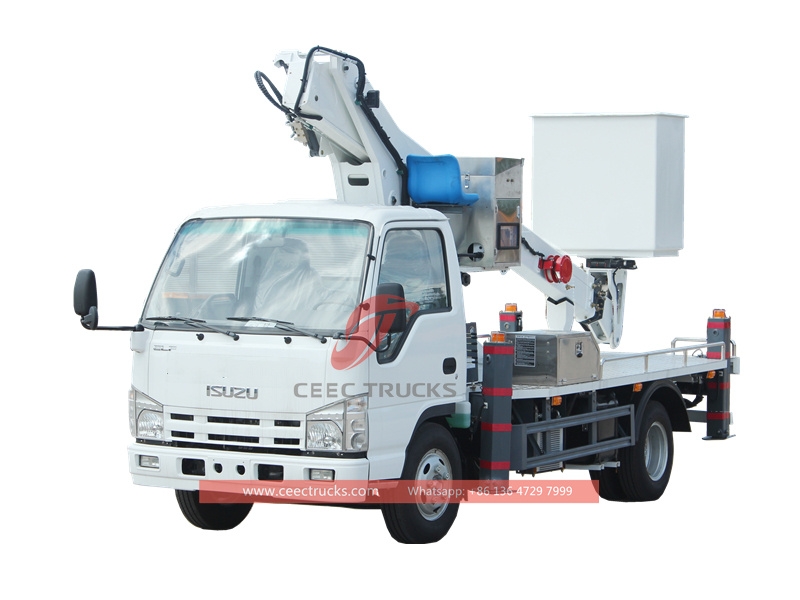

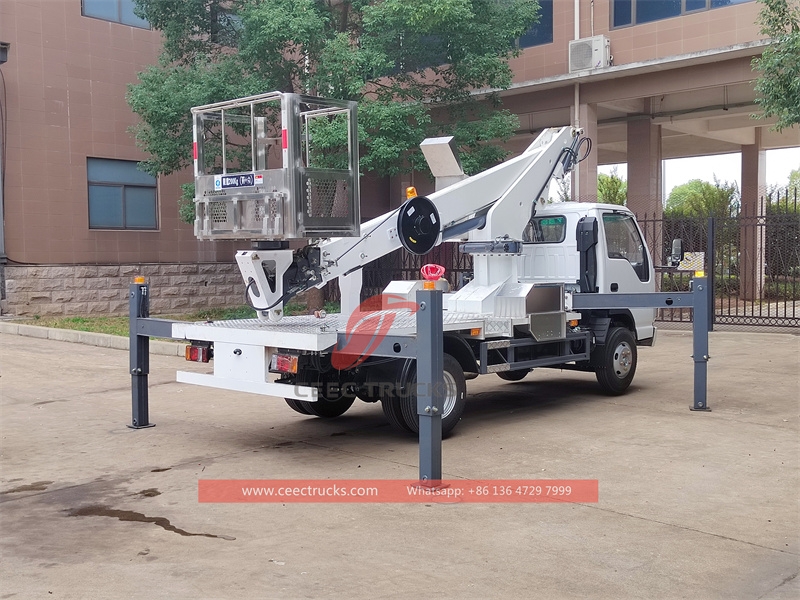

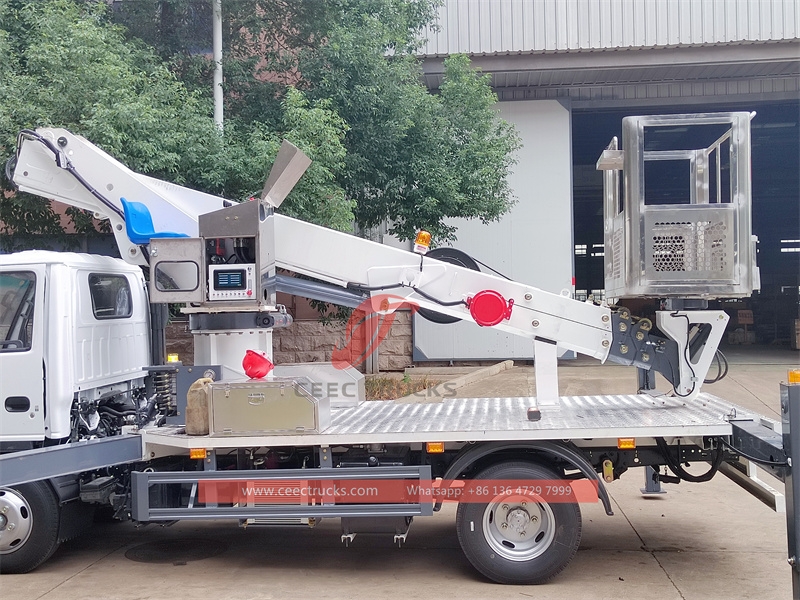

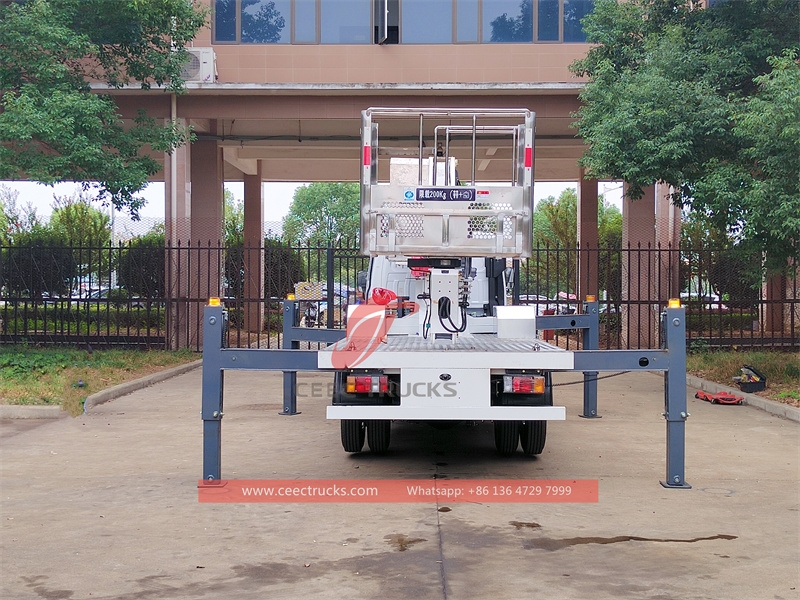

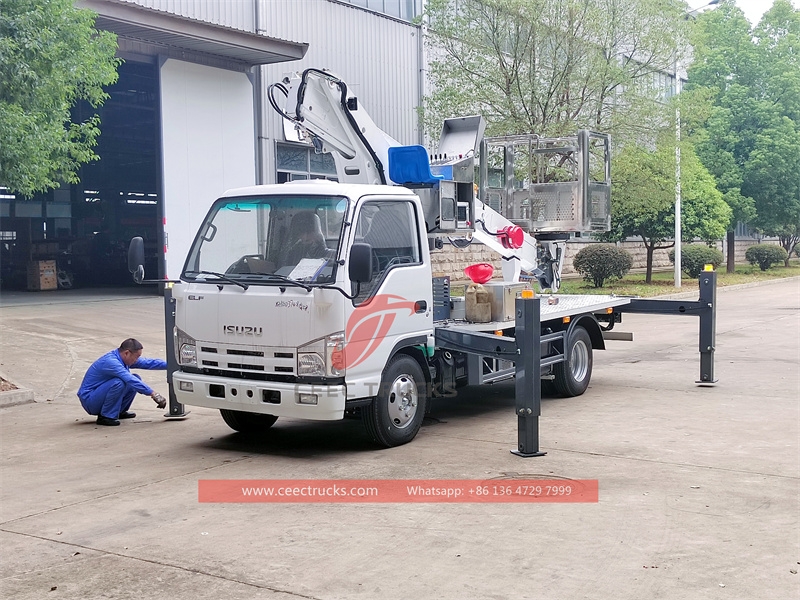

ISUZU NKR 13m Aerial Platform Truck made in China

ISUZU 100P 13m Aerial Platform Truck with factory direct sale

13m bucket crane lifting truck, ISUZU 100P 4x2 chassis, 5-shift manual gearbox, ISUZU 98HP diesel engine, painting and logos depend on requirement. Customer language control box.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

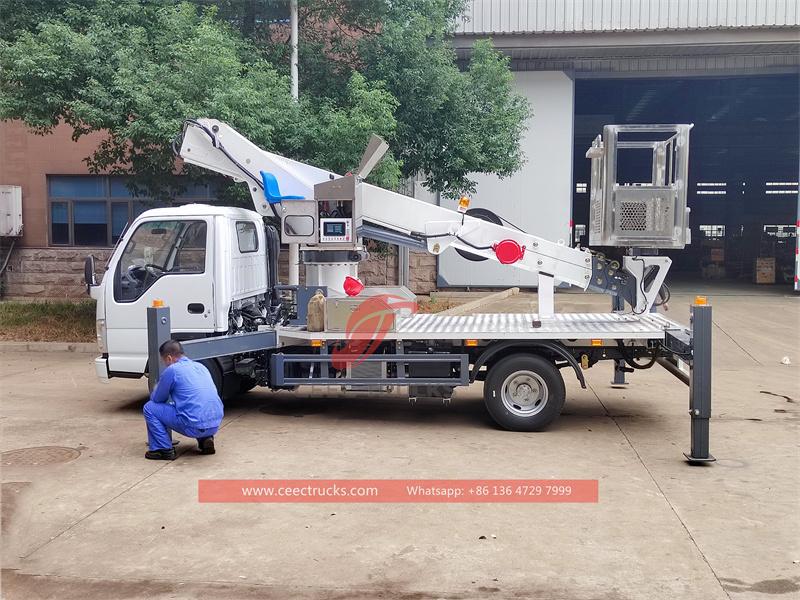

ISUZU 13m Telescopic Aerial Platform Truck

Applications:

ISUZU 13m Telescopic Aerial Platform Truck (also called Bucket crane truck ISUZU, boom lift, ISUZU aerial work truck, Hydraulic Telescopic Aerial Platform Truck, ISUZU mobile man lift vehicle, Truck Mounted Aerial Platform) is equipped with a hydraulic or mechanical lifting platform that allows workers to access elevated areas safely.ISUZU aerial work truck with an attached telescopic or articulating boom that can extend vertically or horizontally, providing access to high or hard-to-reach places. The platform at the end of the boom allows workers to stand or operate equipment while being lifted to the desired height.It's ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

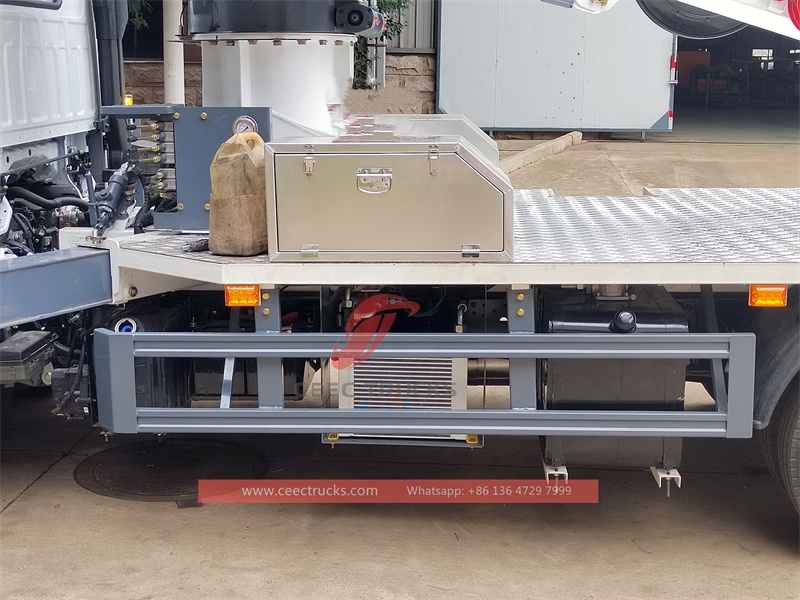

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.

Specifications:

Telescopic Aerial Platform Truck ISUZU (13M)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	7720 x 2000 x 2980 mm
	GVW / Kerb Weight	6,810 kg / 6,485 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98HP (72 KW)
	Displacement	2771 ml
	Emission Standard	Euro 4
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
	Wheelbase/No. of axle	3815 mm / 2
	Tyre Specification	7.00-16 or 7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Working Height	16 m
	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

★ ISUZU engine, super powerful

★ Can be operated at both turret and platform with all English version control plate

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU aerial platform trucks exporter

★ Training service for ISUZU high platform trucks

ISUZU 13m Telescopic Aerial Platform Truck

CEEC TRUCKS is a leading exporter of Aerial Platform trucks in China. We possess over 10-year export experience of high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
