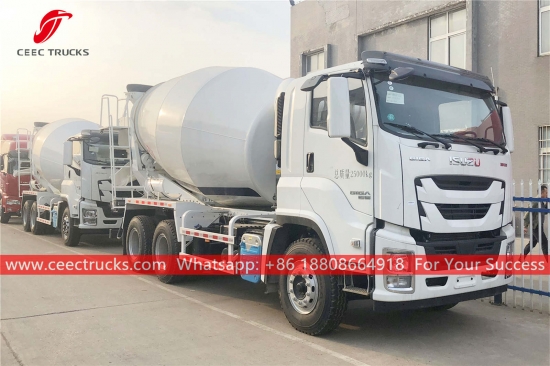

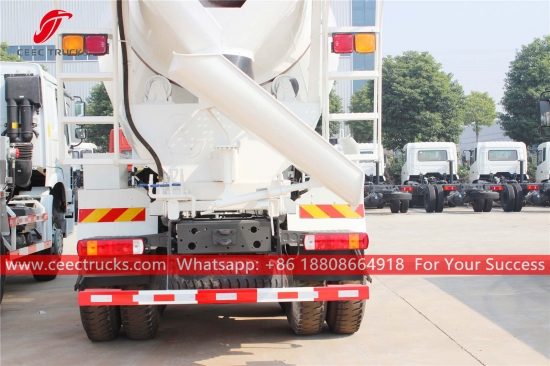

ISUZU 10CBM Cement Mixer

Hot sale 10cbm concrete mixer, ISUZU GIGA 6x4 LHD chassis, ISUZU 380HP diesel engine, ZF 16-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

ISUZU GIGA Transit Mixer truck (also called transit mixer vehicle, concrete delivery truck, ISUZU GIGA transit mixing vehicle, cement mixer truck manufacturer, concrete mixing truck, cement transportation truck, concrete truck for sale ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS mixer truck is manufactured using the cutting-edge technology and components in the world such as EATON, Rexroth, PMP, etc.



 Key Features:

---- ISUZU heavy duty chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

mixer truck advantage



 Specifications:



Cement Mixer Truck ISUZU GIGA (10 cbm)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

8200 * 2500 * 3570 mm

GVW / Kerb Weight

25,000kg / 11,100kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

380 HP (280 KW)

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (left hand drive)

Transmission

ZF 16 speed levers with 1 reverse

Wheelbase/No. of axle

4565+1370 mm / 4

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Mixer tank volume

10 cubic meter

Barrel wall Thickness

5 mm

Barrel wall material T520JJ

Loading speed

≥  1.2

Discharging speed

≥  2.7

Rest rate

≤  1

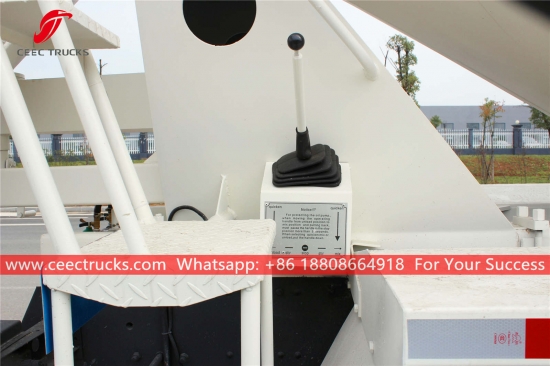

Control

Both side with hydraulic control

Pump Import Brand
Motor Import Brand
Reducer Import Brand

Color & LOGO

According to wish

All standard accessories: All tools. .

Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other body capacity can be choose.

** Other material and plate thickness can be choose.

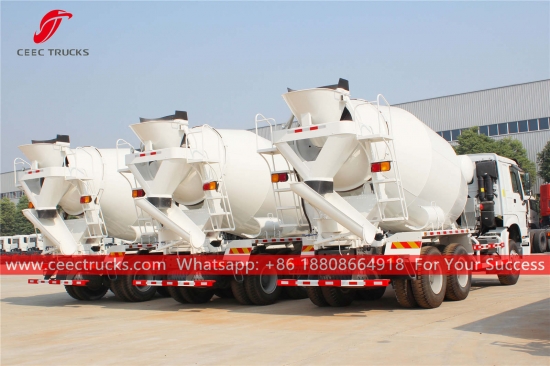

8 units cement mixer trucks for Mongolia

(8 units concrete mixers were exported to Mongolia)


Key words: mixer truck, concrete truck, cement mixer truck

ISUZU engine, Euro 5 emission, strongly 380ps, and 16 shift manual mechinical gearbox

Curb weight approx 11100kg and rated mixing capacity can be up to 5CBM, very good performance

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

High strength carbon steel Q345 material, with thickness over 6mm

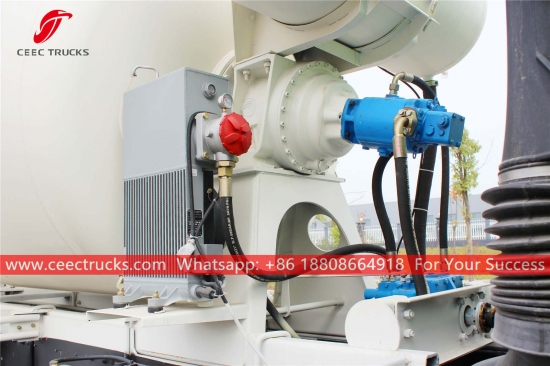

Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.
