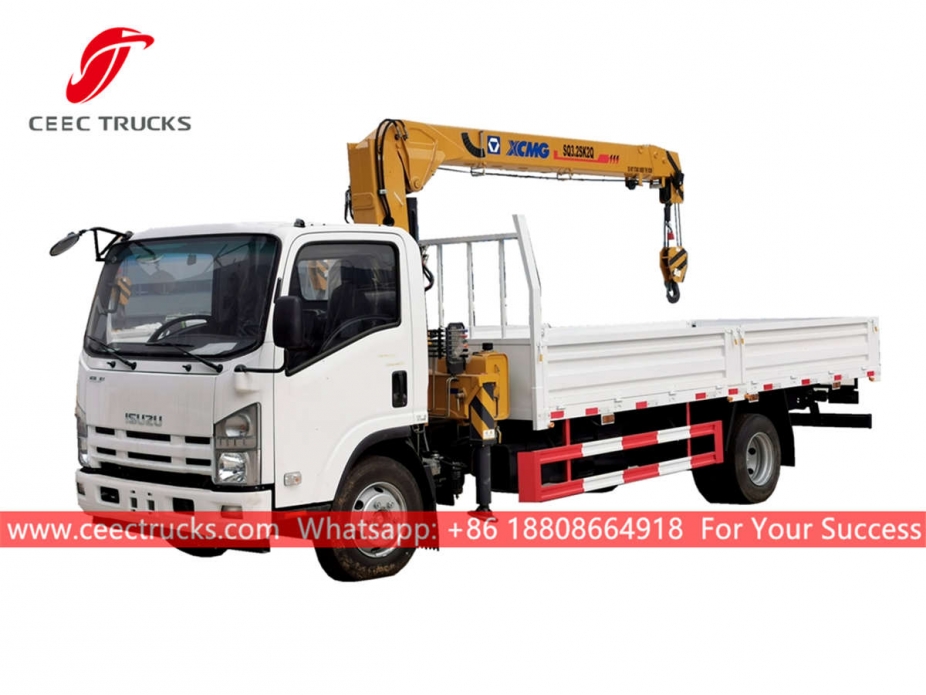

ISUZU 3.2Tons Telescopic Boom Truck

3.2tons Boom crane cargo truck, ISUZU 4x2 chassis, ISUZU MLD 6-shift manual gearbox, ISUZU 190HP diesel engine, cargo body dimension as optional, painting and logos depend on requirement.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

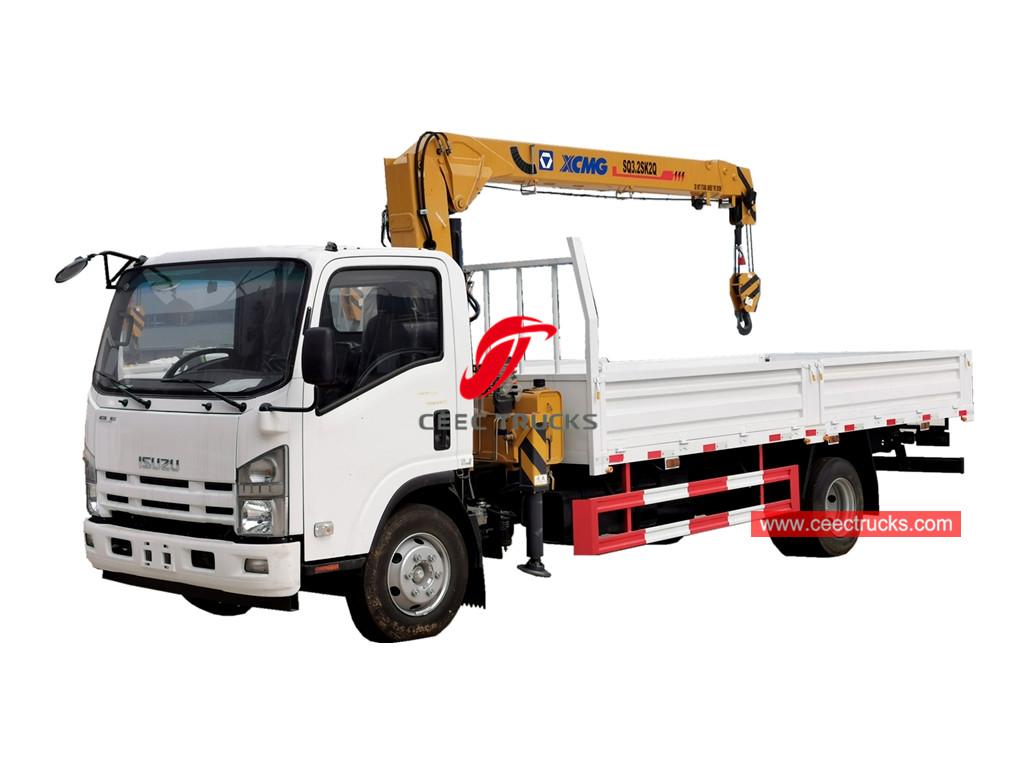

ISUZU Truck with crane

Applications:

Boom Crane Vehicle ISUZU (also called XCMG boom crane, crane truck, truck mounted crane, truck with crane, telescopic boom crane on chassis, crane truck manufacturer) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T

CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.

Key Features:

---- ISUZU chassis ensures perfect performance on driving

---- ISUZU technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.

Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely

Specifications:

ISUZU truck mounted crane (3.2Tons boom crane)
General	Vehicle Brand	CEEC
	Chassis Brand	ISUZU
	Overall Dimension	7280 * 2500 * 3680 mm
	GVW / Kerb Weight	10,500kg / 6,200kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	190 HP
	Displacement	5190 ml
	Emission Standard	Euro 5
Chassis	Drive Type	4X2
	Transmission	MLD 6 speed levers with 1 reverse
	Wheelbase/No. of axle	3815 mm / 2
	Tire Specification	235/75R17.5
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	*40002400600 mm*
	Crane Type	Telescpoic boom crane
	Max Lifting Capacity	3200 kg
	Slewing Angle	360° All rotation
	Crane Weight	1316 kg
	Installation Space	850 mm
	Control panel	English or Your language
	All standard accessories: Basic tool kit, English manual……
Optional	Knuckle boom crane. Hydraulic tipper box. Box thickness according to requirement. Box height could be nominated ** Remote Control Box optional

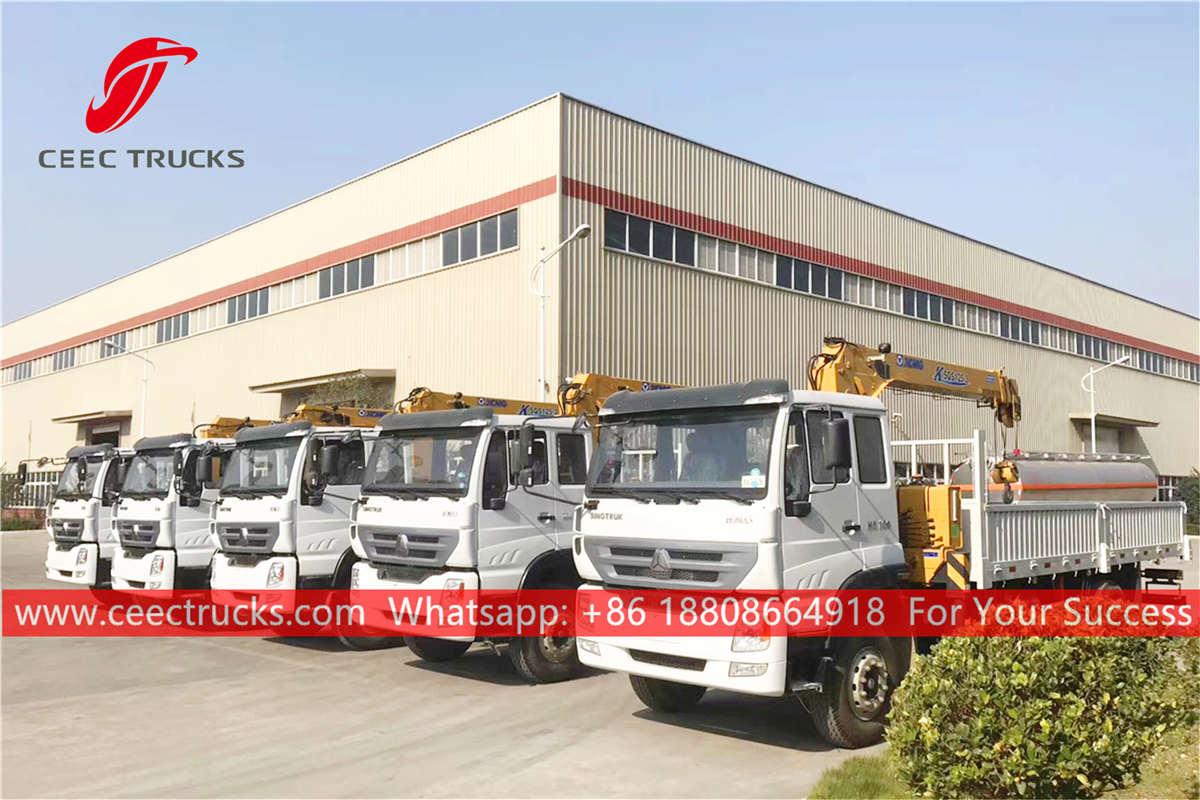

5 units HOWO crane trucks for export

(5 units HOWO truck mounted crane for export)

Key words: Truck mounted crane, Crane truck, hydraulic crane vehicle

★ Euro 5 type, ISUZU engine, fuel consumption save 20%

★ ISUZU MLD 6-shift manual mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU crane trucks exporter

★ Training service for ISUZU truck mounted crane.

ISUZU Telescopic boon crane truck for sale

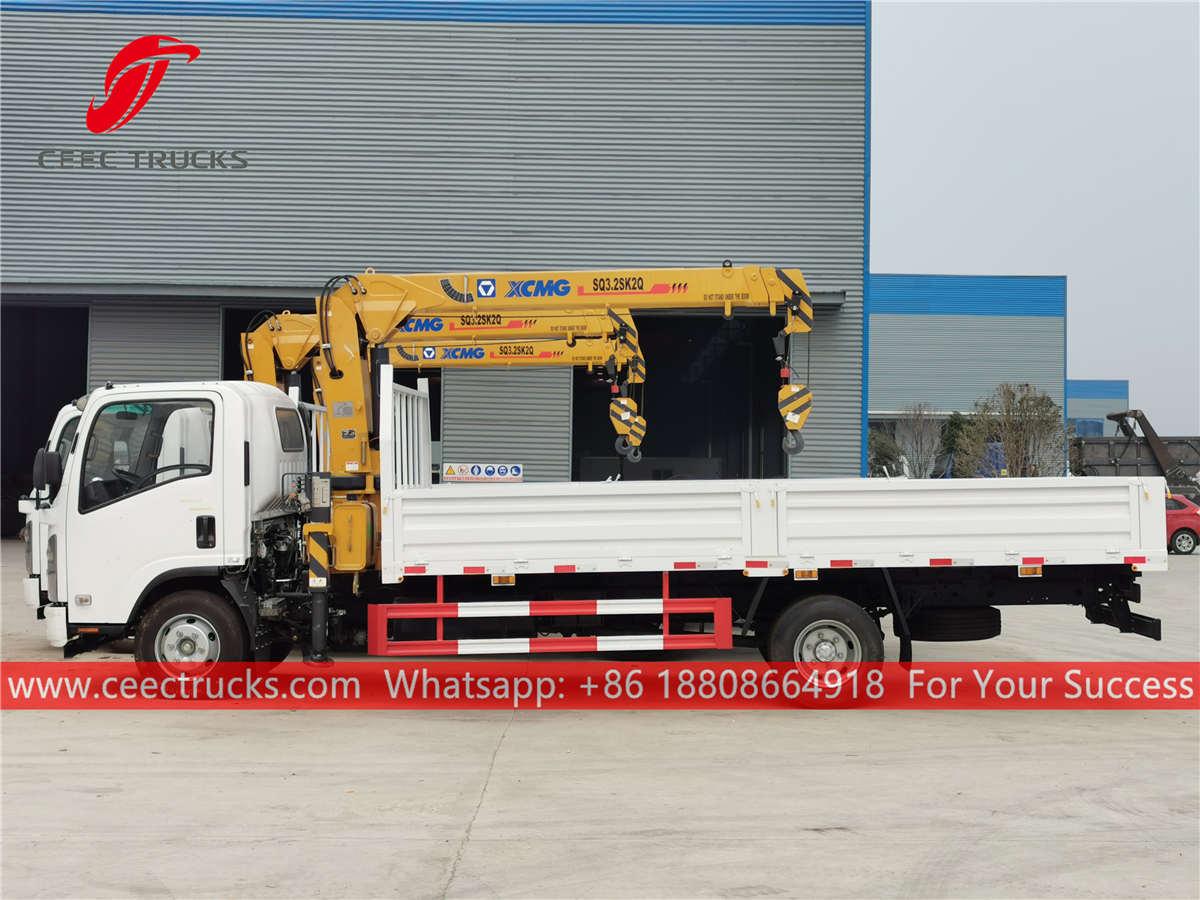

Hydraulic boom crane truck

China best truck mounted crane supplier and exporter, we supply the best quality boom crane vehicles. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...
