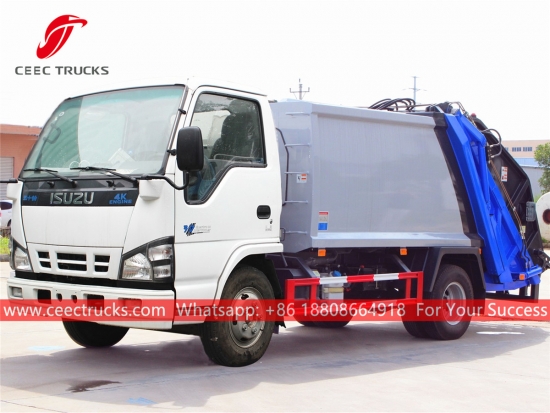

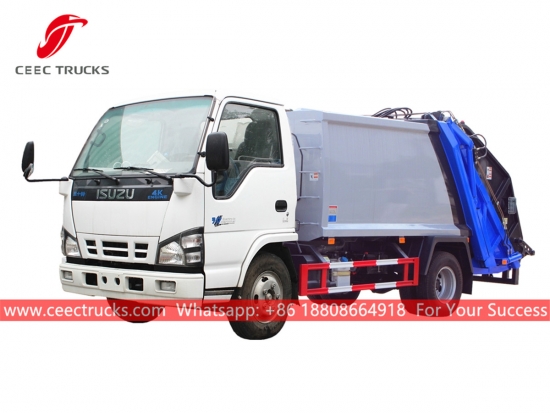

ISUZU 4*2 Rubbish compression truck

ISUZU 5cbm rear loader garbage compression truck, the truck chassis use ISUZU 130HP diesel engine, MSB 5-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.


  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

ISUZU 5CBM Refuse compressor truck

 Applications:



ISUZU Compressor Refuse Truck (also called garbage compactor truck, ISUZU 4*2 rear load trash truck, brand new garbage compressor vehicle, refuse compactor, rubbish compression truck from China, rear load trash truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU Back-loading Rubbish Truck (5 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

6950 * 2200 * 2550 mm

GVW / Kerb Weight

7,300kg / 3,920kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

130 HP (96 KW)

Displacement

2999 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360mm / 2

Tire Specification

7.00R16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

5 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

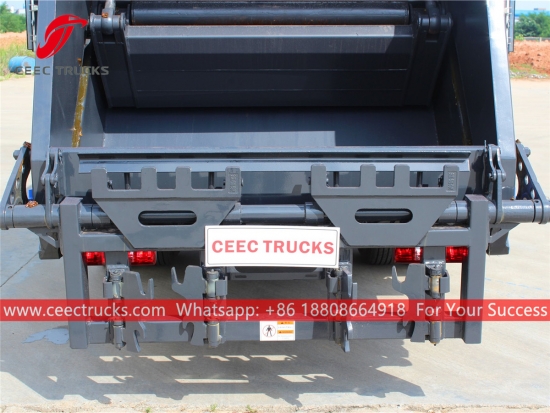

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.



isuzu waste compactor truck

(5 units rubbish collection trucks are ready for shipment)



Key words: Refuse collection vehicle, Rear Loading Hydraulic Waste Compactor, brand new garbage compactor


Authorized ISUZU garbage compactor manufacturer, with more than 15 years experience on producing ISUZU garbage compactor trucks, CEEC TRUCKS is china most professional garbage compactor truck exporter and supplier. Our great advantage is garbage compactor quality and competitive price. If you need any isuzu garbage compactor truck, just find CEEC TRUCKS. Can customzied garbage compactor upper body based on isuzu truck chassis, meanwhile we can design and produce the upper body, to ensure it can be shipped into container. Normally 2 set garbage compactor body can be put into 1 set 40 HQ container.

 ISUZU engine, super powerful

Expert for producing back-loading compression trash trucks over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for compressed refuse trucks


ISUZU Waster compactor

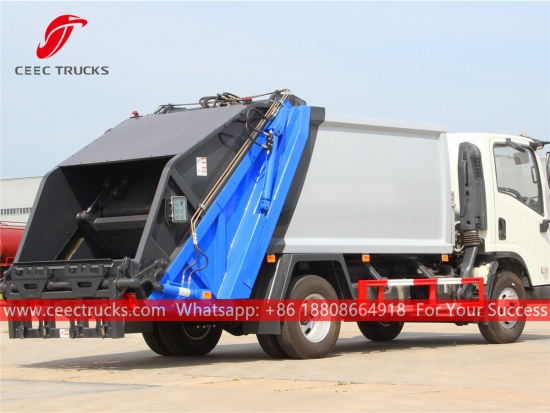

ISUZU 5CBM Refuse compression truck

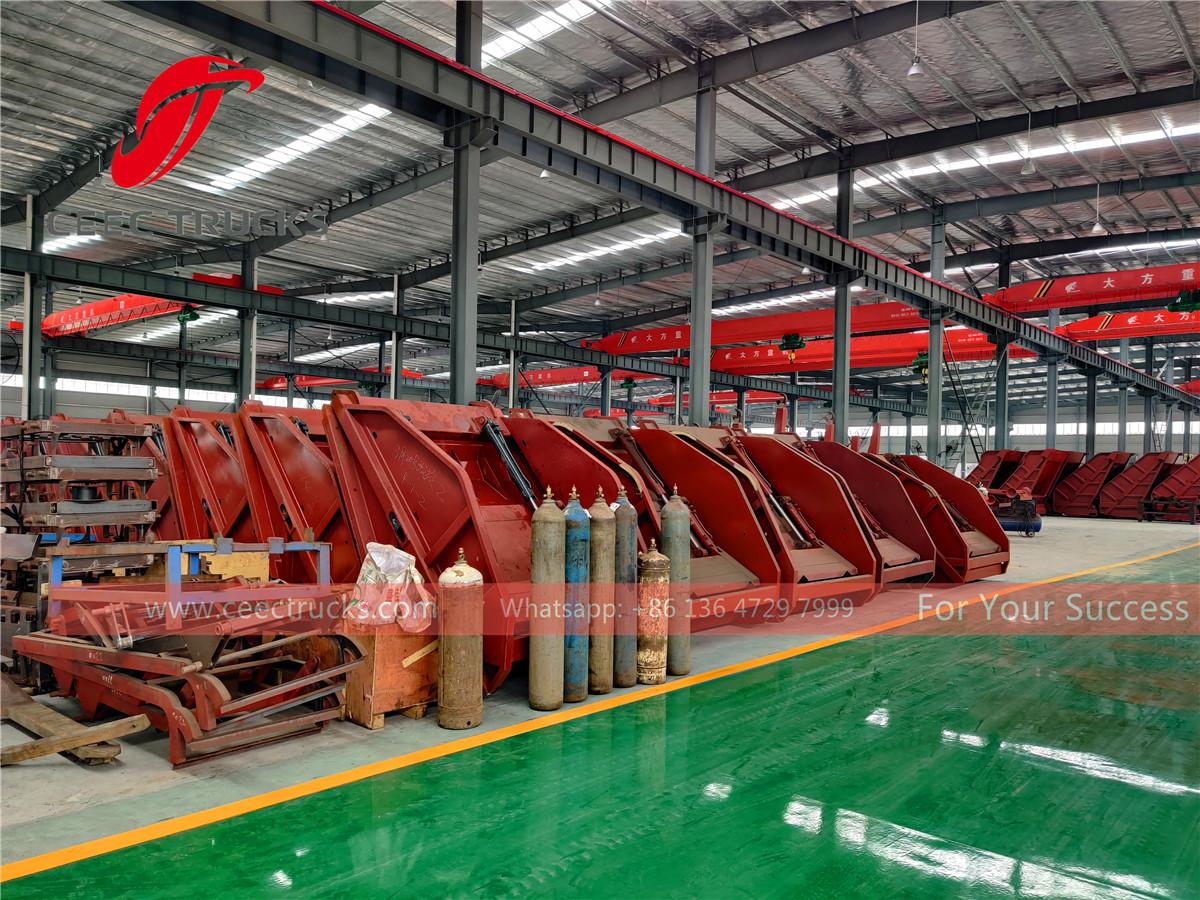

CEEC trucks 5000 square meters workshop for garbage compactor trucks.

  garbage compactor truck



garbage compactor truck
