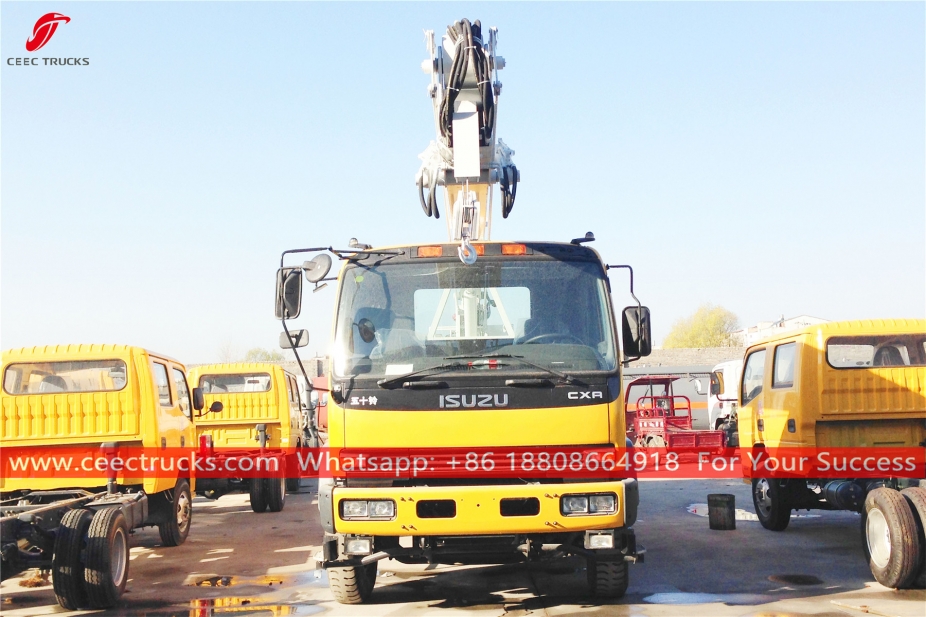

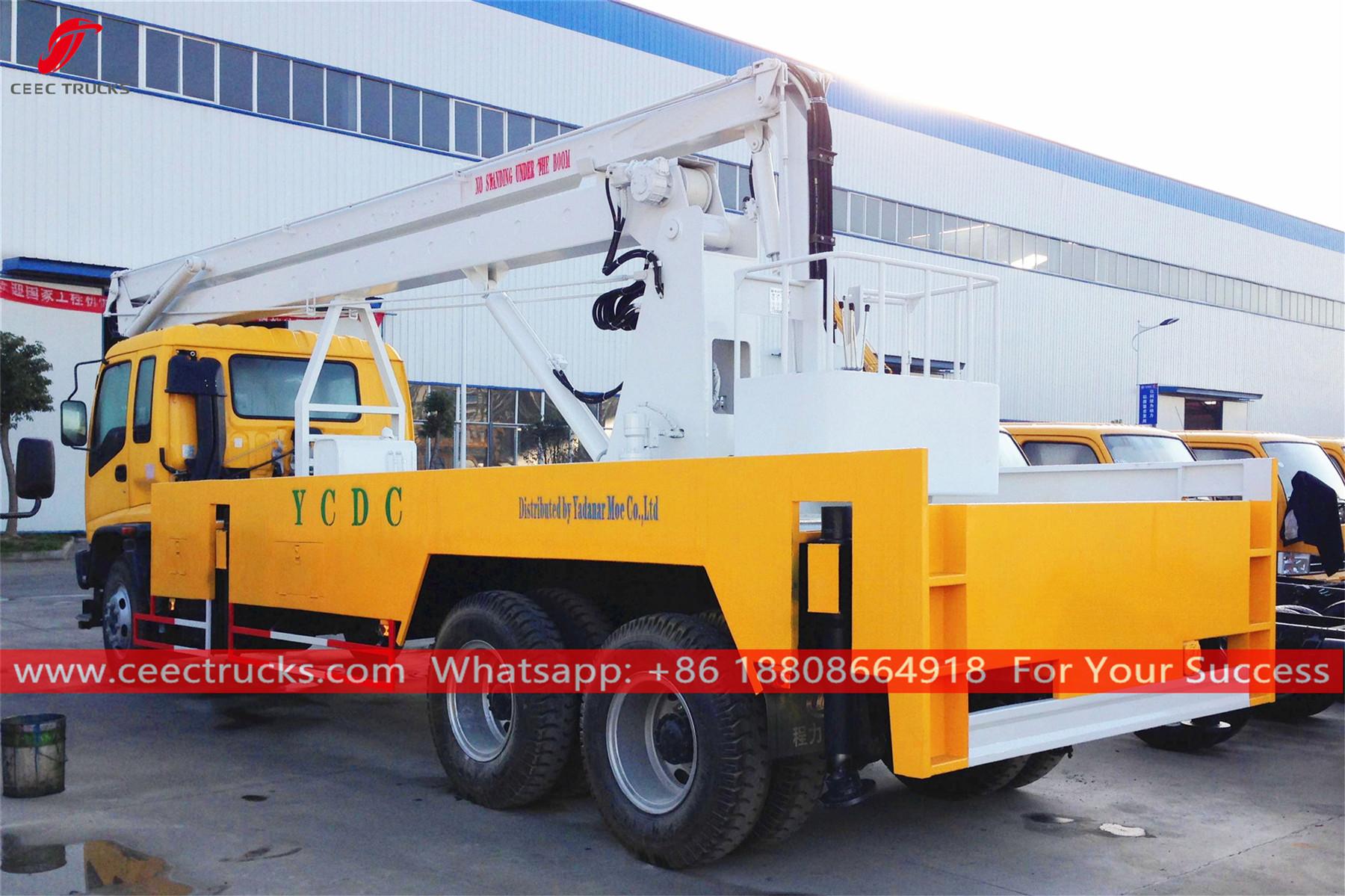

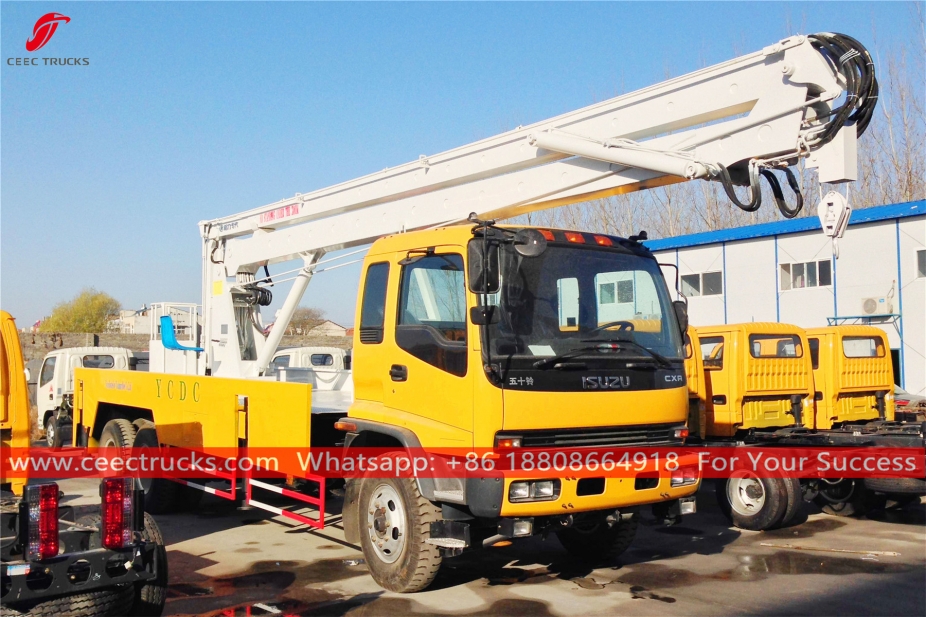

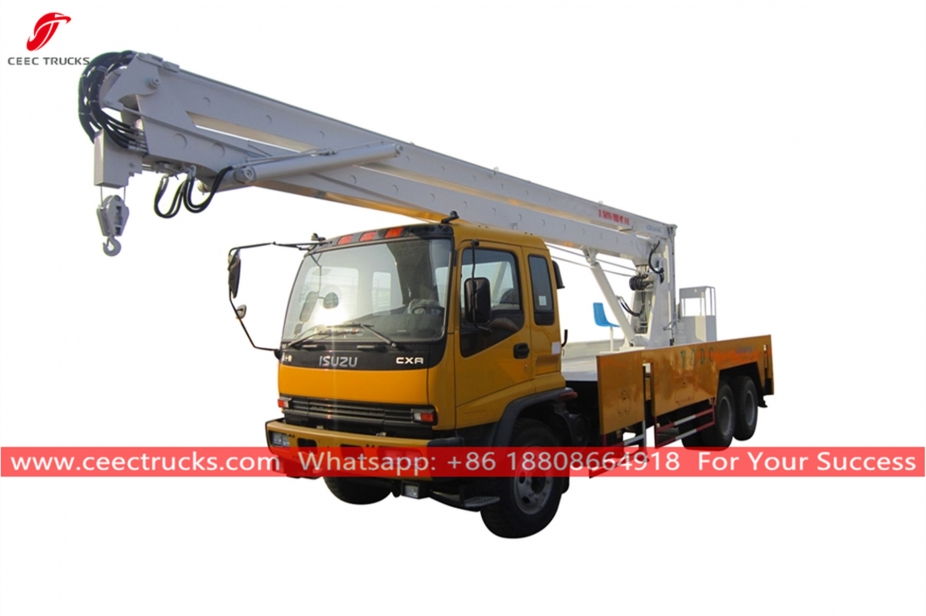

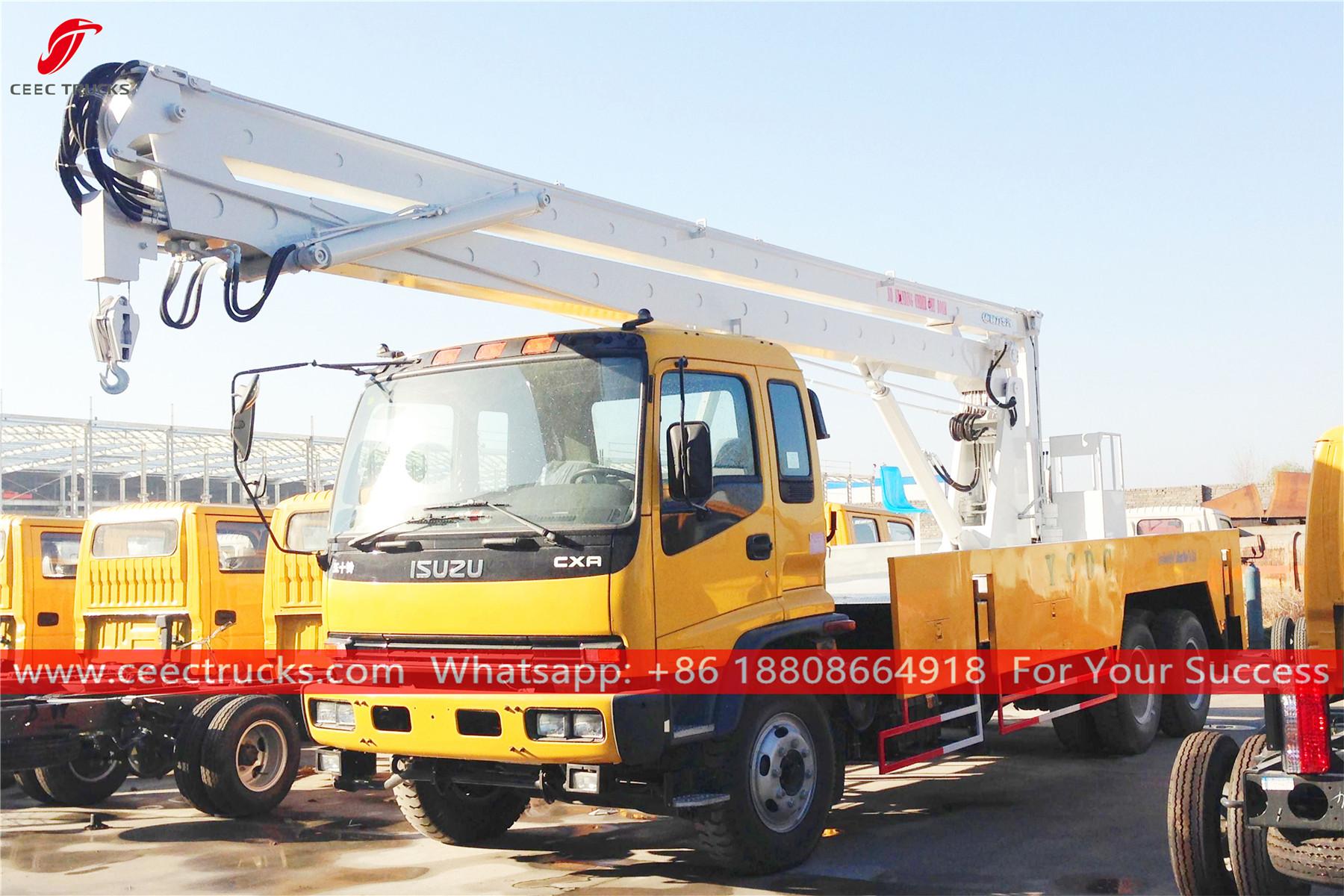

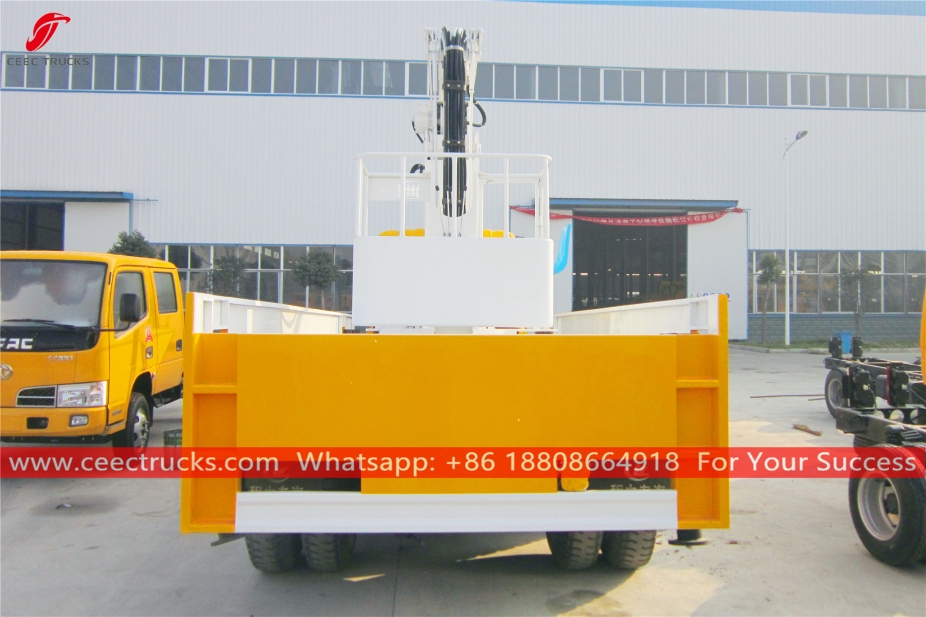

ISUZU 6x4 Overhead working platform Truck

22-24m bucket crane lifting truck, ISUZU FVZ 6x4 chassis, FAST 8-shift manual gearbox, ISUZU 300HP diesel engine, painting and logos depend on requirement. Customer language control box.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

Applications:

ISUZU 22m Overhead Working Platform Truck (also called ISUZU Man lifting truck, ISUZU Aerial Platform Man Lift Truck, ISUZU Truck mounted aerial platform, ISUZU FVZ boom lifting bucket truck, ISUZU 6x4 High Platform Operation Vehicle, good quality arm lift bucket truck) is used for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.

Specifications:

Aerial Platform Working Truck ISUZU (22M)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	9500 x 2500 x 3530 mm
	GVW / Kerb Weight	25,000 kg / 9,700 kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	280Ps (206KW)
	Displacement	5200 ml
	Emission Standard	Euro 4
Chassis	Drive Type	6X4, left hand drive
	Transmission	FAST transmission, 8-forward gears & 1 reverse, no overhaul within 500,000km
	Wheelbase/No. of axle	4000+1300 mm / 3
	Tyre Specification	11.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Working Height	22m

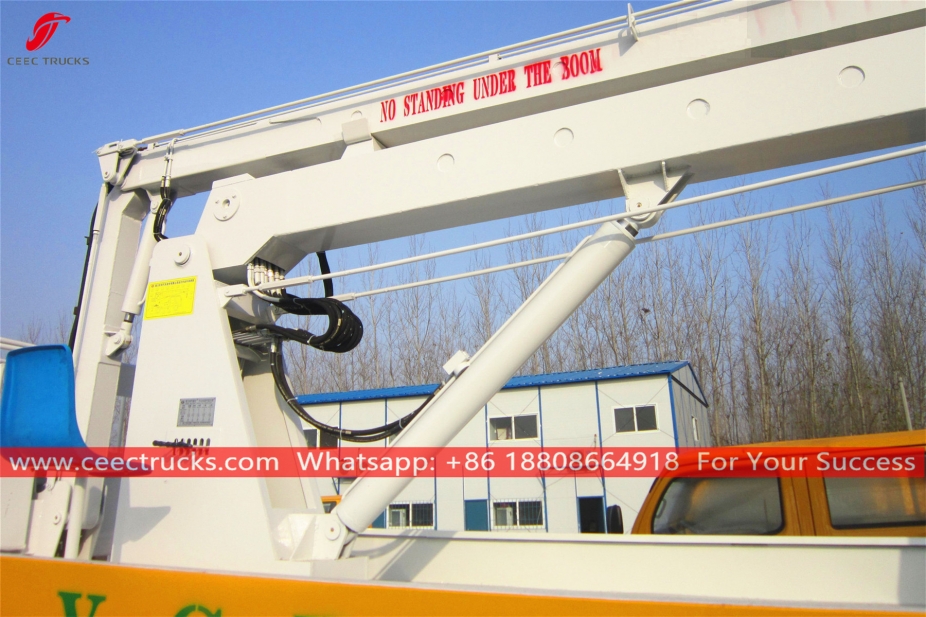

	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

★ ISUZU engine, super powerful

★ Can be operated at both turret and platform with all English version control plate

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU aerial platform trucks exporter

★ Training service for ISUZU high platform trucks

CEEC TRUCKS is a leading exporter of Aerial Platform vehicles in China. We possess over 10-year export experience of aerial platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our overhead platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
