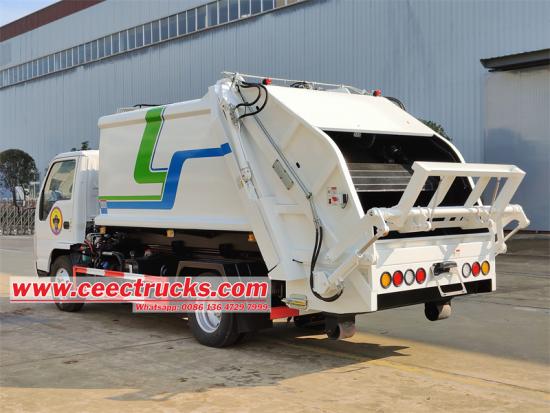

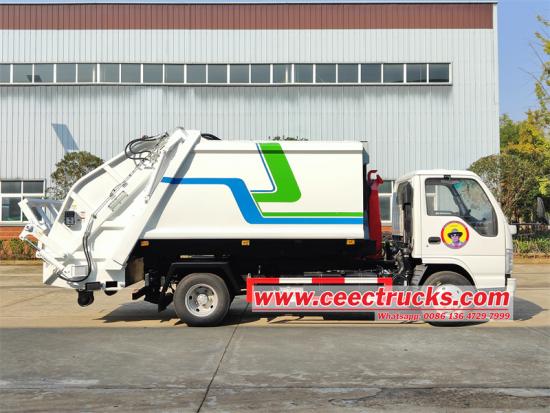

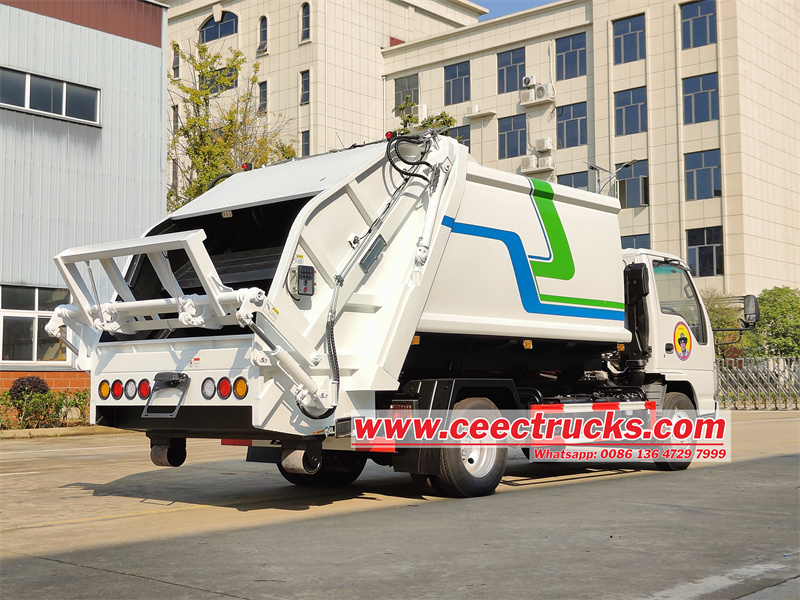

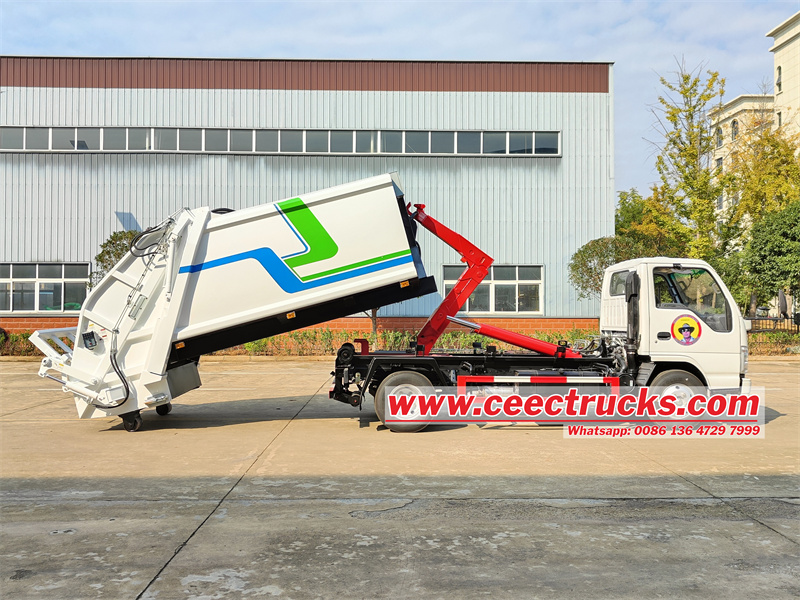

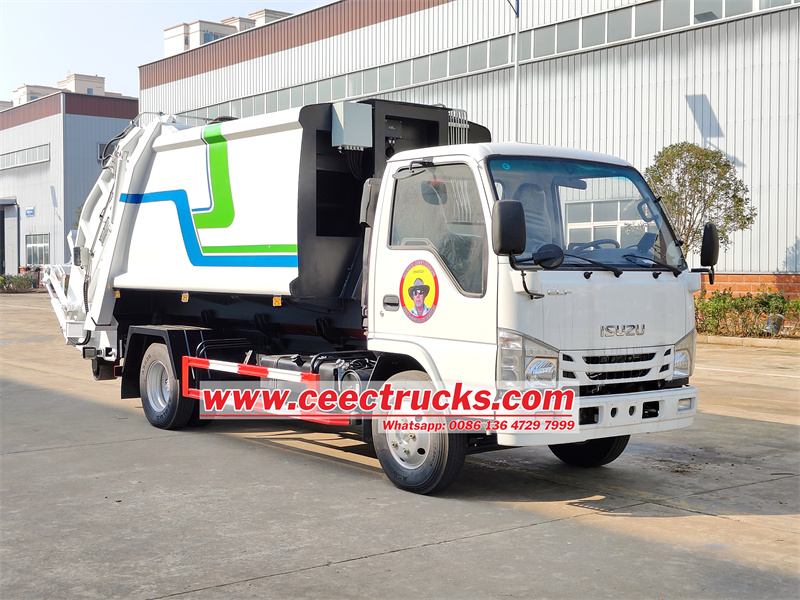

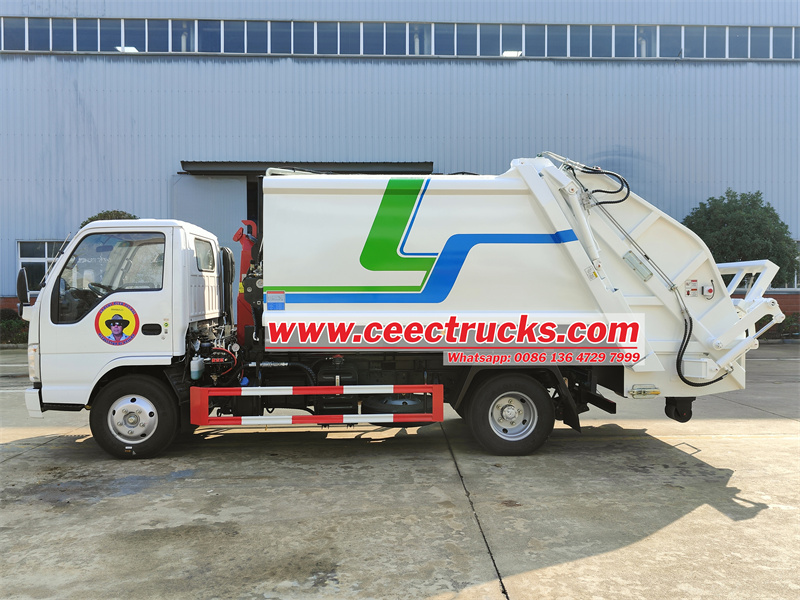

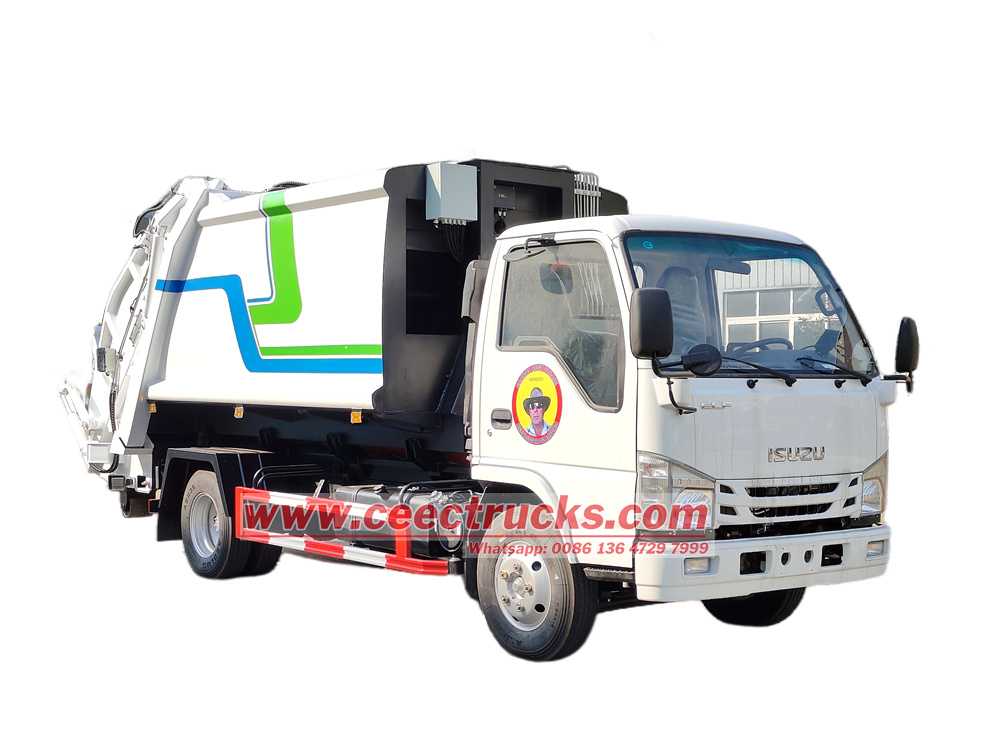

Isuzu 7 cbm hook lift with garbage compactor

Isuzu 7 cbm Hook Lift with Garbage Compactor is a special vehicle designed for urban waste disposal, integrating efficient garbage compression technology and convenient hook arm loading and unloading system. The vehicle is equipped with a 7 cubic meter garbage loading capacity, and the built-in compressor compresses the garbage into high-density blocks, increasing the loading capacity and reducing the number of transportation times. The hook arm system can quickly and accurately connect and unload the garbage container, realizing efficient and convenient garbage collection and transportation. At the same time, the vehicle also has the characteristics of environmental protection, energy saving, durability and reliability, providing strong support for urban environmental sanitation.

● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.

The design of this garbage truck fully embodies the concepts of efficiency, environmental protection and practicality. Its 7cbm loading capacity greatly increases the amount of garbage collected in a single time, effectively improving the efficiency of garbage collection and transportation. At the same time, the garbage compactor equipped with the vehicle can greatly reduce the volume of garbage, which not only increases the loading capacity but also reduces the transportation cost.

The Hook Lift design is another highlight of this garbage truck. This design makes the loading and unloading operation of the garbage truck easier and faster. Through the lifting and rotation of the hook arm, the garbage bin can be quickly replaced and positioned, greatly improving work efficiency. In addition, this design also facilitates the daily cleaning and maintenance of the vehicle, extending the service life of the vehicle.

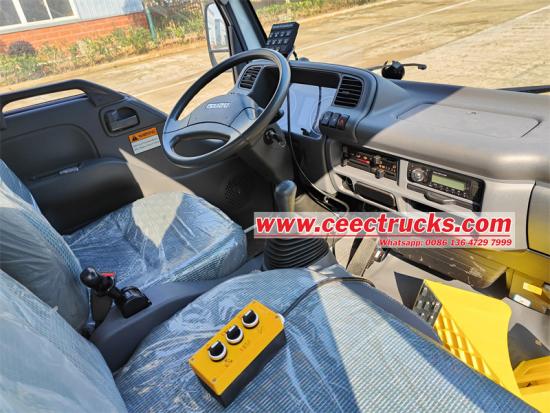

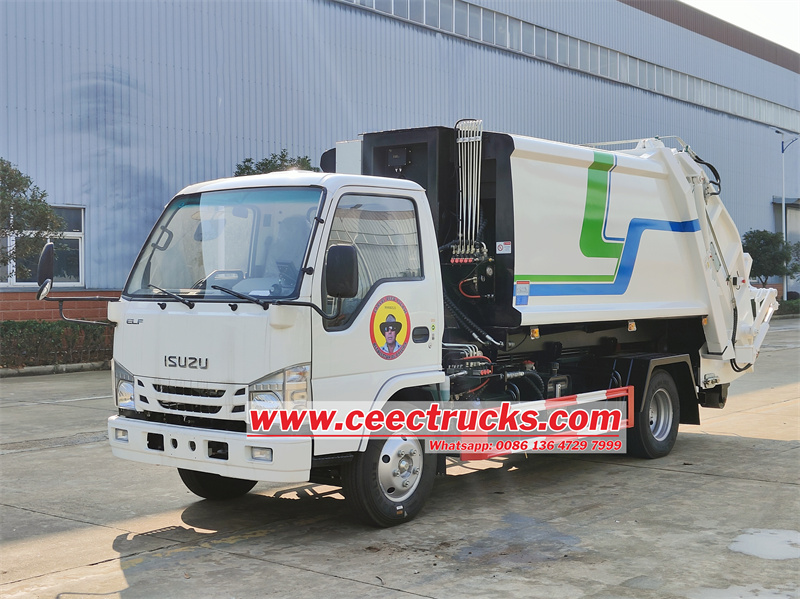

In terms of power and control,Isuzu hook loader garbage compactor truck also performs well. It uses an advanced diesel engine with strong power and good fuel economy. At the same time, the vehicle's control system has been carefully adjusted, allowing the driver to experience excellent control performance and driving comfort during driving.

In addition to its outstanding performance and design, the Isuzu 7 cbm Hook Lift with Garbage Compactor also focuses on environmental protection and energy saving. It meets strict emission standards and reduces the impact on the environment. At the same time, the high-strength materials used in the vehicle not only improve the durability of the vehicle, but also reduce the weight of the vehicle body, further reducing energy consumption.

Hook arm system

★. Structural composition

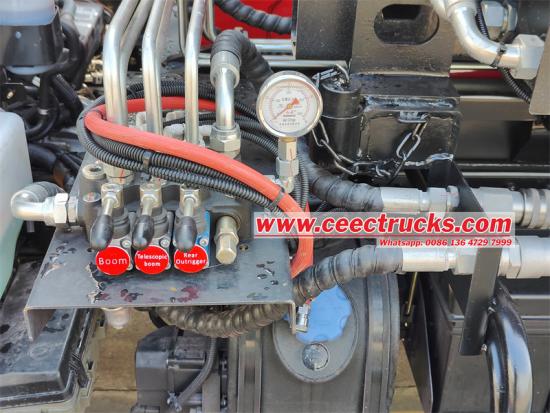

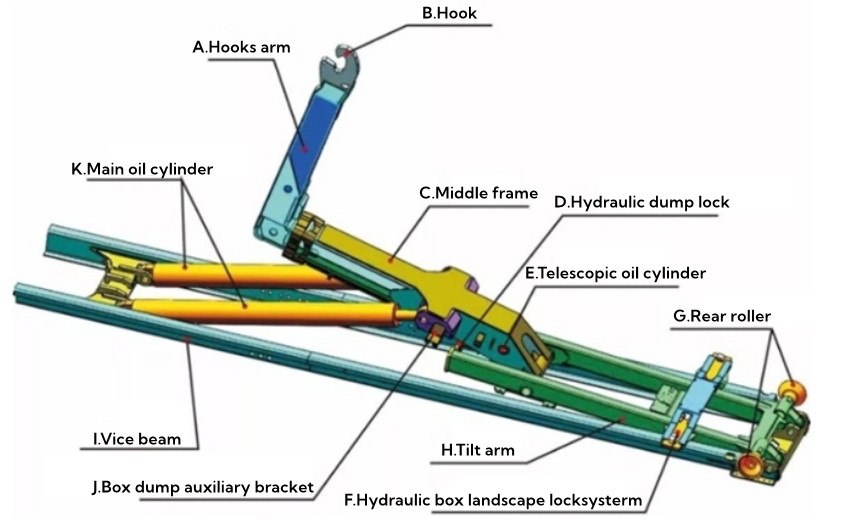

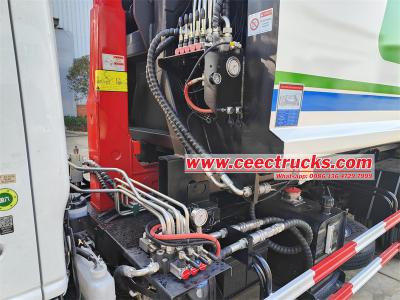

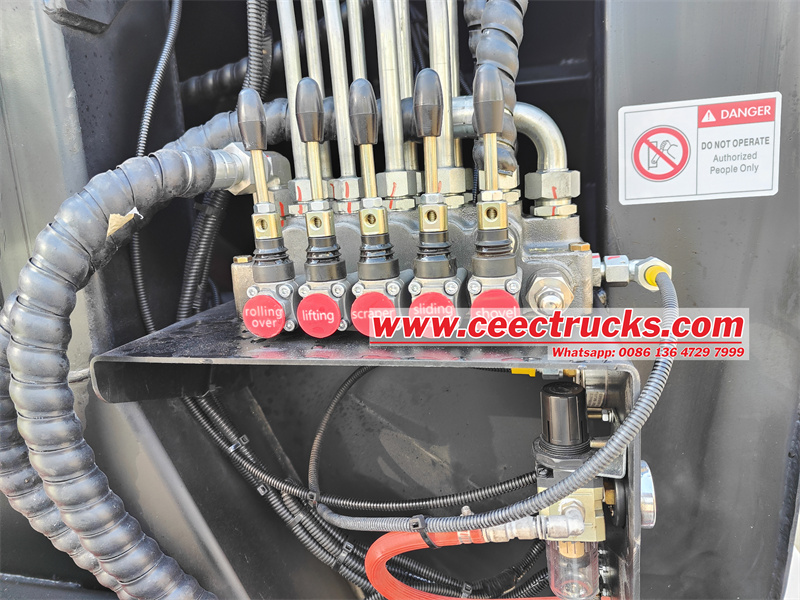

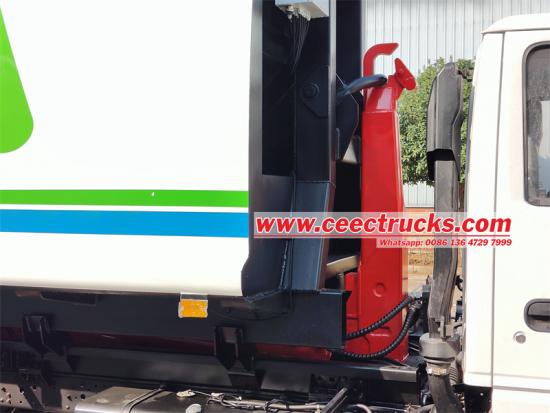

The hook arm system of Isuzu 7 cbm Hook Lift mainly consists of hook arm, hydraulic cylinder, control valve, connecting device, etc. The hook arm is made of high-strength alloy steel material, with sufficient strength and rigidity to withstand the weight of the garbage container and various forces during operation. The hydraulic cylinder provides power to enable the hook arm to complete lifting, rotation and other actions.

★. Working principle

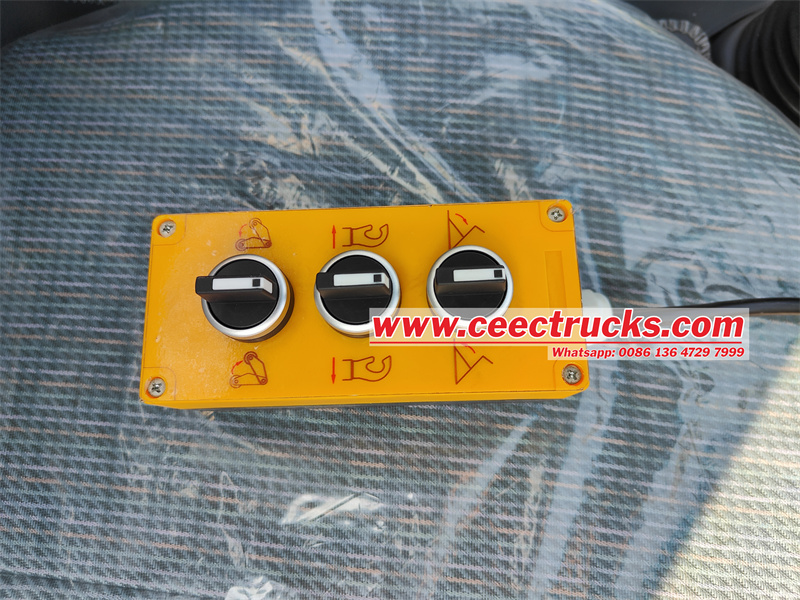

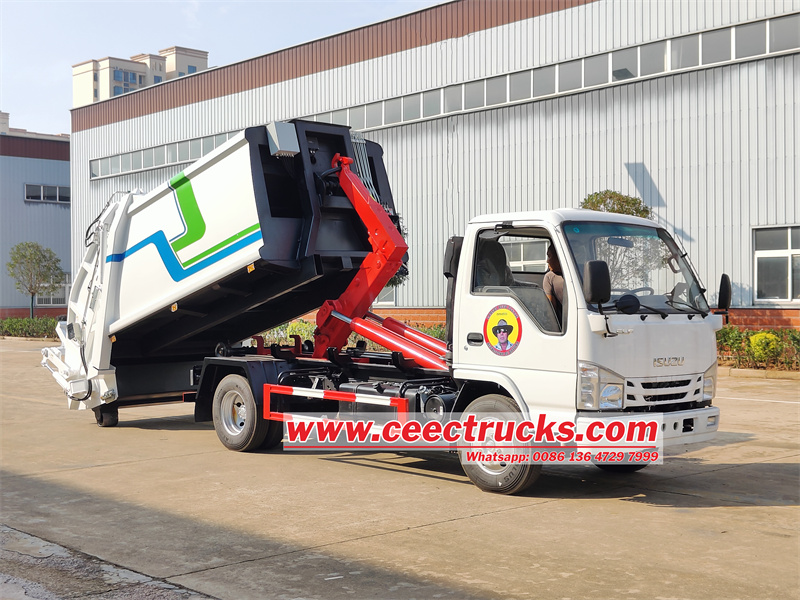

• Connection and lifting: When the vehicle arrives at the garbage collection point, the driver starts the hydraulic cylinder by operating the button on the control panel. The hydraulic cylinder pushes the hook arm down until it contacts the hook on the garbage bin and connects firmly. Subsequently, the hydraulic cylinder continues to work, lifting the hook arm together with the garbage container until the garbage container is completely off the ground and fixed on the vehicle.

• Unloading: At the garbage disposal station or landfill, the driver lowers the hook arm and places the garbage container in the designated position through the opposite operation, and then disconnects to complete the unloading process.

★. Advantages

• Efficient and convenient: The hook arm system can quickly and accurately connect and unload garbage containers, greatly improving the efficiency of garbage collection and transportation.



• Safe and reliable: The hook arm system adopts high-strength materials and advanced design to ensure that there will be no accidental detachment or damage during operation.



• Strong adaptability: The hook arm system is suitable for garbage containers of various sizes and types, which is convenient and flexible.

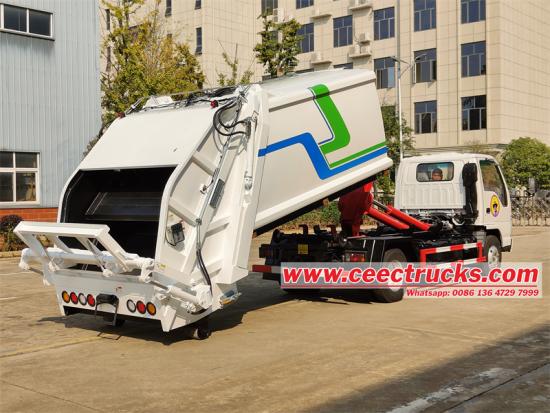

Compression system

★. Structural composition

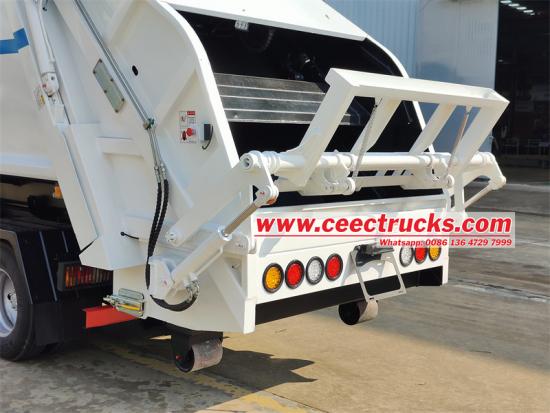

The compression system is mainly composed of a compressor, a hydraulic cylinder, a push plate, a garbage box, etc. The compressor is the core component of the compression system. It provides power through the hydraulic cylinder to push the push plate to reciprocate in the garbage box, thereby compressing the garbage.

★. Working principle

• Compression process: After the garbage is poured into the garbage box, the driver starts the compressor. The hydraulic cylinder pushes the push plate forward to compact the garbage. As the push plate continues to move forward, the garbage is gradually compressed into high-density blocks.

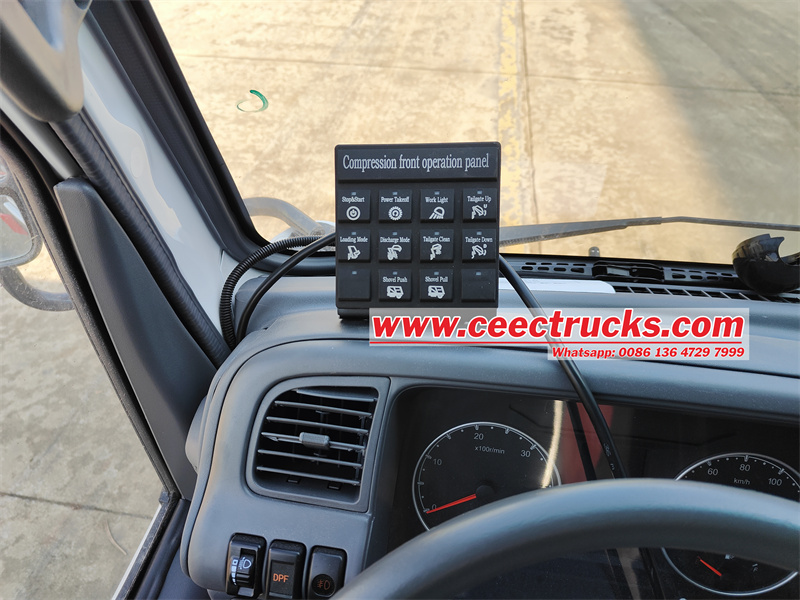

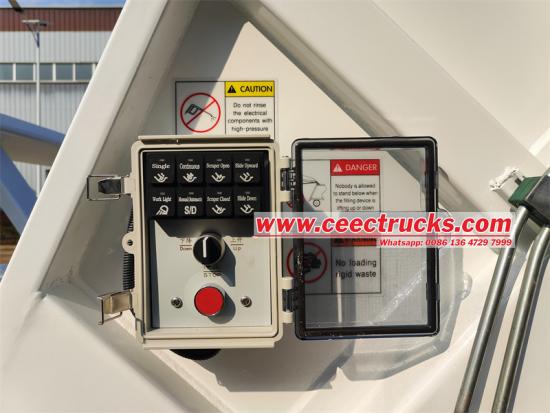

• Unloading and resetting: When the garbage box is full or needs to be unloaded, the driver operates the button on the control panel to make the push plate retreat to the initial position. Afterwards, the hook arm system places the garbage box at the designated location for unloading.

★. Advantages

• Increase loading capacity: The compression system can significantly increase the loading density of garbage, reducing the number of transportation times and costs.

• Reduce environmental pollution: Through compression processing, the volume of garbage is reduced, which reduces leakage and odor during transportation, which is beneficial to environmental protection.

• Save space: The compressed garbage takes up less space and is easy to store and transport.
