ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor
ISUZU NPR 8CBM 10 yard rear loader trash compactor

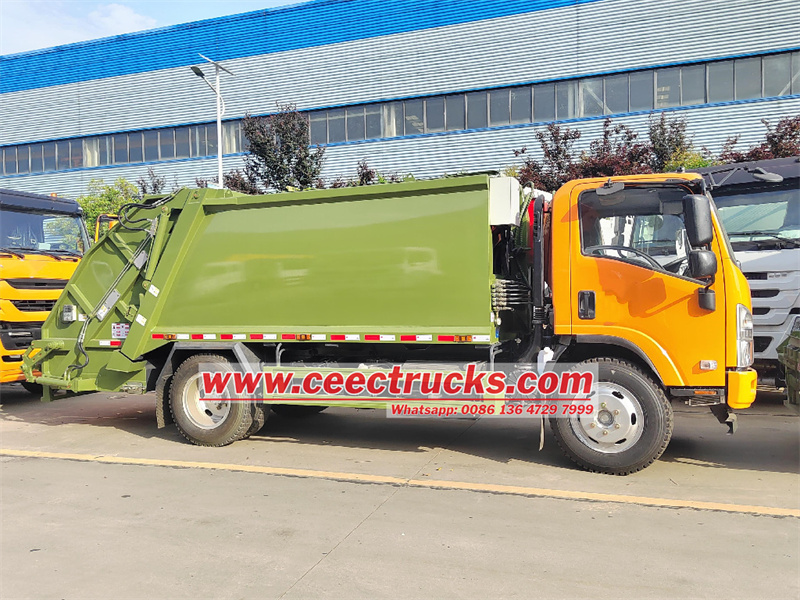

Isuzu NPR refuse compactor vehicle

Japanese ISUZU ELF 4x2 / 4x4 garbage compressed trucks, also named Isuzu ELF rear loaders, Isuzu 4HK1-TCG61 diesel engine with 140KW / 190HP, MLD 6-shift manual gearbox, 8.25R20 tires for wildland working, mounted customized 8cbm 10 yard garbage compactor upper body kit, Hydraulic working assembly, CAN-BUS electric control system, suitable for lifting 240L, 660L, 770L and 1100L bins, convenient for garbage collection and transportation

  • Payment:

    T/T, West Union
  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    40 Days
  • Work capacity:

    8CBM
  • Truck model:

    CEEC5100ZYS
  • Engine power:

    190HP
  • Engine type:

    Isuzu 4HK1-TCG61
  • Axle drive:

    4X2/4x4, LHD/RHD
  • Gear box:

    MLD 6F & 1R
  • Remarks:

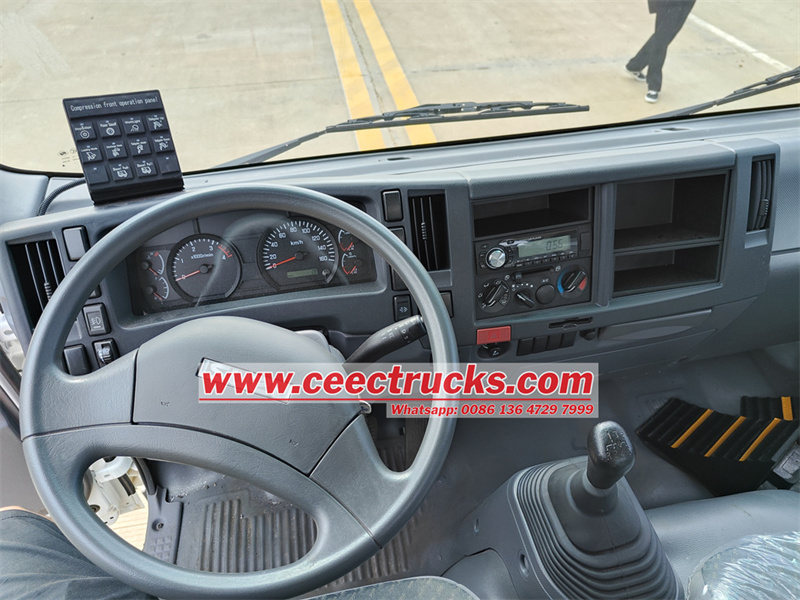

    CAN-BUS electric control system in cabin

The Japanese ISUZU Garbage Compactor Truck, also known as the Isuzu NPR trash compactor truck or ISUZU 10yard rear end loader, stands as a testament to Japanese engineering excellence in the field of urban sanitation. This specialized vehicle is tailored for the efficient collection and disposal of domestic garbage and other compressible waste materials in urban environments.

Boasting a robust and reliable Japanese ISUZU NPR ELF 700P truck chassis, QL1110ANKWY chassis model and mounted with 4HK1-TCG61 diesel engine 140KW / 190HP, MLD manual gearbox with 6 forward and 1 reverse, the newly 2025 year ISUZU rear loader garbage compactor truck is built to last, enduring the rigors of daily urban operations. Its intelligent design allows for simple and straightforward operation, enabling a single operator to handle all necessary tasks with ease. This not only enhances operational efficiency but also helps to reduce manpower requirements, making it an ideal choice for busy urban areas.

The Isuzu rear loader compactor truck is export to Middle East countries, Kazakhstan, Kyrgyzstan, Tajikistan, Turkmenistan and Uzbekistan, the truck with high compression ratio of up to 1:4 is a key factor in its exceptional performance. This ratio ensures maximum space utilization within the truck's loading area, allowing for the compaction of a large volume of garbage into a smaller space. With a loading capacity exceeding 5 cubic meters or 4 tons depending on the configuration, the ISUZU Garbage Compactor Truck can significantly reduce the number of trips required for garbage collection, thereby improving overall efficiency.



Why purchasing 2025 year ISUZU ELF NPR rear loader garbage compactor truck:

The ISUZU ELF Garbage Compactor Truck is suitable for a wide range of applications, including daily garbage collection and transportation in cities, large stations, ports, wharves, communities, airports, and densely populated industrial and military zones. Its efficient design minimizes secondary pollution during delivery, contributing to a cleaner and more environmentally friendly urban environment.

Moreover, the truck's durability and reliability are backed by a team of experts who provide round-the-clock service and maintenance support. This ensures that any issues or concerns are addressed promptly, minimizing downtime and keeping the truck operational at all times.



● China best ISUZU NPR NQR rear loader garbage truck factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements

● Promptly delivery. any order is welcome.

24 month quality guarantee term

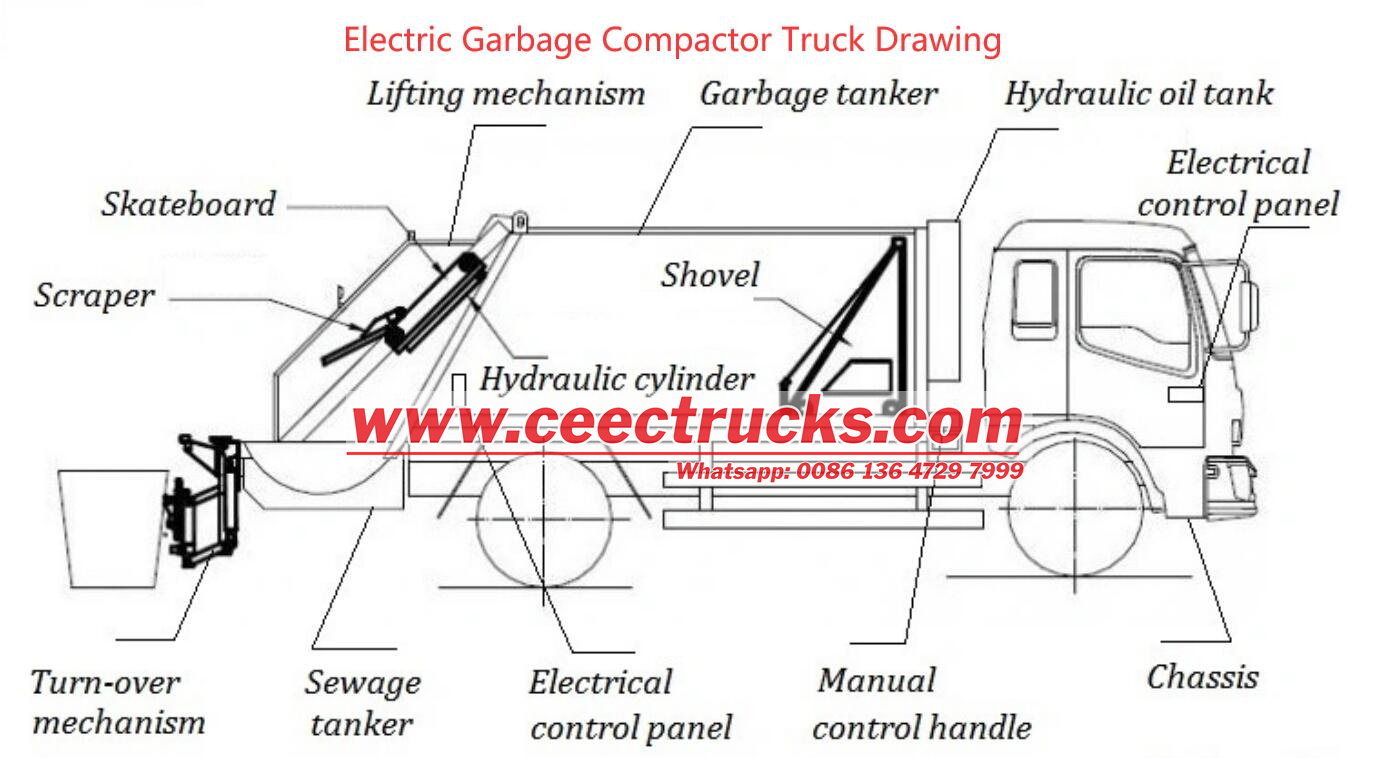

ISUZU 190HP NPR rear loading garbage compactor truck is a specially designed sanitation vehicle, mainly used for collecting and transporting domestic garbage or other compressible garbage. The working principle of the ISUZU rear loader garbage truck mainly includes steps such as garbage dumping, compression, loading and unloading. The compression and loading of garbage are achieved through special devices such as the car body filler. During the compression process, the sewage will be collected in the sewage tank to avoid secondary pollution. Below picture showing the detailed component of Isuzu refuse compactor truck and kit.

Product Name

ISUZU ELF 8CBM Waste Compactor Refuse Truck

Overall Dimension

7200x2200x2650mm

Cabin

Single cab with 3 seats, with A/C.

Curb weight

5800kg

Gross Vehicle Weight

10550kg

Front/rear axle

4T/7T

Wheelbase

4175mm

Engine model

4HK1-TC61

Horse power

190hp

Displacement

5193ml

Emission standard

Euro 6

Gearbox

ISUZU MLD 6 forwards & 1 reverse

Tire

235/75R17.5, 6pcs with 1 spare

Compactor body

Garbage Tank Volume

8cbm

Material

Carbon steel T420

Volume of filler

1.2cbm

Side thickness

4mm

Bottom thickness

5mm

Front sewage tank

500L

Rear sewage tank

200L

Hydraulic system

Working system

Push system, scraper system, slide system, rear flip device, lifting system

Dozer cylinder

1 unit

Scraper cylinder

2 units

Slide cylinder

2 units

Rear flip cylinder

2 units

Lifting cylinder

2 units

Hydraulic tank

150L

Hydraulic oil pump

Changyuan gear pump

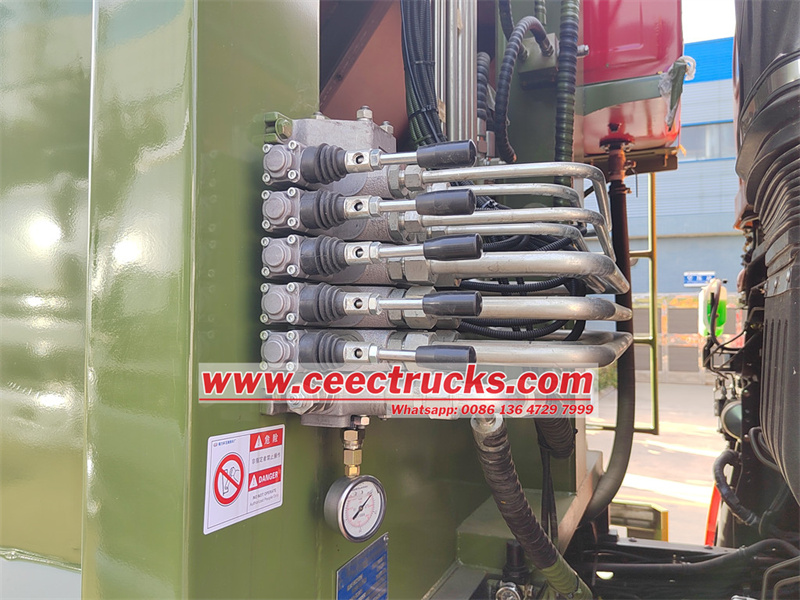

Multi-way valve

Yangzhou Zhongmei multi-way valve

Electric control system

Operating system

CAN-bus control system and manual operation device

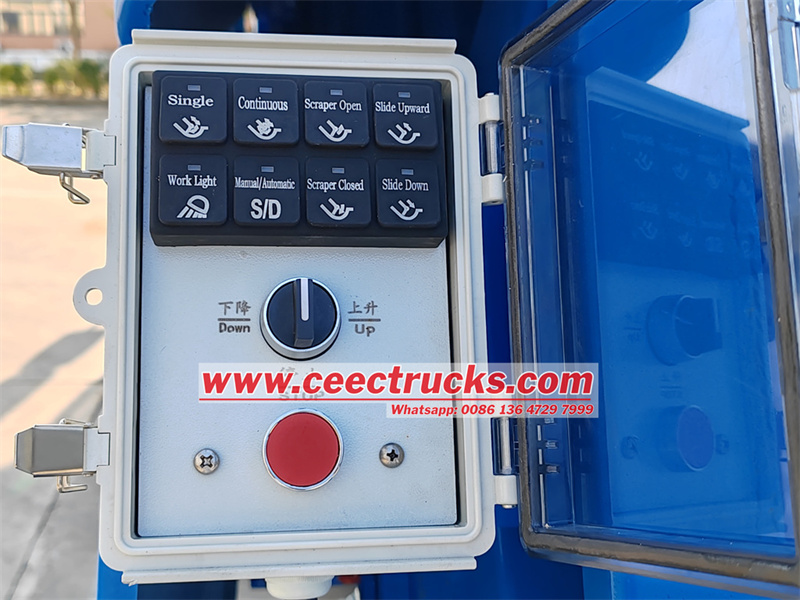

Electronic control operation button

1 set in the cabin, 1 set at the right side of the tailgate

Manual operation device

1 set behind cab

compression system

Rated pressure

18Mpa

Loading cycle time

≤25s

Tailgate lifting time

≤15s

Discharging cycle time

≤110S

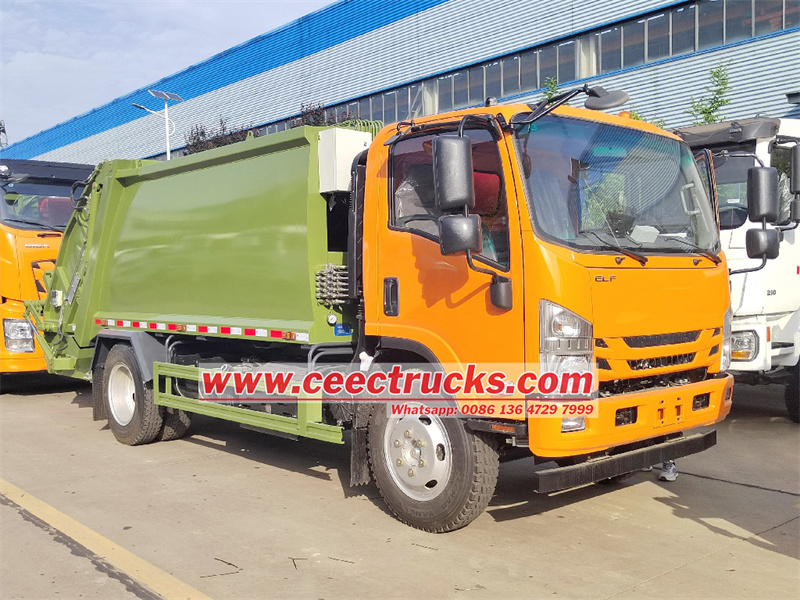

The Isuzu 190HP ELF 8cbm refuse compactor truck, also recognized as the Isuzu 700P garbage compactor truck or the Isuzu 8CBM rear loader, is tailored for collecting domestic and other compressible waste from urban environments. This truck, featuring a sealed garbage body, hydraulic system, and precision operating mechanism, facilitates efficient waste management. Its fully enclosed design ensures that all sewage resulting from self-compression, self-dumping, and compaction is contained within a designated sewage tank, thereby preserving environmental hygiene.



Japanese ISUZU diesel engine, super powerful

Expert for producing garbage compactor truck over 10 years with good reputation

Carbon steel material T420

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for compression garbage trucks

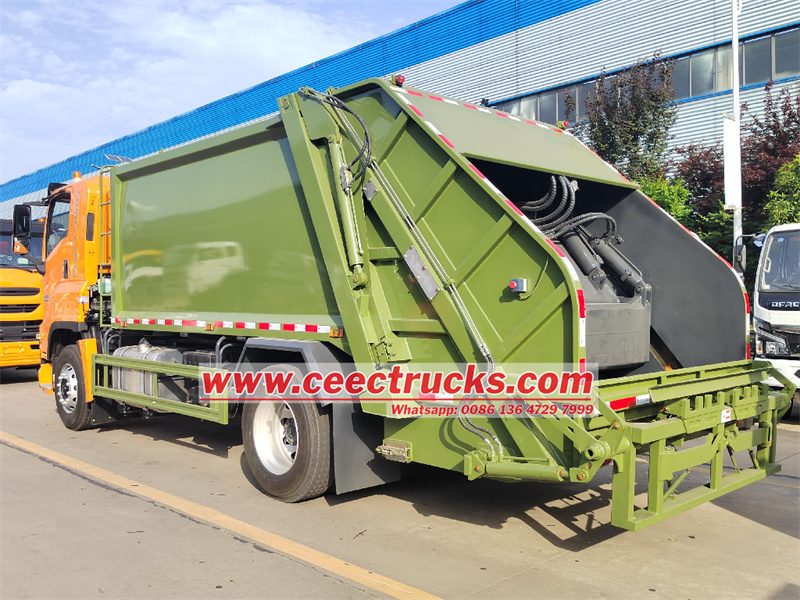

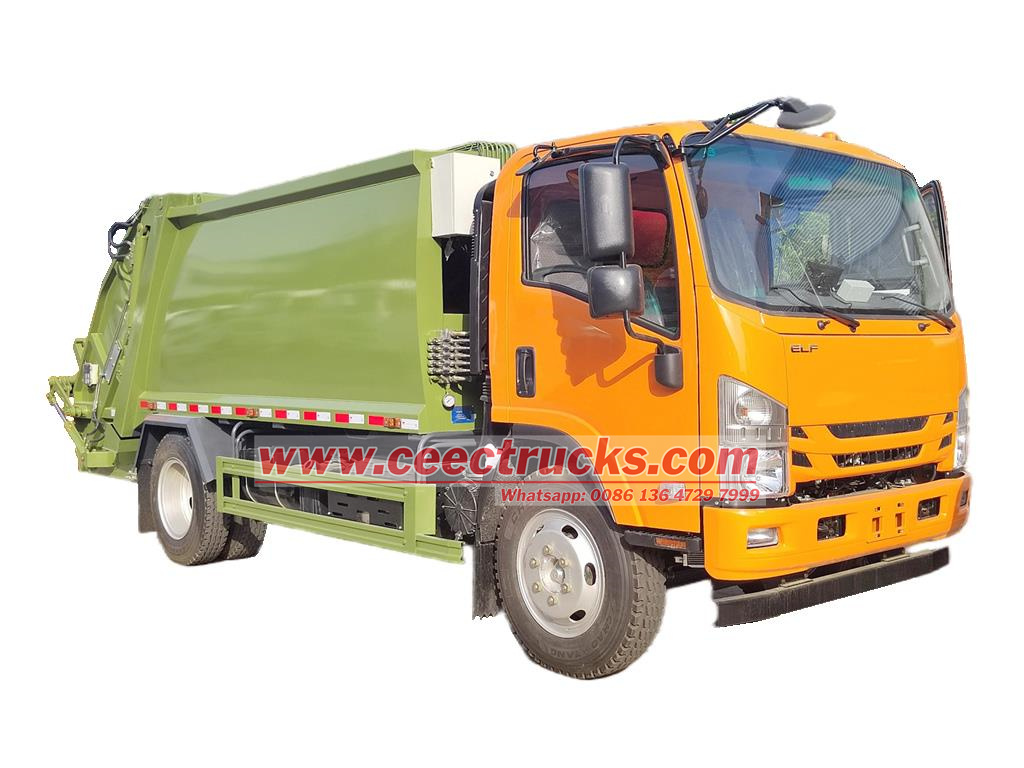

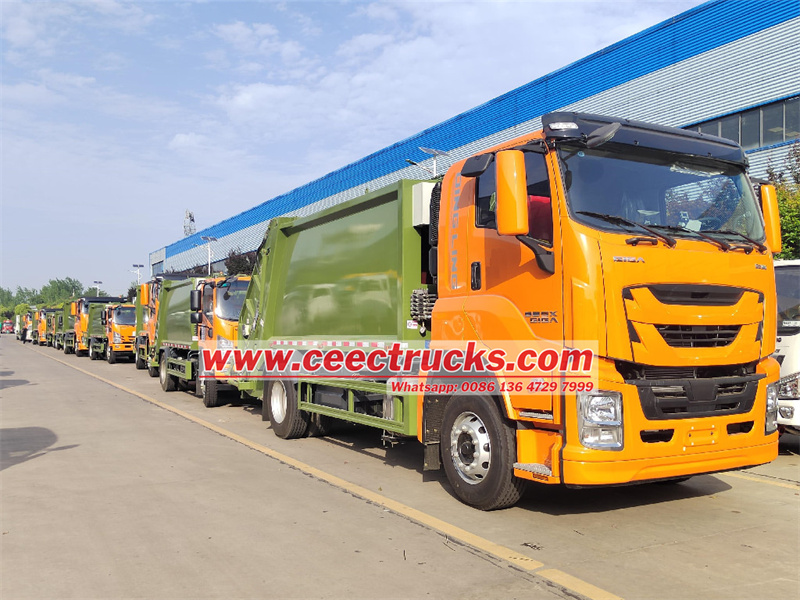

ISUZU 10cbm refuse compactor truck

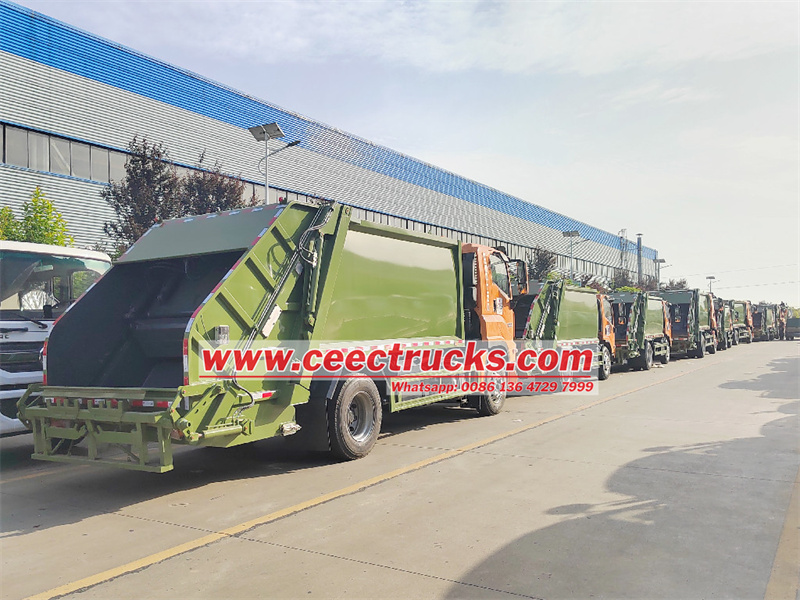

ISUZU garbage compactor truck

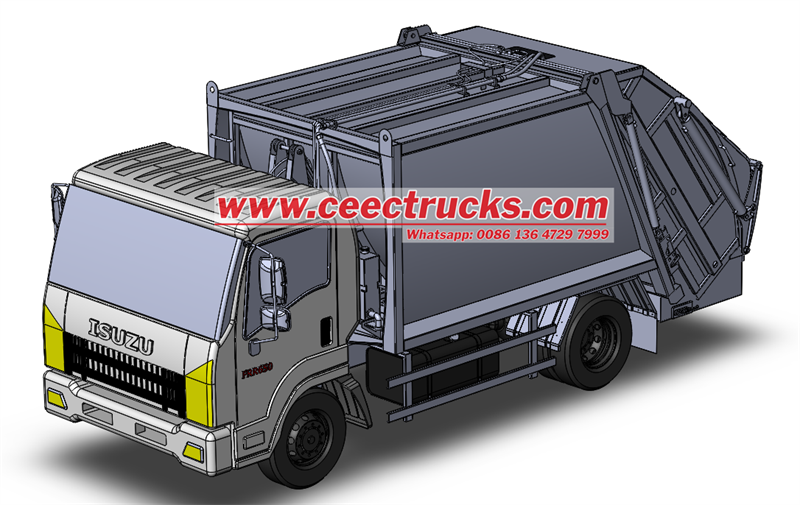

CEEC trucks 5000 square meters workshop for garbage compactor trucks, skilled engineers for CAD drawing and 3D drawing design, 100% meet customer requirement.



garbage compactor truck 3D design
