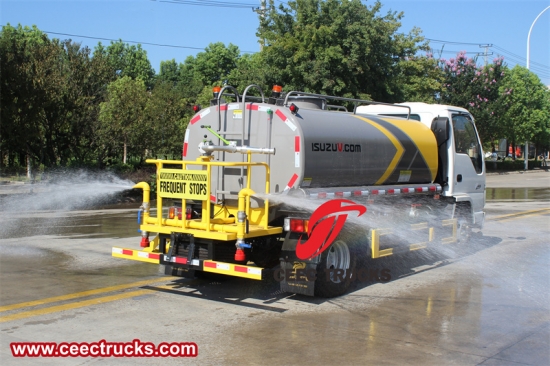

The Isuzu Elf street washing sprinkler is a rugged and efficient vehicle designed for street cleaning and maintenance. It is equipped with a 4-cubic-meter water tank and a high-pressure washing system to effectively remove dirt, grime and debris from the road surface. It is ideal for municipalities, construction sites and other organizations that require high-quality street cleaning services.
Product Origin:
China CEECShipping Port:
China main portLead Time:
30 DaysThe Isuzu Elf street washing sprinkler also called Isuzu Elf street washer water truck,Isuzu 100P road sprinkling truck,Isuzu 100P 4cbm water spray truck,Isuzu ELF street cleaning water tank truck, is a versatile and efficient machine designed specifically for the demanding tasks of street cleaning and maintenance. This Isuzu Elf street washing sprinkler combines the ruggedness and durability of an Isuzu truck with the specialized capabilities of a street washer, making it an invaluable asset for municipalities, construction sites, and any other organization that requires high-quality street cleaning services.
Isuzu Elf street washer water trucks embody a synergy of innovation, functionality, and sustainability in the realm of urban sanitation management. These vehicles represent a transformative solution for municipalities seeking to elevate their cleaning standards and enhance the well-being of their communities. With their advanced features, environmentally conscious design, and operational excellence, Isuzu Elf Street Washer Water Trucks stand at the forefront of urban cleaning technology, driving progress and promoting healthier, more vibrant cities.
Isuzu Elf street washing sprinkler |
|
Main Technology Parameter |
|
Truck Model |
PT5070GXY |
Driving Type |
4×2,left hand drive |
Color |
White,yellow,box can choose |
Weights |
|
Gvw(kg) |
7300 |
Curb weight(kg) |
2150 |
Dimensions |
|
Wheelbase(mm) |
3360 |
Overall Dimension(mm) |
5750*1980*2300 |
Tank capacity |
4cbm |
Max speed(km/h) |
115 |
Engine |
|
Engine model |
4KB1-TCG60 |
Engine power |
131HP/96Kw |
Engine type |
4 stroke water-cooled,inter-cooling |
No. of cylinders |
straight-4 cylinders |
Displacement(L) |
2.499 |
Emission standard |
Euro 6 |
Drive Line |
|
Transmission |
MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
Steering |
Power steering |
Brake |
Oil brake |
Cab |
|
Cabin |
Isuzu 100P |
Standard configuration |
with A/C,oil brake with vacuum booster pump,power steering |
Axle |
|
Front axle |
2580kg |
Rear axle |
4720kg |
Tire specification |
|
Tire specification |
7.00R16, standard tire,6 tires+1 spare tire |
Water truck |
|
Water tanker material |
Of high quality carbon steel (Q235). |
Introduction |
1. Suction≥7m Sprinkler width≥20m Range≥50m |

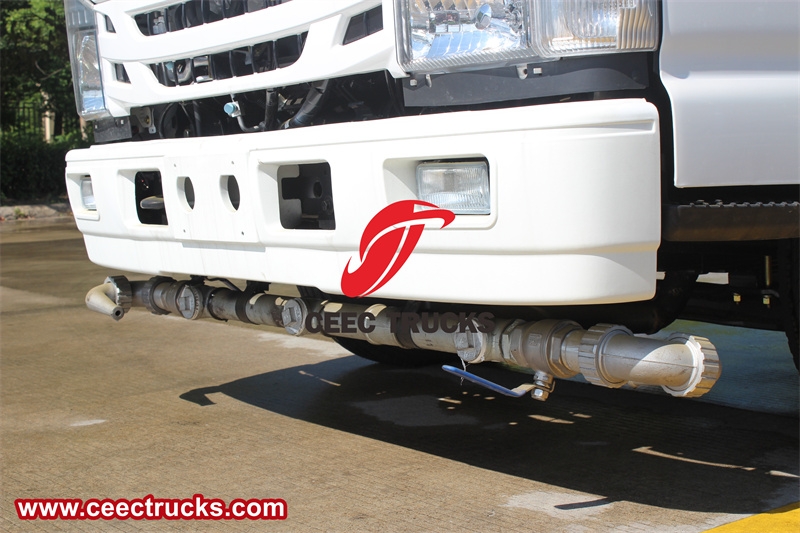

2. with front spout, back spill and side spout function |
|
3. with the working platform at the back, which can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
|
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
|
Manhole |

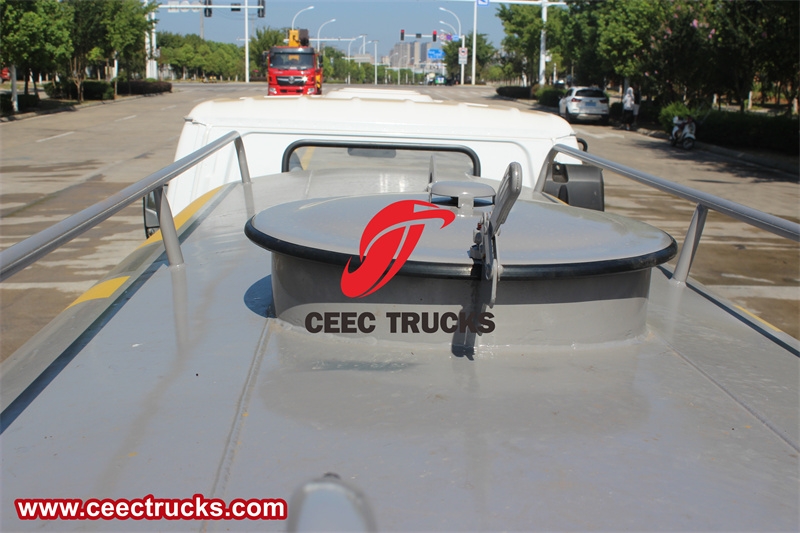

Man way access hole on top of tank;1 units DN500mm manhole |
Horse reels |
Two hose reels at each side of the truck |
Water pump |
Water pump model:65QZF-40/50 |
Water pump flow rate(L/m): 40m3/h |
|
Head of delivery(m): 50m |
|
Self-priming function(min/4m):1.5 |
|
Related rotate speed(r/min)1450 |
|
matched power(kw):9.25 |
The Isuzu Elf street washing sprinkler represents a major innovation in urban cleaning and maintenance. These purpose-built vehicles raise the bar for urban sanitation management by combining efficiency, functionality and sustainability. With fleets of these trucks on the streets, municipalities can significantly improve cleanliness, combat pollution, and ensure residents have a healthier living environment.
At the heart of the Isuzu Elf street cleaning water truck is powered by the reliable and powerful Isuzu engine, which is renowned for its durability and fuel efficiency. The engine delivers 360 torque and 131 horsepower to power the truck in even the toughest conditions, while also ensuring the water pump and other cleaning systems run smoothly and efficiently.

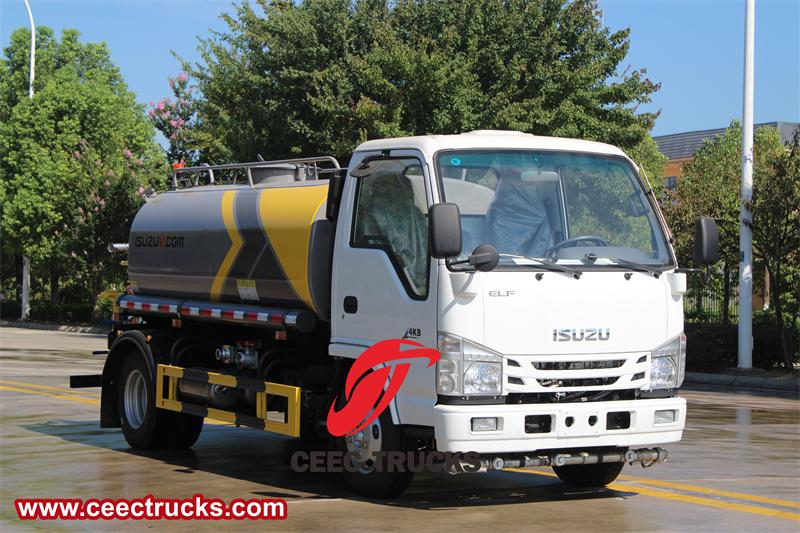

Isuzu ELF100P 4x2 street sprinkler
One of the key features of the Isuzu Elf street washing sprinkler is its 4-square water tank, designed to hold large volumes of water to ensure continuous cleaning operations. Water tanks are typically made from durable materials such as stainless steel or polyethylene, which resist corrosion and abrasion, ensuring the water remains clean and free of contaminants. The water tank is also equipped with a water replenishment system for easy and fast refilling, minimizing downtime and maximizing productivity.
The cleaning system of the Isuzu 100P road sprinkling truck is designed to be efficient. It usually consists of a high-pressure water pump that delivers a powerful stream of water to the street surface, and a series of nozzles and spray bars that distribute water evenly across the width of the truck. The system removes dirt, grime and other debris from street surfaces, leaving them clean and pollution-free.

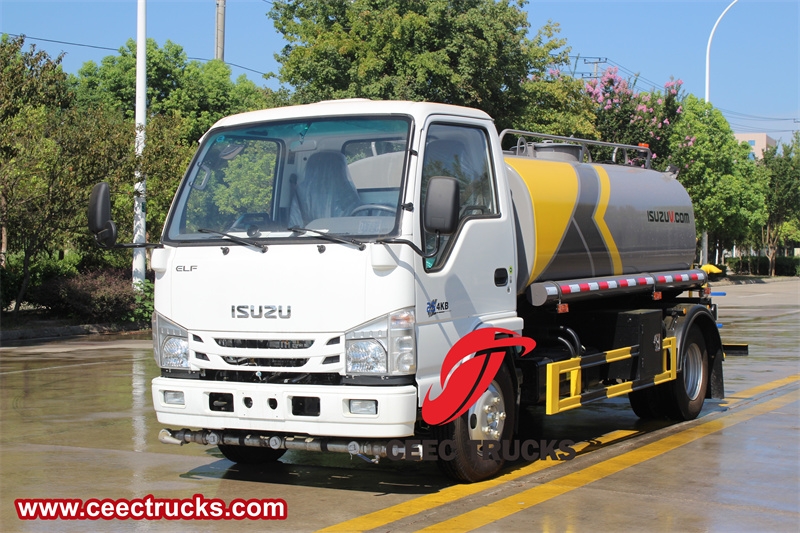

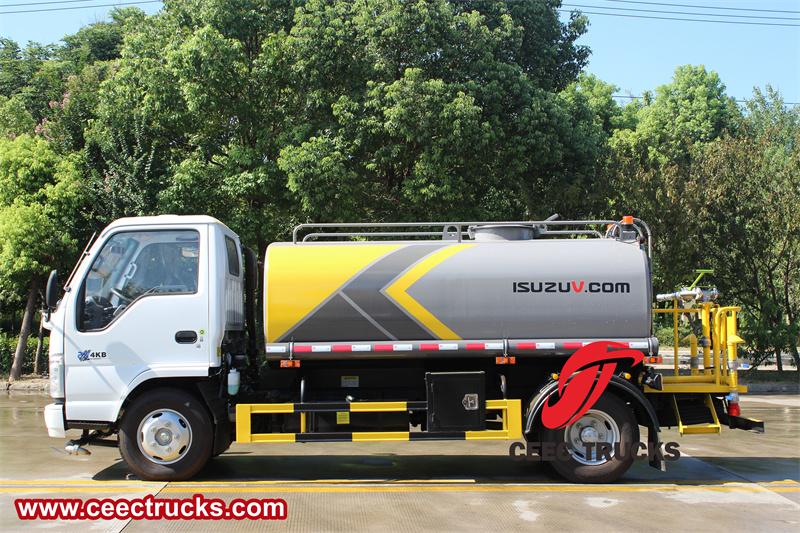

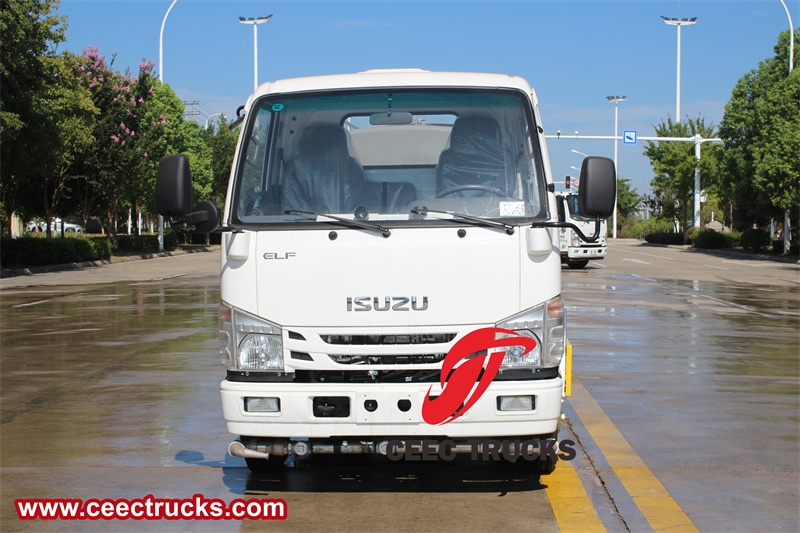

Isuzu Elf street washer water trucks
In addition to the high-pressure water cleaning system,Isuzu 100P 4cbm water spray trucks may also come with other features to enhance their cleaning capabilities. For example, some models may include a street sweeper attachment, which uses a brush or broom to loosen and remove dirt and debris from street surfaces. Other models may have a vacuum system that collects and removes dirt and debris once loosened by water or a sweeper.
In addition to standard street cleaning duties, these Isuzu Elf street water tank trucks can also be equipped with auxiliary features such as a vacuum system to collect debris, a high-pressure washing function to remove stubborn stains, and environmentally friendly cleaners to enhance cleaning performance. This adaptability ensures municipalities can tailor the truck’s capabilities to meet different cleaning needs.

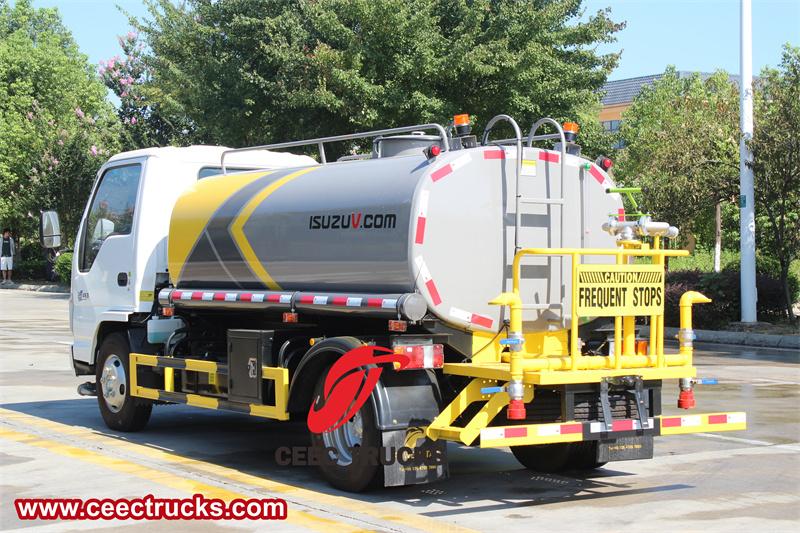

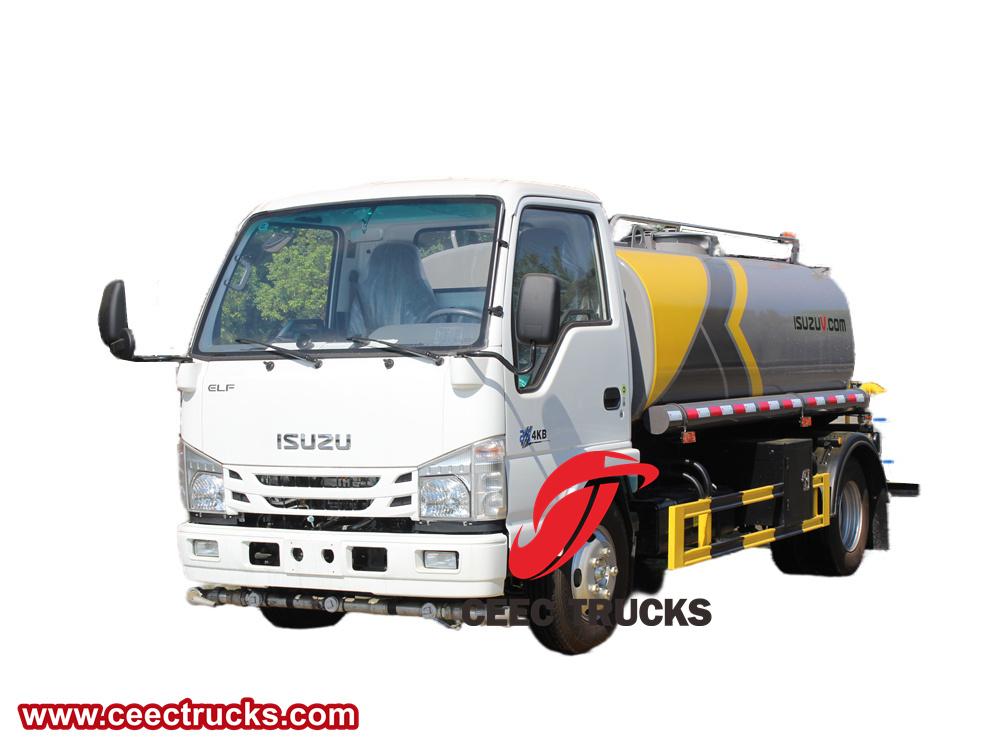

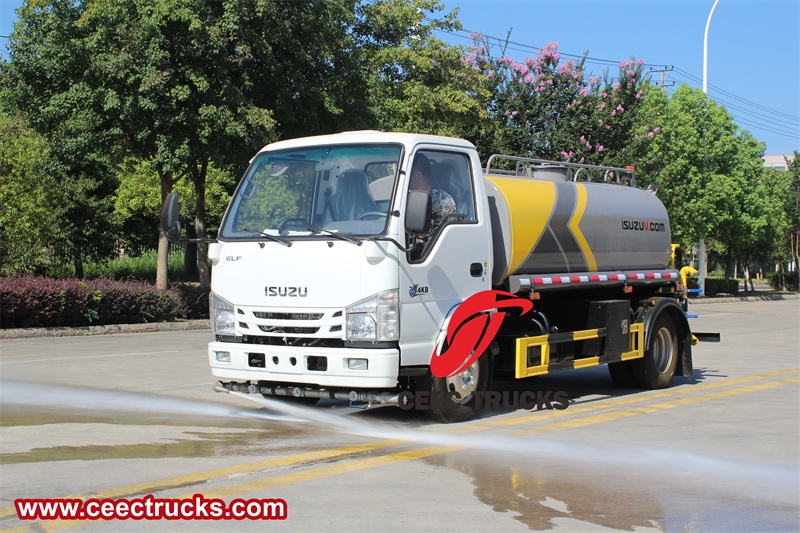

Isuzu Elf street washing sprinkler
The Isuzu ELF100P 4x2 street sprinkler is also designed to be easy to operate and maintain. Controls are typically located in ergonomic and easily accessible locations, allowing the operator to adjust water pressure, nozzle angle, and other settings with minimal effort. The truck is also equipped with a variety of gauges and indicators that provide real-time information on the status of the engine, water tank and other systems, allowing operators to quickly identify and resolve any potential issues.
The Isuzu Elf street cleaning spraying truck is an efficient and effective machine that is ideal for a variety of street cleaning and maintenance tasks. Its powerful engine, large water tank and advanced cleaning system allow it to handle the toughest jobs, while its ease of operation and maintenance ensure it remains a reliable and efficient asset to any organization. Whether you are a municipality looking to keep streets clean and safe, or a construction company looking to keep work sites tidy, the Isuzu Elf street cleaning sprinkler truck is a great choice for your street cleaning needs.
Isuzu 100P road sprinkling truck

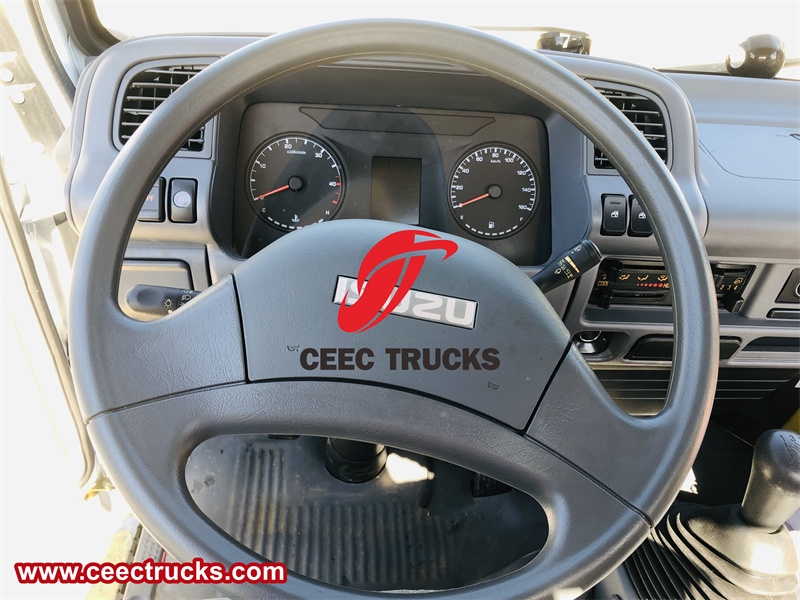

Steering wheel

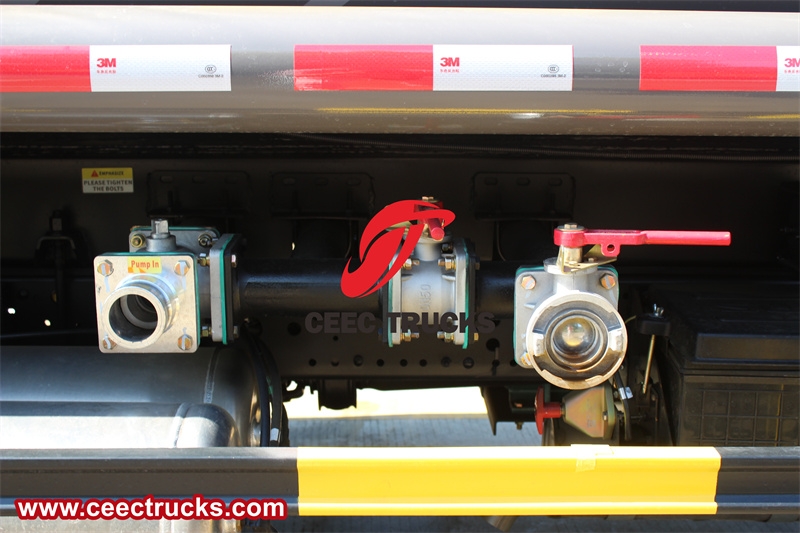

Pump in and pump out

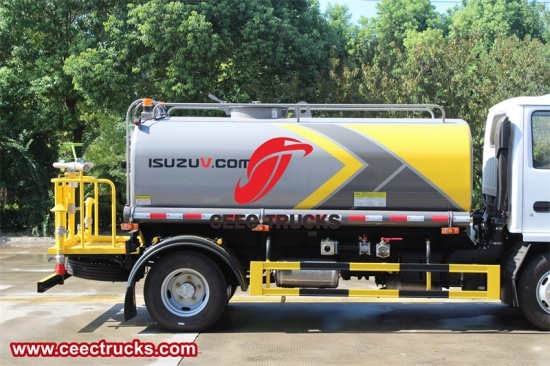

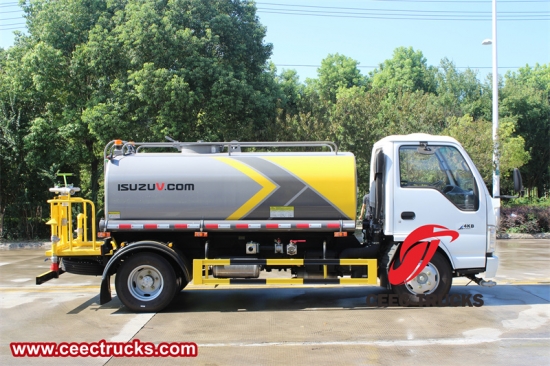

Water tank

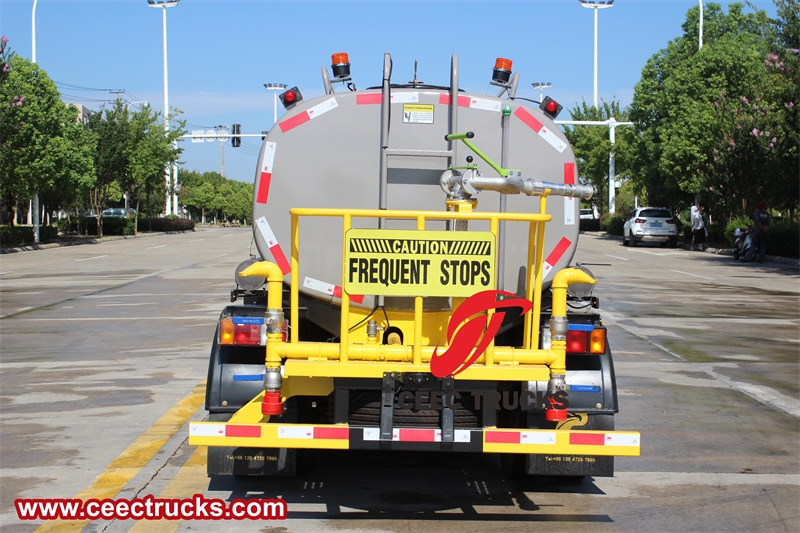

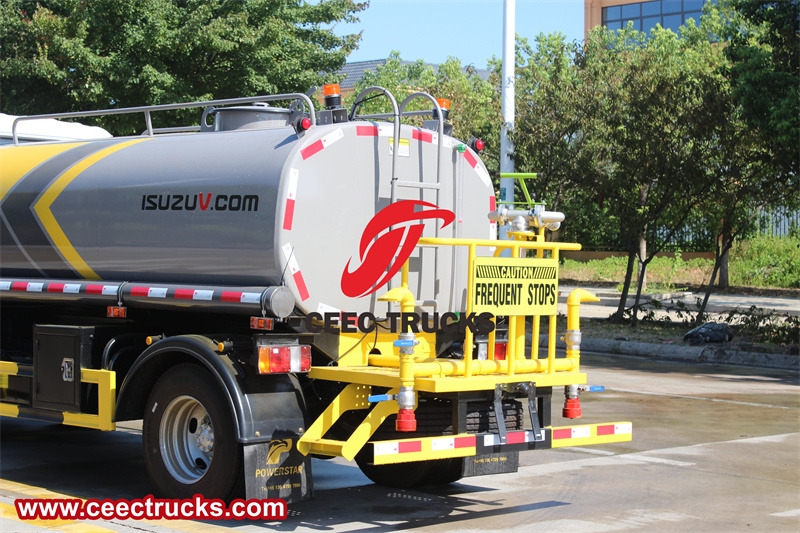

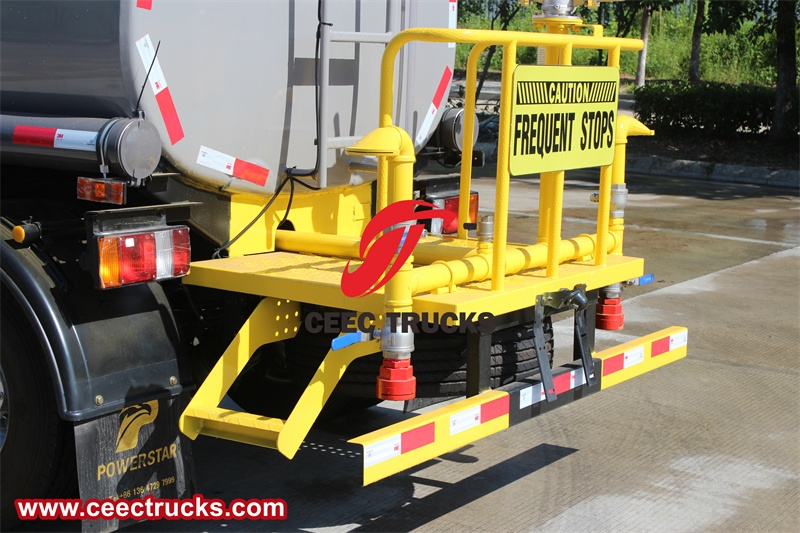

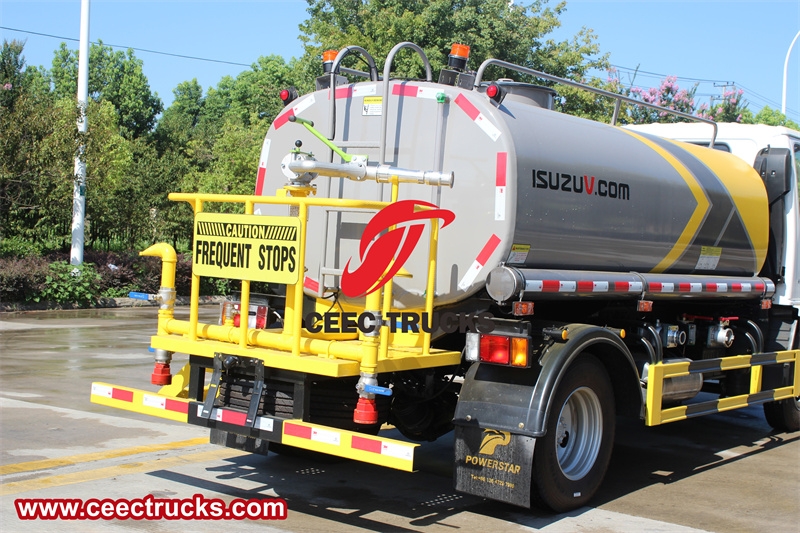

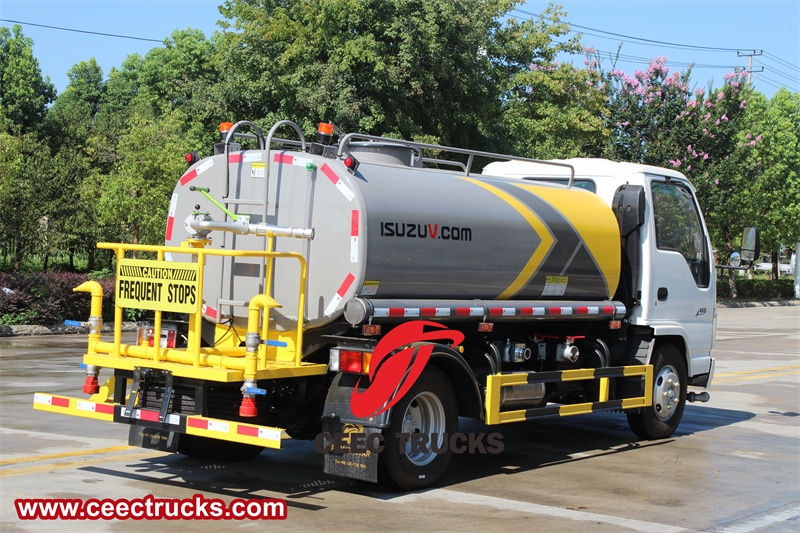

Operating platform

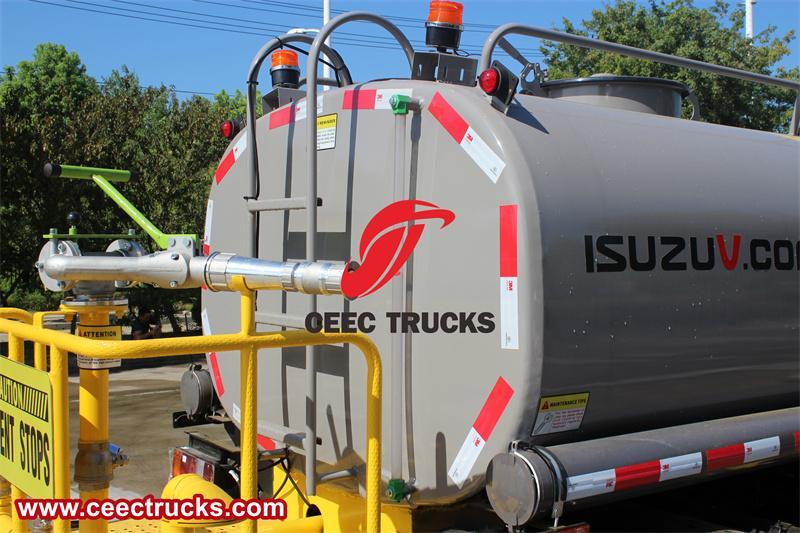

Water gun

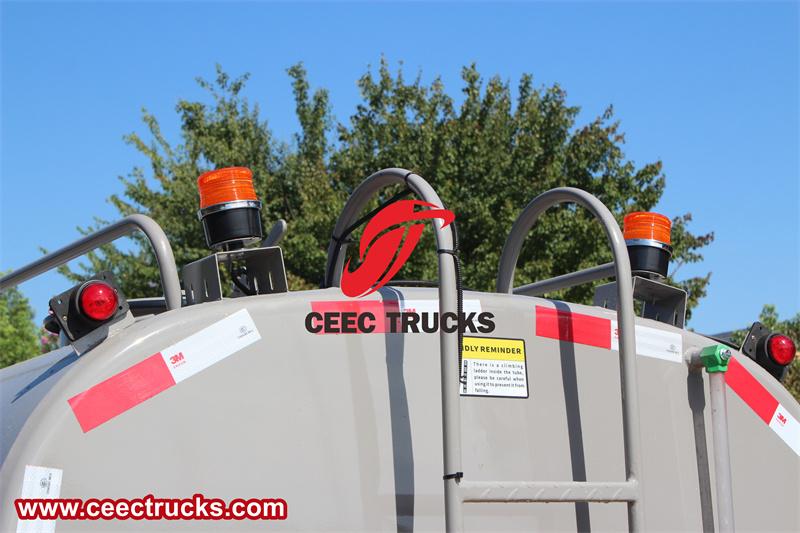

Ladder
★ Authorized ISUZU water tanker trucks exporter
★ Training service for ISUZU water tanker trucks
CEEC TRUCKS is a reliable manufacturer of ISUZU water tank trucks in China. All our water tank trucks are manufactured to high-quality standards, ensuring durability, safety, and efficiency. We offer competitive pricing on all our products and services, making them accessible to a wide range of customers.
