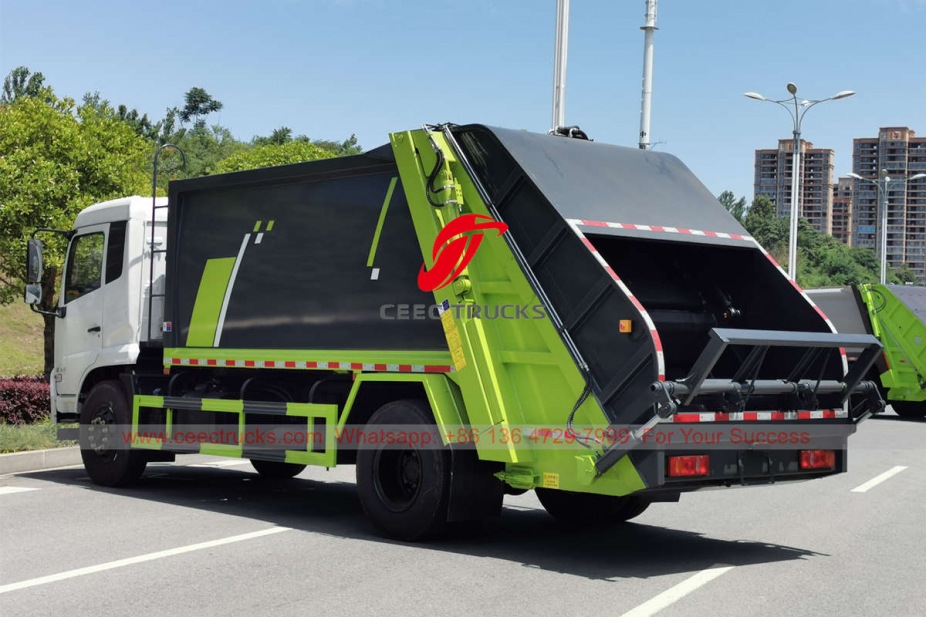

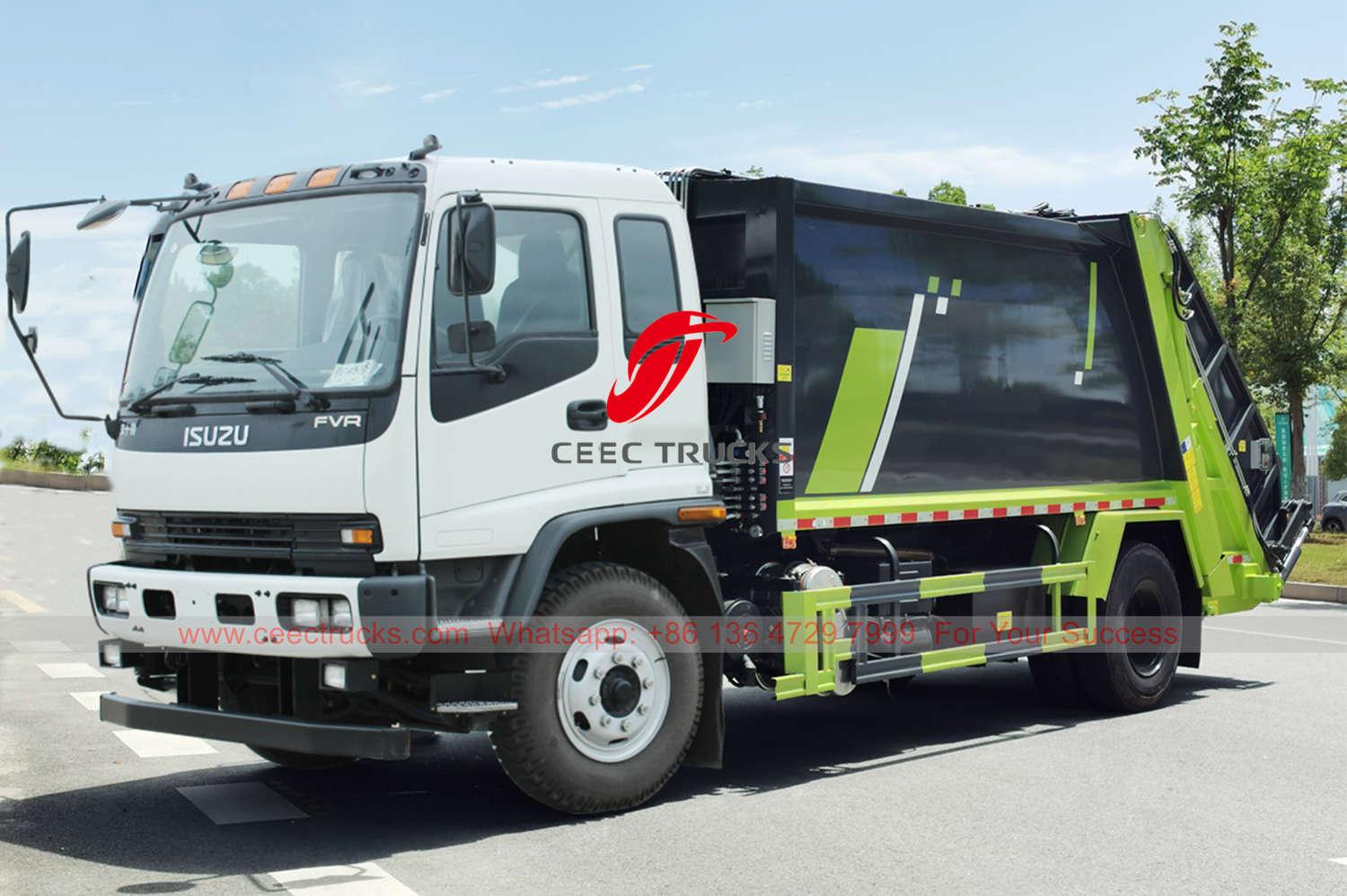

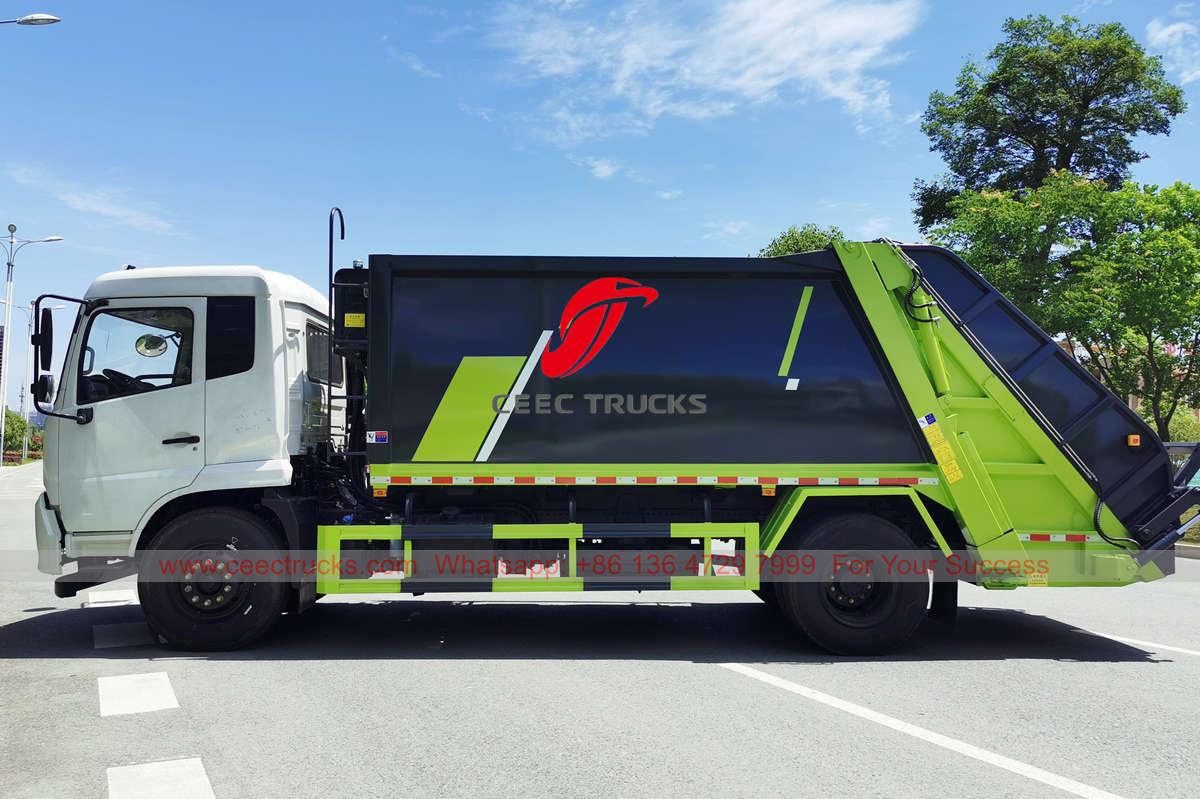

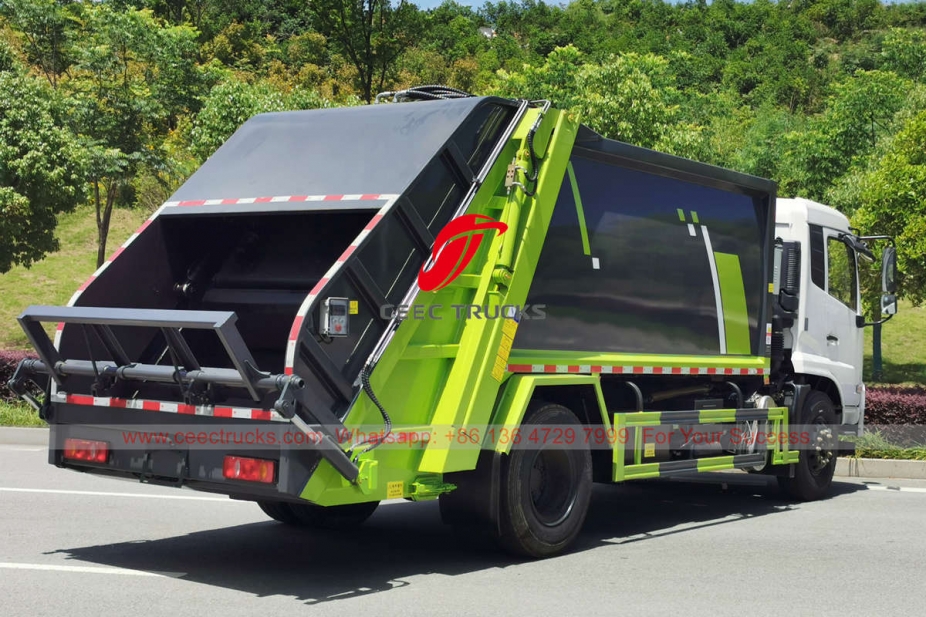

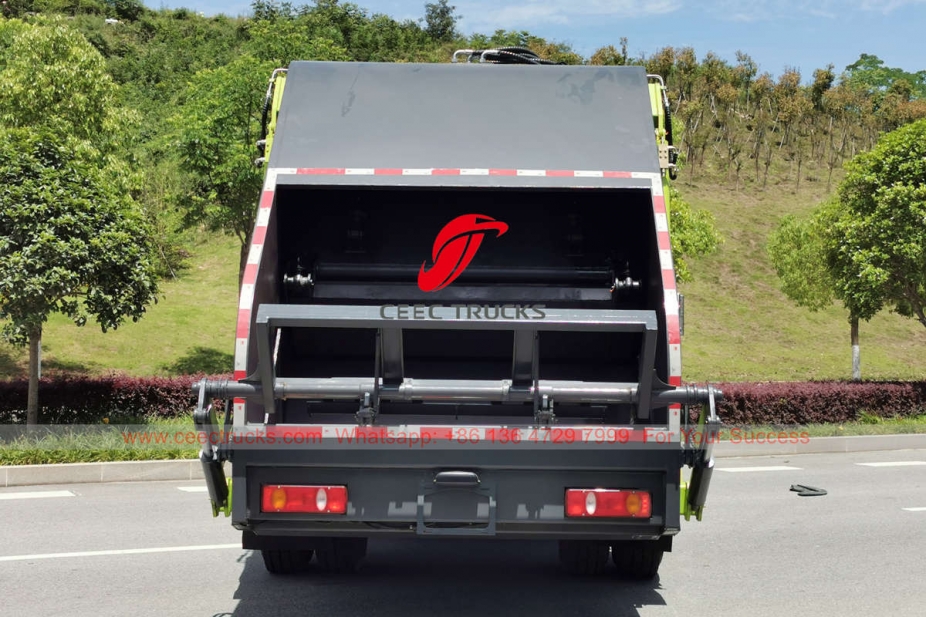

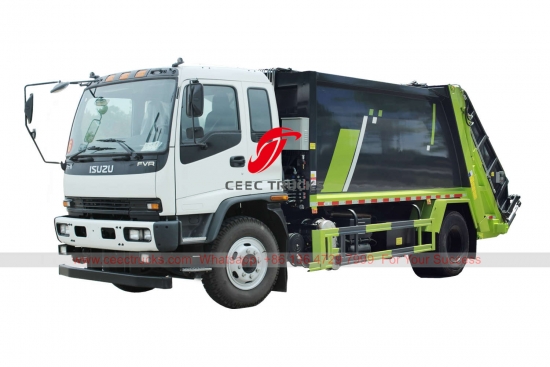

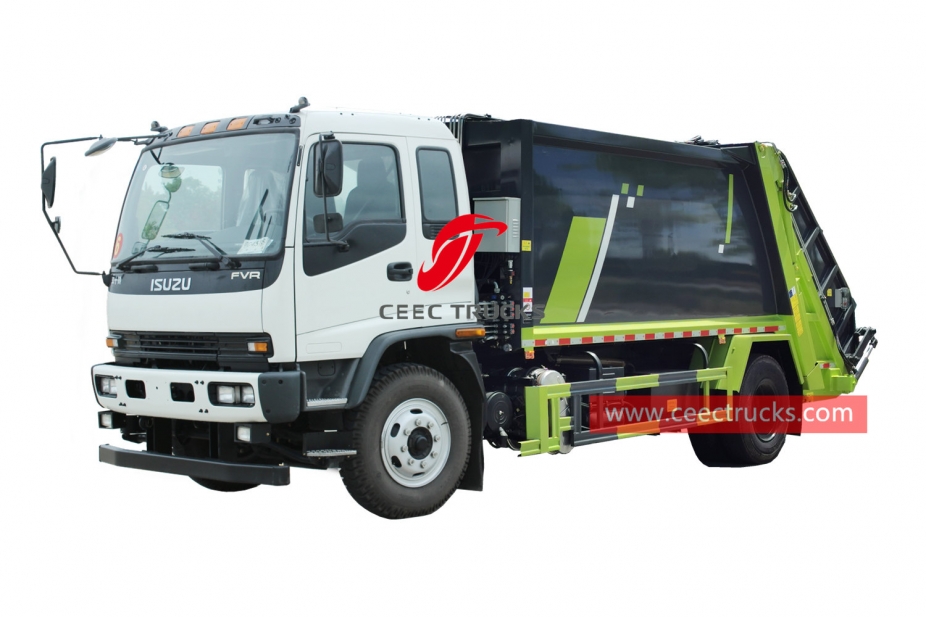

ISUZU FVR 14CBM rear loader refuse truck

ISUZU FVR 14cbm garbage compactor truck, the truck chassis use ISUZU 240HP diesel engine, MLD 6-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

ISUZU FVR refuse compactor

Applications:

ISUZU rear loader waste truck (also called garbage compactor truck, ISUZU waste compressor truck, rear loader bin truck, ISUZU 6 wheeler garbage disposal compactor truck, ISUZU refuse compressor truck, refuse compactor truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

CEEC TRUCKS refuse compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.

The waste compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compactor body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of garbage container lifter are available.

Specifications:

ISUZU FVR compressed garbage truck (14 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	8250 * 2250 * 2850 mm
	GVW / Kerb Weight	18,000kg / 8,600kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	240 HP (177 KW)
	Displacement	7790 ml
	Emission Standard	Euro 5
Chassis	Drive Type	4X2 (left hand drive)
	Transmission	MLD 6-speed levers with 1 reverse
	Wheelbase/No. of axle	5500 mm / 2
	Tire Specification	10.00R20
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	14 cbm
	Fill Hopper capacity	1.2 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection

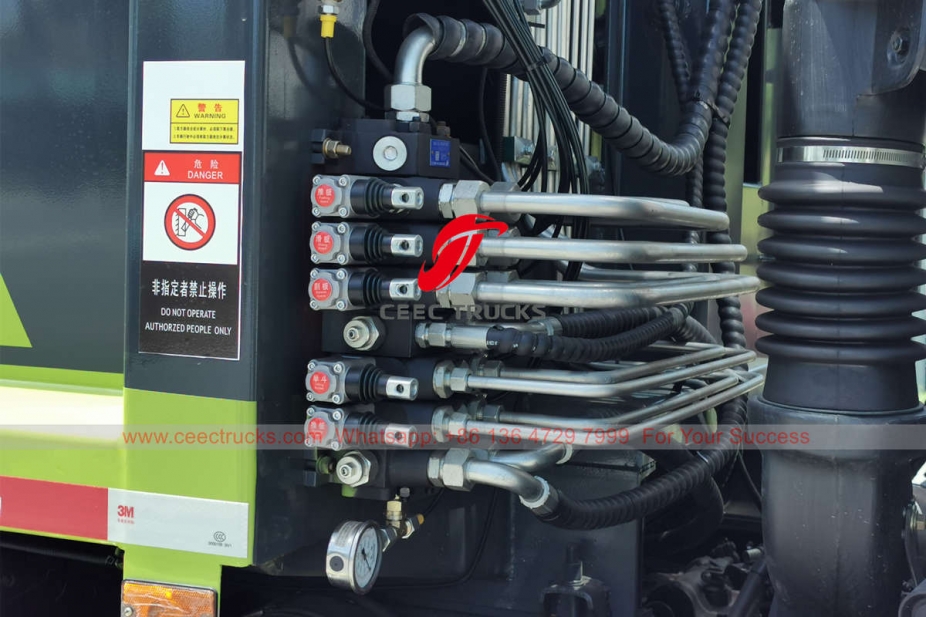

	Control system	Electrically Hydraulic control Manual hydraulic control

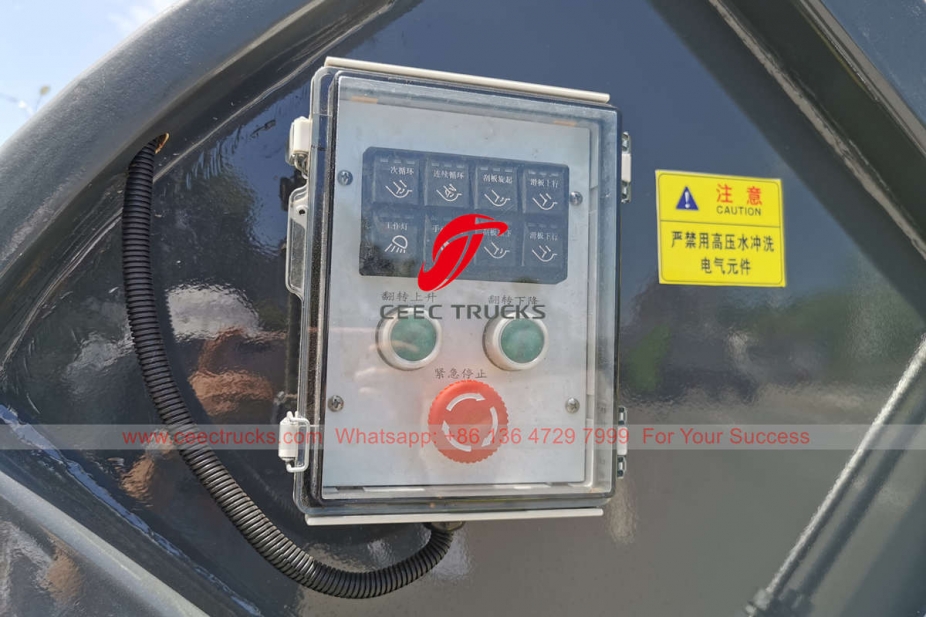

	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

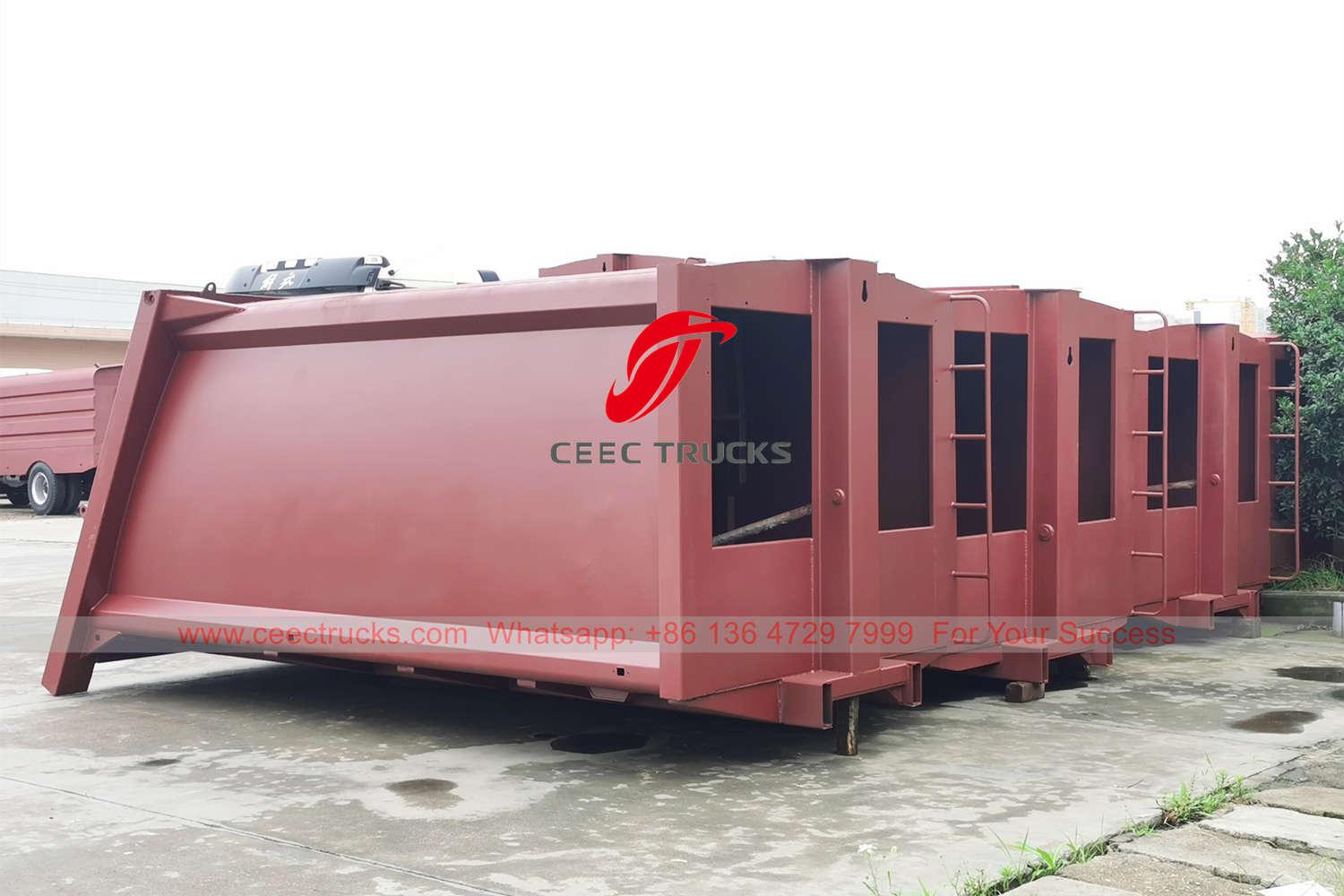

Rear loader factory

(High quality back loading bin trucks for sale, professional garbage compactor manufacturer)

Garbage Compactor Trucks

Model	Engine Model	Rated Power	Capacity	Driving Model
CEEC5040QL	4KH1CN5LS	98 HP	4 CBM	4×2
CEEC5060QL	4KH1CN5HS	130 HP	6 CBM	4×2
CEEC5080ZZ	WP4.180	180 HP	8 CBM	4×2
CEEC5120QL	4HK1-TC50	205 HP	12 CBM	4×2
CEEC5140EQ	B190 33	190 HP	14 CBM	4×2
CEEC5180ZZ	WD615.71	260 HP	18 CBM	6×4
CEEC5200QL	6HK1-TCH	300 HP	20 CBM	6×4
CEEC5200BJ	ISLe340 30	340 HP	20 CBM	6×4
CEEC5250QL	6UZ1-TCG50	380 HP	25 CBM	6×4

CEEC TRUCKS is a professional refuse truck manufacturer. We can provide ISUZU garbage compressor truck, Dongfeng rear loader compactor, HOWO trash compactor truck, FOTON refuse compressed truck. Our garbage compactors are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price. In addition, CEEC also manufacture fuel tanker trucks, water tanker trucks, vacuum sewage trucks, street sweeper trucks, etc.

★ ISUZU engine, super powerful

★ Expert for producing rear loaders over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for garbage compressed trucks
