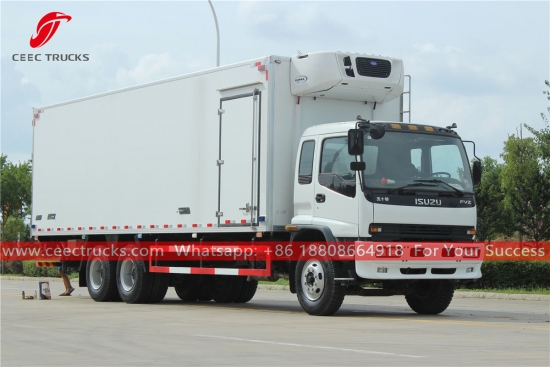

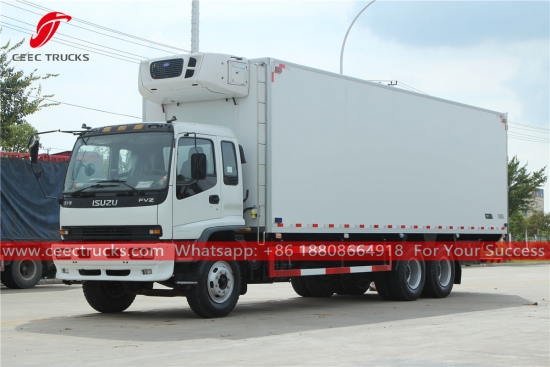

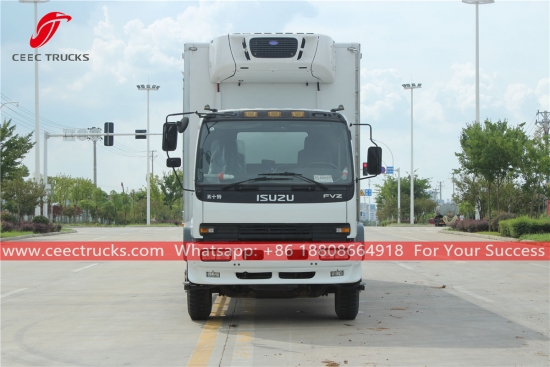

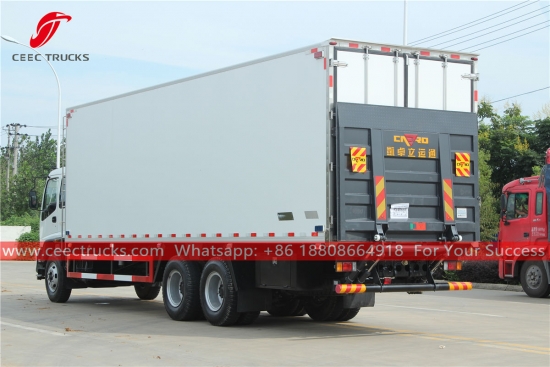

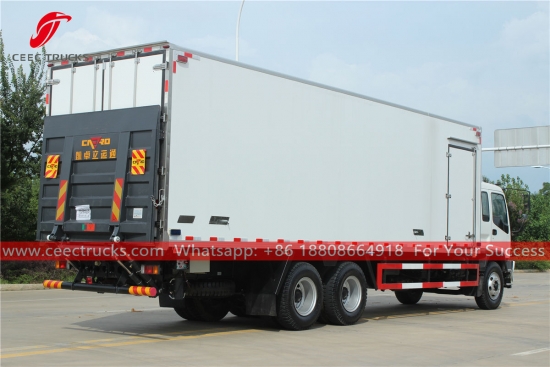

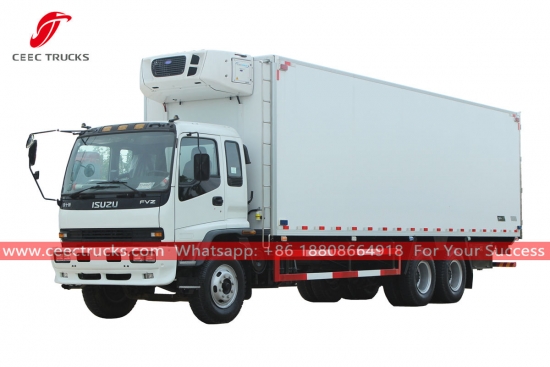

ISUZU FVZ Refrigerator Truck

ISUZU 20T Refrigerated van truck, ISUZU left hand drive heavy model 6×4 chassis, FAST 9-shift manual gearbox, ISUZU 6HK1-TCH 300 HP engine. Equipped with America Carrier cooling units for high performance, as for van capacity can be 5-25T optional.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

Applications:

ISUZU 6×4 Freezer Truck (also called Refrigerated truck ISUZU, ISUZU 20 Ton reefer box truck, ISUZU FVZ Chiller lorry, ISUZU Refrigerator van truck, ISUZU 10 wheeler refrigerated lorry) is a van or truck designed to carry perishable freight as specific temperatures.

Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize carbon dioxide as a cooling agent.

CEEC TRUCKS can supply reefer van trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.

---- Refrigeration system brand can be optional.

---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.

Specifications:

ISUZU Refrigerator Van (25 Ton)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	10200* 2500 * 3800 mm
	GVW / Kerb Weight	25,000kg / 10,100kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	300 HP (220 KW)
	Displacement	7780 ml
	Emission Standard	Euro 5
Chassis	Drive Type	6X4 (left hand drive)
	Transmission	FAST 9-shift speed levers with 1 reverse
	Wheelbase/No. of axle	5100+1300 mm / 3
	Tire Specification	11.00R20
	Tire Number	10 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Body size	9000×2400×2200(mm)
	Load Capacity	25 Tons
	Panel Structure	Fiber glass sandwich polyurethane
	Front/Side/Rear panel	Panel Thickness: 85mm
	Roof/Floor panel	Panel Thickness: 105mm
	Lights & Switch	Led, Water-proof, 12V/24V convertible
	Lowest temperature	-5°C or -25
Equipment	Standard: Aluminum alloy flooring, rear doors. Optional: 1. Hydraulic Tailift and Cargo Control System. 2. Side doors, side steps and ladders. 3. Different temperature area control. 4. Customized floor roller design for convenient working.

CEEC TRUCKS is a professional refrigerator trucks manufacturer. We can provide ISUZU reefer truck, HOWO chiller lorry, FOTON refrigerated truck, Dongfeng reefer van truck, etc. The capacity of van can be 3-25 tons. Our freezer trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

▶ Equipped with famous domestic chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, and Sinotruk

▶ Equipped with famous refrigeration units, Thermo King & Carrier, & Guchen Super Snow refrigeration units.

▶ Refrigerated truck body structure is sandwich structure: Fiberglass + PU + fiberglass. All the double surface sandwich polyurethane panel and door are 100mm thickness, the Fiberglass plate thickness is 2.5mm for the outer and inner skins; the polyurethane foam density is 45-50kg/m3. (All is the best material in China and have excellent insulation performance).

▶ The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.

▶ Sandwich panel thickness can be changed according to customers’ requirements: 60mm, 80mm, and 100mm.

CEEC TRUCKS is a leading exporter of refrigerator trucks in China. We possess over 10-year export experience of reefer van trucks. We can ensure the fast delivery time and 12 months guarantee for our freezer trucks. Our refrigerator lorries are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...

Related Tags :

ISUZU 6×4 Reefer Truck ISUZU 20T freezer truck ISUZU FVZ chiller lorry

Previous :ISUZU GIGA Refrigerated Truck
Next :FOTON Mini Refrigerated Truck
