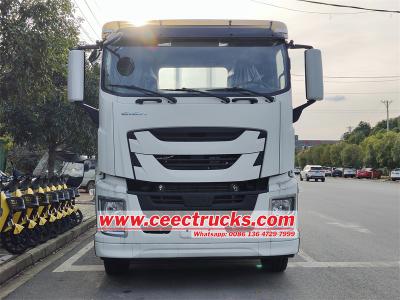

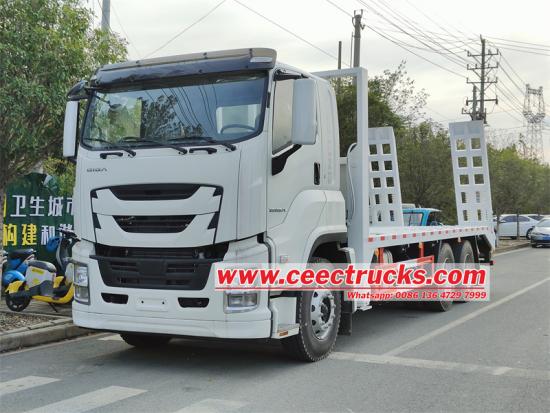

Isuzu 20 Ton heavy duty service flatbed truck

Isuzu Giga 10 wheeler hauling flatbed truck

Isuzu GIGA 6x4 flatbed truck is built on the solid GIGA 6x4 chassis, equipped with a powerful 420HP engine and 12-speed gearbox, 5200+1370mm wheelbase, with A/C, USB, direction assistance, its powerful chassis and large flatbed can provide 20T cargo load.

Lead Time:
60 Days
Work capacity:
20T
Truck model:
CEEC5330GXH
Engine power:
420 HP/309 KW
Engine type:
6WG1-TCG60
Axle drive:
6x4,LHD
Gear box:
FAST 12-speed,manual
Remarks:
20T large loading capacity

Inquiry now

Isuzu Giga 10 wheeler hauling flatbed truck is built on the sturdy GIGA 6x4 chassis, equipped with a powerful 420HP engine and a 12-speed gearbox, providing excellent power and control. Its flatbed is 7800mm long and 2500mm wide, which can be manually extended by 3.2m, and can flexibly adapt to cargoes of various sizes.

The vehicle is also equipped with a winch, outriggers and a rear ramp to improve loading and unloading efficiency and safety. Whether it is the transportation of large equipment on construction sites or the heavy-load requirements of long-distance logistics, the GIGA 6x4 flatbed truck can easily cope with it with its excellent stability and carrying capacity, making it the preferred model in the field of heavy-load transportation.

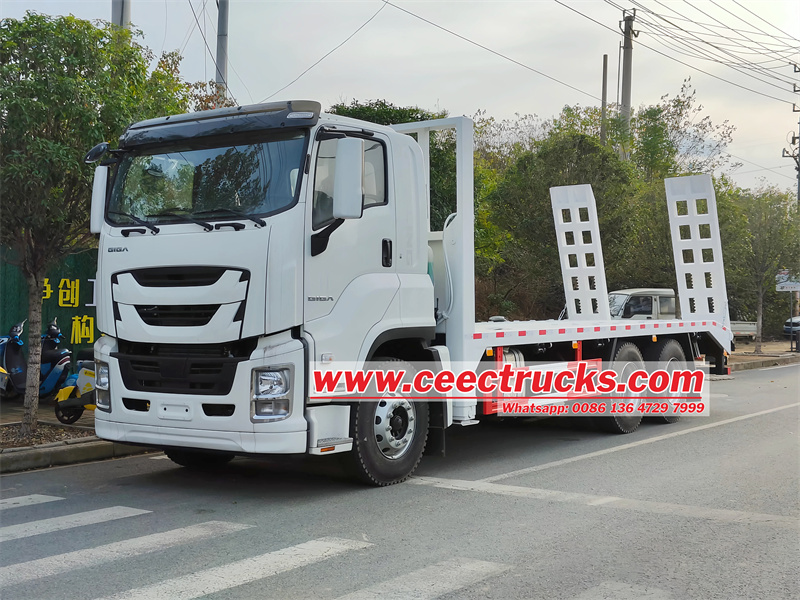

Isuzu Giga 10 wheeler hauling flatbed truck

Key Features:

★ ISUZU heavy duty chassis, perfect performance

★ ISUZU 6WG1-TCG60 engine, super powerful; reliable performance, no overhaul within 100,000 km.

★ Payloading from 2ton to 80 tons.

★ Easy operation and easy maintenance.

★ Various types of tipper body are available.

Isuzu GIGA self loader flatbed transport truck

ISUZU GIGA excavator transport truck
General	Vehicle Brand	CEEC
	Chassis Brand	Isuzu
	Overall Dimension	1010025503100mm
	GVW / Curb Weight	33000/11500kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Chassis	Drive type	6x4,LHD
	Wheelbase/No. of axle	5200+1370mm/3
	Tire Specification	315/80R22.5
	Tire Number	10 tires and 1 spare tire
	Max Speed	95 km/h
	Transmission	FAST 12-speed,manual
	Paint	Metallic paint
Engine	Fuel Type	Diesel, Inline 6 cylinder 4 stroke
	Engine Brand	ISUZU
	Model	6WG1-TCG60
	Power	420 HP (309 KW)
	Displacement	15981 ml
	Emission Standard	Euro 6
	Rated speed	1400rpm
	Maximum torque	2250N.m
	Maximum torque speed	900-1300rpm
Flatbed Body	Length	7800mm
	Width	2500mm
	Feature	The plate width can be telescopic and extended for 3.2 m operated manually.
	Bottom beam	120x120x5mm GB square steel
	Thickness	8mm checkered plate with antiskid
Mechanical ramp	Type	mechanical spring
	Length	2200mm
	Material	All Steel Ramp
	Feature	It adopts heavy load strengthening design, and three reinforcement, double spring reinforcement treatment, with rear outrigger
Winch	Type	10ton,45m,18mmthick

1. Chassis and power system

Isuzu 20 Ton heavy duty service flatbed truck adopts a wheelbase design of 5200+1370mm. In terms of power, the vehicle is equipped with Isuzu 6WG1-TCG60 420HP diesel engine, which is famous for its excellent power output and fuel economy. With Fast 12-speed gearbox, the vehicle can easily cope with various road conditions and load requirements, ensuring smooth and efficient transportation.

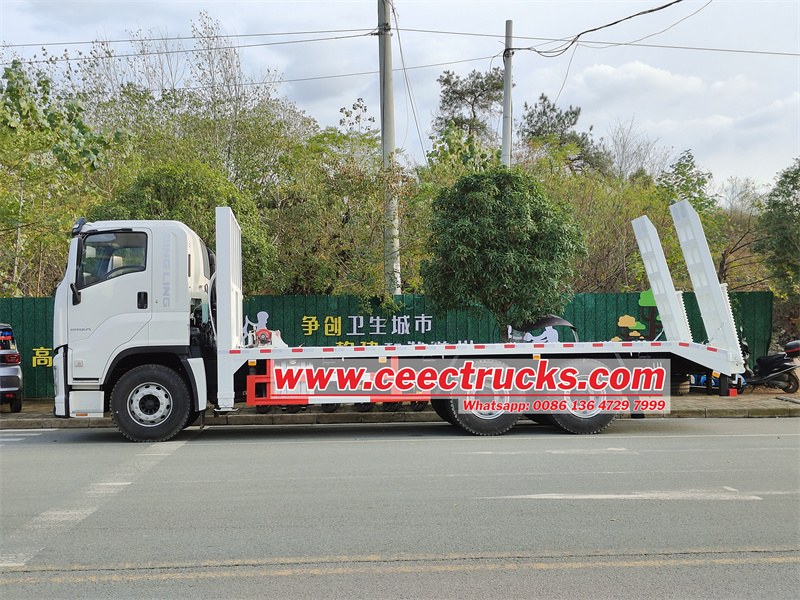

2. Flatbed design: flexible and changeable

The flatbed is the core of this model. The flatbed design with a length of 7800mm and a standard width of 2500mm provides ample space for the loading of large goods. What is even more commendable is that the width of the flatbed can be manually adjusted and can be extended for 3.2 m operated manually. This design allows the vehicle to flexibly respond to goods of different sizes and shapes, ensuring the efficiency and safety of loading.

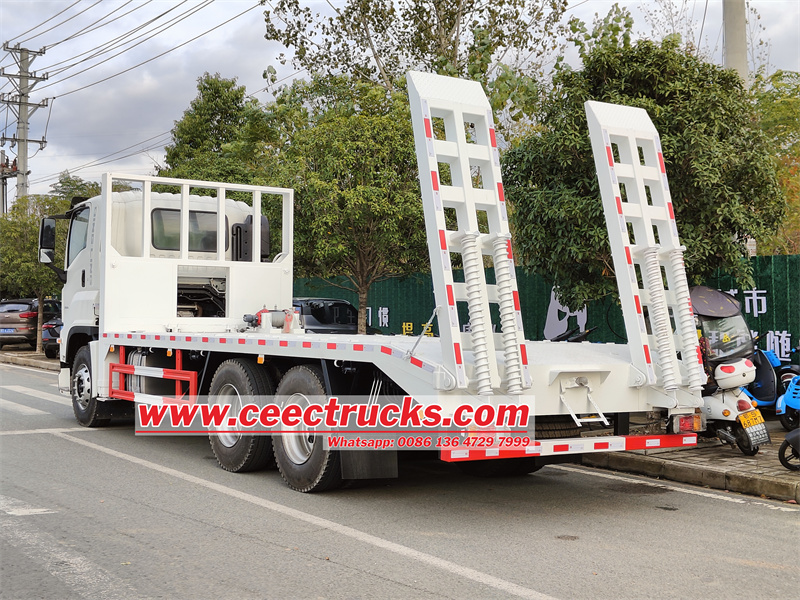

Self Loading Isuzu Giga 6X4 Heavy Machinery Excavator Flatbed Truck

3. Professional configuration: improve loading and unloading efficiency

In order to further improve loading and unloading efficiency, Isuzu GIGA 20Ton excavator carrier truck is also equipped with professional devices such as winches, outriggers and ramps. The winch can easily tow and fix the cargo, ensuring the stability of the cargo during transportation. The outriggers can provide additional support for the vehicle during loading and unloading, ensuring the safety of the vehicle and cargo. The design of the ramp makes it easier to get on and off the cargo, reducing the labor intensity of the operator.

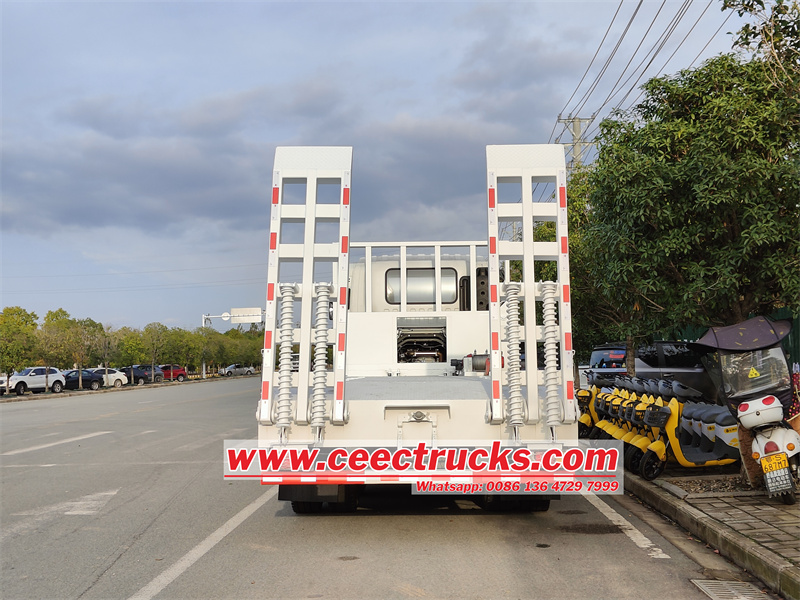

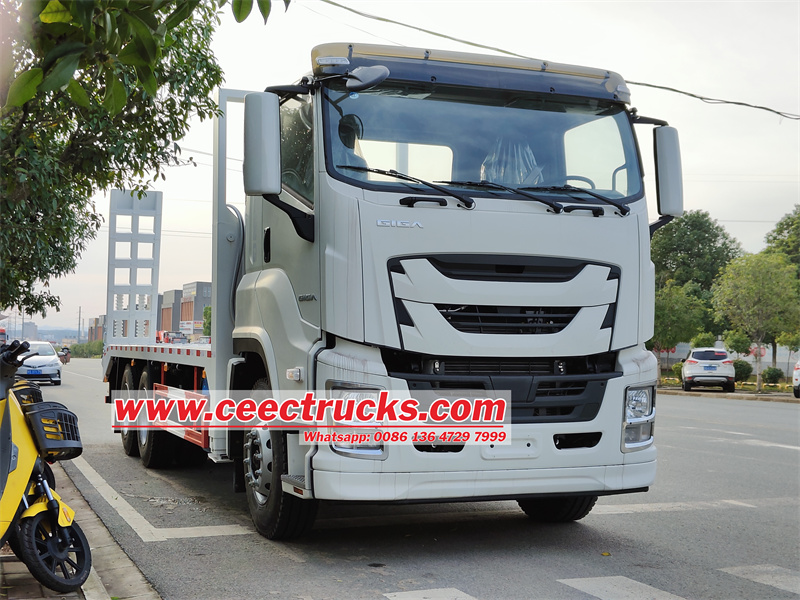

Isuzu GIGA self loader flatbed transport truck

4. Wide range of application scenarios

With its powerful performance and flexible design, the Isuzu GIGA 6x4 flatbed transport truck can be widely used in various heavy-load transportation scenarios. Whether it is the transportation of construction materials, the relocation of mechanical equipment, or the transportation of other large cargo, this model can easily cope with it, providing efficient and reliable transportation solutions for enterprises and individuals.

Truck Details

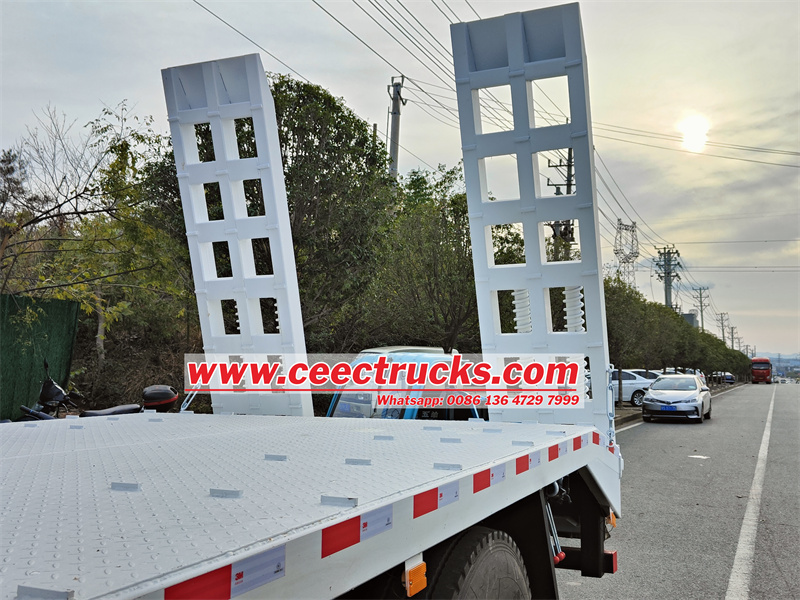

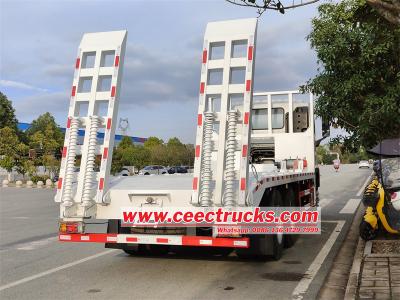

Mechanical ramp

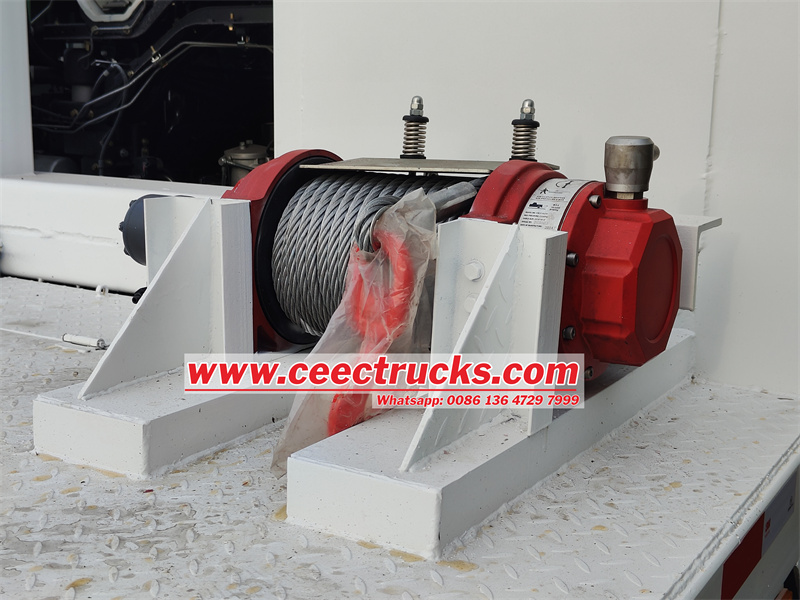

Winch

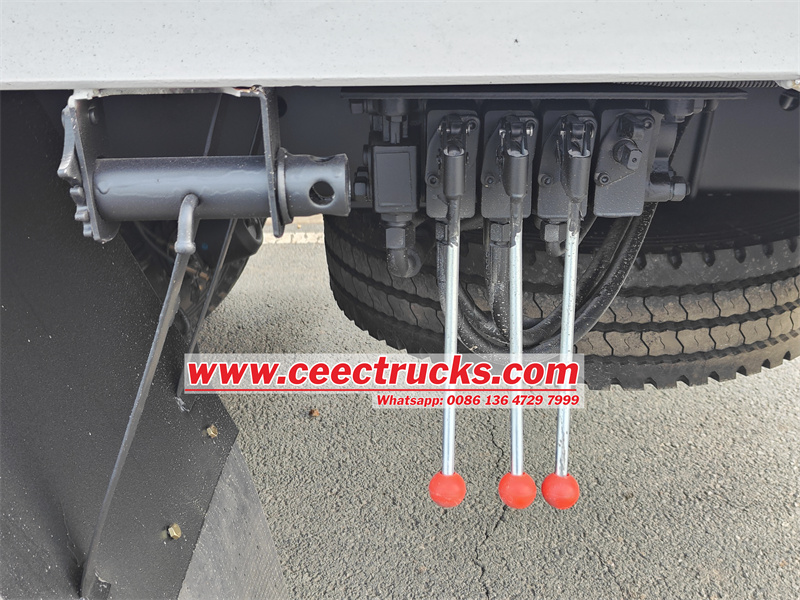

Joystick

★ Isuzu engine, fuel consumption save 20%

★ FAST 12-shift manual mechanical transmission gearbox

★ Flatbed body material can be High strength GB square steel material, with thickness 8mm

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu flatbed trucks exporter

★ Training service for Isuzu flatbed trucks

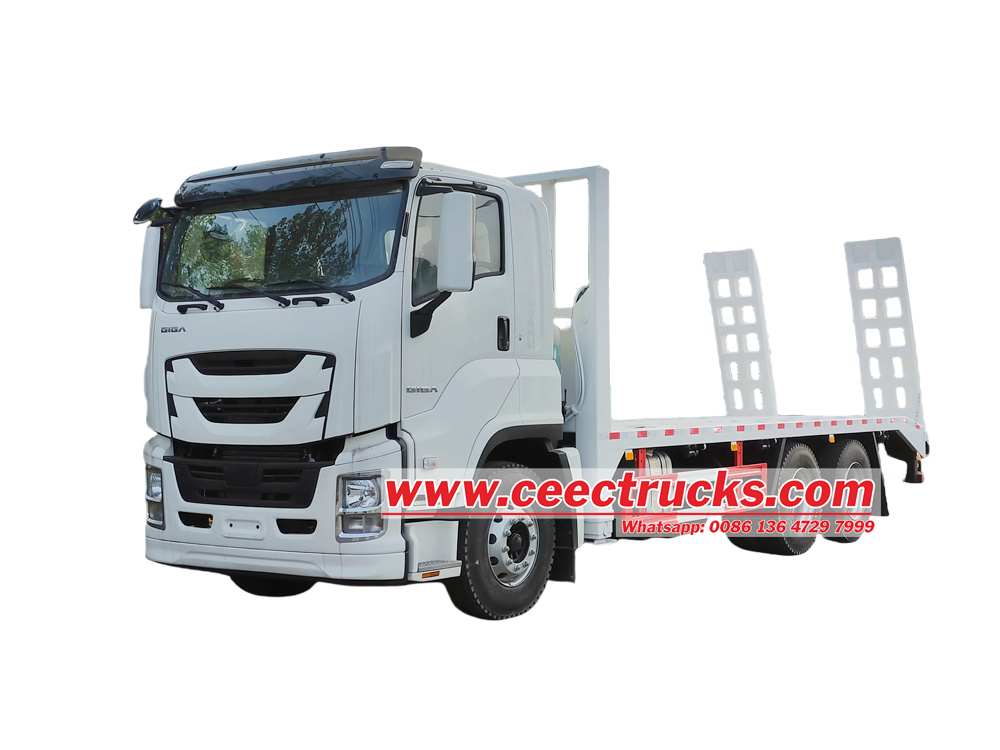

Isuzu Giga 10 wheeler hauling flatbed truck

China best ISUZU trucks supplier and exporter, we supply the best quality ISUZU 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our flatbed trucks. Our ISUZU heavy duty trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
