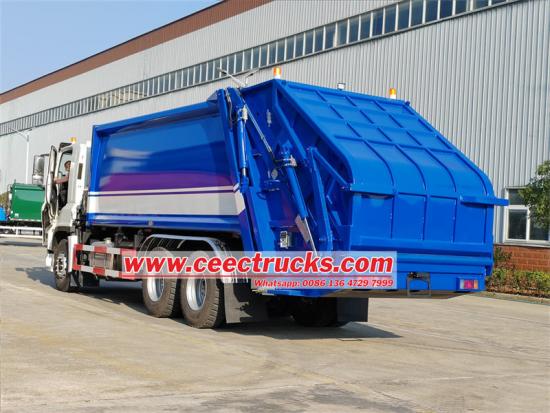

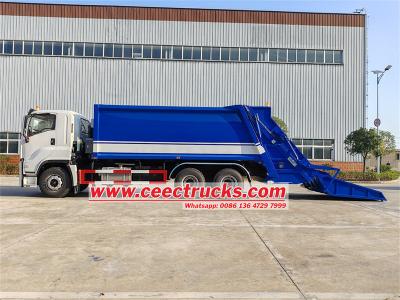

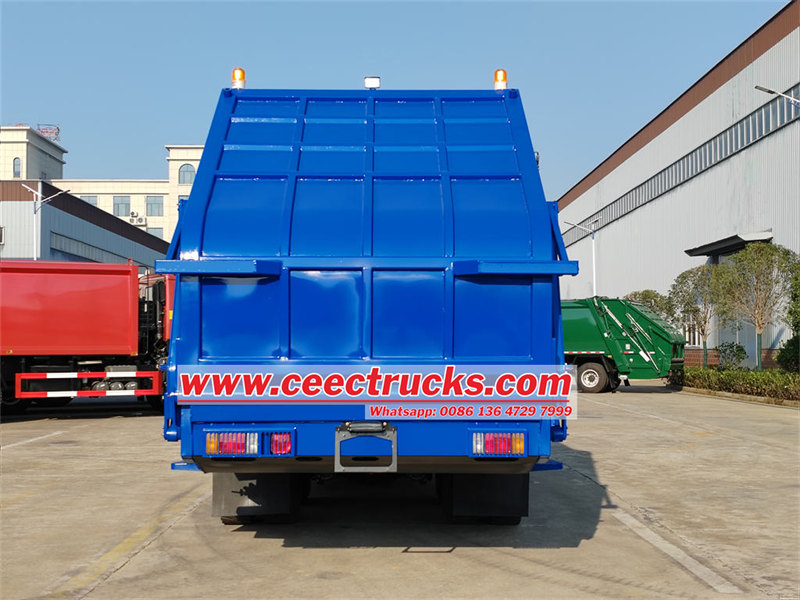

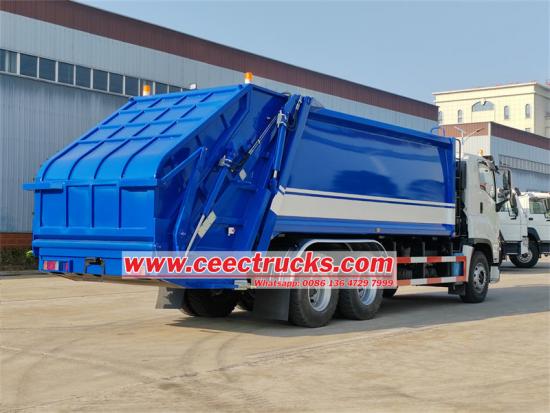

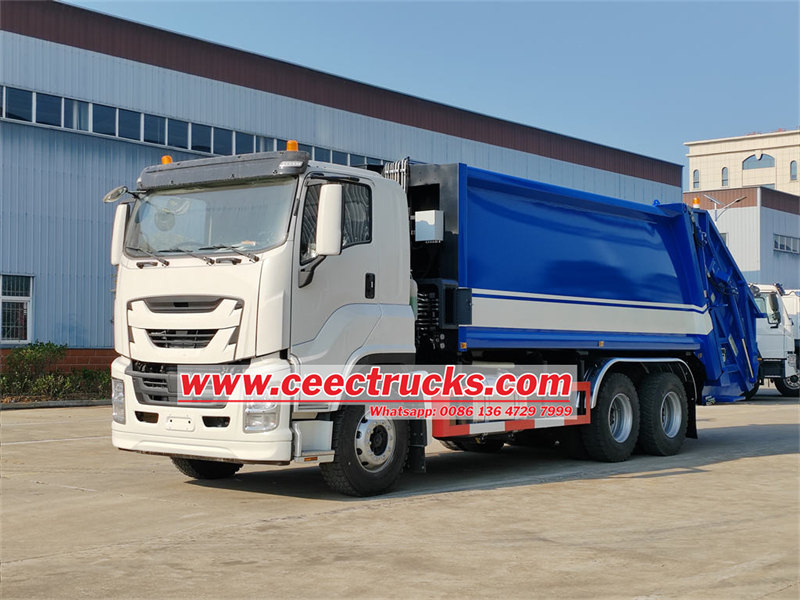

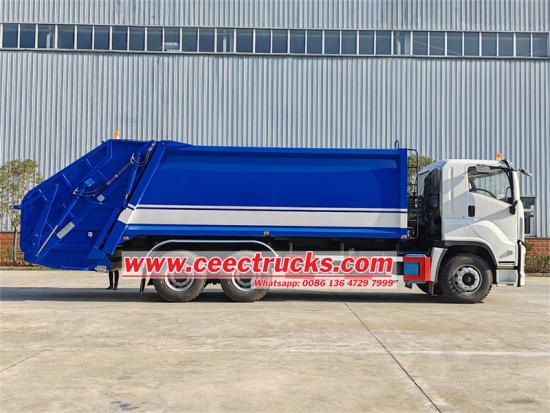

ISUZU GIGA 20CBM rear loader trash truck

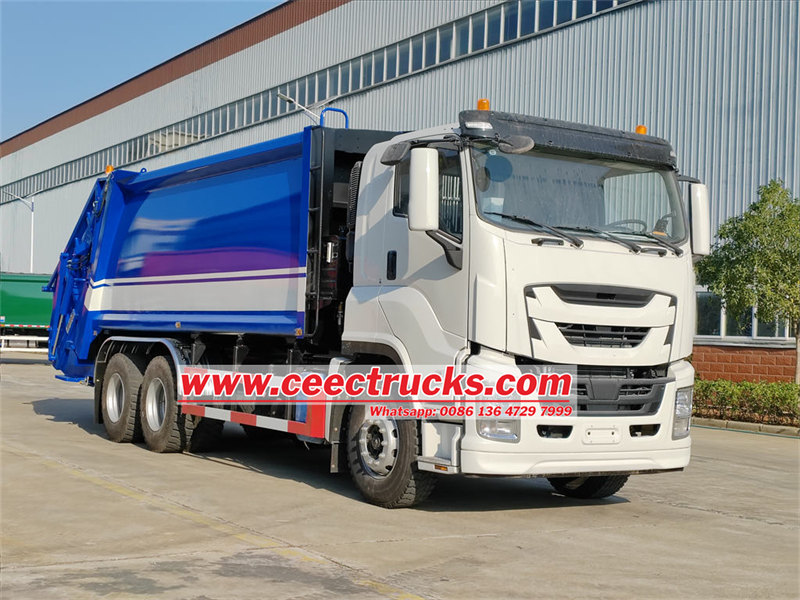

The ISUZU GIGA waste compactor truck is a specialized sanitation vehicle modified based on the ISUZU GIGA 6×4 chassis. It adopts advanced bidirectional compression technology to achieve efficient garbage compression and loading. This model is equipped with a 20CBM compactor made of T420 high-strength special steel, ensuring the vehicle's load-bearing capacity and service life. Additionally, according to customer requirements, the vehicle is fitted with a fully sealed floor-mounted garbage chute, enabling direct dumping and compression of garbage, making the operation simple and quick.

The ISUZU GIGA trash compactor truck is powered by an ISUZU 6UZ1-TCG61 engine, with a maximum power output of 380HP (279KW) and a displacement of 9839ml. The vehicle is equipped with a manual transmission with 12 forward gears and 2 reverse gears, along with transmission components such as a double universal joint driveshaft and a geared coupling flange, ensuring smooth power transmission and reliable vehicle operation. Furthermore, the vehicle features an enhanced multi-leaf spring suspension system (7 leaves in the front, 10 leaves in the rear) and a hydraulic power steering system, improving the vehicle's off-road capability and riding comfort. In terms of the braking system, the vehicle employs a dual-circuit compressed air braking system as the service brake, and is equipped with a spring-loaded compressed air-operated rear wheel parking brake (emergency brake) and an engine exhaust brake as auxiliary braking measures.

Product Features:

1. Advanced Bidirectional Compression Technology
The ISUZU GIGA garbage compactor truck utilizes bidirectional compression technology. This innovative design ensures that garbage receives uniform pressure from multiple directions during the compression process, achieving a higher compression ratio. With a compression ratio of 1:2.5 or more, the vehicle can load more garbage within the same volume, significantly improving transportation efficiency. Additionally, bidirectional compression technology helps reduce garbage breakage during compression, lowering the risk of secondary pollution.

2. High-Strength Special Steel Compactor Body

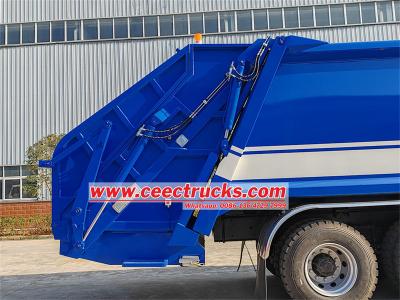

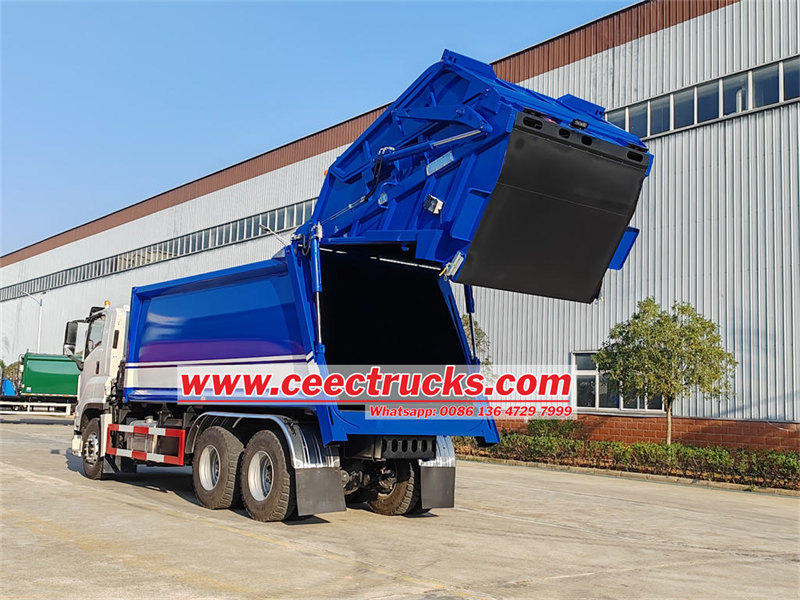

The compactor body is one of the core components of a rear loader. The ISUZU GIGA rear loader truck's compactor body is made of 6mm-thick T420 special steel, which possesses excellent impact resistance and corrosion resistance, capable of withstanding high-intensity compression operations. The compartment's sturdy structure not only extends the vehicle's service life but also ensures stability and safety during garbage compression.

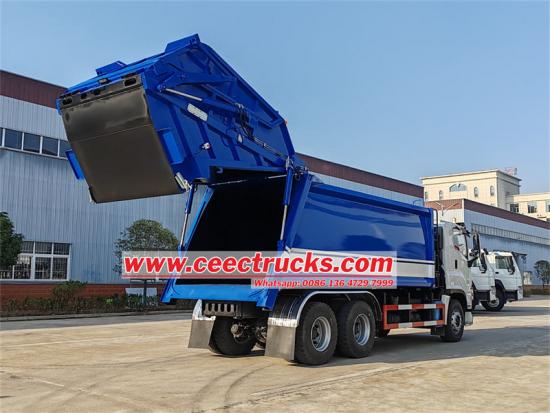

3. Fully Sealed Hooper

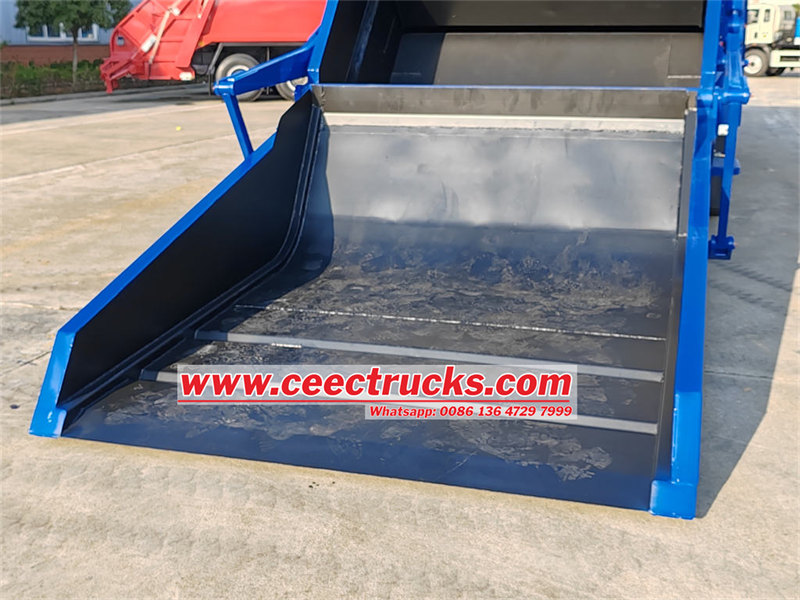

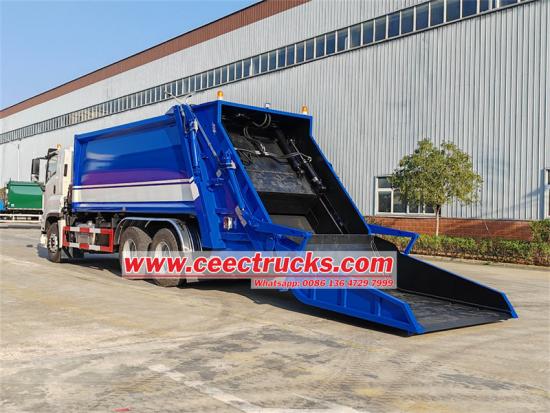

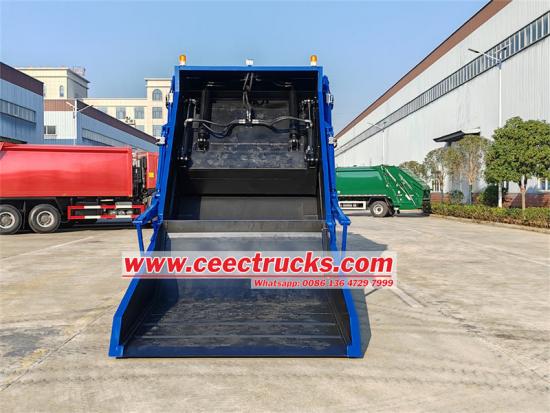

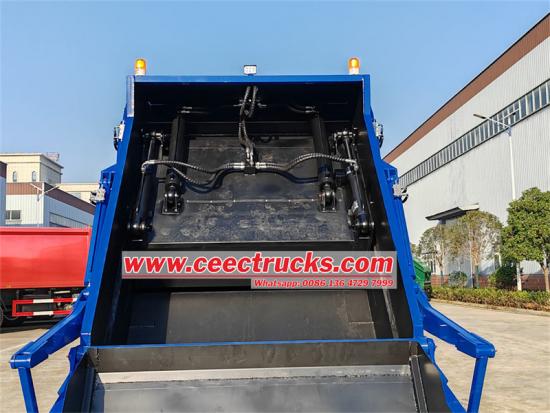

To meet specific customer needs, the ISUZU GIGA garbage compactor truck is equipped with a fully sealed floor hooper at the rear. This design allows garbage to be directly dumped into the chute without the need for additional loading equipment, greatly simplifying the operation process. Meanwhile, the fully sealed structure effectively prevents garbage leakage and scattering during transportation, avoiding secondary pollution.

4. Efficient Hydraulic System and Control System

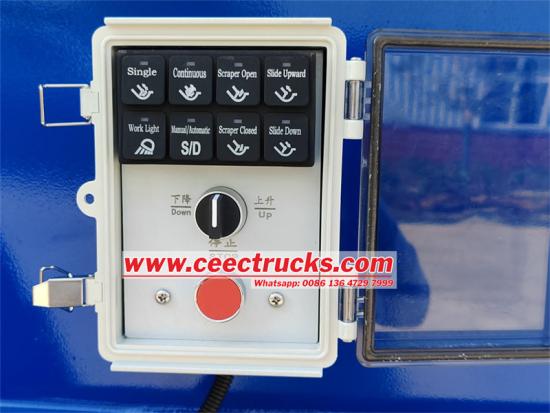

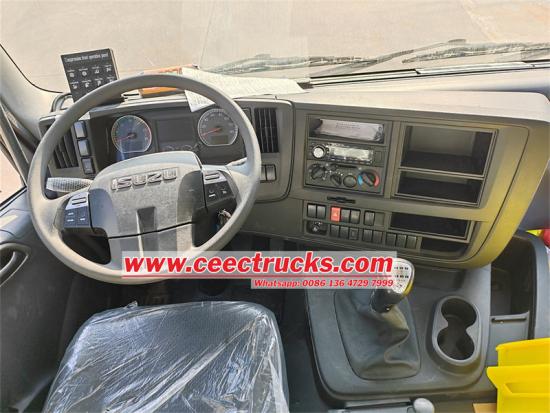

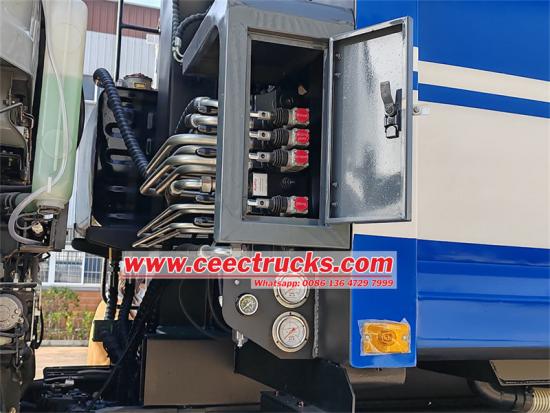

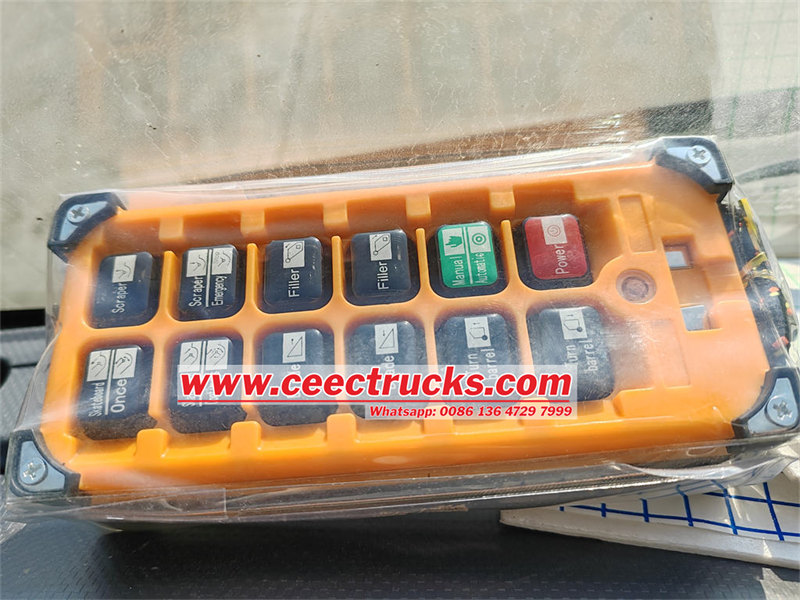

The ISUZU trash compactor truck is equipped with an efficient hydraulic system and an advanced control system. The hydraulic system has a working pressure of 20Mpa, ensuring smooth garbage compression and unloading processes. The control system offers both manual and automatic operation modes, allowing the driver to operate from within the cabin or at the rear of the vehicle, significantly enhancing work efficiency and convenience. Additionally, the vehicle is equipped with an emergency stop button to ensure safety in emergency situations.
